Never spill engine coolant on drive belts.
NOTE:
When removing only intake manifold, move electric
throttle control actuator without disconnecting the
water hoses.
7. Remove electric throttle control actuator. Loosen mounting bolts in reverse order as shown in the figure.
NOTE:
The figure shows the electric throttle control actuator viewed
from the air duct side.
CAUTION:
Handle carefully to avoid an y impact to electric throttle
control actuator.
Never disassemble.
8. Remove intake manifold, using a power tool. Loosen mounting bolts in reverse order as shown in the figure.
9. Remove intake manifold gaskets. CAUTION:
Cover engine openings to avoid entry of foreign materials.
10. Remove manifold absolute pressure (MAP) sensor, if necessary. CAUTION:
Handle carefully to avoid any impact to manifold absolute pressure (MAP) sensor.
INSTALLATION
Note the following item, and install in the reverse order of removal.
Intake Manifold
Tighten in numerical order as shown in the figure.
Electric Throttle Control Actuator
JPBIA2362ZZ
: Engine front
JPBIA3470ZZ
: Engine front
JPBIA3470ZZ
Revision: 2010 May2011 QX56
Page 2594 of 5598
EM-32
< REMOVAL AND INSTALLATION >
INTAKE MANIFOLD
Tighten in numerical order as shown in the figure.NOTE:
The figure shows the electric throttle control actuator viewed from
the air duct side.
Perform the “Throttle Valve Closed Position Learning” when har- ness connector of electric throttle control actuator is disconnected.
Refer to EC-147, "
Description".
Perform the “Idle Air Volume Learning” and “Throttle Valve Closed Position Learning” when electric throttle control actuator is
replaced. Refer to EC-148, "
Description" and EC-147, "Descrip-
tion".JPBIA2362ZZ
Revision: 2010 May2011 QX56
Page 2595 of 5598

ROCKER COVEREM-33
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M A
EM
NP
O
ROCKER COVER
Exploded ViewINFOID:0000000006289545
Removal and InstallationINFOID:0000000006289546
REMOVAL
1. Remove engine cover and bracket (rear). Refer to
EM-25, "Exploded View".
2. Disconnect PCV hose from rocker cover.
3. Remove air cleaner case (upper) and air duct. Refer to EM-27, "
Exploded View".
4. Move the following parts to the position without the hindrance for work. Oil level gauge guide. Refer to EM-57, "
Exploded View".
Power steering fluid reservoir tank bracket. Refer to ST-54, "
Exploded View".
EVAP canister purge control solenoid valve. EM-30, "
Exploded View".
Fuel feed hose. Refer to EM-43, "
Exploded View".
5. Remove VVEL actuator motor assembly. Refer to EM-36, "
Exploded View".
6. Remove ignition coil. Refer to EM-29, "
Exploded View".
CAUTION:
Never impact it.
7. Remove rocker cover.

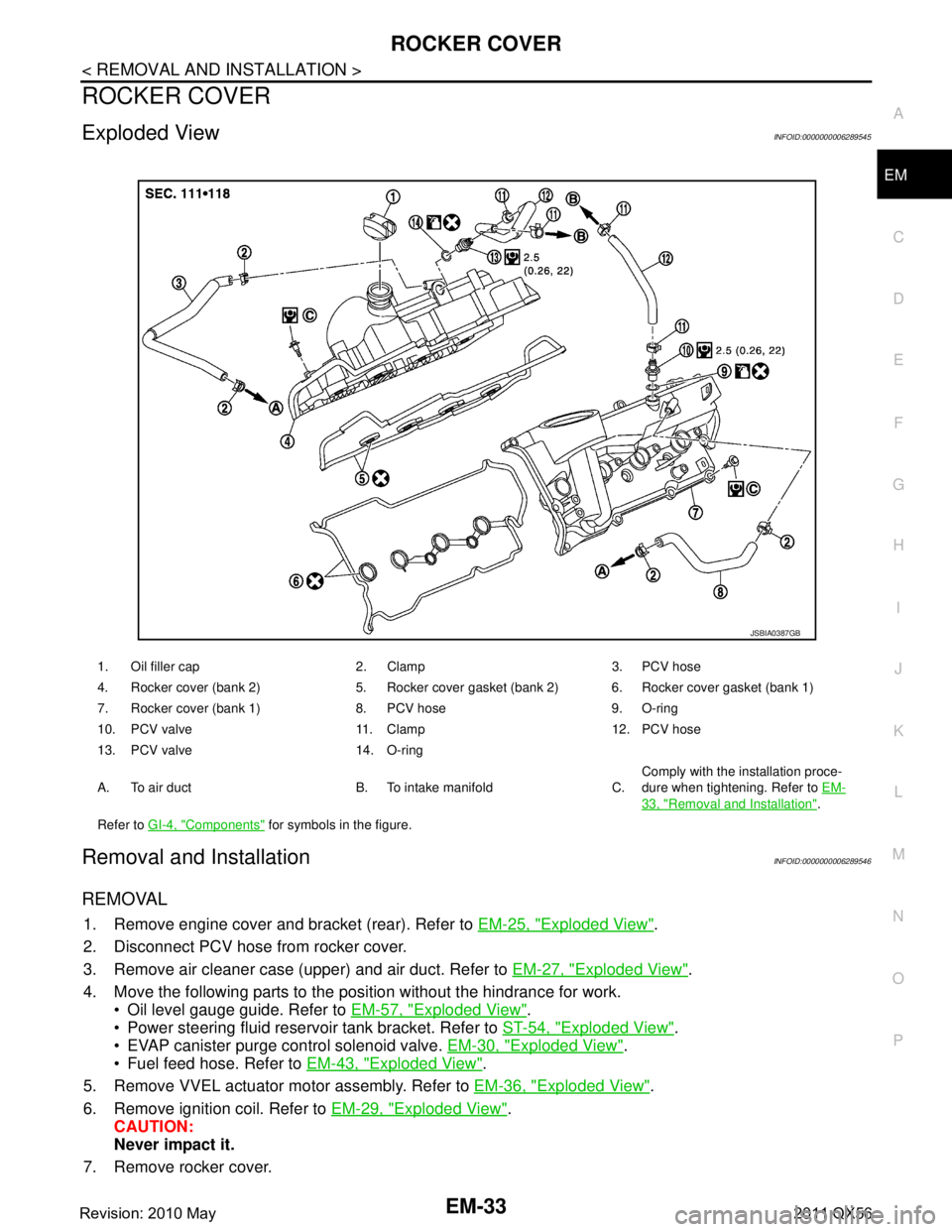

1. Oil filler cap 2. Clamp 3. PCV hose
4. Rocker cover (bank 2) 5. Rocker cover gasket (bank 2) 6. Rocker cover gasket (bank 1)
7. Rocker cover (bank 1) 8. PCV hose 9. O-ring
10. PCV valve 11. Clamp 12. PCV hose
13. PCV valve 14. O-ring
A. To air duct B. To intake manifold C. Comply with the installation proce-
dure when tightening. Refer to
EM-
33, "Removal and Installation".
Refer to GI-4, "
Components" for symbols in the figure.
JSBIA0387GB
Revision: 2010 May2011 QX56
Page 2596 of 5598

EM-34
< REMOVAL AND INSTALLATION >
ROCKER COVER
Loosen bolts in reverse order shown in the figure.
8. Remove rocker cover gasket from rocker cover.
9. Use scraper to remove all traces of liquid gasket from cylinder head & VVEL ladder assembly.
CAUTION:
Never scratch or damage the mating su rface when cleaning off old liquid gasket.
10. Remove PCV valve from rocker cover, if necessary.
11. Remove oil filler cap from rocker cover, if necessary.
INSTALLATION

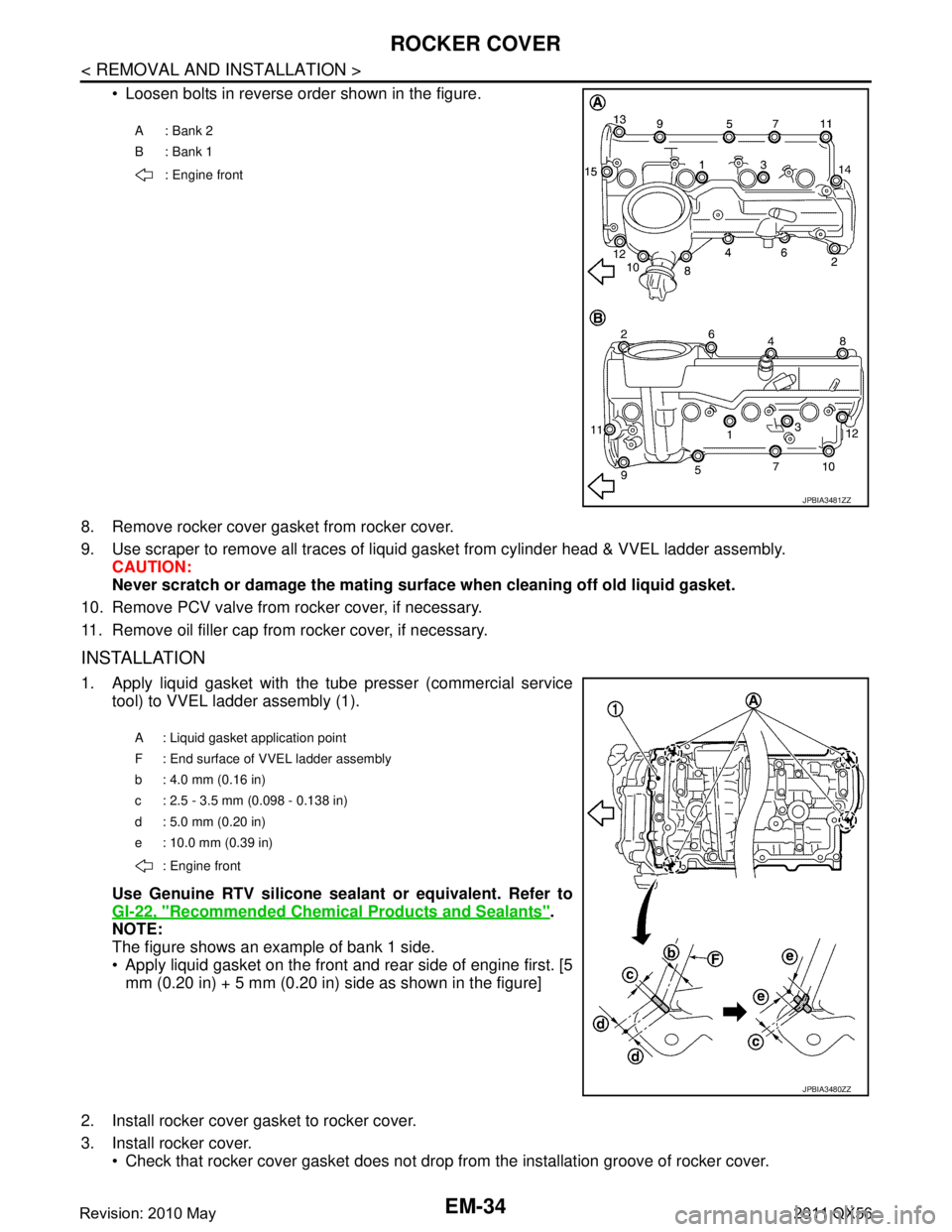

1. Apply liquid gasket with the tube presser (commercial service tool) to VVEL ladder assembly (1).
Use Genuine RTV silicone seal ant or equivalent. Refer to
GI-22, "
Recommended Chemical Products and Sealants".
NOTE:
The figure shows an example of bank 1 side.
Apply liquid gasket on the front and rear side of engine first. [5 mm (0.20 in) + 5 mm (0.20 in) side as shown in the figure]
2. Install rocker cover gasket to rocker cover.
3. Install rocker cover. Check that rocker cover gasket does not drop fr om the installation groove of rocker cover.
A: Bank 2
B: Bank 1
: Engine front
JPBIA3481ZZ
A : Liquid gasket application point
F : End surface of VVEL ladder assembly
b : 4.0 mm (0.16 in)
c : 2.5 - 3.5 mm (0.098 - 0.138 in)
d : 5.0 mm (0.20 in)
e : 10.0 mm (0.39 in)
: Engine front
JPBIA3480ZZ
Revision: 2010 May2011 QX56
Page 2597 of 5598
ROCKER COVEREM-35
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M A
EM
NP
O

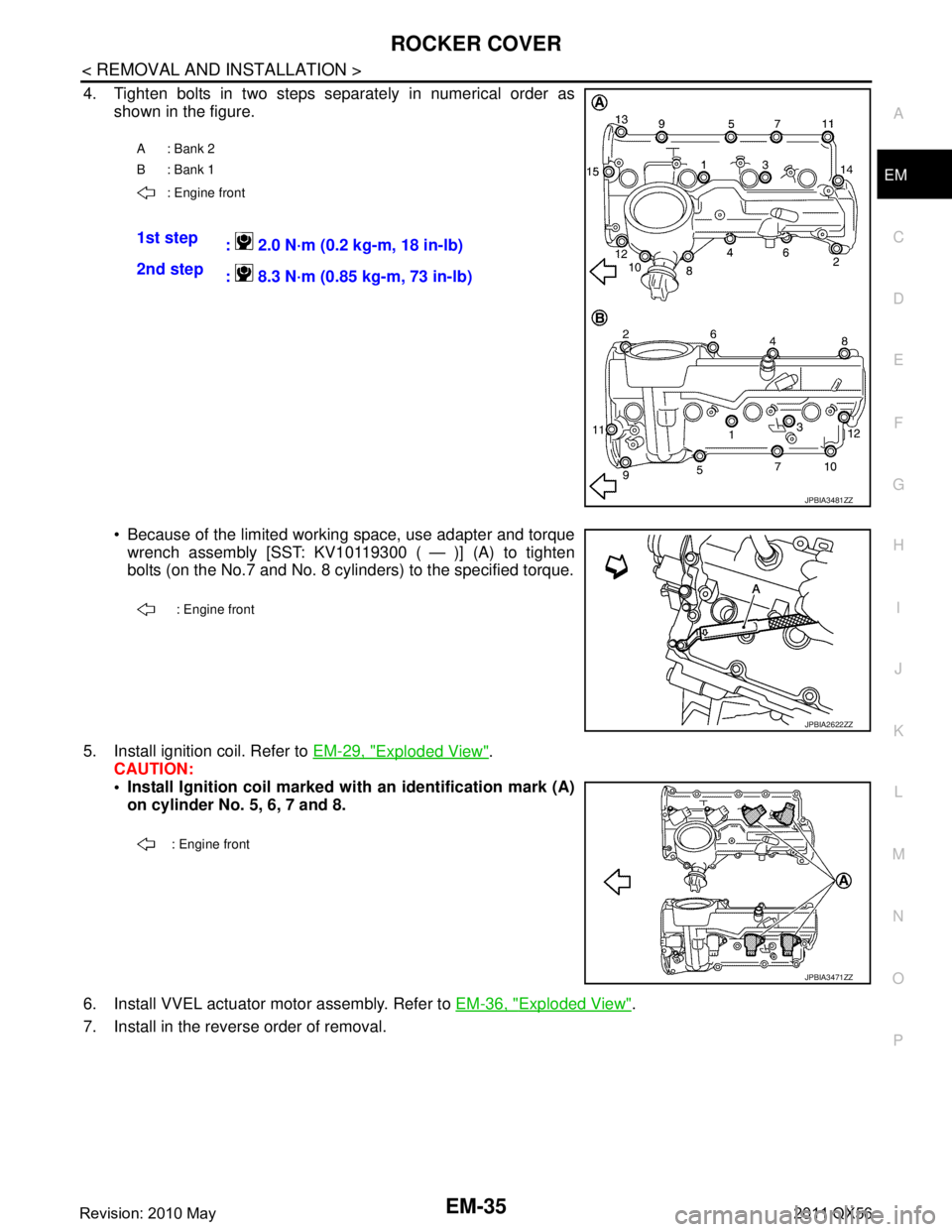

4. Tighten bolts in two steps separately in numerical order as
shown in the figure.
Because of the limited working space, use adapter and torquewrench assembly [SST: KV10119300 ( — )] (A) to tighten
bolts (on the No.7 and No. 8 cylinders) to the specified torque.
5. Install ignition coil. Refer to EM-29, "
Exploded View".
CAUTION:
Install Ignition coil marked with an identification mark (A)
on cylinder No. 5, 6, 7 and 8.
6. Install VVEL actuator motor assembly. Refer to EM-36, "
Exploded View".
7. Install in the reverse order of removal.
A: Bank 2
B: Bank 1
: Engine front
1st step : 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step : 8.3 N·m (0.85 kg-m, 73 in-lb)
JPBIA3481ZZ
: Engine front
JPBIA2622ZZ
: Engine front
JPBIA3471ZZ
Revision: 2010 May2011 QX56
Page 2598 of 5598
EM-36
< REMOVAL AND INSTALLATION >
VVEL ACTUATOR ASSEMBLY
VVEL ACTUATOR ASSEMBLY
Exploded ViewINFOID:0000000006289547
Removal and InstallationINFOID:0000000006289548
REMOVAL
1. Remove engine cover. Refer to EM-25, "Exploded View".
1.VVEL actuator motor assembly
(bank 2) 2. Gasket 3.
VVEL actuator ho
using assembly
(bank 2)
4. Washer 5. VVEL ladder as sembly (bank 2) 6. Exhaust camshaft (bank 2)
7. Cylinder head (bank 2) 8. Cylinder head (bank 1) 9. Exhaust camshaft (bank 1)
10. VVEL ladder assembly (bank 1) 11. VVEL actuator housing assembly
(bank 1)12. Gasket
13. VVEL actuator motor assembly
(bank 1) 14.
VVEL control shaft
position sensor
(bank 1) 15.
VVEL control shaft
position sensor
(bank 2)
A. Comply with the installation proce-
dure when tightening. Refer to
EM-
75, "Removal and Installation".B. View B C. View C
Refer to GI-4, "
Components" for symbols in the figure.
JSBIA0403GB
Revision: 2010 May2011 QX56
Page 2599 of 5598
VVEL ACTUATOR ASSEMBLYEM-37
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M A
EM
NP
O

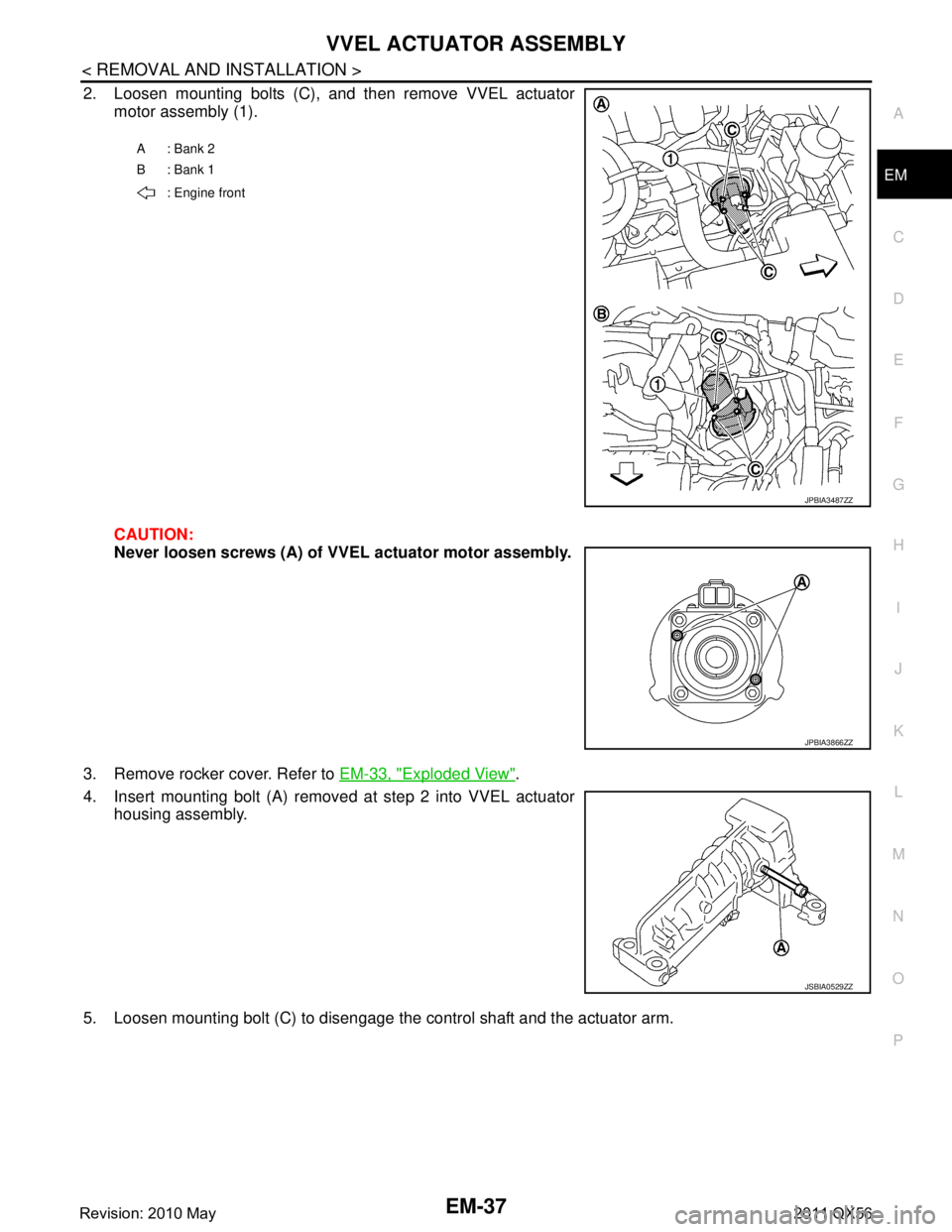

2. Loosen mounting bolts (C), and then remove VVEL actuator
motor assembly (1).
CAUTION:
Never loosen screws (A) of VVEL actuator motor assembly.
3. Remove rocker cover. Refer to EM-33, "
Exploded View".
4. Insert mounting bolt (A) removed at step 2 into VVEL actuator housing assembly.
5. Loosen mounting bolt (C) to disengage the control shaft and the actuator arm.
A: Bank 2
B: Bank 1 : Engine front
JPBIA3487ZZ
JPBIA3866ZZ
JSBIA0529ZZ
Revision: 2010 May2011 QX56
Page 2600 of 5598
EM-38
< REMOVAL AND INSTALLATION >
VVEL ACTUATOR ASSEMBLY
6. Loosen mounting bolts (C), and then remove VVEL actuator housing assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.

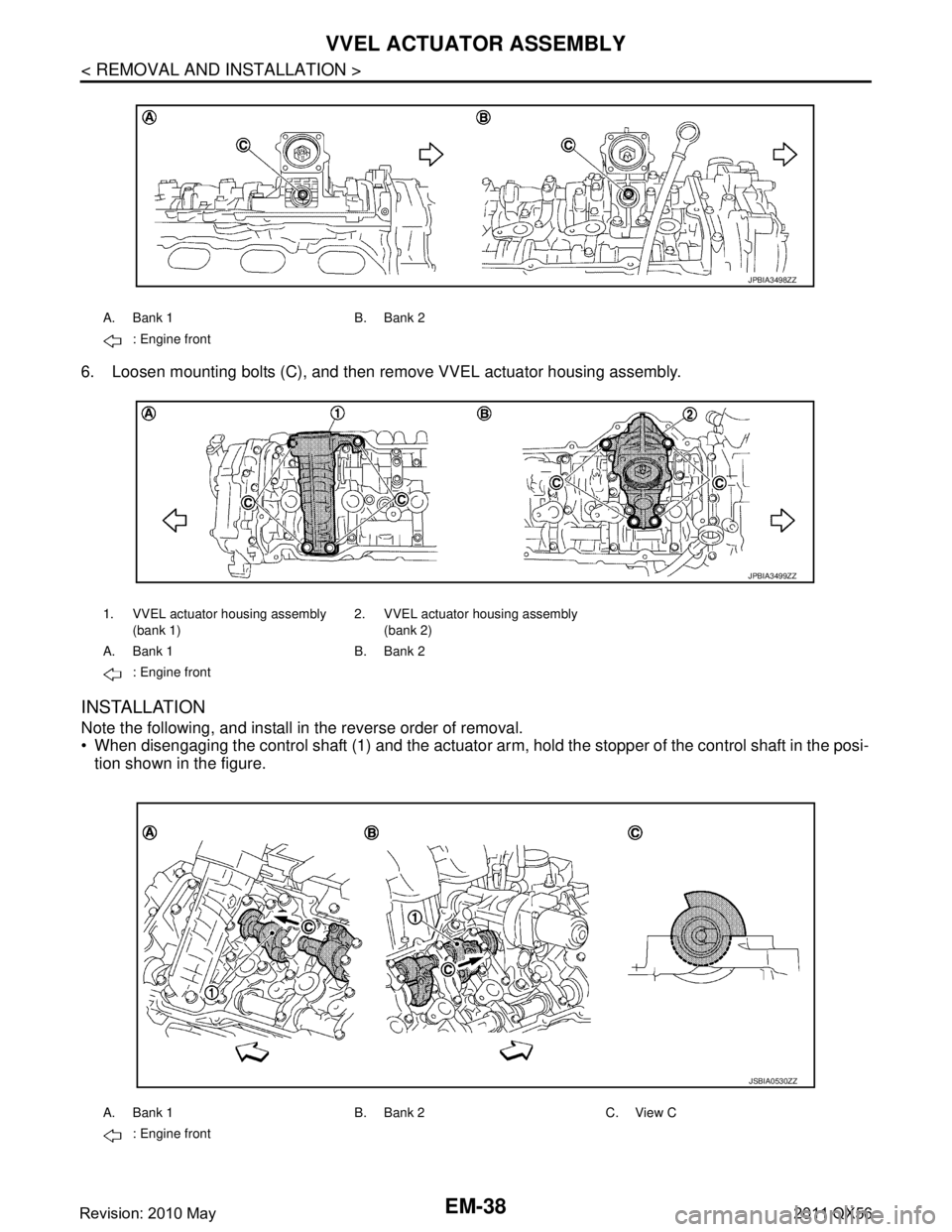

When disengaging the control shaft (1) and the actuator arm, hold the stopper of the control shaft in the posi-
