Page 1369 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-404
< REMOVAL AND INSTALLATION >[LDW & LDP]
WARNING SYSTEMS SWITCH
WARNING SYSTEMS SWITCH
Removal and InstallationINFOID:0000000006223844
REMOVAL
1. Remove the instrument lower panel (LH). Refer

Page 1370 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
DYNAMIC DRIVER ASSISTANCE SWITCHDAS-405
< REMOVAL AND INSTALLATION > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
DYNAMIC DRIVER ASSISTANCE SWITCH
Exploded ViewINFOID:0000000006223845
Dynamic driver

Page 1371 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-406
< REMOVAL AND INSTALLATION >[LDW & LDP]
WARNING BUZZER
WARNING BUZZER
Removal and InstallationINFOID:0000000006223846
REMOVAL
1. Remove the instrument lower panel (LH). Refer to
IP-14, "Remo

Page 1372 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
PRECAUTIONSDAS-407
< PRECAUTION > [BSW]
C
D
E
F
G H
I
J
K L
M B
N P A
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:00

DAS
PRECAUTIONSDAS-407
< PRECAUTION > [BSW]
C
D
E
F
G H
I
J
K L
M B
N P A
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000006223847
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.
WARNING:
To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision that would result in air ba g inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.
Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the
ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.
When using air or electric power tools or hammers , always switch the ignition OFF, disconnect the
battery, and wait at least 3 minutes before performing any service.
Precaution for BSW System ServiceINFOID:0000000006223848
WARNING:
Be careful of traffic conditions and safety aro und the vehicle when performing road test.
CAUTION:
Never perform the active test while driving.
Never change BSW initial state ON ⇒ OFF without the consent of the customer.
TO KEEP THE BSW SYSTEM OPERATING PROPERLY, BE SURE TO OBSERVE THE FOLLOW-
ING ITEMS:
System Maintenance
The two side radar for the BSW system are located near the rear bumper.
Always keep the area near the side radar clean.
Do not attach stickers (including transparent material ), install accessories or apply additional paint near the
side radar.
Do not strike or damage the area around the side radar.
Revision: 2010 May2011 QX56

Page 1373 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-408
< SYSTEM DESCRIPTION >[BSW]
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS

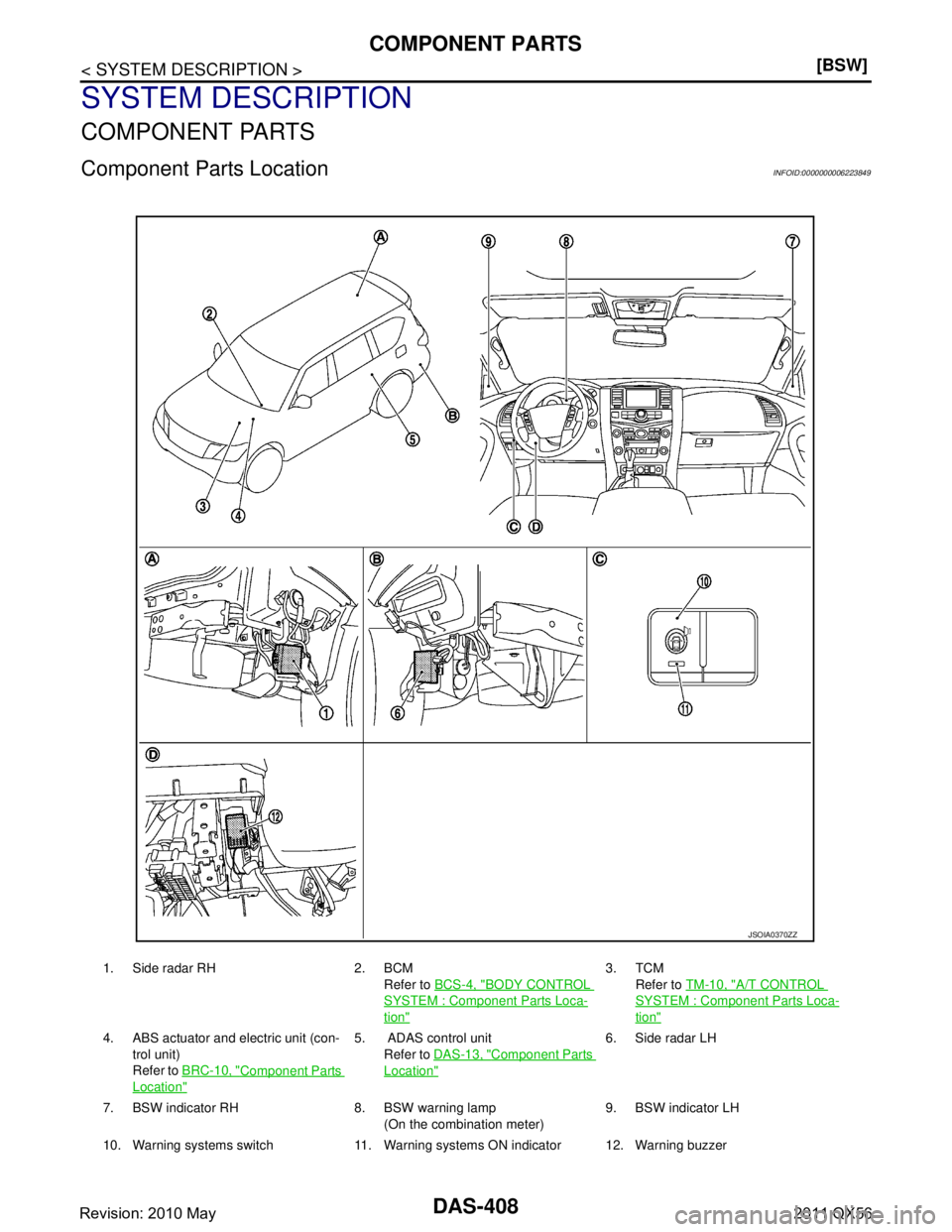

Component Parts LocationINFOID:0000000006223849
1. Side radar RH 2. BCM
Refer to BCS-4, "
BODY CONTROL
SYSTEM :

Page 1374 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
COMPONENT PARTSDAS-409
< SYSTEM DESCRIPTION > [BSW]
C
D
E
F
G H
I
J
K L
M B
N P A
Component DescriptionINFOID:0000000006223850
A. Rear bumper removed condition B. Rear bumper removed condition C.

Page 1375 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-410
< SYSTEM DESCRIPTION >[BSW]
SYSTEM
SYSTEM
System DescriptionINFOID:0000000006223851

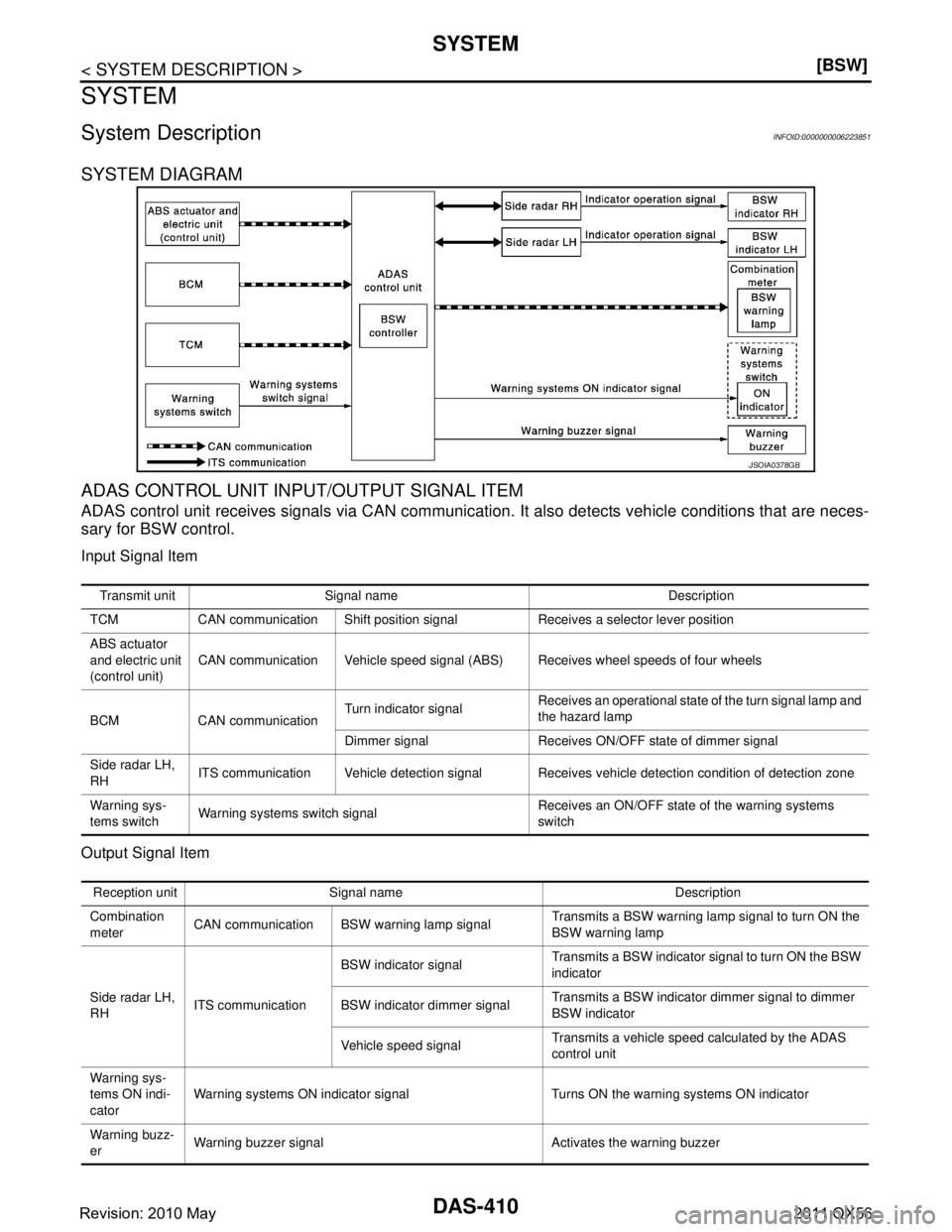

SYSTEM DIAGRAM
ADAS CONTROL UNIT INPU
T/OUTPUT SIGNAL ITEM
ADAS control unit receives signals via CAN commu

Page 1376 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
SYSTEM
DAS-411
< SYSTEM DESCRIPTION >[BSW]
C
D
E
F
G H
I
J
K L
M B
N P A
FUNCTION DESCRIPTION
The BSW system can help alert the driver of ot her vehicles in adjacent lanes when changing lanes.

DAS
SYSTEM
DAS-411
< SYSTEM DESCRIPTION >[BSW]
C
D
E
F
G H
I
J
K L
M B
N P A
FUNCTION DESCRIPTION
The BSW system can help alert the driver of ot her vehicles in adjacent lanes when changing lanes.
The BSW system uses side radar in stalled near the rear bumper to detect vehicles in an adjacent lane.
The side radar can detect vehicles on either side of v ehicle within the detection zone shown as illustrated.
This detection zone starts from the outside mirror of vehicle and extends approximately 10 ft (3.0 m) behind
the rear bumper, and approximately 10 ft (3.0 m) sideways.
The BSW system operates above appr oximately 32 km/h (20 MPH).
If the side radar detects vehicles in the detection zone, the BSW indicator illuminates.
If the driver then activates the turn signal, a buzzer will sound twice and the BSW indicator will blink. NOTE:
A buzzer sounds if the side radar have already detected vehicles when the driver activates the turn signal. If
a vehicle comes into the detection zone after the driver activates the turn signal, then only the BSW indicator
blinks and no buzzer sounds.
BSW SYSTEM OPERATION DESCRIPTION
ADAS control unit enables BSW system.
The ADAS control unit turns on the BSW system w hen the warning systems switch is turned ON.
Side radar detects a vehicle in the adjacent lane, and transmits the vehicle detection signal to ADAS control
unit via ITS communication.
ADAS control unit starts the control as follows, bas ed on a vehicle detection signal, turn signal and dimmer
signal transmitted from BCM via CAN communication:
- BSW indicator signal and BSW indicator dimmer signal transmission to side radar.
- Buzzer signal transmission to warning buzzer.
Side radar transmits an indicator operation signal to the BSW indicator according to BSW indicator signal
and BSW indicator dimmer signal.
Operation Condition of BSW System
ADAS control unit performs the control when the following conditions are satisfied.
When the warning systems switch in turned ON.
When the vehicle drives at approximately 32 km/h (20 MPH) or more to the forward direction.
JSOIA0257GB
JSOIA0258GB
Revision: 2010 May2011 QX56
