INFINITI QX56 2011 Factory Service Manual
DAS-276
< SYSTEM DESCRIPTION >[LDW & LDP]
COMPONENT PARTS
LANE DEPARTURE PREVENTION (LDP ) SYSTEM : Component Description
INFOID:0000000006223703
Component Description
ADAS control unit Judges lane

DAS-276
< SYSTEM DESCRIPTION >[LDW & LDP]
COMPONENT PARTS
LANE DEPARTURE PREVENTION (LDP ) SYSTEM : Component Description
INFOID:0000000006223703
Component Description
ADAS control unit Judges lane departure based on each signal and calculates yaw moment necessary to generate
force toward the direction to recover the vehicle from the lane departure
Outputs the warning buzzer signal to the warning buzzer
Transmits a target yaw moment signal to the ABS actuator and electric unit (control unit) via CAN communication
Transmits the lane departure warning lamp signal and LDP ON indicator lamp signal to combina- tion meter via CAN communication
Lane camera unit Detects the lane marker in travel lane
Transmits the detected lane condition signal to ADAS control unit via ITS communication
ABS actuator and electric unit
(control unit) Transmits the vehicle speed signal (wheel speed) to ADAS control unit via CAN communication
Transmits the yaw rate signal and side G sensor signal to ADAS control unit via CAN communi-
cation
Receives a target yaw moment signal from the ADAS control unit via CAN communication and
controls brake pressure of four wheels, respectively
Warning buzzer Activates the warning buzzer, according to a warning buzzer signal received from the ADAS control
unit
Dynamic driver assistance
switch
(On the ICC steering switch) ECM receives an ICC steering switch (dynamic driver assistance switch) signal and transmits the
signal to ADAS control unit via CAN communication
Combination meter Turns on the following indicator/warning lamp, according to a signal received for the ADAS control
unit via CAN communication
LDP ON indicato
r lamp (Green)
Lane departure warning lamp (Yellow)
BCM Transmits the turn indicator signal to ADAS control unit via CAN communication
ECM Transmits the accelerator pedal position signal, engine speed signal and ICC steering switch signal
(dynamic driver assistance switch signal) to ADAS control unit via CAN communication
Steering angle sensor Transmits the steering angle sensor signal to ADAS control unit via CAN communication
TCM Transmits the output shaft revolution signal, input speed signal, current gear position signal and shift
position signal to ADAS control unit via CAN communication
Transfer control unit Transmits the current 4WD mode signal to ADAS control unit via CAN communication
AV control unit Transmits the system selection signal to ADAS control unit via CAN communication
Revision: 2010 May2011 QX56

Page 1242 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
SYSTEM
DAS-277
< SYSTEM DESCRIPTION >[LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A

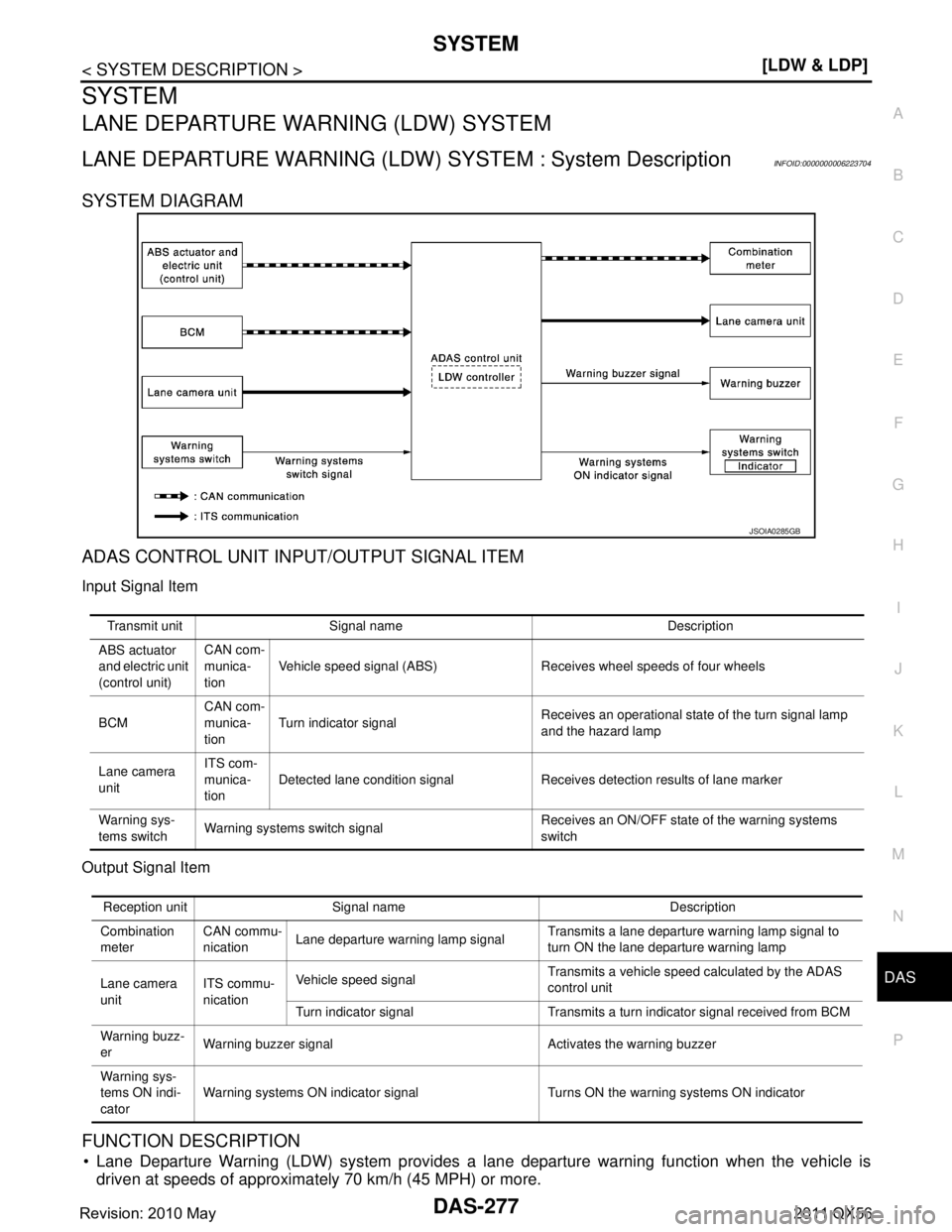

SYSTEM
LANE DEPARTURE WARNING (LDW) SYSTEM
LANE DEPARTURE WARNING (LDW ) SYSTEM : System DescriptionINFOID:000000000

Page 1243 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-278
< SYSTEM DESCRIPTION >[LDW & LDP]
SYSTEM
When the vehicle approaches either the left or the ri
ght side of the traveling lane, a warning will sound and
the lane departure warning lamp (yell

DAS-278
< SYSTEM DESCRIPTION >[LDW & LDP]
SYSTEM
When the vehicle approaches either the left or the ri
ght side of the traveling lane, a warning will sound and
the lane departure warning lamp (yellow) on the combination meter will blink to alert the driver.
The warning does not occur during turn signal operation (Lane change side).
The warning function will stop when the vehicle returns inside of the lane markers.

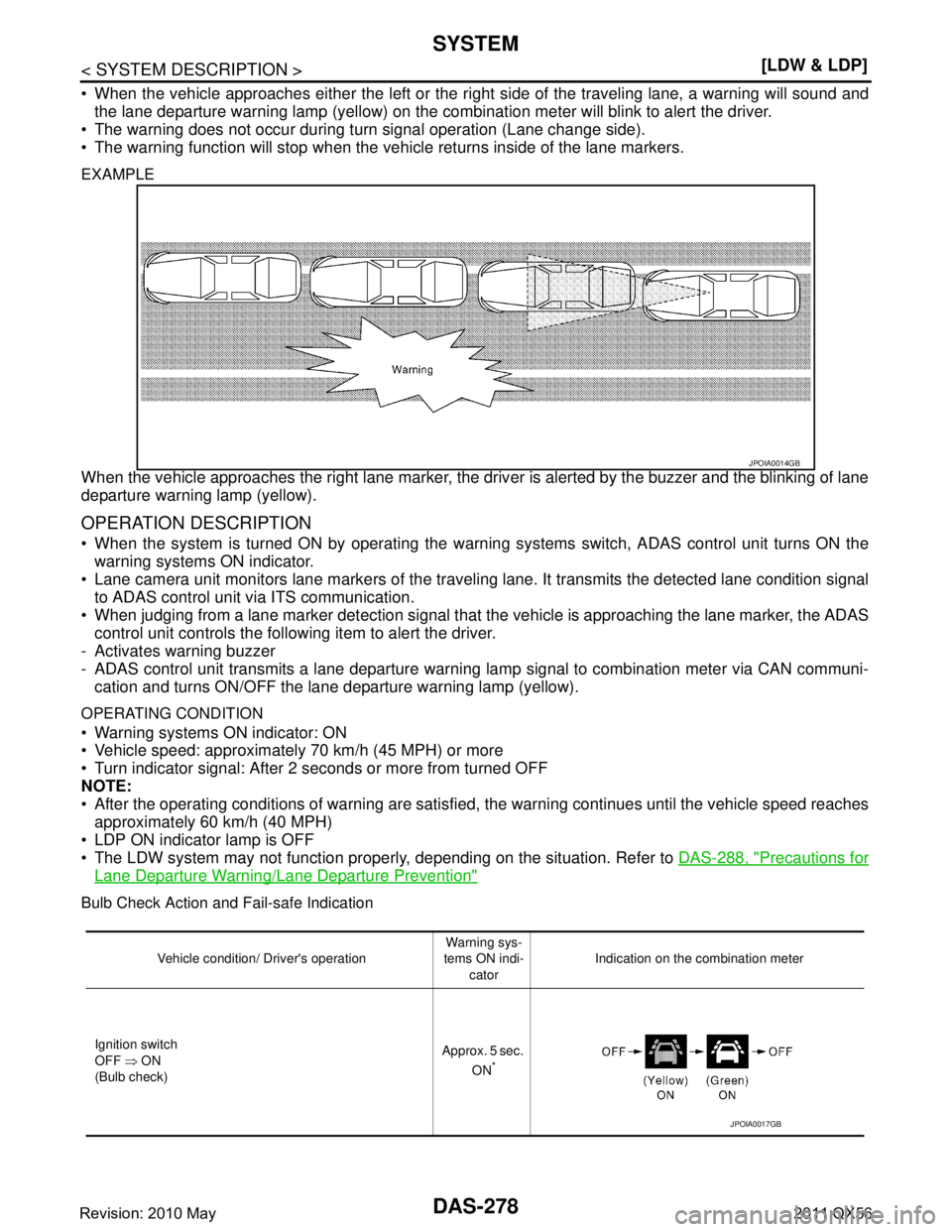

EXAMPLE
When the vehicle approaches the right lane marker, the driv er is alerted by the buzzer and the blinking of lane
departure warning lamp (yellow).
OPERATION DESCRIPTION
When the system is turned ON by operating the warning systems switch, ADAS control unit turns ON the
warning systems ON indicator.
Lane camera unit monitors lane markers of the traveling lane. It transmits the detected lane condition signal
to ADAS control unit via ITS communication.
When judging from a lane marker detection signal that the vehicle is approaching the lane marker, the ADAS
control unit controls the following item to alert the driver.
- Activates warning buzzer
- ADAS control unit transmits a lane departure warning lamp signal to combination meter via CAN communi- cation and turns ON/OFF the lane departure warning lamp (yellow).
OPERATING CONDITION
Warning systems ON indicator: ON
Vehicle speed: approximately 70 km/h (45 MPH) or more
Turn indicator signal: After 2 seconds or more from turned OFF
NOTE:
After the operating conditions of warning are satisfi ed, the warning continues until the vehicle speed reaches
approximately 60 km/h (40 MPH)
LDP ON indicator lamp is OFF
The LDW system may not function proper ly, depending on the situation. Refer to DAS-288, "
Precautions for
Lane Departure Warning/Lane Departure Prevention"
Bulb Check Action and Fail-safe Indication
JPOIA0014GB
Vehicle condition/ Driver's operation Warning sys-
tems ON indi- cator Indication on the combination meter
Ignition switch
OFF ⇒ ON
(Bulb check) Approx. 5 sec.
ON
*
JPOIA0017GB
Revision: 2010 May2011 QX56

Page 1244 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
SYSTEM
DAS-279
< SYSTEM DESCRIPTION >[LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
NOTE:
*: If LDW initial state is ON, warning systems ON indicator continues turned ON.
LDW INITIAL STATE CHANGE
CAU

DAS
SYSTEM
DAS-279
< SYSTEM DESCRIPTION >[LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
NOTE:
*: If LDW initial state is ON, warning systems ON indicator continues turned ON.
LDW INITIAL STATE CHANGE
CAUTION:
Never change LDW initial state “ON” ⇒ “OFF” without the con sent of the customer.
LDW initial state can be changed.
LDW initial ON* - LDW function is automatically turned ON, when the ignition switch OFF ⇒ ON.
LDW initial OFF - LDW function is st ill OFF when the ignition switch OFF ⇒ ON.
*: Factory setting
How to change FCW/LDW/BSW initial state
1. Turn ignition switch ON.
2. Warning systems switch is OFF.
3. Push and hold warning systems switch for more than 4 seconds.
4. Buzzer sounds and blinking of the warning systems ON indicator informs that the FCW/LDW/BSW initial
state change is completed.
LANE DEPARTURE WARNING (LDW) SYSTE M : Fail-safe (ADAS Control Unit)
INFOID:0000000006223705
If a malfunction occurs in each system, ADAS control unit cancels eac h control, sounds a beep, and turns ON
the warning lamp or indicator lamp.

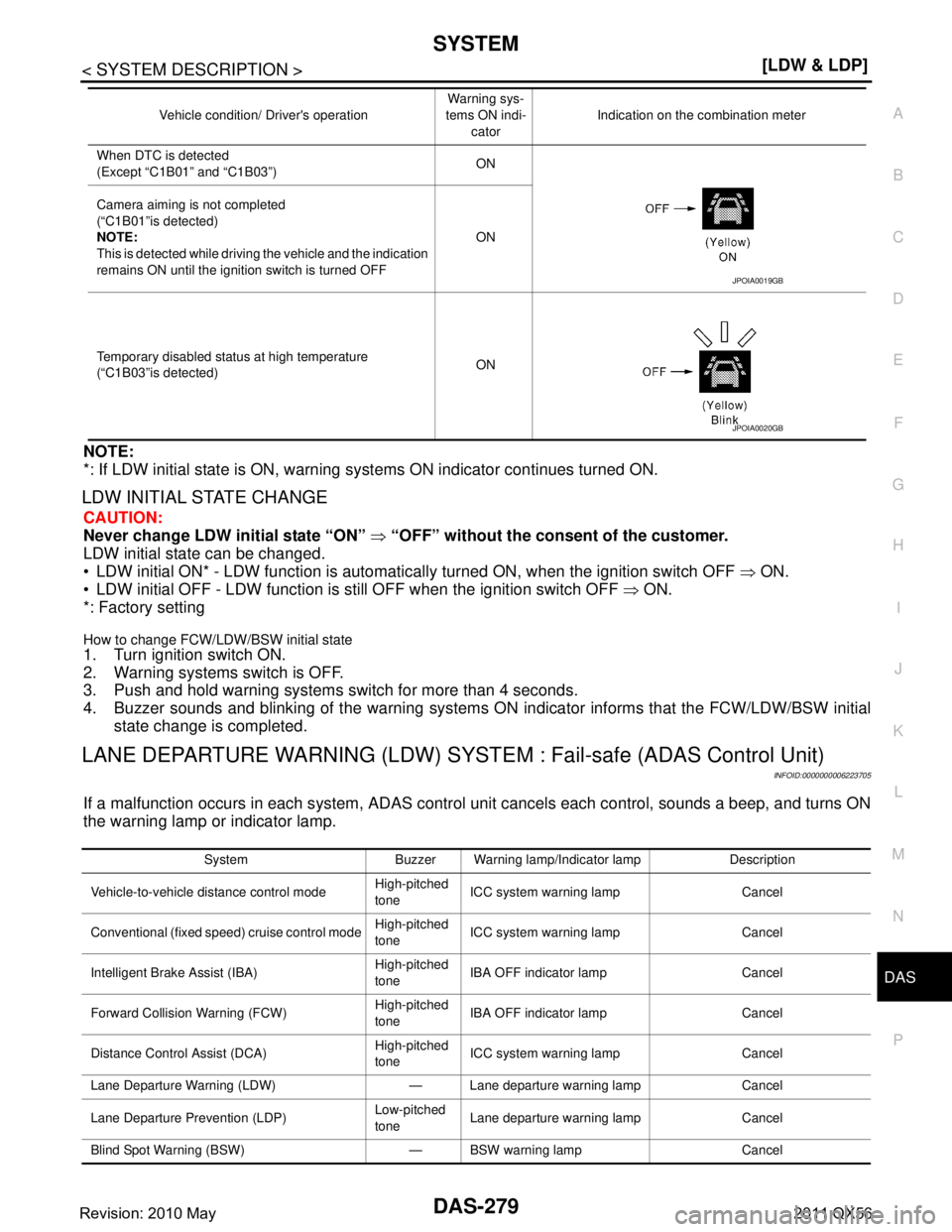

When DTC is detected
(Except “C1B01” and “C1B03”) ON
Camera aiming is not completed
(“C1B01”is detected)
NOTE:
This is detected while driving the vehicle and the indication
remains ON until the ignition switch is turned OFF ON
Temporary disabled status at high temperature
(“C1B03”is detected) ON
Vehicle condition/ Driver's operation
Warning sys-
tems ON indi-
cator Indication on the combination meter
JPOIA0019GB
JPOIA0020GB
System Buzzer Warning lamp/Indicator lamp Description
Vehicle-to-vehicle distance control mode High-pitched
toneICC system warning lamp Cancel
Conventional (fixed speed) cruise control mode High-pitched
toneICC system warning lamp Cancel
Intelligent Brake Assist (IBA) High-pitched
tone
IBA OFF indicator lamp Cancel
Forward Collision Warning (FCW) High-pitched
toneIBA OFF indicator lamp Cancel
Distance Control Assist (DCA) High-pitched
toneICC system warning lamp Cancel
Lane Departure Warning (LDW) — Lane departure warning lamp Cancel
Lane Departure Prevention (LDP) Low-pitched
tone
Lane departure warning lamp Cancel
Blind Spot Warning (BSW) — BSW warning lamp Cancel
Revision: 2010 May2011 QX56

Page 1245 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-280
< SYSTEM DESCRIPTION >[LDW & LDP]
SYSTEM
LANE DEPARTURE WARNING (LDW) SYSTEM : Fail-safe (Lane Camera Unit)
INFOID:0000000006223706
FAIL-SAFE CONTROL BY DTC
If a malfunction occurs in the la

Page 1246 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
SYSTEM
DAS-281
< SYSTEM DESCRIPTION >[LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A

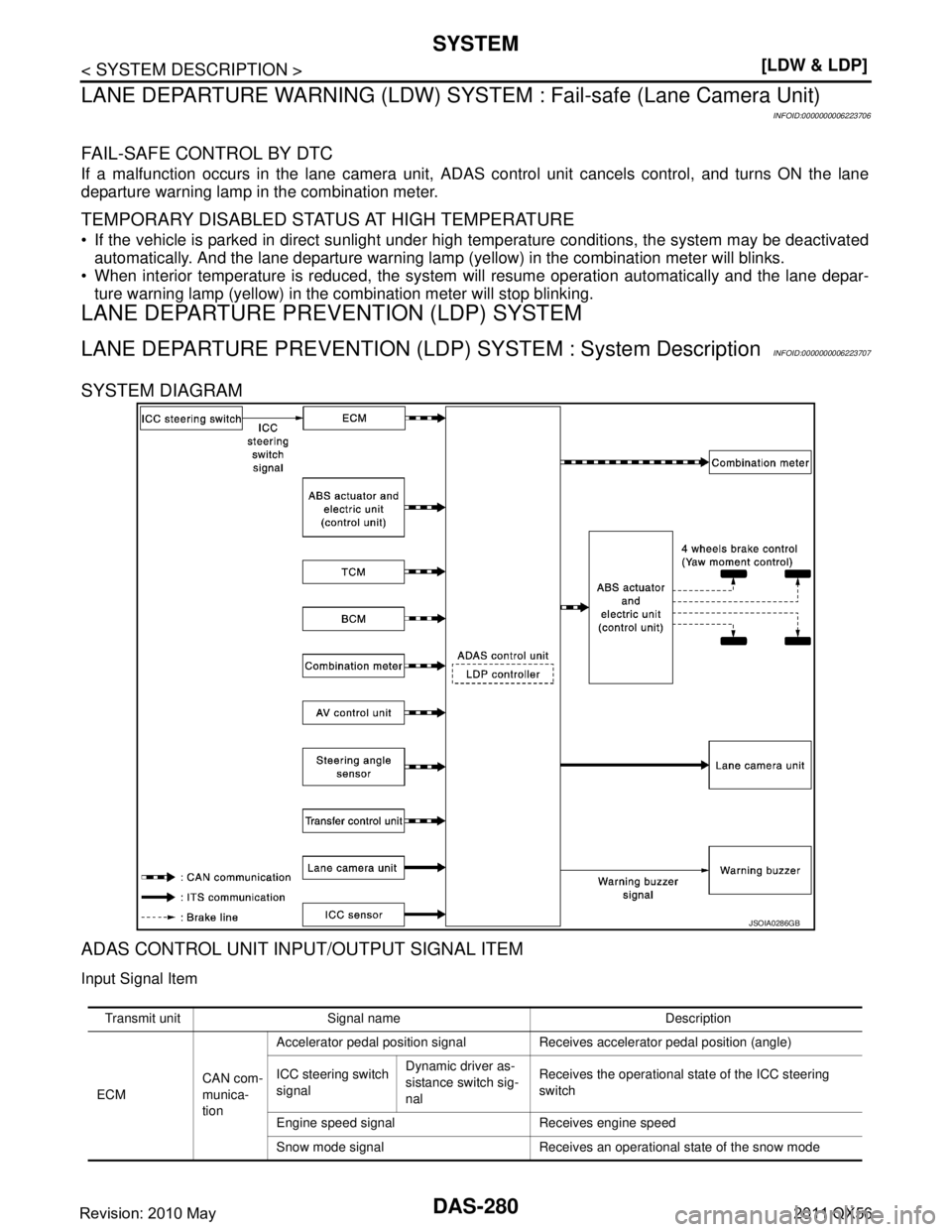

Output Signal Item
TCM CAN com-
munica-
tionInput speed signal Receives the number of revolutions of input shaft
Cur

DAS
SYSTEM
DAS-281
< SYSTEM DESCRIPTION >[LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
Output Signal Item
TCM CAN com-
munica-
tionInput speed signal Receives the number of revolutions of input shaft
Current gear position signal Receives a current gear position
Shift position signal Receives a selector lever position
Output shaft revolution signal Receives the number of revolutions of output shaft
ABS actuator
and electric unit
(control unit) CAN com-
munica-
tionABS malfunction signal Receives
a malfunction state of ABS
ABS operation signal Receives an operational state of ABS
TCS malfunction signal Receives a malfunction state of TCS
TCS operation signal Receives an operational state of TCS
VDC OFF switch signal Receives an ON/OFF state of VDC
VDC malfunction signal Receives a malfunction state of VDC
VDC operation signal Receives an operational state of VDC
Vehicle speed signal (ABS) Receives wheel speeds of four wheels
Yaw rate signal Receives yaw rate acting on the vehicle
Side G sensor signal Receives lateral G acting on the vehicle
Combination
meter CAN com-
munica-
tion
Parking brake switch signal Receives an operational state of the parking brake
BCM CAN com-
munica-
tion
Turn indicator signal
Receives an operational state of the turn signal lamp
and the hazard lamp
Steering angle
sensor CAN com-
munica-
tionSteering angle sensor malfunction signal Receives a malfunction state of steering angle sensor
Steering angle sensor signal
Receives the number of revolutions, turning direction of
the steering wheel
Steering angle speed signal Receives the turning angle speed of the steering wheel
AV control unit CAN com-
munica-
tion
System selection signal
Receives a selection state of each item in “Driver Assis-
tance” selected with the navigation system
Transfer control
unit CAN com-
munica-
tion
Current 4WD mode signal Receives a mode selection state of the 4WD shift switch
ICC sensor ITS com-
munica-
tion
ICC sensor signal
Receives detection results, such as the presence or ab-
sence of a vehicle ahead and distance from the vehicle
Lane camera
unit ITS com-
munica-
tion
Detected lane condition signal Receives detection results of lane marker
Transmit unit Signal name Description
Reception unit Signal name Description
ABS actuator
and electric
unit (control
unit) CAN commu-
nication
Target yaw moment signal Transmits a target yaw moment signal to generate
yaw moment to the vehicle
Combination
meter CAN commu-
nicationLDP ON indicator lamp signal
Transmits an LDP ON indicator lamp signal to turn ON
the LDP ON indicator lamp
Lane departure warning lamp signal Transmits an lane departure warning lamp signal to
turn ON the lane departure warning lamp
Revision: 2010 May2011 QX56

Page 1247 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-282
< SYSTEM DESCRIPTION >[LDW & LDP]
SYSTEM

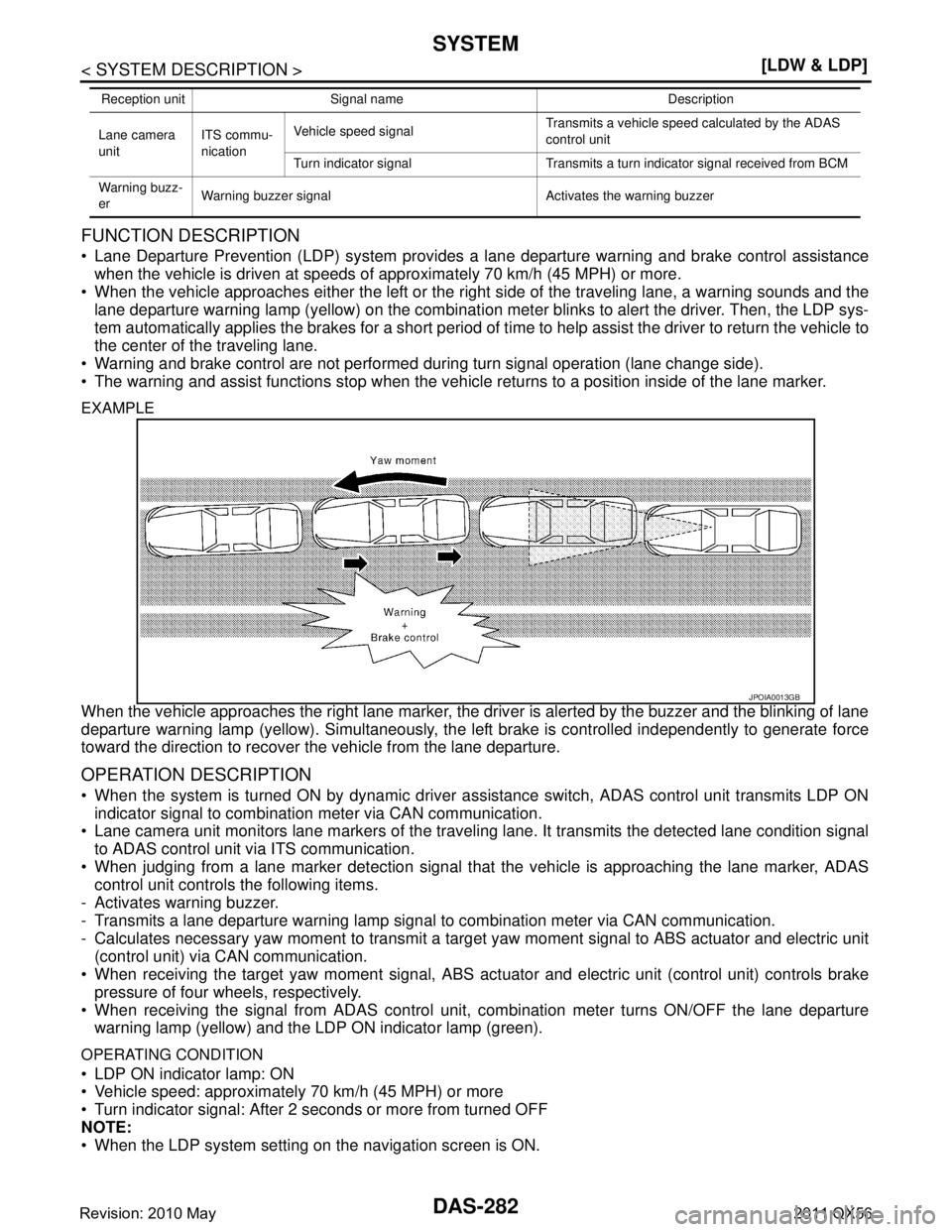

FUNCTION DESCRIPTION
Lane Departure Prevention (LDP) system provides a lane departure warning and brake control assistance
when the vehicle is drive

DAS-282
< SYSTEM DESCRIPTION >[LDW & LDP]
SYSTEM
FUNCTION DESCRIPTION
Lane Departure Prevention (LDP) system provides a lane departure warning and brake control assistance
when the vehicle is driven at speeds of approximately 70 km/h (45 MPH) or more.
When the vehicle approaches either the left or the right side of the traveling lane, a warning sounds and the
lane departure warning lamp (yellow) on the combinati on meter blinks to alert the driver. Then, the LDP sys-
tem automatically applies the brakes for a short period of ti me to help assist the driver to return the vehicle to
the center of the traveling lane.
Warning and brake control are not performed during turn signal operation (lane change side).
The warning and assist functions stop when the vehicl e returns to a position inside of the lane marker.
EXAMPLE
When the vehicle approaches the right lane marker, the driv er is alerted by the buzzer and the blinking of lane
departure warning lamp (yellow). Simultaneously, the left brake is controlled independently to generate force
toward the direction to recover the vehicle from the lane departure.
OPERATION DESCRIPTION
When the system is turned ON by dynamic driver a ssistance switch, ADAS control unit transmits LDP ON
indicator signal to combination meter via CAN communication.
Lane camera unit monitors lane markers of the traveling lane. It transmits the detected lane condition signal to ADAS control unit via ITS communication.
When judging from a lane marker detection signal that the vehicle is approaching the lane marker, ADAS
control unit controls the following items.
- Activates warning buzzer.
- Transmits a lane departure warning lamp signal to combination meter via CAN communication.
- Calculates necessary yaw moment to transmit a target yaw moment signal to ABS actuator and electric unit (control unit) via CAN communication.
When receiving the target yaw moment signal, ABS act uator and electric unit (control unit) controls brake
pressure of four wheels, respectively.

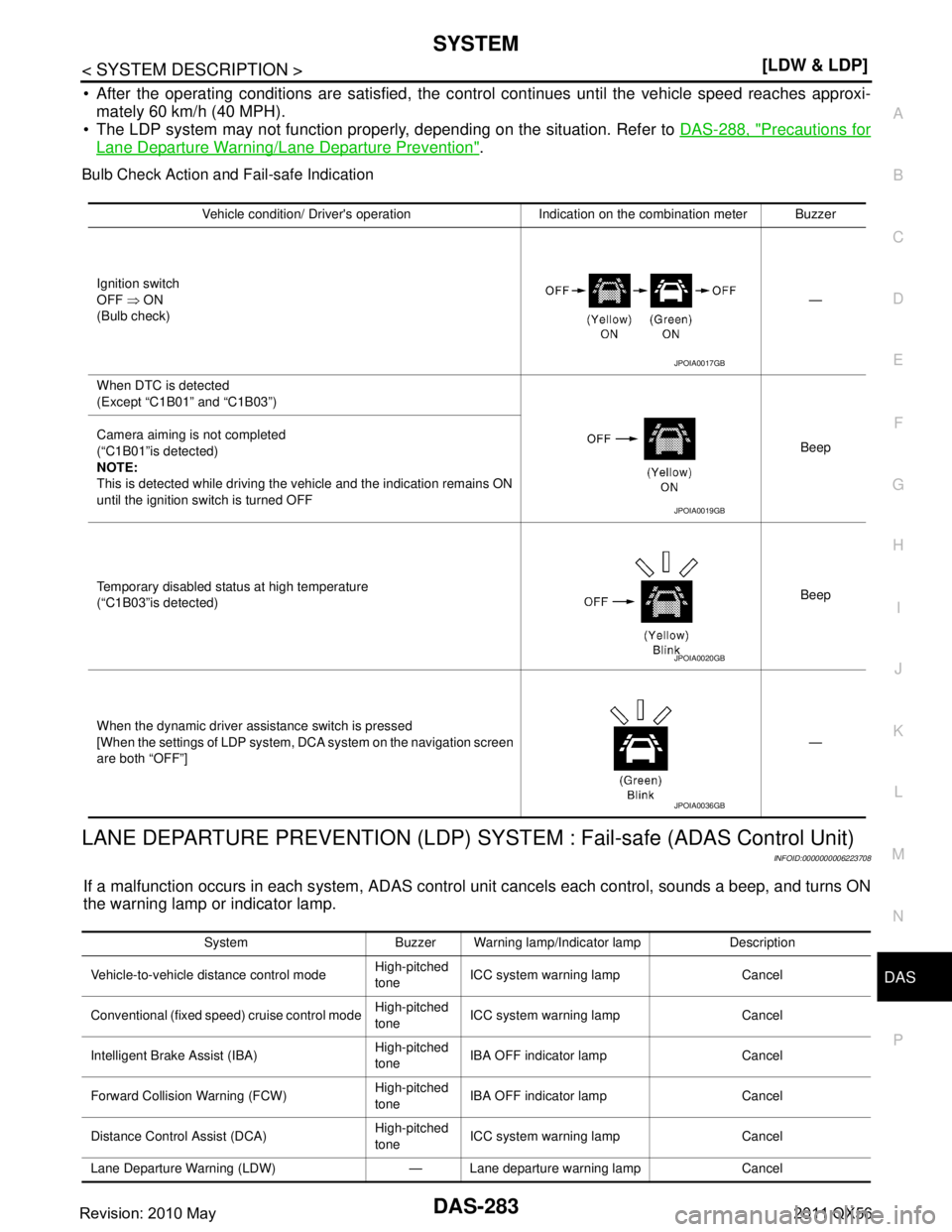

When receiving the signal from ADAS control unit, combination meter turns ON/OFF the lane departure warning lamp (yellow) and the LDP ON indicator lamp (green).
OPERATING CONDITION
LDP ON indicator lamp: ON
Vehicle speed: approximately 70 km/h (45 MPH) or more
Turn indicator signal: After 2 seconds or more from turned OFF
NOTE:
When the LDP system setting on the navigation screen is ON.
Lane camera
unit ITS commu-
nicationVehicle speed signal
Transmits a vehicle speed calculated by the ADAS
control unit
Turn indicator signal Transmits a turn indicator signal received from BCM
Warning buzz-
er Warning buzzer signal Activates the warning buzzer
Reception unit Signal name Description
JPOIA0013GB
Revision: 2010 May2011 QX56

Page 1248 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
SYSTEM
DAS-283
< SYSTEM DESCRIPTION >[LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
After the operating conditions are satisfied, the c ontrol continues until the vehicle speed reaches approxi-
mate

Load next 8 pages

Page: < prev 1-10 ... 1209-1216 1217-1224 1225-1232 1233-1240 1241-1248 1249-1256 1257-1264 1265-1272 1273-1280 ... 5600 next >

wheel bolts fog light tire pressure reset height adjustment deactivate passenger airbag trailer
