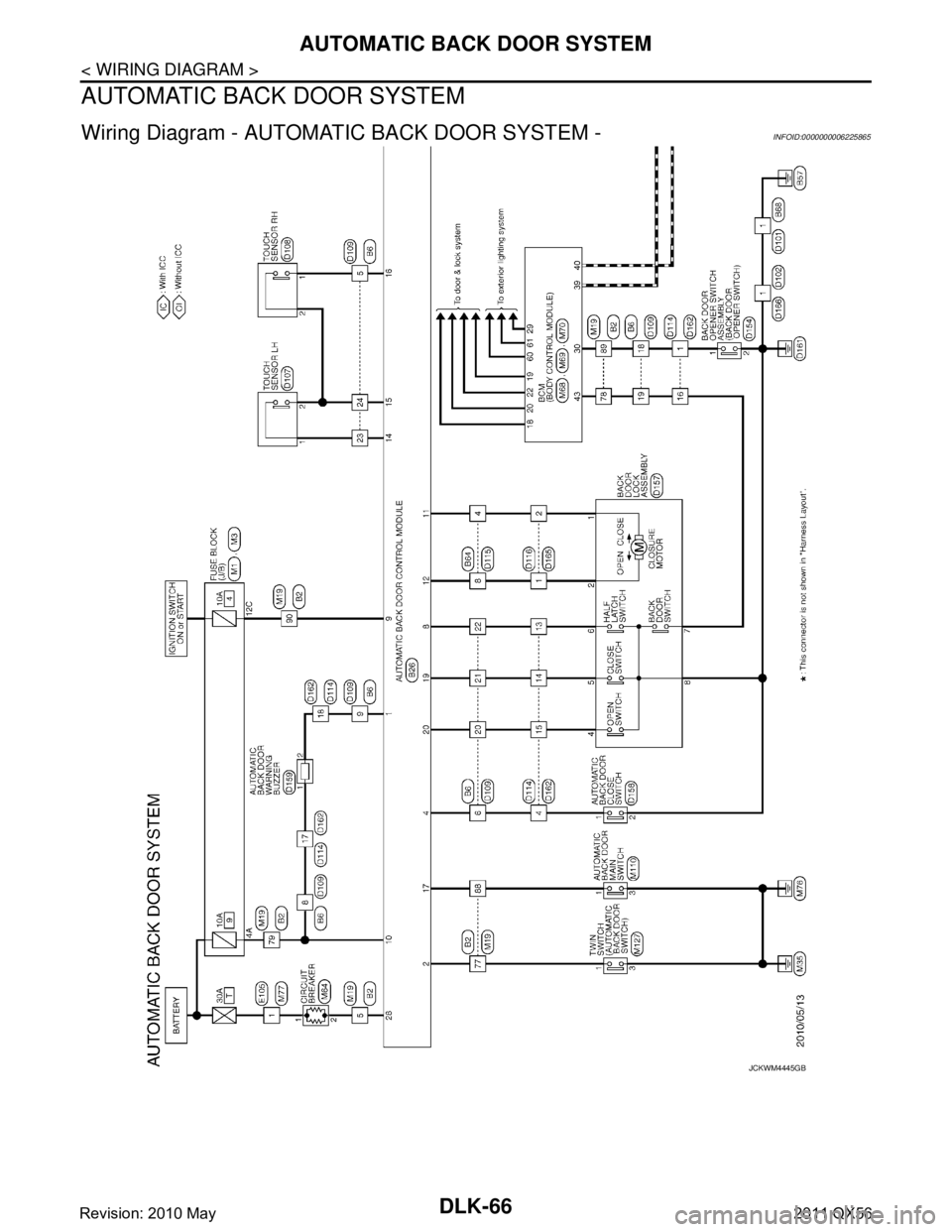

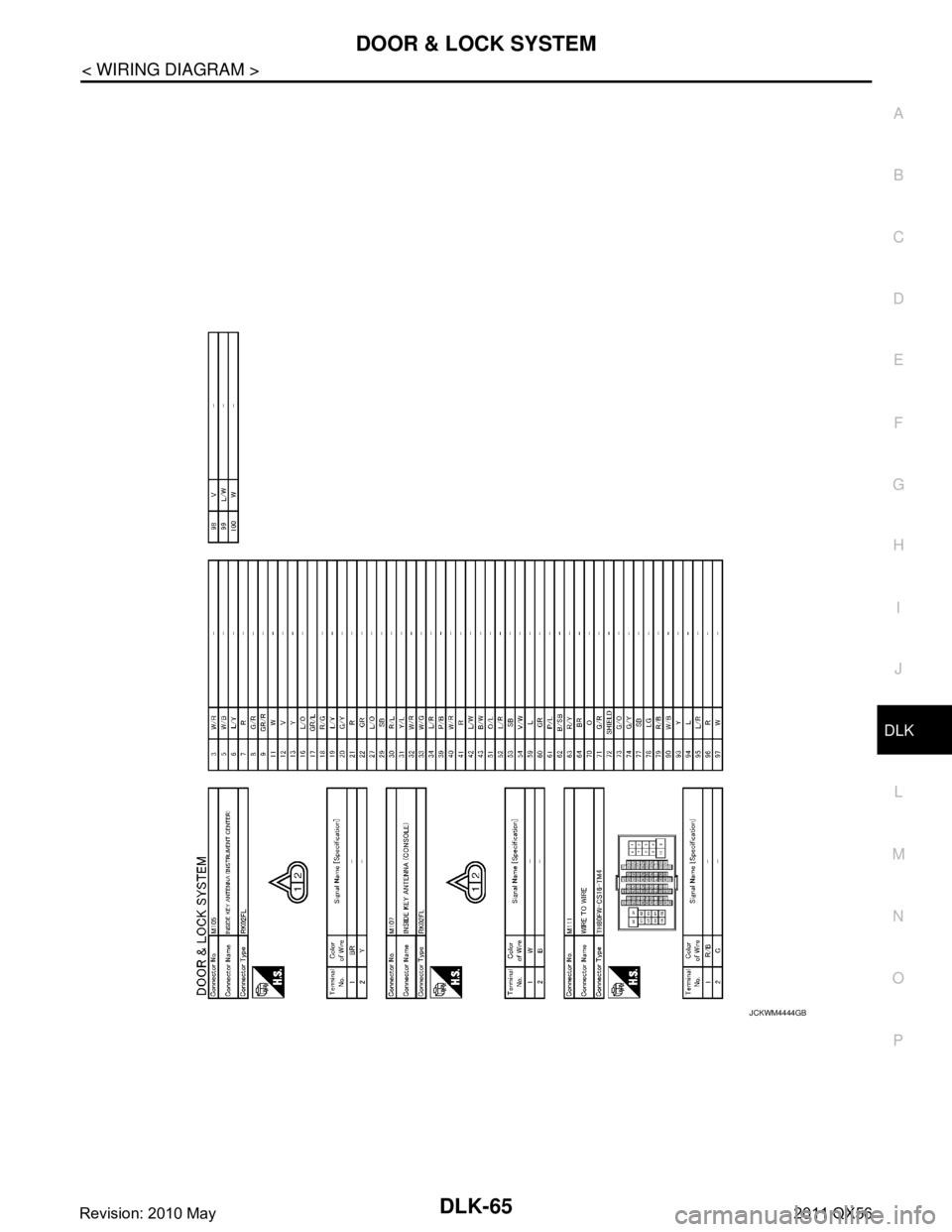

Page 1601 of 5598

INFINITI QX56 2011 Factory Service Manual DOOR & LOCK SYSTEMDLK-65 < WIRING DIAGRAM > C DE F G H I J L M A B DLK N O P JCKWM4444GB Revision: 2010 May2011 QX56

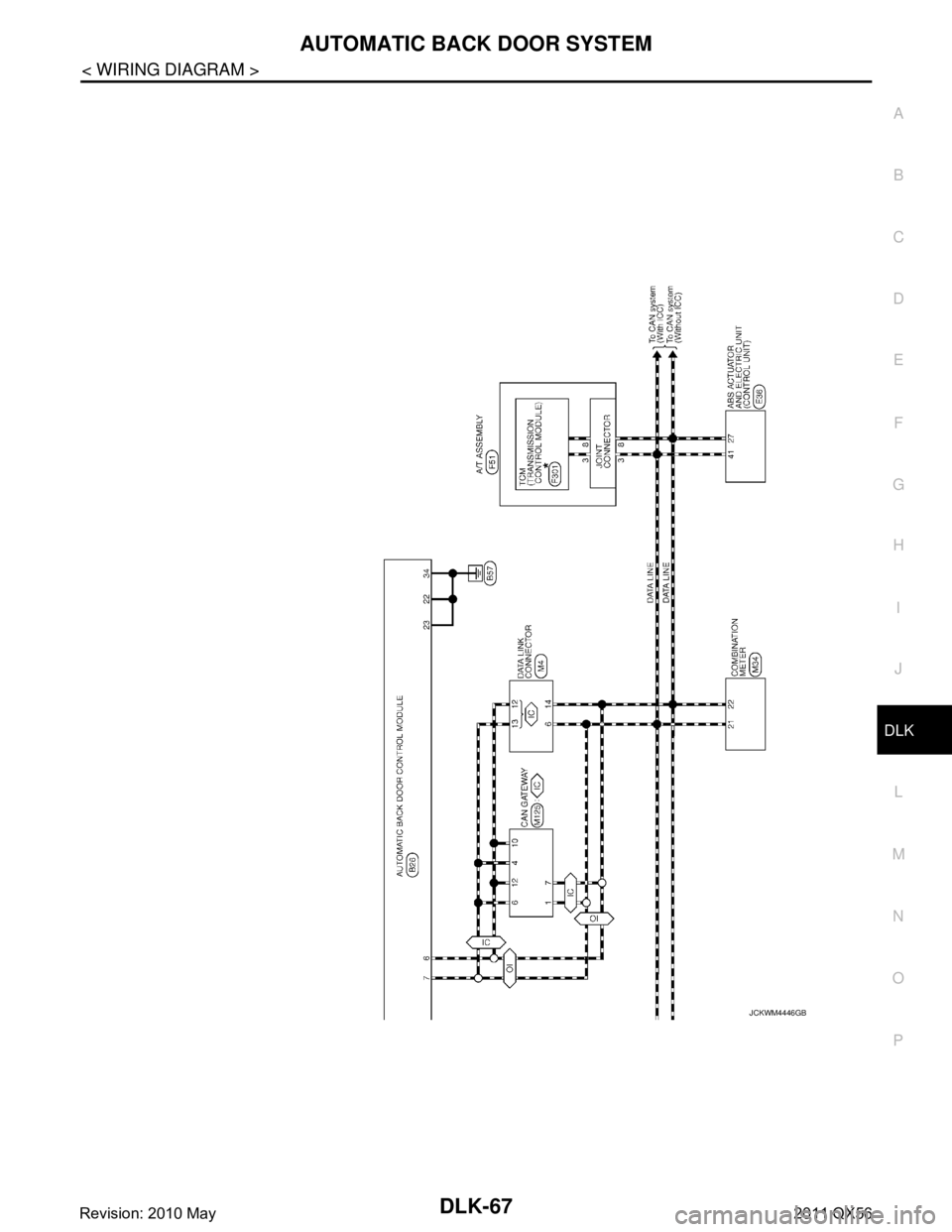

Page 1602 of 5598

INFINITI QX56 2011 Factory Service Manual DLK-66 < WIRING DIAGRAM > AUTOMATIC BACK DOOR SYSTEM AUTOMATIC BACK DOOR SYSTEM Wiring Diagram - AUTOMATIC BACK DOOR SYSTEM -INFOID:0000000006225865 JCKWM4445GB Revision: 2010 May2011 QX56

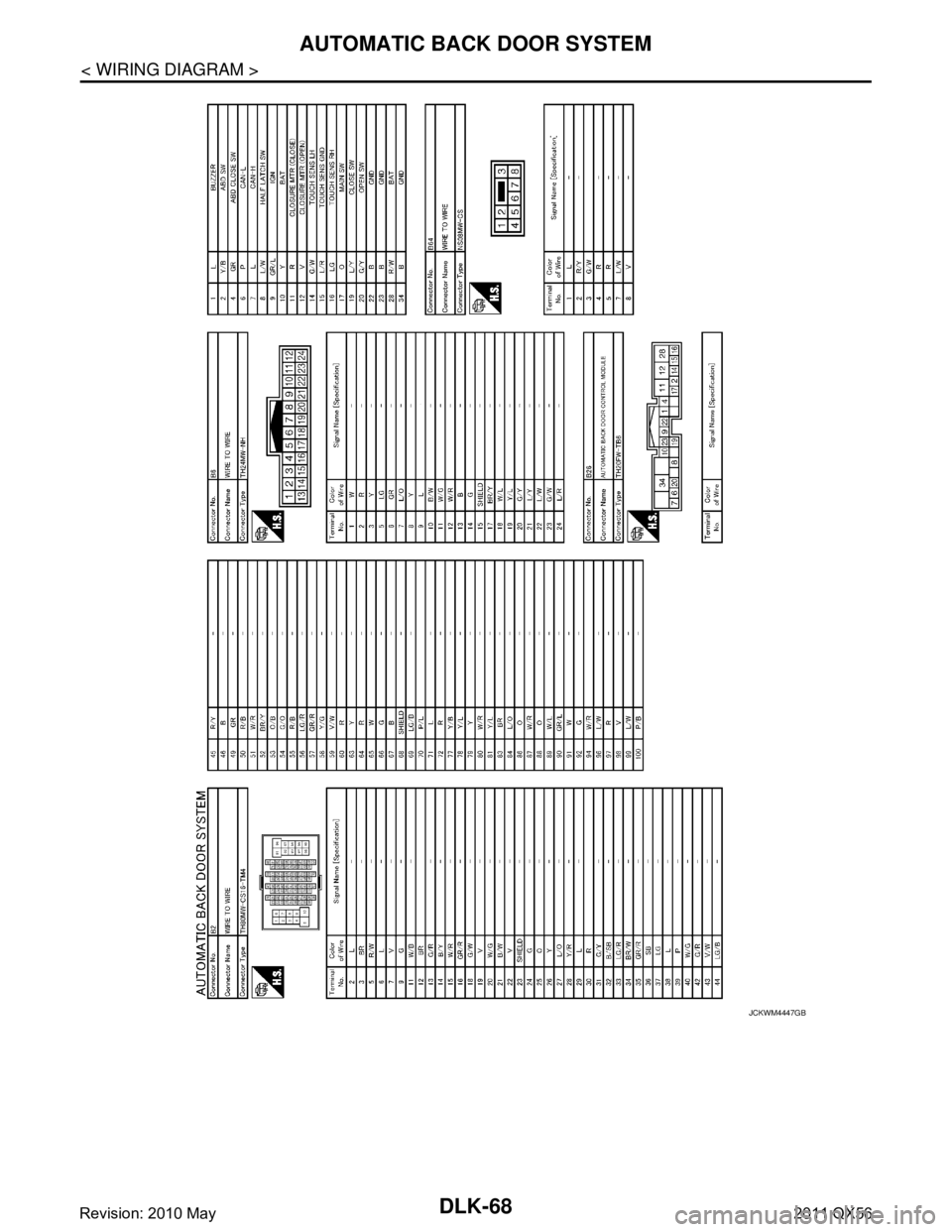

Page 1603 of 5598

INFINITI QX56 2011 Factory Service Manual AUTOMATIC BACK DOOR SYSTEMDLK-67 < WIRING DIAGRAM > C DE F G H I J L M A B DLK N O P JCKWM4446GB Revision: 2010 May2011 QX56

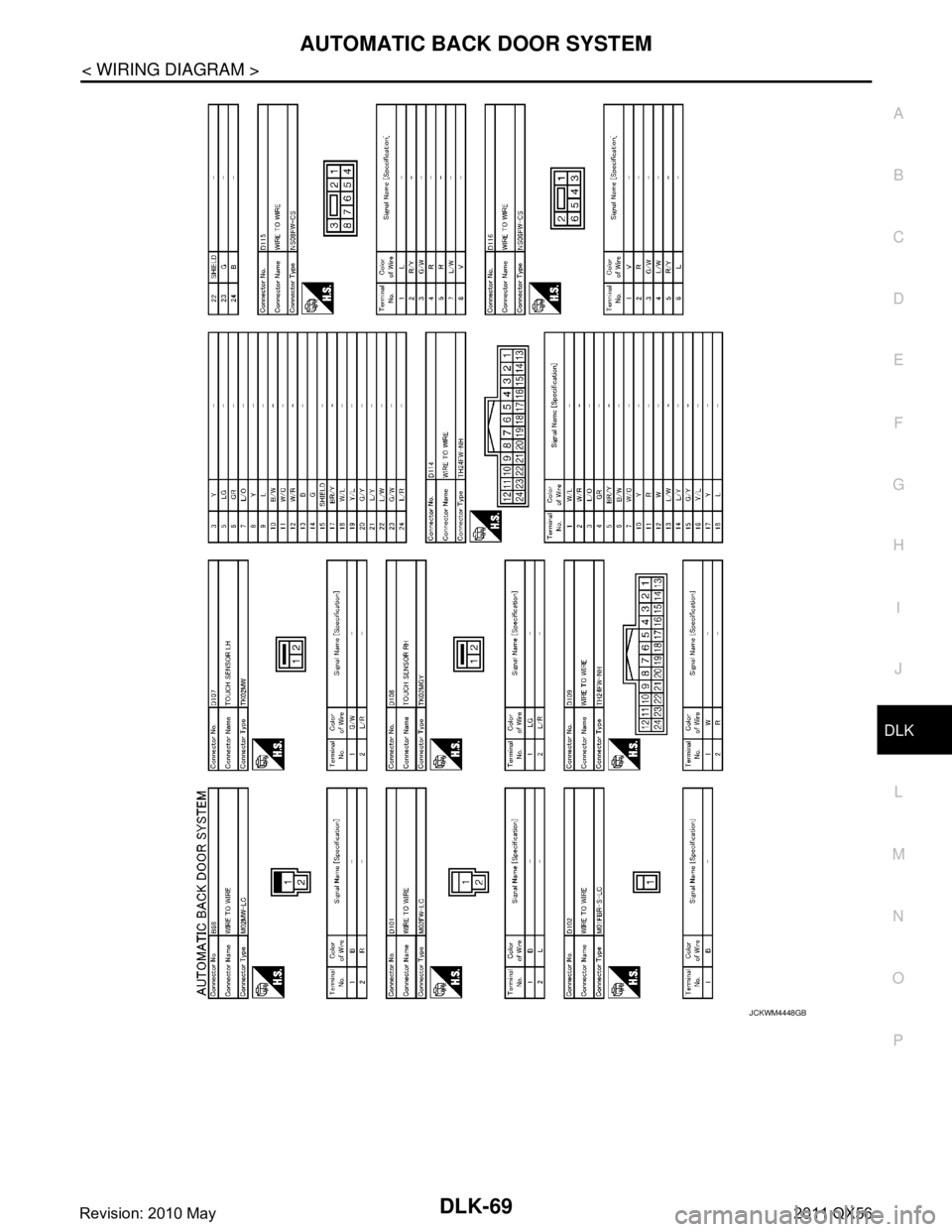

Page 1604 of 5598

INFINITI QX56 2011 Factory Service Manual DLK-68 < WIRING DIAGRAM > AUTOMATIC BACK DOOR SYSTEM JCKWM4447GB Revision: 2010 May2011 QX56

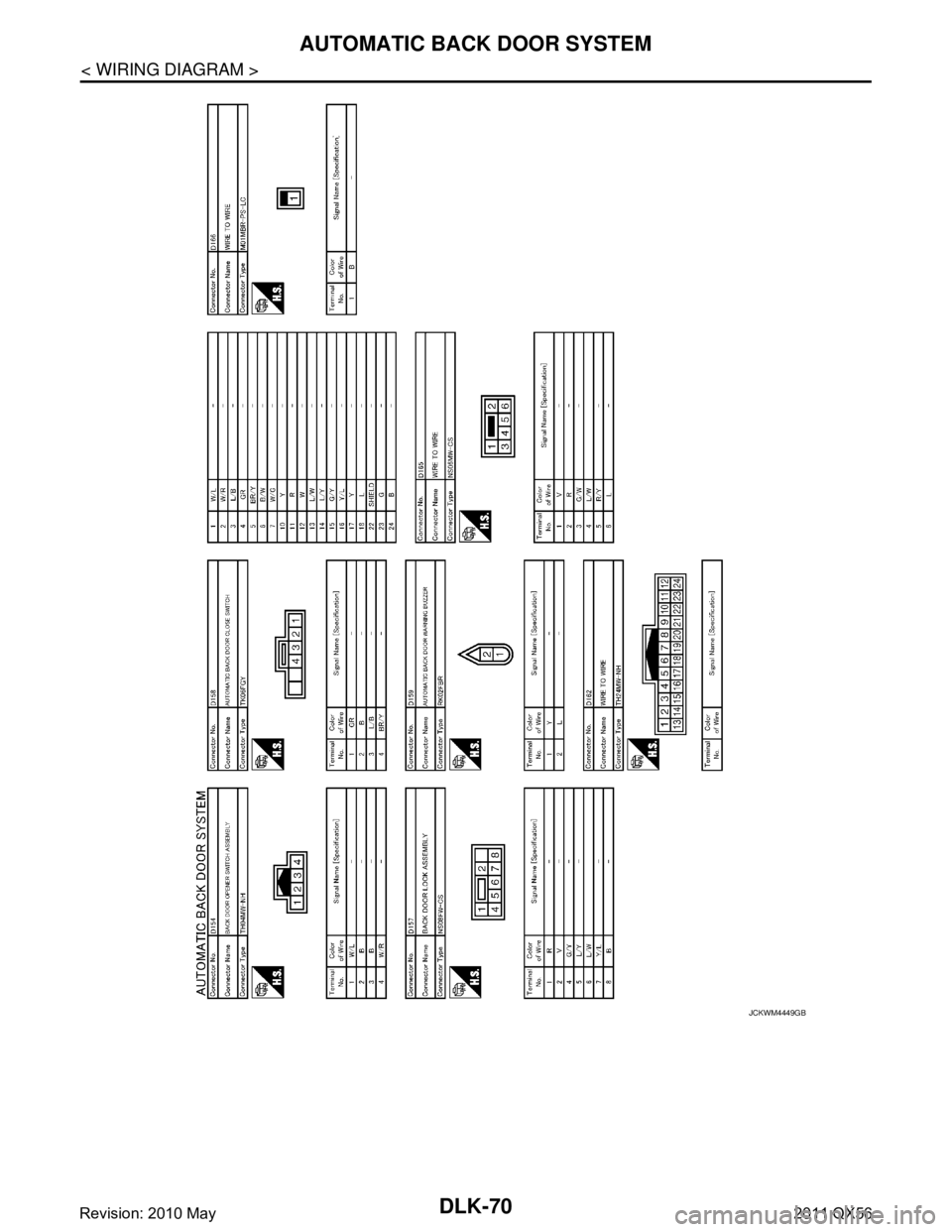

Page 1605 of 5598

INFINITI QX56 2011 Factory Service Manual AUTOMATIC BACK DOOR SYSTEMDLK-69 < WIRING DIAGRAM > C DE F G H I J L M A B DLK N O P JCKWM4448GB Revision: 2010 May2011 QX56

Page 1606 of 5598

INFINITI QX56 2011 Factory Service Manual DLK-70 < WIRING DIAGRAM > AUTOMATIC BACK DOOR SYSTEM JCKWM4449GB Revision: 2010 May2011 QX56

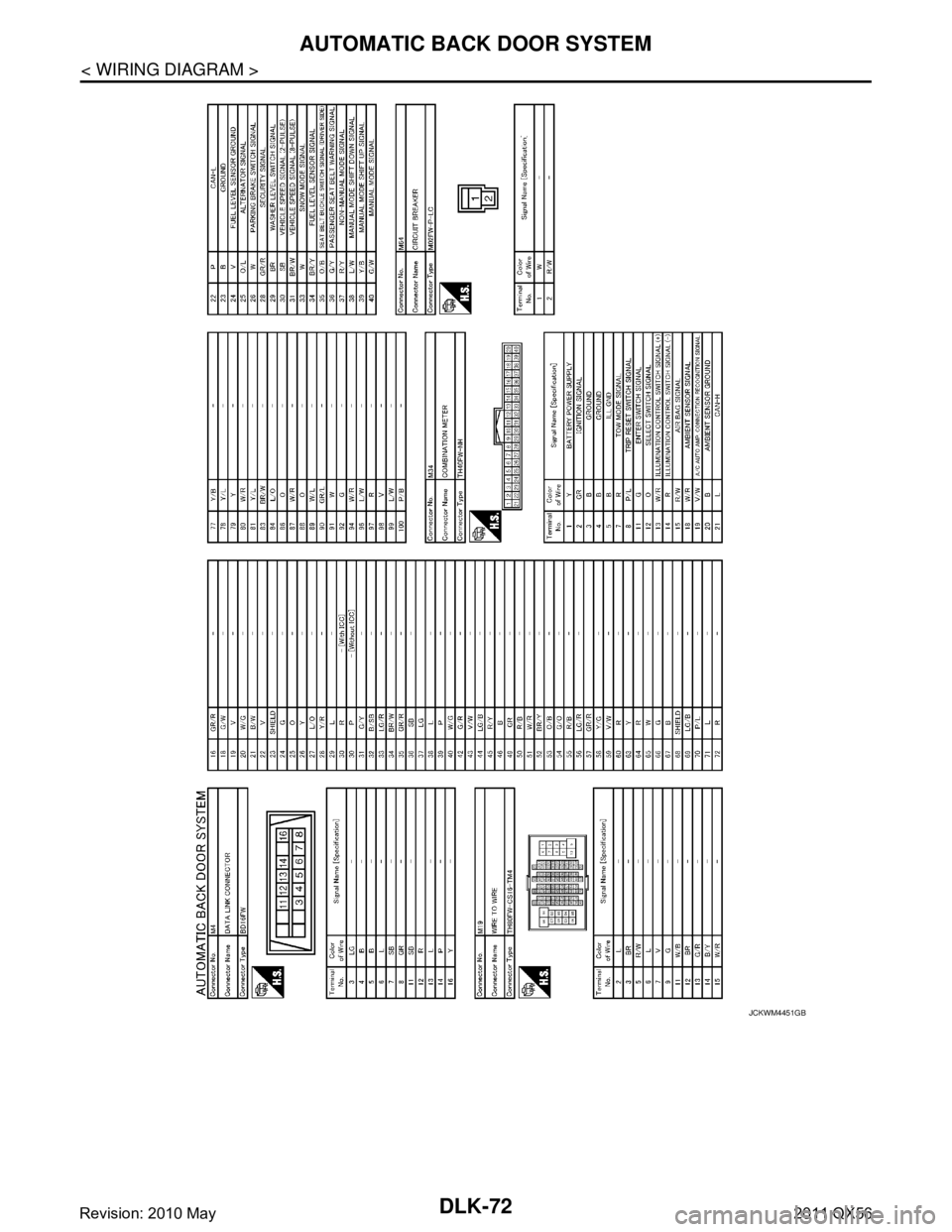

Page 1607 of 5598

INFINITI QX56 2011 Factory Service Manual AUTOMATIC BACK DOOR SYSTEMDLK-71 < WIRING DIAGRAM > C DE F G H I J L M A B DLK N O P JCKWM4450GB Revision: 2010 May2011 QX56

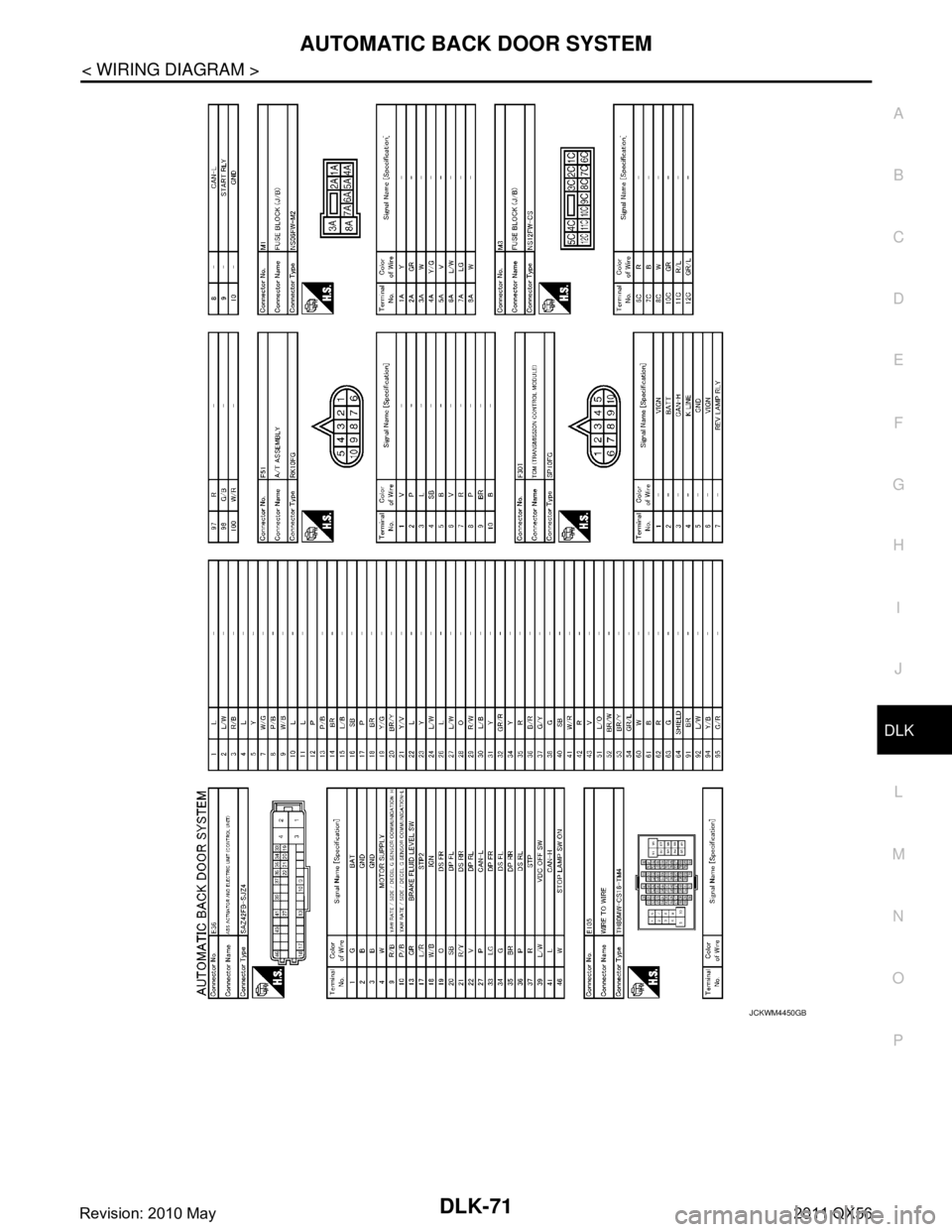

Page 1608 of 5598

INFINITI QX56 2011 Factory Service Manual DLK-72 < WIRING DIAGRAM > AUTOMATIC BACK DOOR SYSTEM JCKWM4451GB Revision: 2010 May2011 QX56
