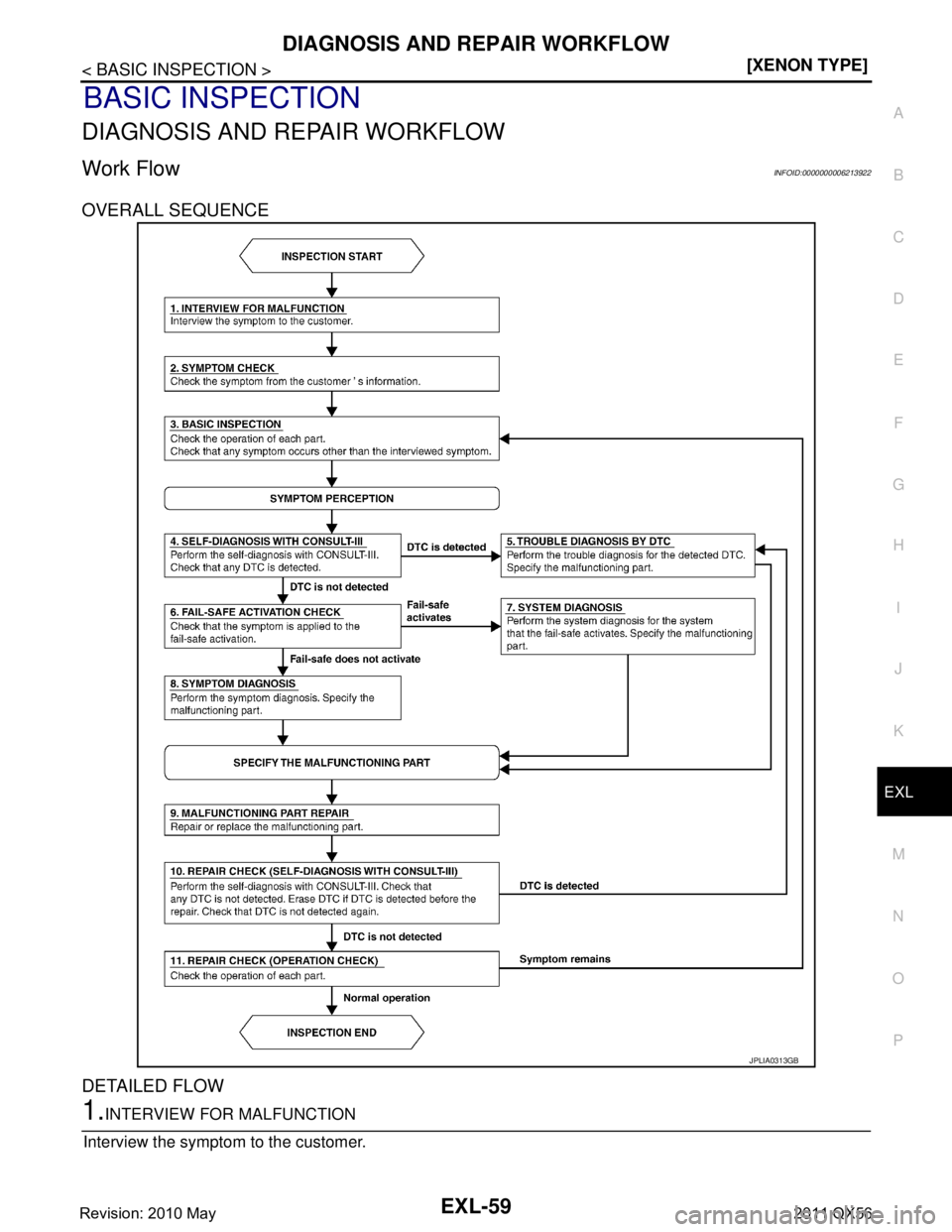

Work FlowINFOID:0000000006213922
OVERALL SEQUENCE
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Interview the symptom to the customer.
JPLIA0313GB
Revision: 2010 May2011 QX56
Page 2770 of 5598
![INFINITI QX56 2011 Factory Service Manual
EXL-60
< BASIC INSPECTION >[XENON TYPE]
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 2.
2.SYMPTOM CHECK
Check the symptom from t he customers information.
>> GO TO 3.
3.BASIC INSPECTION
Check the operatio INFINITI QX56 2011 Factory Service Manual
EXL-60
< BASIC INSPECTION >[XENON TYPE]
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 2.
2.SYMPTOM CHECK
Check the symptom from t he customers information.
>> GO TO 3.
3.BASIC INSPECTION
Check the operatio](/manual-img/42/57033/w960_57033-2769.png)
EXL-60
< BASIC INSPECTION >[XENON TYPE]
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 2.
2.SYMPTOM CHECK
Check the symptom from t he customer's information.
>> GO TO 3.
3.BASIC INSPECTION
Check the operation of each part. Check that any sym ptom occurs other than the interviewed symptom.
>> GO TO 4.
4.SELF-DIAGNOSIS WITH CONSULT-III
Perform the self-diagnosis with CONSULT- III. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 6.
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detect ed DTC. Specify the malfunctioning part.
>> GO TO 9.
6.FAIL-SAFE ACTIVATION CHECK
Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7.
NO >> GO TO 8.
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system that the fa il-safe activates. Specify the malfunctioning part.
>> GO TO 9.
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis. Specify the malfunctioning part.
>> GO TO 9.
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 10.
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)
Perform the self-diagnosis with CONSULT-III. Check t hat any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 11.
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> INSPECTION END
NO >> GO TO 3.
Revision: 2010 May2011 QX56
Page 2771 of 5598
![INFINITI QX56 2011 Factory Service Manual
INSPECTION AND ADJUSTMENTEXL-61
< BASIC INSPECTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLAC ING CONTROL UNIT (AFS CONTROL
UNIT)
ADDITI INFINITI QX56 2011 Factory Service Manual
INSPECTION AND ADJUSTMENTEXL-61
< BASIC INSPECTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLAC ING CONTROL UNIT (AFS CONTROL
UNIT)
ADDITI](/manual-img/42/57033/w960_57033-2770.png)
INSPECTION AND ADJUSTMENTEXL-61
< BASIC INSPECTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLAC ING CONTROL UNIT (AFS CONTROL
UNIT)
ADDITIONAL SERVICE WHEN REPLAC ING CONTROL UNIT (AFS CONTROL
UNIT) : Description
INFOID:0000000006213923
Perform “LEVELIZER ADJUSTMENT” with CONSUL T-III when replacing the AFS control unit.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (AFS CONTROL
UNIT) : Special Repair Requirement
INFOID:0000000006213924
1.LEVELIZER ADJUSTMENT
Perform “LEVELIZER ADJUSTMENT”.
>> Refer to EXL-61, "
LEVELIZER ADJUSTMENT : Special Repair Requirement".
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (HEIGHT SEN-
SOR)
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (HEIGHT SENSOR) :
Description
INFOID:0000000006213925
Perform “LEVELIZER ADJUSTMENT” with CONS ULT-III when replacing the height sensor.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (HEIGHT SENSOR) :
Special Repair Requirement
INFOID:0000000006213926
1.LEVELIZER ADJUSTMENT
Perform “LEVELIZER ADJUSTMENT”.
>> Refer to EXL-61, "
LEVELIZER ADJUSTMENT : Special Repair Requirement".
LEVELIZER ADJUSTMENT
LEVELIZER ADJUSTMENT : DescriptionINFOID:0000000006213927
Perform “LEVELIZER ADJUSTME NT” when installing, removing, and replacing the height sensor and the sus-
pension components.
LEVELIZER ADJUSTMENT : S pecial Repair RequirementINFOID:0000000006213928
CAUTION:
If perform aiming adjustment after the levelizer initia lization, be sure to start the engine running after
turning ignition switch OFF.
1.CHECK VEHICLE CONDITION
1. Park the vehicle in the straight-forward position.
2. Unload the vehicle (no passenger aboard).
>> GO TO 2.
2.LEVELIZER ADJUSTMENT
CONSULT-III WORK SUPPORT
1. Select “LEVELIZER ADJUSTMENT” of ADAPTIVE LIGHT work support item.
2. Select “START”.
3. When “ADJUSTMENT IS CO MPLETED”, select “END”.
CAUTION:
Revision: 2010 May2011 QX56
Page 2772 of 5598
EXL-62
< BASIC INSPECTION >[XENON TYPE]
INSPECTION AND ADJUSTMENT
If “CAN NOT BE TESTED” is indi
cated, AFS control unit detects that the height sensor signal
changes. The levelizer adjustment is cancelled. In this case, turn the ignition switch OFF to pre-
vent the vehicle from the height change. Perform the levelizer adjustment again.
Is the levelizer adjustment completed?
YES >> GO TO 3.
NO >> Perform the levelizer adjustment again.
3.SELF-DIAGNOSIS RESULT CHECK
Perform self-diagnosis with CONSULT-III. Check that any DTC is not detected.
Is any DTC detected?
YES >> GO TO 2.
NO >> Levelizer adjustment completed
Revision: 2010 May2011 QX56
Page 2773 of 5598
![INFINITI QX56 2011 Factory Service Manual
B2503, B2504 SWIVEL ACTUATOREXL-63
< DTC/CIRCUIT DIAGNOSIS > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
DTC/CIRCUIT DIAGNOSIS
B2503, B2504 SWIVEL ACTUATOR
DTC LogicINFOID:0000000006213929
DTC DET INFINITI QX56 2011 Factory Service Manual
B2503, B2504 SWIVEL ACTUATOREXL-63
< DTC/CIRCUIT DIAGNOSIS > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
DTC/CIRCUIT DIAGNOSIS
B2503, B2504 SWIVEL ACTUATOR
DTC LogicINFOID:0000000006213929
DTC DET](/manual-img/42/57033/w960_57033-2772.png)
B2503, B2504 SWIVEL ACTUATOREXL-63
< DTC/CIRCUIT DIAGNOSIS > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
DTC/CIRCUIT DIAGNOSIS
B2503, B2504 SWIVEL ACTUATOR
DTC LogicINFOID:0000000006213929
DTC DETECTION LOGIC
*: Initialization is not included.
DTC CONFIRMATION PROCEDURE
1.DTC ERASE
Erase the DTC memory of AFS with CONSULT-III.
>> GO TO 2.
2.CONFIRMATION DTC SELECTION
Select “B2503” or “B2504” for confirmation.
Which DTC is confirmation?
B2503 >> GO TO 3.
B2504 >> GO TO 4.
3.DTC CONFIRMATION (B2503)
1. Steer to the straight-forward position.
2. Start the engine.
3. Turn AFS switch ON.
4. Turn the headlamp ON.
5. Shift the selector lever to “N”.
6. Steer to the right. (Rotate it once or more.)
7. Perform the self-diagnosis with CONSULT-III.
Is DTC
“B2503” detected?
YES >> Refer to EXL-64, "Diagnosis Procedure".
NO >> Refer to GI-40, "
Intermittent Incident".
4.DTC CONFIRMATION (B2504)
1. Steer to the straight-forward position.
2. Start the engine.
3. Turn AFS switch ON.
4. Turn the headlamp ON.
5. Drive at 25 km/h (15.5 MPH) or more.
6. Steer to the left. (Rotate it once or more.)
DTC No. Trouble diagnosis name DTC detection condition Possible cause
B2503 Swivel actuator [RH] AFS control unit indicates an applicable DTC when detecting any of the following conditions continuous-
ly for 2 seconds or more.
AFS control unit-recognized swivel position differs extremely from the swivel position sensor-input
value while the swivel operating.
*
The swivel position sensor signal does not change even though AFS control unit transmits the swivel
motor driving signal while the swivel operating
*.
The swivel motor short and open is detected while
the swivel operating
*.
The swivel position sensor power supply is 6 V or more, or 4 V or less.
The swivel position sensor signal is 0.25 V or less, or 4.75 V or more. Swivel position sensor
Swivel position sensor
Harness and connector
AFS control unit
Swivel motor
Swivel motor
Harness and connector
AFS control unit
B2504 Swivel actuator [LH]
Revision: 2010 May2011 QX56
Page 2774 of 5598
![INFINITI QX56 2011 Factory Service Manual
EXL-64
< DTC/CIRCUIT DIAGNOSIS >[XENON TYPE]
B2503, B2504 SWIVEL ACTUATOR
7. Stop the vehicle.
8. Perform the self-diagnosis with CONSULT-III.
Is DTC
“B2504” detected?
YES >> Refer to
EXL-64, " INFINITI QX56 2011 Factory Service Manual
EXL-64
< DTC/CIRCUIT DIAGNOSIS >[XENON TYPE]
B2503, B2504 SWIVEL ACTUATOR
7. Stop the vehicle.
8. Perform the self-diagnosis with CONSULT-III.
Is DTC
“B2504” detected?
YES >> Refer to
EXL-64, "](/manual-img/42/57033/w960_57033-2773.png)
EXL-64
< DTC/CIRCUIT DIAGNOSIS >[XENON TYPE]
B2503, B2504 SWIVEL ACTUATOR
7. Stop the vehicle.
8. Perform the self-diagnosis with CONSULT-III.
Is DTC
“B2504” detected?
YES >> Refer to
EXL-64, "Diagnosis Procedure".
NO >> Refer to GI-40, "
Intermittent Incident".
Diagnosis ProcedureINFOID:0000000006213930
1.CHECK SWIVEL POSITION SENSOR SIGNAL INPUT
1. Turn ignition switch ON.
2. Check voltage between AFS control unit harness connector and ground.
Is the measurement value within the standard value?
YES >> GO TO 2.
Less than the standard value >>GO TO 6.
Higher than the standard value>>GO TO 9.
2.CHECK SWIVEL MOTOR
Check swivel motor. EXL-67, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace front combination lamp.
3.CHECK SWIVEL MOTOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector and headlamp swivel actuator connector.
3. Check continuity between AFS control unit har ness connector and headlamp swivel actuator harness
connector.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harnesses.
4.CHECK SWIVEL MOTOR SHORT CIRCUIT
Check continuity between AFS c ontrol unit harness connector and ground.
(+)
(− ) Vo l ta g e
(Approx.)
AFS control unit
Connector Terminal
RH M135 9
Ground 0.25 - 4.75 V
LH 29
AFS control unit Headlamp swivel
actuator Continuity
Connector Terminal Connector Terminal
RH M135 11
E123 8
Existed
13 7
32 3
34 4
LH 15
E122 3
17 4
36 8
38 7
Revision: 2010 May2011 QX56
Page 2775 of 5598
![INFINITI QX56 2011 Factory Service Manual
B2503, B2504 SWIVEL ACTUATOREXL-65
< DTC/CIRCUIT DIAGNOSIS > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harnesses.
5.CHECK INFINITI QX56 2011 Factory Service Manual
B2503, B2504 SWIVEL ACTUATOREXL-65
< DTC/CIRCUIT DIAGNOSIS > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harnesses.
5.CHECK](/manual-img/42/57033/w960_57033-2774.png)
B2503, B2504 SWIVEL ACTUATOREXL-65
< DTC/CIRCUIT DIAGNOSIS > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harnesses.
5.CHECK SWIVEL MOTOR CIRCUIT VOLTAGE OUTPUT
1. Connect AFS control unit connector.
2. Start the engine.
3. Turn the headlamp ON.
4. Select “LOW BEAM TEST RIGHT” or “LOW BEAM TEST LEFT” of ADAPTIVE LIGHT active test item.
5. With operating the test item, check voltage between AFS control unit harness connector and ground.
Is the inspection result normal?
YES >> Replace front combination lamp.
NO >> Replace AFS control unit. Refer to EXL-135, "
Removal and Installation"
6.CHECK SWIVEL POSITION SENSOR POWER SUPPLY CIRCUIT INPUT VOLTAGE
1. Turn ignition switch OFF.
2. Disconnect headlamp swivel actuator connector.
3. Turn ignition switch ON.
4. Check voltage between headlamp swivel actuator harness connector and ground.
AFS control unit
GroundContinuity
Connector Terminal
RH M135 11
Not existed
13
32
34
LH 15
17
36
38
(+)
(− ) Condition Vo l ta g e
(Approx.)
AFS control unit
Connector Terminal
RH
M135 11
Ground Swivel motor Active
8 - 12 V
32
LH 15
36
RH 13
Stop 9.5 - 11.5 V
34
LH 17
38

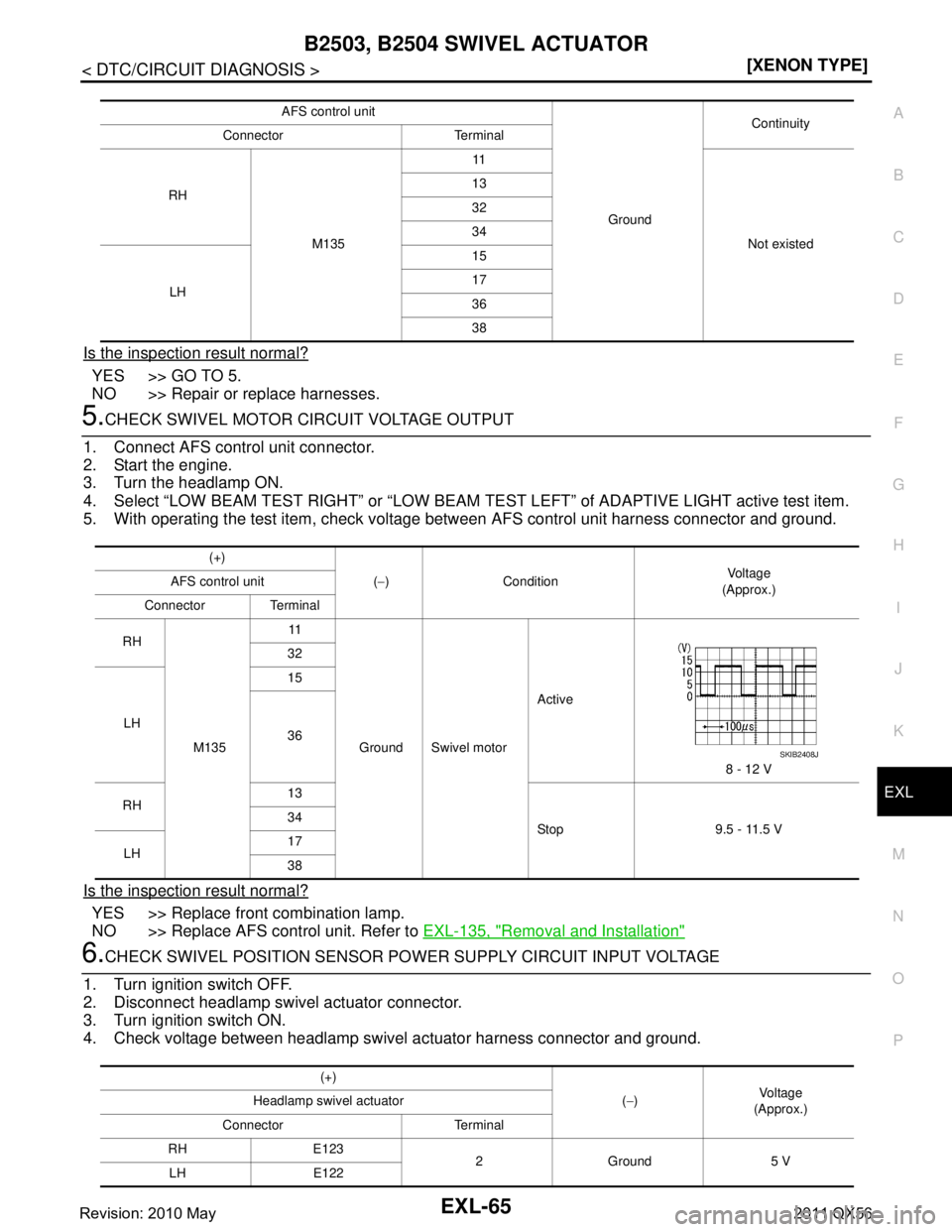

SKIB2408J
(+)
(− ) Vol tag e
(Approx.)
Headlamp swivel actuator
Connector Terminal
RH E123 2Ground5 V
LH E122
Revision: 2010 May2011 QX56
Page 2776 of 5598
![INFINITI QX56 2011 Factory Service Manual
EXL-66
< DTC/CIRCUIT DIAGNOSIS >[XENON TYPE]
B2503, B2504 SWIVEL ACTUATOR
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 8.
7.CHECK SWIVEL POSITION SENSOR SIGNAL CIRCUIT
1. Turn ignitio INFINITI QX56 2011 Factory Service Manual
EXL-66
< DTC/CIRCUIT DIAGNOSIS >[XENON TYPE]
B2503, B2504 SWIVEL ACTUATOR
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 8.
7.CHECK SWIVEL POSITION SENSOR SIGNAL CIRCUIT
1. Turn ignitio](/manual-img/42/57033/w960_57033-2775.png)
EXL-66
< DTC/CIRCUIT DIAGNOSIS >[XENON TYPE]
B2503, B2504 SWIVEL ACTUATOR
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 8.
7.CHECK SWIVEL POSITION SENSOR SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit har ness connector and headlamp swivel actuator harness
connector.
4. Check continuity between AFS control unit harness connector and ground.
Is the inspection result normal?
YES >> Replace front combination lamp.
NO >> Repair or replace harnesses.
8.CHECK SWIVEL POSITION SE NSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit har ness connector and headlamp swivel actuator harness
connector.
4. Check continuity between AFS control unit harness connector and ground.
Is the inspection result normal?
YES >> Replace AFS control unit. Refer to EXL-135, "Removal and Installation"
NO >> Repair or replace harnesses.
9.CHECK SWIVEL POSITION SENSOR GROUND CIRCUIT VOLTAGE OUTPUT
Check voltage between AFS control unit harness connector and ground.
AFS control unit Headlamp swivel actuator Continuity
Connector Terminal Connector Terminal
RH M135 9E123
1 Existed
LH 29 E122
AFS control unit GroundContinuity
Connector Terminal
RH M135 9
Not existed
LH 29
AFS control unit Headlamp swivel actuator Continuity
Connector Terminal Connector Terminal
RH M135 4E123
2 Existed
LH 24 E122
AFS control unit GroundContinuity
Connector Terminal
RH M135 4
Not existed
LH 24
(+)
(− ) Vo l ta g e
(Approx.)
AFS control unit
Connector Terminal
RH M135 2
Ground 0 V
LH 27
Revision: 2010 May2011 QX56
