Page 5473 of 5598

INFINITI QX56 2011 Factory Service Manual

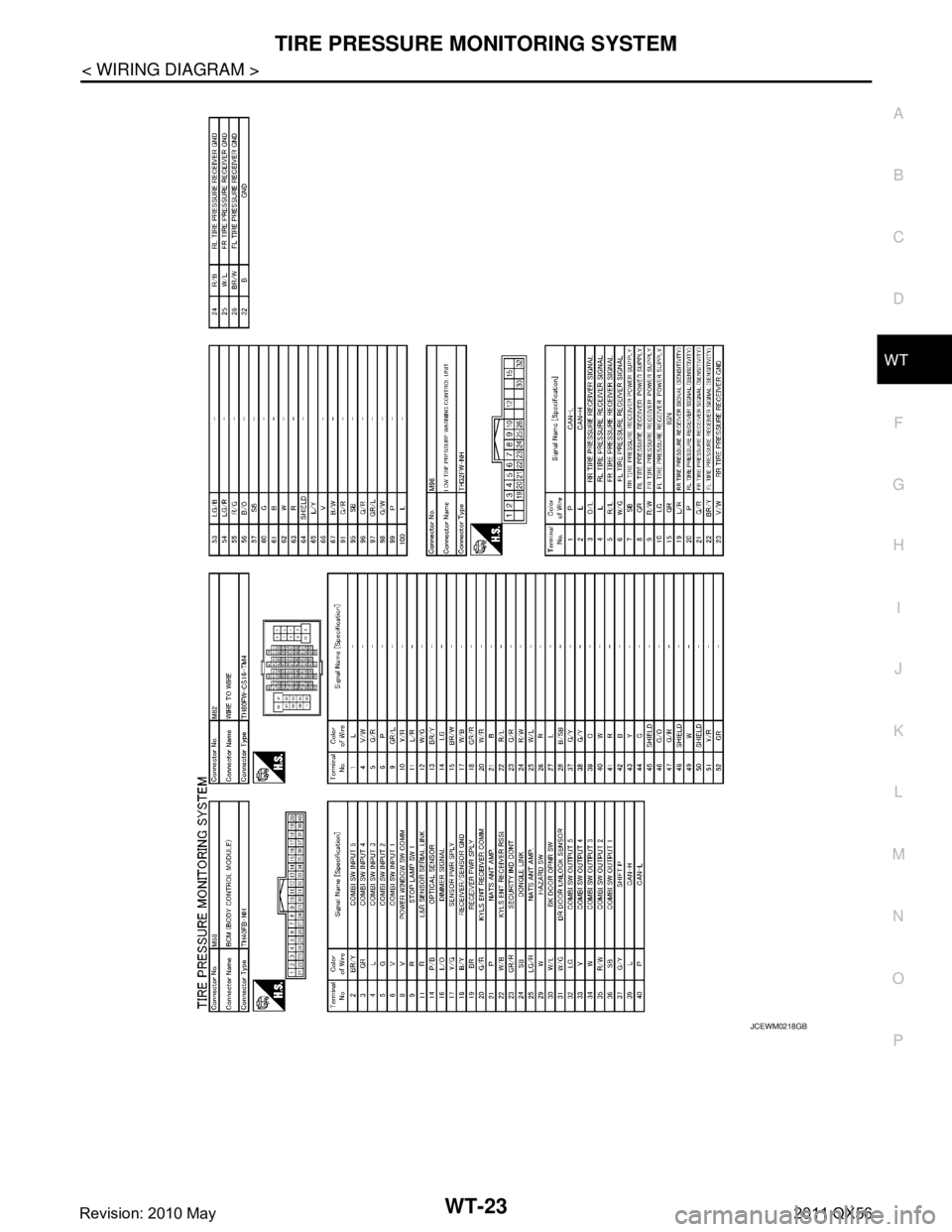

TIRE PRESSURE MONITORING SYSTEMWT-23
< WIRING DIAGRAM >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
JCEWM0218GB
Revision: 2010 May2011 QX56

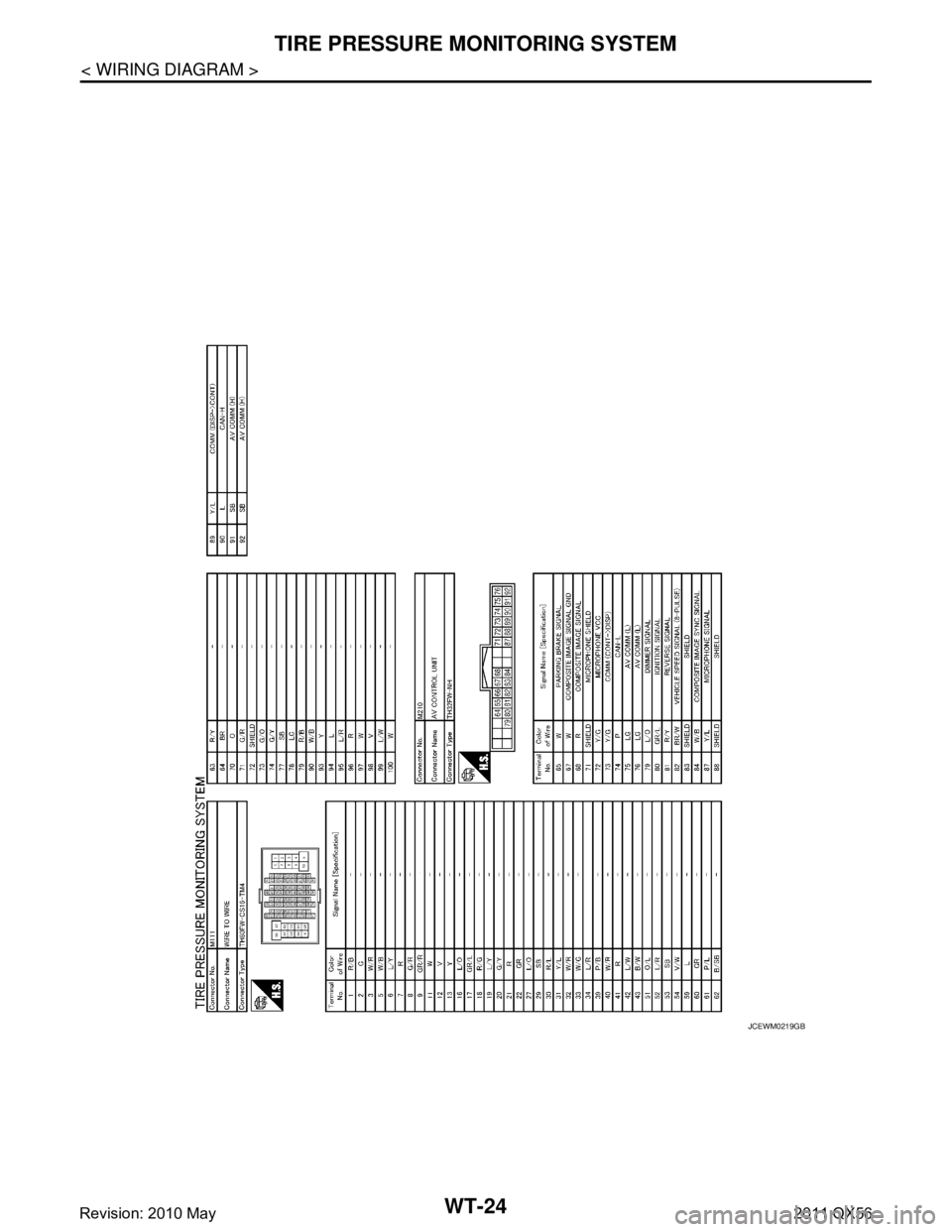

Page 5474 of 5598

INFINITI QX56 2011 Factory Service Manual
WT-24
< WIRING DIAGRAM >
TIRE PRESSURE MONITORING SYSTEM
JCEWM0219GB
Revision: 2010 May2011 QX56

Page 5475 of 5598

INFINITI QX56 2011 Factory Service Manual
DIAGNOSIS AND REPAIR WORK FLOWWT-25
< BASIC INSPECTION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work Flow INFOID:0000000006225501
DETAILED FLOW
1.COLLECT THE

Page 5476 of 5598

INFINITI QX56 2011 Factory Service Manual
WT-26
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
NO >> GO TO 8.
7.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Perform the diagnosis applicable to the displayed DTC. Refer to WT-18, "

Page 5477 of 5598

INFINITI QX56 2011 Factory Service Manual
ADDITIONAL SERVICE WHEN REPLACING LOW TIRE PRESSURE WARNING
CONTROL UNIT
WT-27
< BASIC INSPECTION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
ADDITIONAL SERVICE WHEN RE PLACING LOW TIRE PRESSURE
WARNING CONTR

Page 5478 of 5598

INFINITI QX56 2011 Factory Service Manual
WT-28
< BASIC INSPECTION >
TRANSMITTER WAKE UP OPERATION
TRANSMITTER WAKE UP OPERATION
DescriptionINFOID:0000000006225504
When replacing transmitter, always transmitter wake-up is required.
Work Proc

Page 5479 of 5598

INFINITI QX56 2011 Factory Service Manual
ID REGISTRATIONWT-29
< BASIC INSPECTION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
ID REGISTRATION
DescriptionINFOID:0000000006225506
When replacing or rotating wheels, replacing transmitter or low tire pre

ID REGISTRATIONWT-29
< BASIC INSPECTION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
ID REGISTRATION
DescriptionINFOID:0000000006225506
When replacing or rotating wheels, replacing transmitter or low tire pressure warning control unit, always
transmitter ID registration is required.
Work ProcedureINFOID:0000000006225507
1.CONFIRMATION OF TRANSMITTER ACTIVATION TOOL USE
Check method of ID registration procedure.
Is the transmitter activation tool (J-45295) us ed for the transmitter ID registration procedure?
YES >> GO TO 2.
NO >> GO TO 3.
2.TRANSMITTER ID REGISTRATION PROCEDURE (W ITH THE TRANSMITTER ACTIVATION TOOL)
With CONSULT-III
1. Turn the ignition switch ON.
2. Display the “WORK SUPPORT” screen for “AIR PRESSURE MONITOR” and select “ID REGIST”.
3. Press the transmitter activation tool (J-45295) (1) against the
side of the tire at the location closest to the transmitter.
4. Wait until the indicator lamp turns OFF (approximately 5 sec- onds).
CAUTION:
Perform the ID registration procedure starting from the
vehicle front left wheel, then repeat the procedure in the
order of the front right wheel, rear right wheel, and rear left
wheel.
5. When ID registration is completed, check the following pattern at
each wheel.
6. After the ID registration procedure for all wheels is completed, press “End” to end ID registration, and
check that ID registration for all wheels is completed.
Is the check result normal?
YES >> ID registration END.
NO >> Perform the self-diagnosis for “AIR PRESSURE MONITOR”. Refer to WT-18, "
DTC Index".
3.TRANSMITTER ID REGISTRATION PROCEDURE (WITHOUT THE TRANSMITTER ACTIVATION TOOL)
With CONSULT-III
1. Display the “WORK SUPPORT” screen for “AIR PRESSURE MONITOR” and select “ID REGIST”.
2. Adjust the tire pressure for all wheels to match the list below.
3. Drive the vehicle at a speed at more than 40 km/h (25 MPH) for 3 minutes or more, then perform the
transmitter ID registration procedure.
4. After ID registration for all wheels is completed, press “End” to end ID registration.
Sequence ID registration position Hazard warning lamp CONSULT-III
1 Front LH
2 blinks“Red”
↓
“Green”
2Front RH
3Rear RH
4 Rear LH
NNEIC0020ZZ
Tire position
Tire pressure kPa (kg/cm2, psi)
Front LH 240 (2.4, 34)
Front RH 220 (2.2, 31) Rear RH 200 (2.0, 29)Rear LH 180 (1.8, 26)
Revision: 2010 May2011 QX56

Page 5480 of 5598

INFINITI QX56 2011 Factory Service Manual
WT-30
< BASIC INSPECTION >
ID REGISTRATION
5. Adjust the tire pressures for all wheels to the specified value. Refer to WT-69, "Tire Air Pressure".
Is ID registrations for all wheels completed?
YES
