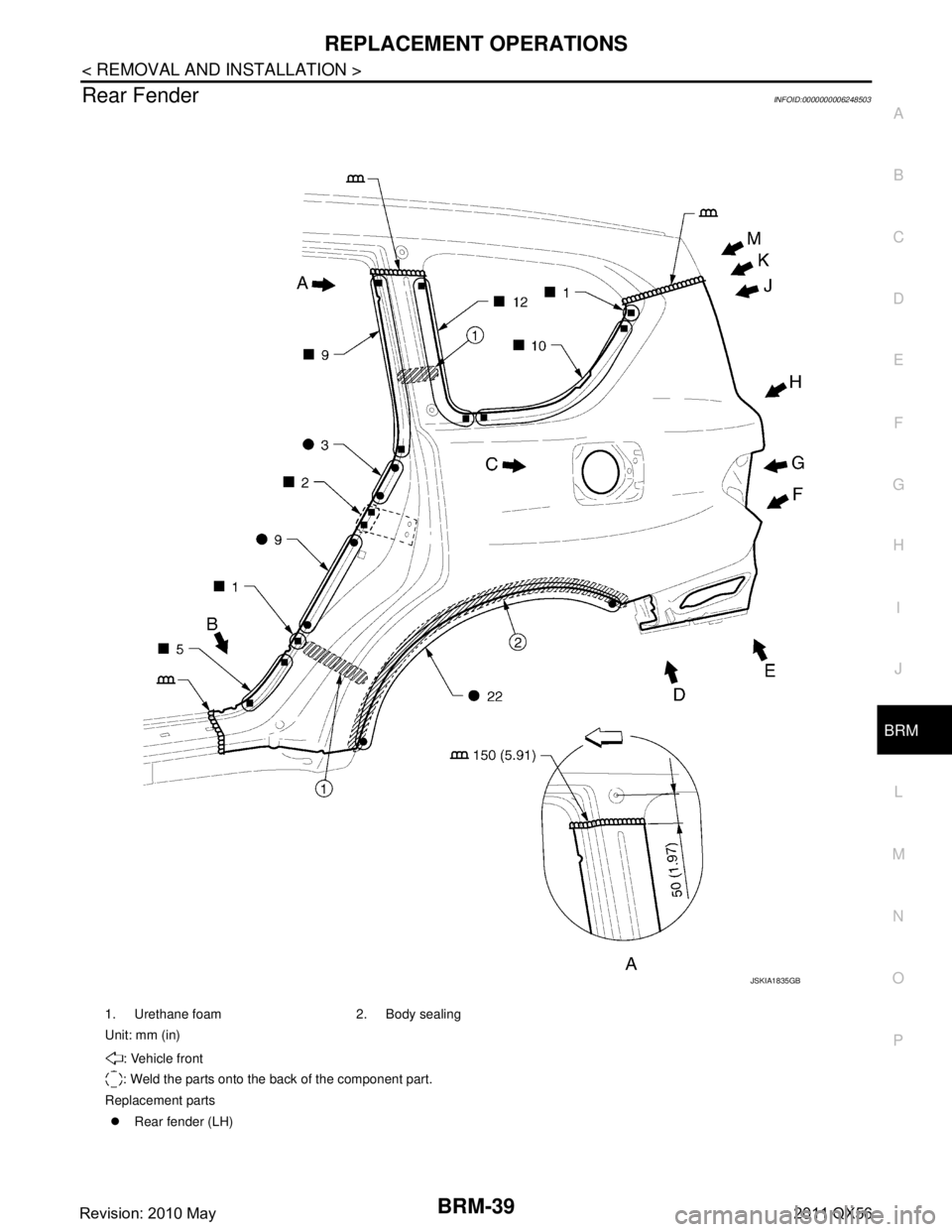

INFINITI QX56 2011 Factory Service Manual BRM-38 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS View K: Before installing outer sill and lower center pillar brace View M: Before installing outer sill, lower center pillar brace, and oute

Page 714 of 5598

INFINITI QX56 2011 Factory Service Manual REPLACEMENT OPERATIONSBRM-39 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B BRM N O P Rear FenderINFOID:0000000006248503 1. Urethane foam 2. Body sealing Unit: mm (in) : Vehicle front : Weld the

Page 715 of 5598

INFINITI QX56 2011 Factory Service Manual BRM-40 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS 1. Adhesive Unit: mm (in): Vehicle front Refer to GI-4, " Components" for symbols in the figure. JSKIA1836GB Revision: 2010 May2011 QX56

Page 716 of 5598

INFINITI QX56 2011 Factory Service Manual REPLACEMENT OPERATIONSBRM-41 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B BRM N O P View M: Before installing rear fender Unit: mm (in) : Vehicle front JSKIA1837GB Revision: 2010 May2011 QX56

Page 717 of 5598

INFINITI QX56 2011 Factory Service Manual BRM-42 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS Rear Fender Extension INFOID:0000000006248504 Rear Panel and Rear End CrossmemberINFOID:0000000006248505 Remove the rear side member (reusa

Page 718 of 5598

INFINITI QX56 2011 Factory Service Manual REPLACEMENT OPERATIONSBRM-43 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B BRM N O P o. Left side p. Right side : Vehicle front : Welding method, the number of welding points, and the tightenin

Page 719 of 5598

INFINITI QX56 2011 Factory Service Manual BRM-44 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS : Vehicle front. : Weld the parts onto the back of the component part. : Welding method, the number of welding points, and the tightening to

Page 720 of 5598

INFINITI QX56 2011 Factory Service Manual REPLACEMENT OPERATIONSBRM-45 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B BRM N O P Rear Floor RearINFOID:0000000006248506 Work after rear panel and rear end crossmember are removed. 1. Rear s
