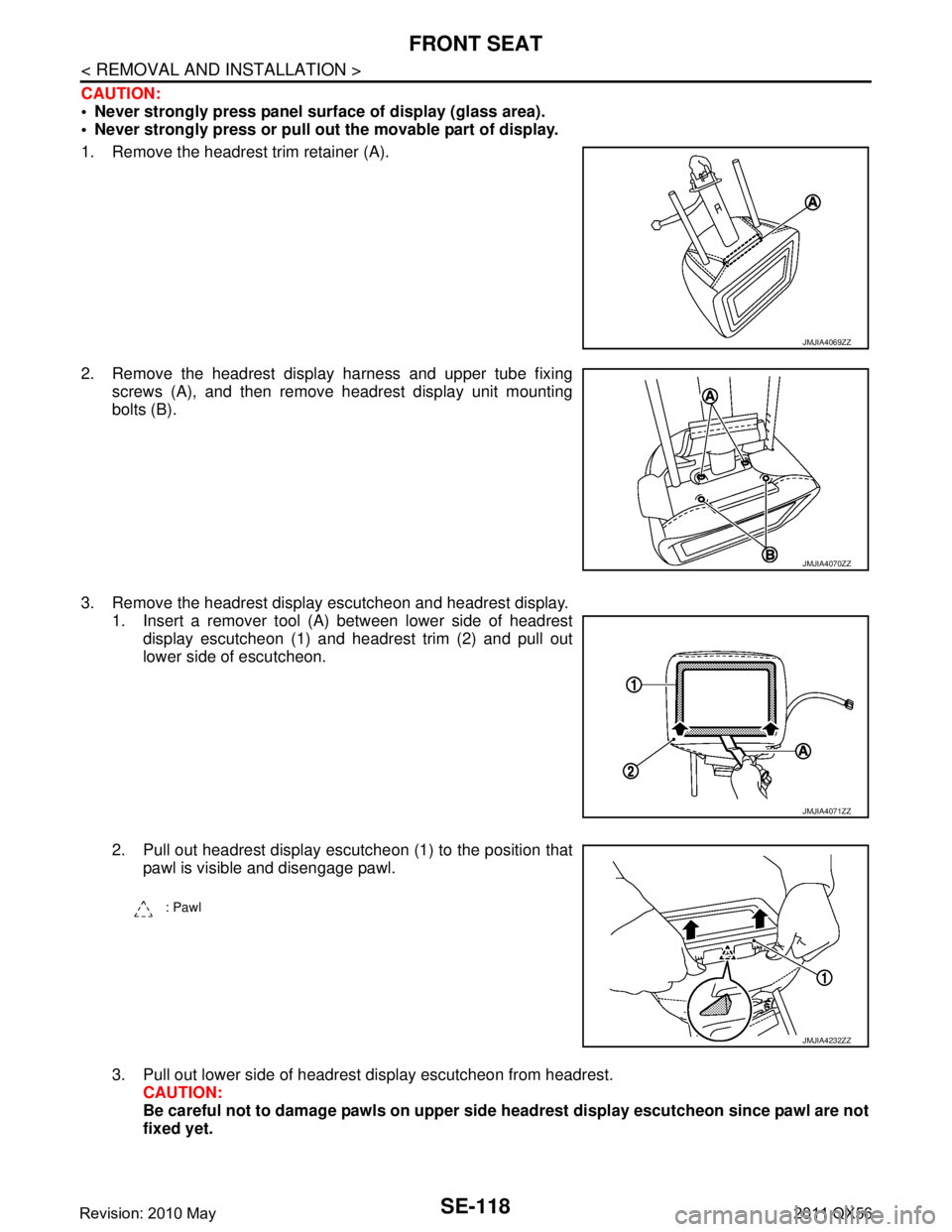

Page 4577 of 5598

INFINITI QX56 2011 Factory Service Manual SE-118 < REMOVAL AND INSTALLATION > FRONT SEAT CAUTION:  Never strongly press panel surface of display (glass area).  Never strongly press or pull out the movable part of display. 1. Remove the hea

Page 4578 of 5598

INFINITI QX56 2011 Factory Service Manual FRONT SEATSE-119 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B SE N O P 4. Pull downward and remove headrest display escutcheon (1) and headrest display unit (2) by pulling them out and remov-

Page 4579 of 5598

INFINITI QX56 2011 Factory Service Manual SE-120 < REMOVAL AND INSTALLATION > SECOND SEAT SECOND SEAT Exploded ViewINFOID:0000000006217429 BENCH SEAT (LH SIDE) JMJIA4338GB Revision: 2010 May2011 QX56

Page 4580 of 5598

INFINITI QX56 2011 Factory Service Manual SECOND SEATSE-121 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B SE N O P *: Heater seat model only. BENCH SEAT (RH SEAT) AND CAPTAIN SEAT (RH SEAT) 1. Headrest LH 2. Headrest (center) 3. Headre

Page 4581 of 5598

INFINITI QX56 2011 Factory Service Manual SE-122 < REMOVAL AND INSTALLATION > SECOND SEAT 1. Headrest RH 2. Headrest holder (free) 3. Headrest holder (locked) 4. Seatback trim 5. Seatback pad 6. Seat cushion trim 7. Seat cushion pad 8.Seat c

Page 4582 of 5598

INFINITI QX56 2011 Factory Service Manual SECOND SEATSE-123 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B SE N O P *: Heater seat model only. CAPTAIN SEAT (LH SIDE) 19. Seat control lever escutcheon 20. Rear seat lever assembly 21. Sea

Page 4583 of 5598

INFINITI QX56 2011 Factory Service Manual SE-124 < REMOVAL AND INSTALLATION > SECOND SEAT 1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked) 4. Seatback trim 5. Seatback pad 6. Seat cushion heater unit 7. Seat cushion trim 8.

Page 4584 of 5598

INFINITI QX56 2011 Factory Service Manual SECOND SEATSE-125 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B SE N O P Removal and InstallationINFOID:0000000006217430 REMOVAL CAUTION:  When removing and installing, use shop cloths to pro
