Page 4313 of 5598

INFINITI QX56 2011 Factory Service Manual
SBC-16
< ECU DIAGNOSIS INFORMATION >
PRE-CRASH SEAT BELT CONTROL UNIT (DRIVER SIDE)
DTC Index
INFOID:0000000006237885
DTC Trouble diagnosis name
(CONSULT-III display) DTC detection condition Referenc

Page 4314 of 5598

INFINITI QX56 2011 Factory Service Manual
PRE-CRASH SEAT BELT CONTROL UNIT (PASSENGER SIDE)
SBC-17
< ECU DIAGNOSIS INFORMATION >
C
D E
F
G
I
J
K L
M A
B
SBC
N
O P
PRE-CRASH SEAT BELT CONTROL UNIT (PASSENGER SIDE)
Reference ValueINFOID:000000

Page 4315 of 5598

INFINITI QX56 2011 Factory Service Manual
SBC-18
< ECU DIAGNOSIS INFORMATION >
PRE-CRASH SEAT BELT CONTROL UNIT (PASSENGER SIDE)
*1: The deactivation mode differs depending on the internal malfunctioning condition of control unit
U1000 CAN c

SBC-18
< ECU DIAGNOSIS INFORMATION >
PRE-CRASH SEAT BELT CONTROL UNIT (PASSENGER SIDE)
*1: The deactivation mode differs depending on the internal malfunctioning condition of control unit
U1000 CAN communication circuit
Stops the operation in the conditions as per the following. *
1
During emergency brake operation
When ABS continuo
usly operates
When lateral slippage during cornering occurs
When Intelligent brake assistance operates
When steering wheel is rotated for emergency
When the vehicle inclined excessively
A part or the whole comfort function
B2452 SEAT BLT MTR AS CIRC Fully deactivates the whole operation.
B2453 BR_STROKE_SEN_CIRC Stops the operation in the conditions as per the following.
During emergency brake operation
When ABS continuo
usly operates
B2455 CONTROL UNIT DR Stops the operation in the conditions as per the following. *
1
During emergency brake operation
When ABS continuo
usly operates
When lateral slippage during cornering occurs
When Intelligent brake assistance operates
When steering wheel is rotated for emergency
When the vehicle inclined excessively
A part or the whole comfort function
B2456 SEAT BLT PWR AS Fully deactivates the whole operation.
B2457 CONTROL UNIT AS Fully deactivates the whole operation.*
1
B2458 LOCAL COMM
Fully deactivates the whole operation.*1
B2461 VHCL SPEED SIGNALStops the operation in the conditions as per the following.
During emergency brake operation
When ABS continuo
usly operates
When lateral slippage during cornering occurs
When steering wheel is rotated for emergency
When the vehicle inclined excessively
A part or the whole comfort function
B2463 ROLLOVER SIGNAL When the vehicle inclined excessively
B2466 DR/AS CONTROL UNIT Stops the operation in the conditions as per the following.
During emergency brake operation
When ABS continuo
usly operates
When lateral slippage during cornering occurs
When steering wheel is rotated for emergency
When the vehicle inclined excessively
A part or the whole comfort function
B2471 SYS HEAT PROTC AS Fully deactivates the whole operation.
Operation return
- 1 time operation becomes possible after approximately 30 seconds
- Returns to the initial condition after approximately 8 minutes
Display contents of CONSULT-III Fail-safe
Revision: 2010 May2011 QX56

Page 4316 of 5598

INFINITI QX56 2011 Factory Service Manual
PRE-CRASH SEAT BELT SYSTEMSBC-19
< WIRING DIAGRAM >
C
DE
F
G
I
J
K L
M A
B
SBC
N
O P
WIRING DIAGRAM
PRE-CRASH SEAT BELT SYSTEM
Wiring DiagramINFOID:0000000006237888
JCHWM0714GB
Revision: 2010 May2011

Page 4317 of 5598

INFINITI QX56 2011 Factory Service Manual
SBC-20
< WIRING DIAGRAM >
PRE-CRASH SEAT BELT SYSTEM
JCHWM0715GB
Revision: 2010 May2011 QX56

Page 4318 of 5598

INFINITI QX56 2011 Factory Service Manual
PRE-CRASH SEAT BELT SYSTEMSBC-21
< WIRING DIAGRAM >
C
DE
F
G
I
J
K L
M A
B
SBC
N
O P
JCHWM0716GB
Revision: 2010 May2011 QX56

Page 4319 of 5598

INFINITI QX56 2011 Factory Service Manual
SBC-22
< WIRING DIAGRAM >
PRE-CRASH SEAT BELT SYSTEM
JCHWM0717GB
Revision: 2010 May2011 QX56

Page 4320 of 5598

INFINITI QX56 2011 Factory Service Manual
PRE-CRASH SEAT BELT SYSTEMSBC-23
< WIRING DIAGRAM >
C
DE
F
G
I
J
K L
M A
B
SBC
N
O P

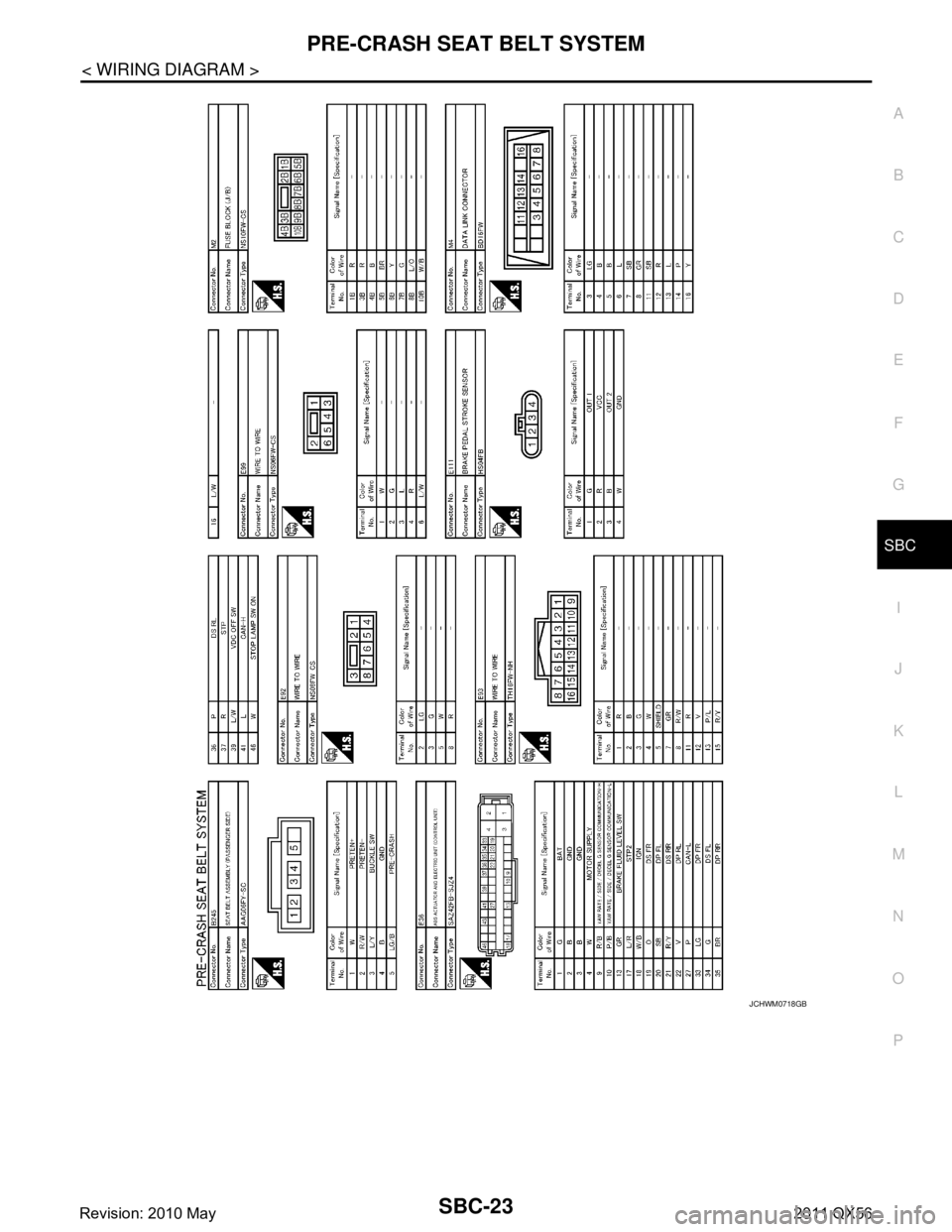

JCHWM0718GB
Revision: 2010 May2011 QX56
