Page 1753 of 5598

INFINITI QX56 2011 Factory Service Manual
HOOD
DLK-217
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
Check the clearance and the surface height betw een hood and each part by visually and touching.
If the clearance and the s

HOOD
DLK-217
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
Check the clearance and the surface height betw een hood and each part by visually and touching.
If the clearance and the surface height are out of spec ification, adjust them according to the procedures
shown below.
Unit: mm (in)
1. Remove hood lock and adjust the surface height of hood, bumper molding and front fender according to
the fitting standard dimension, by rotating hood bumper rubber.
2. Loosen hood hinge mounting nuts on the hood.
3. Adjust the clearance of hood, bumper molding and fr ont fender according to the fitting standard dimen-
sion, for the hood.
4. Temporarily tighten hood lock.
5. Adjust A and B shown in the figure to the following value with hood's own weight by dropping it from approximately 200 mm (7.874 in) height or by pressi ng hood lightly [approximately 29 N (3.0 kg, 6.5lb)].
6. Install as static closing force of hood is 680N (69.0 kg, 502lb) or less.
7. After adjustment, tighten hood hinge mounting nuts to the specified torque. CAUTION:
Before installing hood hinge, apply anticorrosive agent onto th e mounting surface of the vehicle
body.
Check hood hinge rotating pa rt for poor lubrication. If necessary, apply body grease.
1. Hood assembly 2. Hood bumper rubber 3. Hood hinge
4. Hood lock assembly 5. Front grille 6. Bumper molding
7. Front fender
Refer to GI-4, "
Components" for symbols in the figure.
Portion Standard Difference
(RH/LH, MAX)
Hood – Front grille A – A D Clearance 3.7 – 8.3 (0.146 – 0.327) —
E Surface height (-0.9) – (+3.9) [(-0.035) –
(+0.154)] —
Hood – Bumper molding B – B F Clearance 1.2 – 5.8 (0.047 – 0.228) 2.2 (0.087)
G Surface height (-2.4) –– (+0.094)] 2.2 (0.087)
Hood – Front fender C – C H Clearance 2.5 – 4.5 (0.098 – 0.177) 1.0 (0.039)
I Surface height (-1.0) – (+1.0) [(-0.039 –
(+0.039)] —

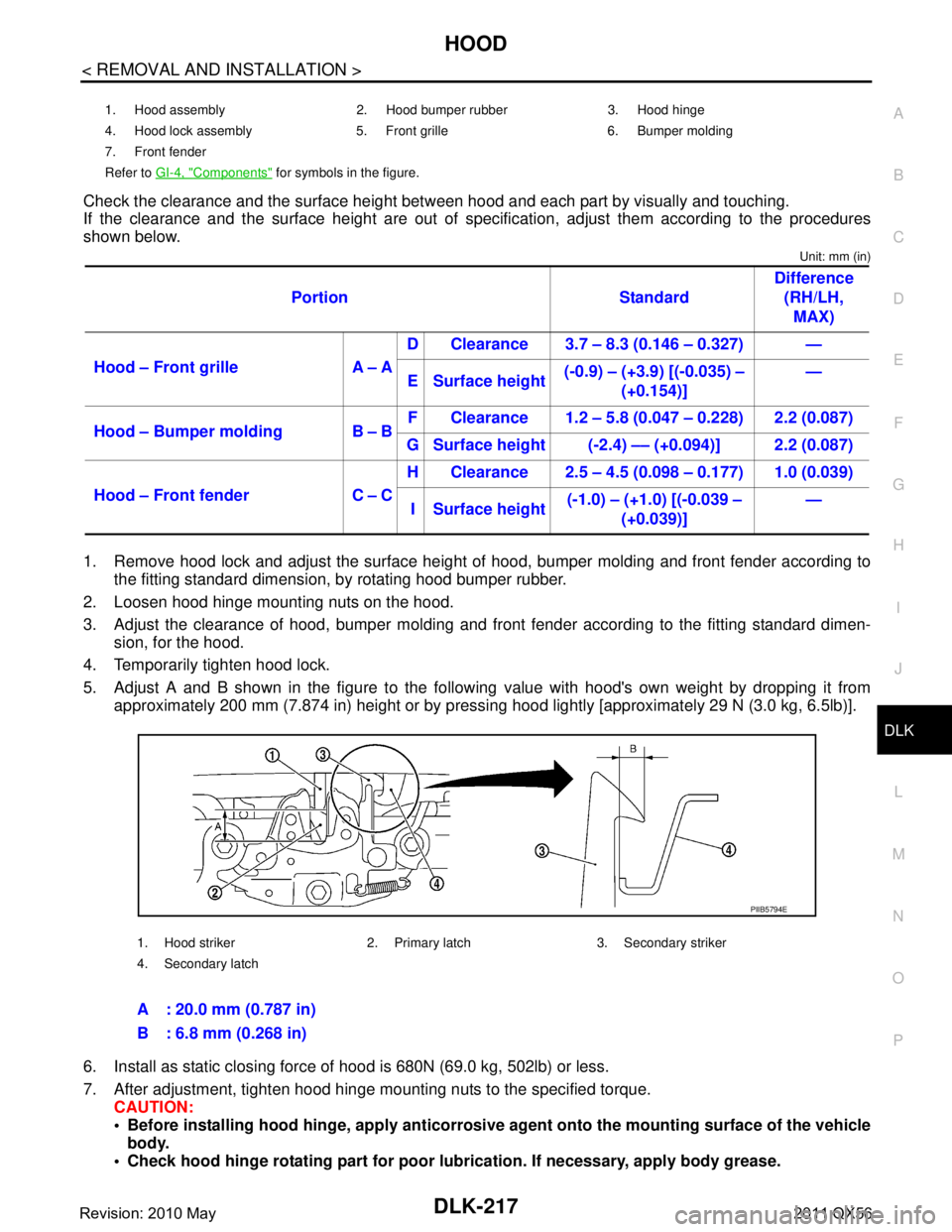

1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
A : 20.0 mm (0.787 in)
B : 6.8 mm (0.268 in)
PIIB5794E
Revision: 2010 May2011 QX56

Page 1754 of 5598

INFINITI QX56 2011 Factory Service Manual
DLK-218
< REMOVAL AND INSTALLATION >
HOOD
After installation, apply touch-up paint (the body color) onto the head of hood hinge mountingbolts and nuts.
HOOD HINGE
HOOD HINGE : Removal and Installat

DLK-218
< REMOVAL AND INSTALLATION >
HOOD
After installation, apply touch-up paint (the body color) onto the head of hood hinge mountingbolts and nuts.
HOOD HINGE
HOOD HINGE : Removal and InstallationINFOID:0000000006226065
REMOVAL
1. Remove hood assembly. Refer to DLK-215, "HOOD ASSEMBLY : Removal and Installation".
2. Remove front fender cover. Refer to EXT-21, "
Exploded View".
3. Remove front fender mounting bolt. DLK-222, "
Exploded View".
4. Remove hood hinge mounting bolts, and then remove hood hinge.
INSTALLATION
Note the following items, and install in the reverse order of removal.
CAUTION:
Before installation of hood hing e, apply anticorrosive agent onto the mounting surface of the vehicle
body.
After installation, apply touch-up paint (the body color) onto the head of the hinge mounting bolts
and nuts.
After installation, perform hood fitting adjustment. Refer to DLK-216, "
HOOD ASSEMBLY : Adjust-
ment".
HOOD STAY
HOOD STAY : Removal and InstallationINFOID:0000000006226066
REMOVAL
1. Support hood assembly with a proper material to prevent it from falling.
WARNING:
Bodily injury may occur if no proper material is holding the hood open when removing the hood
stay.

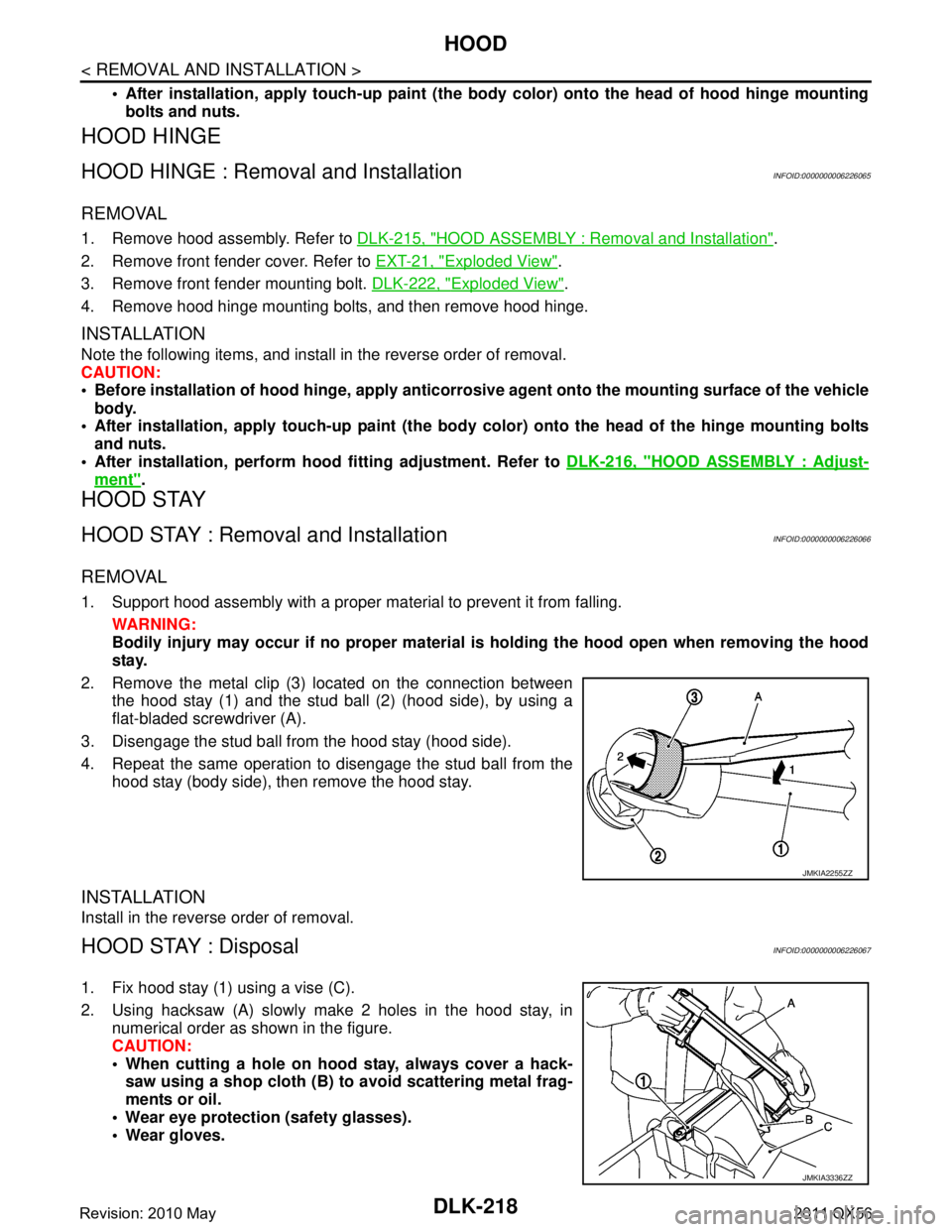

2. Remove the metal clip (3) located on the connection between the hood stay (1) and the stud ball (2) (hood side), by using a
flat-bladed screwdriver (A).
3. Disengage the stud ball from the hood stay (hood side).
4. Repeat the same operation to disengage the stud ball from the hood stay (body side), then remove the hood stay.
INSTALLATION
Install in the reverse order of removal.
HOOD STAY : Disposal INFOID:0000000006226067
1. Fix hood stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the hood stay, innumerical order as shown in the figure.
CAUTION:
When cutting a hole on hood stay, always cover a hack-saw using a shop cloth (B) to avoid scattering metal frag-
ments or oil.
Wear eye protection (safety glasses).
Wear gloves.
JMKIA2255ZZ
JMKIA3336ZZ
Revision: 2010 May2011 QX56

Page 1755 of 5598

INFINITI QX56 2011 Factory Service Manual
HOOD
DLK-219
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
A: 20 mm (0.787 in)
B: Cut at the groove.
JMKIA3609ZZ
Revision: 2010 May2011 QX56

Page 1756 of 5598

INFINITI QX56 2011 Factory Service Manual
DLK-220
< REMOVAL AND INSTALLATION >

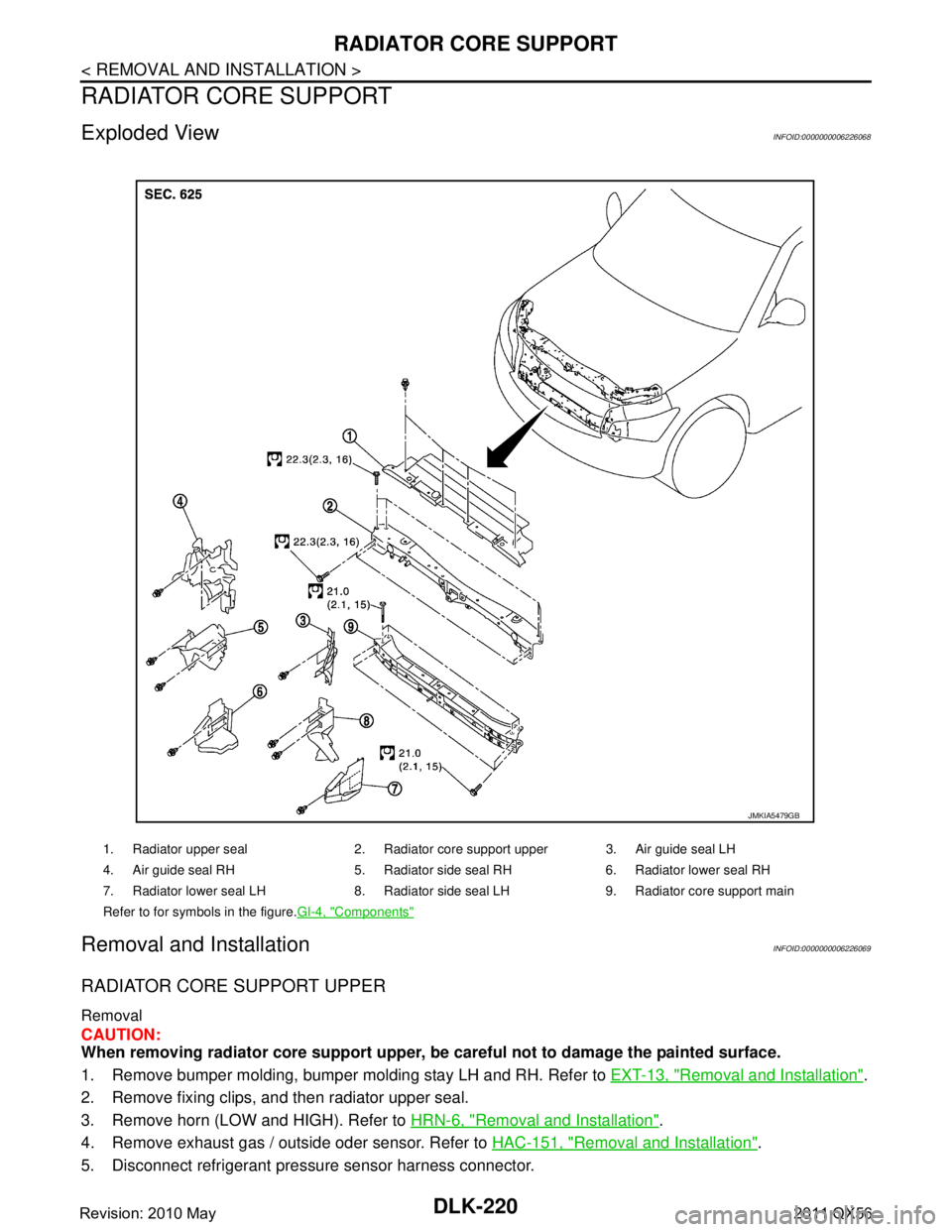

RADIATOR CORE SUPPORT
RADIATOR CORE SUPPORT
Exploded ViewINFOID:0000000006226068
Removal and InstallationINFOID:0000000006226069
RADIATOR CORE SUPPORT UPPER
Remov

Page 1757 of 5598

INFINITI QX56 2011 Factory Service Manual
RADIATOR CORE SUPPORTDLK-221
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
DLK
N
O P

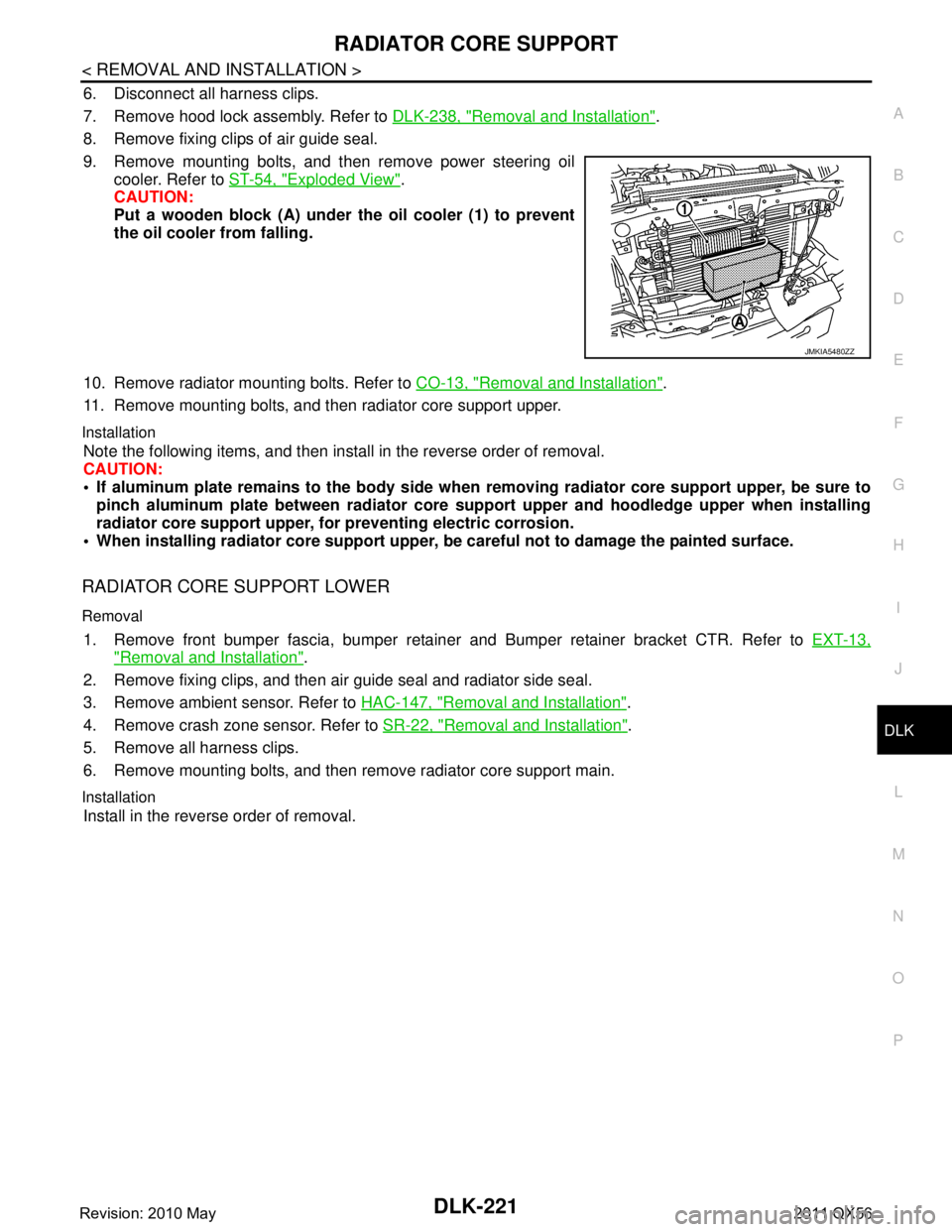

6. Disconnect all harness clips.
7. Remove hood lock assembly. Refer to DLK-238, "
Removal and Installation

Page 1758 of 5598

INFINITI QX56 2011 Factory Service Manual
DLK-222
< REMOVAL AND INSTALLATION >
FRONT FENDER

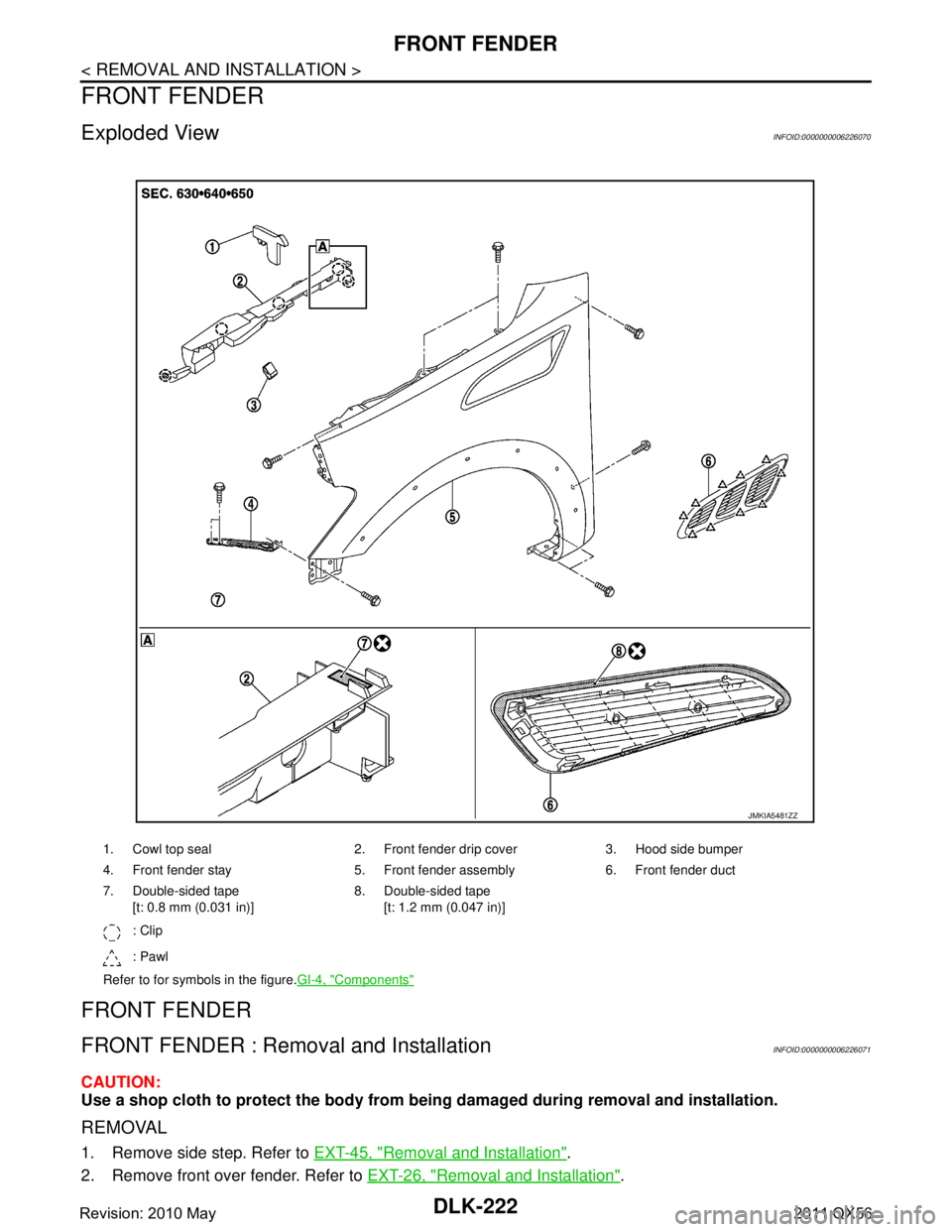

FRONT FENDER
Exploded ViewINFOID:0000000006226070
FRONT FENDER
FRONT FENDER : Removal and InstallationINFOID:0000000006226071
CAUTION:
Use a shop clo

Page 1759 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT FENDERDLK-223
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
DLK
N
O P
3. Remove front combination lamp. Refer to EXL-125, "Removal and Installation".
4. Remove front fender drip cover. R

FRONT FENDERDLK-223
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
DLK
N
O P
3. Remove front combination lamp. Refer to EXL-125, "Removal and Installation".
4. Remove front fender drip cover. Refer to DLK-223, "
FRONT FENDER DRIP COVER : Removal and
Installation"
5. Remove front fender cover. Refer to EXT-21, "Exploded View".
6. Remove front fender protector. Refer to EXT-23, "
FENDER PROTECTOR : Removal and Installation".
7. Remove mounting bolts and remove front fender. CAUTION:
An viscous urethane foam is installed on the back surface of front fender. When removing the
front fender, be careful to not deform the front fender while performing the procedure and remov-
ing the viscous urethane foam a little at a time.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
After installation, apply the touc h-up paint (the body color) onto the head of front fender mounting
bolts.
After installation, adju st the following part.
- Hood assembly: Refer to DLK-216, "
HOOD ASSEMBLY : Adjustment".
- Front door: Refer to DLK-225, "
DOOR ASSEMBLY : Adjustment".
FRONT FENDER DRIP COVER
FRONT FENDER DRIP COVER : Removal and InstallationINFOID:0000000006226072
REMOVAL
1. Remove fixing clips, and then front fender drip cover.
2. Remove cowl top seal from front fender drip cover.
INSTALLATION
Install in the reverse order of removal.
FRONT FENDER DUCT
FRONT FENDER DUCT : Removal and InstallationINFOID:0000000006226073
REMOVAL
1. Remove front fender protector. Refer to EXT-23, "FENDER PROTECTOR : Removal and Installation".
2. Remove washer tank. Refer to WW-58, "
Removal and Installation".
3. Disengage pawls of front fender duct, from front fender to remove. CAUTION:
When removing front fender duct, peel off the double-sided tape at a time, and carefully to
remove it.
Use protective tape or cloth to protect from damage during remove and installation.
INSTALLATION
Install in the reverse order of removal.
Revision: 2010 May2011 QX56

Page 1760 of 5598

INFINITI QX56 2011 Factory Service Manual
DLK-224
< REMOVAL AND INSTALLATION >
FRONT DOOR

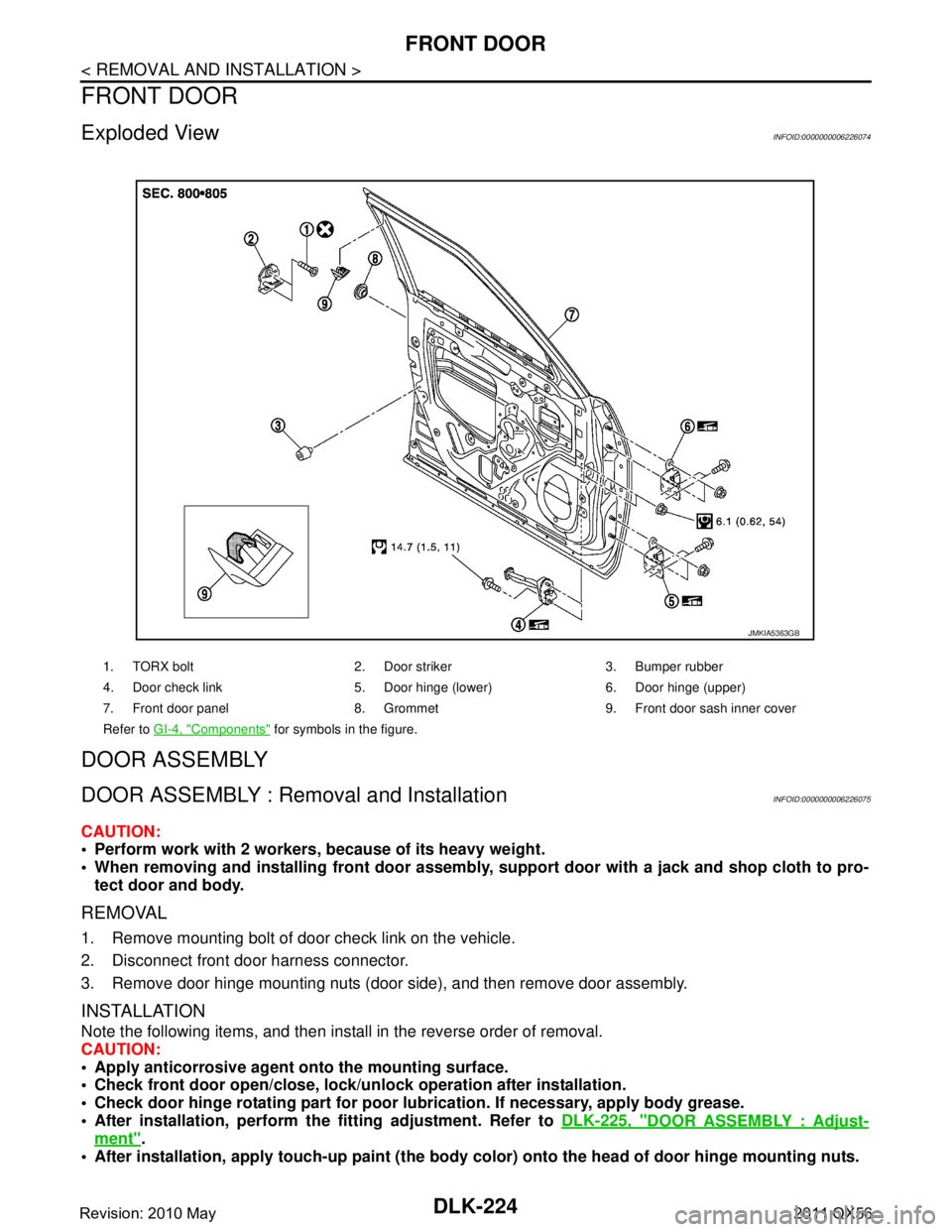

FRONT DOOR
Exploded ViewINFOID:0000000006226074
DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and InstallationINFOID:0000000006226075
CAUTION:
Perform work w
