INFINITI QX56 2011 Factory Service Manual
SB-14
< REMOVAL AND INSTALLATION >
SECOND SEAT BELT
6. Remove the rear pillar finisher (LH/RH). Refer to INT-37, "REAR PILLAR FINISHER : Removal and Instal-
lation".
7. Remove the shoulder anchor mou

SB-14
< REMOVAL AND INSTALLATION >
SECOND SEAT BELT
6. Remove the rear pillar finisher (LH/RH). Refer to INT-37, "REAR PILLAR FINISHER : Removal and Instal-
lation".
7. Remove the shoulder anchor mounting anchor nut and then remove the shoulder anchor.
8. Remove the seat belt retractor mounting anchor bolt and then remove the second seat belt retractor.
SECOND SEAT BELT CENTER RETRACTOR (BENCH SEAT ONLY)
1. Remove the second seat LH side assembly from vehicle. Refer to SE-125, "Removal and Installation".
2. Remove the seat cushion and seat cushion under cover from seat cushion frame. Refer to SE-130, "
SEAT
CUSHION : Disassembly and Assembly".
3. Remove the center anchor mounting bolt and then remove the center anchor.
4. Remove the seat back from seat back frame. Refer to SE-126, "
SEATBACK : Disassembly and Assem-
bly".
5. Remove the seat belt center retractor mounting anchor bolt and then remove the second seat belt center
retractor.
INSTALLATION
Install in the reverse order of removal.
SEAT BELT BUCKLE
SEAT BELT BUCKLE : InspectionINFOID:0000000006217624
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies in cluding retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and th e belts show no damage and continue to operate properly. Fail-
ure to do so could result in seri ous personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be re placed if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat be lts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
The seat belt is in use at the time of a collision (e xcept for minor collisions and the belts, retractors and buck-
les show no damage and continue to operate properly).
The seat belt is damaged in an accident. (i.e. to rn webbing, bent retractor or guide, etc.)
The seat belt attaching point is damaged in an accident . Inspect the seat belt attaching area for damage or
distortion and repair if necessary before installing a new seat belt assembly.
Anchor bolts are deformed or worn out.
The seat belt pre-tensioner must be replaced even if t he seat belts were not in use during the collision in
which the air bags are deployed.
PRELIMINARY CHECKS
1. Check that the seat belt retractor, s eat belt anchor and buckle bolts are tightened firmly.
2. Repeat step above if necessary to check the other seat belts.

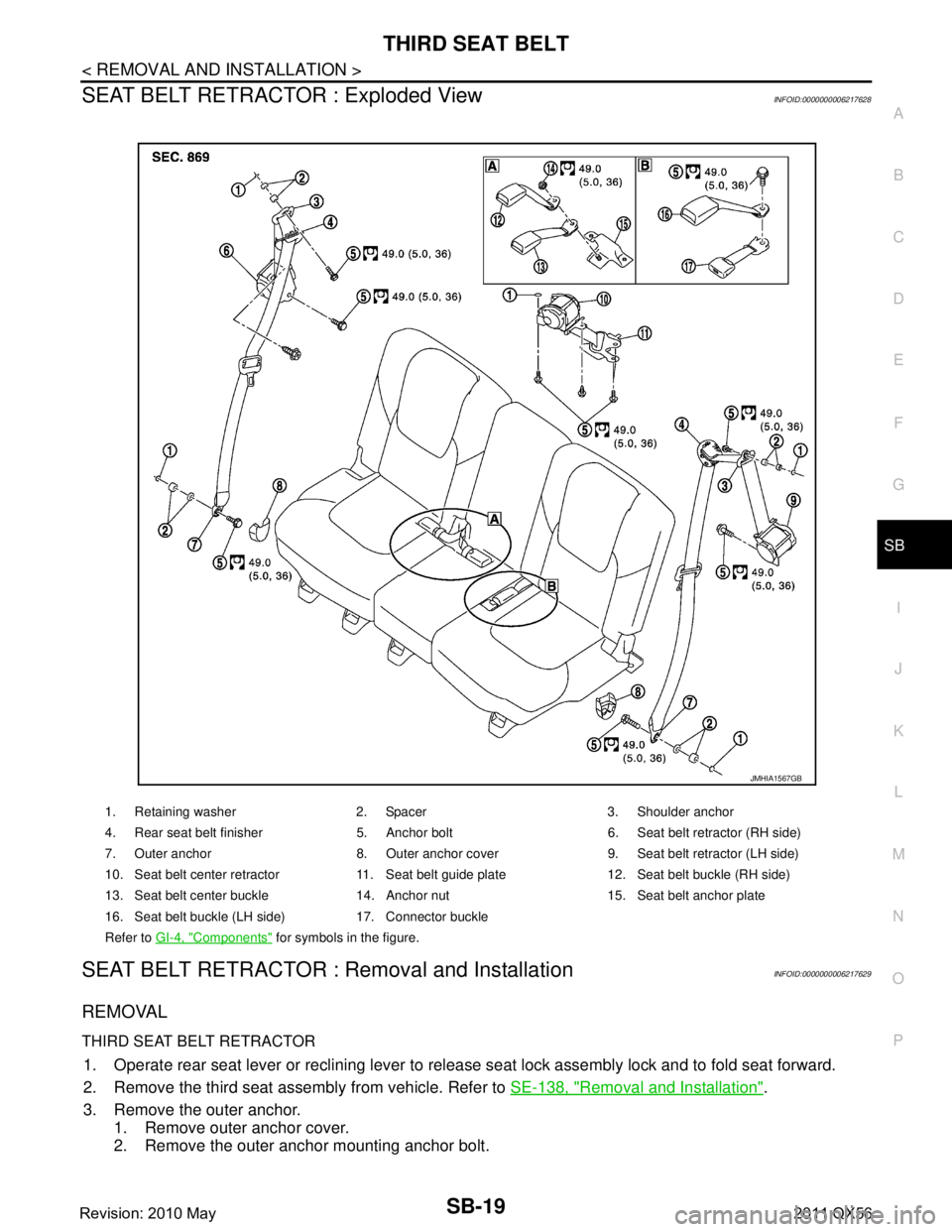

SEAT BELT BUCKLE : Exploded ViewINFOID:0000000006369608
BENCH SEAT
Revision: 2010 May2011 QX56

Page 4290 of 5598

INFINITI QX56 2011 Factory Service Manual
SECOND SEAT BELTSB-15
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SB
N
O P

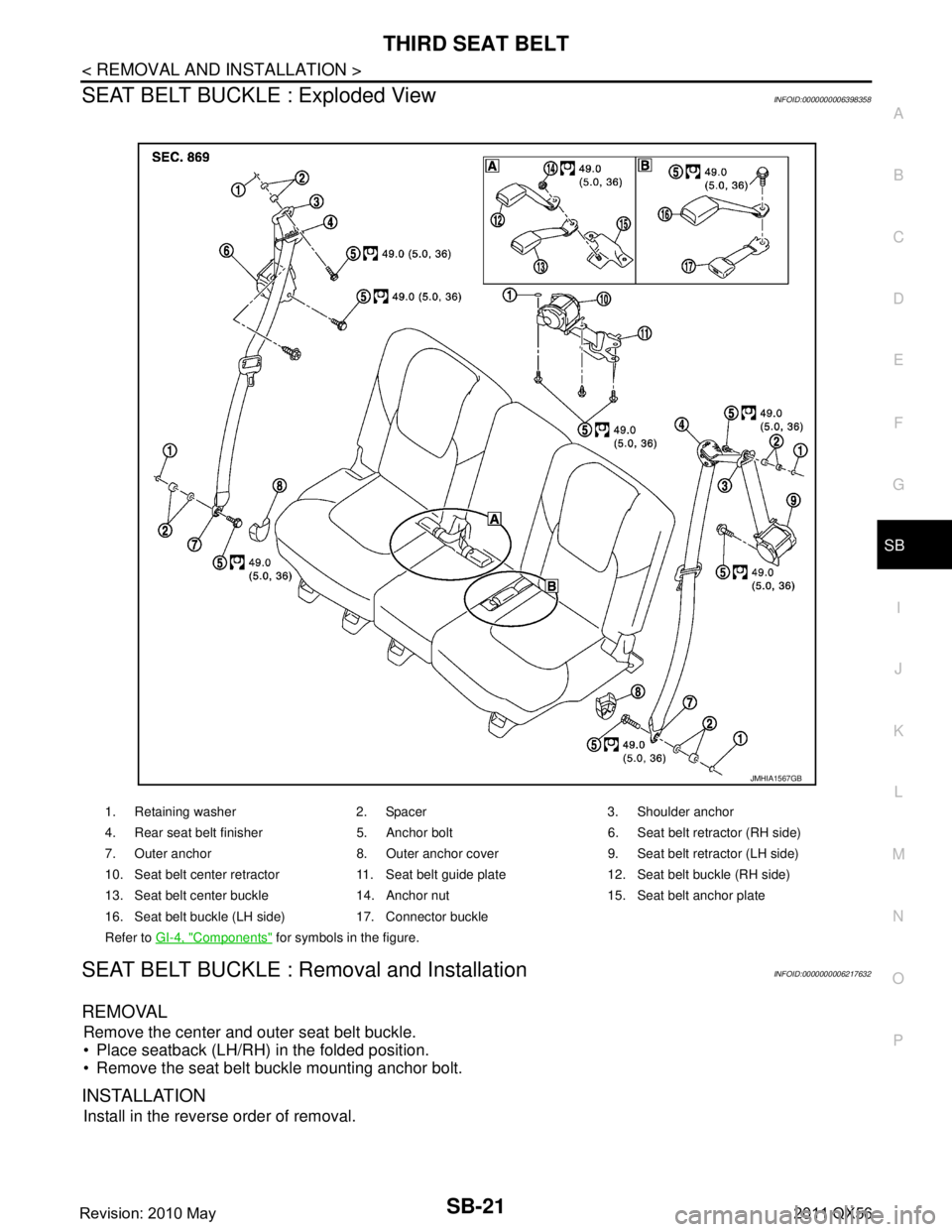

CAPTAIN SEAT
1. Anchor bolt 2. Seat belt adjuster 3. Retaining washer
4. Shoulder anchor 5. Anchor nut 6. Second sea

Page 4291 of 5598

INFINITI QX56 2011 Factory Service Manual
SB-16
< REMOVAL AND INSTALLATION >
SECOND SEAT BELT
SEAT BELT BUCKLE : Re moval and Installation
INFOID:0000000006217626
REMOVAL
1. Remove the second seat assembly from vehicle. Refer to SE-125, "Re

Page 4292 of 5598

INFINITI QX56 2011 Factory Service Manual
THIRD SEAT BELTSB-17
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SB
N
O P
THIRD SEAT BELT
SEAT BELT RETRACTOR
SEAT BELT RETRACTOR : InspectionINFOID:0000000006217627
AFTER A COLLISION
WARNING

THIRD SEAT BELTSB-17
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SB
N
O P
THIRD SEAT BELT
SEAT BELT RETRACTOR
SEAT BELT RETRACTOR : InspectionINFOID:0000000006217627
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies in cluding retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and th e belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal inju ry in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either da mage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat be lts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
The seat belt is in use at the time of a collision (exc ept for minor collisions and the belts, retractors and buck-
les show no damage and continue to operate properly).
The seat belt is damaged in an accident (i.e. to rn webbing, bent retractor or guide, etc.).
The seat belt attaching point is damaged in an accident . Inspect the seat belt attaching area for damage or
distortion and repair if necessary before installing a new seat belt assembly.
Anchor bolts are deformed or worn out.
The seat belt pre-tensioners must be replaced even if t he seat belts were not in use during the collision in
which the air bags were deployed.
PRELIMINARY CHECKS
1. Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.
2. Check retractor operation:
a. Fully extend the seat belt webbing and check for twists, tears or other damage.
b. Allow the seat belt to retract. Check that webbing retu rns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of t he loops with a clean paper cloth. Dirt build-up in the
loops of that upper anchors can cause the seat belts to retract slowly.
c. Fasten the seat belt. Check that seat belt returns sm oothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accu mulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.
3. Repeat steps above if necessary to check the other seat belts.
SEAT BELT RETRACTOR ON-VEHICLE CHECK
Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)
NOTE:
All seat belt retractors are Emergency Locking Retr actors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extendi ng any further. All 3-point type seat belt retractors
except the driver seat belt also have an Automati c Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted part ially, the ALR mode automatically locks the seat belt
in a specific position so the webbi ng cannot be extended any further. To c ancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s ) to determine if a retractor assembly is operating prop-
erly.
ELR Function Stationary Check
Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.
ALR Function Stationary Check
1. Pull out the entire length of seat bel t from retractor until a click is heard.
2. Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.
Revision: 2010 May2011 QX56

Page 4293 of 5598

INFINITI QX56 2011 Factory Service Manual
SB-18
< REMOVAL AND INSTALLATION >
THIRD SEAT BELT
3. Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace

SB-18
< REMOVAL AND INSTALLATION >
THIRD SEAT BELT
3. Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace the retractor assembly.
4. Allow the entire length of the webbing to re tract to cancel the automatic locking mode.
ELR Function Moving Check
WARNING:
Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be p aved and dry. Never perform the following test on
wet or gravel roads or on public streets and highw ays. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.
1. Fasten driver seat belt. Buckle a passenger in to the seat for the belt that is to be tested.
2. Proceed to the designated safe area.
3. Drive the vehicle at approximately 16 km/h ( 10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.
During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.
SEAT BELT RETRACTOR OFF-VEHICLE CHECK
1. Remove the third seat belt retractor. Refer to SB-19, "SEAT BELT RETRACTOR : Removal and Installa-
tion".
2. Slowly pull out webbing while tilting the retracto r assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.
a. Outer seat belt retractor The webbing can be pulled out when the angle (A) is 15degrees or less.
The webbing cannot be pulled out when the angle (B) is 27
degrees or more.
b. Center seat belt retractor The webbing can be pulled out when the angle (A) is 15
degrees or less.
The webbing cannot be pulled out when the angle (B) is 27
degrees or more.
3. Replace the seat belt assembly if it does not operate normally.
A and B : Tilting angles : Vehicle front
JMHIA1064ZZ
A and B : Tilting angles: Vehicle front
JMHIA0522ZZ
Revision: 2010 May2011 QX56

Page 4294 of 5598

INFINITI QX56 2011 Factory Service Manual
THIRD SEAT BELTSB-19
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SB
N
O P

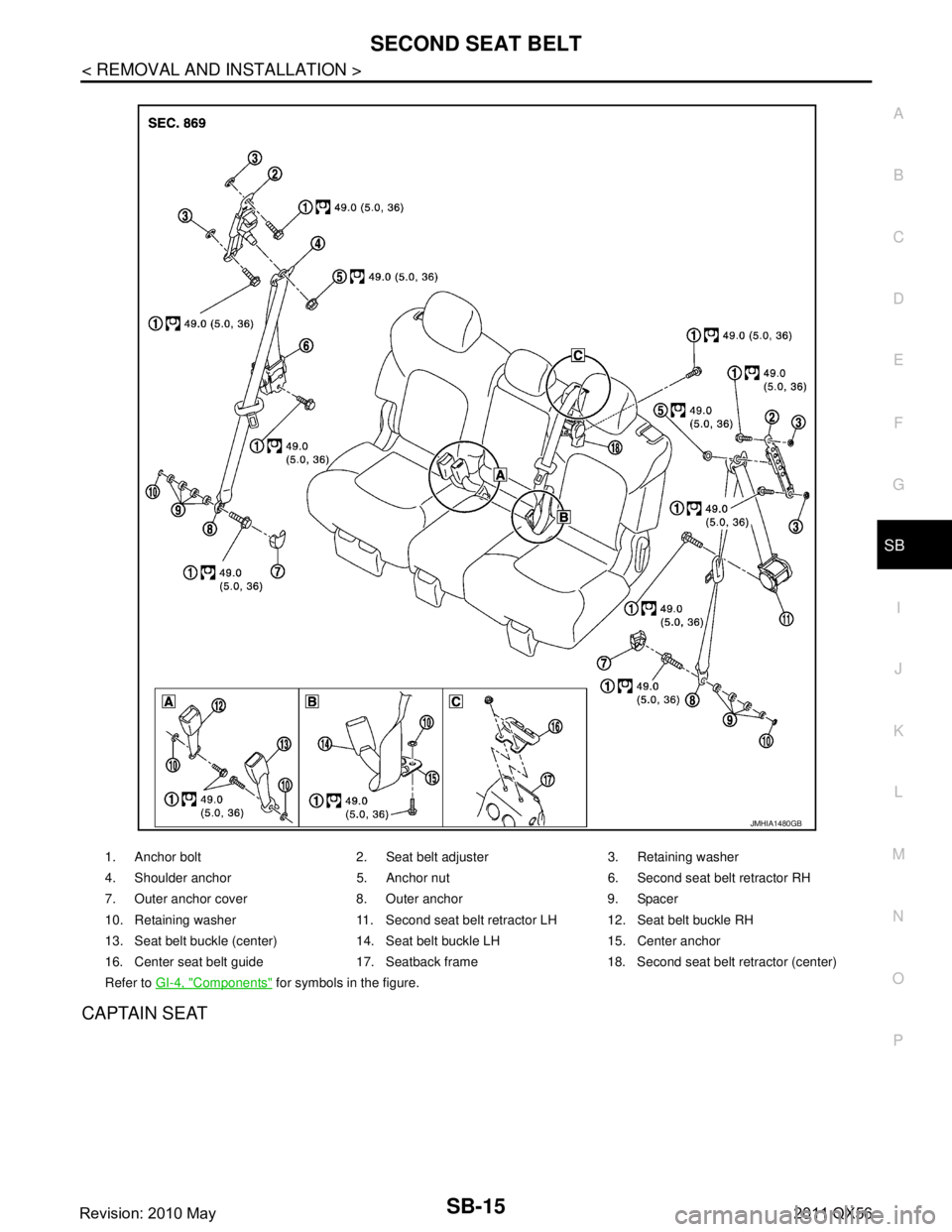

SEAT BELT RETRACTOR : Exploded ViewINFOID:0000000006217628
SEAT BELT RETRACTOR : Removal and InstallationINFOID:00000

Page 4295 of 5598

INFINITI QX56 2011 Factory Service Manual
SB-20
< REMOVAL AND INSTALLATION >
THIRD SEAT BELT
4. Remove the rear kicking plate inner. Refer to INT-20, "KICKING PLATE INNER : Removal and Installa-
tion".
5. Remove the luggage side lower finish

SB-20
< REMOVAL AND INSTALLATION >
THIRD SEAT BELT
4. Remove the rear kicking plate inner. Refer to INT-20, "KICKING PLATE INNER : Removal and Installa-
tion".
5. Remove the luggage side lower finisher (LH/RH). Refer to INT-36, "
LUGGAGE SIDE LOWER FINISHER :
Removal and Installation".
6. Remove the roof garnish. Refer to INT-29, "
Removal and Installation".
7. Remove the back pillar garnish (LH/RH). Refer to INT-37, "
BACK PILLAR GARNISH : Removal and
Installation".
8. Remove the shoulder anchor mounting anchor bolt and then remove the shoulder anchor.
9. Remove the seat belt retractor mounting anchor bolt and then remove the third seat belt retractor.
THIRD SEAT BELT CENTER RETRACTOR
1. Remove the roof garnish. Refer to INT-29, "Removal and Installation".
2. Remove headlining assembly rear clips. Refer to INT-29, "
Removal and Installation".
3. Slightly lower the headlining assembly rear and secure work space.
4. Remove the seat belt guide plate anchor bolt.
5. Remove the center seat belt retractor mounting anchor bolt and screw and then remove the center seat
belt retractor.
INSTALLATION
Install in the reverse order of removal.
SEAT BELT BUCKLE
SEAT BELT BUCKLE : InspectionINFOID:0000000006217630
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies in cluding retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and th e belts show no damage and continue to operate properly. Fail-
ure to do so could result in seri ous personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be re placed if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat be lts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
The seat belt is in use at the time of a collision (e xcept for minor collisions and the belts, retractors and buck-
les show no damage and continue to operate properly).
The seat belt is damaged in an accident. (i.e. to rn webbing, bent retractor or guide, etc.)
The seat belt attaching point is damaged in an accident . Inspect the seat belt attaching area for damage or
distortion and repair if necessary before installing a new seat belt assembly.
Anchor bolts are deformed or worn out.
The seat belt pre-tensioner must be replaced even if t he seat belts were not in use during the collision in
which the air bags are deployed.
PRELIMINARY CHECKS
1. Check that the seat belt retractor, s eat belt anchor and buckle bolts are tightened firmly.
2. Repeat step above if necessary to check the other seat belts.
Revision: 2010 May2011 QX56

Page 4296 of 5598

INFINITI QX56 2011 Factory Service Manual
THIRD SEAT BELTSB-21
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SB
N
O P
SEAT BELT BUCKLE : Exploded ViewINFOID:0000000006398358
SEAT BELT BUCKLE : Removal and InstallationINFOID:00000000062

Load next 8 pages

Page: < prev 1-10 ... 4257-4264 4265-4272 4273-4280 4281-4288 4289-4296 4297-4304 4305-4312 4313-4320 4321-4328 ... 5600 next >

spare tire instrument panel coolant reservoir winter tires engine coolant run flat
