2011 INFINITI QX56 Factory Service Manual

bluetooth phone transmission fluid android auto recommended oil service interval reset

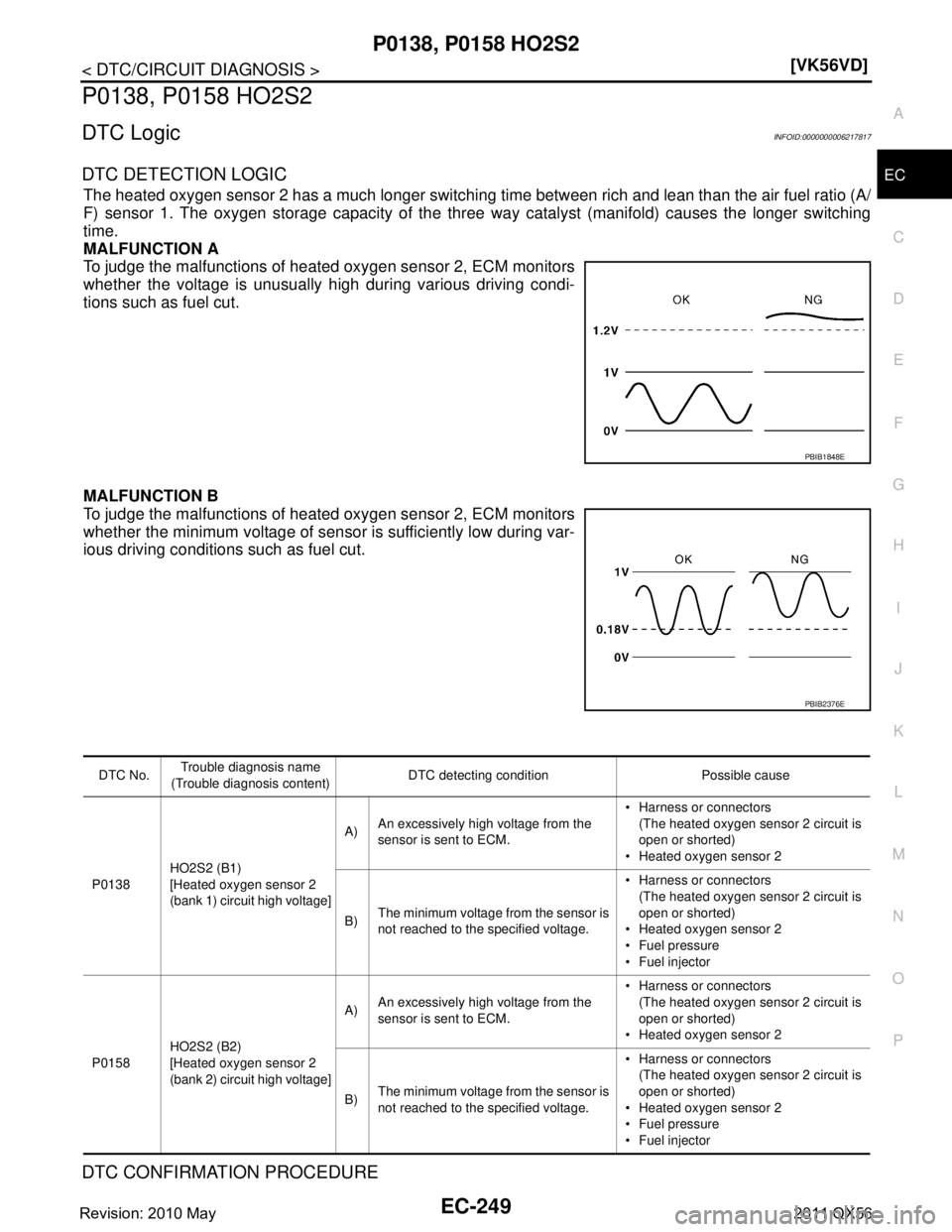

Page 2273 of 5598

INFINITI QX56 2011 Factory Service Manual
P0138, P0158 HO2S2EC-249
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0138, P0158 HO2S2
DTC LogicINFOID:0000000006217817
DTC DETECTION LOGIC
The heated oxygen sensor 2 has a mu

Page 2274 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-250
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0138, P0158 HO2S2
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wai

EC-250
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0138, P0158 HO2S2
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
6. Let engine idle for 2 minutes.
7. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-251, "Diagnosis Procedure".
NO-1 >> With CONSULT-III: GO TO 3.
NO-2 >> With GST: GO TO 5.
3.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B
WITH CONSULT-III
NOTE:
For better results, perform “DTC WORK SU PPORT” at a temperature of 0 to 30°C (32 to 86 °F).
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
6. Let engine idle for 1 minute.
7. Select “DATA MONITOR” mode with CONSULT-III.
8. Check that “COOLAN TEMP/S” indicates more than 70 °C (158 °F).
If not, warm up engine and go to next step when “COOLAN TEMP/S” indication reaches 70°C (158 °F).
9. Open engine hood.
10. Select “HO2S2 (B1) P1146” (for DTC P0138) or “HO2S2 (B2) P1166” (for DTC P0158) of “HO2S2” in
“DTC WORK SUPPORT” mode with CONSULT-III.
11. Follow the instruction of CONSULT-III display. NOTE:
It will take at most 10 minutes until “COMPLETED” is displayed.
12. Touch “SELF-DIAG RESULTS”.
Which is displayed on CONSULT-III screen?
OK >> INSPECTION END
NG >> Go to EC-251, "
Diagnosis Procedure".
CON NOT BE DIAGNOSED>>GO TO 4.
4.PERFORM DTC CONFIRMATION PROC EDURE FOR MALFUNCTION B AGAIN
1. Turn ignition switch OFF and leave the vehi cle in a cool place (soak the vehicle).
2. Perform DTC confirmation procedure again.
>> GO TO 3.
5.PERFORM COMPONENT FUNCTION CHECK FOR MALFUNCTION B
WITH GST
Perform component function check. Refer to EC-251, "
Component Function Check".
NOTE:
Use component function check to check the overall func tion of the heated oxygen sensor 2 circuit. During this
check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?
Revision: 2010 May2011 QX56

Page 2275 of 5598

INFINITI QX56 2011 Factory Service Manual
P0138, P0158 HO2S2EC-251
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> INSPECTION END
NO >> Go to
EC-251, "
Diagnosis Procedure".
Component Function CheckINFOID:000000000

P0138, P0158 HO2S2EC-251
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> INSPECTION END
NO >> Go to
EC-251, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000006217818
1.PERFORM COMPONENT FUNCTION CHECK-I
WITH GST
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
6. Let engine idle for 1 minute.
7. Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.PERFORM COMPONENT FUNCTION CHECK-II
Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 3.
3.PERFORM COMPONENT FUNCTION CHECK-III
Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-251, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000006217819
1.INSPECTION START
Confirm the detected malfunction (A or B). Refer to EC-249, "
DTC Logic".
DTCECM
Condition Voltage
Connector +–
Terminal Terminal
P0138 F110 96
100Revving up to 4,000 rpm under no load at
least 10 times The voltage should be below 0.18 V at
least once during this procedure.
P0158 87
DTC ECM
Condition Voltage
Connector +–
Terminal Terminal
P0138 F110 96
100 Keeping engine at idle for 10 minutes The voltage should be below 0.18 V at
least once during this procedure.
P0158 87
DTC ECM
Condition Voltage
Connector +–
Terminal Terminal
P0138 F110 96
100Coasting from 80 km/h (50 MPH) with se-
lector lever in the D position The voltage should be below 0.18 V at
least once during this procedure.
P0158 87
Revision: 2010 May2011 QX56

Page 2276 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-252
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0138, P0158 HO2S2
Which malfunction is detected?
A>>GO TO 2
B>>GO TO 8.
2.CHECK HEATED OXYGEN SENSOR 2 CONNECTOR
1. Disconnect heated oxygen sensor 2 (HO2S2)

Page 2277 of 5598

INFINITI QX56 2011 Factory Service Manual
P0138, P0158 HO2S2EC-253
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Discard any heated oxygen sensor which has been dr
opped from a height of more than 0.5 m (19.7
in) onto

P0138, P0158 HO2S2EC-253
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Discard any heated oxygen sensor which has been dr
opped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exh aust system threads using Oxygen Sensor Thread
Cleaner [commercial service tool (J-43897-18 or J-43897-12)] and approved anti-seize lubricant
(commercial service tool).
>> INSPECTION END
7.CHECK INTERMITTENT INCIDENT
Refer to GI-40, "
Intermittent Incident".
>> INSPECTION END
8.CLEAR THE MIXTURE RATIO SELF-LEARNING VALUE
1. Clear the mixture ratio self-learning value. Refer to EC-152, "
Work Procedure".
2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 or P0175 detected? Is it difficult to start engine?
YES >> Perform trouble diagnosis for DTC P0172, P0175. Refer to EC-267, "DTC Logic".
NO >> GO TO 9.
9.CHECK HEATED OXYGEN SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 (HO2S2) harness connector.
3. Disconnect ECM harness connector.
4. Check the continuity between HO2S2 harness connector and ECM harness connector.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
10.CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between HO2S2 harness connector and ECM harness connector.
2. Check the continuity between HO2S2 harness connector and ground, or ECM harness connector and
ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 11.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
DTC HO2S2 ECM
Continuity
Bank Connector Terminal Connector Terminal
P0138 1 F87 1 F110 100 Existed
P0158 2 F88 1
DTC HO2S2 ECM
Continuity
Bank Connector Terminal Connector Terminal
P0138 1 F87 4 F11096
Existed
P0158 2 F88 4 87
DTC HO2S2 ECM
Ground Continuity
Bank Connector Terminal Connector Terminal
P0138 1 F87 4 F11096
Ground Not existed
P0158 2 F88 4 87
Revision: 2010 May2011 QX56

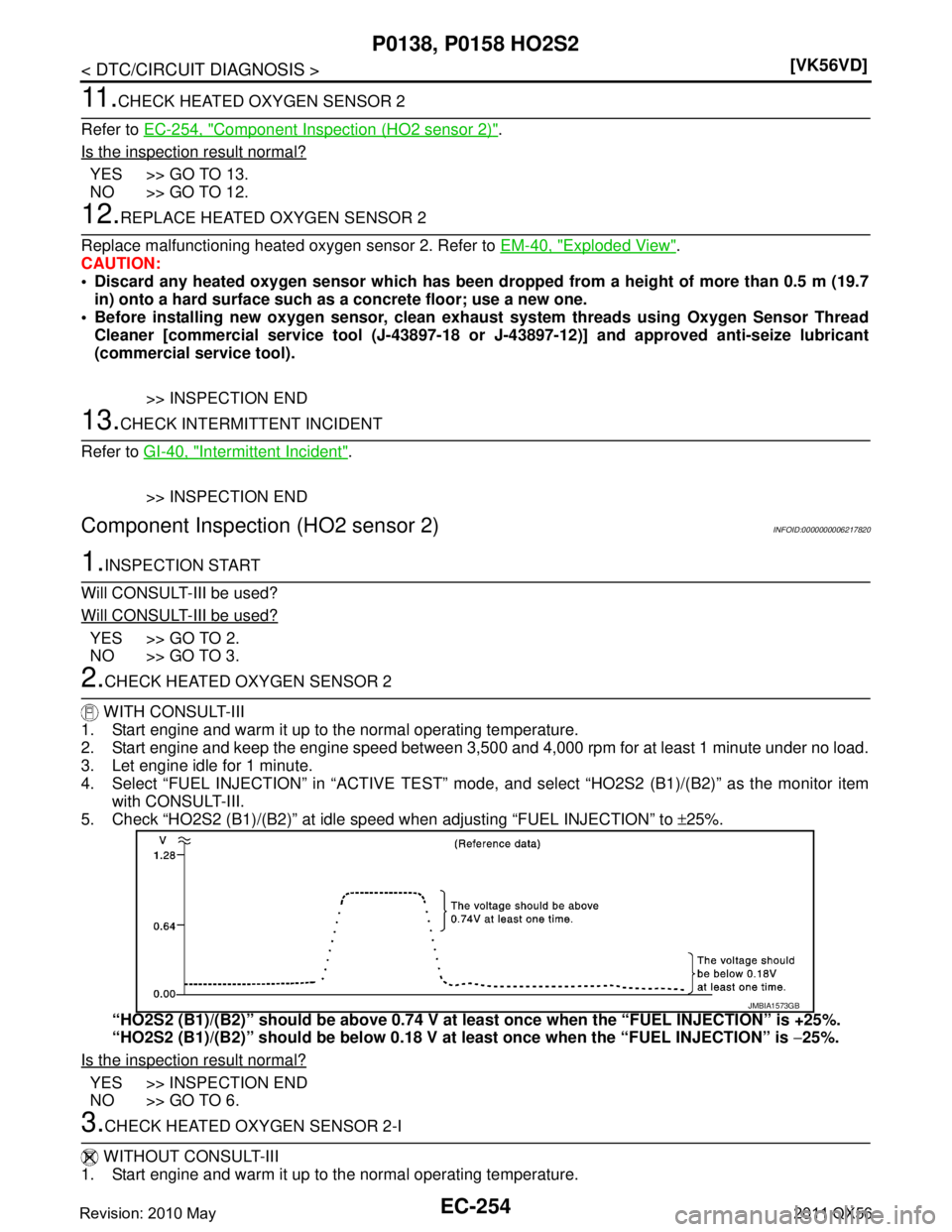

Page 2278 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-254
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0138, P0158 HO2S2
11 .CHECK HEATED OXYGEN SENSOR 2
Refer to EC-254, "
Component Inspection (HO2 sensor 2)".
Is the inspection result normal?
YES >> GO TO 13

Page 2279 of 5598

INFINITI QX56 2011 Factory Service Manual
P0138, P0158 HO2S2EC-255
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between

P0138, P0158 HO2S2EC-255
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 4.
4.CHECK HEATED OXYGEN SENSOR 2-II
Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 5.
5.CHECK HEATED OXYGEN SENSOR 2-III
Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENSOR 2
Replace malfunctioning heated oxygen sensor 2. Refer to EM-40, "
Exploded View".
CAUTION:
Discard any heated oxygen sensor which has been dr opped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
ECM
Condition Voltage
Connector +–
Te r m i n a l Te r m i n a l
F110 96
[HO2S2
(bank 1)] 100Revving up to 4,000 rpm under no load at
least 10 times The voltage should be above 0.74 V at
least once during this procedure.
The voltage should be below 0.18 V at
least once during this procedure.
87
[HO2S2
(bank 2)]
ECM
Condition Voltage
Connector +–
Te r m i n a l Te r m i n a l
F110 96
[HO2S2
(bank 1)] 100 Keeping engine at idle for 10 minutes The voltage should be above 0.74 V at
least once during this procedure.
The voltage should be below 0.18 V at
least once during this procedure.
87
[HO2S2
(bank 2)]
ECM
Condition Voltage
Connector +–
Te r m i n a l Te r m i n a l
F110 96
[HO2S2
(bank 1)] 100Coasting from 80 km/h (50 MPH) with se-
lector lever in the D position The voltage should be above 0.74 V at
least once during this procedure.
The voltage should be below 0.18 V at
least once during this procedure.
87
[HO2S2
(bank 2)]
Revision: 2010 May2011 QX56

Page 2280 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-256
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0138, P0158 HO2S2
Before installing new oxygen sensor, clean exh
aust system threads using Oxygen Sensor Thread
Cleaner [commercial service tool (J-43897-1

Load next 8 pages

Page: < prev 1-10 ... 2241-2248 2249-2256 2257-2264 2265-2272 2273-2280 2281-2288 2289-2296 2297-2304 2305-2312 ... 5600 next >

change key battery child restraint reset diagnostic menu boot oil capacity
