Page 5185 of 5598

INFINITI QX56 2011 Factory Service Manual
A/T FLUID COOLERTM-97
< BASIC INSPECTION > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

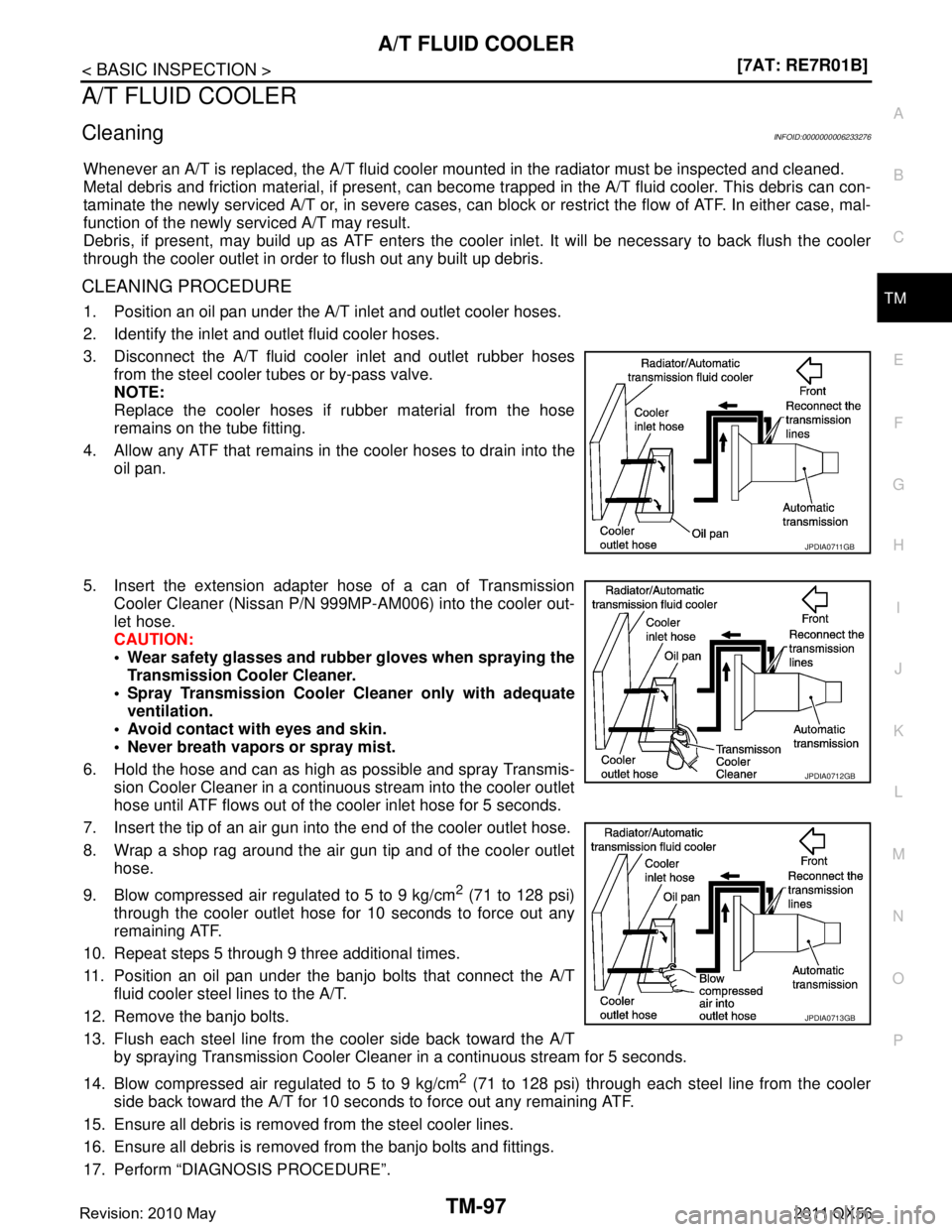

A/T FLUID COOLER
CleaningINFOID:0000000006233276
Whenever an A/T is replaced, the A/ T fluid cooler mounted i

A/T FLUID COOLERTM-97
< BASIC INSPECTION > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
A/T FLUID COOLER
CleaningINFOID:0000000006233276
Whenever an A/T is replaced, the A/ T fluid cooler mounted in the radiator must be inspected and cleaned.
Metal debris and friction material, if present, can becom e trapped in the A/T fluid cooler. This debris can con-
taminate the newly serviced A/T or, in severe cases, can bl ock or restrict the flow of ATF. In either case, mal-
function of the newly se rviced A/T may result.
Debris, if present, may build up as ATF enters the cooler inlet. It will be necessary to back flush the cooler
through the cooler outlet in order to flush out any built up debris.
CLEANING PROCEDURE
1. Position an oil pan under the A/T inlet and outlet cooler hoses.
2. Identify the inlet and outlet fluid cooler hoses.
3. Disconnect the A/T fluid cooler inlet and outlet rubber hoses
from the steel cooler tubes or by-pass valve.
NOTE:
Replace the cooler hoses if rubber material from the hose
remains on the tube fitting.
4. Allow any ATF that remains in the cooler hoses to drain into the oil pan.
5. Insert the extension adapter hose of a can of Transmission Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.
CAUTION:
Wear safety glasses and rubber gloves when spraying theTransmission Cooler Cleaner.
Spray Transmission Cooler Cleaner only with adequate
ventilation.
Avoid contact with eyes and skin.
Never breath vapors or spray mist.
6. Hold the hose and can as high as possible and spray Transmis- sion Cooler Cleaner in a continuous stream into the cooler outlet
hose until ATF flows out of the cooler inlet hose for 5 seconds.
7. Insert the tip of an air gun into the end of the cooler outlet hose.
8. Wrap a shop rag around the air gun tip and of the cooler outlet hose.
9. Blow compressed air regulated to 5 to 9 kg/cm
2 (71 to 128 psi)
through the cooler outlet hose for 10 seconds to force out any
remaining ATF.
10. Repeat steps 5 through 9 three additional times.
11. Position an oil pan under the banjo bolts that connect the A/T fluid cooler steel lines to the A/T.
12. Remove the banjo bolts.
13. Flush each steel line from the cooler side back toward the A/T by spraying Transmission Cooler Cleaner in a continuous stream for 5 seconds.
14. Blow compressed air regulated to 5 to 9 kg/cm
2 (71 to 128 psi) through each steel line from the cooler
side back toward the A/T for 10 seconds to force out any remaining ATF.
15. Ensure all debris is removed from the steel cooler lines.
16. Ensure all debris is removed from the banjo bolts and fittings.
17. Perform “DIAGNOSIS PROCEDURE”.
JPDIA0711GB
JPDIA0712GB
JPDIA0713GB
Revision: 2010 May2011 QX56

Page 5186 of 5598

INFINITI QX56 2011 Factory Service Manual
TM-98
< BASIC INSPECTION >[7AT: RE7R01B]
A/T FLUID COOLER

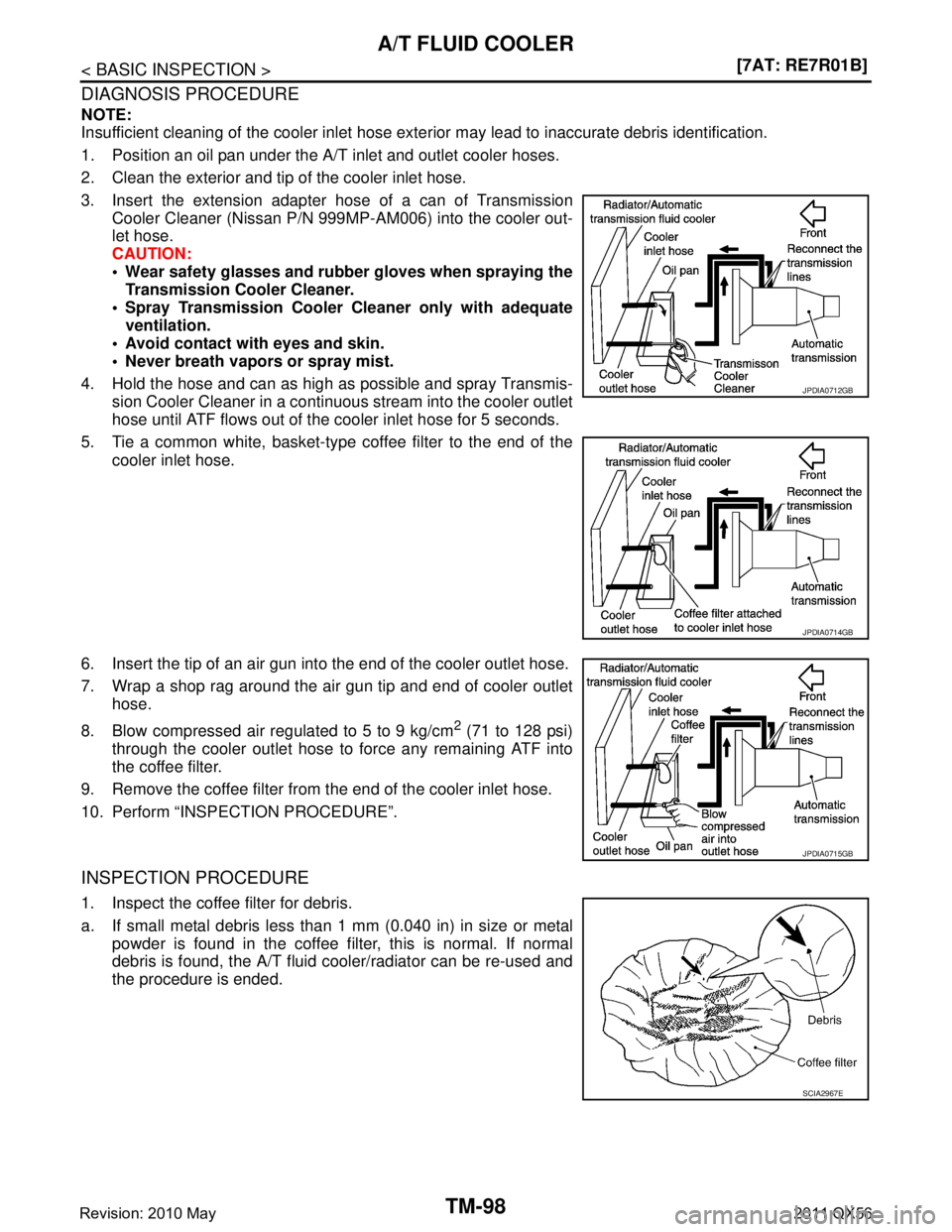

DIAGNOSIS PROCEDURE
NOTE:
Insufficient cleaning of the cooler inlet hose exte
rior may lead to inaccurate debris identification.
1. Position

Page 5187 of 5598

INFINITI QX56 2011 Factory Service Manual
A/T FLUID COOLERTM-99
< BASIC INSPECTION > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
b. If one or more pieces of debr is are found that are over 1 mm
(0.040 in) in size and/or peeled clutch faci

Page 5188 of 5598

INFINITI QX56 2011 Factory Service Manual
TM-100
< BASIC INSPECTION >[7AT: RE7R01B]
STALL TEST
STALL TEST
Inspection and JudgmentINFOID:0000000006226793
INSPECTION
1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2

TM-100
< BASIC INSPECTION >[7AT: RE7R01B]
STALL TEST
STALL TEST
Inspection and JudgmentINFOID:0000000006226793
INSPECTION
1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2. Drive for about 10 minutes to warm up the vehicle
so that the A/T fluid temperature is 50 to 80°C (122 to
176 °F). Inspect the amount of AT F. Replenish if necessary.
3. Securely engage the parking brake so that the tires do not turn.
4. Start the engine, apply foot brake, and place selector lever in “D” position.
5. Gradually press down the accelerator pedal while holding down the foot brake.
6. Quickly read off the stall speed, and quickly release the accelerator pedal. CAUTION:
Never hold down the accelerator pedal for more than 5 seconds during this test.
7. Shift the selector lever to “N” position.
8. Cool down the ATF. CAUTION:
Run the engine at idle for at least 1 minute.
9. Repeat steps 5 through 8 with selector lever in “R” position.
JUDGMENT OF STALL TEST
O: Stall speed within standard value position
H: Stall speed higher than standard value
L: Stall speed lower than standard value
Stall test standard value position
Stall speed : Refer to TM-297, "Stall Speed".
Selector lever position
Possible location of malfunction
“D” and “M” “R”
Stal l s pe ed HO
Low brake
1st one-way clutch
2nd one-way clutch
OH Reverse brake
1st one-way clutch
2nd one-way clutch
L L Engine and torque converter one-way clutch
H H Line pressure low
Does not shift-up “D” or “M” position 1 → 2 Slipping in 2GR, 3GR, 4GR or 6GR 2346 brake slippage
Does not shift-up “D” or “M” position 2 → 3 Slipping in 3GR, 4GR or 5GR Direct clutch slippage
Does not shift-up “D” or “M” position 3 → 4 Slipping in 4GR, 5GR, 6GR or 7GR High and low reverse clutch slippage
Does not shift-up “D” or “M” position 4 → 5 Slipping in 5GR, 6GR or 7GR Input clutch slippage
Does not shift-up “D” or “M” position 5 → 6 Slipping in 2GR, 3GR, 4GR or 6GR 2346 brake slippage
Does not shift-up “D” or “M” position 6 → 7 Slipping in 7GR Front brake slippage
Revision: 2010 May2011 QX56

Page 5189 of 5598

INFINITI QX56 2011 Factory Service Manual
A/T POSITIONTM-101
< BASIC INSPECTION > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

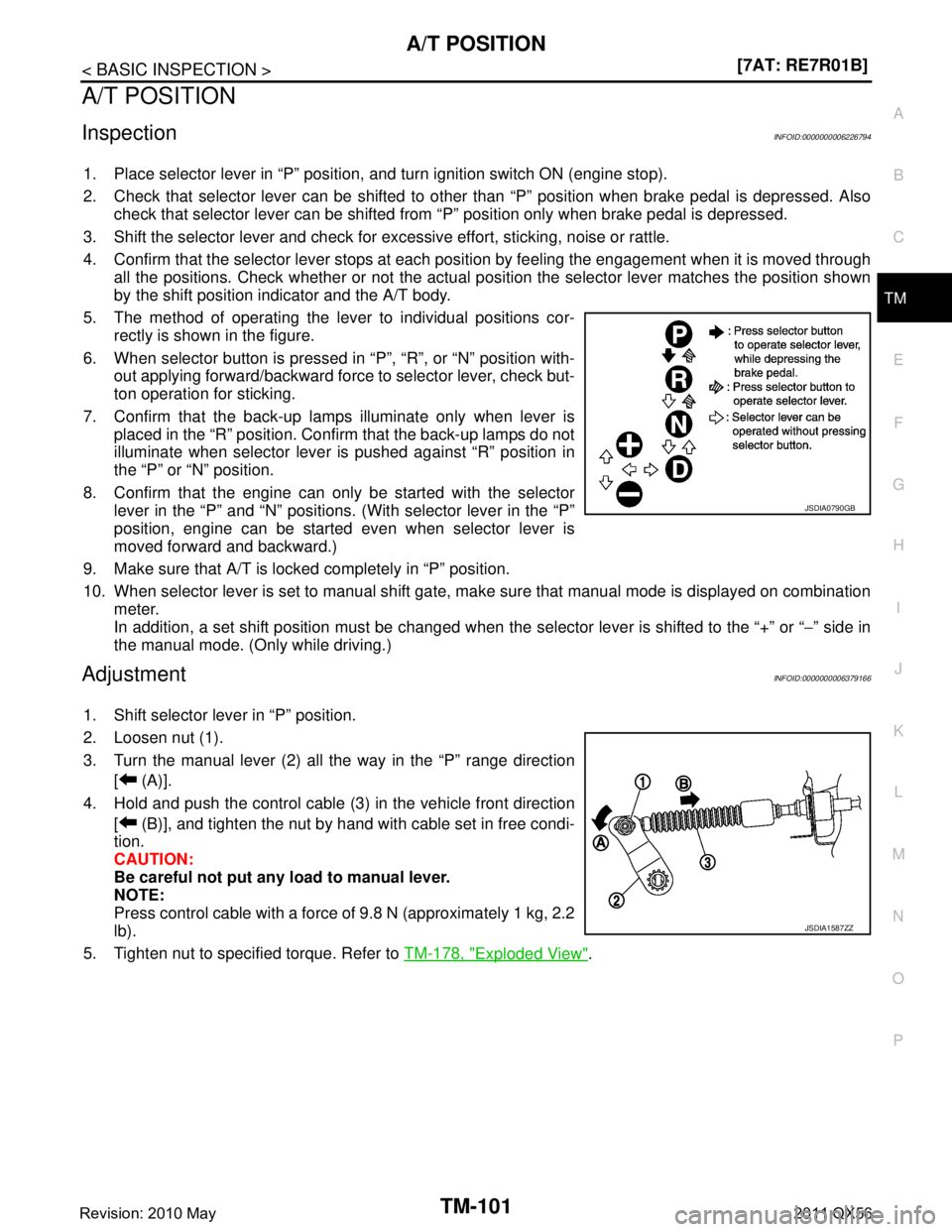

A/T POSITION
InspectionINFOID:0000000006226794
1. Place selector lever in “P” position, and turn ignition s

A/T POSITIONTM-101
< BASIC INSPECTION > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
A/T POSITION
InspectionINFOID:0000000006226794
1. Place selector lever in “P” position, and turn ignition switch ON (engine stop).
2. Check that selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
check that selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Shift the selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm that the selector lever stops at each pos ition by feeling the engagement when it is moved through
all the positions. Check whether or not the actual pos ition the selector lever matches the position shown
by the shift position indicator and the A/T body.
5. The method of operating the lever to individual positions cor- rectly is shown in the figure.
6. When selector button is pressed in “P”, “R”, or “N” position with-
out applying forward/backward force to selector lever, check but-
ton operation for sticking.
7. Confirm that the back-up lamps illuminate only when lever is placed in the “R” position. Confirm that the back-up lamps do not
illuminate when selector lever is pushed against “R” position in
the “P” or “N” position.
8. Confirm that the engine can only be started with the selector lever in the “P” and “N” positions. (With selector lever in the “P”
position, engine can be started even when selector lever is
moved forward and backward.)
9. Make sure that A/T is locked completely in “P” position.
10. When selector lever is set to manual shift gate, ma ke sure that manual mode is displayed on combination
meter.
In addition, a set shift position must be changed when t he selector lever is shifted to the “+” or “−” side in
the manual mode. (Only while driving.)
AdjustmentINFOID:0000000006379166
1. Shift selector lever in “P” position.
2. Loosen nut (1).
3. Turn the manual lever (2) all the way in the “P” range direction
[ (A)].
4. Hold and push the control cable (3 ) in the vehicle front direction
[ (B)], and tighten the nut by hand with cable set in free condi-
tion.
CAUTION:
Be careful not put any load to manual lever.
NOTE:
Press control cable with a force of 9.8 N (approximately 1 kg, 2.2
lb).
5. Tighten nut to specified torque. Refer to TM-178, "
Exploded View".
JSDIA0790GB
JSDIA1587ZZ
Revision: 2010 May2011 QX56

Page 5190 of 5598

INFINITI QX56 2011 Factory Service Manual
TM-102
< DTC/CIRCUIT DIAGNOSIS >[7AT: RE7R01B]
U0300 CAN COMMUNICATION DATA
DTC/CIRCUIT DIAGNOSIS
U0300 CAN COMMUNICATION DATA
DescriptionINFOID:0000000006226795
The amount of data transmitted fr
om

Page 5191 of 5598

INFINITI QX56 2011 Factory Service Manual
U1000 CAN COMM CIRCUITTM-103
< DTC/CIRCUIT DIAGNOSIS > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000006226798
CAN (Controller Area Network) is a seri

Page 5192 of 5598

INFINITI QX56 2011 Factory Service Manual
TM-104
< DTC/CIRCUIT DIAGNOSIS >[7AT: RE7R01B]
P0615 STARTER RELAY
P0615 STARTER RELAY
DescriptionINFOID:0000000006226801
TCM prohibits cranking other than at “P” or “N” position.
DTC LogicIN

Load next 8 pages
