Page 657 of 4801

NISSAN TEANA 2014 Service Manual
DAS-224
< PREPARATION >[MOD]
PREPARATION
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009464887
The actual shapes of the tools may
differ from those illustrated here.
Tool number
(Tech

Page 658 of 4801

NISSAN TEANA 2014 Service Manual
DAS
COMPONENT PARTSDAS-225
< SYSTEM DESCRIPTION > [MOD]
C
D E
F
G H
I
J
K L
M B
N P
A
SYSTEM DESCRIPTION
COMPONENT PARTS

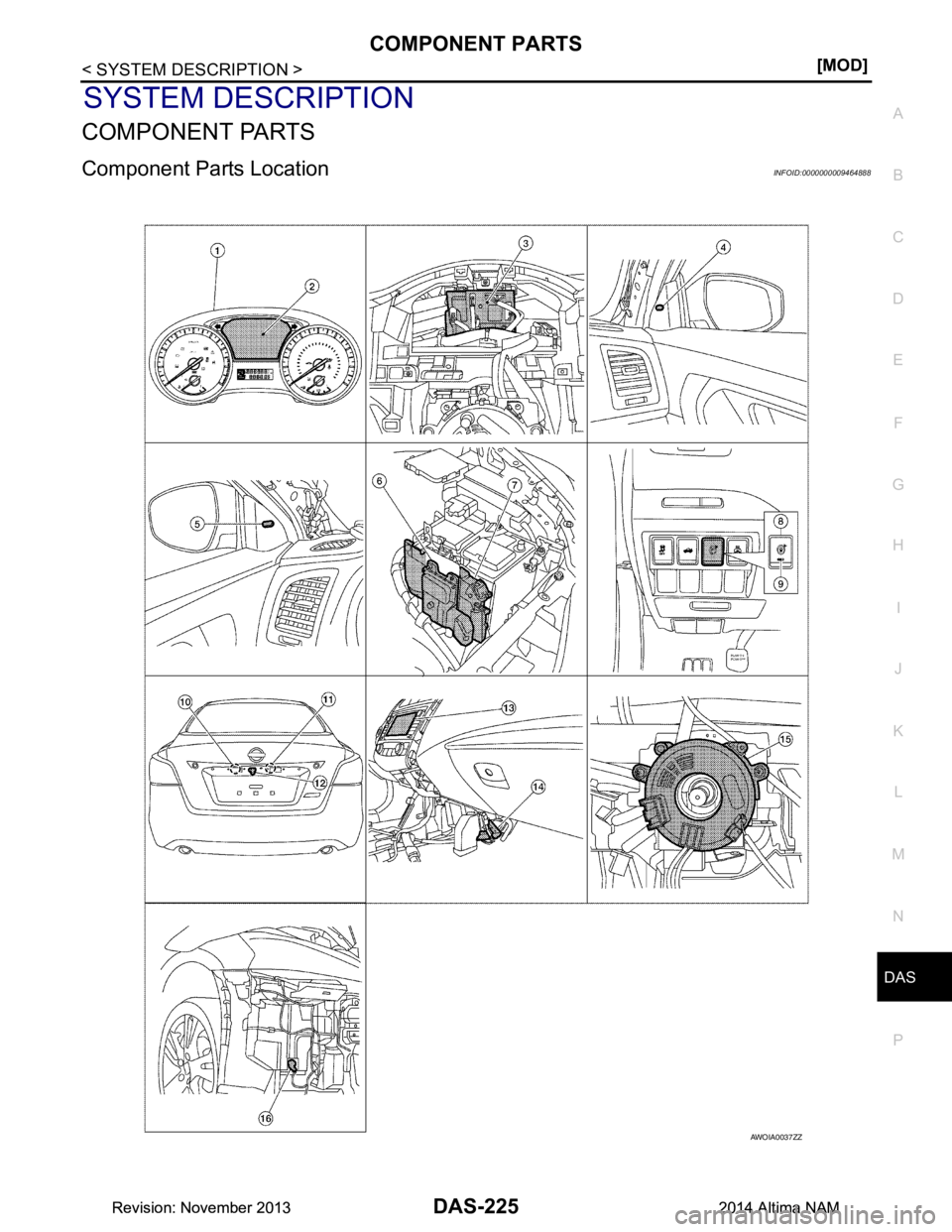

Component Parts LocationINFOID:0000000009464888
AWOIA0037ZZ
Revision: Novemb

Page 659 of 4801

NISSAN TEANA 2014 Service Manual
DAS-226
< SYSTEM DESCRIPTION >[MOD]
COMPONENT PARTS
Component Description
INFOID:0000000009464889
1. Combination meter 2. Vehicle information display 3. BCM (view with combination meter re- moved)
4.

DAS-226
< SYSTEM DESCRIPTION >[MOD]
COMPONENT PARTS
Component Description
INFOID:0000000009464889
1. Combination meter 2. Vehicle information display 3. BCM (view with combination meter re- moved)
4. Blind spot warning indicator RH 5. Blind spot warning indicator LH 6. TCM
7. ECM 8. Warning systems switch 9. Warning systems ON indicator
10. Rear view camera washer control unit 11. Rear view camera air pump motor 12. Rear view camera
13. AV control unit (center display) (with navi- gation system and bose audio system)
Audio unit (center display) (with display
audio system and bose audio system) 14. ITS control unit
(view with center console removed) 15. Steering angle sensor
(view with steeri ng wheel removed)
16. Washer fluid level switch (view with front fascia removed)
Component Description
ITS control unit • Being connected with rear view camera via ITS communication, receives vehicle detection signal
and transmits Moving Object Detection indicator signal and Moving Object Detection indicator
dimmer signal to rear view camera
• Being connected with rear view camera unit via ITS communication, receives detected rear con-
dition signal
• Receives steering angle sensor signal from steering angle sensor via CAN communication
• Judges a Moving Object Detection indicator ON/OFF state and an approach state to the rear
proximity of the vehicle.
• Activates the warning buzzer and warning systems ON indicator
• Transmits Moving Object Detection lamp signal to combination meter via CAN communication
Blind Spot Warning indicator LH/
RH Receives Moving Object Detection indicator operation signal from rear view camera and turns OFF,
turns ON or blinks
Warning system switch Inputs the switch signal to ITS control unit
Warning system switch indicator
(on the warning systems switch) Indicates Moving Object Detection system status
Rear view camera • Detects the lane marker by the built-in camera
• Transmits detected lane condition signal to ITS control unit
ABS actuator and electric unit
(control unit) • Transmits vehicle speed signal to ITS control unit via CAN communication
• Transmits yaw rate signal/side G sensor signal to ITS control unit via CAN communication
Buzzer (combination meter) Receives buzzer signal from ITS control unit via CAN and sounds buzzer.
Combination meter
(vehicle information display) • Turns the Moving Object Detection (MOD) warning indicator ON/OFF according to the signals
from the ITS control unit via CAN communication
• Receives MOD ON indicator signal via CAN communication.
Steering angle sensor Transmits steering angle sensor signal to ITS control unit via CAN communication
BCM • Transmits turn signal indicator to ITS control unit via CAN communication
• Transmits dimmer signal to ITS control unit via CAN communication
ECM Transmits engine speed signal to ITS control unit via CAN communication
TCM Transmits the output shaft speed signal, input speed signal, current gear position signal and shift
position signal to ITS control unit via CAN communication
Center display Displays the various system screen signals according to the priority level received via CAN com-
munication
AV c o n t r o l u n i t
(with navigation system and bose
audio system) Receives the various systems and camera signals via CAN communication and routes them to the
center display
Audio unit
(with display audio system and
bose audio system) Receives the various systems and camera signals and routes them to the center display
Rear view camera washer control
unit Controls the air pump to drive air to the rear camera lens according to the signals received from
the ITS control unit
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 660 of 4801

NISSAN TEANA 2014 Service Manual
DAS
COMPONENT PARTSDAS-227
< SYSTEM DESCRIPTION > [MOD]
C
D E
F
G H
I
J
K L
M B
N P
A
Rear view camera air pump motor Drives air to the rear camera lens according to the signals received from the p

Page 661 of 4801

NISSAN TEANA 2014 Service Manual
DAS-228
< SYSTEM DESCRIPTION >[MOD]
SYSTEM
SYSTEM
System DescriptionINFOID:0000000009464890
SYSTEM DIAGRAM
ITS CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM
Input Signal Item
Output Signal Item
AWOIA0038GB

Page 662 of 4801

NISSAN TEANA 2014 Service Manual
DAS
SYSTEM
DAS-229
< SYSTEM DESCRIPTION >[MOD]
C
D E
F
G H
I
J
K L
M B
N P
AFUNCTION DESCRIPTION
• The Moving Object Detection (MOD) system can help alert the driver of approaching vehicles or r

Page 663 of 4801

NISSAN TEANA 2014 Service Manual
DAS-230
< SYSTEM DESCRIPTION >[MOD]
SYSTEM
• Moving Object Detection braking will not operate or
will stop operating and only a warning chime will sound
under the following conditions:
- When driv

Page 664 of 4801

NISSAN TEANA 2014 Service Manual
DAS
OPERATIONDAS-231
< SYSTEM DESCRIPTION > [MOD]
C
D E
F
G H
I
J
K L
M B
N P
A
OPERATION
System Display and WarningINFOID:0000000009464891
INDICATOR AND WARNING LAMP
The MOD system can be turned O
