Page 113 of 4801

NISSAN TEANA 2014 Service Manual REAR DISC BRAKEBR-17 < PERIODIC MAINTENANCE > C D E G H I J K L M A B BR N O P REAR DISC BRAKE Brake BurnishingINFOID:0000000009463695 CAUTION: • Burnish contact surfaces between brake pads and

Page 114 of 4801

NISSAN TEANA 2014 Service Manual BR-18 < REMOVAL AND INSTALLATION > BRAKE PEDAL REMOVAL AND INSTALLATION BRAKE PEDAL Exploded ViewINFOID:0000000009463696 Removal and InstallationINFOID:0000000009463697 REMOVAL 1. Remove the instrume

Page 115 of 4801

NISSAN TEANA 2014 Service Manual BRAKE PEDALBR-19 < REMOVAL AND INSTALLATION > C D E G H I J K L M A B BR N O P Installation is in the reverse order of removal. CAUTION: Do not reuse the snap pin or clevis pin. • Adjust the b

Page 116 of 4801

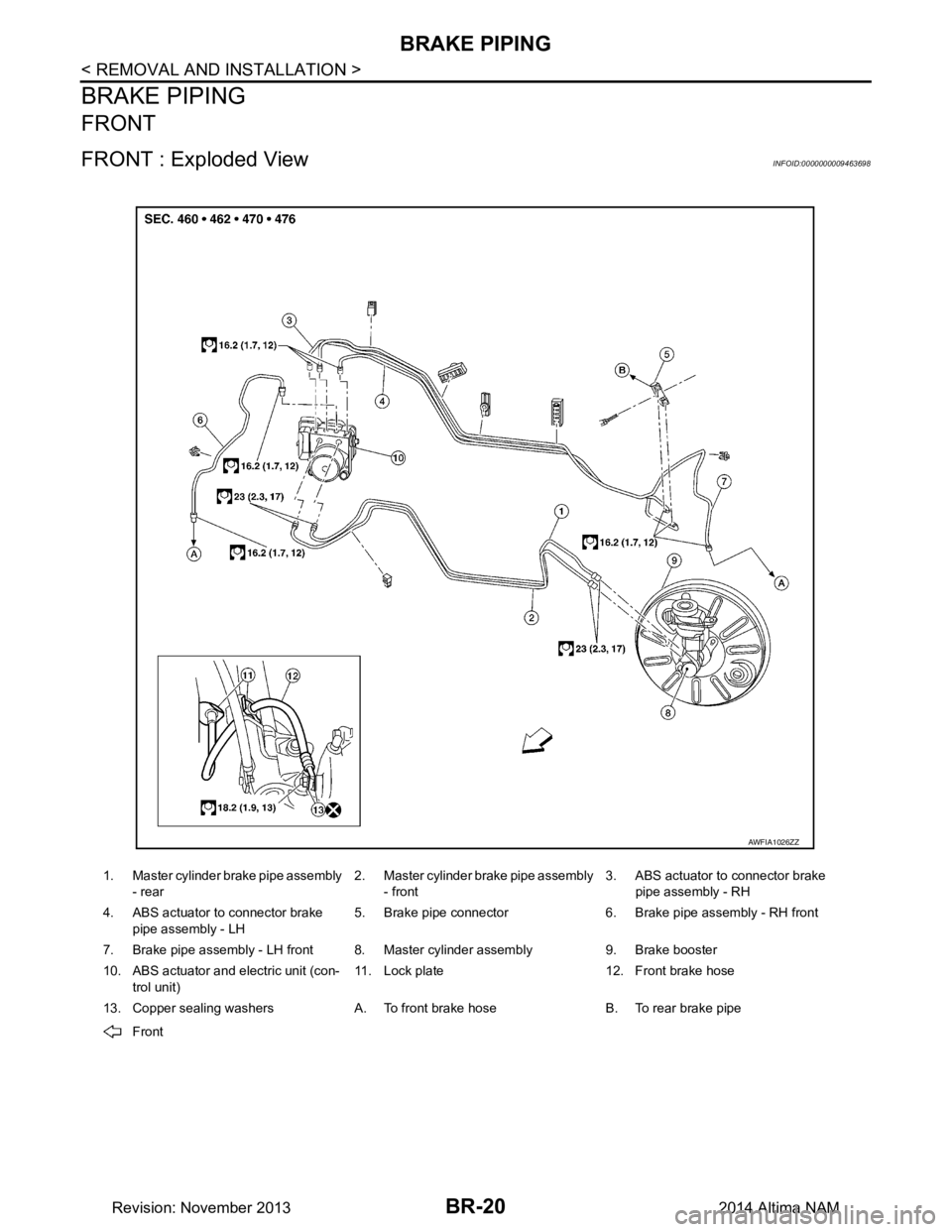

NISSAN TEANA 2014 Service Manual BR-20 < REMOVAL AND INSTALLATION > BRAKE PIPING BRAKE PIPING FRONT FRONT : Exploded ViewINFOID:0000000009463698 1. Master cylinder brake pipe assembly - rear 2. Master cylinder brake pipe assembly -

Page 117 of 4801

NISSAN TEANA 2014 Service Manual BRAKE PIPINGBR-21 < REMOVAL AND INSTALLATION > C D E G H I J K L M A B BR N O P FRONT : Hydraulic PipingINFOID:0000000009463699 Four Channel Hydraulic Circuit CAUTION: • All hoses and piping (tu

Page 118 of 4801

NISSAN TEANA 2014 Service Manual BR-22 < REMOVAL AND INSTALLATION > BRAKE PIPING 3. Disconnect the brake hose (1) from brake tube (2) at the flarenut (A) using a suitable tool and remove the lock plate (3). 4. Remove the union bolt

Page 119 of 4801

NISSAN TEANA 2014 Service Manual BRAKE PIPINGBR-23 < REMOVAL AND INSTALLATION > C D E G H I J K L M A B BR N O P 3. Connect brake hose (1) to brake tube (2). Tighten flare nut (A) to specification and secure to the bracket with lo

Page 120 of 4801

NISSAN TEANA 2014 Service Manual BR-24 < REMOVAL AND INSTALLATION > BRAKE PIPING REAR : Hydraulic Piping INFOID:0000000009463702 Four Channel Hydraulic Circuit CAUTION: • All hoses and piping (tubes) must be free from excessive
