TM-210
< UNIT DISASSEMBLY AND ASSEMBLY >[CVT: RE0F10D]
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL
Drive converter housing oil seal (1) evenly using a drift (A) (com-
mercial service tool) so that converter housing oil seal protrudes by
the dimension (B) respectively.
Unit: mm (in)
Unit: mm (in)
NOTE:
Converter housing oil seal pulling direction is used as the refer-
ence.
• After completing installation, check for CVT fluid leaks and CVT
fluid level. Refer to TM-178, "Inspection"
.
• Attach the pawl (A) of the torque converter to the drive sprocket hole (B) on the transaxle assembly side.
CAUTION:
• Rotate the torque converter fo r installing torque converter.
• Do not damage the bushing in side the torque converter
sleeve when installing the converter housing oil seal.
InspectionINFOID:0000000009464166
INSPECTION AFTER INSTALLATION
Commercial service tool: (A) Outer diameter: 65 (2.56)
Inner diameter: 60 (2.36)
(2) : Transaxle assembly
SCIA7908J
Dimension (B) 1.0 ± 0.5 (0.039 ± 0.020)
SCIA7909J
SCIA7907J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4426 of 4801
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEALTM-211
< UNIT DISASSEMBLY AND ASSEMBLY > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• After inserting a torque converter to the CVT, check dimension (A) with in the reference value limit.
B: Scale
C : Straightedge
Dimension (A) : Refer to TM-212, "Torque Converter".
JPDIA0115ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4427 of 4801
![NISSAN TEANA 2014 Service Manual
TM-212
< SERVICE DATA AND SPECIFICATIONS (SDS) [CVT: RE0F10D]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationIN NISSAN TEANA 2014 Service Manual
TM-212
< SERVICE DATA AND SPECIFICATIONS (SDS) [CVT: RE0F10D]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationIN](/manual-img/5/57390/w960_57390-4426.png)
TM-212
< SERVICE DATA AND SPECIFICATIONS (SDS) [CVT: RE0F10D]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000009464167
*1: Refer to
MA-11, "FOR USA AND CANADA : Fluids and Lubricants".
*2: The CVT fluid capacity is the reference value.
Shift CharacteristicsINFOID:0000000009464168
Unit: rpm
CAUTION:
Lock-up is engaged at th e vehicle speed of approximately 18 km/h (12 MPH) to 40 km/h (24 MPH).
Stall SpeedINFOID:0000000009464169
Torque ConverterINFOID:0000000009464170
Unit: mm (in)
Heater ThermostatINFOID:0000000009464171
Standard
Reference value
Applied model Engine QR25DE
Axle 2WD
Transaxle model RE0F10D
Transaxle gear ratio D position 2.648 – 0.380
R position 0.745
Final drive 4.828
Recommended fluid Genuine NISSAN CVT Fluid NS-3
*1
Fluid capacity liter (US qt, Imp qt) Approx. 7.4 (7-7/8, 6-1/2)*2
CAUTION:
• Use only Genuine NISSAN CVT Fluid NS-3. Never mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-3 will deteriorate in driveability and CVT durability, and may dam-
age the CVT, which is not covered by the NISSAN new vehicle limited warranty.
Throttle position Shift pattern Engine speed
At 40 km/h (25 MPH) At 60 km/h (37 MPH)
2/8 “D” position 1,490 – 1,650 1,570 – 1,740
“D” position (O/D OFF condition) 2,950 – 3,260 3,040 – 3,360
8/8 “D” position 3,900 – 4,310 5,230 – 5,780
“D” position (O/D OFF condition) 3,520 – 3,890 4,280 – 4,730
Stall speed 2,290 – 2,520 rpm
Distance “A” between the converter housing and torque converter 14.4 (0.567)
Va l v e l i f tMore than 5.0 mm (0.197 in)
Valve opening temperature 71 °C (160 °F)
Minimum valve lift 5.0 mm/85 °C (0.197 in/203 °F)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4428 of 4801
![NISSAN TEANA 2014 Service Manual
PRECAUTIONSTM-213
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
IN NISSAN TEANA 2014 Service Manual
PRECAUTIONSTM-213
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
IN](/manual-img/5/57390/w960_57390-4427.png)
PRECAUTIONSTM-213
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951697
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for Procedure without Cowl Top CoverINFOID:0000000009464173
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.
Precaution for TCM and Tran saxle Assembly ReplacementINFOID:0000000009464174
CAUTION:
• To replace TCM, refer to TM-282, "Description"
.
• To replace transaxle assembly, refer to TM-283, "Description"
.
PIIB3706J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4429 of 4801
![NISSAN TEANA 2014 Service Manual
TM-214
< PRECAUTION >[CVT: RE0F10E]
PRECAUTIONS
General Precautions
INFOID:0000000009464175
• Turn ignition switch OFF an d disconnect the battery cable
from the negative terminal before connecting NISSAN TEANA 2014 Service Manual
TM-214
< PRECAUTION >[CVT: RE0F10E]
PRECAUTIONS
General Precautions
INFOID:0000000009464175
• Turn ignition switch OFF an d disconnect the battery cable
from the negative terminal before connecting](/manual-img/5/57390/w960_57390-4428.png)
TM-214
< PRECAUTION >[CVT: RE0F10E]
PRECAUTIONS
General Precautions
INFOID:0000000009464175
• Turn ignition switch OFF an d disconnect the battery cable
from the negative terminal before connecting or disconnect-
ing the CVT assembly harness connector. Because battery
voltage is applied to TCM even if ignition switch is turned
OFF.
• When connecting or disconnect ing pin connectors into or
from TCM, do not damage pin terminals (bend or break).
Check that there are not any bends or breaks on TCM pin ter-
minal, when connect ing pin connectors.
• Perform TCM input/output si gnal inspection and check
whether TCM functions normally or not before replacing TCM.
Refer to TM-251, "Reference Value"
.
• Perform “DTC (Diagnostic Trouble Code) CONFIRMATION
PROCEDURE”.
If the repair is completed DTC should not be displayed in the
“DTC CONFIRMATION PROCEDURE”.
• Always use the specified brand of CVT fluid. Refer to MA-11, "FOR USA AND CANADA : Fluids and Lubri-
cants".
• Use lint-free paper not cloth rags during work.
• Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.
SEF289H
AAT470A
MEF040DA
JSBIA1315ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4430 of 4801
![NISSAN TEANA 2014 Service Manual
PRECAUTIONSTM-215
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
On Board Diagnosis (OBD) System of CVT and EngineINFOID:0000000009464176
The TCM and ECM have an on board diagnostic NISSAN TEANA 2014 Service Manual
PRECAUTIONSTM-215
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
On Board Diagnosis (OBD) System of CVT and EngineINFOID:0000000009464176
The TCM and ECM have an on board diagnostic](/manual-img/5/57390/w960_57390-4429.png)
PRECAUTIONSTM-215
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
On Board Diagnosis (OBD) System of CVT and EngineINFOID:0000000009464176
The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to
warn the driver of a malfunction causing emission deterioration.
CAUTION:
• Be sure to turn the ignition switch OFF and di sconnect the battery cable from the negative terminal
before any repair or inspection work. The open/s hort circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.
• Be sure to connect and lock the connectors secure ly after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
• Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
• Be sure to connect rubber tubes properly afte r work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.
• Be sure to erase the unnecessary malfunction informa tion (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Removal and Installation Proc edure for CVT Unit ConnectorINFOID:0000000009464177
REMOVAL
• Rotate bayonet ring counterclockwise. Pull out CVT unit har-
ness connector upward and remove it.
INSTALLATION
1. Align marking on CVT unit harness connector terminal with marking on bayonet ring. Insert CVT unit harness connector.
2. Rotate bayonet ring clockwise.
3. Rotate bayonet ring clockwise until marking on CVT unit har- ness connector terminal body is aligned with the slit on bayo-
net ring as shown in the figure (correctly fitting condition).
CAUTION:
SCIA6685J
JPDIA0294ZZ
JPDIA0295ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4431 of 4801
TM-216
< PRECAUTION >[CVT: RE0F10E]
PRECAUTIONS
• Securely align marking (A) on CVT unit harness connec-
tor terminal body with bayonet ring slit . Then, be care-
ful not to make a half fit cond ition as shown in the figure.
• Never mistake the slit of bayonet ring for other dent por- tion.
JPDIA0296ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4432 of 4801
PREPARATIONTM-217
< PREPARATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

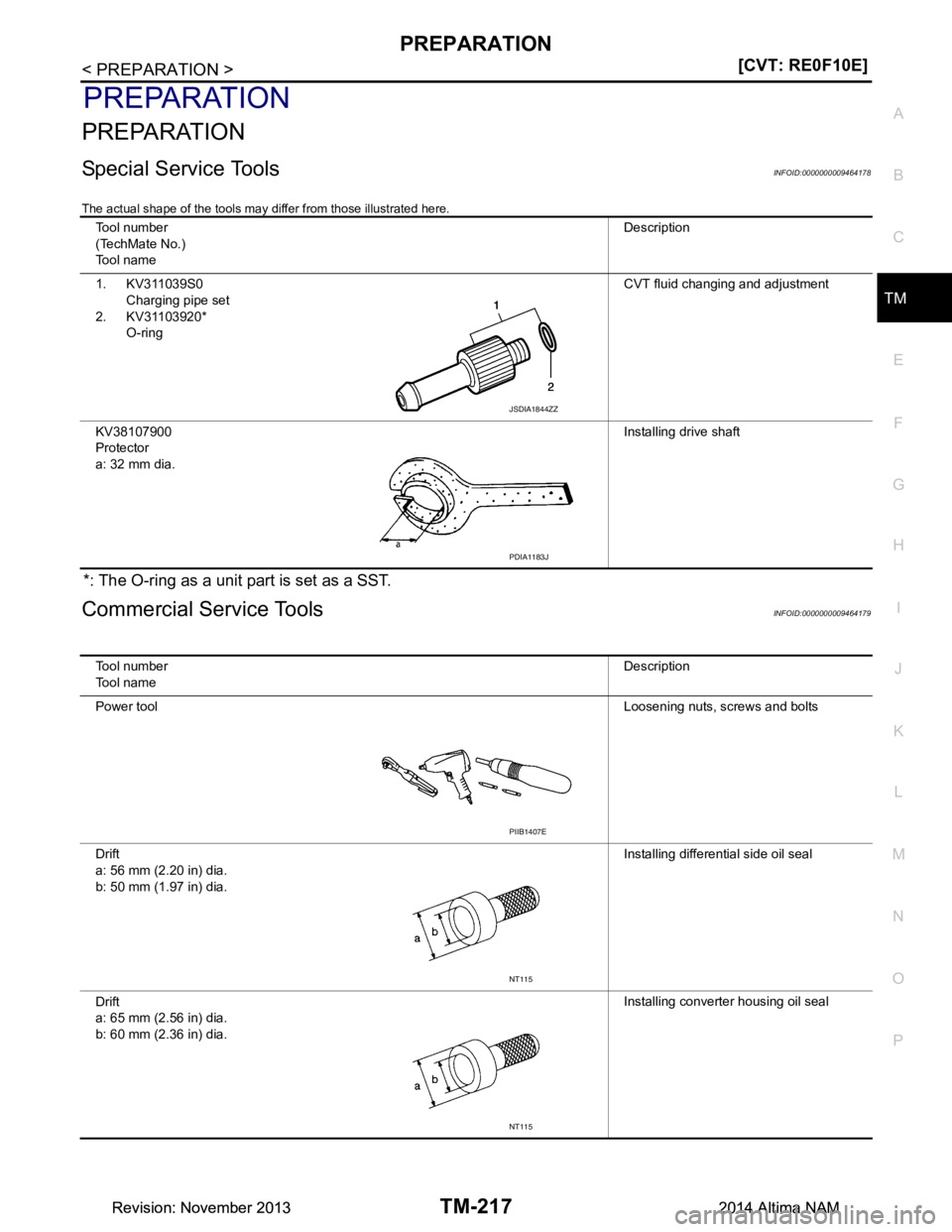

PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000009464178
The actual shape of the tools may di ffer from those illustrated here.
*: The O-ring as a unit part is set as a SST.
Commercial Service ToolsINFOID:0000000009464179
Tool number
(TechMate No.)
Tool name Description
1. KV311039S0 Charging pipe set
2. KV31103920* O-ring CVT fluid changing and adjustment
KV38107900
Protector
a: 32 mm dia. Installing drive shaft
JSDIA1844ZZ
PDIA1183J
Tool number
Tool name Description
Power tool Loosening nuts, screws and bolts
Drift
a: 56 mm (2.20 in) dia.
b: 50 mm (1.97 in) dia. Installing differential side oil seal
Drift
a: 65 mm (2.56 in) dia.
b: 60 mm (2.36 in) dia. Installing converter housing oil seal
PIIB1407E
NT115
NT115
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
