ECM controls the engine by various functions.
ENGINE CONTROL SYSTEM : Fail SafeINFOID:0000000009462092
NON DTC RELATED ITE

SYSTEMEC-41
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
ECM controls the engine by various functions.
ENGINE CONTROL SYSTEM : Fail SafeINFOID:0000000009462092
NON DTC RELATED ITEM
DTC RELATED ITEM
Description
When a DTC is detected, ECM executes a mode (in the
Fail-safe mode) applicable to the DTC. The fail-safe
mode has the preset traveling control mode (accelera tor angle variation and engine output limit) and device fix
mode.
Function Reference
Multiport fuel injection system EC-43, "MULTIPORT FUEL INJECTION SYSTEM : System De-
scription (with automatic air conditioner)"
Electric ignition system
EC-48, "ELECTRIC IGNITION SYSTEM : System Description"
Intake valve timing control EC-49, "INTAKE VALVE TIMING CONTROL : System Description"
Exhaust valve timing control EC-52, "EXHAUST VALVE TIMING
CONTROL : System Descrip-tion"
Intake manifold runner control EC-53, "INTAKE MANIFOLD RUNNER CONTROL : System De-scription"
Intake manifold tuning system
EC-54, "INTAKE MANIFOLD TUNI
NG SYSTEM : System Descrip-tion"
Engine protection control EC-55, "ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System Description"
Fuel filler cap warning systemEC-56, "FUEL FILLER CAP WARNING SYSTEM : System De-scription"
Air conditioning cut control
EC-56, "AIR CONDITIONING CUT CONTROL : System Descrip-tion (with automatic air conditioner)"
Cooling fan controlEC-59, "COOLING FAN CONTROL :
System Description (with au-tomatic air conditioner)"
Evaporative emission system EC-62, "EVAPORATIVE EMISSION
SYSTEM : System Descrip-tion"
Automatic speed control device (ASCD) EC-63, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Sys-tem Description"
CAN communication
EC-64, "CAN COMMUNICATION : System Description"
Detected
items Engine operating condition
in fail-safe mode Remarks Reference page
Malfunction
indicator
lamp circuit Engine speed will not rise
more than 2,500 rpm due
to the fuel cut When there is an open circuit on MIL circuit, the ECM cannot warn the
driver by lighting up MIL when there is malfunction on engine control
system.
Therefore, when electrical controlled throttle and part of ECM related
diagnoses are continuously detected as NG for 5 trips, ECM warns the
driver that engine control system malfunctions and MIL circuit is open
by means of operating fail safe function.
The fail safe function also operates when above diagnoses except MIL
circuit are detected and demands the driver to repair the malfunction. EC-517, "Compo-
nent Function
Check"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1042 of 4801

NISSAN TEANA 2014 Service Manual
EC-42
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
Fail Safe Pattern
Fail Safe List
× :Applicable —: Not applicable
Fail safe mode Vehicle behavior
Traveling con-
trol mode Accelerator an-
gle variatio

EC-42
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
Fail Safe Pattern
Fail Safe List
× :Applicable —: Not applicable
Fail safe mode Vehicle behavior
Traveling con-
trol mode Accelerator an-
gle variation
control ECM controls the accelerator pedal depression speed to make it slower than actual speed. This
causes a drop in accelerating performance and encourages the driver to repair malfunction.
NOTE:
ECM does not control the accelerator pedal releasing speed.
Engine output
control ECM reduces the engine output, according to the rise in engine speed. This reduces the vehicle
speed to encourage the driver to repair malfunction.
Device fix mode • This mode fixes the IVT control solenoid valve and the EVT control solenoid valve in the refer-
ence position.
• The intake manifold runner control valve motor is turned OFF (intake manifold runner control valve opens).
Pattern Fail safe mode
A Traveling control mode Accelerator angle variation control
B Engine output control
C Device fix mode
DTC No. Detected items Vehicle behavior
Pattern Others
ABC
P0011 Intake valve timing control ——×ECM activates the IVT intermediate lock control solenoid
valve to bring the cam sprocket into an intermediate lock con-
dition.
P0014
P0078 Exhaust valve timing control
——× —
P0101
P0102
P0103 Mass air flow sensor circuit
××× —
P0122
P0123
P0222
P0223
P2135 Throttle position sensor
———The ECM controls the electric throttle control actuator in reg-
ulating the throttle opening in order for the idle position to be
within +10 degrees.
The ECM regulates the opening speed of the throttle valve to
be slower than the normal condition.
So, the acceleration will be poor.
P0171
P0172 Fuel injection system
×—— —
P0197
P0198 Engine oil temperature sensor
———Exhaust valve timing control does not function.
P0300
P0301
P0302
P0303
P0304 Misfire
×—— —
P0500 Vehicle speed sensor ×—— —
P050A Cold start control ×—— —
P0524 Engine oil pressure
———• ECM illuminates oil pressure warning lamp on the combina-
tion meter.
• Engine speed will not rise more than 4,000rpm due to the
fuel cut.
• Fail-safe is canceled when ignition switch OFF → ON.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1043 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-43
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MULTIPORT FUEL INJECTION SYSTEM
MULTIPORT FUEL INJECTION SYSTEM : S
ystem Description (with automatic air
P052A
P052B In

SYSTEMEC-43
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MULTIPORT FUEL INJECTION SYSTEM
MULTIPORT FUEL INJECTION SYSTEM : S
ystem Description (with automatic air
P052A
P052B Intake valve timing intermedi-
ate lock control ——
× —
P0603 ECM power supply circuit — ×——
P0605 ECM — ×——
P0643 Sensor power supply ———ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P1078 Exhaust valve timing control position sensor circuit ×
— × —
P1805 Brake switch
———ECM controls the electric throttle control actuator by regulat-
ing the throttle opening to a small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal When accelerating Poor acceleration
P2004 Intake manifold runner control valve —
×× —
P2100
P2103 Throttle contro
l motor relay
——— ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P2101 Electric throttle control func- tion ——— ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P2118 Throttle control motor ———ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P2119 Electric thro ttle control actua-
tor —
×——
P2122
P2123
P2127
P2128
P2138 Accelerator pedal position
sensor
———The ECM controls the electric throttle control actuator in reg-
ulating the throttle opening in order for the idle position to be
within +10 degrees.
The ECM regulates the opening speed of the throttle valve to
be slower than the normal condition.
So, the acceleration will be poor.
DTC
No. Detected items Vehicle behavior
Pattern Others
ABC
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1044 of 4801

NISSAN TEANA 2014 Service Manual
EC-44
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
conditioner)
INFOID:0000000009462093
SYSTEM DIAGRAM
SYSTEM DESCRIPTION
The amount of fuel injected from the fuel injector is determined by the ECM. The E

Page 1045 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-45
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MIXTURE RATIO FEEDBACK CONTROL (CLOSED LOOP CONTROL)
The mixture ratio feedback system prov
ides the best air-fuel mixture

SYSTEMEC-45
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MIXTURE RATIO FEEDBACK CONTROL (CLOSED LOOP CONTROL)
The mixture ratio feedback system prov
ides the best air-fuel mixture ratio for driveability and emission control.
The three way catalyst (manifold) can then better r educe CO, HC and NOx emissions. This system uses A/F
sensor 1 in the exhaust manifold to monitor whether t he engine operation is rich or lean. The ECM adjusts the
injection pulse width according to the sensor voltage si gnal. For more information about A/F sensor 1, refer to
EC-32, "Air Fuel Ratio (A/F) Sensor 1"
. This maintains the mixture rati o within the range of stoichiometric
(ideal air-fuel mixture).
This stage is referred to as the closed loop control condition.
Heated oxygen sensor 2 is located downstream of the th ree way catalyst (manifold). Even if the switching
characteristics of A/F sensor 1 shift, the air-fuel rati o is controlled to stoichiometric by the signal from heated
oxygen sensor 2.
• Open Loop Control
The open loop system condition refers to when the EC M detects any of the following conditions. Feedback
control stops in order to maintain stabilized fuel combustion.
- Deceleration and acceleration
- High-load, high-speed operation
- Malfunction of A/F sensor 1 or its circuit
- Insufficient activation of A/F sensor 1 at low engine coolant temperature
- High engine coolant temperature
- During warm-up
- After shifting from N to D
- When starting the engine
MIXTURE RATIO SELF-LEARNING CONTROL
The mixture ratio feedback control system monitors the mixture ratio signal transmitted from A/F sensor 1.
This feedback signal is then sent to the ECM. The ECM cont rols the basic mixture ratio as close to the theoret-
ical mixture ratio as possible. However, the basic mi xture ratio is not necessarily controlled as originally
designed. Both manufacturing differences (i.e., mass air flow sensor hot wire) and characteristic changes dur-
ing operation (i.e., fuel injector clogging) directly affect mixture ratio.
Accordingly, the difference between the basic and theoretical mixture ratios is monitored in this system. This is
then computed in terms of “injection pulse duration” to automatically compensate for the difference between
the two ratios.
“Fuel trim” refers to the feedback compensation value co mpared against the basic injection duration. Fuel trim
includes short term fuel trim and long term fuel trim.
“Short term fuel trim” is the short-term fuel compensati on used to maintain the mixture ratio at its theoretical
value. The signal from A/F sensor 1 indicates whether the mixture ratio is RICH or LEAN compared to the the-
oretical value. The signal then triggers a reduction in fuel volume if the mixture ratio is rich, and an increase in
fuel volume if it is lean.
“Long term fuel trim” is overall fuel compensation ca rried out long-term to compensate for continual deviation
of the short term fuel trim from the central value. Such deviation will occur due to individual engine differences,
wear over time and changes in the usage environment.
PBIB2793E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1046 of 4801

NISSAN TEANA 2014 Service Manual
EC-46
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM

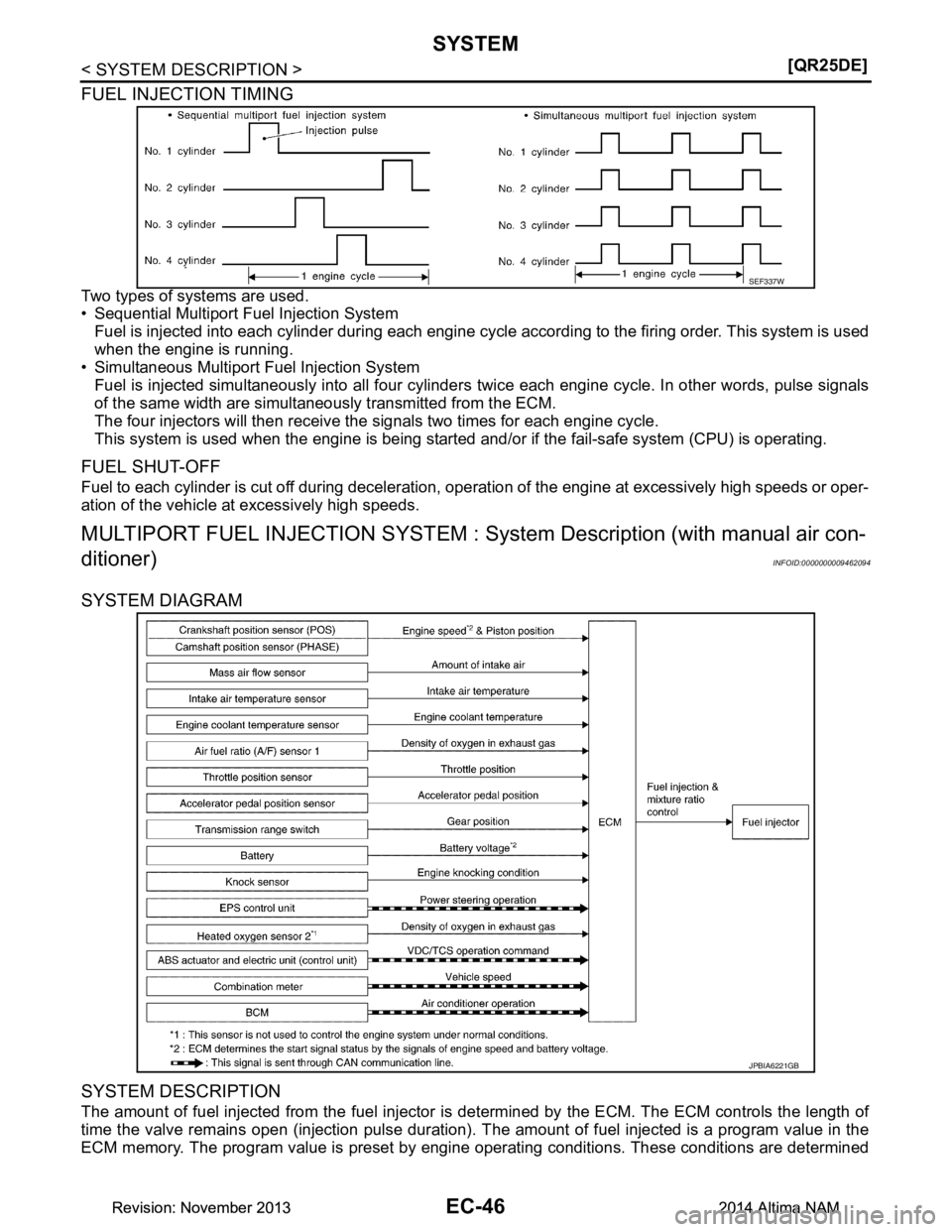

FUEL INJECTION TIMING
Two types of systems are used.
• Sequential Multiport Fuel Injection System
Fuel is injected into each cylinder during each engine

Page 1047 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-47
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
by input signals (for engine speed and intake air) from t
he crankshaft position sensor (POS), camshaft position
sensor (P

SYSTEMEC-47
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
by input signals (for engine speed and intake air) from t
he crankshaft position sensor (POS), camshaft position
sensor (PHASE) and the mass air flow sensor.
VARIOUS FUEL INJECTION INCREASE/DECREASE COMPENSATION
In addition, the amount of fuel injected is compens ated to improve engine performance under various operat-
ing conditions as listed below.
• During warm-up
• When starting the engine
• During acceleration
• Hot-engine operation
• When selector lever is changed from N to D
• High-load, high-speed operation

• During deceleration
• During high engine speed operation
MIXTURE RATIO FEEDBACK CONTROL (CLOSED LOOP CONTROL)
The mixture ratio feedback system prov ides the best air-fuel mixture ratio for driveability and emission control.
The three way catalyst (manifold) can then better r educe CO, HC and NOx emissions. This system uses A/F
sensor 1 in the exhaust manifold to monitor whether t he engine operation is rich or lean. The ECM adjusts the
injection pulse width according to the sensor voltage si gnal. For more information about A/F sensor 1, refer to
EC-32, "Air Fuel Ratio (A/F) Sensor 1"
. This maintains the mixture rati o within the range of stoichiometric
(ideal air-fuel mixture).
This stage is referred to as the closed loop control condition.
Heated oxygen sensor 2 is located downstream of the th ree way catalyst (manifold). Even if the switching
characteristics of A/F sensor 1 shift, the air-fuel rati o is controlled to stoichiometric by the signal from heated
oxygen sensor 2.
• Open Loop Control
The open loop system condition refers to when the EC M detects any of the following conditions. Feedback
control stops in order to maintain stabilized fuel combustion.
- Deceleration and acceleration
- High-load, high-speed operation
- Malfunction of A/F sensor 1 or its circuit
- Insufficient activation of A/F sensor 1 at low engine coolant temperature
- High engine coolant temperature
- During warm-up
- After shifting from N to D
- When starting the engine
MIXTURE RATIO SELF-LEARNING CONTROL
The mixture ratio feedback control system monitors the mixture ratio signal transmitted from A/F sensor 1.
This feedback signal is then sent to the ECM. The ECM cont rols the basic mixture ratio as close to the theoret-
ical mixture ratio as possible. However, the basic mi xture ratio is not necessarily controlled as originally
designed. Both manufacturing differences (i.e., mass air flow sensor hot wire) and characteristic changes dur-
ing operation (i.e., fuel injector clogging) directly affect mixture ratio.
Accordingly, the difference between the basic and theoretical mixture ratios is monitored in this system. This is
then computed in terms of “injection pulse duration” to automatically compensate for the difference between
the two ratios.
“Fuel trim” refers to the feedback compensation value co mpared against the basic injection duration. Fuel trim
includes short term fuel trim and long term fuel trim.
PBIB2793E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1048 of 4801

NISSAN TEANA 2014 Service Manual
EC-48
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
“Short term fuel trim” is the short-term fuel compensati
on used to maintain the mixture ratio at its theoretical
value. The signal from A/F sensor 1 i

Load next 8 pages

Page: < prev 1-10 ... 1009-1016 1017-1024 1025-1032 1033-1040 1041-1048 1049-1056 1057-1064 1065-1072 1073-1080 ... 4808 next >

drain bolt brake fluid coolant key reset CD changer
