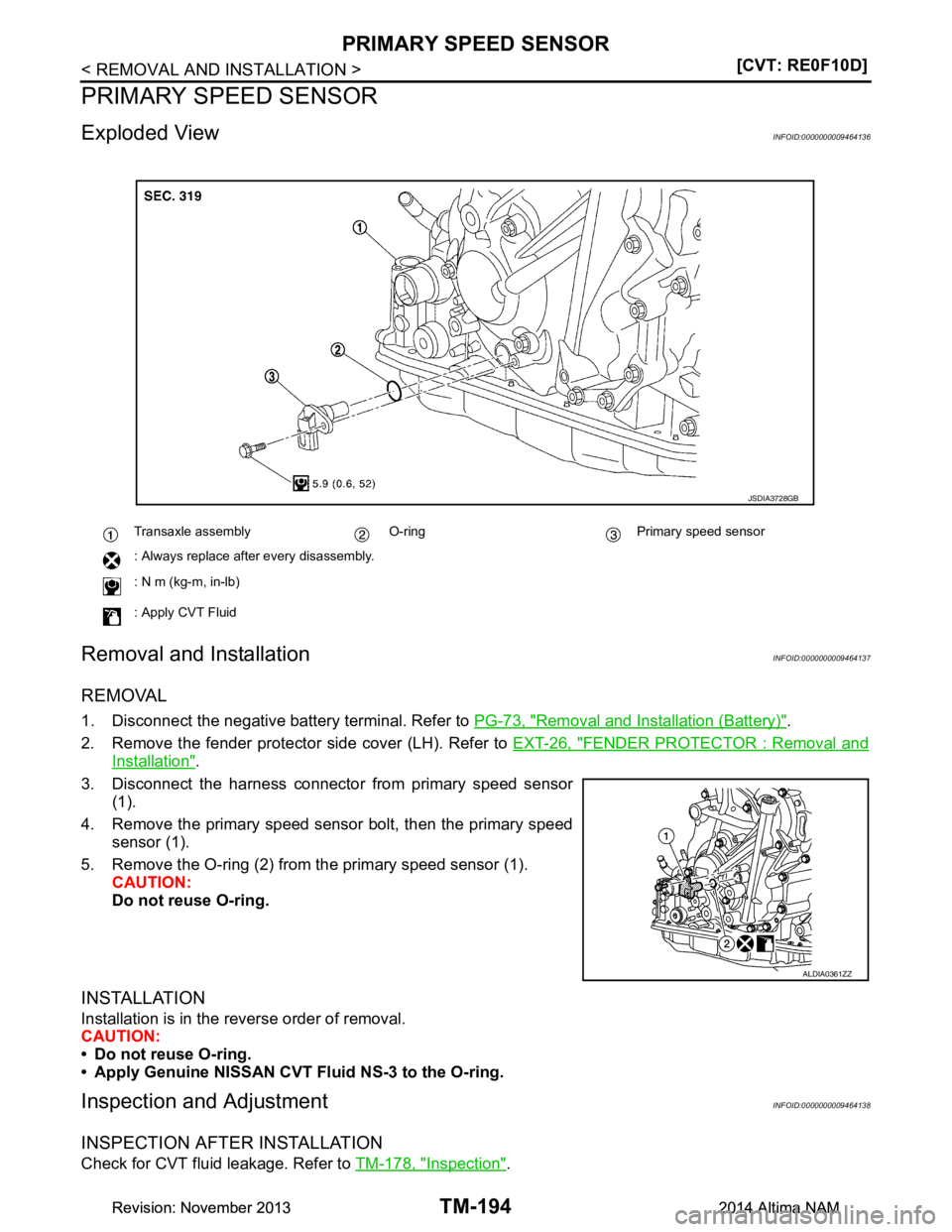

TM-194
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
PRIMARY SPEED SENSOR
PRIMARY SPEED SENSOR
Exploded ViewINFOID:0000000009464136
Removal and InstallationINFOID:0000000009464137
REMOVAL
1. Disconnect the negative battery terminal. Refer to
PG-73, "Removal and Installation (Battery)".
2. Remove the fender protector side cover (LH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
3. Disconnect the harness connector from primary speed sensor (1).
4. Remove the primary speed sensor bolt, then the primary speed sensor (1).
5. Remove the O-ring (2) from the primary speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464138
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-178, "Inspection".
Transaxle assembly O-ring Primary speed sensor
: Always replace after every disassembly.
: N m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA3728GB
ALDIA0361ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4410 of 4801
PRIMARY SPEED SENSORTM-195
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-84, "Adjustment".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4411 of 4801
![NISSAN TEANA 2014 Service Manual
TM-196
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
OUTPUT SPEED SENSOR
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464139
Removal and InstallationINFOID:0000000009464140
REMOVAL
1. Disconnect th NISSAN TEANA 2014 Service Manual
TM-196
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
OUTPUT SPEED SENSOR
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464139
Removal and InstallationINFOID:0000000009464140
REMOVAL
1. Disconnect th](/manual-img/5/57390/w960_57390-4410.png)
TM-196
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
OUTPUT SPEED SENSOR
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464139
Removal and InstallationINFOID:0000000009464140
REMOVAL
1. Disconnect the battery negative terminal. Refer to
PG-73, "Removal and Installation (Battery)".
2. Disconnect the harness connector from output speed sensor (1).
3. Remove the output speed sensor bolt, then the output speed sensor (1).
4. Remove the O-ring (2) from the output speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464141
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-178, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-84, "Adjustment".
Transaxle assembly Output speed sensor O-ring
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA4209GB
ALDIA0363ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4412 of 4801
![NISSAN TEANA 2014 Service Manual
DIFFERENTIAL SIDE OIL SEALTM-197
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

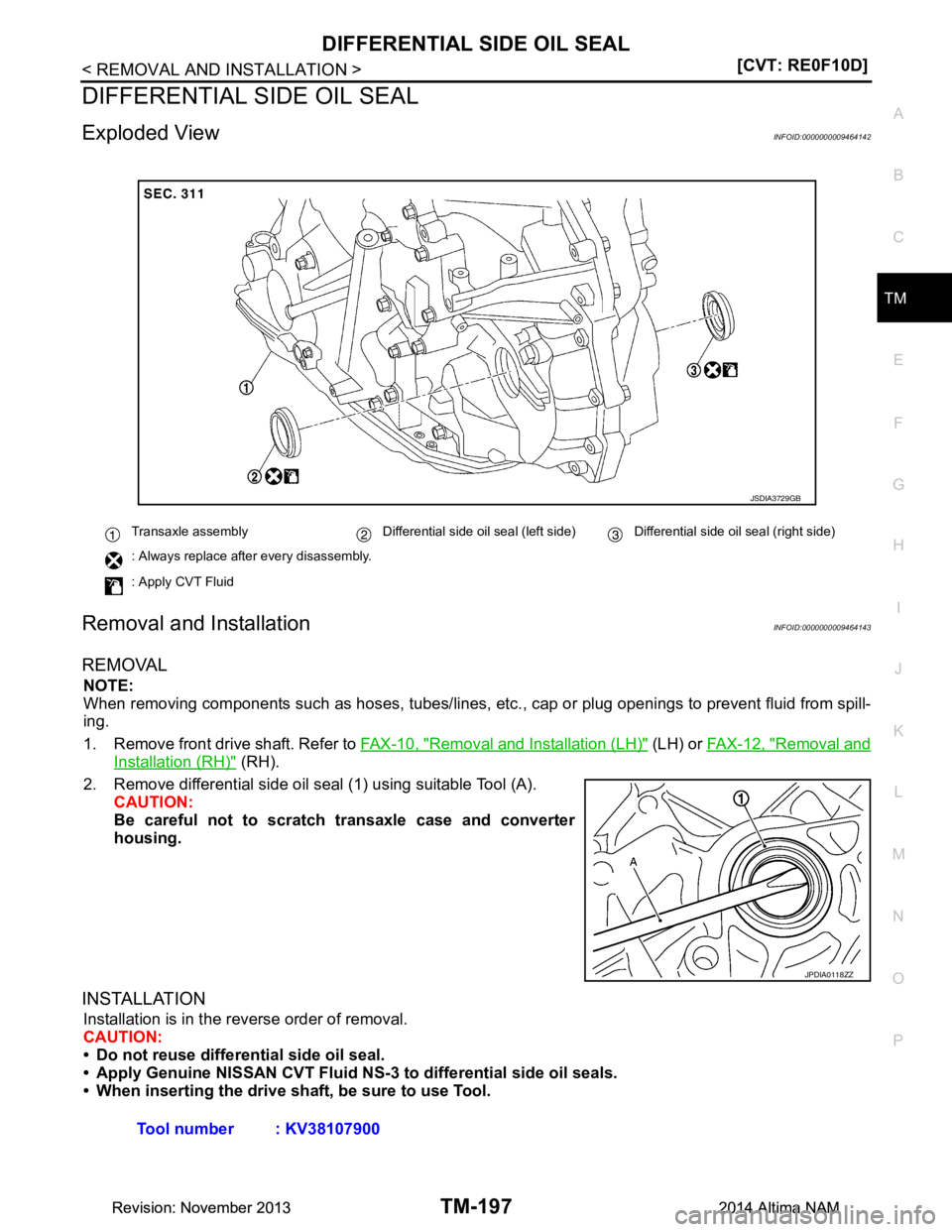

DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000009464142
Removal and InstallationI NISSAN TEANA 2014 Service Manual
DIFFERENTIAL SIDE OIL SEALTM-197
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000009464142
Removal and InstallationI](/manual-img/5/57390/w960_57390-4411.png)
DIFFERENTIAL SIDE OIL SEALTM-197
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000009464142
Removal and InstallationINFOID:0000000009464143
REMOVAL
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove front drive shaft. Refer to FAX-10, "Removal and Installation (LH)"
(LH) or FAX-12, "Removal and
Installation (RH)" (RH).
2. Remove differential side oil seal (1) using suitable Tool (A). CAUTION:
Be careful not to scratch transaxle case and converter
housing.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse differential side oil seal.
• Apply Genuine NISSAN CVT Fluid NS-3 to differential side oil seals.
• When inserting the drive shaf t, be sure to use Tool.
Transaxle assembly Differential side oil seal (left side) Differential side oil seal (right side)
: Always replace after every disassembly.
: Apply CVT Fluid
JSDIA3729GB
JPDIA0118ZZ
Tool number : KV38107900
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4413 of 4801
![NISSAN TEANA 2014 Service Manual

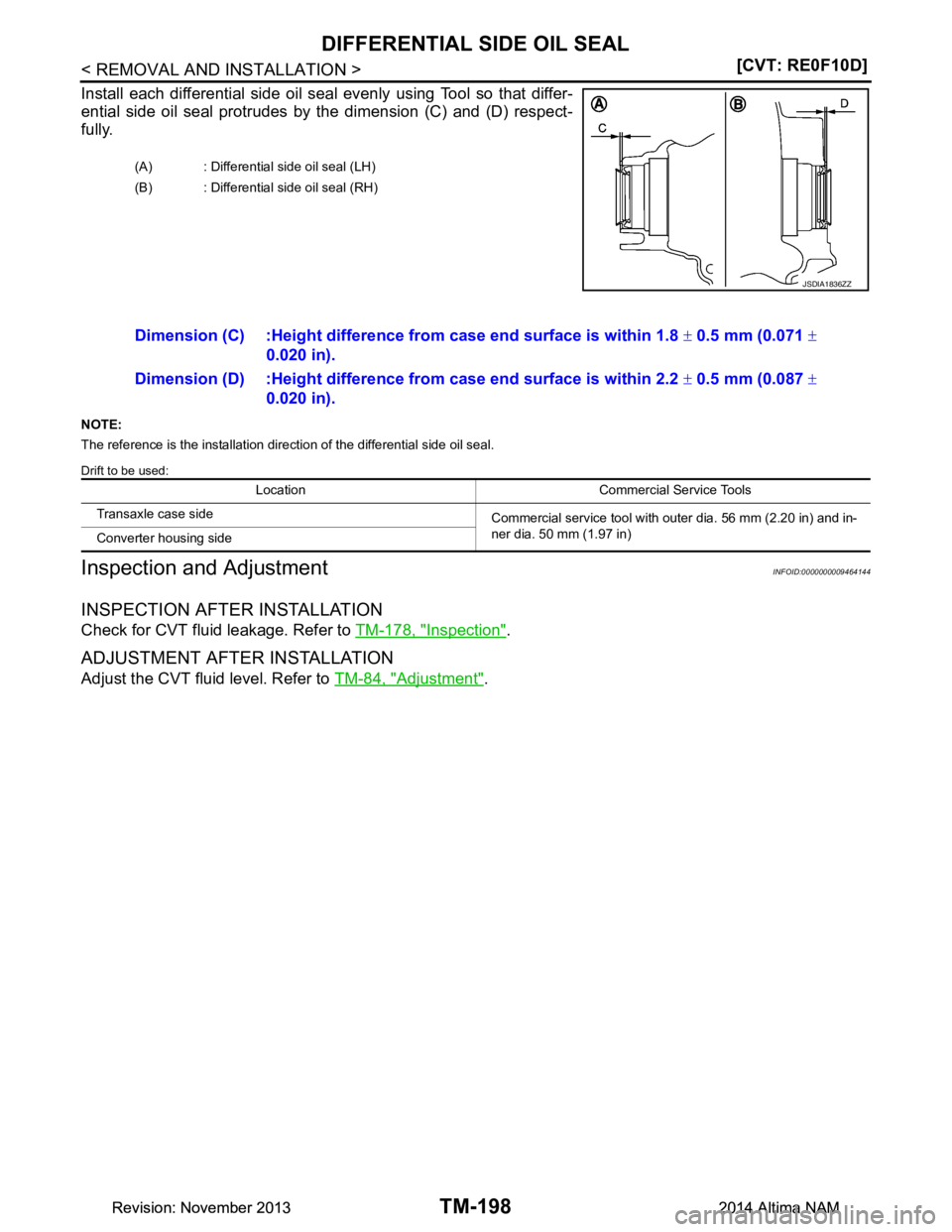

TM-198
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
DIFFERENTIAL SIDE OIL SEAL
Install each differential side oil seal evenly using Tool so that differ-
ential side oil seal protrudes by the dimension NISSAN TEANA 2014 Service Manual
TM-198
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
DIFFERENTIAL SIDE OIL SEAL
Install each differential side oil seal evenly using Tool so that differ-
ential side oil seal protrudes by the dimension](/manual-img/5/57390/w960_57390-4412.png)
TM-198
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
DIFFERENTIAL SIDE OIL SEAL
Install each differential side oil seal evenly using Tool so that differ-
ential side oil seal protrudes by the dimension (C) and (D) respect-
fully.
NOTE:
The reference is the installation direction of the differential side oil seal.
Drift to be used:
Inspection and AdjustmentINFOID:0000000009464144
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-178, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-84, "Adjustment".
(A) : Differential side oil seal (LH)
(B) : Differential side oil seal (RH)
JSDIA1836ZZ
Dimension (C) :Height difference from case end surface is within 1.8 ± 0.5 mm (0.071 ±
0.020 in).
Dimension (D) :Height difference from case end surface is within 2.2 ± 0.5 mm (0.087 ±
0.020 in).
Location Commercial Service Tools
Transaxle case side Commercial service tool with outer dia. 56 mm (2.20 in) and in-
ner dia. 50 mm (1.97 in)
Converter housing side
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4414 of 4801
![NISSAN TEANA 2014 Service Manual
CVT OIL WARMER SYSTEMTM-199
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

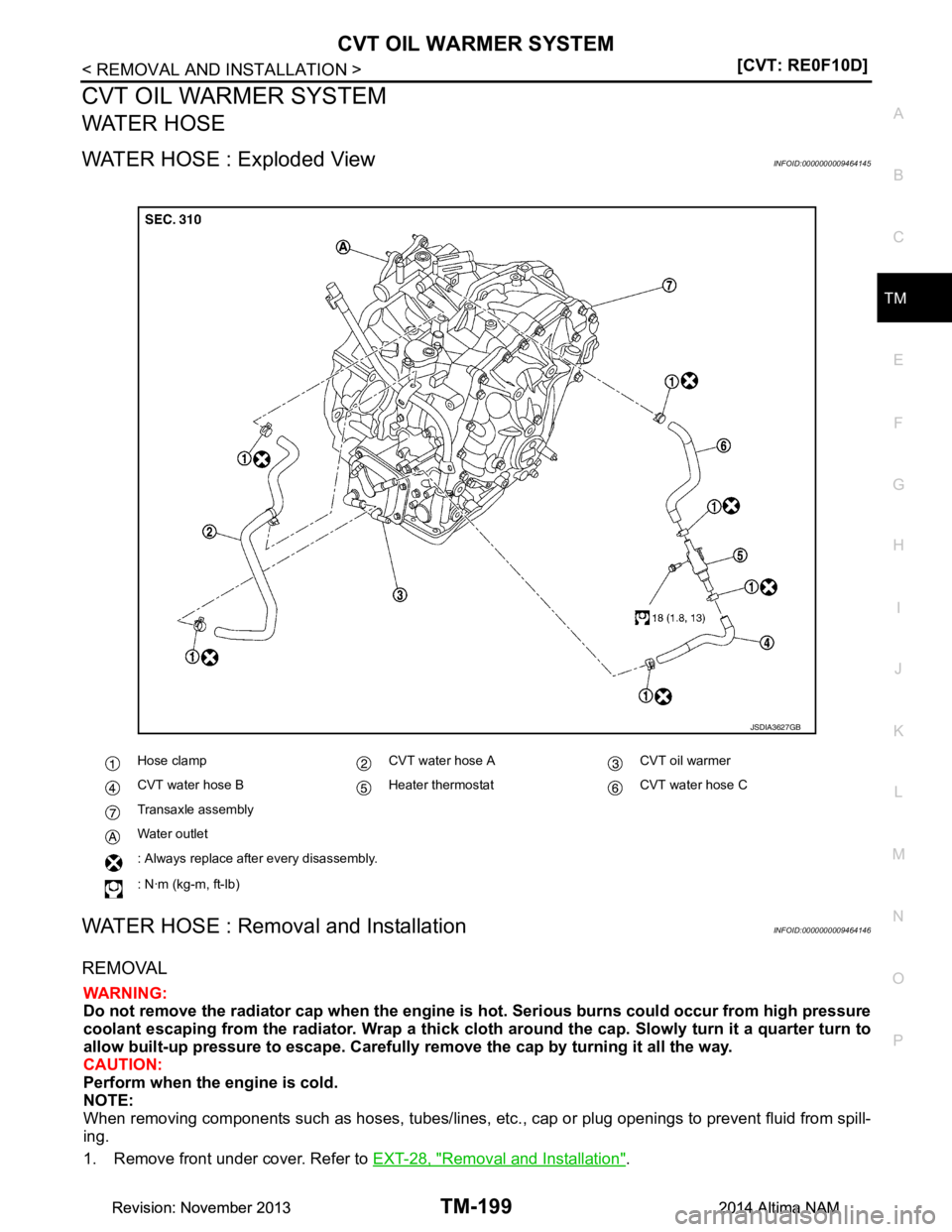

CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000009464145
WATER HOSE NISSAN TEANA 2014 Service Manual
CVT OIL WARMER SYSTEMTM-199
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000009464145
WATER HOSE](/manual-img/5/57390/w960_57390-4413.png)
CVT OIL WARMER SYSTEMTM-199
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000009464145
WATER HOSE : Removal and InstallationINFOID:0000000009464146
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escap e. Carefully remove the cap by turning it all the way.
CAUTION:
Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove front under cover. Refer to EXT-28, "Removal and Installation"
.
Hose clamp CVT water hose A CVT oil warmer
CVT water hose B Heater thermostat CVT water hose C
Transaxle assembly
Water outlet
: Always replace after every disassembly.
: N·m (kg-m, ft-lb)
JSDIA3627GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4415 of 4801
![NISSAN TEANA 2014 Service Manual
TM-200
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CVT OIL WARMER SYSTEM
2. Remove engine room cover. Refer to
EM-28, "Removal and Installation".
3. Remove front air duct and air cleaner case assembl NISSAN TEANA 2014 Service Manual
TM-200
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CVT OIL WARMER SYSTEM
2. Remove engine room cover. Refer to
EM-28, "Removal and Installation".
3. Remove front air duct and air cleaner case assembl](/manual-img/5/57390/w960_57390-4414.png)
TM-200
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CVT OIL WARMER SYSTEM
2. Remove engine room cover. Refer to
EM-28, "Removal and Installation".
3. Remove front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
4. Release clip (A) and release hose clamps and remove CVT water hose A from water outlet. CAUTION:
Do not reuse hose clamps.
5. Remove CVT heater thermostat bolt, release hose clamps then remove CVT heater thermostat and CVT
water hose C from water outlet.
CAUTION:
Do not reuse hose clamps.
6. Remove CVT water hose inlet and CVT water hose outlet from CVT oil warmer.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse hose clamps.
• Insert CVT water hose according to dimension (A).
• Install hose clamps (1) at both ends of CVT water hose (2) with dimension (A) from the hose end.
• Hose clamp should not interfere with the bulge.
: Front
ALDIA0364ZZ
CVT water hose (1) Insert side tube (2) Dimension (A)
CVT water hose A Water outlet
End reaches the spool portion (B)
CVT oil warmer
CVT water hose B CVT oil warmer
Heater thermostat
CVT water hose C Heater thermostat
Water outlet
JSDIA1291ZZ
Dimension (A) : 5 – 7 mm (0.20 – 0.28 in)
SCIA8123E
CVT water hose Hose end Paint mark
Position of hose clamp*
CVT water hose AWater outlet side Facing upward C
CVT oil warmer side Facing to the front of the vehicle C
CVT water hose B CVT oil warmer side Facing to the front of the vehicle B
Heater thermostat side N/A A
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4416 of 4801
CVT OIL WARMER SYSTEMTM-201
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

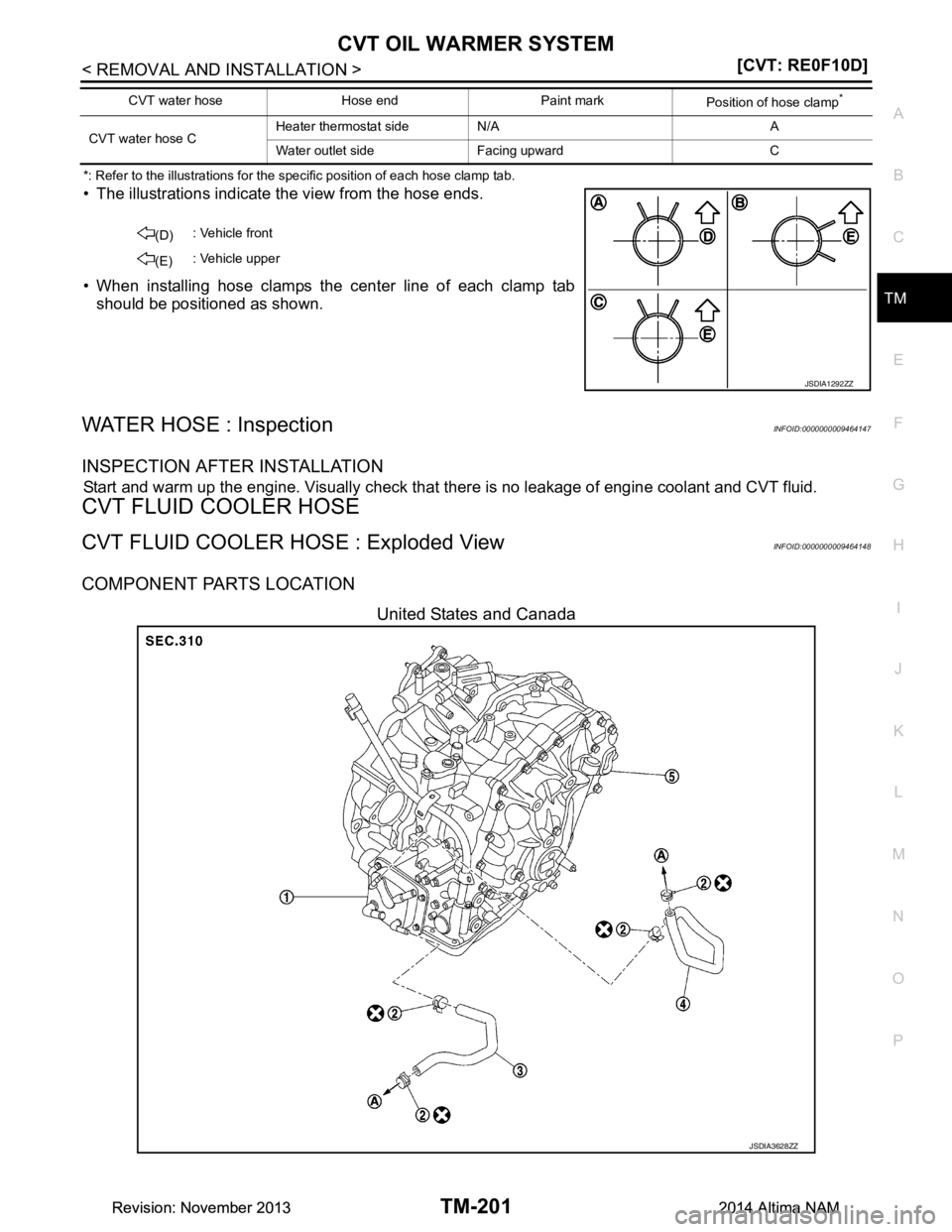

*: Refer to the illustrations for the specific position of each hose clamp tab.
• The illustrations indicate the view from the hose ends.
• When installing hose clamps the center line of each clamp tab should be positioned as shown.
WATER HOSE : InspectionINFOID:0000000009464147
INSPECTION AFTER INSTALLATION
Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.
CVT FLUID COOLER HOSE
CVT FLUID COOLER HO SE : Exploded ViewINFOID:0000000009464148
COMPONENT PARTS LOCATION
United States and Canada
CVT water hose C Heater thermostat side N/A A
Water outlet side Facing upward C
CVT water hose Hose
end Paint mark
Position of hose clamp
*
(D): Vehicle front
(E) : Vehicle upper
JSDIA1292ZZ
JSDIA3628ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
