NISSAN TEANA 2014 Service Manual
DIAGNOSIS AND REPAIR WORK FLOWBRC-55
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW

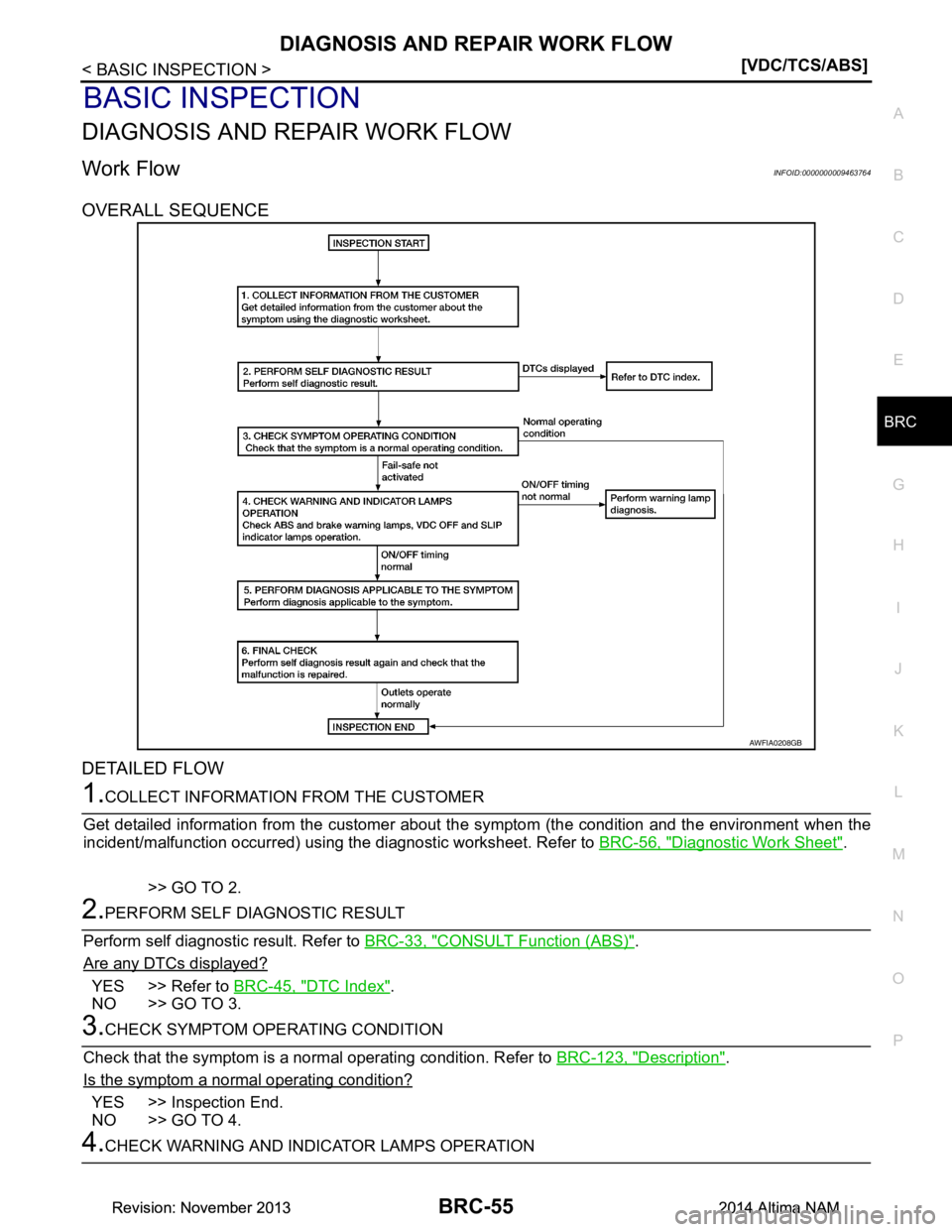

Work FlowINFOID:0000000009463764
OVERALL SE

Page 202 of 4801

NISSAN TEANA 2014 Service Manual
BRC-56
< BASIC INSPECTION >[VDC/TCS/ABS]
DIAGNOSIS AND REPAIR WORK FLOW

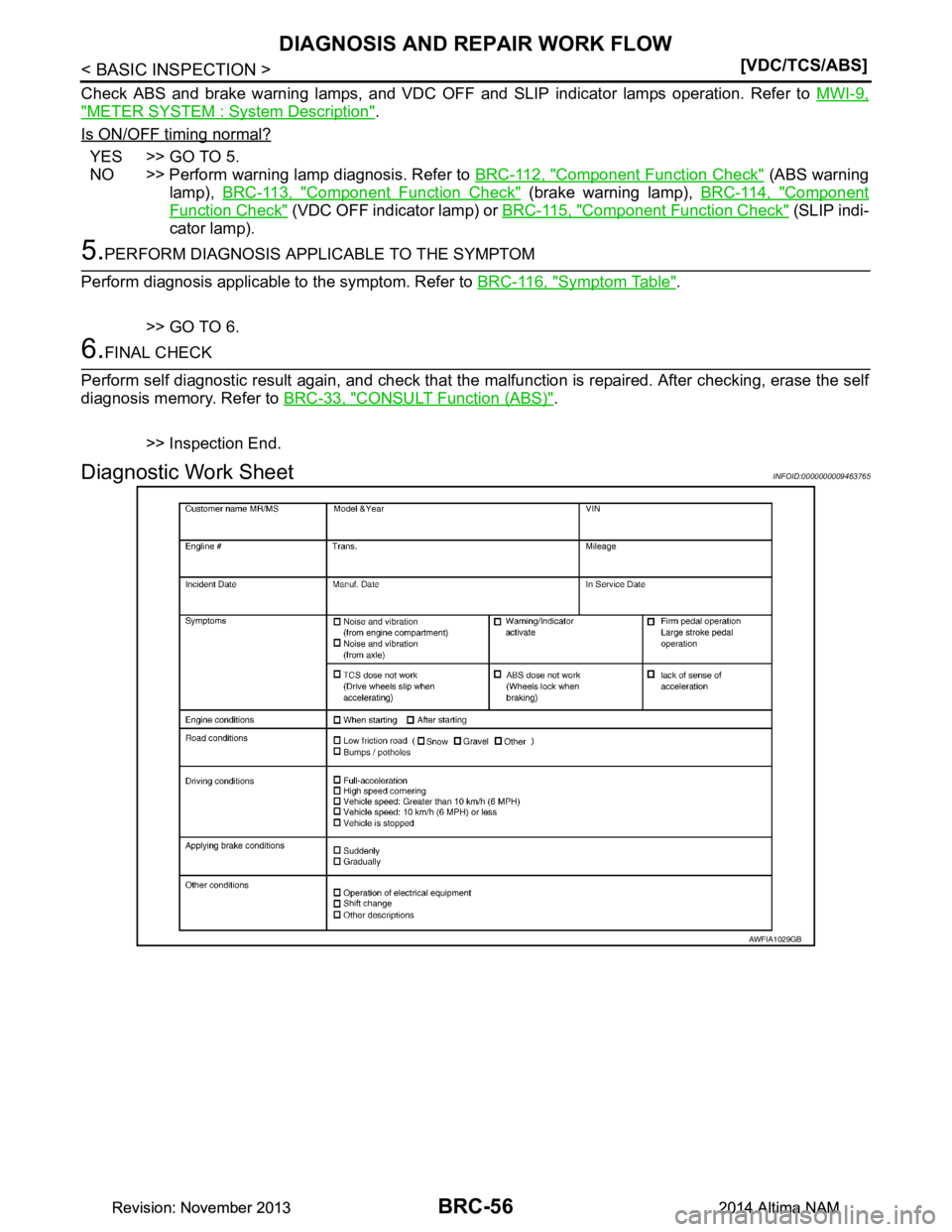

Check ABS and brake warning lamps, and VDC OFF and SLIP indicator lamps operation. Refer to
MWI-9,
"METER SYSTEM : System Desc

Page 203 of 4801

NISSAN TEANA 2014 Service Manual
ADDITIONAL SERVICE WHEN REPLACING ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
BRC-57
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
ADDITIONAL SERVICE WHEN REPL ACING ABS AC

Page 204 of 4801

NISSAN TEANA 2014 Service Manual
BRC-58
< BASIC INSPECTION >[VDC/TCS/ABS]
ADJUSTMENT OF STEERING ANGLE
SENSOR NEUTRAL POSITION
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
DescriptionINFOID:0000000009463767
Refer to the tab

BRC-58
< BASIC INSPECTION >[VDC/TCS/ABS]
ADJUSTMENT OF STEERING ANGLE
SENSOR NEUTRAL POSITION
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
DescriptionINFOID:0000000009463767
Refer to the table below to determine if adjustment of steering angle sensor neutral position is required.
×: Required –: Not required
Work ProcedureINFOID:0000000009463768
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
CAUTION:
To adjust neutral position of steering an gle sensor, make sure to use CONSULT.
(Adjustment cannot be done without CONSULT).
1.ALIGN THE VEHICLE STATUS
Stop vehicle with front wheels in straight-ahead position.
>> GO TO 2.
2.PERFORM THE NEUTRAL POSITION ADJUST MENT FOR THE STEERING ANGLE SENSOR
1. On the CONSULT screen, touch “WORK SUPPO RT” and “ST ANG SEN ADJUSTMENT” in order.
2. Touch “START”.
CAUTION:
Do not touch steering wheel whil e adjusting steering angle sensor.
3. After approximately 10 seconds, touch “END”. NOTE:
After approximately 60 seconds, it ends automatically.
4. Turn ignition switch OFF, then turn it ON again. CAUTION:
Be sure to perform above operation.
>> GO TO 3.
3.CHECK DATA MONITOR
1. Run vehicle with front wheels in straight-ahead position, then stop.
2. Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0 ±2.5 °.
Is the steering angle within the specified range?
YES >> GO TO 4.
NO >> Perform the neutral position adjustment fo r the steering angle sensor again, GO TO 1
4.ERASE THE SELF-DIAGNOSIS MEMORY
Erase the self-diagnosis memory of the ABS ac tuator and electric unit (control unit) and ECM.
• ABS actuator and electric unit (control unit): Refer to BRC-33, "CONSULT Function (ABS)"
.
Situation Adjustment of steering angle sensor neutral position
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit) ×
Removing/Installing steering angle sensor ×
Replacing steering angle sensor ×
Removing/Installing steering components ×
Replacing steering components ×
Removing/Installing suspension components ×
Replacing suspension components ×
Change tires to new ones —
Tire rotation —
Adjusting wheel alignment ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 205 of 4801

NISSAN TEANA 2014 Service Manual
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
BRC-59
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
• ECM: Refer to EC-77, "CONSULT Function" (QR25DE) or EC-601, "CO

Page 206 of 4801

NISSAN TEANA 2014 Service Manual
BRC-60
< BASIC INSPECTION >[VDC/TCS/ABS]
CONFIGURATION [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)]
CONFIGURATION [ABS ACTUATOR
AND ELECTRIC UNIT (CONTROL
UNIT)]
Work ProcedureINFOID:000000000946

BRC-60
< BASIC INSPECTION >[VDC/TCS/ABS]
CONFIGURATION [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)]
CONFIGURATION [ABS ACTUATOR
AND ELECTRIC UNIT (CONTROL
UNIT)]
Work ProcedureINFOID:0000000009463769
CAUTION:
• Use “Manual Configuration” only when “TYPE ID” of ABS actuator an d electric unit (control unit)
cannot be read.
• After configuration, turn the ignition switch from OFF to ON and check that the VDC warning lamp
turns OFF after staying illuminated for approximately two seconds.
• If an error occurs during configurat ion, start over from the beginning.
1.CHECKING TYPE ID (1)
Use FAST (service parts catalogue) to search ABS ac tuator and electric unit (control unit) of the applicable
vehicle and find “Type ID”.
Is
“Type ID” displayed?
YES >> Print out “Type ID” and GO TO 2.
NO >> “Configuration” is not required for ABS actuat or and electric unit (control unit). Replace in the
usual manner. Refer to BRC-128, "Removal and Installation"
.
2.CHECKING TYPE ID (2)
CONSULT Configuration
1. Select “Before Replace ECU” of “Read/Write Configuration”.
2. Check that “Type ID” is displayed on the CONSULT screen.
Is
“Type ID” displayed?
YES >> GO TO 3.
NO >> GO TO 7.
3.VERIFYING TYPE ID (1)
CONSULT Configuration
Compare a “Type ID” displayed on the CONSULT screen with the one searched by using FAST (service parts
catalogue) to check that these “Type ID” agree with each other.
NOTE:
For the “Type ID” searched by using FA ST (service parts catalog), use the last five digits of the “Type ID”.
>> GO TO 4.
4.SAVING TYPE ID
CONSULT Configuration
Save “Type ID” on CONSULT.
>> GO TO 5.
5.REPLACING ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) (1)
Replace ABS actuator and electric unit (control unit). Refer to BRC-128, "Removal and Installation"
.
CAUTION:
Never perform the following work items:
• Air bleeding
>> GO TO 6.
6.WRITING (AUTOMATIC WRITING)
CONSULT Configuration
1. Select “After Replace ECU” of “R e/programming, Configuration” or that of “Read / Write Configuration”.
2. Select the “Type ID” agreeing with the one stored on CONSULT and the one searched by using FAST (service parts catalogue) to write the “Type ID” in to the ABS actuator and electric unit (control unit).
NOTE:
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 207 of 4801

NISSAN TEANA 2014 Service Manual
CONFIGURATION [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)]
BRC-61
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
For the “Type ID” searched by using FAST (service parts

Page 208 of 4801

NISSAN TEANA 2014 Service Manual
BRC-62
< BASIC INSPECTION >[VDC/TCS/ABS]
CALIBRATION OF DECEL G SENSOR
CALIBRATION OF DECEL G SENSOR
DescriptionINFOID:0000000009962236
Refer to the table below to determine if calibration of the dec

BRC-62
< BASIC INSPECTION >[VDC/TCS/ABS]
CALIBRATION OF DECEL G SENSOR
CALIBRATION OF DECEL G SENSOR
DescriptionINFOID:0000000009962236
Refer to the table below to determine if calibration of the decel G sensor is required.
×
: Required –: Not required
Work ProcedureINFOID:0000000009962237
CALIBRATION OF DECEL G SENSOR
CAUTION:
To calibrate the decel G sensor, make sure to use CONSULT.
(Calibration cannot be done without CONSULT).
1.ALIGN THE VEHICLE STATUS
Stop vehicle with front wheels in straight-ahead position.
>> GO TO 2.
2.PERFORM CALIBRATION OF DECEL G SENSOR
1. On the CONSULT screen, touch “WORK SUPPORT ” and “DECEL G SEN CALIBRATION” in order.
2. Touch “START”.
3. After approximately 10 seconds, touch “END”.
NOTE:
After approximately 60 seconds, it ends automatically.
4. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to perform above operation.
>> GO TO 3.
3.CHECK DATA MONITOR
1. Run vehicle with front wheels in straight-ahead position, then stop.
2. Select “DATA MONITOR”. Then make sure “DECEL G SEN” is within ± 0.08G.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Perform calibration of decel G sensor again, GO TO 1.
4.ERASE THE SELF-DIAGNOSIS MEMORY
Erase the self-diagnosis memory of the ABS ac tuator and electric unit (control unit) and ECM.
• ABS actuator and electric unit (control unit): Refer to BRC-33, "CONSULT Function (ABS)"
.
• ECM: Refer to EC-77, "CONSULT Function"
(QR25DE) or EC-601, "CONSULT Function" (VQ35DE).
Situation Calibration of decel G sensor
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit) ×
Removing/Installing steering components —
Replacing steering components —
Removing/Installing suspension components —
Replacing suspension components —
Removing/Installing tire —
Replacing tire —
Tire rotation —
Adjusting wheel alignment —
Removing/Installing yaw rate/side/decel G sensor ×
Replacing yaw rate/side/decel G sensor ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
