Page 1577 of 4801
SYSTEMEC-577
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

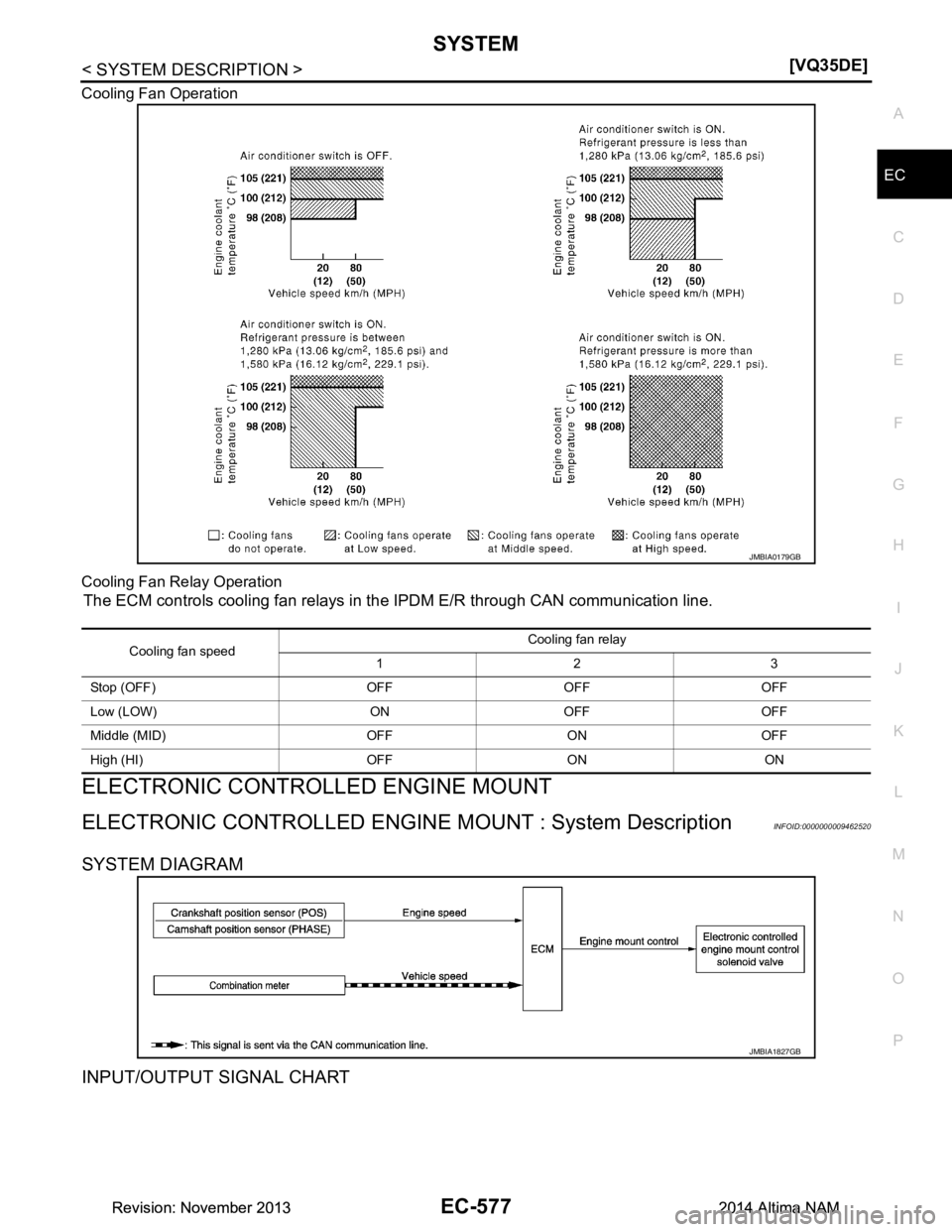

Cooling Fan Operation
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
ELECTRONIC CONTROLLED ENGINE MOUNT
ELECTRONIC CONTROLLED ENGINE
MOUNT : System DescriptionINFOID:0000000009462520
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
JMBIA0179GB
Cooling fan speed Cooling fan relay
123
Stop (OFF) OFF OFF OFF
Low (LOW) ON OFF OFF
Middle (MID) OFF ON OFF
High (HI) OFF ON ON
JMBIA1827GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1578 of 4801
EC-578
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
*: This signal is sent to the ECM via the CAN communication line.
SYSTEM DESCRIPTION
The ECM controls the engine mount operation correspondi
ng to the engine speed. The control system has a
2-step control [Soft/Hard]

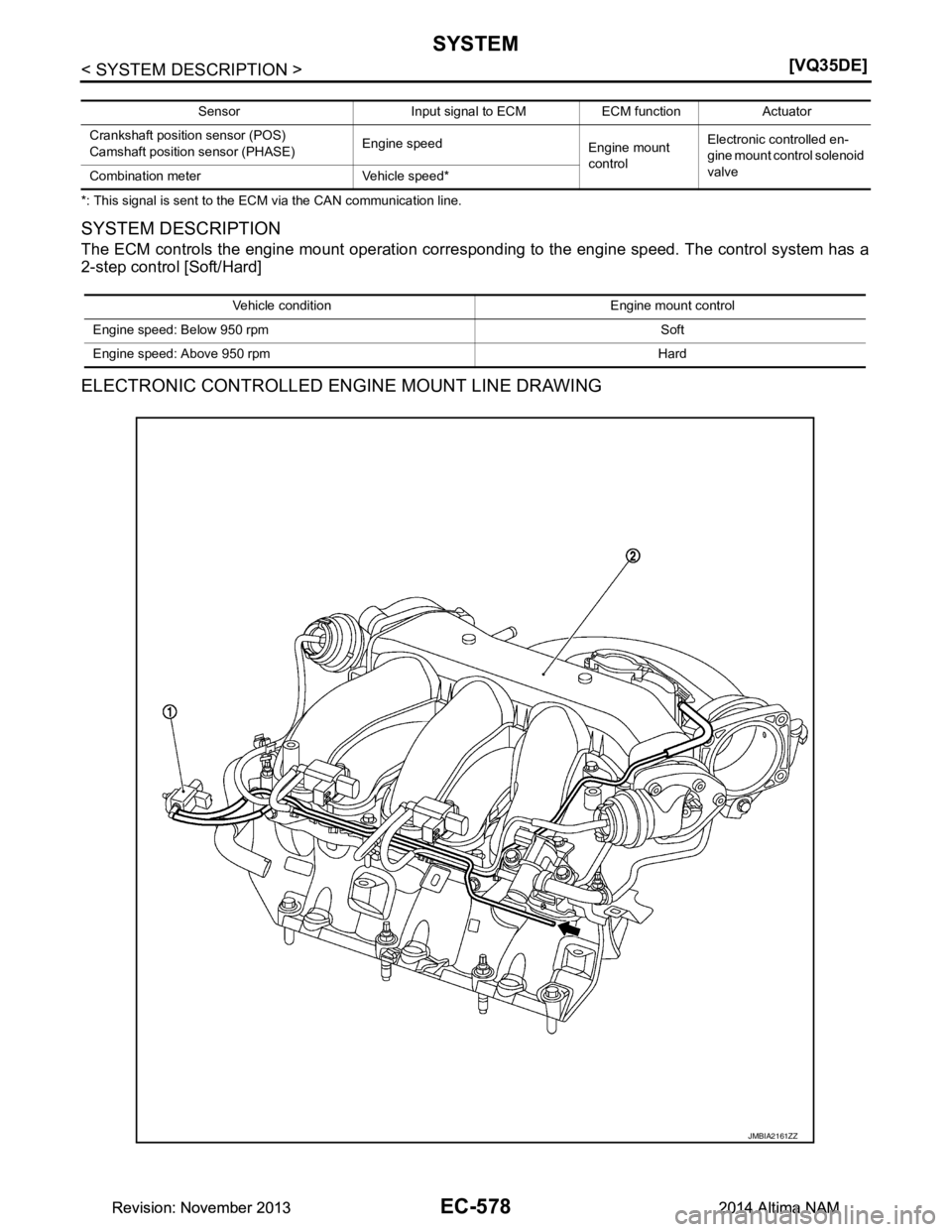

ELECTRONIC CONTROLLED ENGINE MOUNT LINE DRAWING
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed
Engine mount
control Electronic controlled en-
gine mount control solenoid
valve
Combination meter Vehicle speed*
Vehicle condition Engine mount control
Engine speed: Below 950 rpm Soft
Engine speed: Above 950 rpm Hard
JMBIA2161ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1579 of 4801
SYSTEMEC-579
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose.
EVAPORATIVE EMISSION SYSTEM
1. Electronic controlled engine mount
control solenoid valve 2. Intake manifold collector
: From next figure

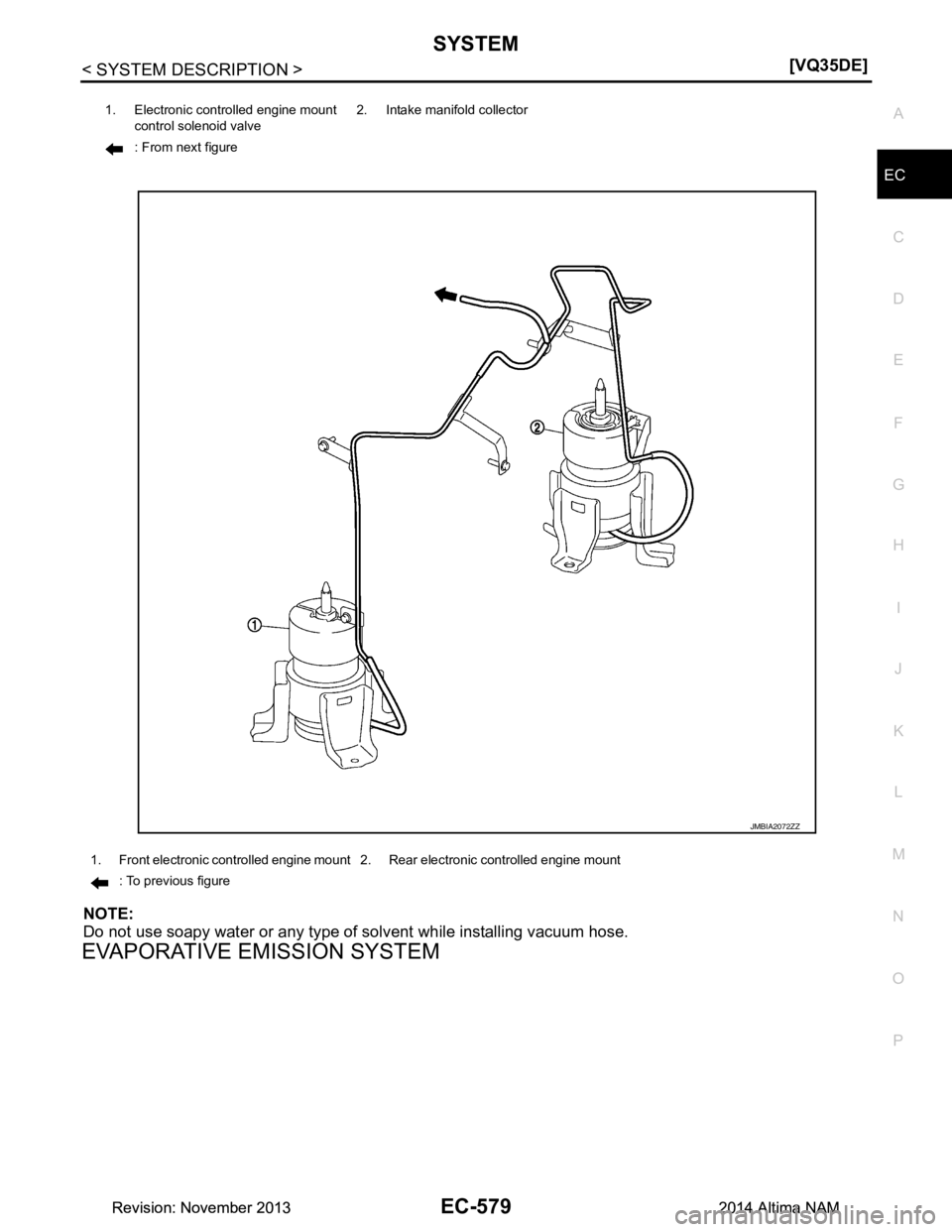

1. Front electronic controlled engine mount 2. Rear electronic controlled engine mount : To previous figure
JMBIA2072ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1580 of 4801
![NISSAN TEANA 2014 Service Manual
EC-580
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
EVAPORATIVE EMISSION SYSTEM : System Description
INFOID:0000000009462521
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal sta NISSAN TEANA 2014 Service Manual
EC-580
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
EVAPORATIVE EMISSION SYSTEM : System Description
INFOID:0000000009462521
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal sta](/manual-img/5/57390/w960_57390-1579.png)
EC-580
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
EVAPORATIVE EMISSION SYSTEM : System Description
INFOID:0000000009462521

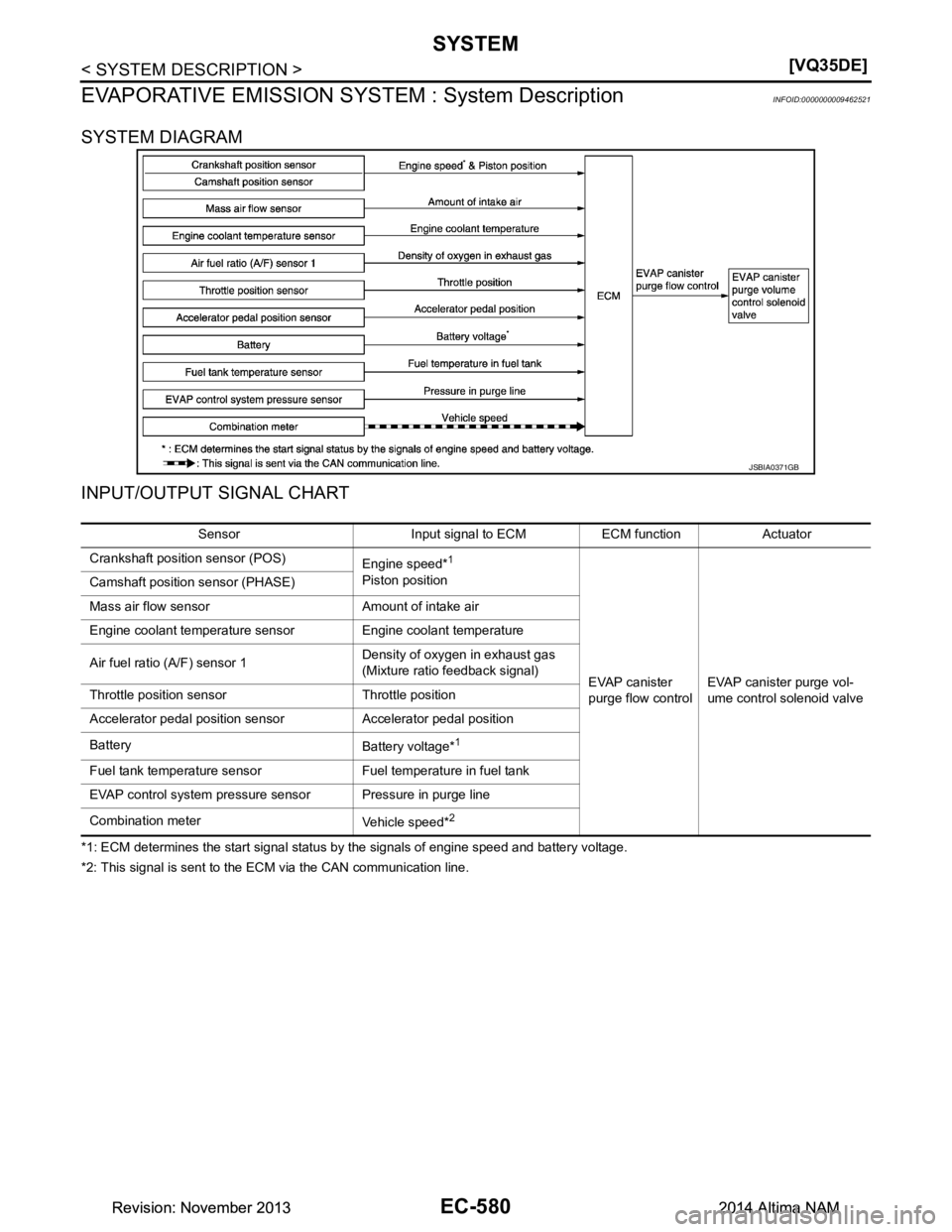

SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM via the CAN communication line.
JSBIA0371GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS) Engine speed*
1
Piston position
EVAP canister
purge flow control EVAP canister purge vol-
ume control solenoid valve
Camshaft position sensor (PHASE)
Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Air fuel ratio (A/F) sensor 1 Density of oxygen in exhaust gas
(Mixture ratio fe edback signal)
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
1
Fuel tank temperature sensor Fuel temperature in fuel tank
EVAP control system pressure sensor Pressure in purge line
Combination meter Vehicle speed*
2
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1581 of 4801
![NISSAN TEANA 2014 Service Manual
SYSTEMEC-581
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydr
ocarbons emitted into the atmosphere from the f NISSAN TEANA 2014 Service Manual
SYSTEMEC-581
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydr
ocarbons emitted into the atmosphere from the f](/manual-img/5/57390/w960_57390-1580.png)
SYSTEMEC-581
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydr
ocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accompli shed by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into t he EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not oper ating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve al so shuts off the vapor purge line during decelerating and
idling.
THROTTLE CONTROL

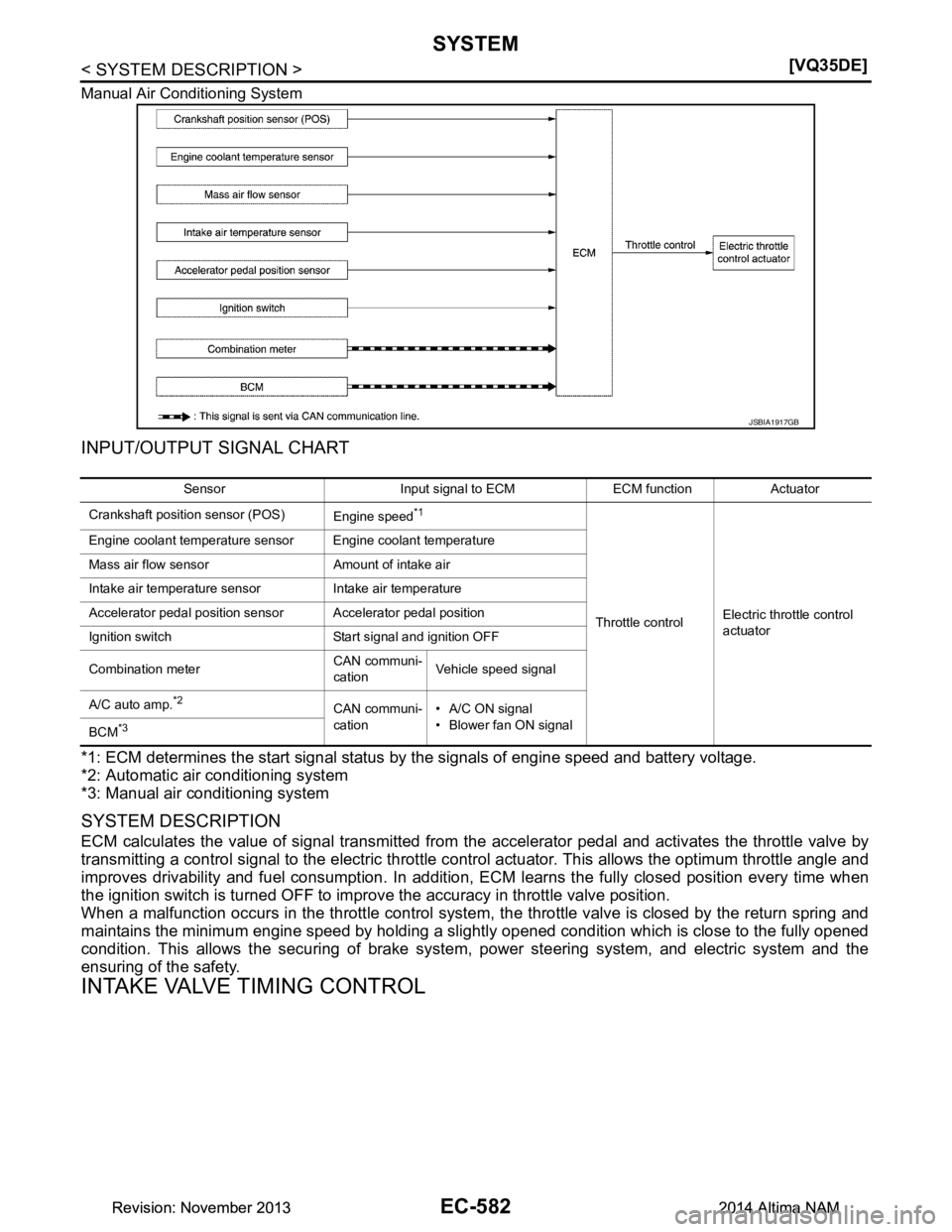

THROTTLE CONTROL : System DescriptionINFOID:0000000009462522
SYSTEM DIAGRAM
Automatic Air Conditioning System
PBIB1631E
JSBIA2394GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1582 of 4801
![NISSAN TEANA 2014 Service Manual
EC-582
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
Manual Air Conditioning System
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status
by the signals of engine speed and battery voltage.
* NISSAN TEANA 2014 Service Manual
EC-582
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
Manual Air Conditioning System
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status
by the signals of engine speed and battery voltage.
*](/manual-img/5/57390/w960_57390-1581.png)
EC-582
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
Manual Air Conditioning System
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status
by the signals of engine speed and battery voltage.
*2: Automatic air conditioning system
*3: Manual air conditioning system
SYSTEM DESCRIPTION
ECM calculates the value of signal transmitted from t he accelerator pedal and activates the throttle valve by
transmitting a control signal to the electric throttle c ontrol actuator. This allows the optimum throttle angle and
improves drivability and fuel consumption. In addition, ECM learns the fully closed position every time when
the ignition switch is turned OFF to improv e the accuracy in throttle valve position.
When a malfunction occurs in the throttle control system , the throttle valve is closed by the return spring and
maintains the minimum engine speed by holding a slightly opened condition which is close to the fully opened
condition. This allows the securing of brake syste m, power steering system, and electric system and the
ensuring of the safety.
INTAKE VALVE TIMING CONTROL
JSBIA1917GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS) Engine speed
*1
Throttle controlElectric throttle control
actuator
Engine coolant temperature sensor Engine coolant temperature
Mass air flow sensor Amount of intake air
Intake air temperature sensor Intake air temperature
Accelerator pedal position sensor Accelerator pedal position
Ignition switch Start signal and ignition OFF
Combination meter CAN communi-
cation Vehicle speed signal
A/C auto amp.
*2CAN communi-
cation • A/C ON signal
• Blower fan ON signal
BCM
*3
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1583 of 4801
![NISSAN TEANA 2014 Service Manual
SYSTEMEC-583
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
INTAKE VALVE TIMING CONT
ROL : System DescriptionINFOID:0000000009462523
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*: Thi NISSAN TEANA 2014 Service Manual
SYSTEMEC-583
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
INTAKE VALVE TIMING CONT
ROL : System DescriptionINFOID:0000000009462523
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*: Thi](/manual-img/5/57390/w960_57390-1582.png)
SYSTEMEC-583
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

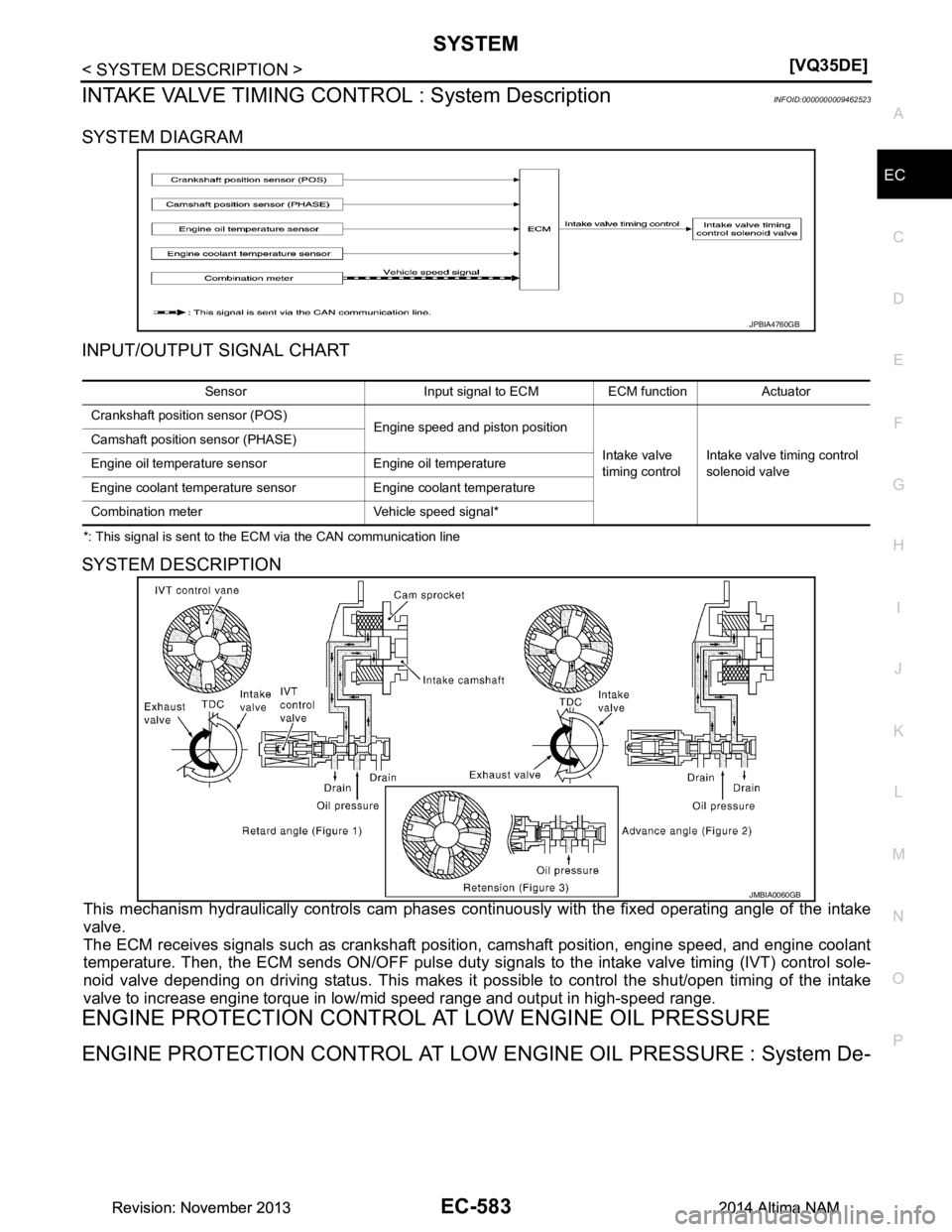

INTAKE VALVE TIMING CONT
ROL : System DescriptionINFOID:0000000009462523
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases c ontinuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft posit ion, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty si gnals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it po ssible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE
ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System De-
JPBIA4760GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS) Engine speed and piston position
Intake valve
timing control Intake valve timing control
solenoid valve
Camshaft position sensor (PHASE)
Engine oil temperature sensor Engine oil temperature
Engine coolant temperature sensor Engine coolant temperature
Combination meter Vehicle speed signal*
JMBIA0060GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1584 of 4801
![NISSAN TEANA 2014 Service Manual
EC-584
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
scription
INFOID:0000000009462524
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
• The engine protection control at low engine oil pressu NISSAN TEANA 2014 Service Manual
EC-584
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
scription
INFOID:0000000009462524
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
• The engine protection control at low engine oil pressu](/manual-img/5/57390/w960_57390-1583.png)
EC-584
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
scription
INFOID:0000000009462524

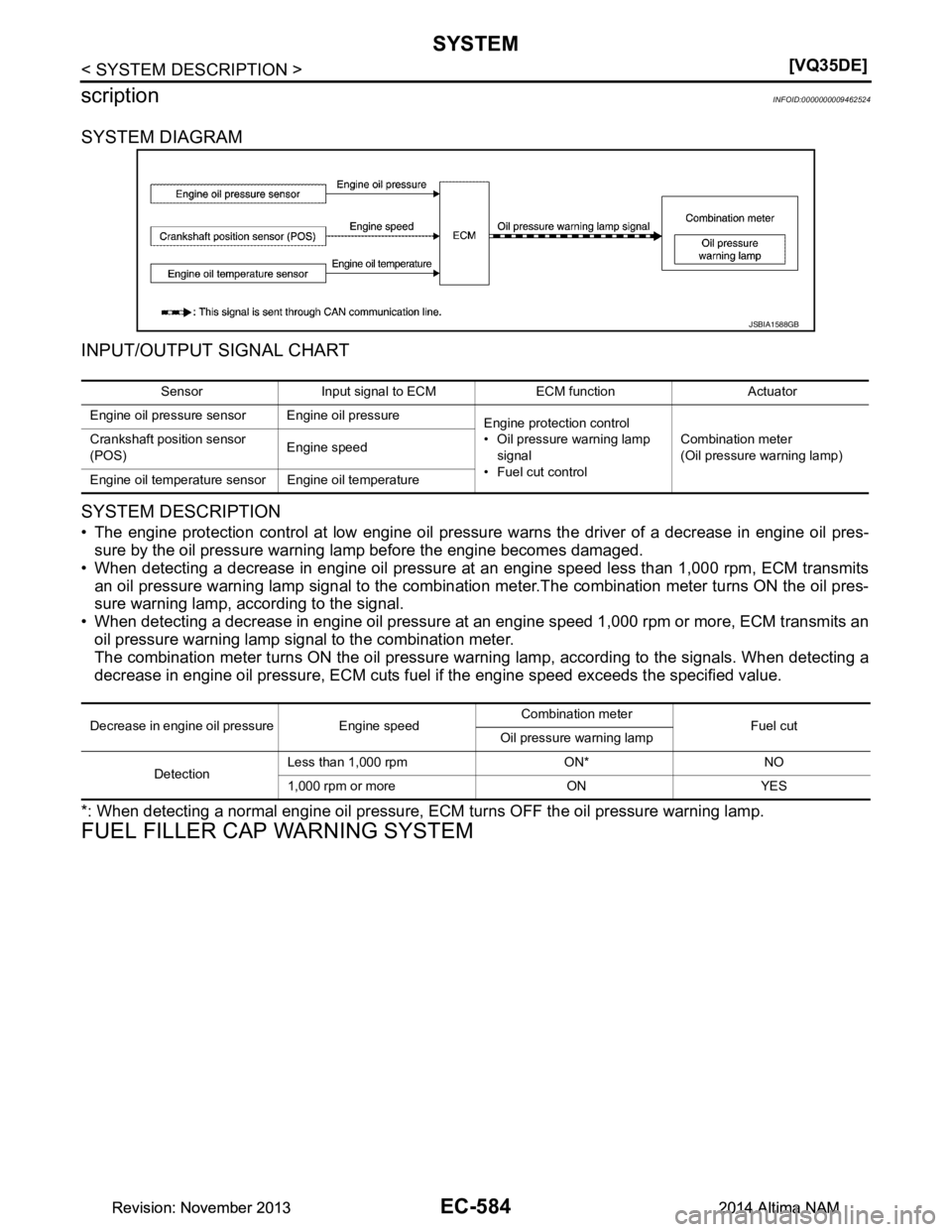

SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
• The engine protection control at low engine oil pressure warns the driver of a decrease in engine oil pres-
sure by the oil pressure warning lamp before the engine becomes damaged.
• When detecting a decrease in engine oil pressure at an engine speed less than 1,000 rpm, ECM transmits
an oil pressure warning lamp signal to the combination meter.The combination meter turns ON the oil pres-
sure warning lamp, according to the signal.
• When detecting a decrease in engine oil pressure at an engine speed 1,000 rpm or more, ECM transmits an
oil pressure warning lamp signal to the combination meter.
The combination meter turns ON the oil pressure warning lamp, according to the signals. When detecting a
decrease in engine oil pressure, ECM cuts fuel if the engine speed exceeds the specified value.
*: When detecting a normal engine oil pressure, ECM turns OFF the oil pressure warning lamp.
FUEL FILLER CAP WARNING SYSTEM
JSBIA1588GB
Sensor Input signal to ECM ECM function Actuator
Engine oil pressure sensor Engine oil pressure Engine protection control
• Oil pressure warning lamp
signal
• Fuel cut control Combination meter
(Oil pressure warning lamp)
Crankshaft position sensor
(POS) Engine speed
Engine oil temperature sensor Engine oil temperature
Decrease in engine oil pressure Engine speed Combination meter
Fuel cut
Oil pressure warning lamp
Detection Less than 1,000 rpm ON* NO
1,000 rpm or more ON YES
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
