2014 NISSAN TEANA Service Manual

bonnet door lock heating transmission snow chains carplay

Load previous 8 pages

Page 3705 of 4801

NISSAN TEANA 2014 Service Manual
RF-40
< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSES
LAIA0071E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3706 of 4801

NISSAN TEANA 2014 Service Manual
GLASS LIDRF-41
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P

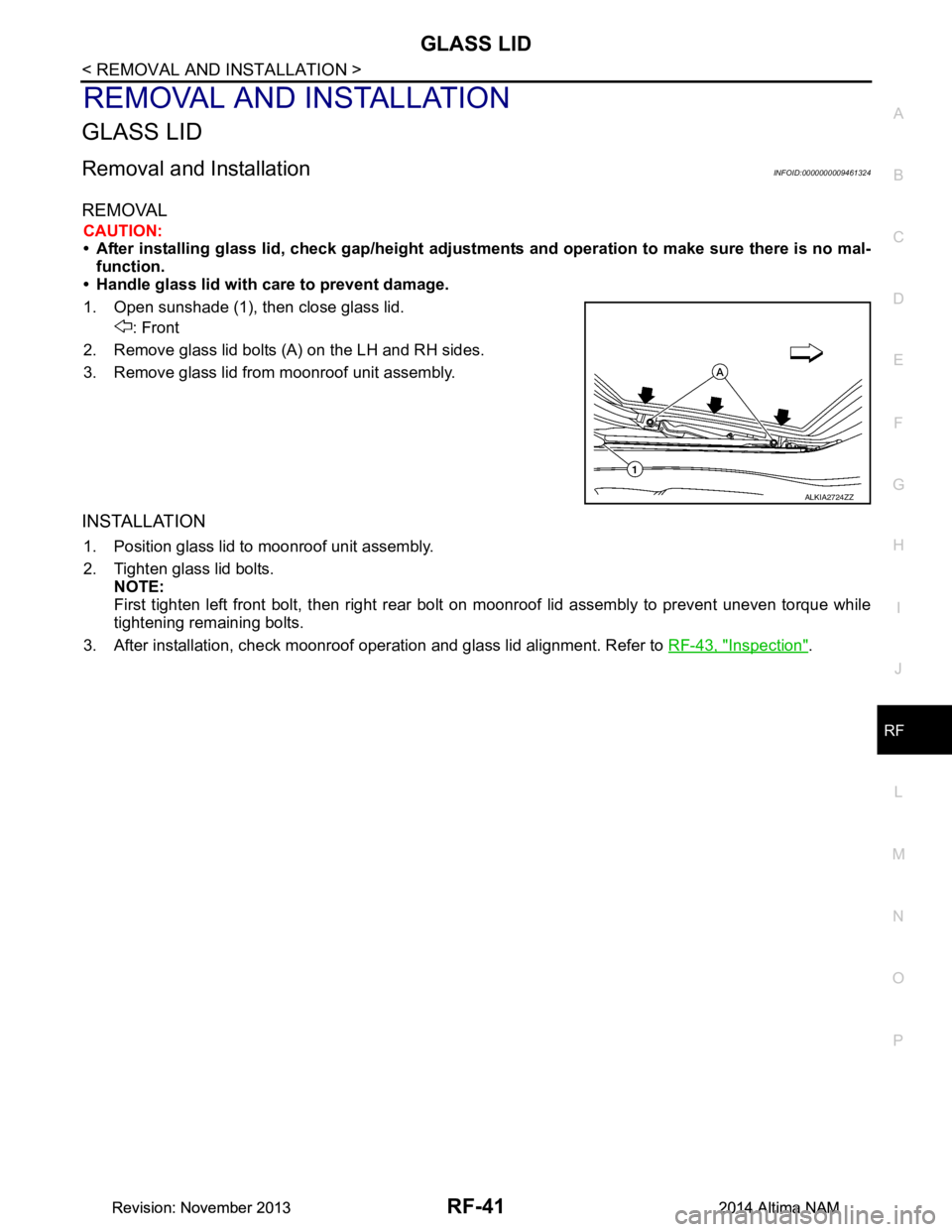

REMOVAL AND INSTALLATION
GLASS LID
Removal and InstallationINFOID:0000000009461324
REMOVAL
CAUTION:
• After installin

Page 3707 of 4801

NISSAN TEANA 2014 Service Manual
RF-42
< REMOVAL AND INSTALLATION >

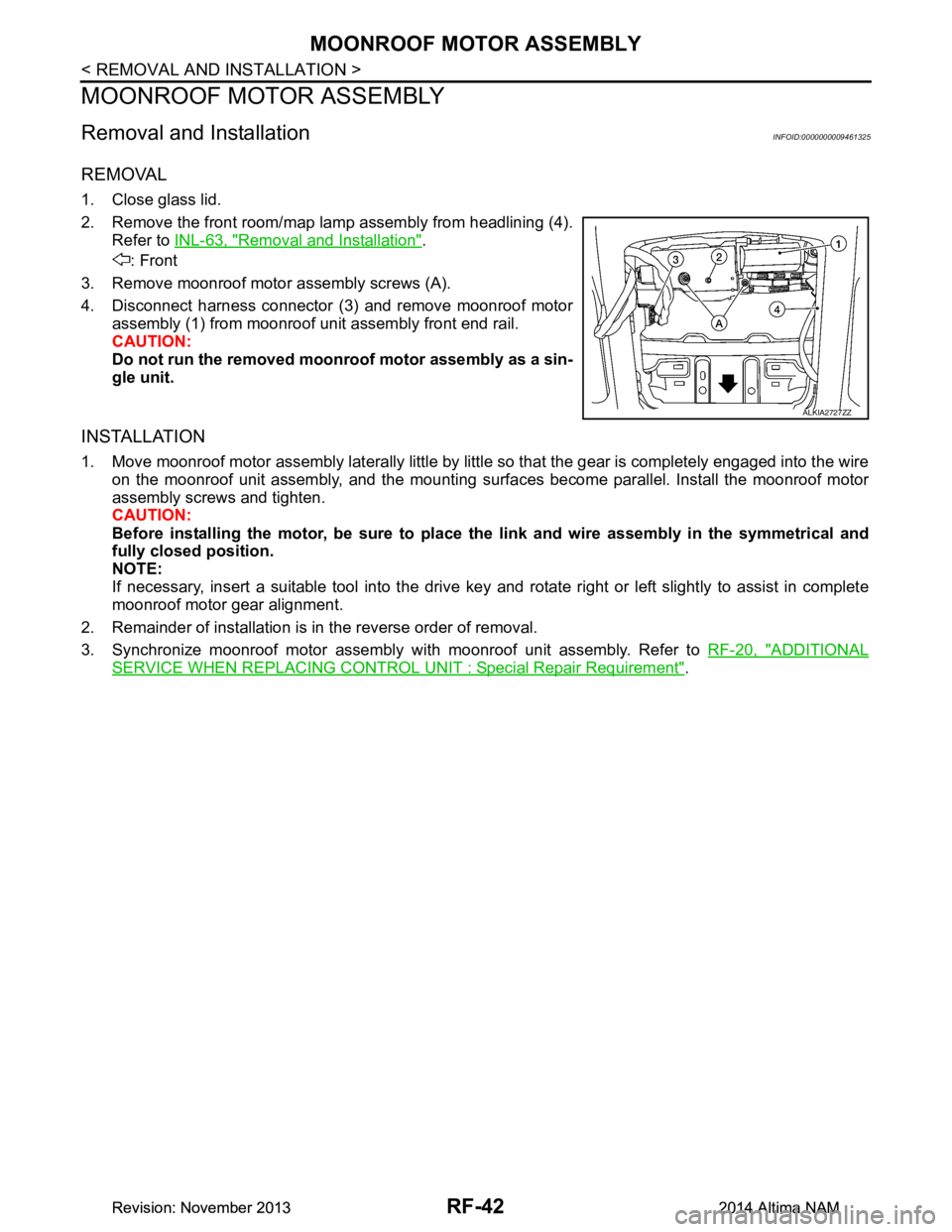

MOONROOF MOTOR ASSEMBLY
MOONROOF MOTOR ASSEMBLY
Removal and InstallationINFOID:0000000009461325
REMOVAL
1. Close glass lid.
2. Remove the front room/map lamp assem

Page 3708 of 4801

NISSAN TEANA 2014 Service Manual
MOONROOF UNIT ASSEMBLYRF-43
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P

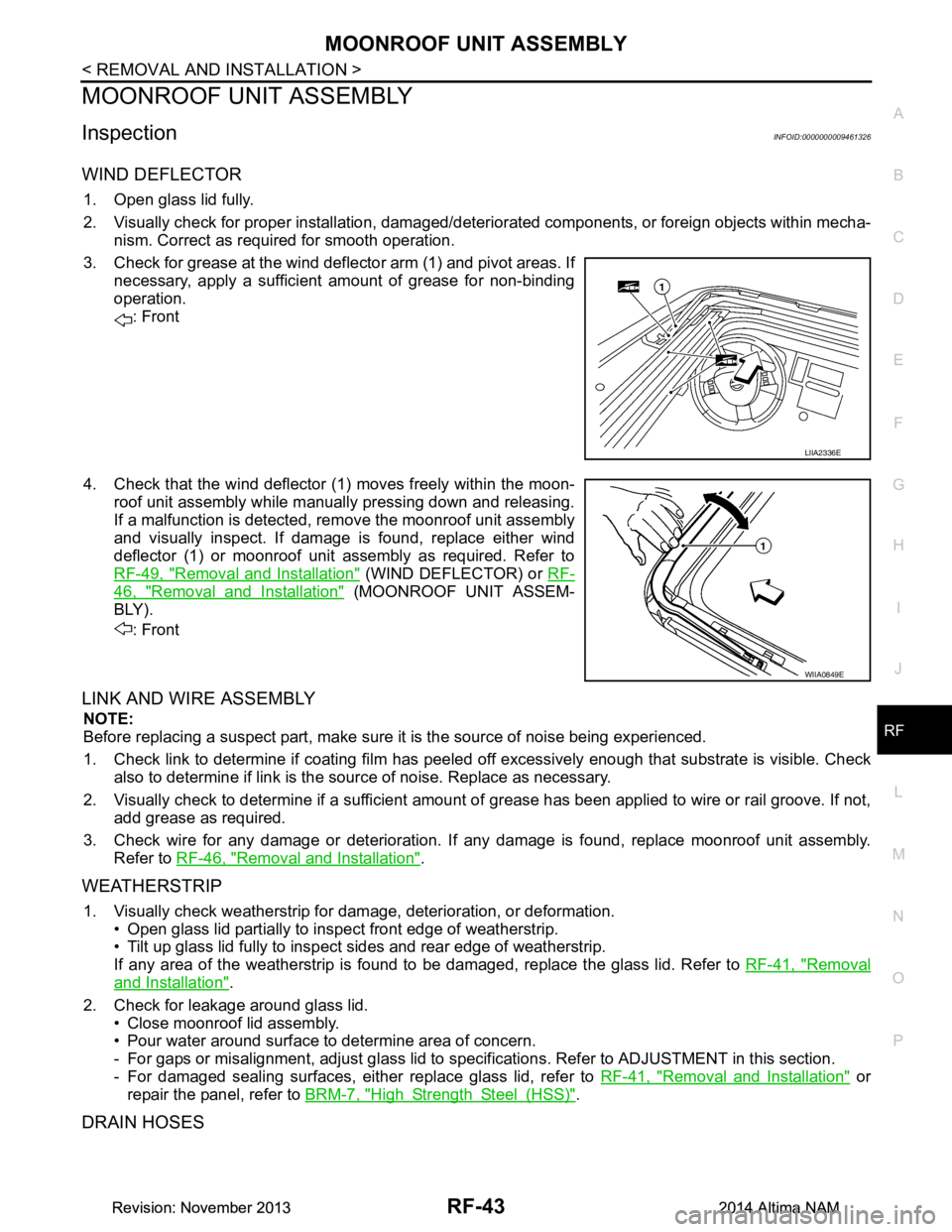

MOONROOF UNIT ASSEMBLY
InspectionINFOID:0000000009461326
WIND DEFLECTOR
1. Open glass lid fully.
2. Visua

MOONROOF UNIT ASSEMBLYRF-43
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P
MOONROOF UNIT ASSEMBLY
InspectionINFOID:0000000009461326
WIND DEFLECTOR
1. Open glass lid fully.
2. Visually check for proper installation, damaged/deter iorated components, or foreign objects within mecha-
nism. Correct as required for smooth operation.
3. Check for grease at the wind deflector arm (1) and pivot areas. If necessary, apply a sufficient amount of grease for non-binding
operation. : Front
4. Check that the wind deflector (1) moves freely within the moon- roof unit assembly while manually pressing down and releasing.
If a malfunction is detected, re move the moonroof unit assembly
and visually inspect. If damage is found, replace either wind
deflector (1) or moonroof unit assembly as required. Refer to
RF-49, "Removal and Installation"
(WIND DEFLECTOR) or RF-
46, "Removal and Installation" (MOONROOF UNIT ASSEM-
BLY).
: Front
LINK AND WIRE ASSEMBLY
NOTE:
Before replacing a suspect part, make sure it is the source of noise being experienced.
1. Check link to determine if coating film has peeled of f excessively enough that substrate is visible. Check
also to determine if link is the source of noise. Replace as necessary.
2. Visually check to determine if a sufficient amount of grease has been applied to wire or rail groove. If not,
add grease as required.
3. Check wire for any damage or deterioration. If any damage is found, replace moonroof unit assembly.
Refer to RF-46, "Removal and Installation"
.
WEATHERSTRIP
1. Visually check weatherstrip for dam age, deterioration, or deformation.
• Open glass lid partially to inspect front edge of weatherstrip.
• Tilt up glass lid fully to inspect sides and rear edge of weatherstrip.
If any area of the weatherstrip is found to be damaged, replace the glass lid. Refer to RF-41, "Removal
and Installation".
2. Check for leakage around glass lid. • Close moonroof lid assembly.
• Pour water around surface to determine area of concern.
- For gaps or misalignment, adjust gl ass lid to specifications. Refer to ADJUSTMENT in this section.
- For damaged sealing surfaces, either replace glass lid, refer to RF-41, "Removal and Installation"
or
repair the panel, refer to BRM-7, "High Strength Steel (HSS)"
.
DRAIN HOSES
LIIA2336E
WIIA0849E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3709 of 4801

NISSAN TEANA 2014 Service Manual

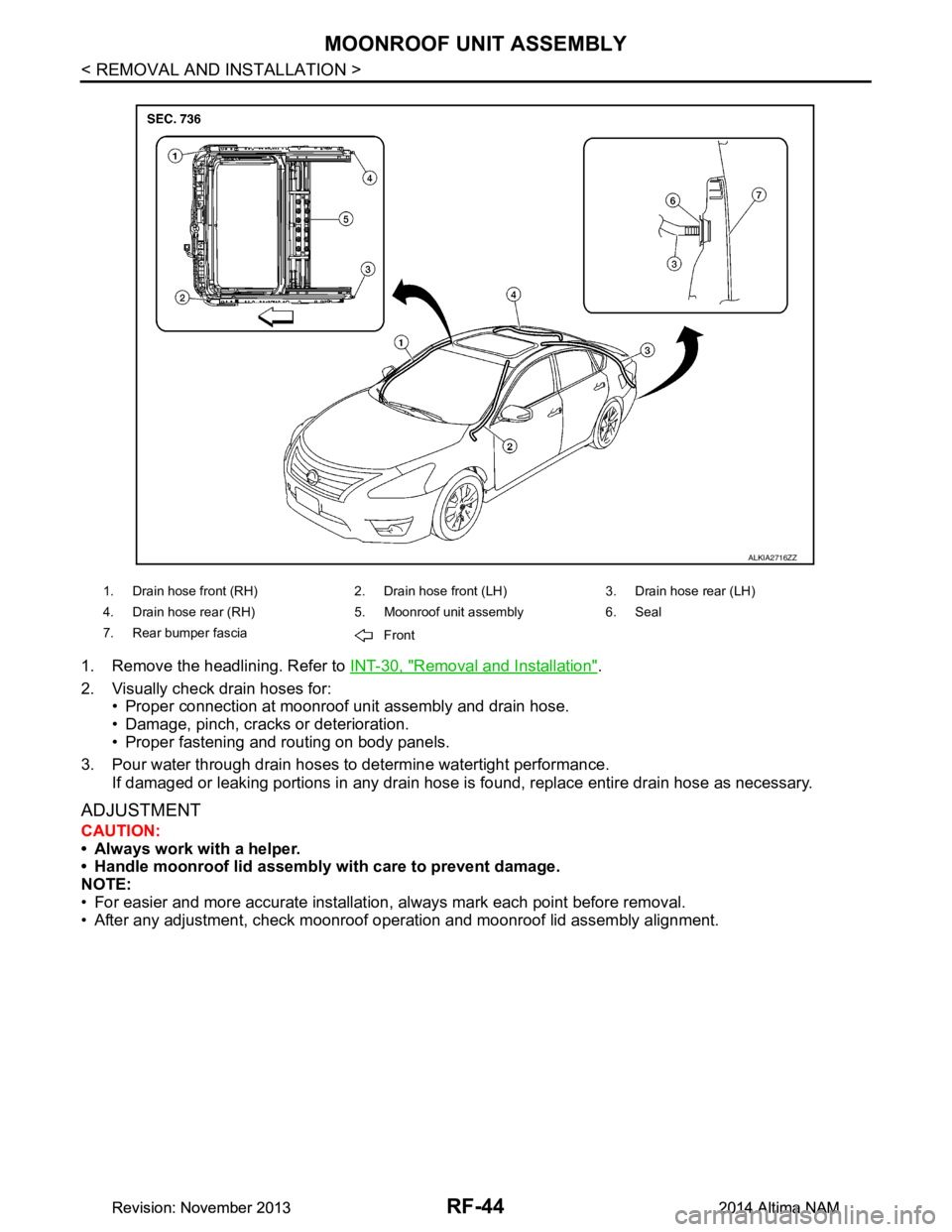

RF-44
< REMOVAL AND INSTALLATION >
MOONROOF UNIT ASSEMBLY
1. Remove the headlining. Refer to INT-30, "Removal and Installation".
2. Visually check drain hoses for: • Proper connection at moonroof u

Page 3710 of 4801

NISSAN TEANA 2014 Service Manual
MOONROOF UNIT ASSEMBLYRF-45
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P

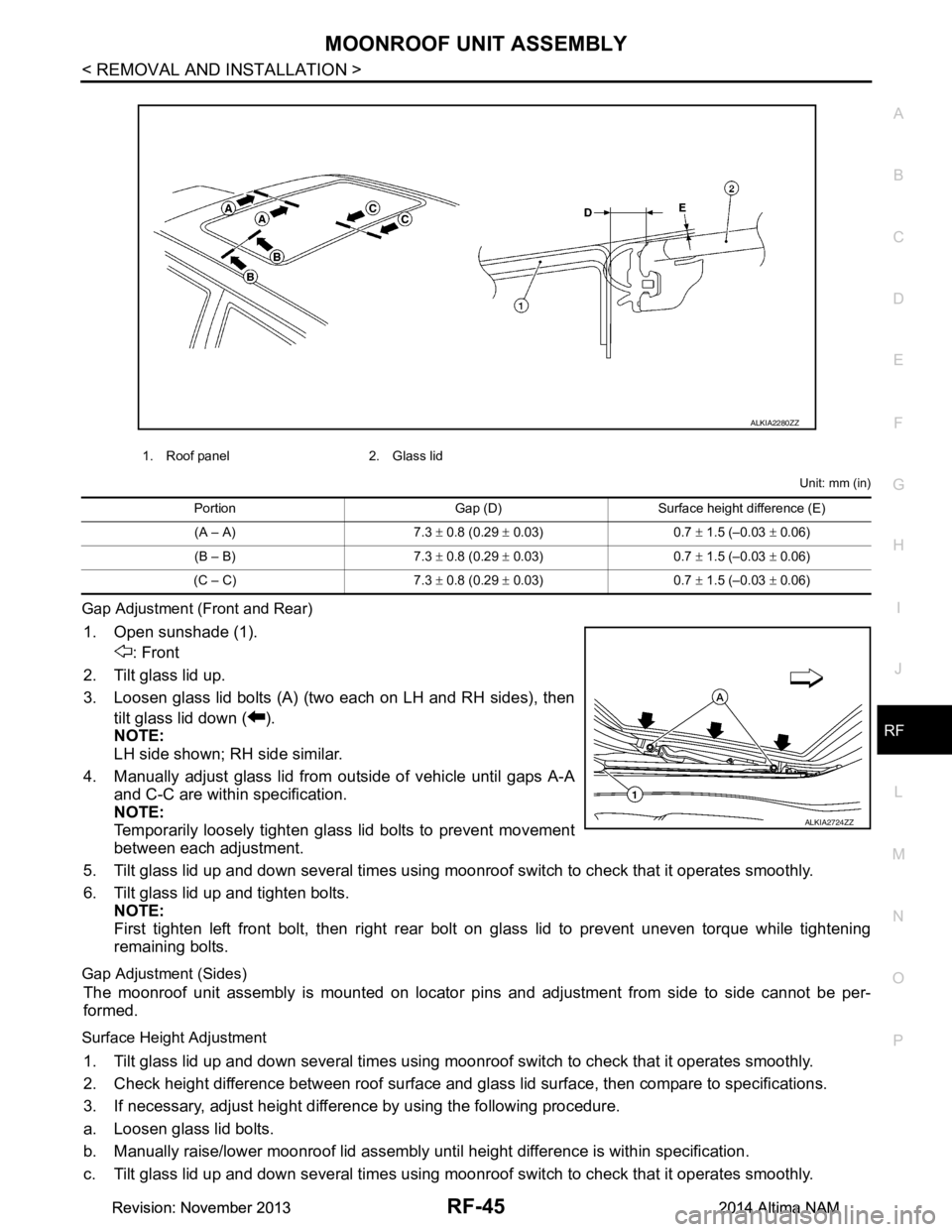

Unit: mm (in)
Gap Adjustment (Front and Rear)
1. Open sunshade (1). : Front
2. Tilt glass lid up.
3. Loos

Page 3711 of 4801

NISSAN TEANA 2014 Service Manual

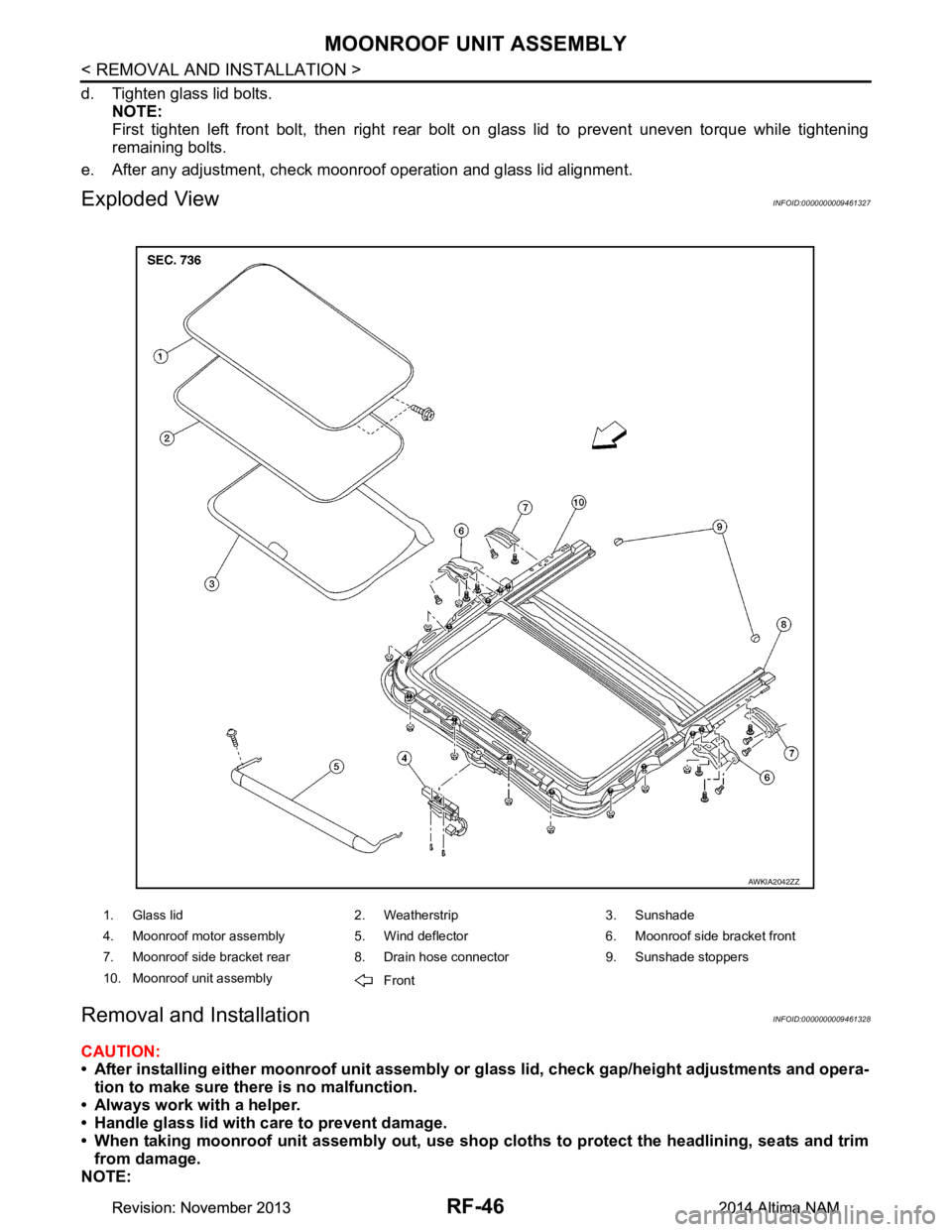

RF-46
< REMOVAL AND INSTALLATION >
MOONROOF UNIT ASSEMBLY
d. Tighten glass lid bolts.NOTE:
First tighten left front bolt, then right rear bolt on glass lid to prevent uneven torque while tightening

Page 3712 of 4801

NISSAN TEANA 2014 Service Manual
MOONROOF UNIT ASSEMBLYRF-47
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P

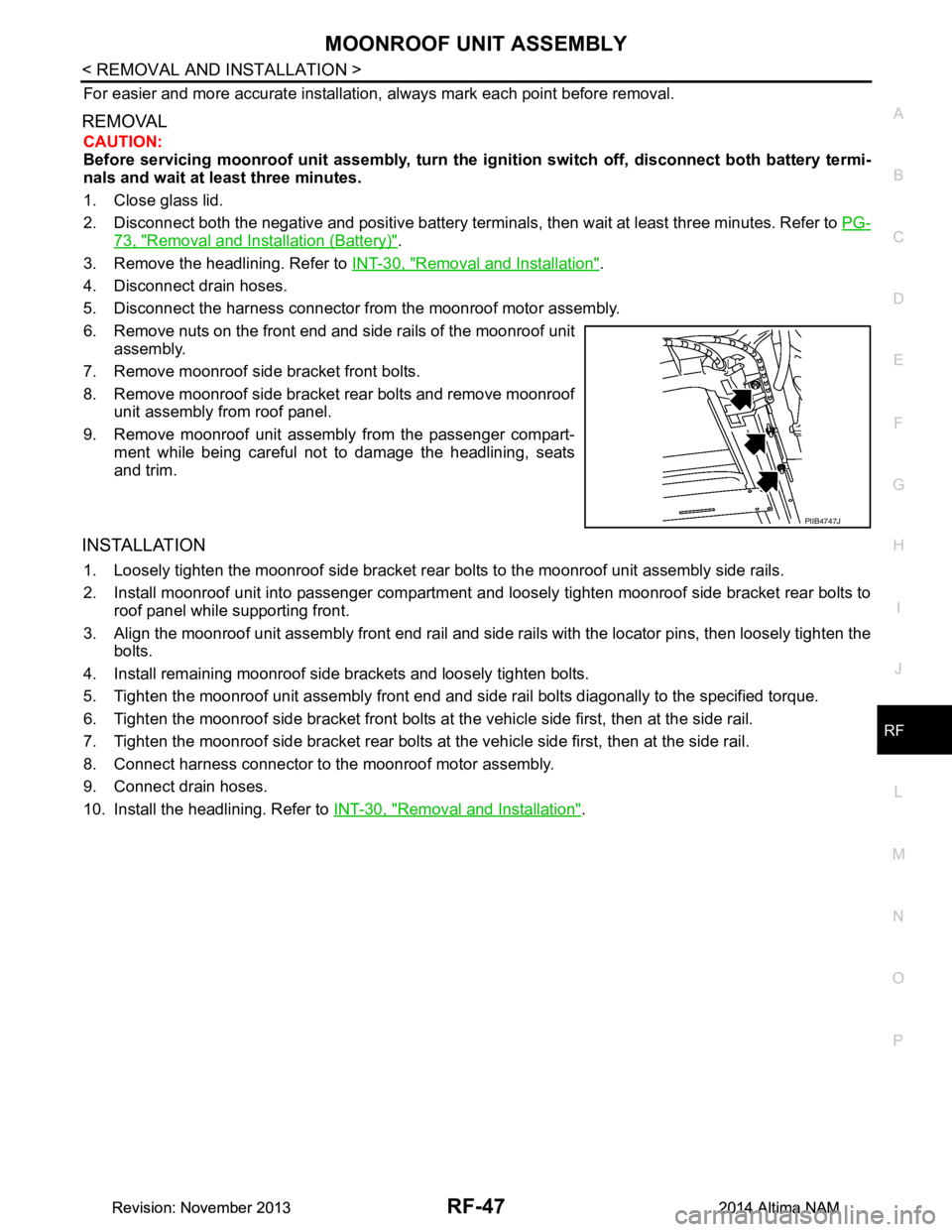

For easier and more accurate installation, always mark each point before removal.
REMOVAL
CAUTION:
Before

MOONROOF UNIT ASSEMBLYRF-47
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P
For easier and more accurate installation, always mark each point before removal.
REMOVAL
CAUTION:
Before servicing moonroof unit assembly, turn the ig nition switch off, disconnect both battery termi-
nals and wait at least three minutes.
1. Close glass lid.
2. Disconnect both the negative and positive battery terminal s, then wait at least three minutes. Refer to PG-
73, "Removal and Installation (Battery)".
3. Remove the headlining. Refer to INT-30, "Removal and Installation"
.
4. Disconnect drain hoses.
5. Disconnect the harness connector from the moonroof motor assembly.
6. Remove nuts on the front end and side rails of the moonroof unit assembly.
7. Remove moonroof side bracket front bolts.
8. Remove moonroof side bracket rear bolts and remove moonroof unit assembly from roof panel.
9. Remove moonroof unit assembly from the passenger compart- ment while being careful not to damage the headlining, seats
and trim.
INSTALLATION
1. Loosely tighten the moonroof side bracket rear bolts to the moonroof unit assembly side rails.
2. Install moonroof unit into passenger compartment a nd loosely tighten moonroof side bracket rear bolts to
roof panel while supporting front.
3. Align the moonroof unit assembly front end rail and side rails with the locator pins, then loosely tighten the
bolts.
4. Install remaining moonroof side brackets and loosely tighten bolts.
5. Tighten the moonroof unit assembly front end and si de rail bolts diagonally to the specified torque.
6. Tighten the moonroof side bracket front bolts at the vehicle side first, then at the side rail.
7. Tighten the moonroof side bracket rear bolts at the vehicle side first, then at the side rail.
8. Connect harness connector to the moonroof motor assembly.
9. Connect drain hoses.
10. Install the headlining. Refer to INT-30, "Removal and Installation"
.
PIIB4747J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
