Page 3497 of 4801

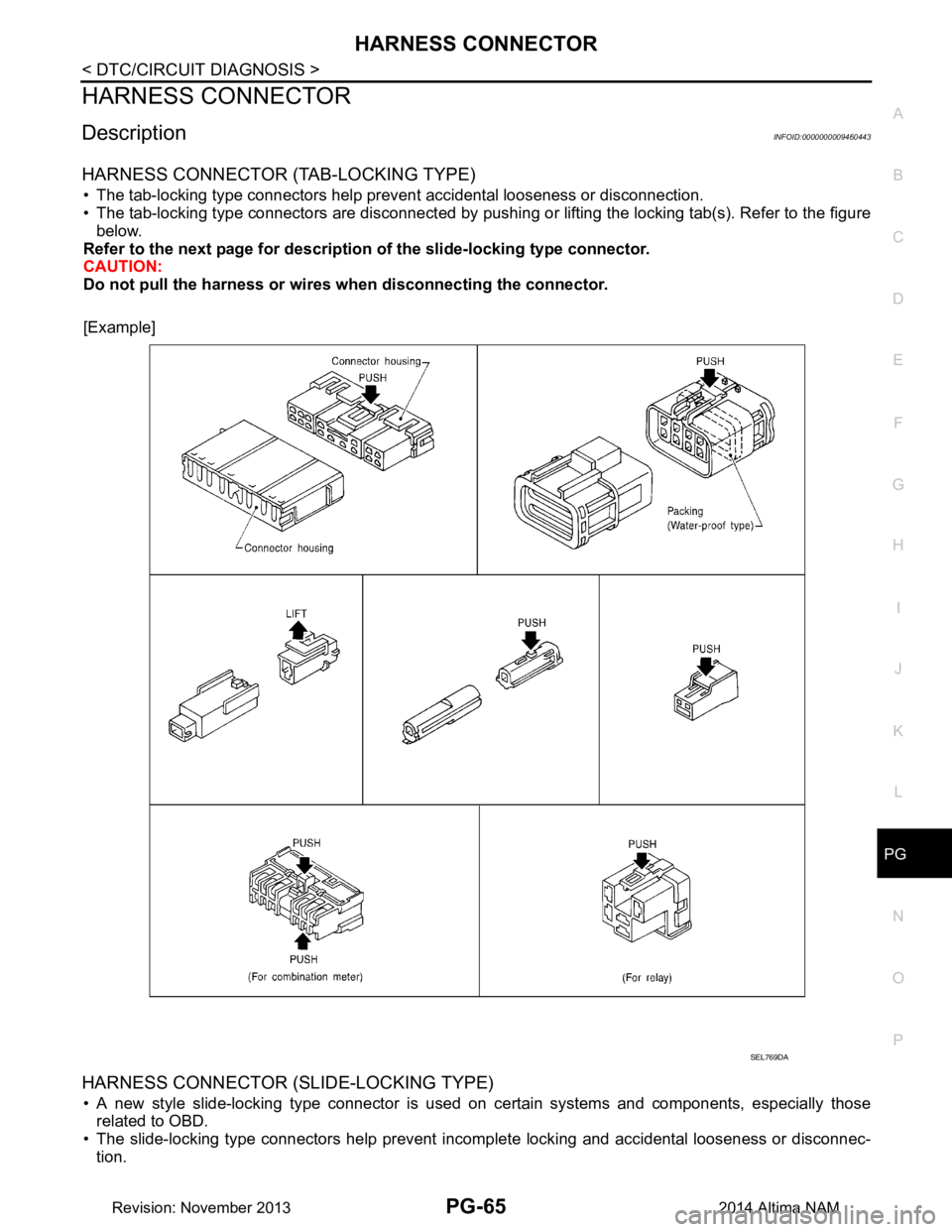

NISSAN TEANA 2014 Service Manual PG HARNESS CONNECTORPG-65 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I J K L B A O P N HARNESS CONNECTOR DescriptionINFOID:0000000009460443 HARNESS CONNECTOR (TAB-LOCKING TYPE) • The tab-locking type

Page 3498 of 4801

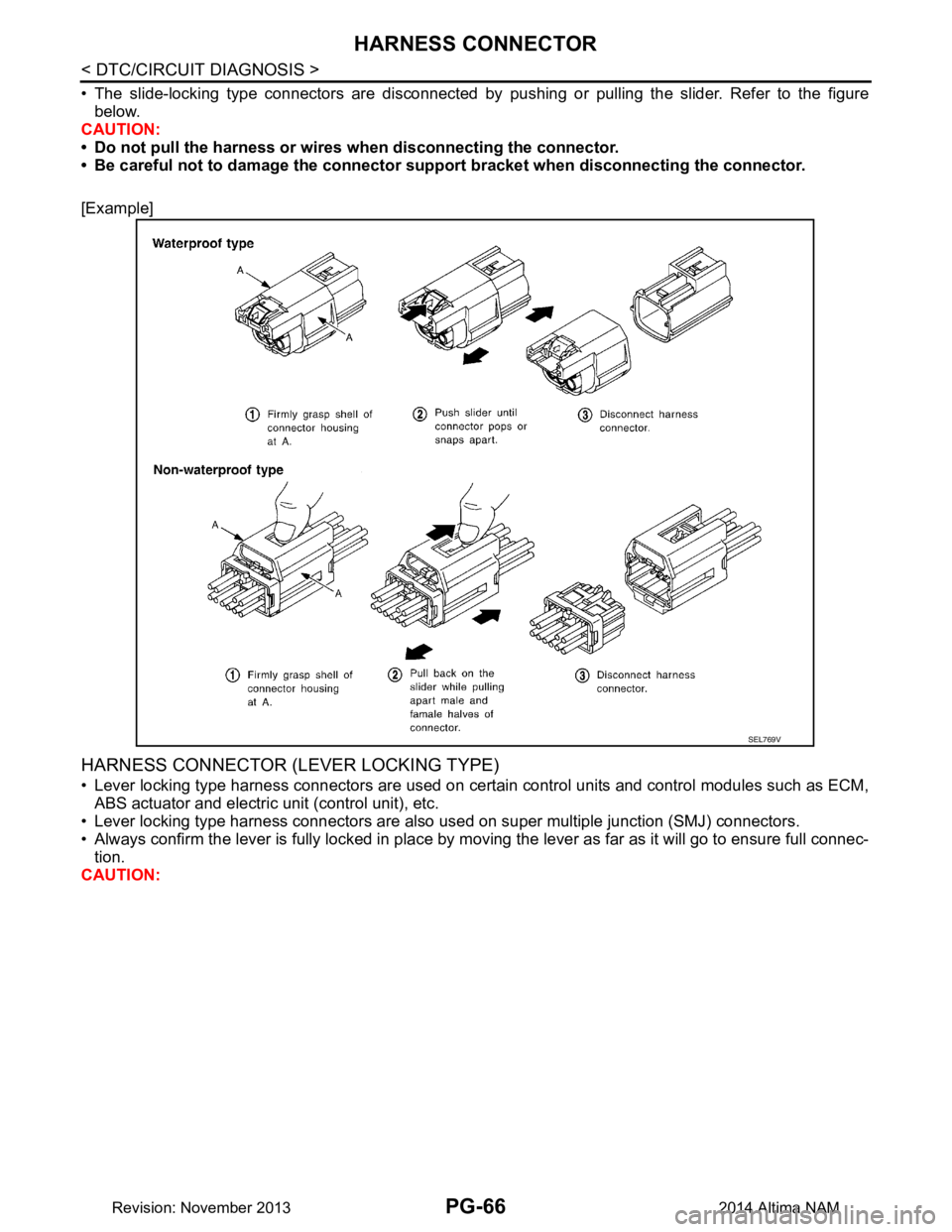

NISSAN TEANA 2014 Service Manual PG-66 < DTC/CIRCUIT DIAGNOSIS > HARNESS CONNECTOR • The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure below. CAUTION: • Do not pull the har

Page 3499 of 4801

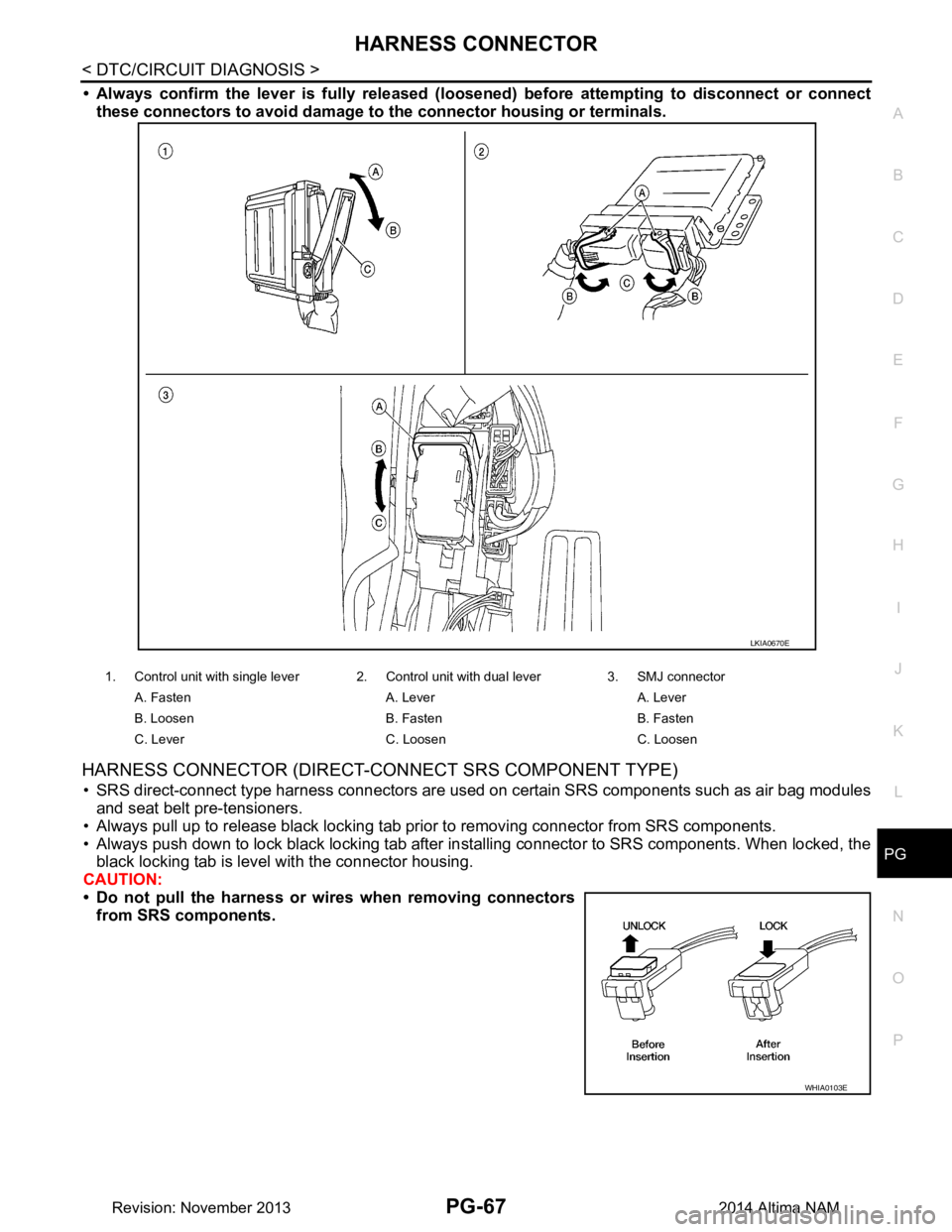

NISSAN TEANA 2014 Service Manual PG HARNESS CONNECTORPG-67 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I J K L B A O P N • Always confirm the lever is full y released (loosened) before attempting to disconnect or connect these connect

Page 3500 of 4801

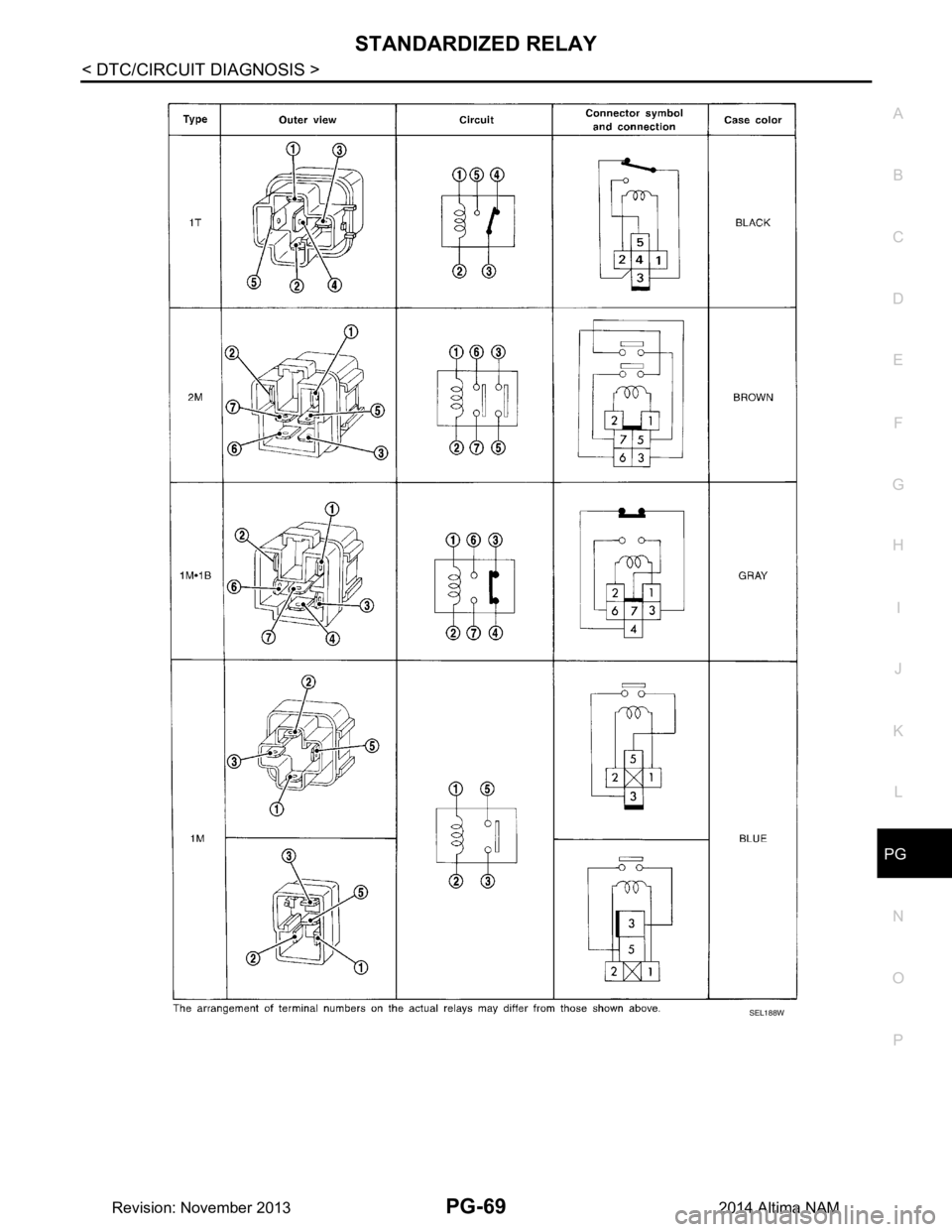

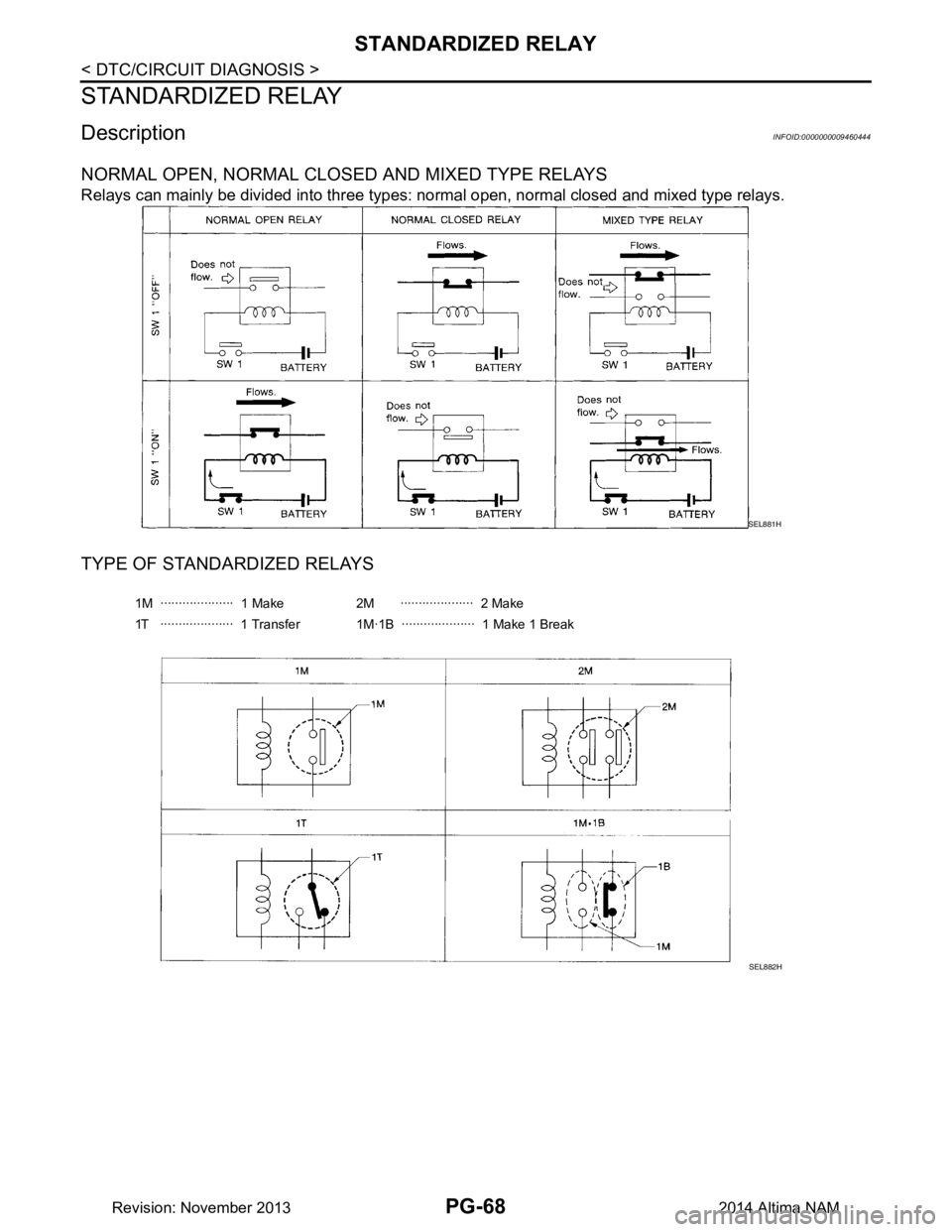

NISSAN TEANA 2014 Service Manual PG-68 < DTC/CIRCUIT DIAGNOSIS > STANDARDIZED RELAY STANDARDIZED RELAY DescriptionINFOID:0000000009460444 NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS Relays can mainly be divided into three types

Page 3501 of 4801

NISSAN TEANA 2014 Service Manual PG STANDARDIZED RELAYPG-69 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I J K L B A O P N SEL188W Revision: November 20132014 Altima NAM

Page 3502 of 4801

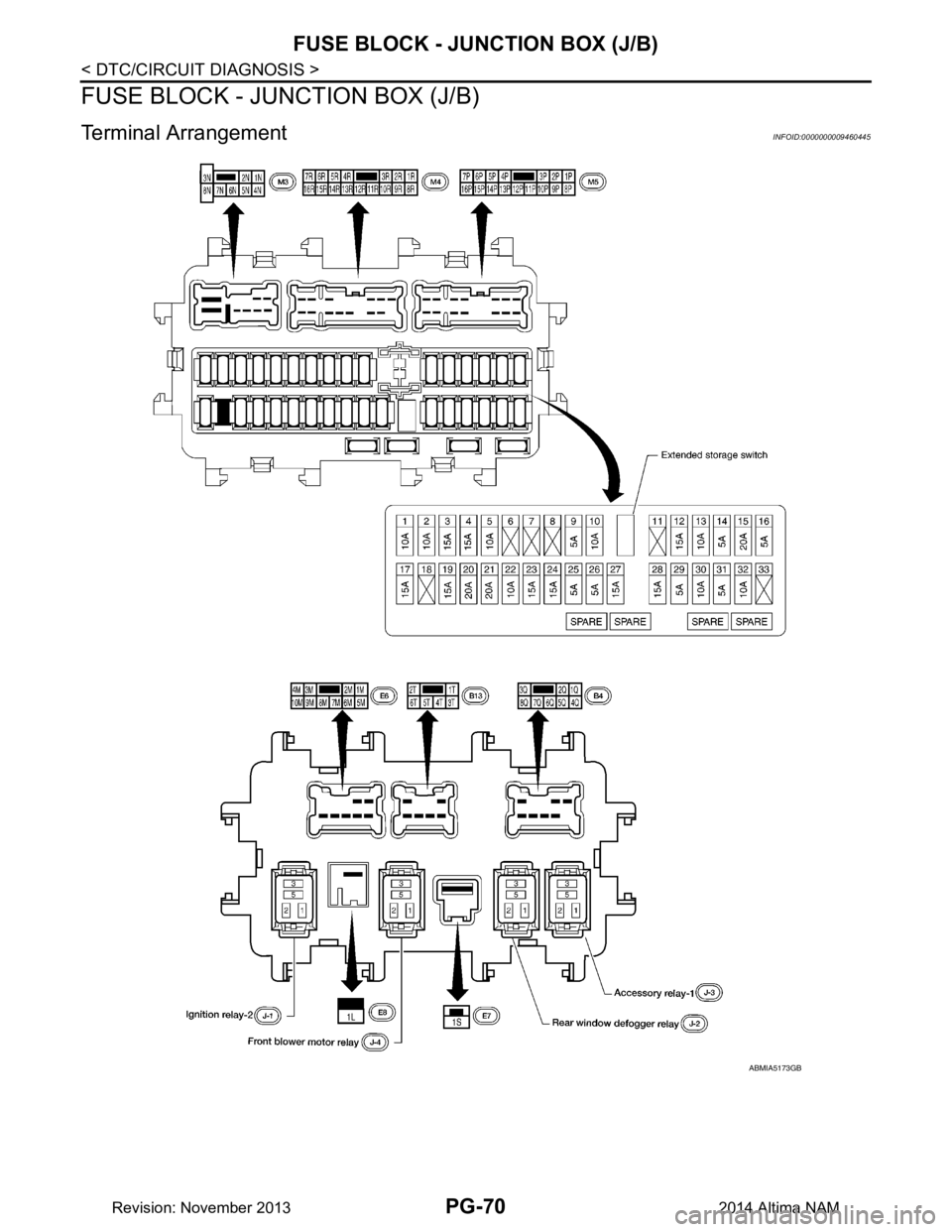

NISSAN TEANA 2014 Service Manual PG-70 < DTC/CIRCUIT DIAGNOSIS > FUSE BLOCK - JUNCTION BOX (J/B) FUSE BLOCK - JUNCTION BOX (J/B) Terminal ArrangementINFOID:0000000009460445 ABMIA5173GB Revision: November 20132014 Altima NAM

Page 3503 of 4801

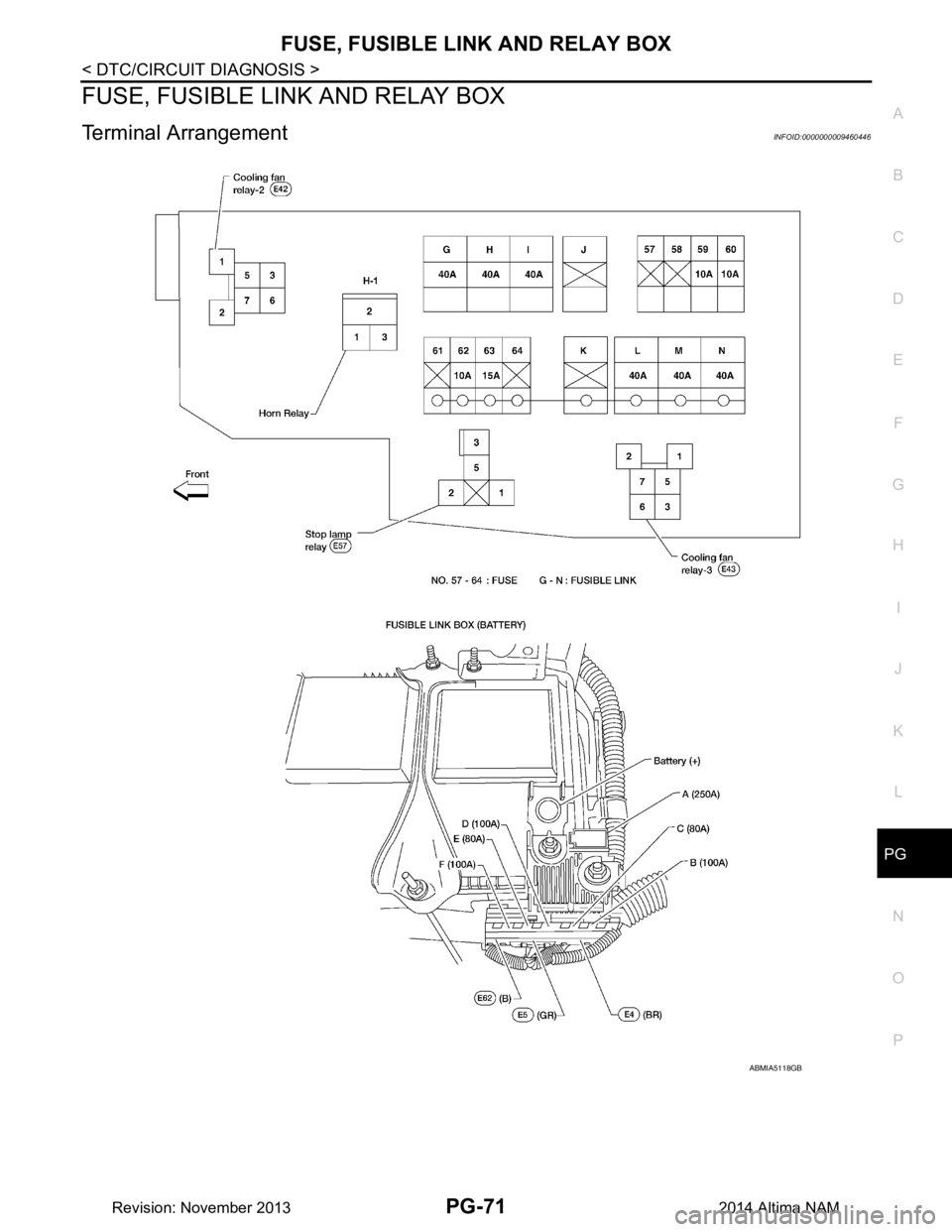

NISSAN TEANA 2014 Service Manual PG FUSE, FUSIBLE LINK AND RELAY BOXPG-71 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I J K L B A O P N FUSE, FUSIBLE LINK AND RELAY BOX Terminal ArrangementINFOID:0000000009460446 ABMIA5118GB Revision: N

Page 3504 of 4801

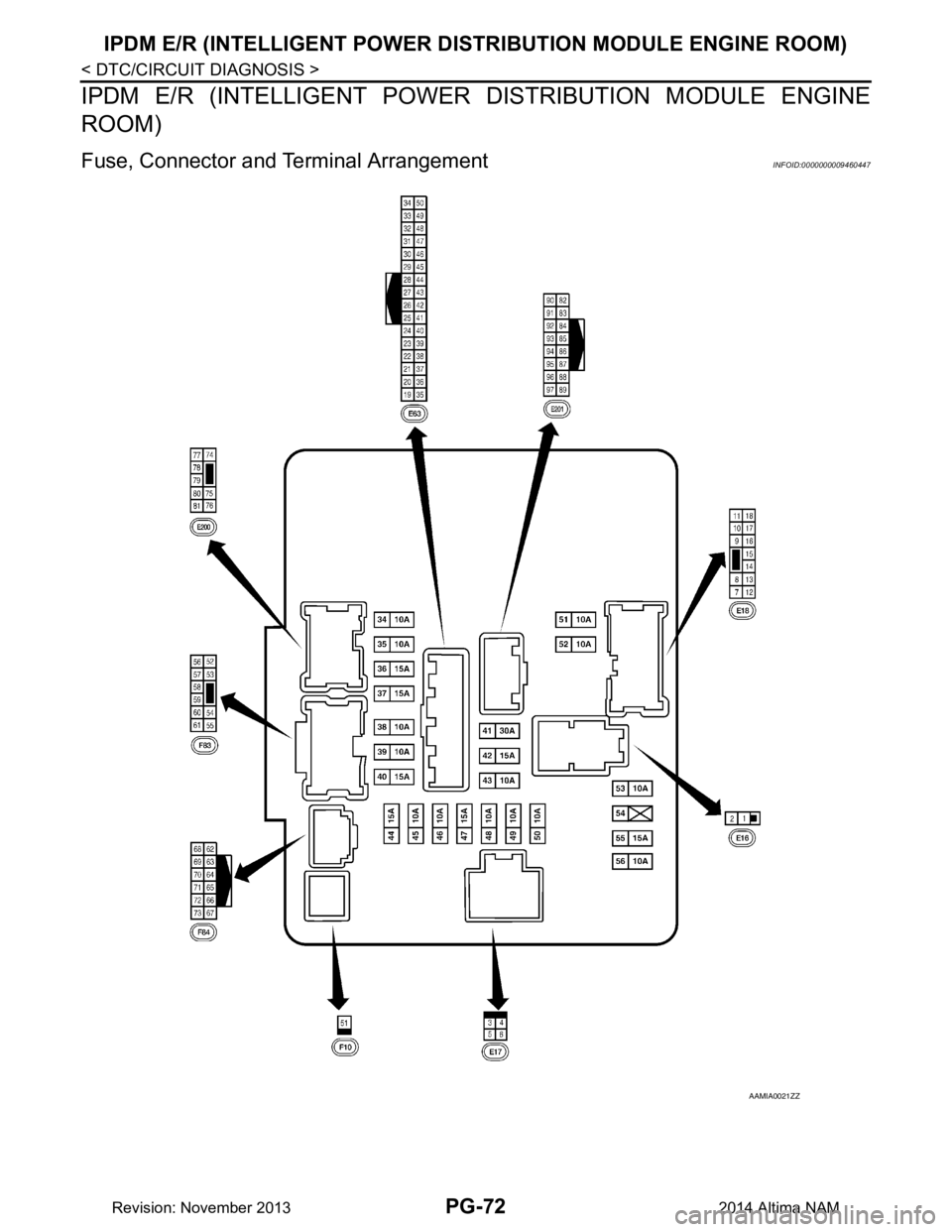

NISSAN TEANA 2014 Service Manual PG-72 < DTC/CIRCUIT DIAGNOSIS > IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) Fuse, Connector and Te rminal ArrangementINF
