2014 NISSAN TEANA Service Manual

check transmission fluid spark plugs replace auxiliary battery location maintenance schedule gas mileage check engine light

Load previous 8 pages

Page 2137 of 4801

NISSAN TEANA 2014 Service Manual
CAMSHAFT VALVE CLEARANCEEM-139
< PERIODIC MAINTENANCE > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
5. Check only the valves as shown.
• Using a feeler gauge, measure the clear ance between the valve

Page 2138 of 4801

NISSAN TEANA 2014 Service Manual
EM-140
< PERIODIC MAINTENANCE >[VQ35DE]
CAMSHAFT VALVE CLEARANCE

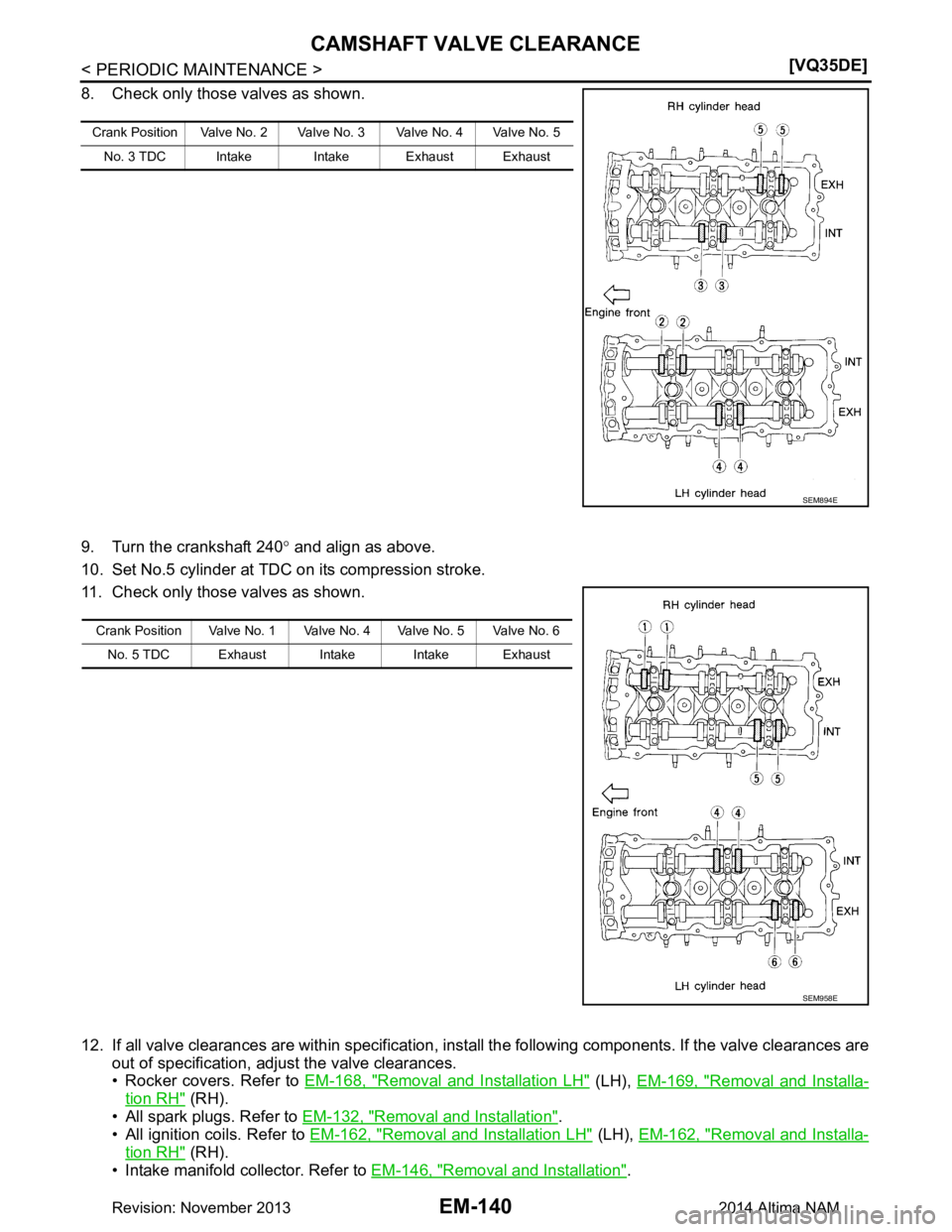

8. Check only those valves as shown.
9. Turn the crankshaft 240 ° and align as above.
10. Set No.5 cylinder at TDC on its compressio

Page 2139 of 4801

NISSAN TEANA 2014 Service Manual
CAMSHAFT VALVE CLEARANCEEM-141
< PERIODIC MAINTENANCE > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

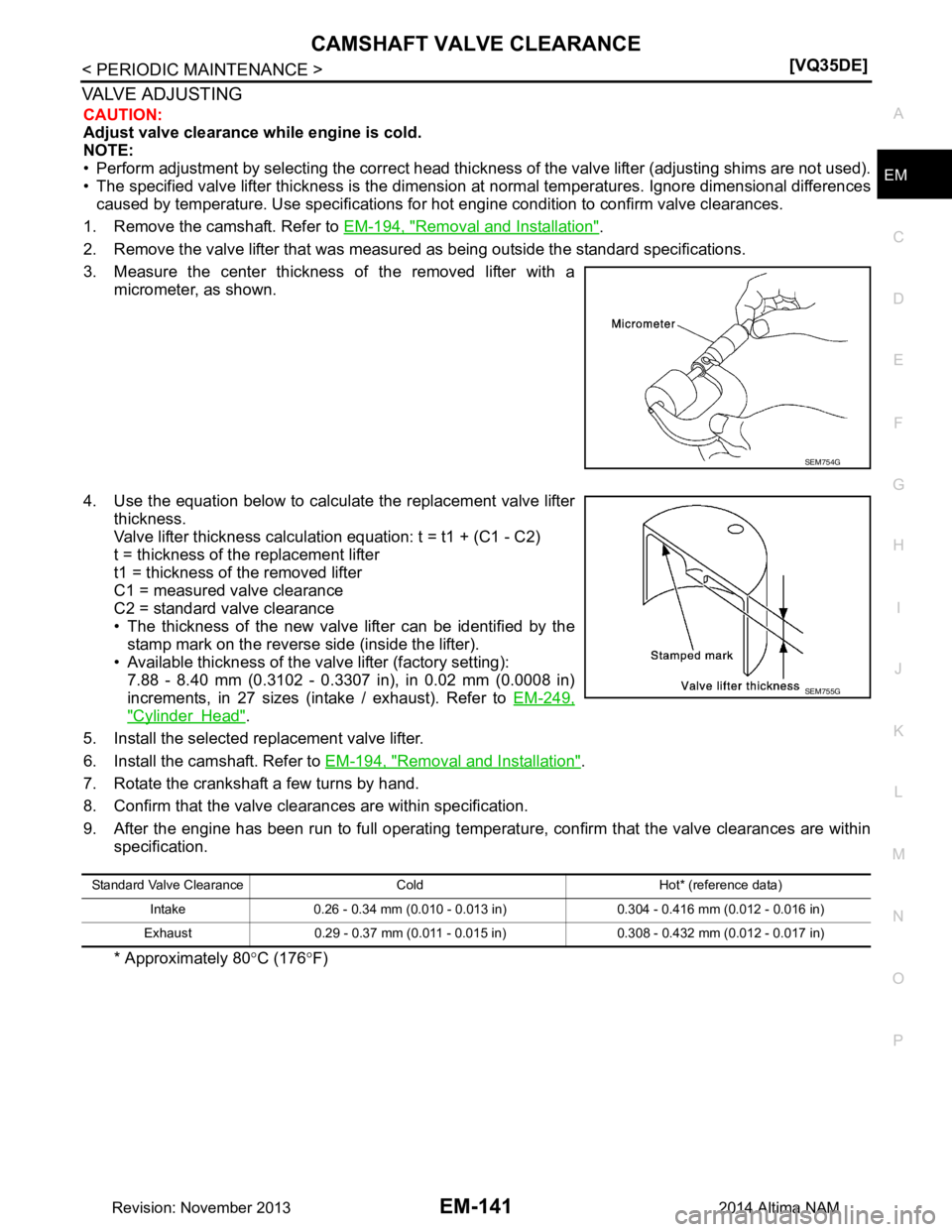

VALVE ADJUSTING
CAUTION:
Adjust valve clearance while engine is cold.
NOTE:
• Perform adjustment

CAMSHAFT VALVE CLEARANCEEM-141
< PERIODIC MAINTENANCE > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
VALVE ADJUSTING
CAUTION:
Adjust valve clearance while engine is cold.
NOTE:
• Perform adjustment by selecting the correct head thicknes s of the valve lifter (adjusting shims are not used).
• The specified valve lifter thickness is the dimension at normal temperatures. Ignore dimensional differences
caused by temperature. Use spec ifications for hot engine condition to confirm valve clearances.
1. Remove the camshaft. Refer to EM-194, "Removal and Installation"
.
2. Remove the valve lifter that was measur ed as being outside the standard specifications.
3. Measure the center thickness of the removed lifter with a micrometer, as shown.
4. Use the equation below to calculate the replacement valve lifter thickness.
Valve lifter thickness calculation equation: t = t1 + (C1 - C2)
t = thickness of the replacement lifter
t1 = thickness of the removed lifter
C1 = measured valve clearance
C2 = standard valve clearance
• The thickness of the new valve lifter can be identified by the
stamp mark on the reverse side (inside the lifter).
• Available thickness of the valve lifter (factory setting):
7.88 - 8.40 mm (0.3102 - 0.3307 in), in 0.02 mm (0.0008 in)
increments, in 27 sizes (intake / exhaust). Refer to EM-249,
"Cylinder Head".
5. Install the selected replacement valve lifter.
6. Install the camshaft. Refer to EM-194, "Removal and Installation"
.
7. Rotate the crankshaft a few turns by hand.
8. Confirm that the valve clear ances are within specification.
9. After the engine has been run to full operating temperat ure, confirm that the valve clearances are within
specification.
* Approximately 80 °C (176 °F)
SEM754G
SEM755G
Standard Valve Clearance Cold Hot* (reference data)
Intake 0.26 - 0.34 mm (0.010 - 0.013 in) 0.304 - 0.416 mm (0.012 - 0.016 in)
Exhaust 0.29 - 0.37 mm (0.011 - 0.015 in) 0.308 - 0.432 mm (0.012 - 0.017 in)
Revision: November 20132014 Altima NAM

Page 2140 of 4801

NISSAN TEANA 2014 Service Manual
EM-142
< PERIODIC MAINTENANCE >[VQ35DE]

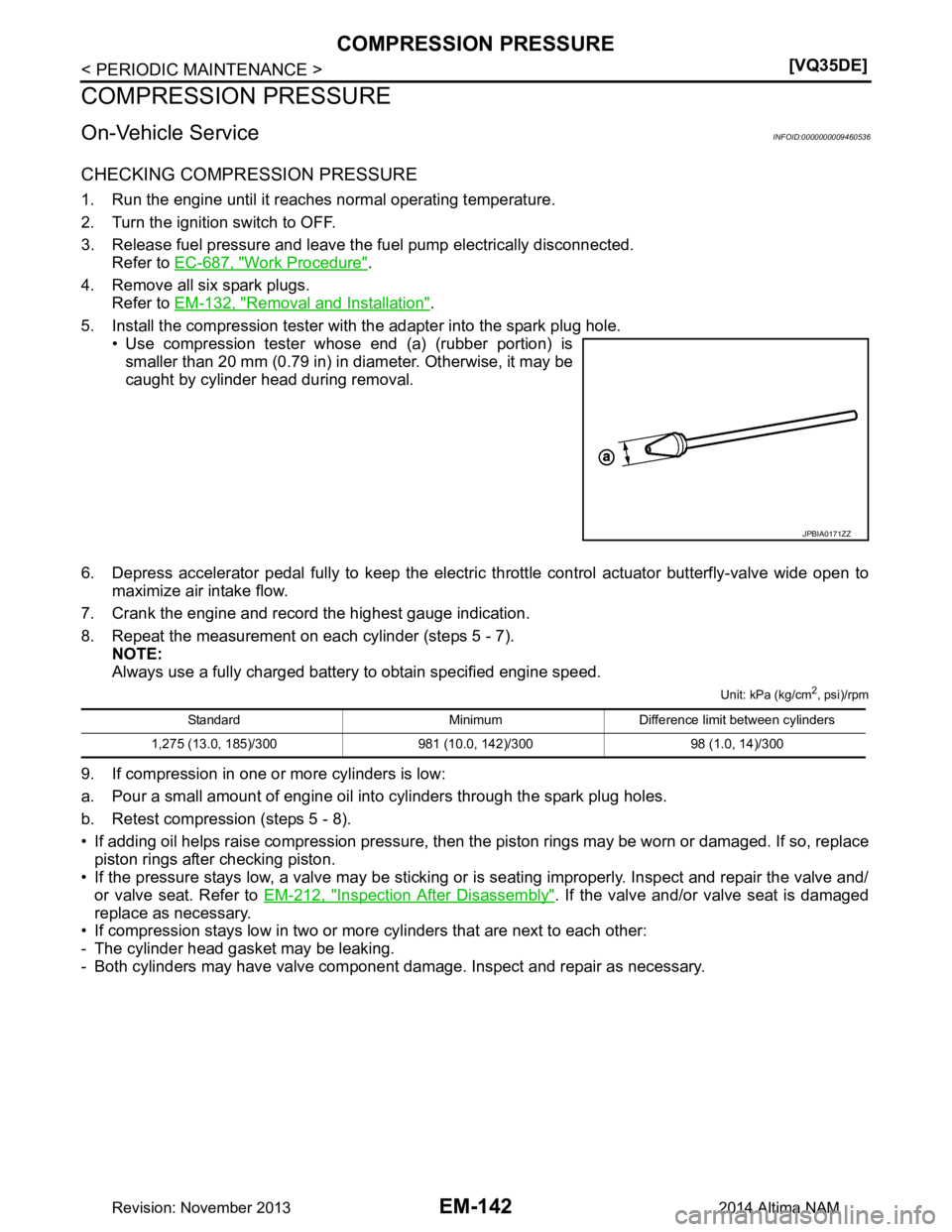

COMPRESSION PRESSURE
COMPRESSION PRESSURE
On-Vehicle ServiceINFOID:0000000009460536
CHECKING COMPRESSION PRESSURE
1. Run the engine until it reaches normal ope

Page 2141 of 4801

NISSAN TEANA 2014 Service Manual
ENGINE ROOM COVEREM-143
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

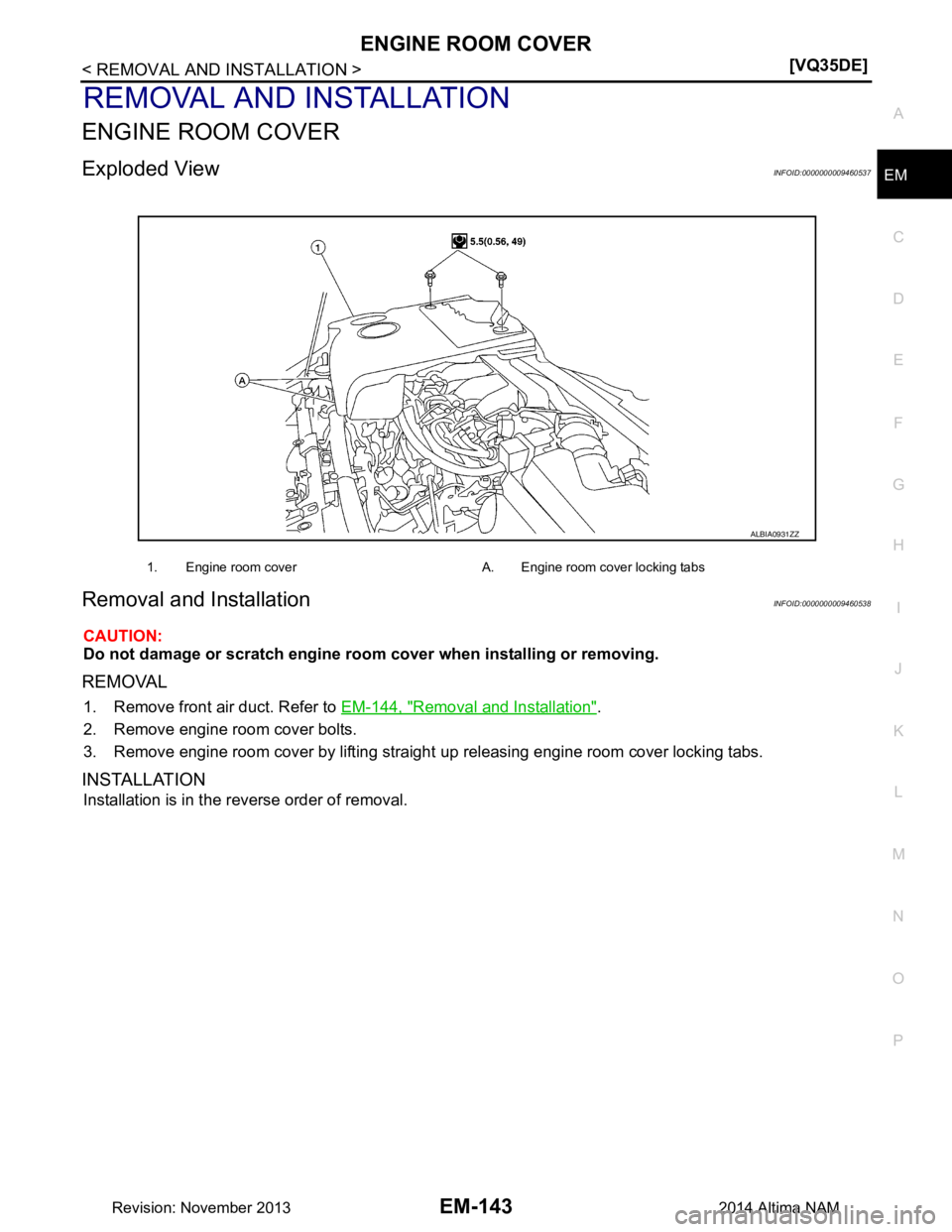

REMOVAL AND INSTALLATION
ENGINE ROOM COVER
Exploded ViewINFOID:0000000009460537
Removal and Installation

Page 2142 of 4801

NISSAN TEANA 2014 Service Manual
EM-144
< REMOVAL AND INSTALLATION >[VQ35DE]
AIR CLEANER AND AIR DUCT
AIR CLEANER AND AIR DUCT
Exploded ViewINFOID:0000000009460539
Removal and InstallationINFOID:0000000009460540
REMOVAL
1. Remove en

Page 2143 of 4801

NISSAN TEANA 2014 Service Manual
AIR CLEANER AND AIR DUCTEM-145
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
INSTALLATION
Installation is in the reverse order of removal.
Revision: November 20132014 Altima

Page 2144 of 4801

NISSAN TEANA 2014 Service Manual
EM-146
< REMOVAL AND INSTALLATION >[VQ35DE]

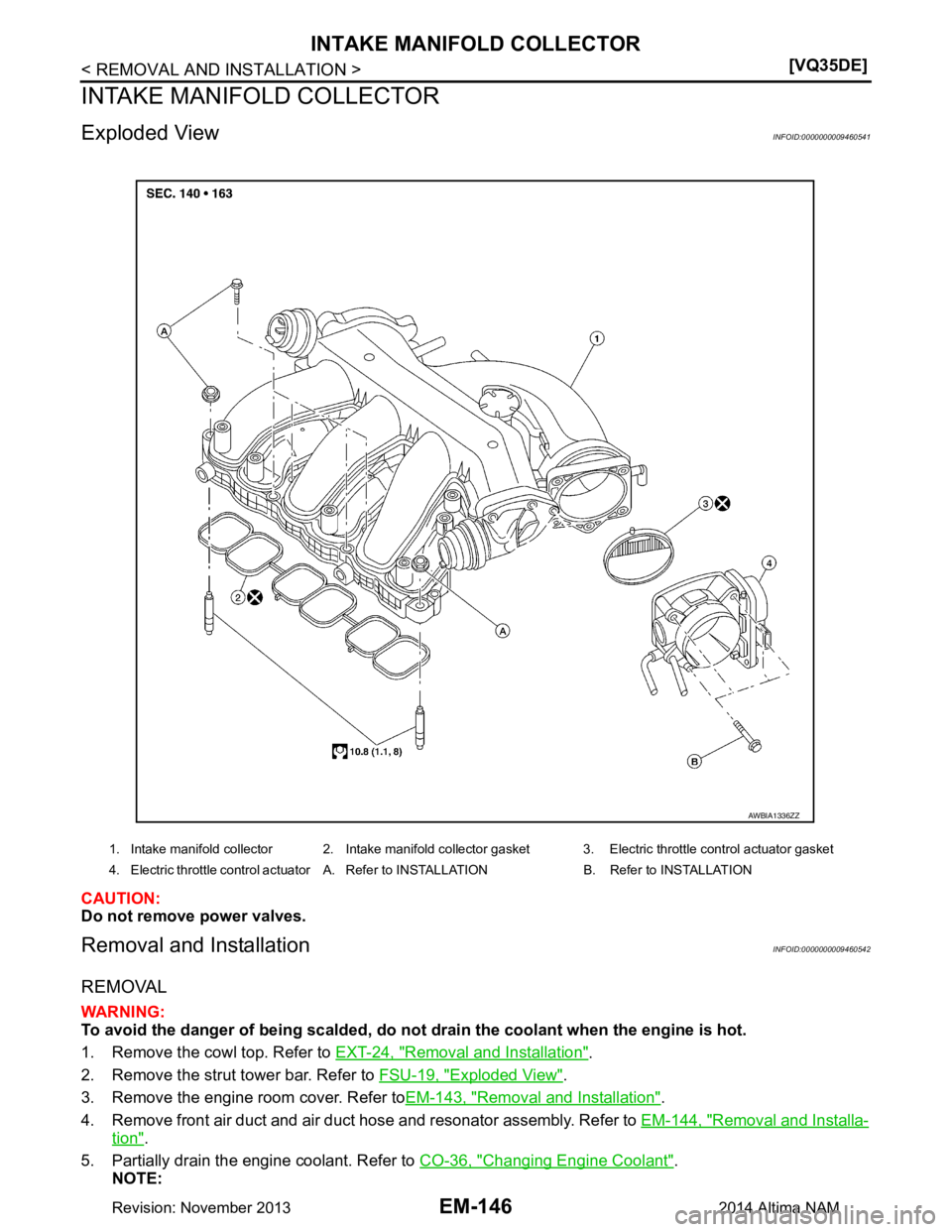

INTAKE MANIFOLD COLLECTOR
INTAKE MANIFOLD COLLECTOR
Exploded ViewINFOID:0000000009460541
CAUTION:
Do not remove power valves.
Removal and InstallationINFO
