< SYSTEM DESCRIPTION >[CVT: RE0F10E]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOST
IC (OBD) SYSTEM
DescriptionINFOID:0000000009464211
This is an on board diagnosis system which records di

Page 4458 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-243
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1 Tr ip Detection Diagnosis an

DIAGNOSIS SYSTEM (TCM)TM-243
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1 Tr ip Detection Diagnosis and 2 Trip Detection Diagno-
sis
INFOID:0000000009464213
NOTE:
“Start the engine and turn OFF the ignition switch after warm-up.” This is defined as 1 trip.
1 TRIP DETECTION DIAGNOSIS
When initial malfunction is detected, TCM memorize s DTC. In these diagnoses, some illuminate MIL and
some do not. Refer to TM-263, "DTC Index"
.
2 TRIP DETECTION DIAGNOSIS
When initial malfunction is detected, TCM memorizes DTC of the 1st trip. MIL does not light at this stage. <1
trip>
If the same malfunction is detected again in next drivi ng, TCM memorizes DTC. When DTC is memorized, MIL
lights. <2 trip>
“Trip” of the “2 trip detection diagnosis” indicates the driving mode that executes self-diagnosis during driving.
×: Check possible —: Check not possible
DIAGNOSIS DESCRIPTION : DTC and DTC of 1st TripINFOID:0000000009464214
2 TRIP DETECTION DIAGNOSIS THAT ILLUMINATES MIL
• The DTC number of the 1st trip is the same as the DTC number.
• When a malfunction is detected at the 1st trip, TCM memo rizes DTC of the 1st trip. MIL does not light at this
stage. If the same malfunction is not detected at t he 2nd trip (conforming to necessary driving conditions),
DTC at the 1st trip is erased from TCM. If the same malfunction is detected at the 2nd trip, TCM memorizes
DTC and MIL lights at the same time.
• The DTC of the 1st trip is specified in Service $01 of SAE J1979/ISO 15031-5. Since detection of DTC at the
1st trip does not illuminate MIL, warning for a problem is not given to a driver.
• For procedure to delete DTC and 1st trip DTC from TCM, refer to TM-245, "CONSULT Function"
.
• If DTC of the 1st trip is detected, it is necessary to check the cause according to the “Diagnosis flow”. Refer
to TM-279, "Work Flow"
.
DIAGNOSIS DESCRIPTION : Malf unction Indicator Lamp (MIL)INFOID:0000000009464215
• TCM not only detects DTC, but also sends the MI L signal to ECM through CAN communication. ECM sends
the MIL signal to the combination meter through CAN communication according to the signal, and illumi-
nates MIL.
• For malfunction indicator lamp (MIL) description, refer to EC-598, "DIAGNOSIS DESCRIPTION : Malfunc-
tion Indicator Lamp (MIL)".
DIAGNOSIS DESCRIPTION : Counter SystemINFOID:0000000009464216
RELATION BETWEEN DTC AT 1ST TRIP/DTC/MIL AND DRIVING CONDITIONS (FOR 2 TRIP DE-
TECTION DIAGNOSIS THAT ILLUMINATES MIL)
• When initial malfunction is detected, TCM memorizes DT C of the 1st trip. MIL does not light at this stage.
• If the same malfunction is detect ed at the 2nd trip, TCM memorizes DTC and MIL lights at the same time.
• Then, MIL goes after driving the vehicle for 3 tr ips under “Driving condition B” without malfunction.
• DTC is displayed until 40 trips of “Driving condition A” are satisfied without detecting the same malfunction.
DTC is erased when 40 trips are satisfied.
Item DTC at the 1st trip DTC MIL
Display at the 1st trip Display at the
2nd trip Display at the
1st trip Display at the
2nd trip Illumination at
the 1st trip Illumination at
the 2nd trip
1 trip detection diagnosis
(Refer to TM-263, "DTC Index"
) ——
×— ×—
2 trip detection diagnosis
(Refer to TM-263, "DTC Index"
) ×
—— ×— ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4459 of 4801

NISSAN TEANA 2014 Service Manual
TM-244
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased

TM-244
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased.
COUNTER SYSTEM LIST
DRIVING CONDITION
Driving condition A
Driving condition A is the driving condition that provides warm-up.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• After start of the engine, the water temperature increased by 20 °C (36 °F) or more.
• Water temperature was 70 °C (158 °F) or more.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the A counter.
• When the above is satisfied without detecting t he same malfunction, count up the A counter.
• When MIL goes off due to the malfunction and the A counter reaches 40, the DTC is erased.
Driving condition B
Driving condition B is the driving condition that performs all diagnoses once.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• Water temperature was 70 °C (158 °F) or more.
• In closed loop control, vehicle speed of 70 – 120 km/h (43 – 75 MPH) continued for 60 seconds or more.
• In closed loop control, vehicle speed of 30 – 60 km/h (19 – 37 MPH) continued for 10 seconds or more.
• In closed loop control, vehicle speed of 4 km/h (2 MPH) or less and idle determination ON continued for 12
seconds or more.
• After start of the engine, 22 minutes or more have passed.
• The condition that the vehicle speed is 10 km/h (6 MPH) or more continued for 10 seconds or more in total.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the B counter.
• When the above is satisfied without detecting t he same malfunction, count up the B counter.
• When the B counter reaches 3 wit hout malfunction, MIL goes off.
• When the B counter is counted once without detecting the same malfunction after TCM memorizes DTC of
the 1st trip, DTC of the 1st trip is erased.
Item Driving condition Trip
MIL (OFF) B 3
DTC (clear) A 40
DTC at 1st trip (clear) B 1
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4460 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-245
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

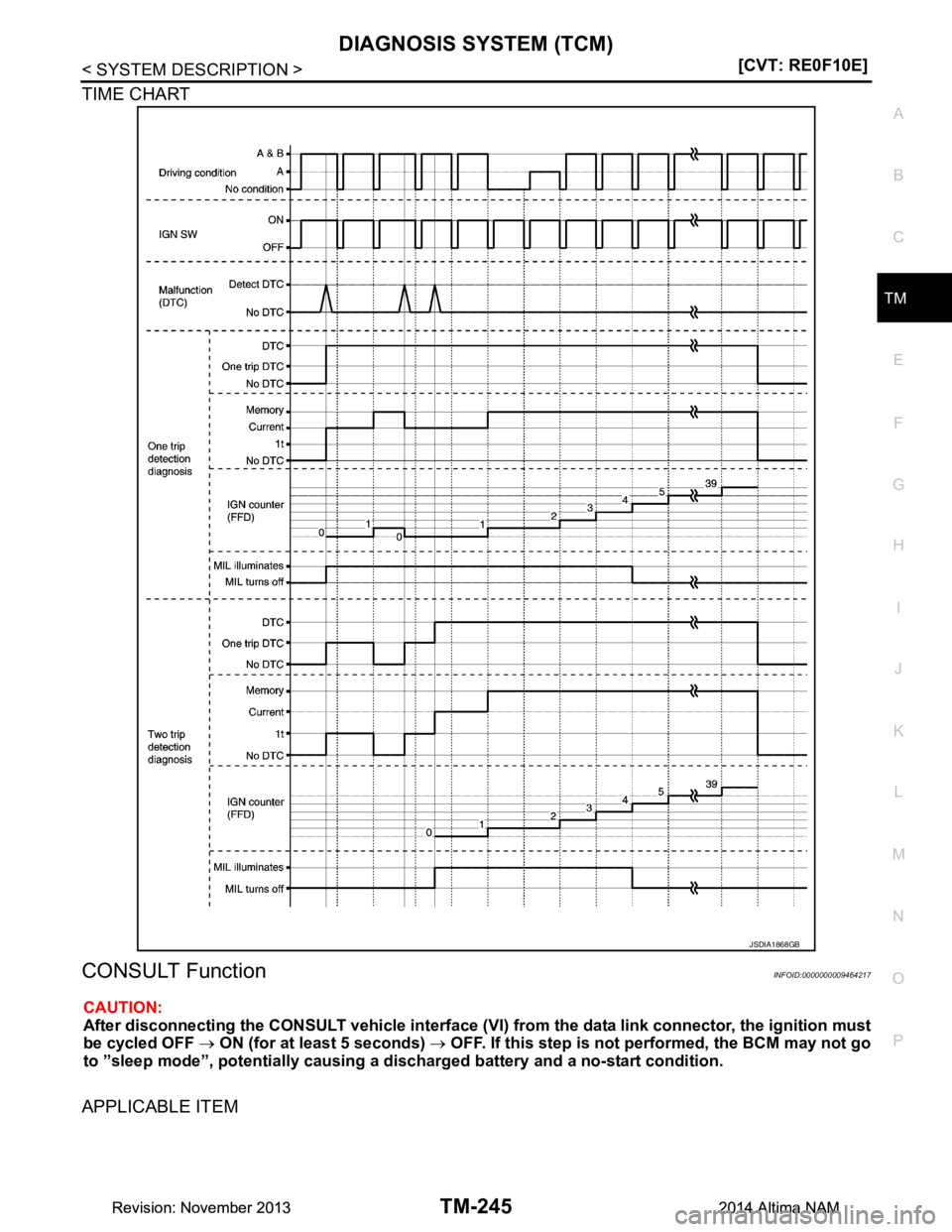

TIME CHART
CONSULT FunctionINFOID:0000000009464217
CAUTION:
After disconnecting the CONSULT vehicl

Page 4461 of 4801

NISSAN TEANA 2014 Service Manual
TM-246
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
SELF DIAGNOSTIC RESULTS
Display Item List
Refer to
TM-263, "DTC Index".
DTC at 1st trip and method to read DTC
• DTC (P0705, P07

TM-246
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
SELF DIAGNOSTIC RESULTS
Display Item List
Refer to
TM-263, "DTC Index".
DTC at 1st trip and method to read DTC
• DTC (P0705, P0711, P0720, etc.) is specified by SAE J2012/ISO 15031-6.
• DTC and DTC at 1st trip are displayed on “Self Diagnostic results” of CONSULT.
When DTC is currently detected, “CRNT” is displayed. If “PAST” is displayed, it shows a malfunction
occurred in the past. The trip number of drive wit hout malfunction of concerned DTC can be confirmed with
“IGN counter” inside “FFD”.
• When the DTC at the 1st trip is detected, “1t” is displayed.
DTC deletion method
NOTE:
If the ignition switch is left ON after repair, turn O FF the ignition switch and wait for 10 seconds or more. Then,
turn the ignition ON again. (Engine stop)
1. Touch “TRANSMISSION” of CONSULT.
2. Touch “Self Diagnostic Result”.
3. Touch “Erase”. (DTC memorized in TCM is erased.)
IGN counter
The ignition counter is displayed in “FFD” and the number of times of satisfied “Driving condition A” is dis-
played after normal recovery of DTC. Refer to TM-243, "DIAGNOSIS DESCRIPTION : Counter System"
.
• If malfunction (DTC) is currently detected, “0” is displayed.
• After normal recovery, every time “Driving condition A” is satisfied, the display value increases from 1 → 2 →
3...38 → 39.
• When MIL turns OFF due to the malfunction and t he counter reaches 40, the DTC is erased.
NOTE:
The counter display of “40” cannot be checked.
DATA MONITOR
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.
× : Application : Optional selection
Conditions Function
Work Support The settings for ECU functions can be changed.
Self Diagnostic Results The ECU self diagnostic results are displayed.
Data Monitor The ECU input/output data is displayed in real time.
CAN Diagnosis Support Monitor The result of transmit/receive diagnosis of CAN communication is displayed.
Active Test The ECU activates outputs to test components.
ECU Identification The ECU part number is displayed.
CALIB DATA The calibration data status of TCM can be checked.
Monitored item (Unit) Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
VSP SENSOR (km/h or mph) ×Displays the vehicle speed calculated from the CVT out-
put shaft speed.
ESTM VSP SIG (km/h or mph) ×• Displays the vehi
cle speed signal (ABS) received
through CAN communication.
• Models with ABS are displayed.
INPUT SPEED SENSOR (rpm) ×Displays the input speed calculated from the pulse signal
of the input speed sensor.
PRI SPEED SEN (rpm) ×Displays the primary pulley speed calculated from the
pulse signal of the primary speed sensor.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4462 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-247
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SEC REV SENSOR (rpm) ×Displays the secondary pulley speed calculated from the
pulse signal of th

DIAGNOSIS SYSTEM (TCM)TM-247
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SEC REV SENSOR (rpm) ×Displays the secondary pulley speed calculated from the
pulse signal of the output speed sensor.
ENG SPEED SIG (rpm) ×Displays the engine speed received through CAN com-
munication.
SEC PRESSURE SEN (V) ×Displays the signal voltage of the secondary pressure-
sensor.
PRI PRESSURE SEN (V) ×Displays the signal voltage of the primary pressuresen-
sor.
ATF TEMP SEN (V) ×Displays the signal voltage of the CVT fluid temperature
sensor.
G SENSOR* (G) ×Displays the signal voltage of the G sensor.
VIGN SEN (V) ×Displays the battery voltage applied to TCM.
PVING VOLT (V) ×Displays the backup voltage of TCM.
VEHICLE SPEED (km/h or mph) ×Displays the vehicle speed recognized by TCM.
INPUT REV (rpm) Displays the input shaft speed of CVT recognized by
TCM.
PRI SPEED (rpm) ×Displays the primary pulley speed recognized by TCM.
SEC SPEED (rpm) Displays the secondary pulley speed recognized by
TCM.
ENG SPEED (rpm) ×Displays the engine speed recognized by TCM.
SLIP REV (rpm) ×Displays the speed difference between the input shaft
speed of CVT and the engine speed.
PULLEY GEAR RATIO ×Displays the pulley gear ratio calculated from primary
pulley speed/secondary pulley speed.
G SPEED* (G) Displays the acceleration and deceleration speed of the
vehicle calculated from vehicle speed change.
ACCEL POSI SEN 1 (deg) ××Displays the estimated throttle position received through
CAN communication.
VENG TRQ (Nm) ×Display the engine torque recognized by TCM.
PRI TRQ (Nm) Display the input shaft torque of CVT.
TRQ RTO Display the torque ratio of torque converter.
SEC PRESSURE (MPa) Displays the secondary pressure calculated from the sig-
nal voltage of the secondary pressure sensor.
PRI PRESSURE (MPa) Displays the primary pressure calculated from the signal
voltage of the primary pressure sensor.
FLUID TEMP ( °C or °F) ×Displays the CVT fluid temperature calculated from the
signal voltage of the CVT fluid temperature sensor.
DSR REV (rpm) Displays the target primary pulley speed calculated from
processing of gear shift control.
TGT PLLY GR RATIO Displays the target gear ratio of the pulley from process-
ing of gear shift control.
LU PRS (MPa) Displays the target oil pressure of the torque converter
clutch solenoid valve calculated from oil pressure pro-
cessing of gear shift control.
LINE PRS (MPa) Displays the target oil pressure of the line pressure sole-
noid valve calculated from oil pressure processing of
gear shift control.
Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4463 of 4801

NISSAN TEANA 2014 Service Manual
TM-248
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
TRGT PRI PRESSURE (MPa)Displays the target oil pressure of the primary pressure
solenoid valve calculated from oil pressure proces

TM-248
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
TRGT PRI PRESSURE (MPa)Displays the target oil pressure of the primary pressure
solenoid valve calculated from oil pressure processing of
gear shift control.
TRGT SELECT PRESSURE (MPa) Displays the target oil pressure of the select solenoid
valve calculated from oil pressure processing of gear
shift control.
TRGT SEC PRESSURE (MPa) Displays the target oil pressure of the secondary pres-
sure solenoid valve calculated from oil pressure process-
ing of gear shift control.
ISOLT1 (A) ×Displays the command current from TCM to the torque
converter clutch solenoid valve.
ISOLT2 (A) ×Displays the command current from TCM to the line
pressure solenoid valve.
PRI SOLENOID (A) ×Displays the command current from TCM to the primary
pressure solenoid valve.
SEC SOLENOID CURRENT (A) ×Displays the command current from TCM to the second-
ary pressure solenoid valve.
SELECT SOLENOID CUR-
RENT (A)
×Displays the command current from TCM to the select
solenoid valve.
SOLMON1 (A) ××Monitors the command current from TCM to the torque
converter clutch solenoid valve and displays the moni-
tored value.
SOLMON2 (A) ××Monitors the command current from TCM to the line
pressure solenoid valve and displays the monitored val-
ue.
PRI SOL MON (A) ××Monitors the command current from TCM to the primary
pressure solenoid valve and displays the monitored val-
ue.
SEC SOL MON CURRENT (A) ××Monitors the command current from TCM to the second-
ary pressure solenoid valve and displays the monitored
value.
SELECT SOL MON CURRENT (A) ××Monitors the command current from TCM to the select
solenoid valve and displays the monitored value.
D POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (D position).
N POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (N position).
R POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (R position).
P POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (P position).
L POSITION SW* (On/Off) ×Displays the operation status of the transmission range
switch (L position).
DS RANGE SW (On/Off) ×Displays the operation status of the transmission range
switch (Ds position).
BRAKESW (On/Off) ××Displays the reception status of the stop lamp switch sig-
nal received through CAN communication.
IDLE SW (On/Off) ××Displays the reception status of the closed throttle posi-
tion signal received through CAN communication.
SPORT MODE SW* (On/Off) ××Displays the reception status of the overdrive control
switch signal received through CAN communication.
Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4464 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-249
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ECO MODE SW* (On/Off) ××Displays the reception status of the ECO mode switch
signal received th

DIAGNOSIS SYSTEM (TCM)TM-249
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ECO MODE SW* (On/Off) ××Displays the reception status of the ECO mode switch
signal received through CAN communication.
STRDWNSW (On/Off) ×Displays the operation status of the paddle shifter (down
switch).
STRUPSW (On/Off) ×Displays the operation status of the paddle shifter (up
switch).
DOWNLVR* (On/Off) ×Displays the operation status of the selector lever (down
switch).
UPLVR* (On/Off) ×Displays the operation status of the selector lever (up
switch).
NONMMODE (On/Off) ×Displays if the selector lever position is not at the manual
shift gate.
MMODE (On/Off) ×Displays if the selector lever position is at the manual
shift gate.
TOW MODE SW* (On/Off) ×Displays the reception status of the TOW mode switch
signal received through CAN communication.
SHIFT IND SIGNAL Displays the transaxle value of shift position signal trans-
mitted via CAN communication.
CVT LAMP* (On/Off) Displays the transaxle status of the CVT warning lamp
signal transmitted through CAN communication.
SPORT MODE IND* (On/Off) Displays the transaxle status of the O/D OFF indicator
lamp signal transmitted through CAN communication.
MANU MODE SIGNAL (On/Off) Displays the transaxle status of the manual mode signal
transmitted through CAN communication.
DS RANGE SIGNAL (On/Off) Displays the shift position signal status from transmis-
sion range switch (Ds position).
ECO MODE SIGNAL* (On/Off) Displays the transaxle status of the ECO mode signal
transmitted through CAN communication.
VDC ON (On/Off) ×Displays the reception status of the VDC operation signal
received through CAN communication.
TCS ON (On/Off) ×Displays the reception status of the TCS operation signal
received through CAN communication.
ABS FAIL SIGNAL (On/Off) ×Displays the reception status of the ABS malfunction sig-
nal received through CAN communication.
ABS ON (On/Off) ×Displays the reception status of the ABS operation signal
received through CAN communication.
RANGE ×Displays the gear position recognized by TCM.
M GEAR POS ×Display the target gear of manual mode
G SEN SLOPE* (%) Displays the gradient angle calculated from the G sensor
signal voltage.
G SEN CALIBRATION* (YET/DONE) Displays the status of “G
SENSOR CALIBRATION” in
“Work Support”.
N IDLE STATUS* (On/Off) Displays idle neutral status.
ENGBRKLVL (On/Off) Displays the
setting of “ENGINE BRAKE ADJ” in “Work
Support”.
DRIVE MODE STATS* Displays the drive mode status recognized by TCM.
SNOW MODE* (On/Off) Displays whether it is the SNOW mode.
ECO MODE* (On/Off) Displays whether it is the ECO mode. Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Load next 8 pages

Page: < prev 1-10 ... 4425-4432 4433-4440 4441-4448 4449-4456 4457-4464 4465-4472 4473-4480 4481-4488 4489-4496 ... 4808 next >

TPMS reset flat tire center console stop start battery capacity engine oil capacity
