TM-282
< BASIC INSPECTION >[CVT: RE0F10E]
ADDITIONAL SERVICE WHEN REPLACING TCM
ADDITIONAL SERVICE WHEN REPLACING TCM
DescriptionINFOID:0000000009464227
Always perform the following items when the TC

Page 4498 of 4801

NISSAN TEANA 2014 Service Manual
ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY
TM-283
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

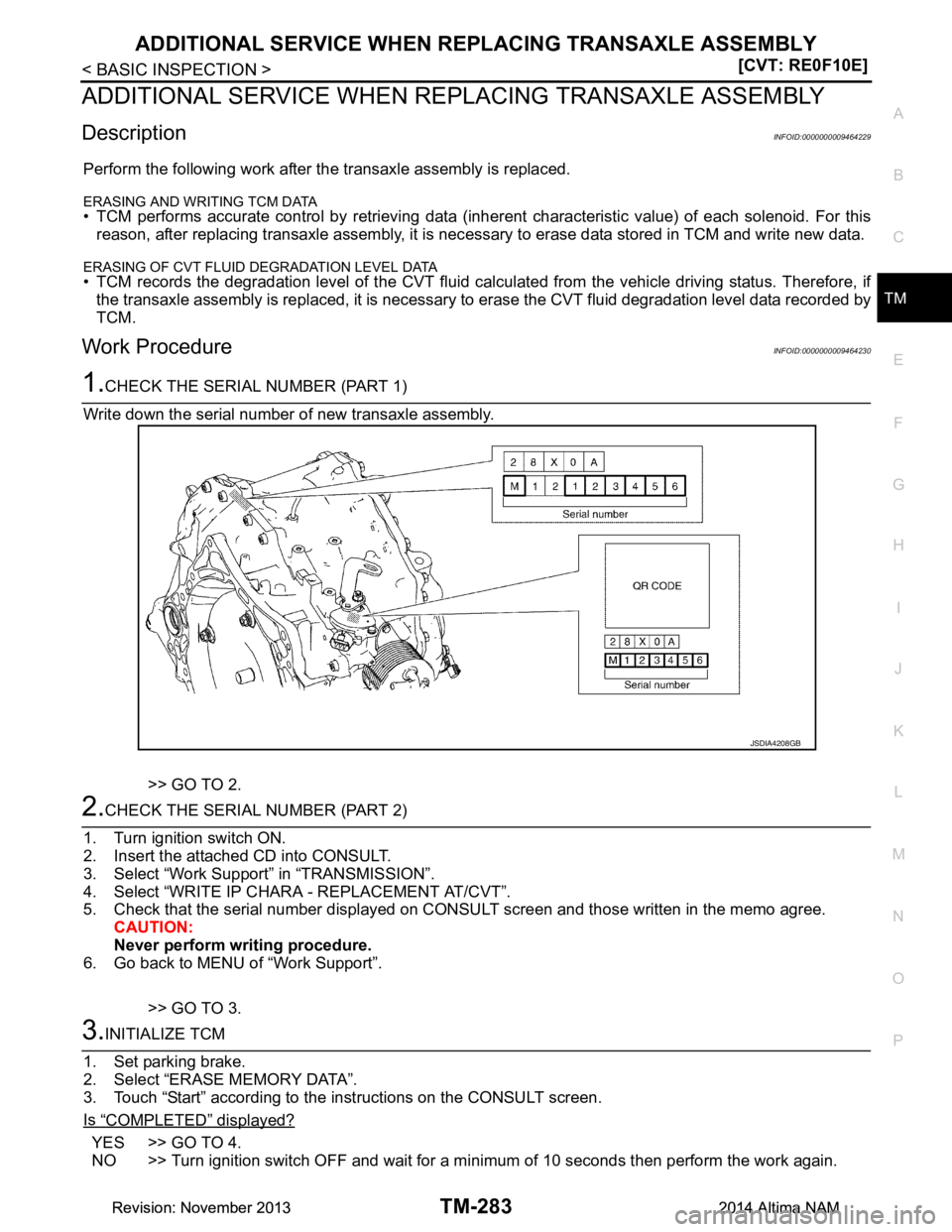

ADDITIONAL SERVICE WHEN RE PLACING TRANSAXLE ASSEMBLY
DescriptionINFOI

Page 4499 of 4801

NISSAN TEANA 2014 Service Manual
TM-284
< BASIC INSPECTION >[CVT: RE0F10E]
ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY
4.WRITE THE DATA
NOTE:
Write data of new solenoid in TCM according to the following instructions:
1. S

Page 4500 of 4801

NISSAN TEANA 2014 Service Manual
CVT FLUIDTM-285
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT FLUID
ReplacementINFOID:0000000009464231
CAUTION:
• Always use shop paper. Never use shop cloth.
• Repla

CVT FLUIDTM-285
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT FLUID
ReplacementINFOID:0000000009464231
CAUTION:
• Always use shop paper. Never use shop cloth.
• Replace a drain plug gasket with new ones at the fi nal stage of the operation when installing.
• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
• After replacement, always pe rform CVT fluid leakage check.
1. Select “Data Monitor” in “TRANSMISSION” using CONSULT.
2. Select “FLUID TEMP” and confirm t hat the CVT fluid temperature is 40°C (104 °F) or less.
3. Check that the selector lever is in the “P ” position, then completely engage the parking brake.
4. Lift up the vehicle.
5. Remove the drain plug and drain the CVT fluid from the oil pan. Refer to TM-387, "Exploded View"
.
6. Install the drain plug to oil pan. CAUTION:
Drain plug gasket use the old one.
7. Remove the overflow plug from converter housing.
8. Install the charging pipe set (KV311039S0) (A) into the overflow plug hole.
CAUTION:
Tighten the charging pipe by hand.
9. Install the ATF changer hose (B) to the charging pipe. CAUTION:
Press the ATF changer hose all the way onto the charging
pipe until it stops.
10. Fill approximately 3 liter (2-5 /8 lmp qt) of the CVT fluid.
11. Remove the ATF changer hose and charging pipe, then install the overflow plug.
NOTE:
Perform this work quickly because CVT fluid leaks.
12. Lift down the vehicle.
13. Start the engine.
14. While depressing the brake pedal, shift the selector leve r to the entire position from “P” to “DS”, and shift it
to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.
15. Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35°C (95 °F) to 45 °C (113 °F).
16. Stop the engine.
17. Lift up the vehicle.
18. Remove the drain plug, and then drain CVT fluid from oil pan. CVT fluid : Refer to
TM-413, "General Specification"
.
Fluid capacity : Refer to TM-413, "General Specification"
.
JSDIA3714ZZ
JSDIA3713ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4501 of 4801

NISSAN TEANA 2014 Service Manual
TM-286
< BASIC INSPECTION >[CVT: RE0F10E]
CVT FLUID
19. Repeat steps 8 to 18 (one time).
20. Tighten the drain plug to the specified torque. Refer to TM-387, "Exploded View"
.
21. Remove the overfl

TM-286
< BASIC INSPECTION >[CVT: RE0F10E]
CVT FLUID
19. Repeat steps 8 to 18 (one time).
20. Tighten the drain plug to the specified torque. Refer to TM-387, "Exploded View"
.
21. Remove the overflow plug.
22. Install the charging pipe set (KV311039S0) into the overflow plug hole. CAUTION:
Tighten the charging pipe by hand.
23. Install the ATF changer hose to the charging pipe. CAUTION:
Press the ATF changer hose all the way onto the charging pipe until it stops.
24. Fill approximately 3 liter (2-5/8 lmp qt) of the CVT fluid.
25. Remove the ATF changer hose and charging pipe, then install the overflow plug. NOTE:
Perform this work quickly because CVT fluid leaks.
26. Lift down the vehicle.
27. Start the engine.
28. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “DS”, and shift it to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.
29. Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35 °C (95 °F) to 45 °C (113 °F).
30. Lift up the vehicle.
31. Remove the overflow plug and confirm that the CV T fluid is drained from the overflow plug hole.
CAUTION:
Perform this work with the vehicle idling.
NOTE:
If the CVT fluid is not drained, refer to “Adjustment” and refill with the CVT fluid.
32. When the flow of CVT fluid slows to a drip, tighten the overflow plug to the specified torque. Refer to TM-
387, "Exploded View".
CAUTION:
Never reuse O-ring.
33. Lift down the vehicle.
34. Select “Data Monitor” in “T RANSMISSION” using CONSULT.
35. Select “CONFORM CVTF DETERIORTN”.
36. Select “Erase”.
37. Stop the engine.
AdjustmentINFOID:0000000009464232
CAUTION:
• During adjustment of the CVT fluid level, check CO NSULT so that the oil temperature may be main-
tained from 35 to 45 °C (95 to 113 °F).
• During adjustment of the CVT fluid level, check that the engine speed is maintaining 500 rpm.
• Use caution when looking into the drain hole as th ere is a risk of dripping fluid entering the eye.
1. Check that the selector lever is in the “P ” position, then completely engage the parking brake.
2. Start the engine.
3. Adjust the CVT fluid temperature to be approximately 40 °C (104 °F).
NOTE:
The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the
“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.
4. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “DS”, and shift it to the “P” position.
NOTE: CVT fluid : Refer to
TM-413, "General Specification"
.
Fluid capacity : Refer to TM-413, "General Specification"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4502 of 4801

NISSAN TEANA 2014 Service Manual
CVT FLUIDTM-287
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Hold the lever at each position for 5 seconds.
5. Lift up the vehicle.
6. Check that there is no CVT fluid leakag

Page 4503 of 4801

NISSAN TEANA 2014 Service Manual
TM-288
< BASIC INSPECTION >[CVT: RE0F10E]
STALL TEST
STALL TEST
Work ProcedureINFOID:0000000009464233
INSPECTION
1. Check the engine oil level. Replenish if necessary. Refer to
LU-25, "Inspection".

Page 4504 of 4801

NISSAN TEANA 2014 Service Manual
CVT POSITIONTM-289
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT POSITION
InspectionINFOID:0000000009464234
1. Turn ON the ignition switch with the shift selector at the �

CVT POSITIONTM-289
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT POSITION
InspectionINFOID:0000000009464234
1. Turn ON the ignition switch with the shift selector at the “P” position.
2. Press the shift selector button with the brake pedal depressed, and confirm that the shift selector can be
moved to positions other than “P”. Also confirm that movement is not allowed from the “P” position to other
position without depressing the brake pedal.
3. Move the shift selector and check for “excessive effort”, “sticking”, “noise” or “rattle”.
4. Confirm that shift selector stops at each position with the feel of engagement when it is moved through all
the positions. Check whether or not the actual position the shift selector is in matches the position shown
by the transaxle body.
5. Make sure that the shift selector is moved to all the shift posi- tions in the manner shown.
• (A): Press shift selector button to operate shift selector, while depressing the brake pedal.
• (B): Press shift selector button to operate shift selector.
• (C): Shift selector can be operated without pressing the shift selector button.
6. When the shift selector button is pressed without applying for- ward/backward force to the shift selector at “P”, “R”, “N”, “D” or
“Ds” positions, there should be no “sticking” on the shift selector
button operation.
7. Check that the back-up lamps do not illuminate when the shift selector is in the “P” position.
8. Check that the engine can be started with the sh ift selector in the “P” and “N” positions only.
9. Check that the transaxle is locked completely when the shift selector is in the “P” position.
AdjustmentINFOID:0000000009464235
1. Shift the shift selector to the “P” position.
CAUTION:
Turn wheels at least a quarter turn and be certain the park position mechanism is fully engaged.
2. Loosen the control cable nut. CAUTION:
Do not apply force to the manual lever.
3. Position the manual lever in the “P” position.
4. Tighten the control cable nut to specified torque. Refer to TM-
380, "Exploded View".
CAUTION:
Hold manual lever when tightening.
AWDIA1019ZZ
JSDIA1875ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
