PRECAUTIONSLU-3
< PRECAUTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
LU
NP
O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental
Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:000

PRECAUTIONSLU-3
< PRECAUTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
LU
NP
O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental
Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951682
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for Liquid GasketINFOID:0000000009461023
REMOVAL OF LIQUID GASKET

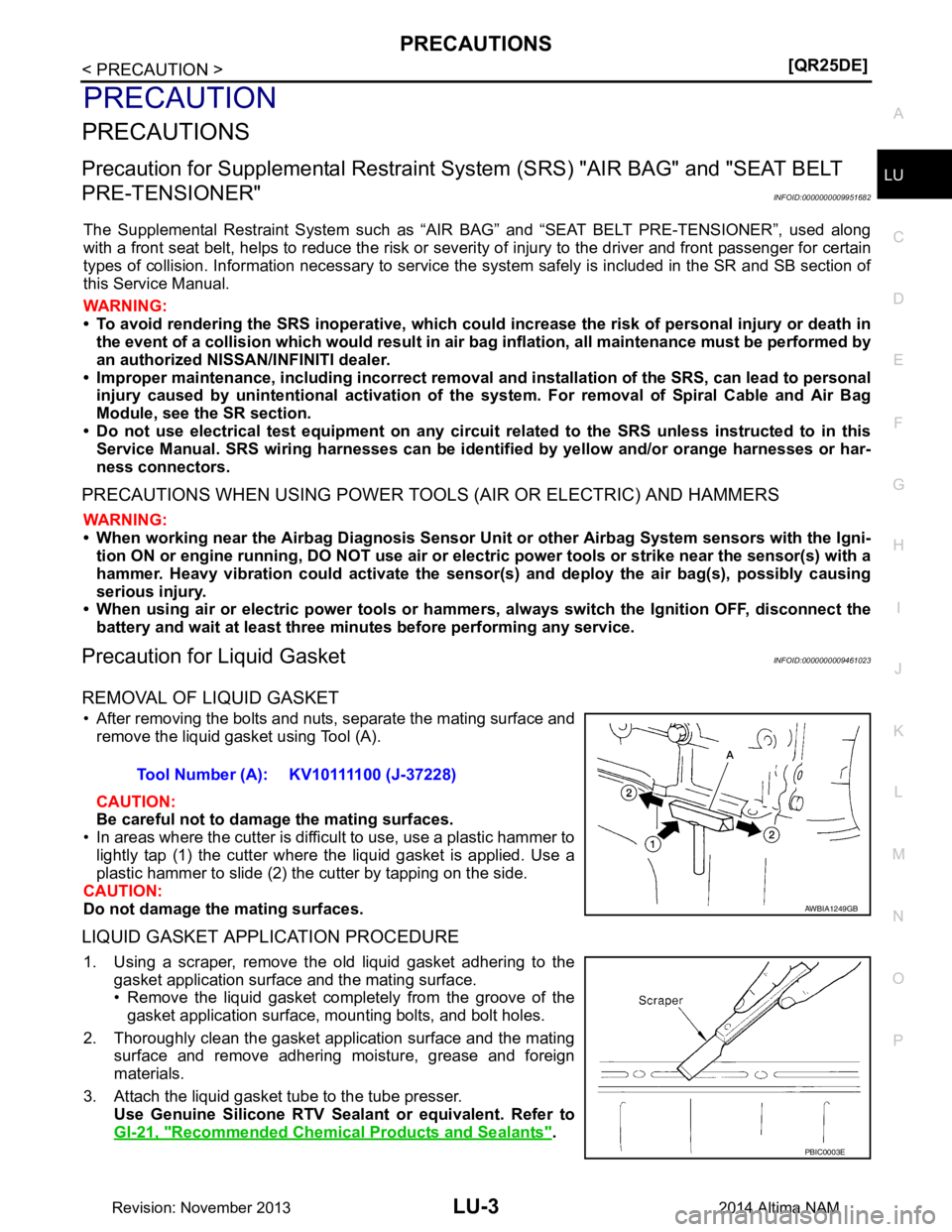

• After removing the bolts and nuts, separate the mating surface and
remove the liquid gasket using Tool (A).
CAUTION:
Be careful not to damage the mating surfaces.
• In areas where the cutter is difficult to use, use a plastic hammer to lightly tap (1) the cutter where the liquid gasket is applied. Use a
plastic hammer to slide (2) the cutter by tapping on the side.
CAUTION:
Do not damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the gasket application surface and the mating surface.
• Remove the liquid gasket completely from the groove of the
gasket application surface, mounting bolts, and bolt holes.
2. Thoroughly clean the gasket application surface and the mating surface and remove adhering moisture, grease and foreign
materials.
3. Attach the liquid gasket tube to the tube presser. Use Genuine Silicone RTV Seal ant or equivalent. Refer to
GI-21, "Recommended Chemical Products and Sealants"
.
Tool Number (A): KV10111100 (J-37228)
AWBIA1249GB
PBIC0003E
Revision: November 20132014 Altima NAM

Page 3154 of 4801

NISSAN TEANA 2014 Service Manual
LU-4
< PRECAUTION >[QR25DE]
PRECAUTIONS
4. Apply the liquid gasket using suitable tool without breaks to the
specified location.
• If there is a groove for the liquid gasket application, apply the

Page 3155 of 4801

NISSAN TEANA 2014 Service Manual
PREPARATIONLU-5
< PREPARATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
LU
NP
O
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009461024
The actual shapes of the tools may differ from those illu

Page 3156 of 4801

NISSAN TEANA 2014 Service Manual
LU-6
< PREPARATION >[QR25DE]
PREPARATION
Tool name
Description
Power tool Loosening nuts, screws and bolts
Deep socket Removing and installing oil pressure switch
Deep socket 27 mm, 3/8 drive
Tube p

Page 3157 of 4801

NISSAN TEANA 2014 Service Manual
LUBRICATION SYSTEMLU-7
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
LU
NP
O
SYSTEM DESCRIPTION
LUBRICATION SYSTEM
Lubrication CircuitINFOID:0000000009461026
ALBIA0942ZZ
1. Camshaft (INT)

Page 3158 of 4801

NISSAN TEANA 2014 Service Manual
LU-8
< SYSTEM DESCRIPTION >[QR25DE]
LUBRICATION SYSTEM
Schematic
INFOID:0000000009461027

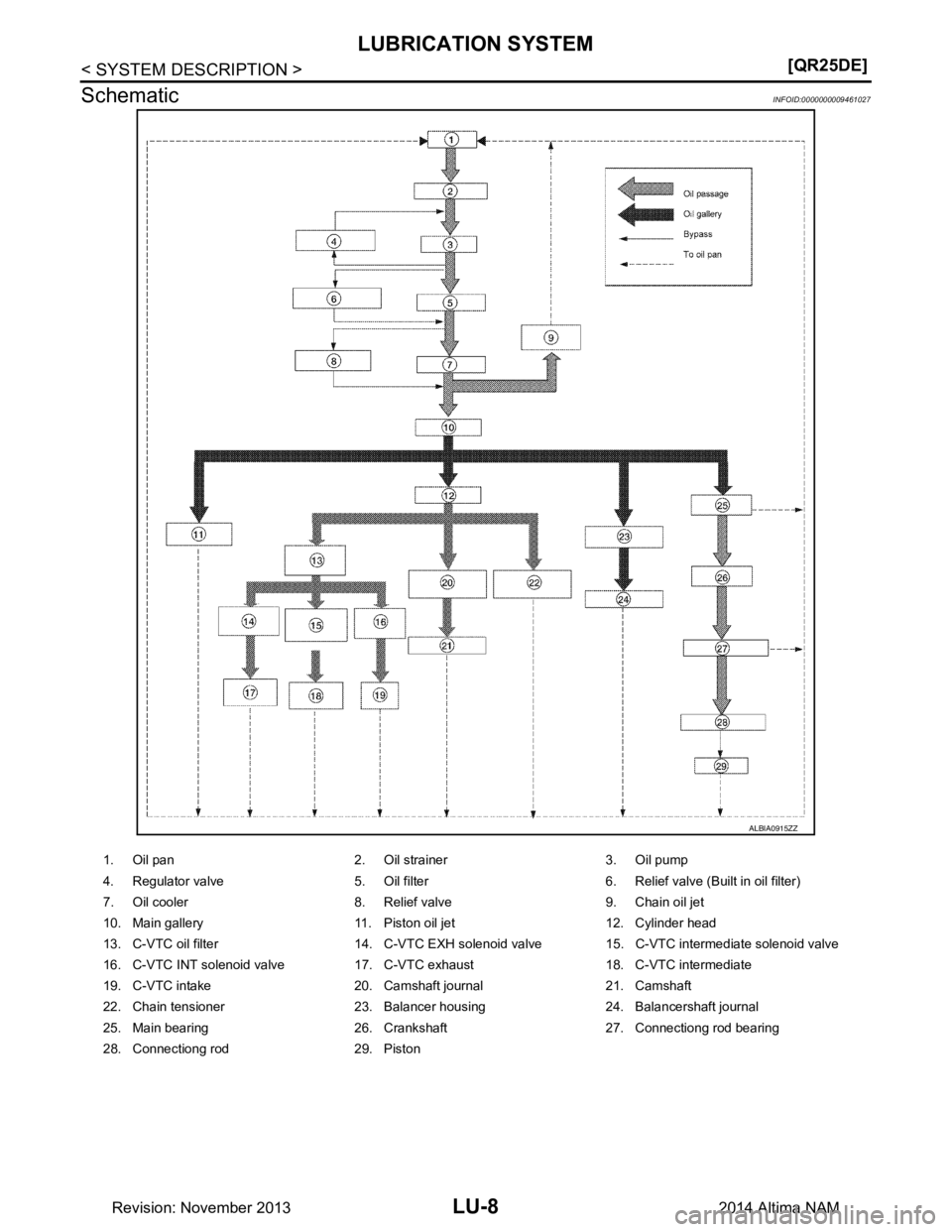

ALBIA0915ZZ
1. Oil pan 2. Oil strainer 3. Oil pump
4. Regulator valve 5. Oil filter 6. Relief valve (Built in

Page 3159 of 4801

NISSAN TEANA 2014 Service Manual
ENGINE OILLU-9
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
LU
NP
O
PERIODIC MAINTENANCE
ENGINE OIL
InspectionINFOID:0000000009461028
OIL LEVEL
• Before starting the engine, check the

Page 3160 of 4801

NISSAN TEANA 2014 Service Manual
LU-10
< PERIODIC MAINTENANCE >[QR25DE]
ENGINE OIL
• When engine oil temperature is low, engine oil pressure becomes high.
• If difference is extreme, check oil passage and oil pump for oil leaks

LU-10
< PERIODIC MAINTENANCE >[QR25DE]
ENGINE OIL
• When engine oil temperature is low, engine oil pressure becomes high.
• If difference is extreme, check oil passage and oil pump for oil leaks.
6. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch.
b. Apply liquid gasket and tighten oil pressure switch to the specification. Use Genuine RTV Silicone Sealant or equivalent.
c. After warming up engine, make sure there are no engine oil leaks.
7. Install fender protector side cover (RH). Refer to EXT-26, "FENDER PROTECTOR : Exploded View"
.
Changing Engine OilINFOID:0000000009461029
WARNING:
• Be careful not to burn yourself, as the engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer: try to avoid direct skin
contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as
possible.
1. Position the vehicle so it is level on the hoist.
2. Warm up the engine and check for oil leaks from the engine.
3. Stop engine and wait for 10 minutes.
4. Remove the oil pan drain plug (1) and oil filler cap.
5. Drain the engine oil.
6. Install the oil pan drain plug with a new washer and refill the engine with new engine oil.
CAUTION:
• Be sure to clean the oil pan drain plug and install using a new washer.
• The refill capacity depends on the oil temper ature and drain time. Use these specifications for
reference only. Always use the oil level gauge to determine when the proper amount of oil is in
the engine.
7. Warm up the engine and check around the drain plug and oil filter for oil leaks.
8. Stop the engine and wait for 10 minutes.
9. Check the oil level using the oil level gauge. CAUTION:
Do not overfill the engine with engine oil. Engine oil pressure : Refer to
LU-18, "Oil Pressure"
Oil pressure switch : Refer to EM-28, "Exploded View"
: Front
Oil specification and
viscosity : Refer to
MA-11, "FOR USA
AND CANADA : Engine Oil
Recommendation".
Oil pan drain plug : EM-36, "Removal and Installa-
tion"
JPBIA1676ZZ
Revision: November 20132014 Altima NAM
