FRONT DRIVE SHAFTFAX-13
< REMOVAL AND INSTALLATION >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
3. Remove brake hose retaining clip and brake hose from strut.
4. Remove and discard cotter pin from drive shaf

FRONT DRIVE SHAFTFAX-13
< REMOVAL AND INSTALLATION >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
3. Remove brake hose retaining clip and brake hose from strut.
4. Remove and discard cotter pin from drive shaft.
5. Remove nut retainer from drive shaft.
6. Loosen lock nut from drive shaft using power tool.
7. Remove brake caliper using power tool, leaving hy draulic brake hose attached. Position caliper aside
using wire. Refer to BR-36, "BRAKE CALIPER ASSEMBLY : Removal and Installation"
.
CAUTION:
• Do not twist or stretch the brake hose.
• Do not depress brake pedal while brake caliper is removed.

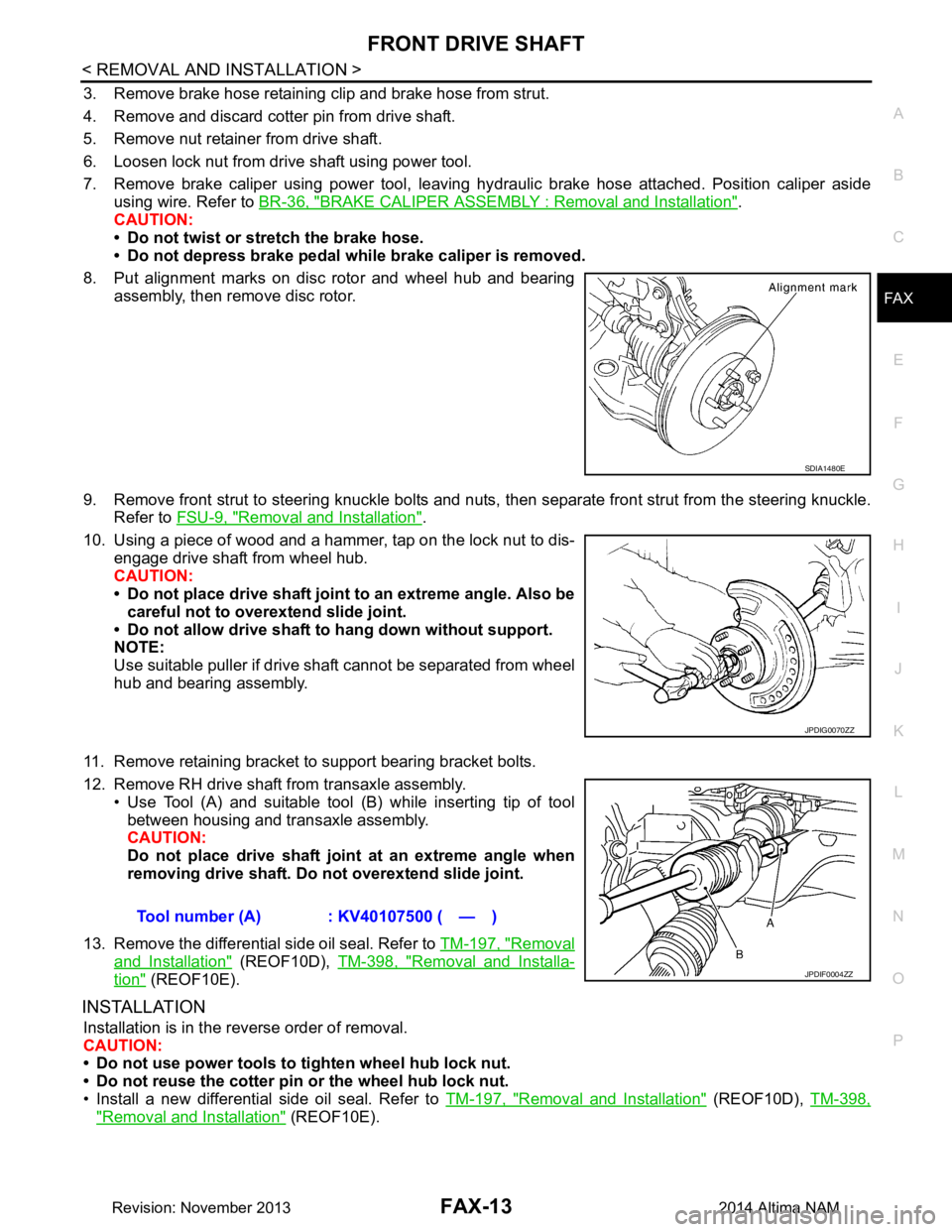

8. Put alignment marks on disc rotor and wheel hub and bearing assembly, then remove disc rotor.
9. Remove front strut to steering knuckle bolts and nuts, then separate front strut from the steering knuckle.
Refer to FSU-9, "Removal and Installation"
.
10. Using a piece of wood and a hammer, tap on the lock nut to dis- engage drive shaft from wheel hub.
CAUTION:
• Do not place drive shaft joint to an extreme angle. Also be careful not to over extend slide joint.
• Do not allow drive shaft to hang down without support.
NOTE:
Use suitable puller if drive shaft cannot be separated from wheel
hub and bearing assembly.
11. Remove retaining bracket to support bearing bracket bolts.
12. Remove RH drive shaft from transaxle assembly. • Use Tool (A) and suitable tool (B) while inserting tip of tool
between housing and transaxle assembly.
CAUTION:
Do not place drive shaft join t at an extreme angle when
removing drive shaft. Do not overextend slide joint.
13. Remove the differential side oil seal. Refer to TM-197, "Removal
and Installation" (REOF10D), TM-398, "Removal and Installa-
tion" (REOF10E).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not use power tools to tighten wheel hub lock nut.
• Do not reuse the cotter pin or the wheel hub lock nut.
• Install a new differential side oil seal. Refer to TM-197, "Removal and Installation"
(REOF10D), TM-398,
"Removal and Installation" (REOF10E).
SDIA1480E
JPDIG0070ZZ
Tool number (A) : KV40107500 ( — )
JPDIF0004ZZ
Revision: November 20132014 Altima NAM

Page 2466 of 4801

NISSAN TEANA 2014 Service Manual
FAX-14
< REMOVAL AND INSTALLATION >
FRONT DRIVE SHAFT
- In order to prevent damage to differential side oil seal, place Tool(A) onto oil seal before inserting drive shaft as shown. Slide drive
shaft

Page 2467 of 4801

NISSAN TEANA 2014 Service Manual
FRONT DRIVE SHAFTFAX-15
< UNIT DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
UNIT DISASSEMBLY AND ASSEMBLY
FRONT DRIVE SHAFT

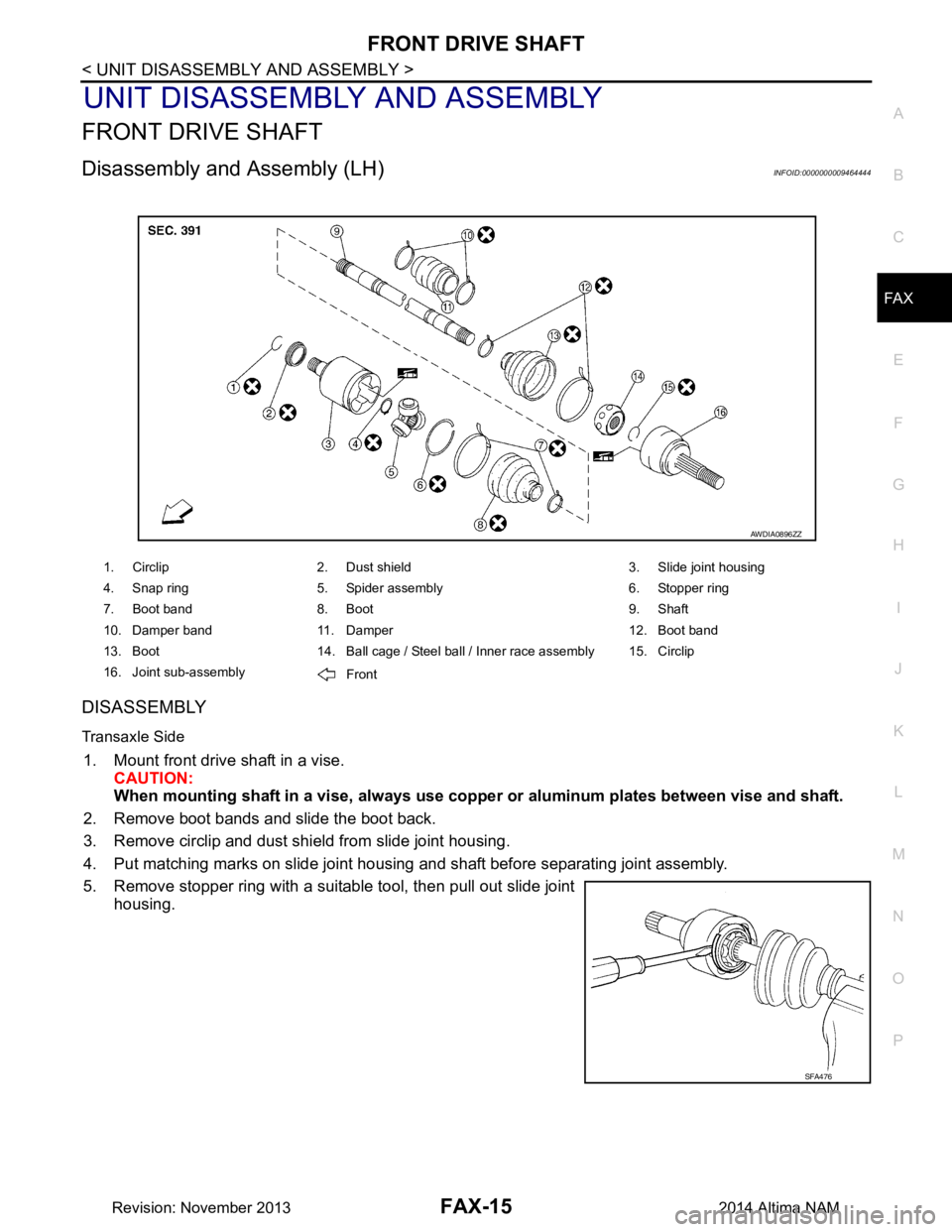

Disassembly and Assembly (LH)INFOID:0000000009464444
DISASS

Page 2468 of 4801

NISSAN TEANA 2014 Service Manual
FAX-16
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT DRIVE SHAFT

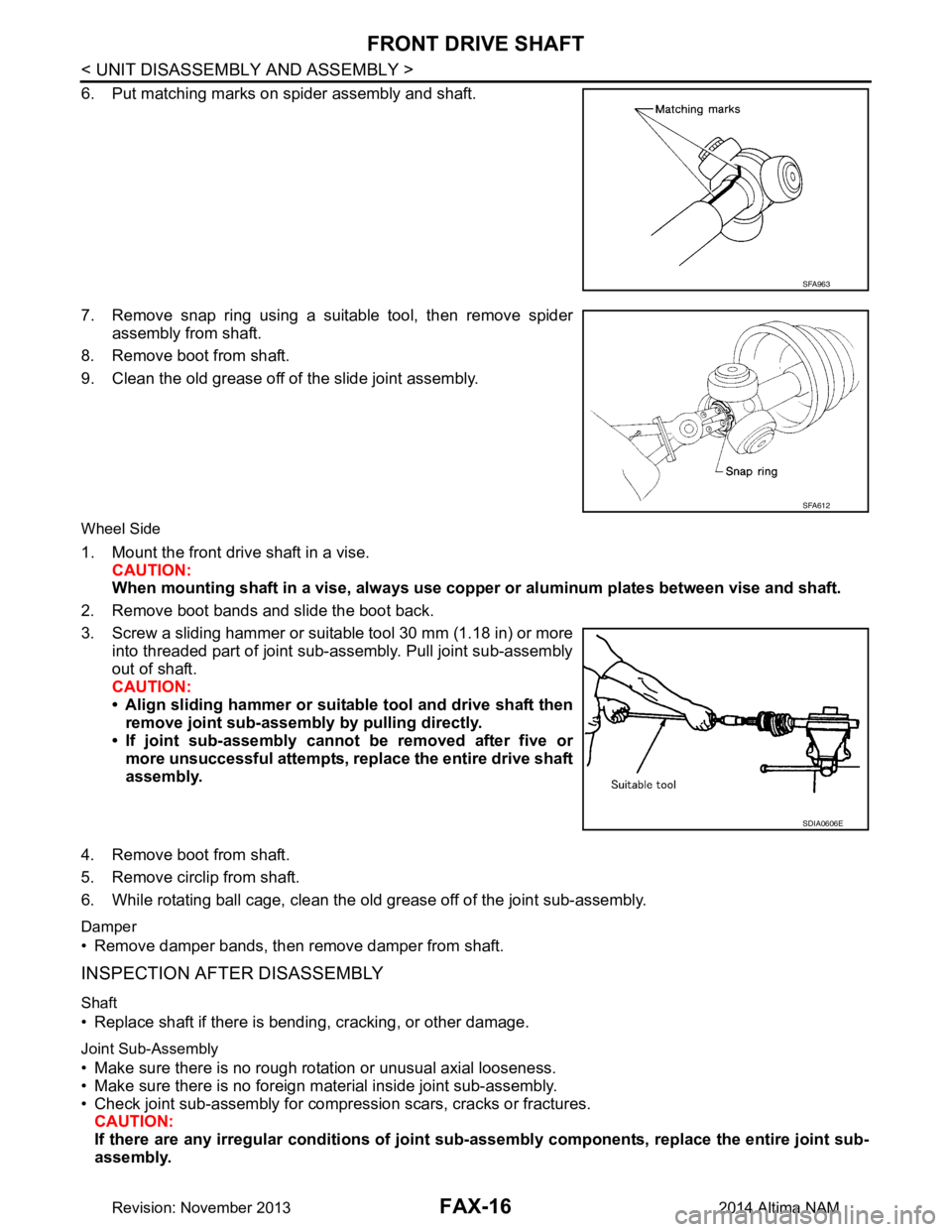

6. Put matching marks on spider assembly and shaft.
7. Remove snap ring using a suitable tool, then remove spider assembly from shaft.
8. R

Page 2469 of 4801

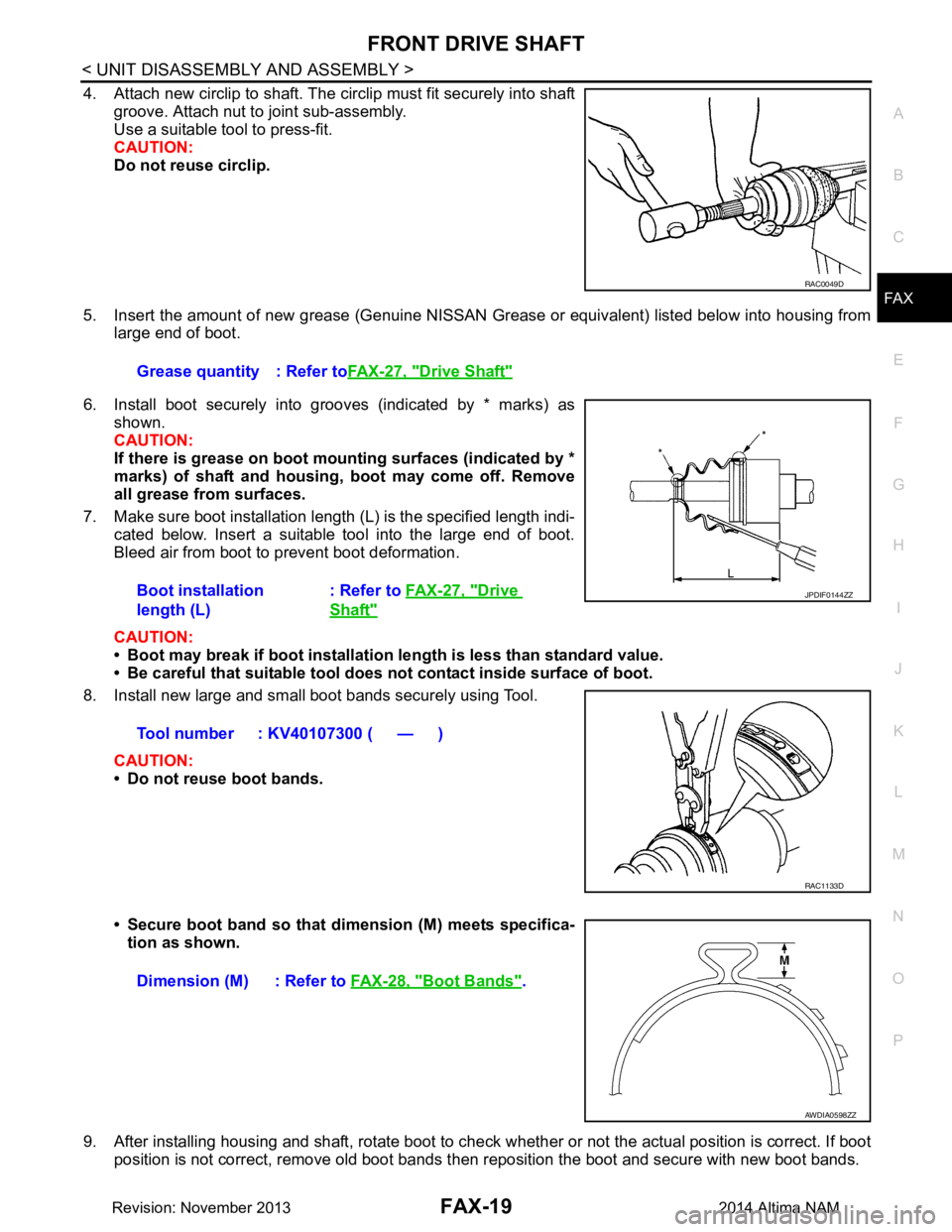

$NISSAN TEANA 2014 Service Manual FRONT DRIVE SHAFTFAX-17 < UNIT DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B FA X N O P Slide Joint Housing • Make sure there are no compression scars, cracks or fractures or unusual wear of b$

Page 2470 of 4801

NISSAN TEANA 2014 Service Manual
FAX-18
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT DRIVE SHAFT

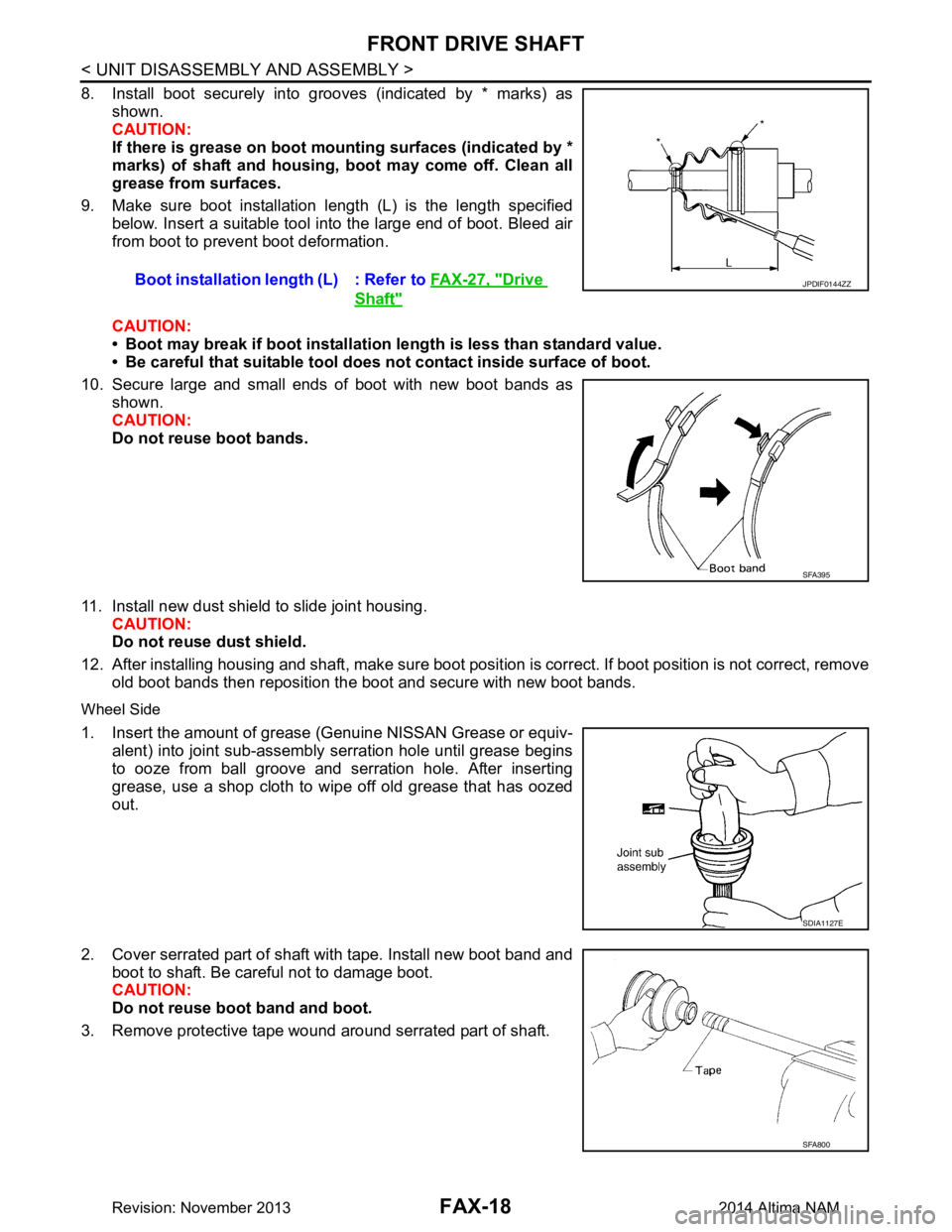

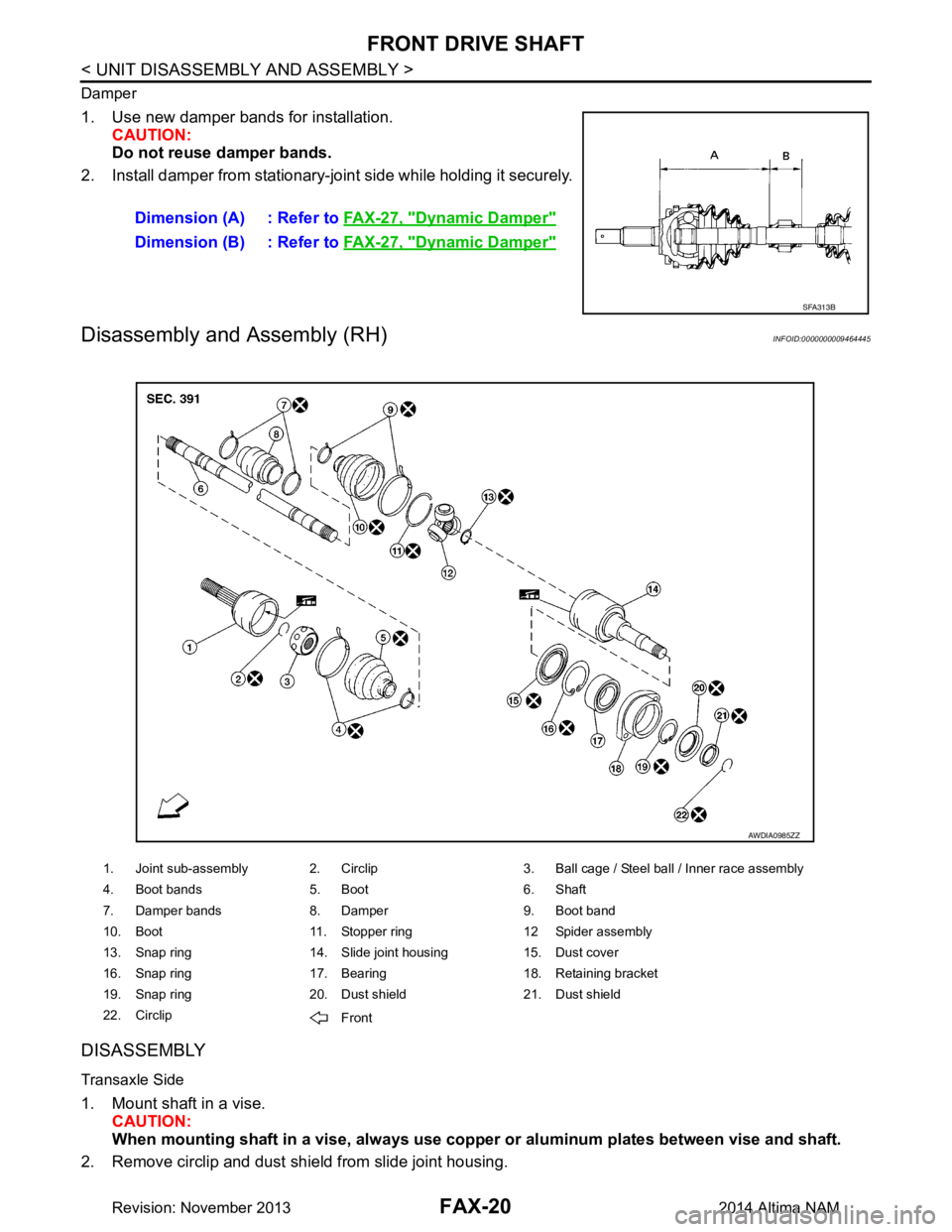

8. Install boot securely into grooves (indicated by * marks) asshown.
CAUTION:
If there is grease on boot mounting surfaces (indicated by

Page 2471 of 4801

NISSAN TEANA 2014 Service Manual
FRONT DRIVE SHAFTFAX-19
< UNIT DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
4. Attach new circlip to shaft. The circlip must fit securely into shaft groove. Attach nut to joint sub-as

Page 2472 of 4801

NISSAN TEANA 2014 Service Manual
FAX-20
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT DRIVE SHAFT
Damper
1. Use new damper bands for installation.CAUTION:
Do not reuse damper bands.
2. Install damper from stationary-joint side while hold
