Page 1161 of 4801

NISSAN TEANA 2014 Service Manual
ENGINE CONTROL SYSTEMEC-161
< WIRING DIAGRAM > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

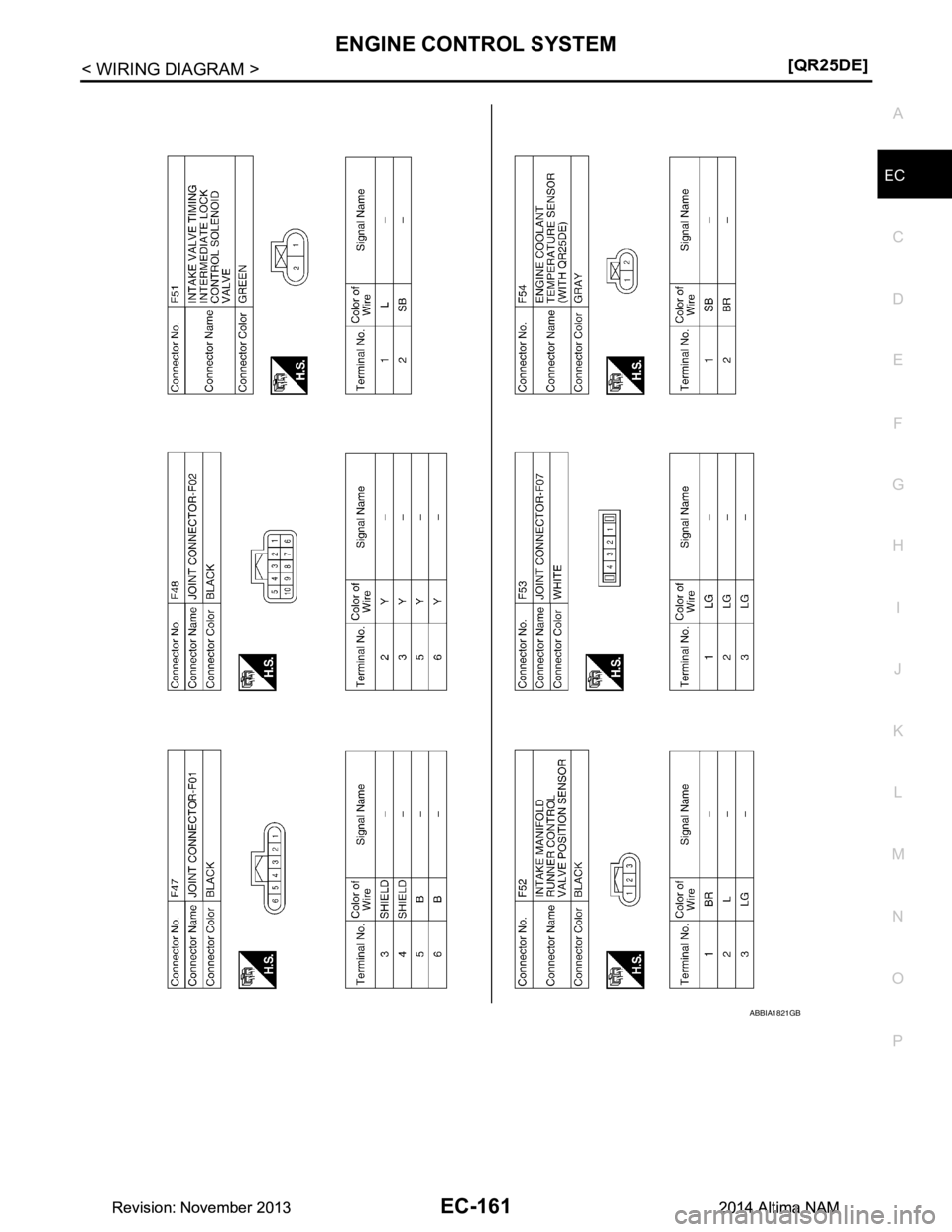

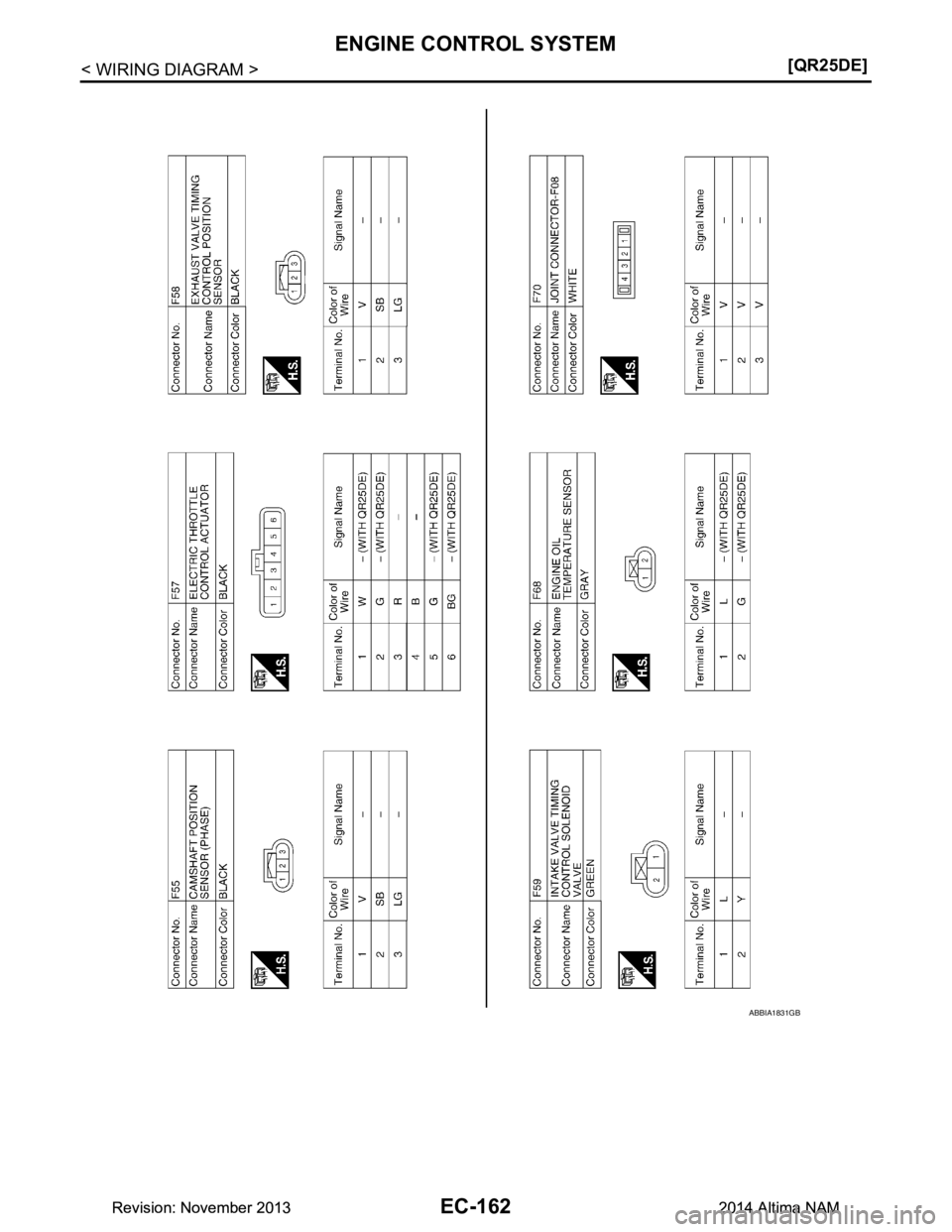

ABBIA1821GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1162 of 4801

NISSAN TEANA 2014 Service Manual
EC-162
< WIRING DIAGRAM >[QR25DE]
ENGINE CONTROL SYSTEM

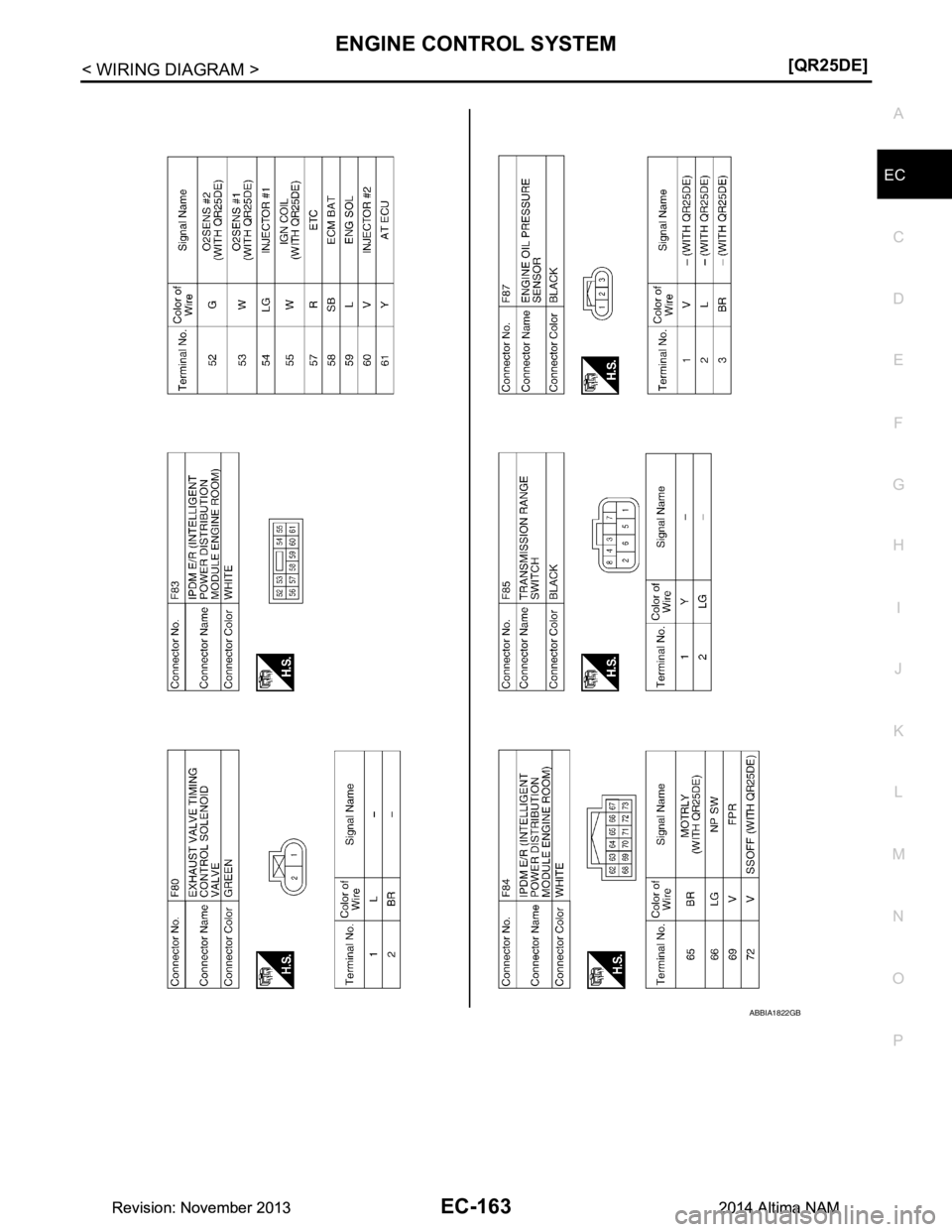

ABBIA1831GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1163 of 4801

NISSAN TEANA 2014 Service Manual
ENGINE CONTROL SYSTEMEC-163
< WIRING DIAGRAM > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
ABBIA1822GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1164 of 4801

NISSAN TEANA 2014 Service Manual
EC-164
< WIRING DIAGRAM >[QR25DE]
ENGINE CONTROL SYSTEM
ABBIA1823GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1165 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS AND REPAIR WORKFLOWEC-165
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000009462127

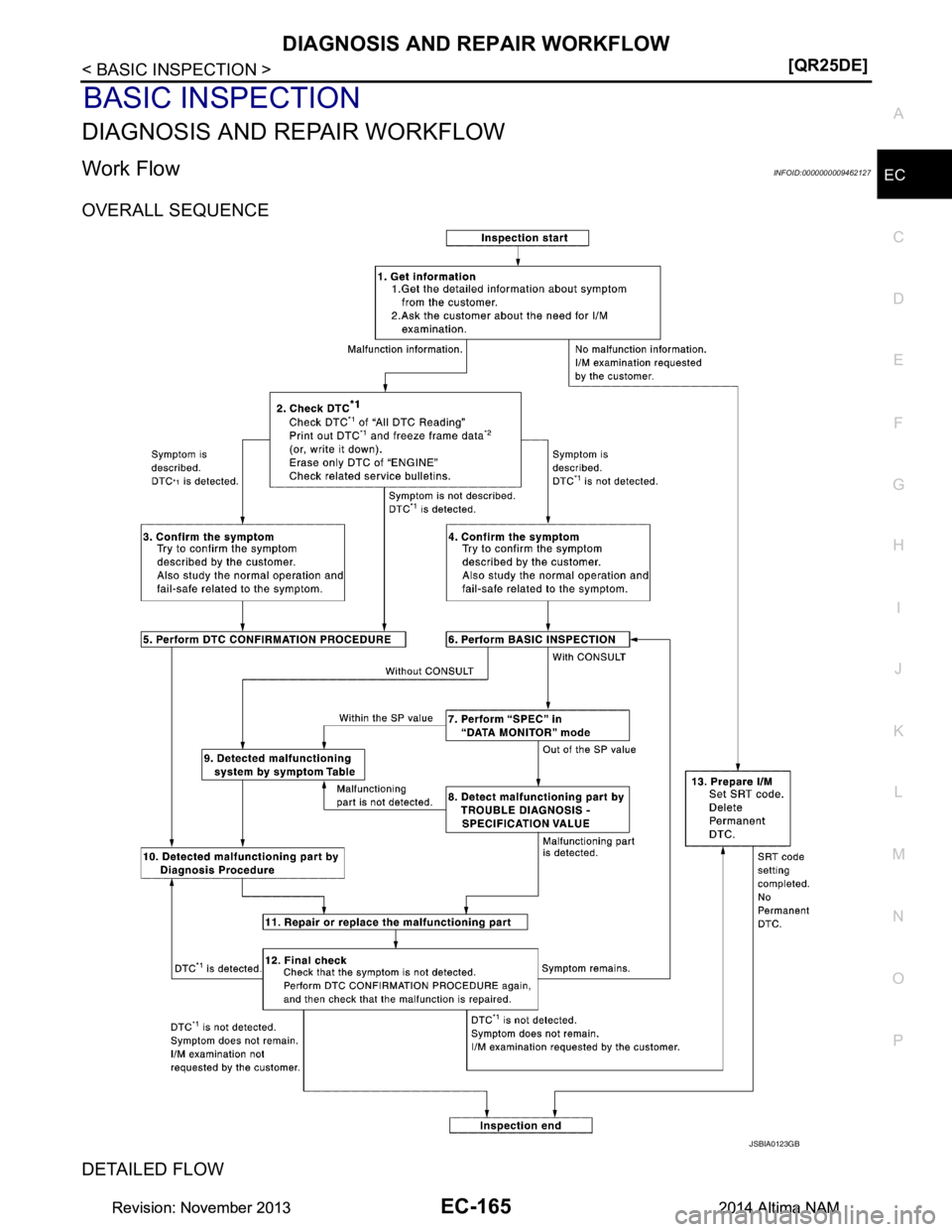

OVERALL SEQUENCE
DE

Page 1166 of 4801

NISSAN TEANA 2014 Service Manual
EC-166
< BASIC INSPECTION >[QR25DE]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
1. Get the detailed information from the customer about the symptom (the condition and the environment

EC-166
< BASIC INSPECTION >[QR25DE]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
1. Get the detailed information from the customer about the symptom (the condition and the environment
when the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to EC-168, "Diagnostic
Work Sheet".)
2. Ask if the customer requests I/M examination.
Malfunction information, obtained>>GO TO 2.
No malfunction information, but a request for I/M examination>>GO TO 13.
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data. (Print them out with CONSULT or GST.)
- Erase only DTC of “ENGINE”.
With CONSULT: “How to Erase DTC and 1st Trip DTC” in EC-77, "CONSULT Function"
.
Without CONSULT: “How to Erase Self-diagnostic Results” in EC-74, "On Board Diagnosis Function"
.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
(Symptom Matrix Chart is useful. Refer to EC-527, "Symptom Table"
.)
3. Check related service bulletins for information.
Are any symptoms described and any DTCs detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer (except MIL ON).
Also study the normal operation and fail-s afe related to the symptom. Refer to EC-533, "Description"
and EC-
101, "Fail Safe".
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe re lated to the symptom. Refer to Refer to EC-533, "Description"
and EC-101, "Fail Safe".
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the disp layed DTC, and then check that DTC is detected
again.
If two or more DTCs are detected, refer to EC-104, "DTC Inspection Priority Chart"
and determine trouble
diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIR MATION PROCEDURE is not included on Service
Manual. This simplified check procedure is an effect ive alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.
Is DTC detected?
YES >> GO TO 10.
NO >> Check according to GI-43, "Intermittent Incident"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1167 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS AND REPAIR WORKFLOWEC-167
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
6.PERFORM BASIC INSPECTION
Perform EC-170, "Work Procedure"
.
Do you have CONSULT?
YES >> GO TO 7.

DIAGNOSIS AND REPAIR WORKFLOWEC-167
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
6.PERFORM BASIC INSPECTION
Perform EC-170, "Work Procedure"
.
Do you have CONSULT?
YES >> GO TO 7.
NO >> GO TO 9.
7.PERFORM SPEC IN DATA MONITOR MODE
With CONSULT
Check that “MAS A/F SE-B1”, “MAS A/F SE-B2”, “B/FUEL SCHDL”, “A/F ALPHA-B1” and “A/F ALPHA-B2”
are within the SP value using “SPEC” in “D ATA MONITOR” mode with CONSULT. Refer to EC-195, "Compo-
nent Function Check".
Is the measurement value within the SP value?
YES >> GO TO 9.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROU BLE DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-196, "Diagnosis Procedure"
.
Is a malfunctioning part detected?
YES >> GO TO 11.
NO >> GO TO 9.
9.DETECT MALFUNCTIONING SY STEM BY SYMPTOM TABLE
Detect malfunctioning system according to EC-527, "Symptom Table"
based on the confirmed symptom in
step 4, and determine the trouble diagnosis or der based on possible causes and symptoms.
>> GO TO 10.
10.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Inspect according to Diagnosis Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to GI-46, "Circuit Inspec-
tion".
Is a malfunctioning part detected?
YES >> GO TO 11.
NO >> Monitor input data from related sensors or check voltage of related ECM terminals using CON-
SULT. Refer to EC-88, "Reference Value"
.
11 .REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it. Refer to the following.
With CONSULT: “How to Erase DTC and 1st Trip DTC” in EC-77, "CONSULT Function"
.
Without CONSULT: “How to Erase Self-diagnostic Results” in EC-74, "On Board Diagnosis Function"
.
>> GO TO 12.
12.FINAL CHECK
When DTC was detected in step 2, perform DTC CO NFIRMATION PROCEDURE or Component Function
Check again, and then check that the malfunction have been completely repaired.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that
the symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 10.
YES-2 >> Symptom remains: GO TO 6.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1168 of 4801

NISSAN TEANA 2014 Service Manual
EC-168
< BASIC INSPECTION >[QR25DE]
DIAGNOSIS AND REPAIR WORKFLOW
NO-1 >> No request for I/M examination from the custom
er: Before returning the vehicle to the customer,
always erase unnecessary DTC
