ENGINE ASSEMBLYEM-83
< UNIT REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
UNIT REMOVAL AND INSTALLATION
ENGINE ASSEMBLY

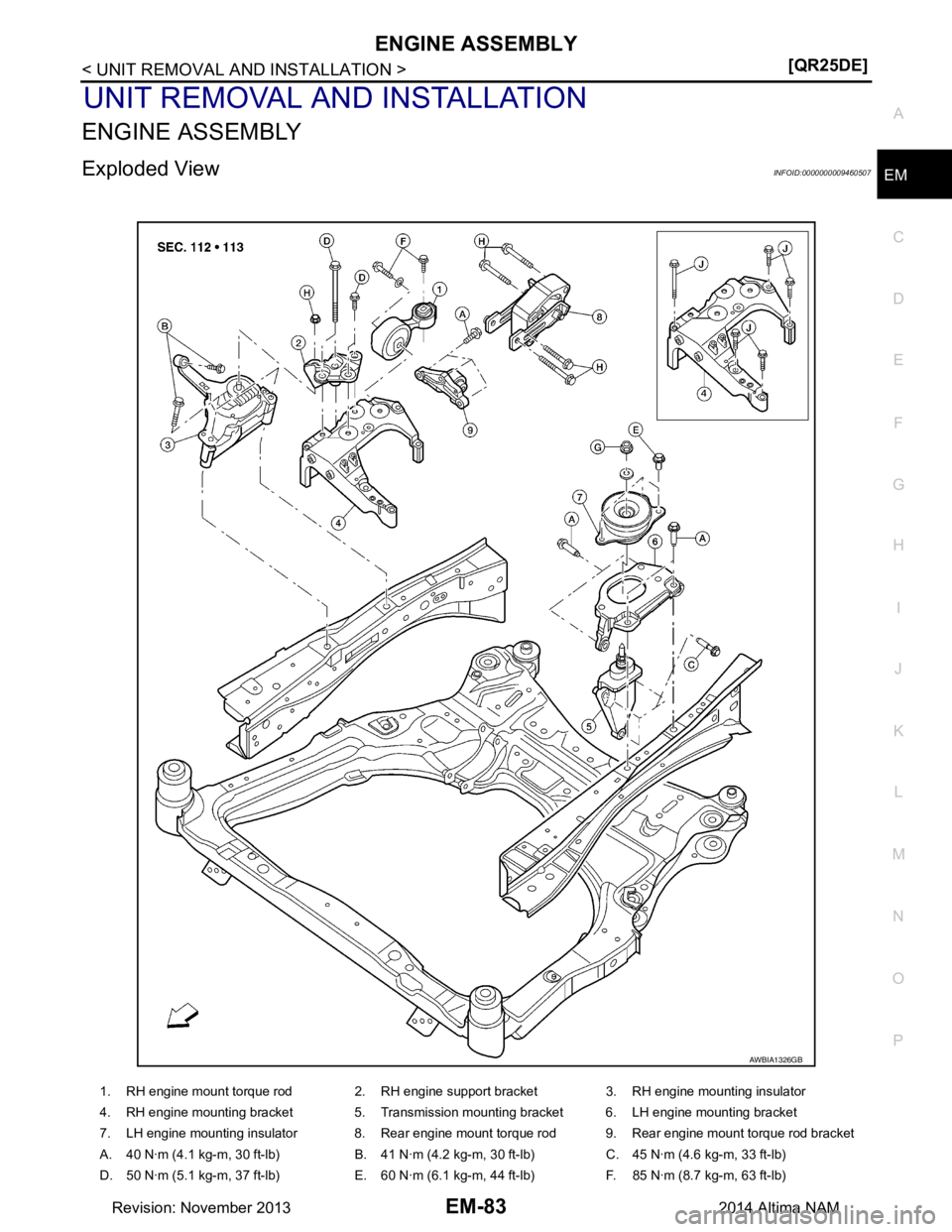

Exploded ViewINFOID:0000000009460507
AWBIA1326GB
1. RH e

Page 2082 of 4801

NISSAN TEANA 2014 Service Manual
EM-84
< UNIT REMOVAL AND INSTALLATION >[QR25DE]
ENGINE ASSEMBLY
Removal and Installation
INFOID:0000000009460508
WARNING:
• Place chocks at the front and back of the rear wheels.
• For engines n

EM-84
< UNIT REMOVAL AND INSTALLATION >[QR25DE]
ENGINE ASSEMBLY
Removal and Installation
INFOID:0000000009460508
WARNING:
• Place chocks at the front and back of the rear wheels.
• For engines not equipped with slin gers, attach proper slingers and bolts as described in the Parts
Catalog.
CAUTION:
• Do not start working until the exh aust system and coolant are cool.
• If items or work required are not covered by the en gine main body section, follow the applicable pro-
cedures.
• Use the correct supporting points for lifting and jacking. Refer to GI-33, "Garage Jack and Safety
Stand".
• In removing the drive shaft, be careful not to damage the grease seals on the transaxle.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
REMOVAL
1. Remove engine cover using power tool. Refer to EM-28, "Removal and Installation".
2. Release fuel pressure. Refer to EC-182, "Work Procedure"
.
3. Disconnect the negative and positive battery terminal. Refer to PG-73, "Removal and Installation (Bat-
tery)".
4. Disconnect the fuel rail at the fuel hose quick connector (engine side). Refer to EM-41, "Removal and
Installation".
5. Drain the engine coolant. Refer to CO-12, "Changing Engine Coolant"
.
6. Remove the engine under cover. Refer to EXT-28, "Removal and Installation"
.
7. Remove hood assembly. Refer to DLK-170, "HOOD ASSEMBLY : Removal and Installation"
.
8. Remove core support cover.
9. Remove the front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
10. Remove battery and battery tray. Refer to PG-74, "Removal and Installation (Battery Tray)"
.
11. Remove cowl top. Refer to EXT-24, "Removal and Installation"
.
12. Remove strut brace. Refer to FSU-19, "Exploded View"
.
13. Disconnect EVAP hose and vacuum hose from intake manifold.
14. Remove upper and lower radiator hoses (engine side).
15. Remove CVT cooler lines.
16. Disconnect engine room harness connecto r at the CVT and ECM connectors.
CAUTION:
Protect the harness connector with plastic bags or suitable covering to help prevent damage and
intrusion of foreign mate rials into the connectors.
17. Remove the brake booster vacuum hose.
18. Disconnect the heater hoses.
19. Remove the front wheels and tires using a power tool. Refer to WT-55, "Adjustment"
.
20. Remove the fender protector side covers (RH) and (LH). Refer to EXT-26, "FENDER PROTECTOR :
Removal and Installation".
21. Remove tie rod ends from the steering knuckles. Refer to ST-36, "Removal and Installation"
.
22. Remove the power steering gear bolts and support the power steering gear. Refer to ST-36, "Exploded
View".
23. Remove rear cover plate.
24. Remove the torque converter nuts.
25. Remove the rear engine mount torque rod.
26. Remove front exhaust tube and gaskets. Refer to EX-5, "Exploded View"
.
G. 90 N·m (9.2 kg-m, 66 ft-lb) H. 103 N·m (11 kg-m, 76 ft-lb) J. Follow installation procedure
Front
Revision: November 20132014 Altima NAM

Page 2083 of 4801

NISSAN TEANA 2014 Service Manual
ENGINE ASSEMBLYEM-85
< UNIT REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
27. Remove the LH and RH drive shafts. Refer to
FAX-10, "Removal and Installation (LH)", FAX-12, "Rem

ENGINE ASSEMBLYEM-85
< UNIT REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
27. Remove the LH and RH drive shafts. Refer to
FAX-10, "Removal and Installation (LH)", FAX-12, "Removal
and Installation (RH)".
28. Remove the drive belt. Refer to EM-19, "Removal and Installation"
.
29. Remove the front suspension member. Refer to FSU-20, "Removal and Installation"
.
30. Remove the A/C compressor with piping connected and support using suitable wire.
31. Disconnect the transaxle shift controls. Refer to TM-407, "Removal and Installation"
.
32. Install engine slingers into the rear of the cylinder head (A) and front engine mounting bracket holes (B).
• Use engine mounting bolt holes for front slinger.
• Use the holes in the rear of the cylinder head for the rear
slinger.
33. Support engine and transaxle assembly with engine lifti ng equipment from the top with the vehicle raised
on a hoist.
34. Remove the RH engine mount torque rod, RH engine support bracket and RH engine mounting insulator and bracket.
35. Remove LH transaxle mounting insulator through-bolts.
36. Lower the engine and transaxle assembly from the engine compartment using suitable tool.
CAUTION:
• Before and during this procedure, alw ays check if any harnesses are left connected.
• Avoid any damage to, or any oil/grease smearing or spills onto the engine mounting insulators.
37. Remove the starter motor. Refer to STR-22, "QR25DE : Removal and Installation"
.
38. Remove engine and transaxle harness.
39. Separate engine and transaxle. Refer to TM-206, "Exploded View"
.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Tighten the transmission bolts to specification. Refer to TM-407, "Removal and Installation"
.
• Do not allow oil to get on mounting insulators. Be careful not to damage mounting insulators.
• If parts have a direction mark (arrow) this indicates front of the vehicle, and the parts must be installed
according to the identification mark.
• Install the RH engine mounting bracket bolts in the following steps:
- First install bolts (A) and (B) loosely.
- Install and tighten the five RH engine mounting bracket bolts to specification in the order as shown.
- : Front
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-11, "FOR USA AND CANADA : Fluids and Lubricants"
.
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak- age at connection points.
• Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration. Slinger bolts (A) : 28 N·m (2.8 kg-m, 21 ft-lb)
Slinger bolts (B) : 48 N·m (4.9 kg-m, 35 ft-lb))
AWBIA1363ZZ
RH engine mounting bracket bolt : 48.2 N·m (4.9 kg-m, 36 ft-lb)
ALBIA0541ZZ
Revision: November 20132014 Altima NAM

Page 2084 of 4801

NISSAN TEANA 2014 Service Manual
EM-86
< UNIT REMOVAL AND INSTALLATION >[QR25DE]
ENGINE ASSEMBLY
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide
may generate a pou

Page 2085 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-87
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
UNIT DISASSEMBLY AND ASSEMBLY
CYLINDER BLOCK
Exploded ViewINFOID:0000000009460509
AWBIA1327GB
1. Cylind

Page 2086 of 4801

NISSAN TEANA 2014 Service Manual
EM-88
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
Disassembly and Assembly
INFOID:0000000009460510
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
NO

EM-88
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
Disassembly and Assembly
INFOID:0000000009460510
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
NOTE:
The following procedures explain how to disassem ble the engine with the engine stand fastened to the bell
housing. Some steps may be different if using a different type of engine stand.
DISASSEMBLY
1. Remove the engine and transaxle as an assembly from the vehicle, and separate the transaxle from the
engine. Refer to EM-84, "Removal and Installation"
.
2. Remove the drive plate. Hold the crankshaft using Tool (A) and use a suitable tool to remove the bolts.
3. Remove pilot converter using Tool.
4. Remove the rear oil seal. Refer to EM-72, "Removal and Installation of Rear Oil Seal"
.
5. Mount the engine on a suitable engine stand (A). CAUTION:
• Use an engine stand that has a load capacity large
enough for supporting the engine weight [approximately
135 kg (298 lb) or more].
• Before removing the hanging chains, check the engine
stand is stable and there is no risk of overturning.
NOTE:
The figure shows an example of widely used engine stand (A)
that can support mating surface of transaxle with drive plate
removed.
• Remove the following parts if the engine stand load capacity is not adequate, to reduce the potential risk of overturning stand:
- Intake manifold. Refer to EM-30, "Removal and Installation"
.
- Exhaust manifold. Refer to EM-33, "Removal and Installation"
.
- Rocker cover. Refer to EM-45, "Removal and Installation"
.
6. Drain any remaining engine oil and coolant from the engine.
7. Remove the exhaust manifold and three way catalyst assembly. Refer to EM-33, "Removal and Installa-
tion".
8. Remove the intake manifold and fuel tube assembly. Refer to EM-30, "Removal and Installation"
.
28. Oil level gauge guide 29. Oil level gauge 30. O-ring
A. Follow assembly procedure
Tool Number : KV11105210 (J-44716)
PBIC3226J
Tool Number : ST16610001 (J-23907)
WBIA0483E
PBIC3227J
Revision: November 20132014 Altima NAM

Page 2087 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-89
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
9. Remove the ignition coils. Refer to
EM-40, "Removal and Installation".
10. Remove the rocker cover.

CYLINDER BLOCKEM-89
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
9. Remove the ignition coils. Refer to
EM-40, "Removal and Installation".
10. Remove the rocker cover. Refer to EM-45, "Removal and Installation"
.
11. Remove the front cover, timing chain, and balancer unit. Refer to EM-62, "Removal and Installation"
.
12. Remove the cylinder head. Refer to EM-74, "Removal and Installation"
.
13. Remove oil cooler. Refer to LU-16, "Exploded View"
.
14. Remove the knock sensor. CAUTION:
Carefully handle the sensor and do not drop the sensor.
15. Remove crankshaft position sensor (POS) (2) and O-ring (1).
CAUTION:
• Avoid impacts such as a dropping.
• Do not disassemble.
• Keep it away from metal particles.
• Do not place sensor close to magnetic materials.
• Do not reuse O-ring.
16. Remove the piston and connecting rod assemblies.
a. Position the crankshaft and corresponding connecting rod, to be removed, to the bottom dead center stroke.
b. Remove the connecting rod cap. Number the cap so it can be assembled in the same position.
c. Using a hammer handle or similar tool, push the piston and con- necting rod assembly out of the top of the cylinder block. Num-
ber the piston and rod so it can be assembled in the same
position.
• Before removing the piston and connecting rod assembly,
check the connecting rod side clearance. Refer to EM-96,
"Inspection After Disassembly".
17. Remove the connecting rod bearings. If reusing, num ber them so they can be assembled in the same
position and direction.
CAUTION:
• When removing them, note the installation position. Keep them in the correct order.
18. Remove the piston rings from the piston. • Use a piston ring expander.
• Before removing the piston rings, check the piston ring side
clearance. Refer to EM-96, "Inspection After Disassembly"
.
CAUTION:
• When removing the piston rings, be careful not to damage
the piston.
• Be careful not to damage piston rings by expanding them excessively, if reusing them.
: Engine front
AWBIA1332GB
PBIC0259E
PBIC0087E
Revision: November 20132014 Altima NAM

Page 2088 of 4801

NISSAN TEANA 2014 Service Manual
EM-90
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
19. Remove the piston from the connecting rod as follows.
a. Using a snap ring pliers, remove the two snap rings.
b. Heat the piston
