Page 3585 of 4801

NISSAN TEANA 2014 Service Manual
PWC-78
< ECU DIAGNOSIS INFORMATION >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH
Reference Value INFOID:0000000009460902
TERMINAL LAYOUT
PHYSICAL VALUES
MAIN POWER WI

Page 3586 of 4801

NISSAN TEANA 2014 Service Manual
POWER WINDOW MAIN SWITCHPWC-79
< ECU DIAGNOSIS INFORMATION > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
Fail SafeINFOID:0000000009460903
FAIL-SAFE CONTROL
Switches to fail-safe co

POWER WINDOW MAIN SWITCHPWC-79
< ECU DIAGNOSIS INFORMATION > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
Fail SafeINFOID:0000000009460903
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe cont rol when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.
10
(BR) Ground RAP signal Input IGN SW ON Battery voltage
Within 45 second after ig-
nition switch is turned to
OFF. Battery voltage
When front LH or RH door
is opened during retained
power operation. 0
11
(P) Ground Power window serial link
Input/
Output IGN SW ON or power win-
dow timer operating.
12
(P) Ground Encoder ground — — 0
14
(LG) Ground Encoder power supply Output When ignition switch ON or
power window timer oper-
ates. 10
15
(G) Ground Door key cylinder switch LH
UNLOCK signal InputKey position
(Neutral/Locked → Un-
locked) 5
→ 0
17
(W) 19
Front door power window mo-
tor LH UP signal OutputWhen front LH switch in
power window main switch
is operated UP. Battery voltage
18
(LG) Battery power supply Input — Battery voltage
19
(R) 17Front door power window mo-
tor LH DOWN signal OutputWhen front LH switch in
power window main switch
is operated DOWN. Battery voltage
Terminal No. Description
ConditionVo l ta g e
(Approx.)
+ - Signal name Input/
Output
JPMIA0013GB
Error Error condition
Pulse sensor malfunction When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function When both pulse signals have not been detected for more than the specified value during glass open/
close operation.
Pulse direction malfunction When the pulse signal that is detected during glass open/close operation detects the opposite condition
of power window motor operating direction.
Glass recognition position
malfunction 1 When it detects the error between glass fully closed position in power window switch memory and actual
fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2 When it detects pulse count more than the value of glass full stroke during glass open/close operation.
Malfunction of not yet up-
dated closed position of
glass When glass open/close operation is continuously performed without fully closing more than the specified
value (approximate ly 10 strokes).
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3587 of 4801

NISSAN TEANA 2014 Service Manual
PWC-80
< ECU DIAGNOSIS INFORMATION >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW MAIN SWITCH
It changes to condition before initialization and the fo
llowing functions do not operate when switched to fail

Page 3588 of 4801

NISSAN TEANA 2014 Service Manual
FRONT POWER WINDOW SWITCHPWC-81
< ECU DIAGNOSIS INFORMATION > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
FRONT POWER WINDOW SWITCH
Reference Value INFOID:0000000009460904
TERMINAL

Page 3589 of 4801

NISSAN TEANA 2014 Service Manual
PWC-82
< ECU DIAGNOSIS INFORMATION >[LH & RH FRONT ANTI-PINCH]
FRONT POWER WINDOW SWITCH

Fail SafeINFOID:0000000009460905
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is
detect

PWC-82
< ECU DIAGNOSIS INFORMATION >[LH & RH FRONT ANTI-PINCH]
FRONT POWER WINDOW SWITCH

Fail SafeINFOID:0000000009460905
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is
detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe cont rol when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.
It changes to condition before initialization and the fo llowing functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function
• Retained power function
Perform initial operation to recover when switched to fa il-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window switch or in motor.
11
(R) 12Power window motor
UP signal OutputWhen power window motor is
UP at operated. Battery voltage
12
(P) 11
Power window motor
DOWN signal Output
When power window motor is
DOWN at operated. Battery voltage
Terminal No. Description
ConditionVoltag e
(Approx.)
+ - Signal name Input/
Output
Error Error condition
Pulse sensor malfunction When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function When both pulse signals have not been detected for more than the specified value during glass open/
close operation.
Pulse direction malfunction When the pulse signal that is detected during glass open/close operation detects the opposite condition
of power window motor operating direction.
Glass recognition position
malfunction 1 When it detects the error between glass fully closed position in power window switch memory and actual
fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2 When it detects pulse count more than the value of glass full stroke during glass open/close operation.
Malfunction of not yet up-
dated closed position of
glass When glass open/close operation is continuously performed without fully closing more than the specified
value (approximately 10 strokes).
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3590 of 4801

NISSAN TEANA 2014 Service Manual
POWER WINDOW SYSTEMPWC-83
< WIRING DIAGRAM > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P

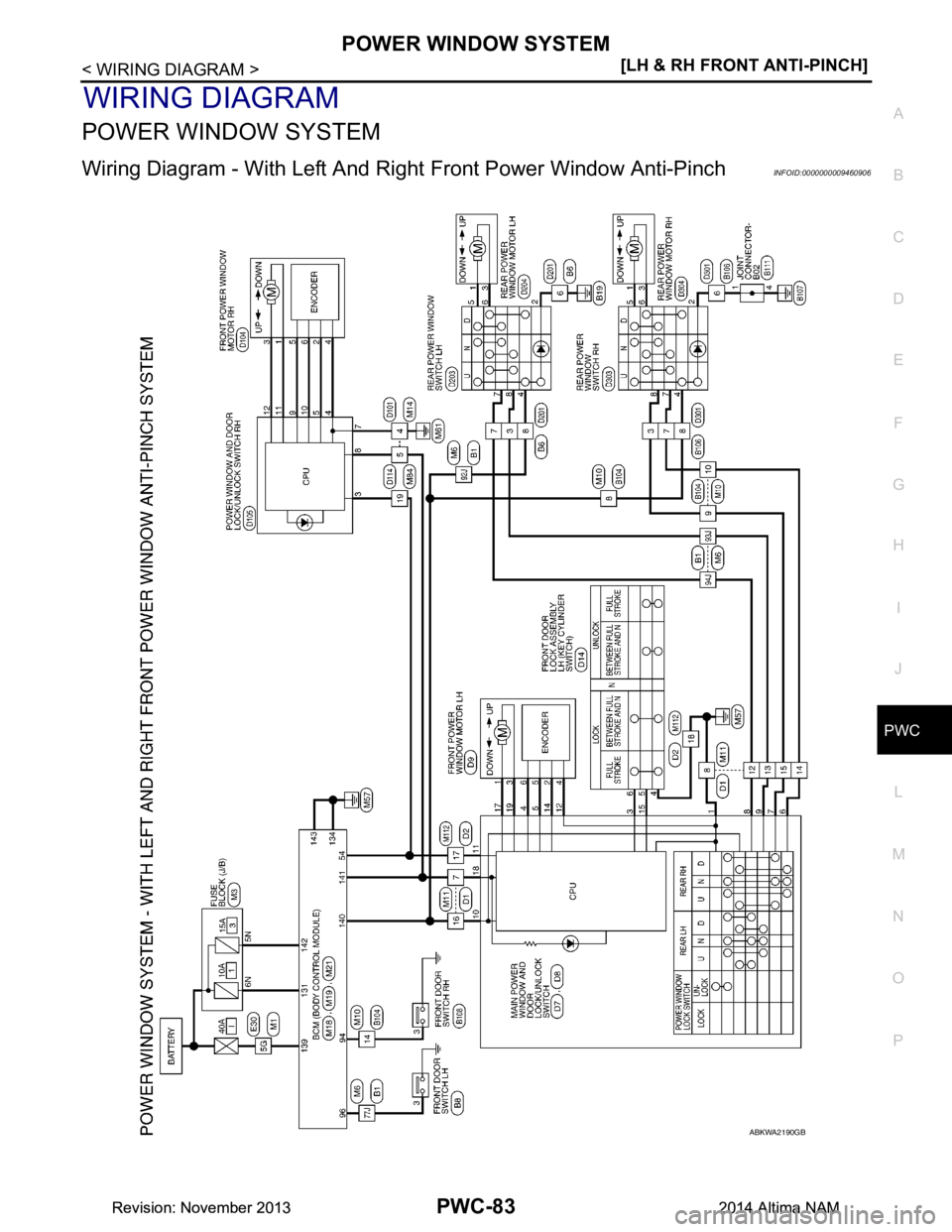

WIRING DIAGRAM
POWER WINDOW SYSTEM
Wiring Diagram - With Left And Rig ht Front Power Window

Page 3591 of 4801

NISSAN TEANA 2014 Service Manual
PWC-84
< WIRING DIAGRAM >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW SYSTEM
ABKIA3682GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

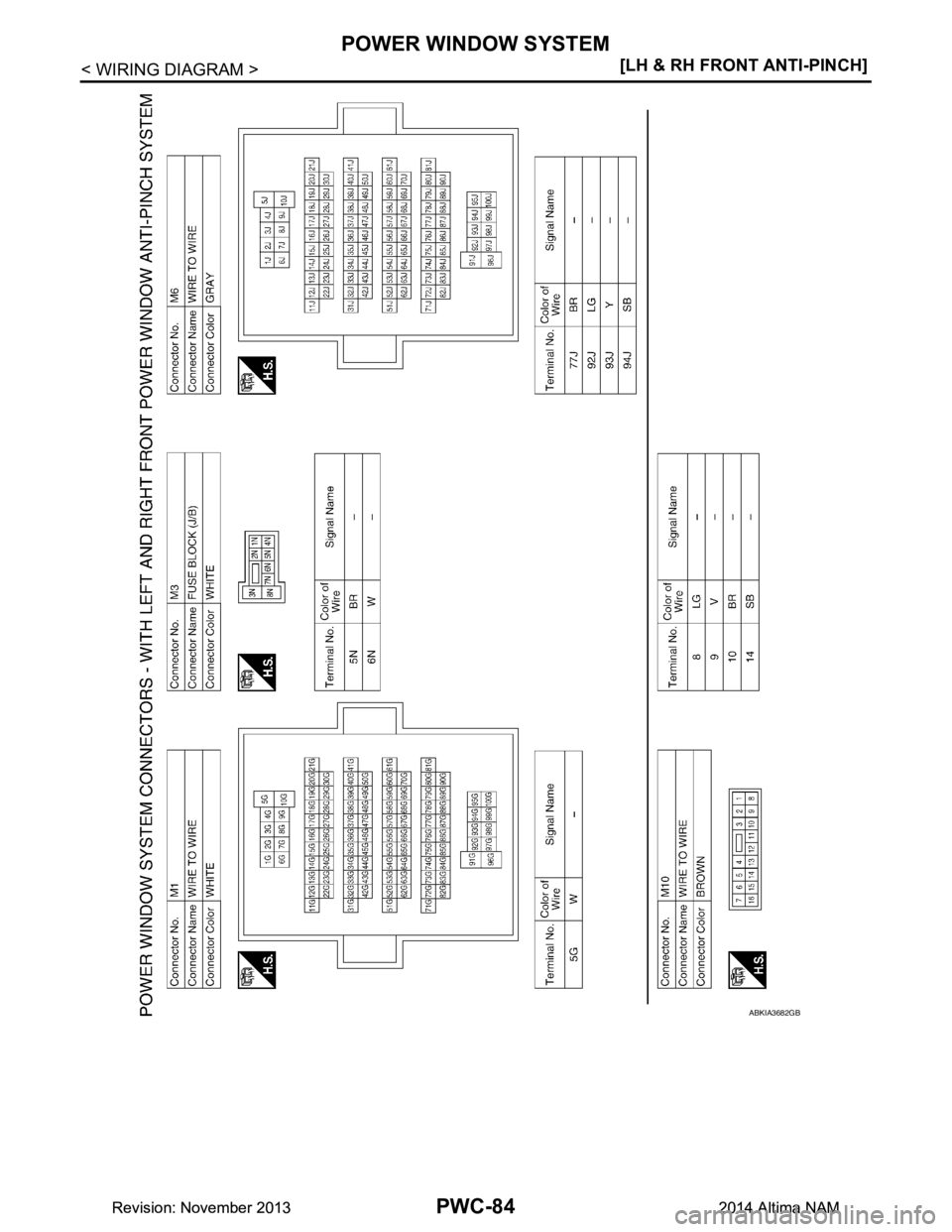

Page 3592 of 4801

NISSAN TEANA 2014 Service Manual
POWER WINDOW SYSTEMPWC-85
< WIRING DIAGRAM > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
ABKIA4846GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
