Page 2785 of 4801

NISSAN TEANA 2014 Service Manual

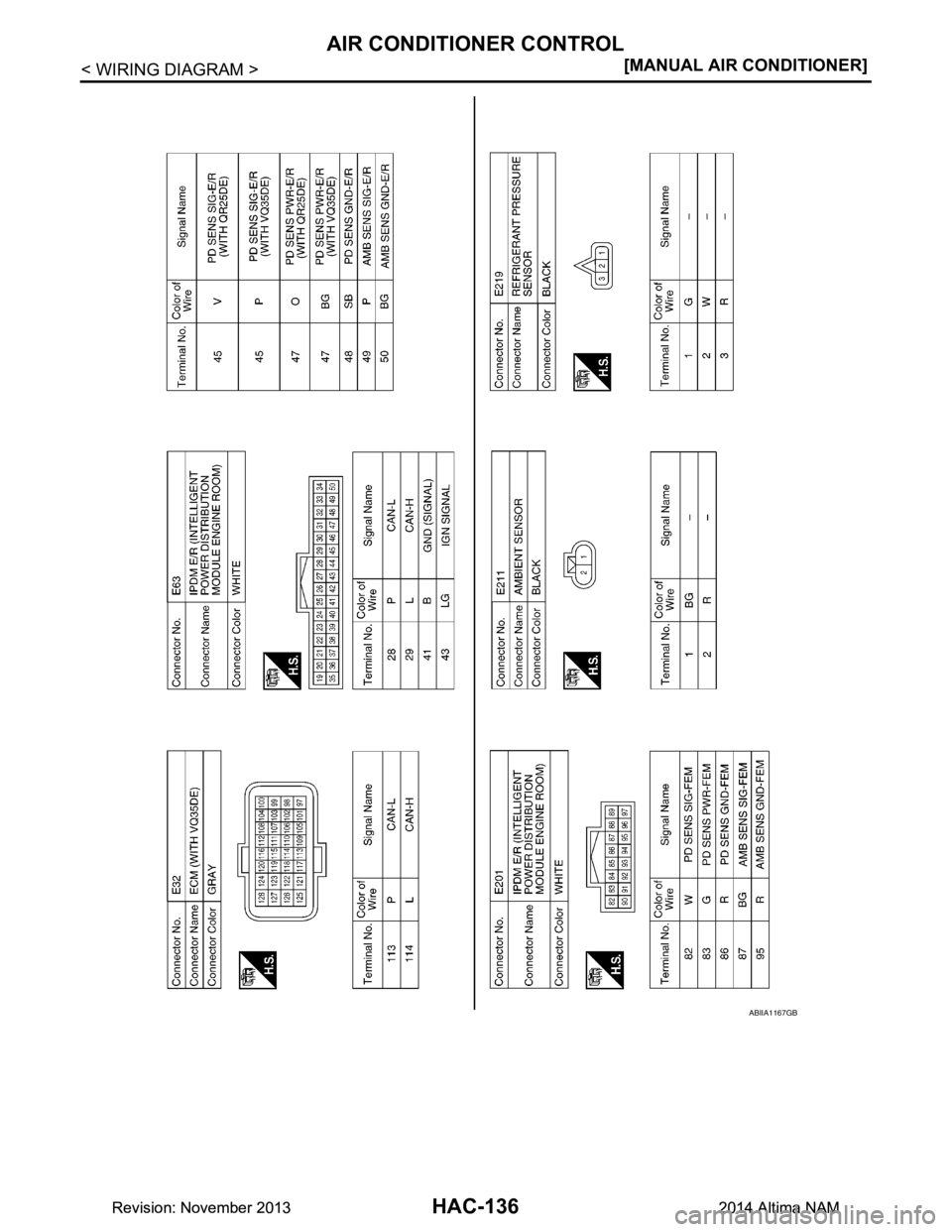

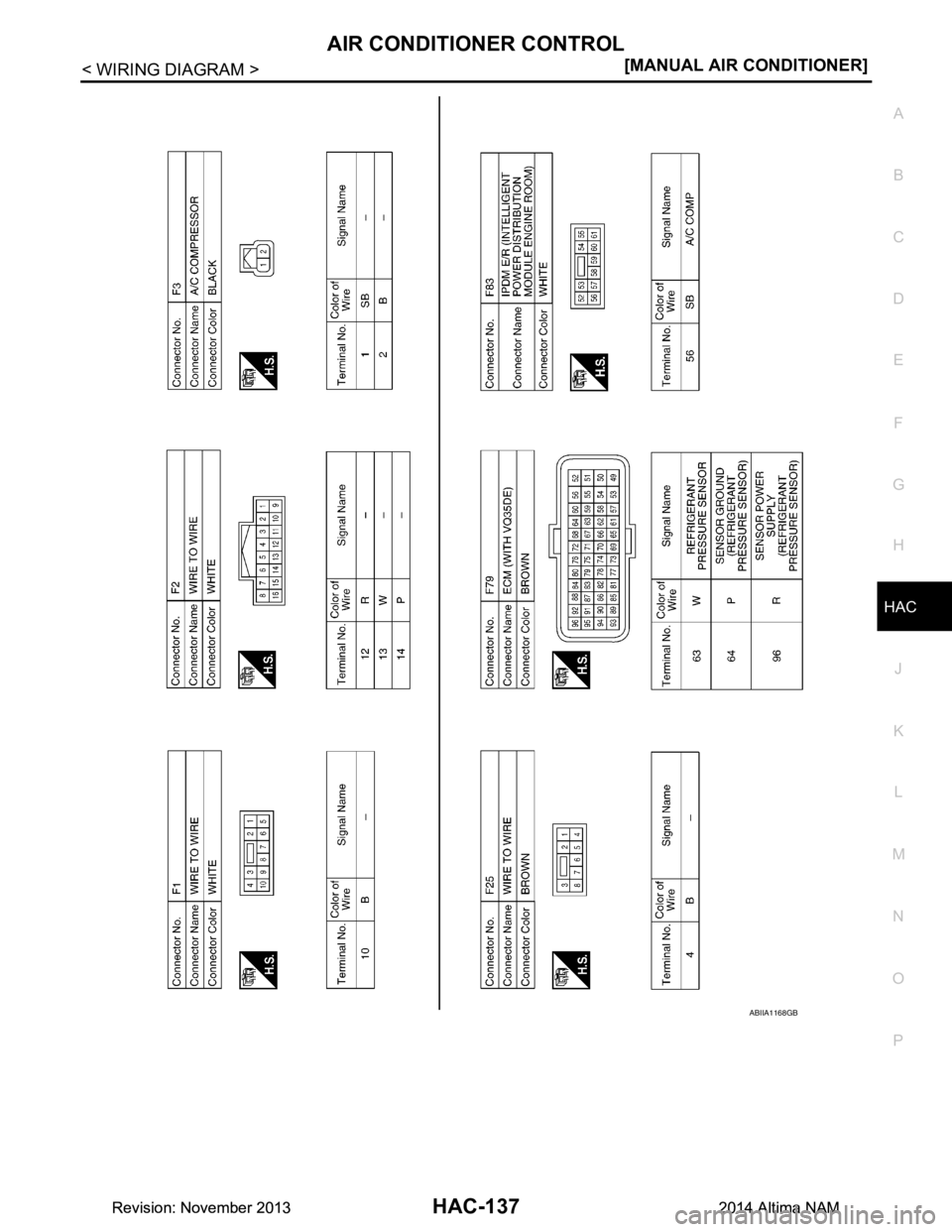

HAC-136
< WIRING DIAGRAM >[MANUAL AIR CONDITIONER]
AIR CONDITIONER CONTROL
ABIIA1167GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 2786 of 4801

NISSAN TEANA 2014 Service Manual
AIR CONDITIONER CONTROLHAC-137
< WIRING DIAGRAM > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
ABIIA1168GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 2787 of 4801

NISSAN TEANA 2014 Service Manual
HAC-138
< WIRING DIAGRAM >[MANUAL AIR CONDITIONER]
AIR CONDITIONER CONTROL
ABIIA1091GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 2788 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS AND REPAIR WORKFLOWHAC-139
< BASIC INSPECTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000009463209

Page 2789 of 4801

NISSAN TEANA 2014 Service Manual
HAC-140
< BASIC INSPECTION >[MANUAL AIR CONDITIONER]
OPERATION INSPECTION
OPERATION INSPECTION
Work ProcedureINFOID:0000000009463210
DESCRIPTION
The purpose of the operational check is to che
ck that

HAC-140
< BASIC INSPECTION >[MANUAL AIR CONDITIONER]
OPERATION INSPECTION
OPERATION INSPECTION
Work ProcedureINFOID:0000000009463210
DESCRIPTION
The purpose of the operational check is to che
ck that the individual system operates normally.
OPERATION INSPECTION
1.CHECK BLOWER
1. Rotate the blower control dial clockwise one detent. Blower should operate on low speed.
2. Rotate the blower control dial one detent at a time, and continue checking blower speed until all speeds
are checked.
3. Leave blower on maximum speed.
Is the test result normal?
YES >> GO TO 2.
NO >> Refer to HAC-148, "Diagnosis Procedure"
.
2.CHECK A/C SWITCH LED
1. Press A/C switch.
2. A/C switch indicator should turn ON.
Is the test result normal?
YES >> GO TO 3.
NO >> Refer to HAC-152, "Diagnosis Procedure"
.
3.CHECK A/C SWITCH
Confirm that the compressor clutch engages (sound or visual inspection).
Is the test result normal?
YES >> GO TO 4.
NO >> Refer to HAC-151, "Diagnosis Procedure"
.
4.CHECK FRONT AIR CONTROL MODE LEDS
1. Press D/F ( ), FOOT ( ), B/L , and VENT , MAX A/C, and DEF ( ).
2. Each button indicator should illuminate.
Is the test result normal?
YES >> GO TO 5.
NO >> Refer to HAC-152, "Diagnosis Procedure"
.
5.CHECK DISCHARGE AIR
1. Press D/F ( ), FOOT ( ), B/L , and VENT and DEF ( ).
2. Confirm that discharge air comes out accordi ng to the air distribution table. Refer to HAC-119, "Door Con-
trol".
Is the test result normal?
YES >> GO TO 6.
NO >> Refer to HAC-154, "Symptom Table"
.
6.CHECK REC LED
1. Press DEF ( ) and make sure LED is off.
2. Make sure VENT ( ) or B/L ( ) is selected.
3. Press REC ( ) switch one time. REC indicator should illuminate. Check condition : Engine running
at normal operating temperature.
Check condition : Blower cont rol dial in OFF position.
Check condition : REC o ff (LED extinguished).
Check condition : VENT select ed (LED illuminated).
Check condition : DEF off (LED extinguished).
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 2790 of 4801

NISSAN TEANA 2014 Service Manual
OPERATION INSPECTIONHAC-141
< BASIC INSPECTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
4. Press REC ( ) switch one more time. REC indicator should go off.
Is the test result n

Page 2791 of 4801

NISSAN TEANA 2014 Service Manual
HAC-142
< DTC/CIRCUIT DIAGNOSIS >[MANUAL AIR CONDITIONER]
MODE DOOR MOTOR
DTC/CIRCUIT DIAGNOSIS
MODE DOOR MOTOR
Diagnosis ProcedureINFOID:0000000009463211
1.CHECK MODE DOOR MOTOR POWER SUPPLY
1. Turn

Page 2792 of 4801

NISSAN TEANA 2014 Service Manual
MODE DOOR MOTORHAC-143
< DTC/CIRCUIT DIAGNOSIS > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
YES >> Replace mode door motor. Refer to HAC-165, "MODE DOOR MOTOR : Removal and Install
