2014 NISSAN TEANA Service Manual

bluetooth language reset bolt pattern tow bar wipers

Load previous 8 pages

Page 2233 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-235
< UNIT DISASSEMBLY AND ASSEMBLY > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Measure the inner diameter of piston pin hole (dp).
Outer Diameter of
Piston Pin
• Measure oute

Page 2234 of 4801

NISSAN TEANA 2014 Service Manual
EM-236
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK
• If out of specification, replace piston ring assemb
ly. If clearance exceeds maximum limit with new rings,
replace piston
PISTON RI

Page 2235 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-237
< UNIT DISASSEMBLY AND ASSEMBLY > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Install the connecting rod cap without the connecting rod bearing
installed. After tightening the

Page 2236 of 4801

NISSAN TEANA 2014 Service Manual
EM-238
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK
• : Engine front
• Piston Grade No. (A)
• Piston front mark (B)
• Oil hole (C)
• Connecting rod front mark (D)
• Cylind

EM-238
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK
• : Engine front
• Piston Grade No. (A)
• Piston front mark (B)
• Oil hole (C)
• Connecting rod front mark (D)
• Cylinder No. (E)
• Pin Grade No. (F)
Service parts apply only to grade 0.
Unit: mm (in)
CYLINDER BLOCK DISTORTION
• Using a scraper, remove any old gasket material on the cylinder block surface, and remove any oil, scale, carbon, or other contami-
nation.
CAUTION:
Be careful not to allow gasket fl akes to enter the oil or coolant
passages.
• Measure the distortion on the block upper face at different points in six directions.
• If out of specification, resurfac e the cylinder block. The allowable
amount of resurfacing is dependent on the amount of any cylinder
head resurfacing. The resurfacing limit is [amount of cylinder head resurfacing] + [amount of cylinder head
resurfacing] = 0.2 mm (0.008 in).
INNER DIAMETER OF MAIN BEARING HOUSING
• Install the main bearing caps with the main bearings removed, and tighten the bolts to the specified torque.
• Using a bore gauge, measure the inner diameter of the main bear-
ing housing (A).
• If out of the standard, replace the cylinder block and main bearing caps as an assembly.
NOTE:
These components cannot be replaced as a single unit, because
they were processed together.
PISTON-TO-CYLINDER BORE CLEARANCE
1. Using a bore gauge, measure cylinder bore for wear, out -of-round and taper at (A), (B) and (C). The X axis
is in the longitudinal direction of the engine.
AWBIA0027ZZ
Grade 0 1
Connecting rod bushing inner diameter
222.000 - 22.006
(0.8661 - 0.8664) 22.006 - 22.012
(0.8664 - 0.8666)
Piston pin outer diameter 21.989 - 21.995
(0.8657 - 0.8659) 21.995 - 22. 001
(0.8659 - 0.8662)
Piston pin hole diameter 21.993 - 21.999
(0.8659 - 0.8661) 21.999 - 22.005
(0.8661 - 0.8663)
Distortion limit : 0.10 mm (0.0039 in)
Cylinder block height : 214.95 - 215.05 mm (8.4626 - 8.4665 in)
SEM123C
Standard : 63.993 - 64.017 mm (2.5194 - 2.5203 in)
SEM845E
Revision: November 20132014 Altima NAM

Page 2237 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-239
< UNIT DISASSEMBLY AND ASSEMBLY > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
Cylinder bore inner diameter
If it exceeds the limit, rebore a
ll cylinders. Replace cylinder block
if

Page 2238 of 4801

NISSAN TEANA 2014 Service Manual
EM-240
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK
5. Cylinder bore size is determined by adding pi
ston-to-bore clearance to piston diameter (A).
6. Install main bearing caps, and tight

Page 2239 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-241
< UNIT DISASSEMBLY AND ASSEMBLY > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
1. Set the main bearings in their proper positions on the cylinder
block and the main bearing cap.
2.

Page 2240 of 4801

NISSAN TEANA 2014 Service Manual
EM-242
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK

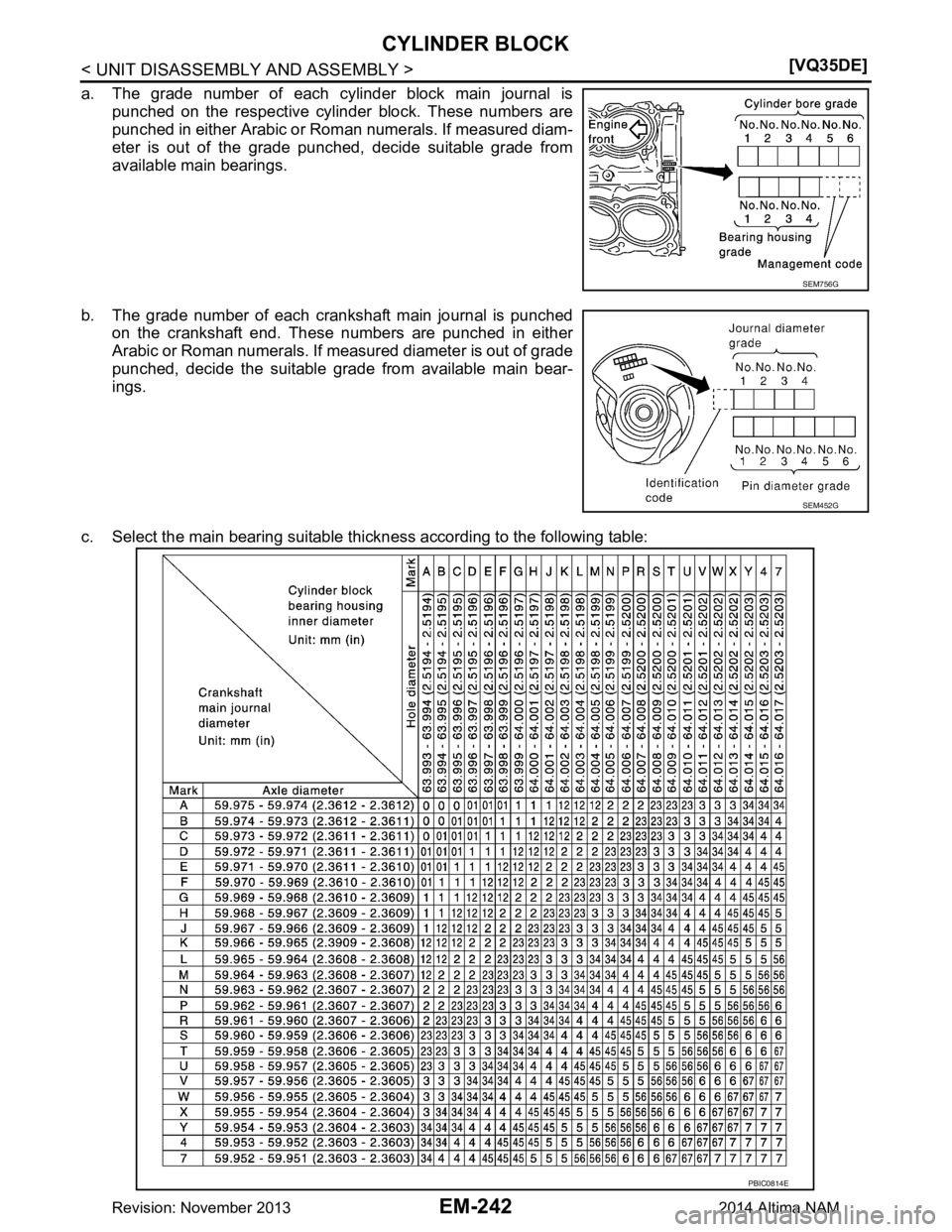

a. The grade number of each cylinder block main journal is
punched on the respective cylinder block. These numbers are
punched in eith
