DRIVE BELTSEM-19
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
DRIVE BELTS
Exploded ViewINFOID:0000000009460467
Checking Drive BeltsINFOID:0000000009460468
WARNING:
Inspect the drive belt only when the engine is stopped.
1. Visually check entire drive belt for wear, damage or cracks.
2. Check that the drive belt auto-tensioner indicator is within the possible use range.
NOTE:
• When new drive belt is installed, the drive belt aut o-tensioner indicator should be within the new drive
belt range.
• Check the drive belt auto-tensioner indicator when the engine is cold.
3. If the drive belt auto-tensioner indicator is out of the possible use range or belt is damaged, replace drive
belt.
Tension AdjustmentINFOID:0000000009460469
Belt tension is not manually adjustable, it is aut omatically adjusted by the drive belt auto-tensioner.
Removal and InstallationINFOID:0000000009460470
REMOVAL
1. Remove the fender protector side cover (RH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
1. Generator pulley 2. Water pump pulley 3. Drive belt auto-tensioner
4. Crankshaft pulley 5. A/C compressor pulley 6. Drive belt retainer boss
A. View A B. New drive belt range C. Possible use range
D. Indicator (notch)
AWBIA1309GB
Revision: November 20132014 Altima NAM
Page 2018 of 4801
![NISSAN TEANA 2014 Service Manual
EM-20
< PERIODIC MAINTENANCE >[QR25DE]
DRIVE BELTS
2. Securely hold the hexagonal part (A) of drive belt auto-tensioner
(1) using suitable tool, and move in the direction of arrow (loos-
ening direc NISSAN TEANA 2014 Service Manual
EM-20
< PERIODIC MAINTENANCE >[QR25DE]
DRIVE BELTS
2. Securely hold the hexagonal part (A) of drive belt auto-tensioner
(1) using suitable tool, and move in the direction of arrow (loos-
ening direc](/manual-img/5/57390/w960_57390-2017.png)
EM-20
< PERIODIC MAINTENANCE >[QR25DE]
DRIVE BELTS
2. Securely hold the hexagonal part (A) of drive belt auto-tensioner
(1) using suitable tool, and move in the direction of arrow (loos-
ening direction of tensioner).
WARNING:
Avoid placing hand in a locatio n where pinching may occur
if the holding tool accidentally comes off.
3. Insert a rod approximately 6 mm (0.24 in) in diameter through the rear of the drive belt auto-tensioner into retaining boss (B) to
lock drive belt auto-tensioner pulley.
NOTE:
Leave drive belt auto-tensioner pulley arm locked until drive belt
is installed again.
4. Loosen drive belt from drive belt auto-tensioner and then remove it from the other pulleys.
INSTALLATION
1. Install the drive belt onto all of the pulleys except for the drive belt auto-tensioner. Then install the drive
belt onto drive belt auto-tensioner last.
CAUTION:
Confirm belts are completely set on the pulleys.
2. Release drive belt auto-tensioner, and apply tension to drive belt.
WARNING:
Avoid placing hand in a location where pinching m ay occur if the holding tool accidentally comes
off.
3. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
4. Confirm the indicator is within the possible use range. Refer to EM-19, "Checking Drive Belts"
.
5. Install the fender protector side cover (RH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
Removal and Installation of Drive Belt Auto-tensionerINFOID:0000000009460471
REMOVAL
CAUTION:
The complete drive belt auto-tensioner must be replaced as a unit, including the pulley.
1. Remove the front RH wheel and tire assembly. Refer to WT-55, "Adjustment"
.
2. Remove the fender protector side cover (RH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
ALBIA0879GB
1. Drive belt auto-tensioner
AWBIA1381ZZ
Revision: November 20132014 Altima NAM
Page 2019 of 4801
DRIVE BELTSEM-21
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
3. Remove the engine room cover. Refer to
EM-28, "Removal and Installation".
4. Remove the drive belt. Refer to EM-19, "Removal and Installation"
.
5. Remove the drive belt auto-tensioner using power tool.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• If there is damage greater than peeled pa int, replace drive belt auto-tensioner unit.
• Install the drive belt auto-te nsioner carefully so not to damage the water pump pulley.
Revision: November 20132014 Altima NAM
Page 2020 of 4801
![NISSAN TEANA 2014 Service Manual
EM-22
< PERIODIC MAINTENANCE >[QR25DE]
AIR CLEANER FILTER
AIR CLEANER FILTER
Exploded ViewINFOID:0000000009460472
Removal and InstallationINFOID:0000000009460473
CHANGING THE AIR CLEANER FILTER
1. Re NISSAN TEANA 2014 Service Manual
EM-22
< PERIODIC MAINTENANCE >[QR25DE]
AIR CLEANER FILTER
AIR CLEANER FILTER
Exploded ViewINFOID:0000000009460472
Removal and InstallationINFOID:0000000009460473
CHANGING THE AIR CLEANER FILTER
1. Re](/manual-img/5/57390/w960_57390-2019.png)
EM-22
< PERIODIC MAINTENANCE >[QR25DE]
AIR CLEANER FILTER
AIR CLEANER FILTER
Exploded ViewINFOID:0000000009460472
Removal and InstallationINFOID:0000000009460473
CHANGING THE AIR CLEANER FILTER
1. Release the air cleaner case clips.
2. Open the air cleaner case (top).
3. Remove the air cleaner filter.
4. Install a new air cleaner filter.
5. Close the air cleaner case (top).
6. Secure the air cleaner case clips.
INSPECTION AFTER REMOVAL
Examine the air cleaner filter for stains, clogging, or damage.
• Remove dirt and foreign objects (such as dead leaves) on air cleaner filter surface and inside cleaner case.
• If clogging or damage is observed, replace the air cleaner filter.
CAUTION:
Do not clean the viscous paper type air cleaner filter by blowing as there is a risk of deterioration of its
performance.
MAINTENANCE INTERVAL
Refer to MA-7, "FOR USA AND CANADA : In troduction of Periodic Maintenance".
1. Air duct hose and resonator 2. Front air duct 3. Air cleaner case (bottom)
4. Grommets 5. Air cleaner mounting bracket 6. Air cleaner mounting bracket
7. Air cleaner filter 8. Air cleaner case (top) 9. Air cleaner case clips
AWBIA1294GB
Revision: November 20132014 Altima NAM
Page 2021 of 4801
![NISSAN TEANA 2014 Service Manual
CAMSHAFT VALVE CLEARANCEEM-23
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT VALVE CLEARANCE
Camshaft valve clearanceINFOID:0000000009460474
• Perform this inspection a NISSAN TEANA 2014 Service Manual
CAMSHAFT VALVE CLEARANCEEM-23
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT VALVE CLEARANCE
Camshaft valve clearanceINFOID:0000000009460474
• Perform this inspection a](/manual-img/5/57390/w960_57390-2020.png)
CAMSHAFT VALVE CLEARANCEEM-23
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT VALVE CLEARANCE
Camshaft valve clearanceINFOID:0000000009460474
• Perform this inspection as follows after removal, inst
allation, or replacement of the camshaft or any valve-
related parts, or if there are any unusual engine conditions due to changes in valve clearance over time
(starting, idling, and/or noise).
1. Remove the fender protector side cover (RH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
2. Remove the rocker cover using power tool. Refer to EM-45, "Removal and Installation"
.
3. Turn crankshaft pulley clockwise when viewed from front to align TDC identification mark (B) with timing indicator (A).
NOTE:
Do not confuse TDC mark (B) with paint marks (C).
4. At this time, check that the both intake and exhaust cam lobes of No. 1 cylinder face outside.
• If they do not face outside, turn crankshaft pulley once more.
5. Measure valve clearances with a feeler gauge at locations marked (X) in the table below.
• No.1 cylinder compression TDC.
ALBIA0840GB
ALBIA0882GB
Cylinder No.1 (A) No.2 (B) No.3 (C) No.4 (D)
Va l v e I N T (E)EXH
(F) INT
(E) EXH
(F) INT
(E) EXH
(F) INT
(E) EXH
(F)
Measure x x x x
: Engine frontALBIA0886GB
Revision: November 20132014 Altima NAM
Page 2022 of 4801
![NISSAN TEANA 2014 Service Manual
EM-24
< PERIODIC MAINTENANCE >[QR25DE]
CAMSHAFT VALVE CLEARANCE
• Use a feeler gauge to measure the clearance between valve
lifter and camshaft.
6. Turn crankshaft one complete revolution (360 °) NISSAN TEANA 2014 Service Manual
EM-24
< PERIODIC MAINTENANCE >[QR25DE]
CAMSHAFT VALVE CLEARANCE
• Use a feeler gauge to measure the clearance between valve
lifter and camshaft.
6. Turn crankshaft one complete revolution (360 °)](/manual-img/5/57390/w960_57390-2021.png)
EM-24
< PERIODIC MAINTENANCE >[QR25DE]
CAMSHAFT VALVE CLEARANCE
• Use a feeler gauge to measure the clearance between valve
lifter and camshaft.
6. Turn crankshaft one complete revolution (360 °) and align mark on crankshaft pulley with pointer.
7. Measure valve clearances with a feeler gauge at locations marked (X) in the table below.
• No.4 cylinder compression TDC.
If out of specifications, make necessary adjustment.
ADJUSTMENT
NOTE:
• Perform adjustment by selecting the valve lifter with the correct head thickness.
1. Remove camshaft. Refer to EM-47, "Removal and Installation"
.
2. Remove the valve lifters at the locations that are outside the standard.
3. Measure the center thickness of the removed valve lifters with a micrometer (A).
4. Use the equation below to calculate valve lifter thickness for replacement. • Valve lifter thickness calculation.t = t1 + (C1 - C2)
t = Thickness of replacement valve lifter.
t1 = Thickness of removed valve lifter.
C1 = Measured valve clearance.
C2 = Standard valve clearance. Valve clearance: Refer to
EM-111, "Standard and Lim-
it".
SEM139D
Cylinder No.1 (A) No.2 (B) No.3 (C) No.4 (D)
Va l v e I N T (E)EXH
(F) INT
(E) EXH
(F) INT
(E) EXH
(F) INT
(E) EXH
(F)
Measure x x x x
: Engine frontALBIA0884GB
PBIC3195J
Revision: November 20132014 Altima NAM
Page 2023 of 4801
![NISSAN TEANA 2014 Service Manual

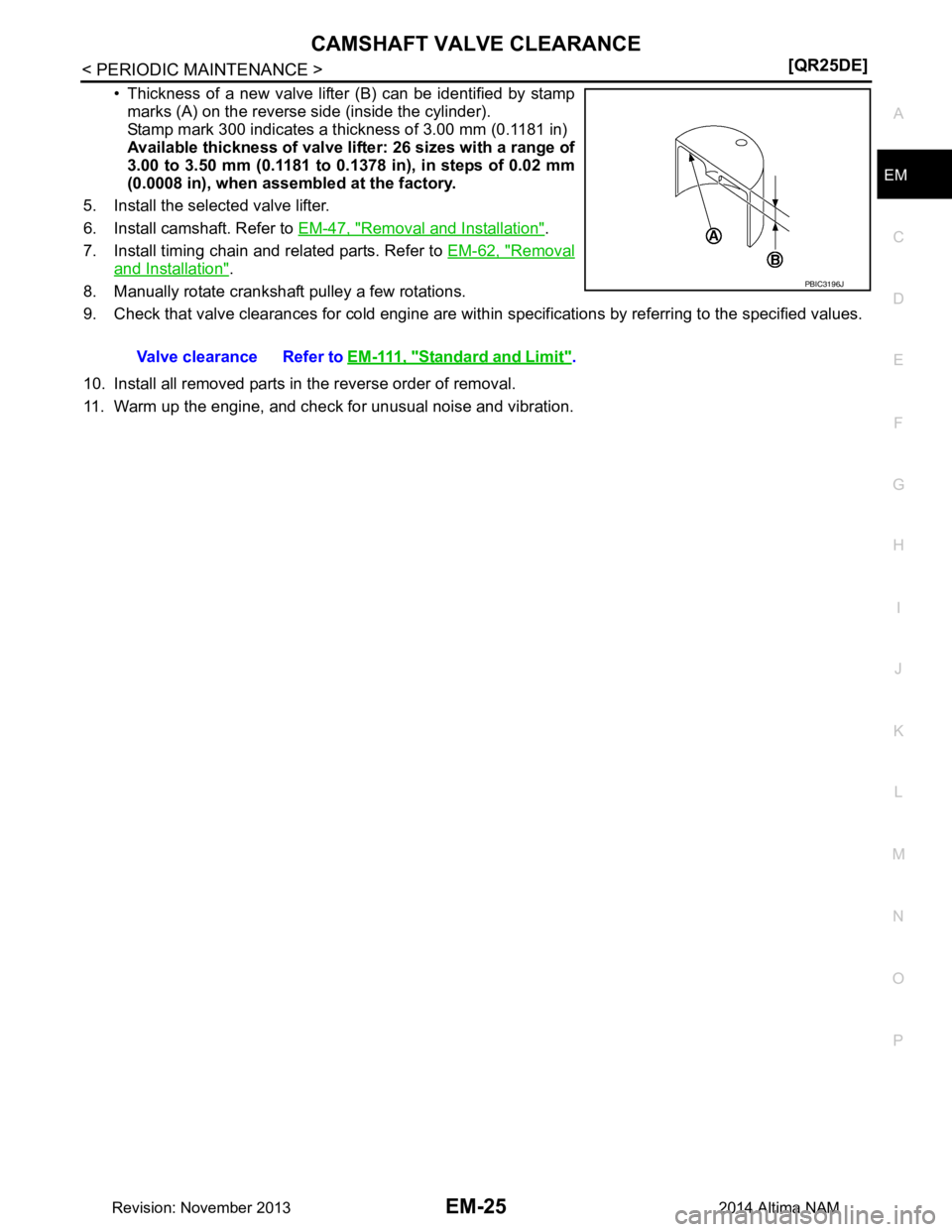

CAMSHAFT VALVE CLEARANCEEM-25
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Thickness of a new valve lifter (B) can be identified by stamp
marks (A) on the reverse side (insi NISSAN TEANA 2014 Service Manual
CAMSHAFT VALVE CLEARANCEEM-25
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Thickness of a new valve lifter (B) can be identified by stamp
marks (A) on the reverse side (insi](/manual-img/5/57390/w960_57390-2022.png)
CAMSHAFT VALVE CLEARANCEEM-25
< PERIODIC MAINTENANCE > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Thickness of a new valve lifter (B) can be identified by stamp
marks (A) on the reverse side (inside the cylinder).
Stamp mark 300 indicates a thickness of 3.00 mm (0.1181 in)
Available thickness of valve lifter: 26 sizes with a range of
3.00 to 3.50 mm (0.1181 to 0.1378 in), in steps of 0.02 mm
(0.0008 in), when assembled at the factory.
5. Install the selected valve lifter.
6. Install camshaft. Refer to EM-47, "Removal and Installation"
.
7. Install timing chain and related parts. Refer to EM-62, "Removal
and Installation".
8. Manually rotate crankshaft pulley a few rotations.
9. Check that valve clearances for cold engine are within specifications by referring to the specified values.
10. Install all removed parts in the reverse order of removal.
11. Warm up the engine, and check for unusual noise and vibration. Valve clearance Refer to
EM-111, "Standard and Limit"
.
PBIC3196J
Revision: November 20132014 Altima NAM
Page 2024 of 4801
![NISSAN TEANA 2014 Service Manual

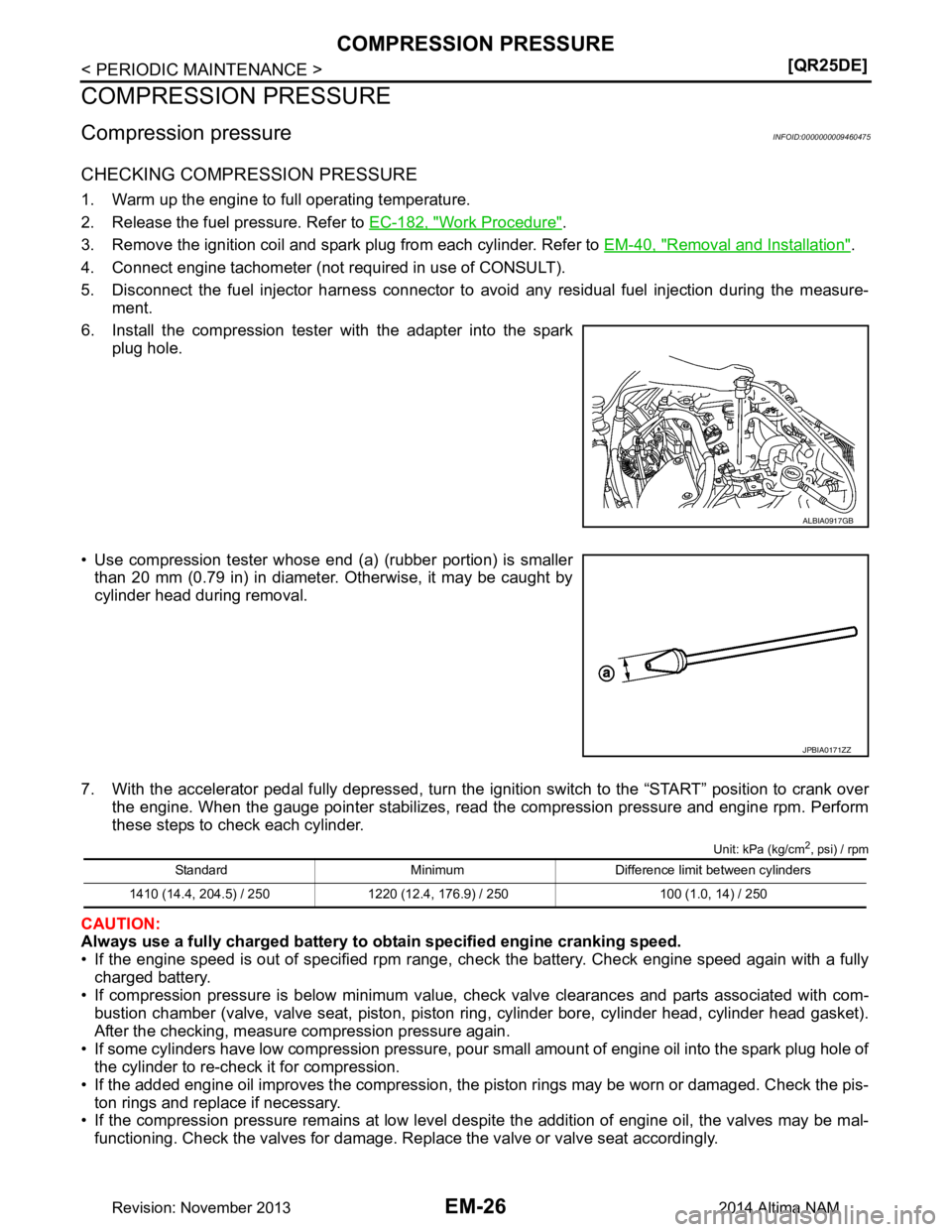

EM-26
< PERIODIC MAINTENANCE >[QR25DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
Compression pressureINFOID:0000000009460475
CHECKING COMPRESSION PRESSURE
1. Warm up the engine to full operating temp NISSAN TEANA 2014 Service Manual
EM-26
< PERIODIC MAINTENANCE >[QR25DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
Compression pressureINFOID:0000000009460475
CHECKING COMPRESSION PRESSURE
1. Warm up the engine to full operating temp](/manual-img/5/57390/w960_57390-2023.png)
EM-26
< PERIODIC MAINTENANCE >[QR25DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
Compression pressureINFOID:0000000009460475
CHECKING COMPRESSION PRESSURE
1. Warm up the engine to full operating temperature.
2. Release the fuel pressure. Refer to EC-182, "Work Procedure"
.
3. Remove the ignition coil and spark plug from each cylinder. Refer to EM-40, "Removal and Installation"
.
4. Connect engine tachometer (not required in use of CONSULT).
5. Disconnect the fuel injector harness connector to avoid any residual fuel injection during the measure- ment.
6. Install the compression tester with the adapter into the spark plug hole.
• Use compression tester whose end (a) (rubber portion) is smaller than 20 mm (0.79 in) in diameter. Otherwise, it may be caught by
cylinder head during removal.
7. With the accelerator pedal fully depressed, turn the ignition switch to the “START” position to crank over
the engine. When the gauge pointer stabilizes, read the compression pressure and engine rpm. Perform
these steps to check each cylinder.
Unit: kPa (kg/cm2, psi) / rpm
CAUTION:
Always use a fully charged battery to ob tain specified engine cranking speed.
• If the engine speed is out of specified rpm range, check the battery. Check engine speed again with a fully
charged battery.
• If compression pressure is below minimum value, check valve clearances and parts associated with com- bustion chamber (valve, valve seat, piston, piston ri ng, cylinder bore, cylinder head, cylinder head gasket).
After the checking, measure compression pressure again.
• If some cylinders have low compression pressure, pour small amount of engine oil into the spark plug hole of the cylinder to re-check it for compression.
• If the added engine oil improves the compression, the piston rings may be worn or damaged. Check the pis- ton rings and replace if necessary.
• If the compression pressure remains at low level des pite the addition of engine oil, the valves may be mal-
functioning. Check the valves for damage. Replace the valve or valve seat accordingly.
ALBIA0917GB
JPBIA0171ZZ
Standard Minimum Difference limit between cylinders
1410 (14.4, 204.5) / 250 1220 (12.4, 176.9) / 250 100 (1.0, 14) / 250
Revision: November 20132014 Altima NAM
