NISSAN TEANA 2014 Service Manual
SE-52
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT

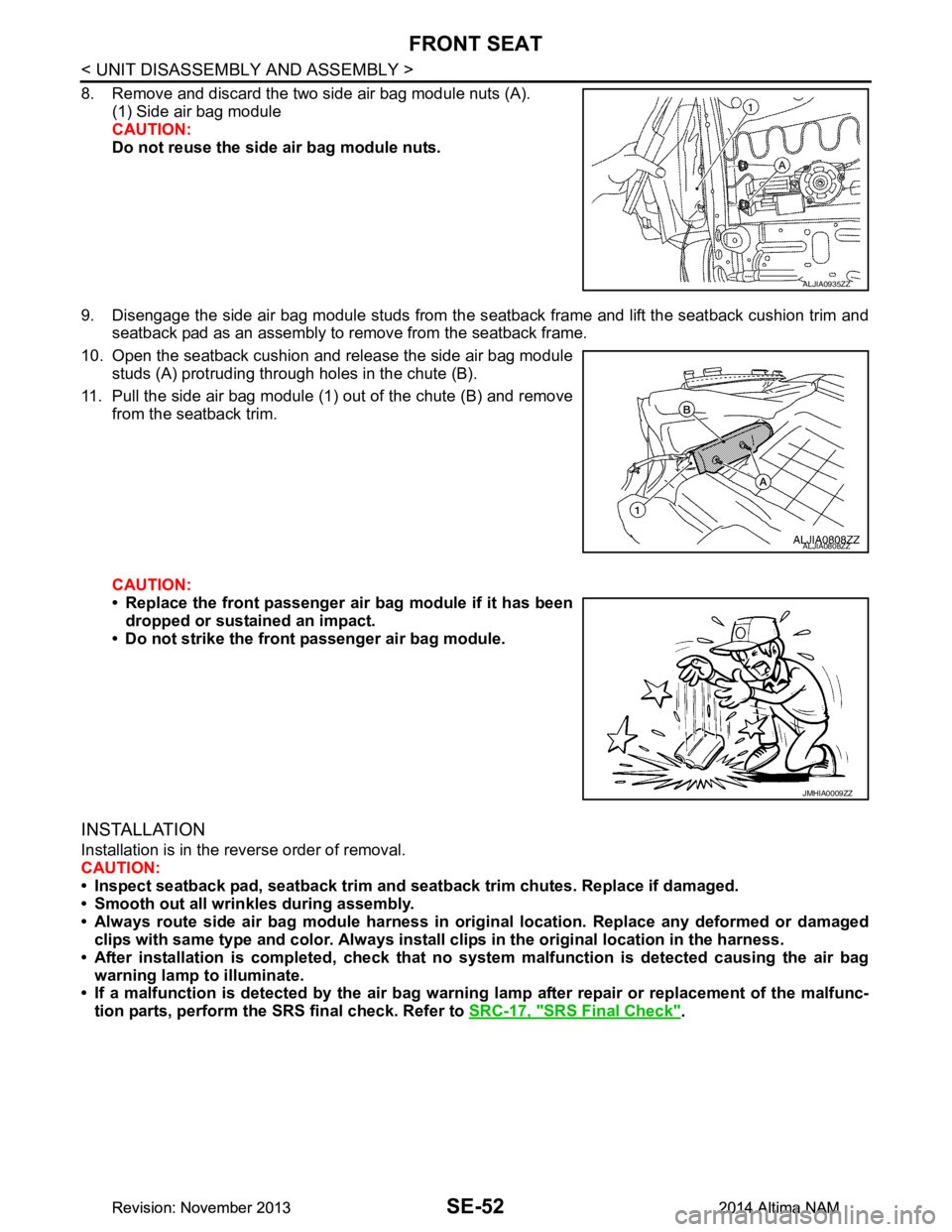

8. Remove and discard the two side air bag module nuts (A).(1) Side air bag module
CAUTION:
Do not reuse the side air bag module nuts.
9. Disenga

Page 3802 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-53
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
• When installing the side air bag module, make sure the side air bag chute (2) is pulled over the outboard surf

Page 3803 of 4801

NISSAN TEANA 2014 Service Manual
SE-54
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT

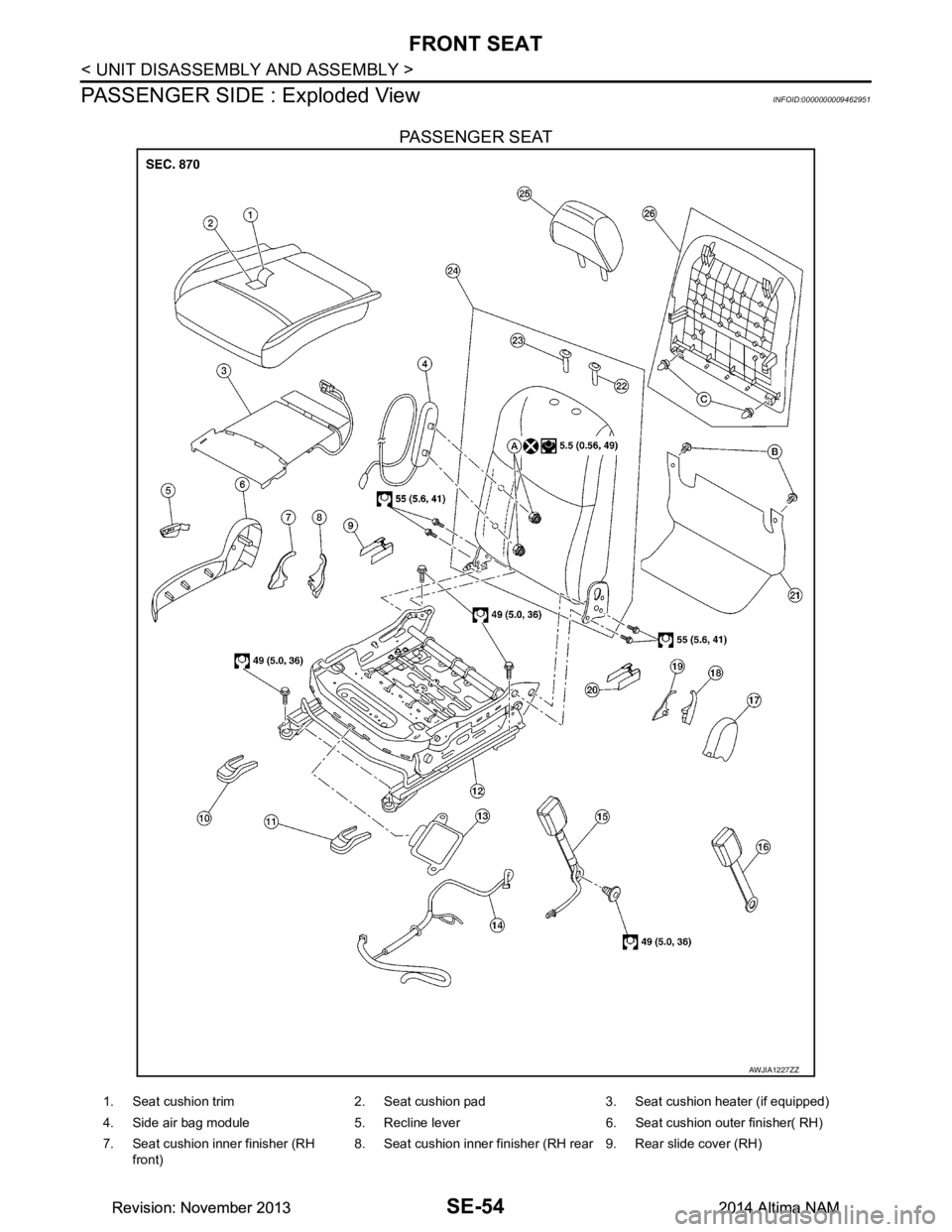

PASSENGER SIDE : Exploded View
INFOID:0000000009462951
PASSENGER SEAT
AWJIA1227ZZ
1. Seat cushion trim 2. Seat cushion pad 3. Seat cushion heater (i

Page 3804 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-55
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
PASSENGER SIDE : Disassembly and AssemblyINFOID:0000000009462952
SEATBACK ASSEMBLY
WARNING:
Do not leave any obje

FRONT SEATSE-55
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
PASSENGER SIDE : Disassembly and AssemblyINFOID:0000000009462952
SEATBACK ASSEMBLY
WARNING:
Do not leave any objects (screwdri vers, tools, etc.) on the seat during seatback repair. It can lead to
personal injury if the side air bag should accidentally deploy.
CAUTION:
• Before servicing, turn ignition swit ch OFF, disconnect both battery terminals and wait at least three
minutes.
• Handle the side air bag module carefully. During disassembly, always hold the side air bag module,
do not let it hang by the wire harness.
• Always work from the side or back of the seat back assembly, do not work in front of seat.
• Do not use air tools or electric tools for servicing the seat assembly.
• Replace the side air bag module if it h as been dropped or sustained an impact.
• Do not insert any objects into the side air bag module.
• Do not attempt to disassemble the side air bag module.
• Do not expose the side air bag module to temperatures exceeding 93 °C (200 °F).
• Do not expose the side air bag module to any oil, grease, detergent or water.
• During disassembly, do not damage the seatback board , chutes, connectors, retainers, clips, module
harness or the side air bag module.
NOTE:
If the vehicle has been involved in a collision and the side air bag has deployed, the front seatback assembly
must be replaced.
Disassembly
1. Remove the front seat assembly. Refer to SE-30, "PASSENGER SIDE : Removal and Installation - Seat
Assembly".
2. Remove the seatback board. Refer to SE-31, "PASSENGER SIDE : Removal and Installation - Seatback
Board".
10. Front slide cover (RH) 11. Front slide cover (LH) 12. Seat frame assembly
13. Occupant classification control unit 14. Seat harness 15. Seat belt buckle with switch
16. Seat belt buckle without switch 17. Seat cushion outer finisher (LH) 18. Seat cushion inner finisher (LH rear)
19. Seat cushion inner finisher (LH front) 20. Rear slide cover (LH) 21. Rear hinge cover
22. Headrest holder (locked) 23. Headrest holder (free) 24. Seatback assembly
25. Headrest 26. Seatback board A. Side air bag module nuts
B. Rear hinge cover clips C. Seatback board clips
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3805 of 4801

NISSAN TEANA 2014 Service Manual
SE-56
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT

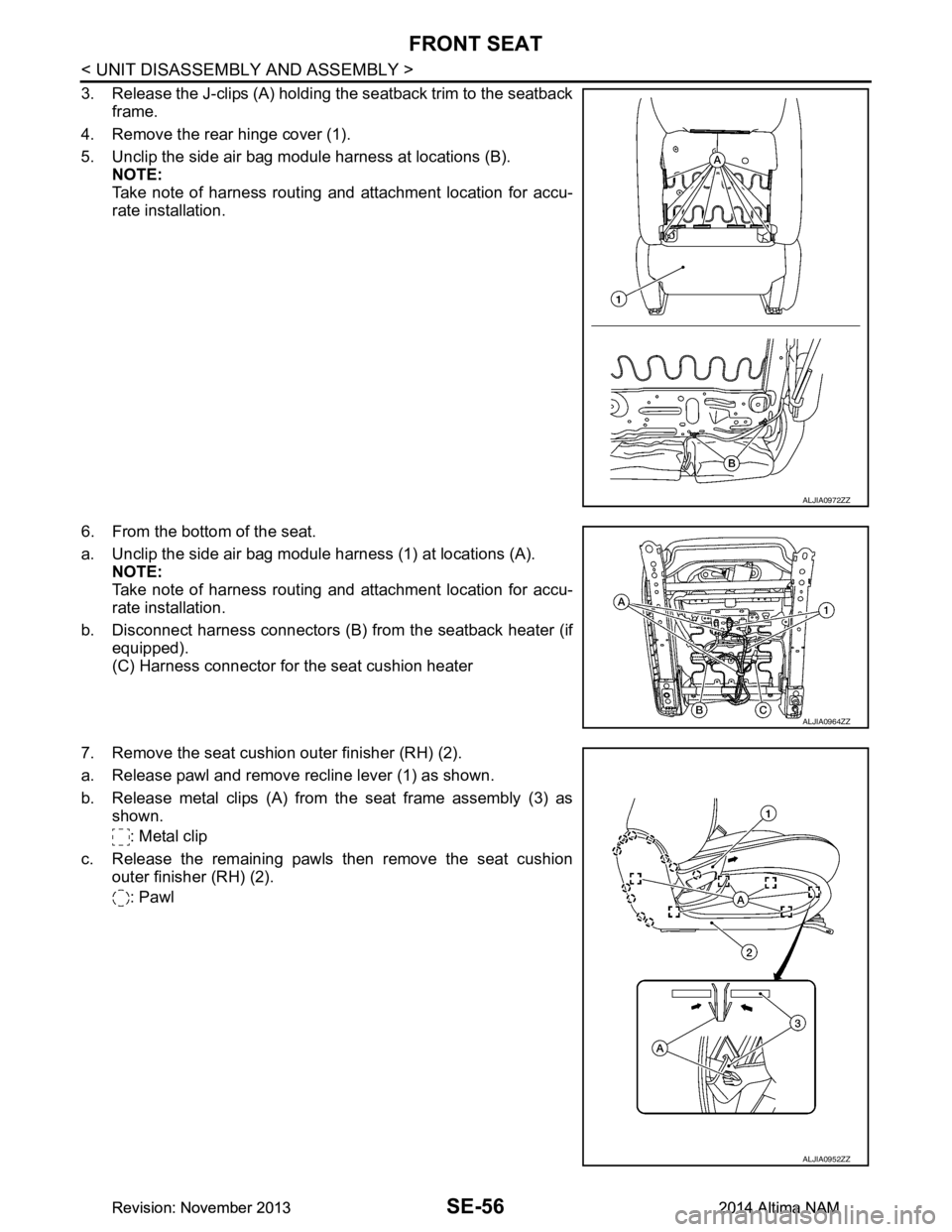

3. Release the J-clips (A) holding the seatback trim to the seatbackframe.
4. Remove the rear hinge cover (1).
5. Unclip the side air bag module ha

Page 3806 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-57
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
8. Remove the seat cushion outer finisher (LH) (1).
a. Release pawls then pull to release the metal clip. : Metal

Page 3807 of 4801

NISSAN TEANA 2014 Service Manual
SE-58
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT

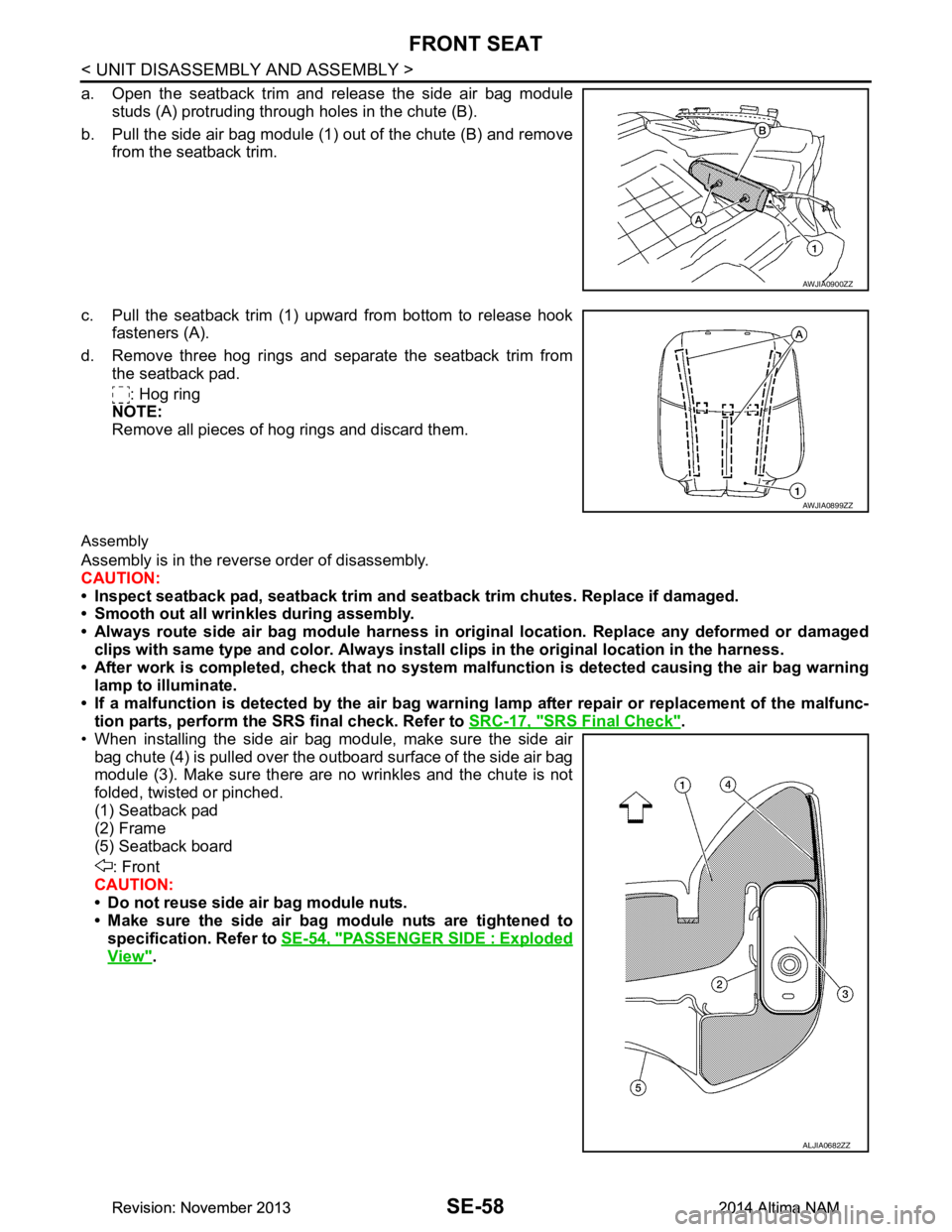

a. Open the seatback trim and release the side air bag modulestuds (A) protruding through holes in the chute (B).
b. Pull the side air bag module (1

Page 3808 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-59
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
• When installing the seatback trim, firmly push down while sliding your hand along the seams as shown ( ) to en
