Page 1393 of 4801

NISSAN TEANA 2014 Service Manual
P0524 ENGINE OIL PRESSUREEC-393
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
5.CHECK CAUSE OF ENGINE OIL CONSUMPTION
Check the following item.
>> Repair or replace error-detect

Page 1394 of 4801

NISSAN TEANA 2014 Service Manual
EC-394
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P052A, P052B INTAKE VALVE TIMING CONTROL
P052A, P052B INTAKE VALVE TIMING CONTROL
DTC LogicINFOID:0000000009462321
DTC DETECTION LOGIC
NOTE:
If DTC P052A or

EC-394
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P052A, P052B INTAKE VALVE TIMING CONTROL
P052A, P052B INTAKE VALVE TIMING CONTROL
DTC LogicINFOID:0000000009462321
DTC DETECTION LOGIC
NOTE:
If DTC P052A or P052B is displayed with DTC P 0075, perform the trouble diagnosis for DTC P0075.
Refer to EC-221, "DTC Logic"
.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is 10 V or more at idle.
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. On the CONSULT screen, select “ENGINE” >> “DATA MONITOR” >> “COOLAN TEMP/S”.
6. Check “COOLAN TEMP/S” indication value.
With GST
Follow the procedure “With CONSULT” above.
Is the value of
“COOLAN TEMP/S”−5°C (23°F) and 45°C (11 3°F)?
YES >> GO TO 2.
NO-1 [if it is below − 5 °C (23 °F)]>>Warm up the engine until the value of “COOLAN TEMP/S” indicates −5 °C
(23 °F) and 45 °C (113 °F). And then GO TO 2.
NO-2 [if it is above 45 °C (113 °F)]>>Cool the engine down to the val ue of “COOLAN TEMP/S” indicates −5 °C
(23 °F) and 45 °C (113 °F). And then GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Turn ignition switch OFF and wait at 10 seconds.
2. Turn ignition switch ON.
3. Set the selector lever in N range.
4. Start the engine and let it idle for 20 seconds or more.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-394, "Diagnosis Procedure"
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462322
1.INSPECTION START
DTC No.Trouble diagnosis
(Trouble diagnosis content) Detecting condition Possible cause
P052A CAMSHAFT POSITION TIM-
ING B1
(Cold start “A” camshaft posi-
tion timing over-advanced
bank 1) There is a gap between angle of target
and phase-control angle degree when
the engine is in a cold condition. • Crankshaft position sensor
• Camshaft position sensor
• Intake valve timing control solenoid valve
• Intake valve timing intermediate lock control solenoid valve
• Accumulation of debris to the signal pick-up portion of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for in- take valve timing control
P052B CAMSHAFT POSITION TIM-
ING B1
(Cold start “A” camshaft posi-
tion timing over-retarded
bank 1)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1395 of 4801

NISSAN TEANA 2014 Service Manual
P052A, P052B INTAKE VALVE TIMING CONTROLEC-395
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
With CONSULT>>GO TO 2.
Without CONSULT>>GO TO 3.
2.CHECK VTC POSITION
With CONSULT

P052A, P052B INTAKE VALVE TIMING CONTROLEC-395
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
With CONSULT>>GO TO 2.
Without CONSULT>>GO TO 3.
2.CHECK VTC POSITION
With CONSULT
1. Turn ignition switch ON.
2. On the CONSULT screen, select “ENGINE” >> “DATA MONITOR” >> “COOLAN TEMP/S”.
3. Check that the “COOLAN TEMP/S” indication value is between −5 °C (23 °F) and 45 °C (113 °F).
4. Start engine and wait at least 5 seconds.
5. On the CONSULT screen, select “ENGINE” >> “DATA MONITOR” >> “INT/V TIM (B1)”.
6. Check that the data monitor item indicates as follows:
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> GO TO 3.
3.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check that oil pressure warning lamp is not illuminated.
Is oil pressure warning lamp illuminated?
YES >> Refer to LU-9, "Inspection".
NO >> GO TO 4.
4.CHECK INTAKE VALVE TIMING INTERMEDIA TE LOCK CONTROL SOLENOID VALVE
Perform Component Inspection of the intake valve timi ng intermediate lock control solenoid valve. Refer to
EC-397, "Component Inspection (Intake Valve Timing Intermediate Lock Control Solenoid Valve)"
.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Perform Component Inspection of the intake va lve timing control solenoid valve. Refer to EC-396, "Compo-
nent Inspection (Intake Valve Timing Control Solenoid Valve)".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace error-detected parts.
6.CHECK CRANKSHAFT POSITION SENSOR
Perform Component Inspection of the cr ankshaft position sensor. Refer to EC-397, "Component Inspection
(Crankshaft Position sensor)".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace error-detected parts.
7.CHECK CAMSHAFT PO SITION SENSOR
Perform Component Inspection of the camshaft position sensor. Refer to EC-398, "Component Inspection
(Camshaft position sensor)".
Is the inspection result normal?
Item Value ( °CA)
INT/V TIM (B1) 10 ± 2
PBIA8559J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

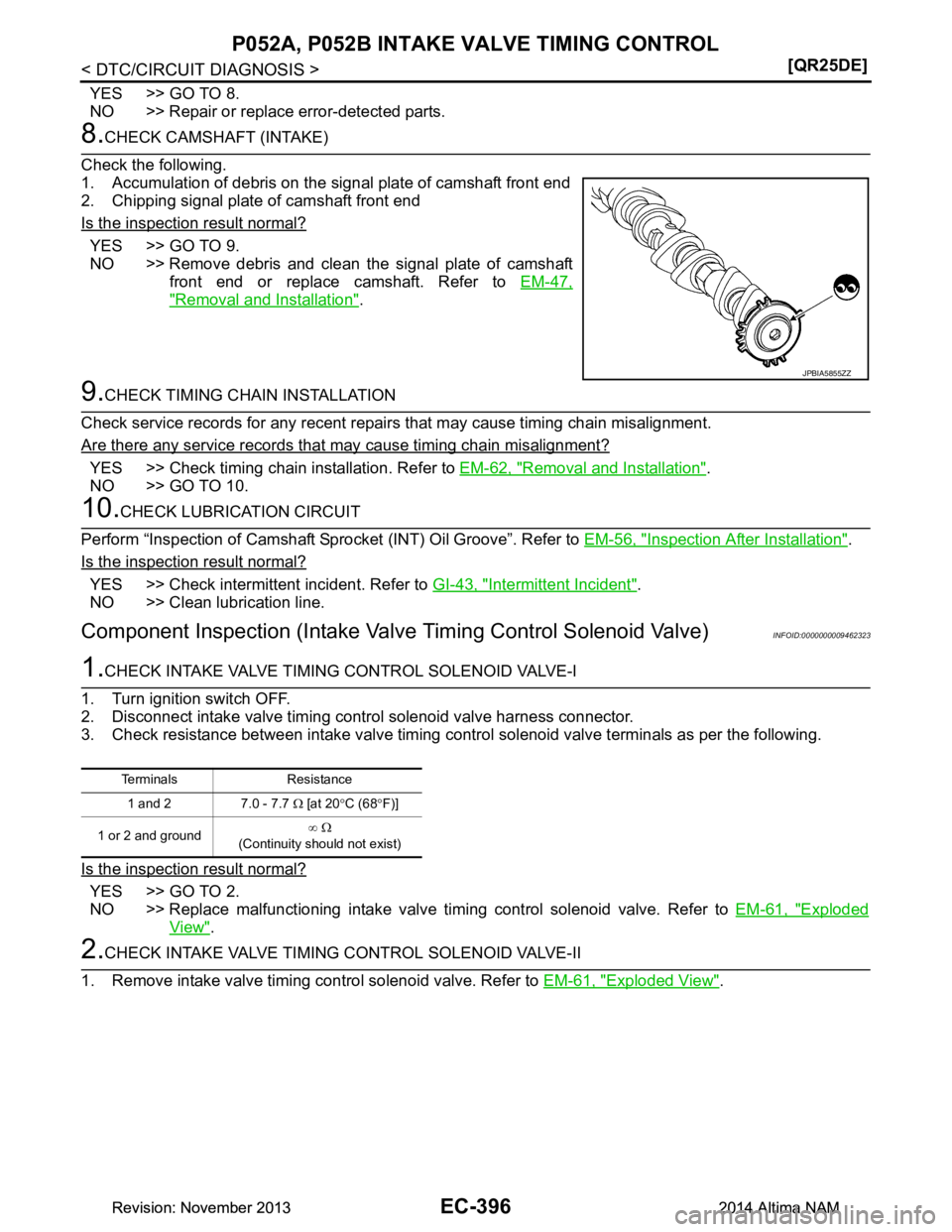

Page 1396 of 4801

NISSAN TEANA 2014 Service Manual
EC-396
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P052A, P052B INTAKE VALVE TIMING CONTROL
YES >> GO TO 8.
NO >> Repair or replace error-detected parts.
8.CHECK CAMSHAFT (INTAKE)
Check the following.
1. Accu

Page 1397 of 4801

NISSAN TEANA 2014 Service Manual
P052A, P052B INTAKE VALVE TIMING CONTROLEC-397
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
2. Provide 12 V DC between intake valve timing control solenoid
valve terminals 1 an

P052A, P052B INTAKE VALVE TIMING CONTROLEC-397
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

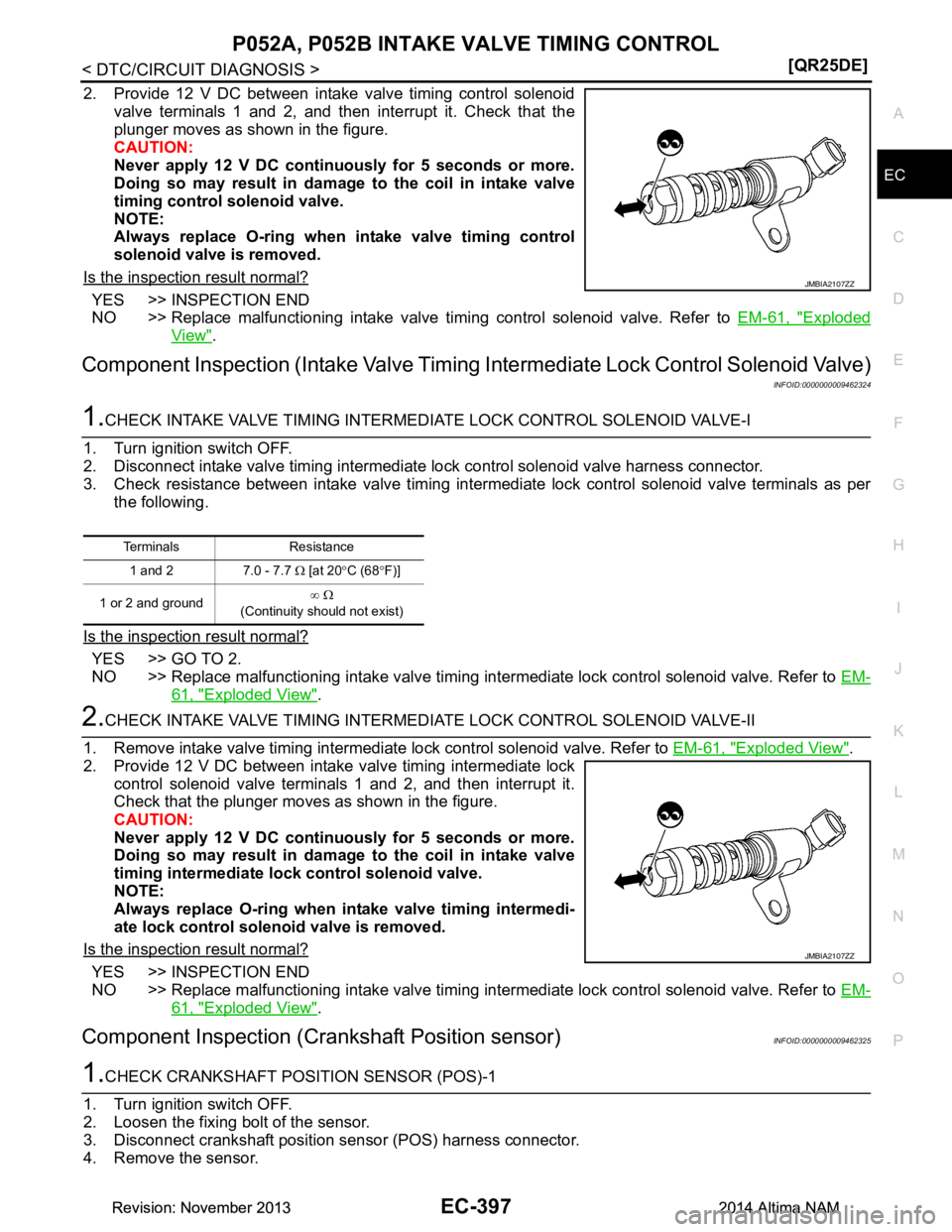

2. Provide 12 V DC between intake valve timing control solenoid
valve terminals 1 and 2, and then interrupt it. Check that the
plunger moves as shown in the figure.
CAUTION:
Never apply 12 V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning intake valve timing control solenoid valve. Refer to EM-61, "Exploded
View".
Component Inspection (Intake Valve Timing Intermediate Lock Control Solenoid Valve)
INFOID:0000000009462324
1.CHECK INTAKE VALVE TIMING INTERMEDIA TE LOCK CONTROL SOLENOID VALVE-I
1. Turn ignition switch OFF.
2. Disconnect intake valve timing intermediate lock control solenoid valve harness connector.
3. Check resistance between intake valve timing intermediate lock control solenoid valve terminals as per the following.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning intake valve timing intermediate lock control solenoid valve. Refer to EM-
61, "Exploded View".
2.CHECK INTAKE VALVE TIMING INTERMEDIATE LOCK CONTROL SOLENOID VALVE-II
1. Remove intake valve timing intermediate lock control solenoid valve. Refer to EM-61, "Exploded View"
.
2. Provide 12 V DC between intake valve timing intermediate lock control solenoid valve terminals 1 and 2, and then interrupt it.
Check that the plunger moves as shown in the figure.
CAUTION:
Never apply 12 V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing intermediate lock control solenoid valve.
NOTE:
Always replace O-ring when in take valve timing intermedi-
ate lock control solenoid valve is removed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning intake valve timing intermediate lock control solenoid valve. Refer to EM-
61, "Exploded View".
Component Inspection (Crankshaft Position sensor)INFOID:0000000009462325
1.CHECK CRANKSHAFT POSI TION SENSOR (POS)-1
1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect crankshaft position sensor (POS) harness connector.
4. Remove the sensor.
JMBIA2107ZZ
Terminals Resistance
1 and 2 7.0 - 7.7 Ω [at 20 °C (68 °F)]
1 or 2 and ground ∞
Ω
(Continuity should not exist)
JMBIA2107ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

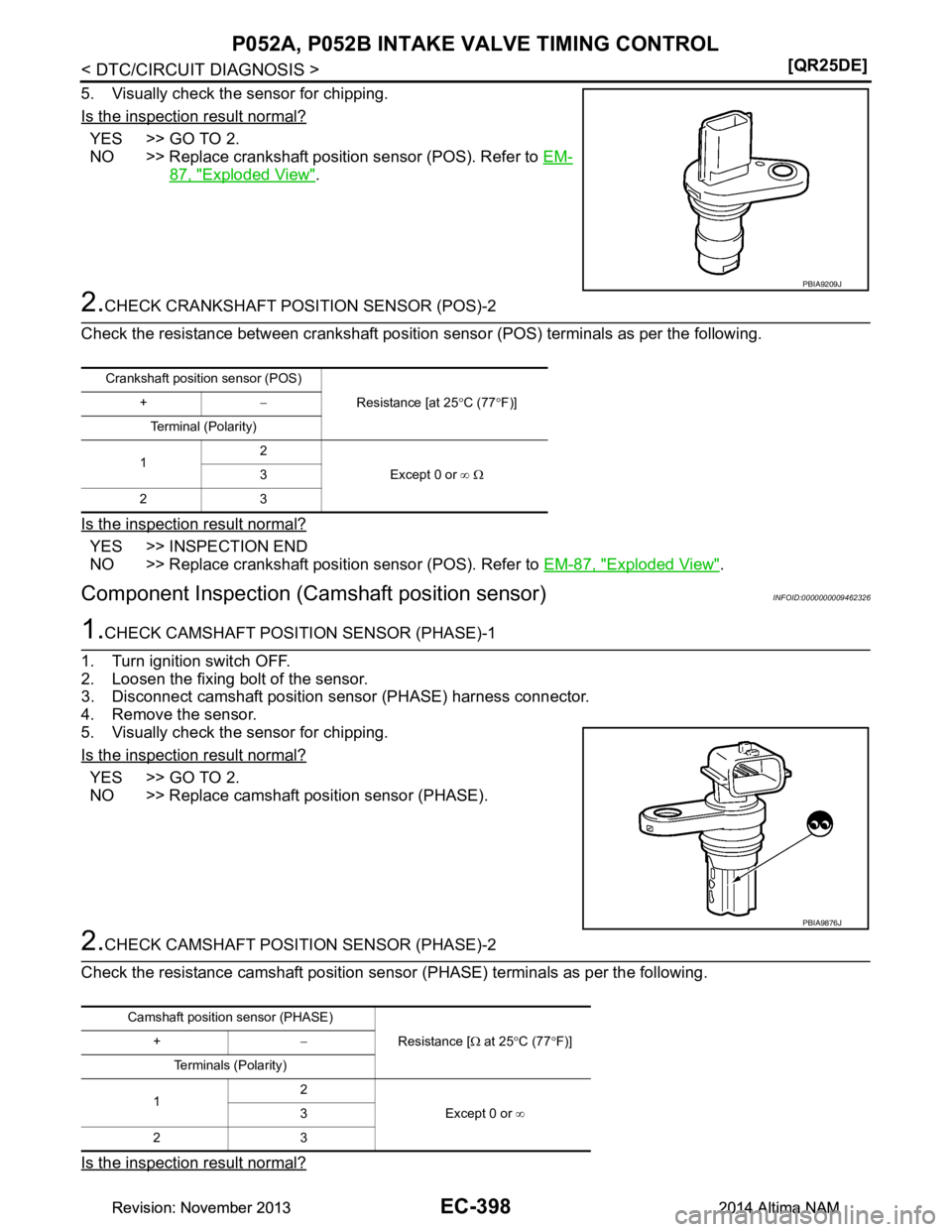

Page 1398 of 4801

NISSAN TEANA 2014 Service Manual
EC-398
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P052A, P052B INTAKE VALVE TIMING CONTROL
5. Visually check the sensor for chipping.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace crankshaf

Page 1399 of 4801

NISSAN TEANA 2014 Service Manual
P052A, P052B INTAKE VALVE TIMING CONTROLEC-399
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
YES >> INSPECTION END
NO >> Replace camshaft position sensor (PHASE). Refer to EM-

Page 1400 of 4801

NISSAN TEANA 2014 Service Manual
EC-400
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0603 ECM
P0603 ECM
DTC LogicINFOID:0000000009462327
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
TESTING CONDITION:
Before performing t
