NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (ECM)EC-593
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

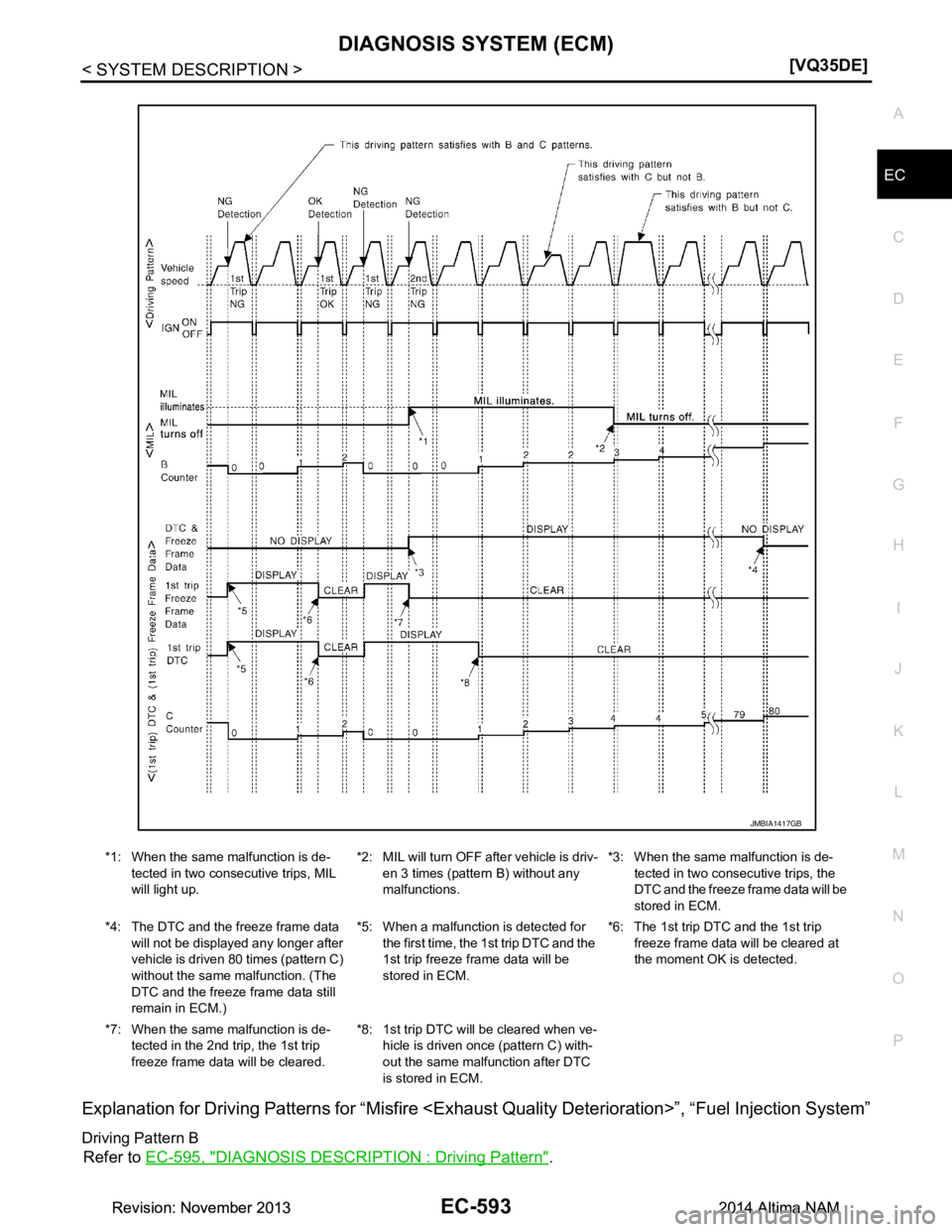

Explanation for Driving Patterns for “Misfire <Exhau
st Quality Deterioration>”, “Fuel Injection Sy

Page 1594 of 4801

NISSAN TEANA 2014 Service Manual
EC-594
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
Driving Pattern C
Refer to
EC-595, "DIAGNOSIS DESCRIPTION : Driving Pattern".
Example:
If the stored freeze frame data is as per the fol

Page 1595 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (ECM)EC-595
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

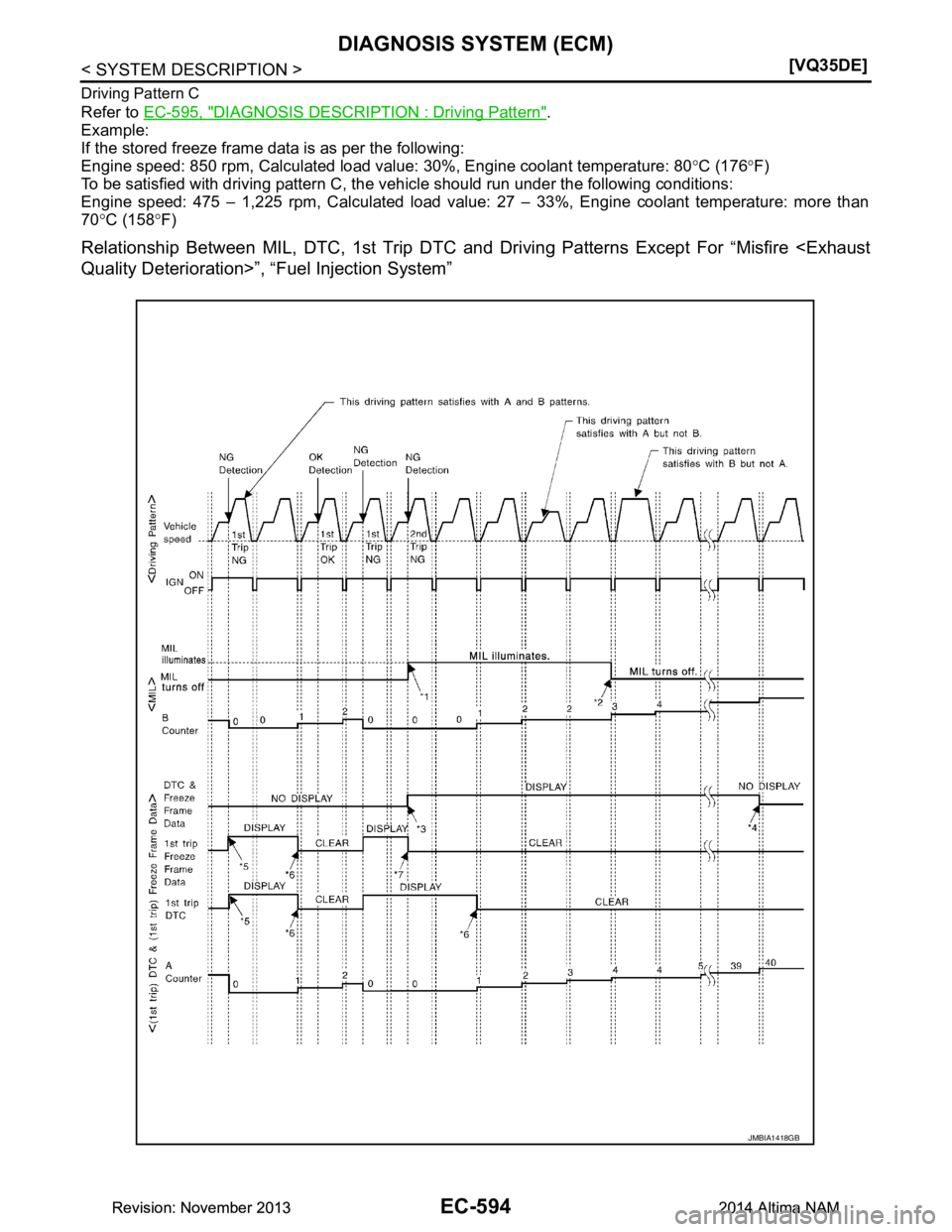

Explanation for Driving Patterns Except for “Misfire <Exhaust Quality Deterioration>”, “Fuel Inject

DIAGNOSIS SYSTEM (ECM)EC-595
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Explanation for Driving Patterns Except for “Misfire ”, “Fuel Injection
System”
Driving Pattern A
Refer to EC-595, "DIAGNOSIS DESCRIPTION : Driving Pattern".
Driving Pattern B
Refer to EC-595, "DIAGNOSIS DESCRIPTION : Driving Pattern".
DIAGNOSIS DESCRIPTION : Driving PatternINFOID:0000000009462536
CAUTION:
Always drive at a safe speed.
DRIVING PATTERN A
Driving pattern A means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature rises by 20 °C (36 °F) or more after starting the engine.
• Engine coolant temperature reaches 70 °C (158 °F) or more.
• The ignition switch is turned from ON to OFF.
NOTE:
• When the same malfunction is detected regardless of driv ing conditions, reset the counter of driving pattern
A.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern A.
DRIVING PATTERN B
Driving pattern B means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature reaches 70 °C (158 °F) or more.
• Vehicle speed of 70 – 120 km/h (44 – 75 MPH) is maintained for 60 seconds or more under the control of closed loop.
• Vehicle speed of 30 – 60 km/h (19 – 37 MPH) is maintained for 10 seconds or more under the control of closed loop.
• Under the closed loop control condition, the following state reaches 12 seconds or more in total: Vehicle
speed of 4 km/h (2 MPH) or less with idling condition.
• The state of driving at 10 km/h (7 MPH) or more reaches 10 minutes or more in total.
• A lapse of 22 minutes or more after engine start.
NOTE:
• Drive the vehicle at a constant velocity.
• When the same malfunction is detected regardless of driv ing conditions, reset the counter of driving pattern
B.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern B.
DRIVING PATTERN C
Driving pattern C means operating vehicle as per the following:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data) ±375 rpm
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will turn OFF after vehicle is driv-
en 3 times (pattern B) without any
malfunctions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.) *5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: 1st trip DTC will be cleared after vehi-
cle is driven once (pattern B) without
the same malfunction.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1596 of 4801

NISSAN TEANA 2014 Service Manual
EC-596
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
Calculated load value: (Calculated load value in the freeze frame data) x (1
±0.1) [%]
Engine coolant temperature condition:
• When th

EC-596
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
Calculated load value: (Calculated load value in the freeze frame data) x (1
±0.1) [%]
Engine coolant temperature condition:
• When the freeze frame data shows lower than 70 °C (158 °F), engine coolant temperature should be lower
than 70 °C (158 °F).
• When the freeze frame data shows higher than or equal to 70 °C (158 °F), engine coolant temperature should
be higher than or equal to 70 °C (158 °F).
NOTE:
• When the same malfunction is detected regardless of t he above vehicle conditions, reset the counter of driv-
ing pattern C.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern C.
• The 1st trip DTC will be cleared when C counter is c ounted once without the same malfunction after DTC is
stored in ECM.
DRIVING PATTERN D
Driving pattern D means a trip satisfying the following conditions.
• The state of driving at 40 km/h (25 MPH) reaches 300 seconds or more in total.
• Idle speed lasts 30 seconds or more.
• A lapse of 600 seconds or more after engine start.
NOTE:
• When the same malfunction is detected regardless of driv ing conditions, reset the counter of driving pattern
D.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern D.
DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) CodeINFOID:0000000009462537
System Readiness Test (SRT) code is spec ified in Service $01 of SAE J1979/ISO 15031-5.
As part of an enhanced emissions test for Inspection & Ma intenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has completed self-diagnosis of major emission systems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspec tion due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system . Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indica tes “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT indi cates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:
If permanent DTC is stored or MIL illuminates during t he state emissions inspection, the vehicle is alsore-
turned to the customer untested even though the SRT indicate s “CMPLT” for all test items. Therefore, it isim-
portant to check SRT (“CMPLT”), DTC (No DT Cs) and permanent DTC (NO permanent DTCs) before
theinspection.
SRT SET TIMING
SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. T he set timing is different between OK and NG results and
is shown in the table below.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1597 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (ECM)EC-597
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result

DIAGNOSIS SYSTEM (ECM)EC-597
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.
When all SRT related self-diagnoses show OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will
indicate “CMPLT”. → Case 1 above
When all SRT related self-diagnoses show OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective se lf-diagnoses have at least one OK result. → Case 2 above
If one or more SRT related self-diagnoses show NG resu lts in 2 consecutive cycles, the SRT will also indicate
“CMPLT”. → Case 3 above
The table above shows that the minimum number of cycles for setting SRT as “INCMP” is the number one (1)
for each self-diagnosis (Case 1 & 2) or the number two (2) for one of self-diagnoses (Case 3). However, in
preparation for the state emissions inspection, it is unnecessary for each self-diagnosis to be executed twice
(Case 3) for the following reasons:
• The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
• The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
• During SRT driving pattern, the 1st trip DTC (NG) is detected prior to “CMPLT” of SRT and the self-diagnosis
memory must be erased from the ECM after repair.
• If the 1st trip DTC is erased, all the SRT will indicate “INCMP”. NOTE:
SRT can be set as “CMPLT” together with the DTC(s) . Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.
DIAGNOSIS DESCRIPTION : Permanent Di agnostic Trouble Code (Permanent DTC)
INFOID:0000000009462538
Permanent DTC is defined in SAE J1979/ISO 15031-5 Service $0A.
ECM stores a DTC issuing a command of turning on MIL as a permanent DTC and keeps storing the DTC as
a permanent DTC until ECM judges that there is no presence of malfunction.
Permanent DTCs cannot be erased by using the Erase f unction of CONSULT or Generic Scan Tool (GST) and
by disconnecting the battery to shut of f power to ECM. This prevents a vehicle from passing the state emission
inspection without repairing a malfunctioning part.
When not passing the state emission inspection due to more than one permanent DTC, permanent DTCs
should be erased, referring to this manual.
NOTE:
• The important items in state emission inspection are t hat MIL is not ON, SRT test items are set, and perma-
nent DTCs are not included.
• Permanent DTCs do not apply for regions that permanent DTCs are not regulated by law.
Self-diagnosis result Example
Diagnosis Ignition cycle
← ON →OFF ← ON →OFF ← ON →OFF ← ON →
All OK Case 1 P0400 OK (1) — (1) OK (2) — (2) P0402 OK (1) — (1) — (1) OK (2)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “CMPLT” “CMPLT” “CMPLT” “CMPLT”
Case 2 P0400 OK (1) — (1) — (1) — (1) P0402 — (0) — (0) OK (1) — (1)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “INCMP” “INCMP” “CMPLT” “CMPLT”
NG exists Case 3 P0400 OK OK — — P0402 — — — —
P1402 NG — NG NG
(Consecutive
NG)
(1st trip) DTC 1st trip DTC — 1st trip DTC
DTC
(= MIL ON)
SRT of EGR “INCMP” “INCMP” “INCMP” “CMPLT”
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1598 of 4801

NISSAN TEANA 2014 Service Manual
EC-598
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
PERMANENT DTC SET TIMING
The setting timing of permanent DTC is stored in EC
M with the lighting of MIL when a DTC is confirmed.
DIAGNOSIS

EC-598
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
PERMANENT DTC SET TIMING
The setting timing of permanent DTC is stored in EC
M with the lighting of MIL when a DTC is confirmed.
DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)INFOID:0000000009462539
• When detecting a DTC that affects exhaust gas, the exhaust emis-
sion-related control module transmits a malfunction indicator lamp
signal to ECM via CAN communication line.
ECM prioritizes (MIL: ON/blink) the signal received from the
exhaust emission-related control module and the ECM-stored DTC
that affects exhaust gas and transmits a malfunction indicator lamp
signal to the combination meter via CAN communication line.
The combination meter turns ON or blinks the MIL, according to
the signal transmitted from ECM, and alerts the driver of malfunc-
tion detection.
• Control modules that a DTC of MIL ON/Blink is stored (Control module varies among DTCs.):
-ECM
-TCM
1. The MIL illuminates when ignition switch is turned ON (engine is not running). NOTE:
Check the MIL circuit if MIL does not illuminate. Refer to EC-973, "Component Function Check"
.
2. When the engine is started, the MIL should go off. NOTE:
If MIL remains ON or continues blinking, a DTC(s) t hat affects exhaust gas is detected. In this case, Self
diagnosis is required for performing inspection and repair.
On Board Diagn osis FunctionINFOID:0000000009462540
ON BOARD DIAGNOSIS ITEM
The on board diagnostic system has the following functions.
BULB CHECK MODE
Description
This function allows damage inspection in the MIL bulb (blown, open circuit, etc.).
Operation Procedure
1. Turn ignition switch ON.
2. The MIL on the instrument panel should stay ON.
If it remains OFF, check MIL circuit. Refer to EC-973, "Diagnosis Procedure"
.
SRT STATUS MODE
Description
JSBIA1315ZZ
Diagnostic test mode Function
Bulb check MIL can be checked.
SRT status ECM can read if SRT codes are set.
Malfunction warning If ECM detects a malfunction, it illuminates or blinks MIL to inform the driver that a malfunction has been detected.
Self-diagnostic results DTCs or 1st trip DTCs stored in ECM can be read.
Accelerator pedal released po-
sition learning ECM can learn the accelerator pedal released position. Refer to
EC-681, "Description"
.
Throttle valve closed position
learning ECM can learn the throttle valve closed position. Refer to
EC-682, "Description"
.
Idle air volume learning ECM can learn the idle air volume. Refer to EC-683, "Description"
.
Mixture ratio self -learning value
clear Mixture ratio self-learning value can be erased. Refer to
EC-685, "Description"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1599 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (ECM)EC-599
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
This function allows to read if ECM has completed
the self-diagnoses of major emission control systems a

DIAGNOSIS SYSTEM (ECM)EC-599
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
This function allows to read if ECM has completed
the self-diagnoses of major emission control systems and
components. For SRT, refer to EC-596, "DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) Code"
.
Operation Procedure
1. Turn ignition switch ON and wait 20 seconds.
2. SRT status is indicated as shown blow. • ECM continues to illuminate MIL if all SRT codes are set.
• ECM blinks MIL for about 10 seconds if all SRT codes are not set.
MALFUNCTION WARNING MODE
Description
In this function ECM turns on or blinks MIL when it detects a malfunction in the emission control system com-
ponents and/or the powertrain control components (which affe ct vehicle emissions) to inform the driver that a
malfunction has been detected.
Operation Procedure
1. Turn ignition switch ON.
2. Check that MIL illuminates. If it remains OFF, check MIL circuit. Refer to EC-973, "Diagnosis Procedure"
.
3. Start engine and let it idle. • For two trip detection logic diagnoses, ECM turns on MIL when it detects the same malfunction twice in
the two consecutive driving cycles.
• For 1st trip detection logic diagnoses, ECM turns on MIL when it detects a malfunction in one driving
cycle.
• ECM blinks MIL when it detects a malfunction t hat may damage the three way catalyst (misfire).
SELF-DIAGNOSTIC RESULTS MODE
Description
This function allows to indicate DTCs or 1st trip DTCs stored in ECM according to the number of times MIL is
blinking.

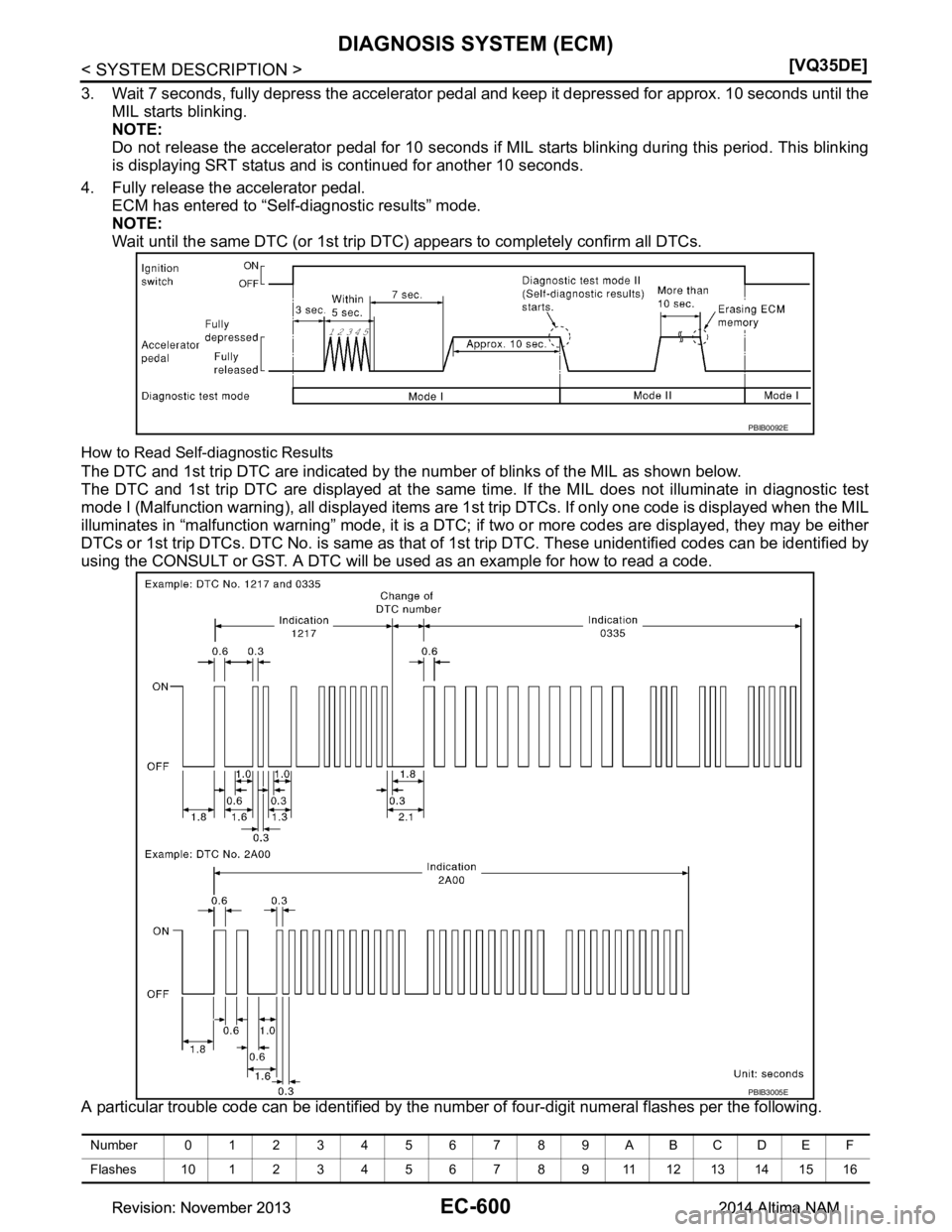

How to Set Self-diagnostic Results Mode
NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a mal- function.
• After ignition switch is turned off, ECM is a lways released from the “self-diagnostic results” mode.
1. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quick ly five times within 5 seconds.
• Fully depress the accelerator pedal.
• Fully release the accelerator pedal.
JMBIA1515GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1600 of 4801

NISSAN TEANA 2014 Service Manual
EC-600
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
3. Wait 7 seconds, fully depress the accelerator pedal and keep it depressed for approx. 10 seconds until the
MIL starts blinking.
NOTE:

Load next 8 pages

Page: < prev 1-10 ... 1561-1568 1569-1576 1577-1584 1585-1592 1593-1600 1601-1608 1609-1616 1617-1624 1625-1632 ... 4808 next >

oil capacities climate control coolant oil type check transmission fluid alternator belt
