TM-378
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CVT SHIFT SELECTOR
REMOVAL AND INSTALLATION
CVT SHIFT SELECTOR
Exploded ViewINFOID:0000000009464332
Removal and InstallationINFOID:0000000009464333
CAUTION:
Always apply the parking brake befo re removal and installation.
REMOVAL
1. Apply the parking brake.
CAUTION:
Make sure the vehicle cannot move with the parking brake applied.
2. Disconnect battery negative terminal. Refer to PG-73, "Removal and Installation (Battery)"
.
3. Remove shift lock override button cover (1) using suitable tool, and insert suitable tool into opening (A) to depress the shift lock
override button. Move CVT shift selector to "N" position while
depressing shift lock override button.
: Front
1. CVT shift selector assembly 2. Control cable 3. Shift selector handle cover
4 Shift selector handle A. Shift selector handle clip
ALDIA0354GB
ALDIA0356GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4594 of 4801
![NISSAN TEANA 2014 Service Manual
CVT SHIFT SELECTORTM-379
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
4. Remove the shift selector handle (1).
a. Release the shift selector handle cover (2) using a NISSAN TEANA 2014 Service Manual
CVT SHIFT SELECTORTM-379
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
4. Remove the shift selector handle (1).
a. Release the shift selector handle cover (2) using a](/manual-img/5/57390/w960_57390-4593.png)
CVT SHIFT SELECTORTM-379
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
4. Remove the shift selector handle (1).
a. Release the shift selector handle cover (2) using a suitable tool from the base of the shift selector handle (1).
b. Remove the shift selector handle clip (A).
c. Pull upward and remove the shift selector handle (1).
5. Remove the center console. Refer to IP-18, "Removal and Installation"
.
6. Release the harness clip, then disconnect the harness connector from CVT shift selector.
7. Depress shift lock override button and move CVT shift selector to "P" position“”.
8. Remove the control cable from the CV T shift selector assembly. Refer to TM-181, "Exploded View"
.
9. Remove the four CVT shift selector assembly nuts and the CVT shift selector assembly from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
• When installing control cable (1) to the CVT shift selector assembly (2), check that control cable is full y pressed in until it stops with the
ribbed surface (A) facing upward.
NOTE:
Apply multi-purpose grease to cont rol cable eye before installation.
• Adjust control cable as necessary. Refer to TM-381, "Inspection
and Adjustment".
InspectionINFOID:0000000009464334
INSPECTION AFTER INSTALLATION
Check the CVT shift selector position. Refer to TM-289, "Inspection".
If a malfunction is found, adjust the CVT position. Refer to TM-289, "Adjustment"
.
ALDIA0353ZZ
JSDIA1624ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4595 of 4801
![NISSAN TEANA 2014 Service Manual
TM-380
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CONTROL CABLE
CONTROL CABLE
Exploded ViewINFOID:0000000009464335
Removal and InstallationINFOID:0000000009464336
CAUTION:
Always apply the parking b NISSAN TEANA 2014 Service Manual
TM-380
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CONTROL CABLE
CONTROL CABLE
Exploded ViewINFOID:0000000009464335
Removal and InstallationINFOID:0000000009464336
CAUTION:
Always apply the parking b](/manual-img/5/57390/w960_57390-4594.png)
TM-380
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CONTROL CABLE
CONTROL CABLE
Exploded ViewINFOID:0000000009464335
Removal and InstallationINFOID:0000000009464336
CAUTION:
Always apply the parking brake before pe rforming removal and installation.
INSTALLATION
1. Apply the parking brake.
CAUTION:
Make sure the vehicle cannot move with the parking brake applied.
2. Remove the front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
3. Remove the control cable nut ( ), using suitable tool.
4. Remove control cable (2) from manual lever (A).
5. Remove the lock plate (3) from control cable (2).
6. Remove control cable (2) from bracket (1).
7. Remove center console. Refer to IP-18, "Removal and Installation"
.
8. Disconnect the ITS control unit harness connectors and remove the ITS control unit (if equipped). Refer to
AV-436, "Removal and Installation"
.
1. Lock plate 2. Transaxle assembly 3. Bracket
4. Control cable 5. CVT shift selector assembly A. Manual lever
B. Retainer grommet
ALDIA0352GB
ALDIA0360ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4596 of 4801
![NISSAN TEANA 2014 Service Manual
CONTROL CABLETM-381
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
9. Remove control cable (1) from the CVT shift selector assembly (2).
(A): Ribbed surface
10. Pull ba NISSAN TEANA 2014 Service Manual
CONTROL CABLETM-381
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
9. Remove control cable (1) from the CVT shift selector assembly (2).
(A): Ribbed surface
10. Pull ba](/manual-img/5/57390/w960_57390-4595.png)
CONTROL CABLETM-381
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
9. Remove control cable (1) from the CVT shift selector assembly (2).
(A): Ribbed surface
10. Pull back dash trim and remove two retainer grommet bolts.
11. Thread the control cable through the sheet metal and remove the control cable from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
• When installing control cable (1) to the CVT shift selector assembly
(2), check that control cable is full y pressed in until it stops with the
ribbed surface (A) facing upward.
NOTE:
Apply multi-purpose grease to cont rol cable eye before installation.
• Adjust control cable as necessary. Refer to TM-381, "Inspection
and Adjustment".
Inspection and AdjustmentINFOID:0000000009464337
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT position. Refer to TM-289, "Adjustment".
INSPECTION AFTER ADJUSTMENT
Check the CVT shift selector position after the adjustment. Refer to TM-289, "Inspection".
JSDIA1624ZZ
JSDIA1624ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4597 of 4801
TM-382
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
PADDLE SHIFTER
PADDLE SHIFTER
Exploded ViewINFOID:0000000009464338
Removal and InstallationINFOID:0000000009464339
REMOVAL
1. Park the vehicle on a level surface.
2. Remove the driver air bag module. Refer to SR-11, "Removal and Installation"
.
3. Remove the steering wheel. Refer to ST-31, "Removal and Installation"
.
4. Remove the column cover. Refer to IP-17, "Removal and Installation"
.
1. Steering column assembly 2. Paddle shifter (shift-down) 3. Paddle shifter (shift-up)
AWDIA0557GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4598 of 4801
PADDLE SHIFTERTM-383
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
5. Remove the vehicle harness connector (C) and (D) from paddle shifter.
6. Remove the paddle shifter bolts (E) and nuts (F).
7. Remove the paddle shifter from the steering column assembly.
INSTALLATION
Installation is in the reverse order of removal.
(A) : Side of paddle shifter (shift-down)
(B) : Side of paddle shifter (shift-up)
AWDIA0563ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4599 of 4801
TM-384
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
TCM
TCM

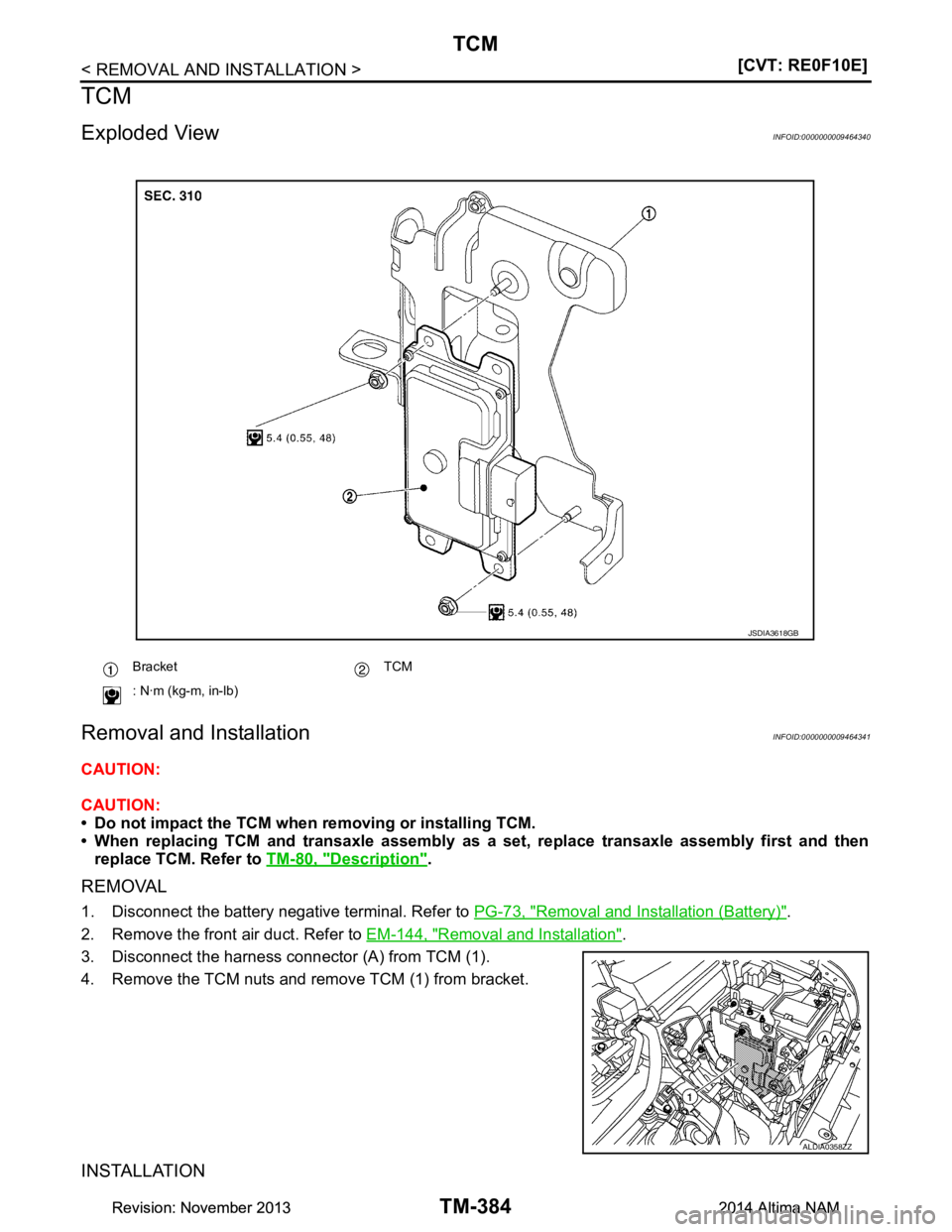

Exploded ViewINFOID:0000000009464340
