Page 3673 of 4801

RF-8
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000009941201
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
RETAINED PWR
Direct Diagnostic Mode Description
Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
Ecu Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN Diag Support Mntr
Door lock DOOR LOCK ××××
Rear window defogger REAR DEFOGGER ×××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ×××
Exterior lamp HEADLAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM × × ×××
Immobilizer IMMU ×××
Interior room lamp battery saver BATTERY SAVER ××
Trunk open TRUNK ×
Vehicle security system THEFT ALM ×××
RAP system RETAINED PWR ×
Signal buffer system SIGNAL BUFFER ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3674 of 4801
DIAGNOSIS SYSTEM (BCM)RF-9
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P
RETAINED PWR : CONSULT Func tion (BCM - RETAINED PWR)INFOID:0000000009941202
DATA MONITOR
Monitor Item [Unit] Description
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3675 of 4801
RF-10
< ECU DIAGNOSIS INFORMATION >
BCM (BODY CONTROL MODULE)
ECU DIAGNOSIS INFORMATION
BCM (BODY CONTROL MODULE)
List of ECU ReferenceINFOID:0000000009461297
ECU Reference
BCM BCS-31, "Reference Value"
BCS-50, "Fail Safe"
BCS-50, "DTC Inspection Priority Chart"
BCS-52, "DTC Index"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3676 of 4801

MOONROOF MOTOR ASSEMBLYRF-11
< ECU DIAGNOSIS INFORMATION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P
MOONROOF MOTOR ASSEMBLY
Reference ValueINFOID:0000000009461298
TERMINAL LAYOUT
PHYSICAL VALUES
AWKIA1980ZZ
Te r m i n a l N o . (Wire color) Description
ConditionVoltage (V)
(Approx.)
+ - Signal name Input/
Output
1
(B) Ground Ground — — 0
3
(Y) Ground RAP signal Input Ignition switch ON Battery voltage
Within 45 second after ignition
switch is turned to OFF. Battery voltage
When driver side or passenger
side door is opened during re-
tained power operation. 0
5
(L) Ground Moonroof open switch signal Input Moonroof switch in following
position
•TILT DOWN
• SLIDE OPEN 0
Other than above Battery voltage
6
(R) Ground Moonroof power supply Input — Battery voltage
8
(O) Ground
Vehicle speed signal (2-
pulse) InputSpeedometer operated [When
vehicle speed is approx.40km/
h (25MPH)]
10
(G) Ground Moonroof close switch signal Input Moonroof switch in following
position
•TILT UP
•SLIDE CLOSE 0
Other than above Battery voltage
ELF1080D
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3677 of 4801
RF-12
< WIRING DIAGRAM >
MOONROOF SYSTEM
WIRING DIAGRAM
MOONROOF SYSTEM
Wiring DiagramINFOID:0000000009461299
AAKWA0815GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3678 of 4801
MOONROOF SYSTEMRF-13
< WIRING DIAGRAM >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P
ABKIA3633GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3679 of 4801
RF-14
< WIRING DIAGRAM >
MOONROOF SYSTEM
ABKIA3634GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3680 of 4801
MOONROOF SYSTEMRF-15
< WIRING DIAGRAM >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P

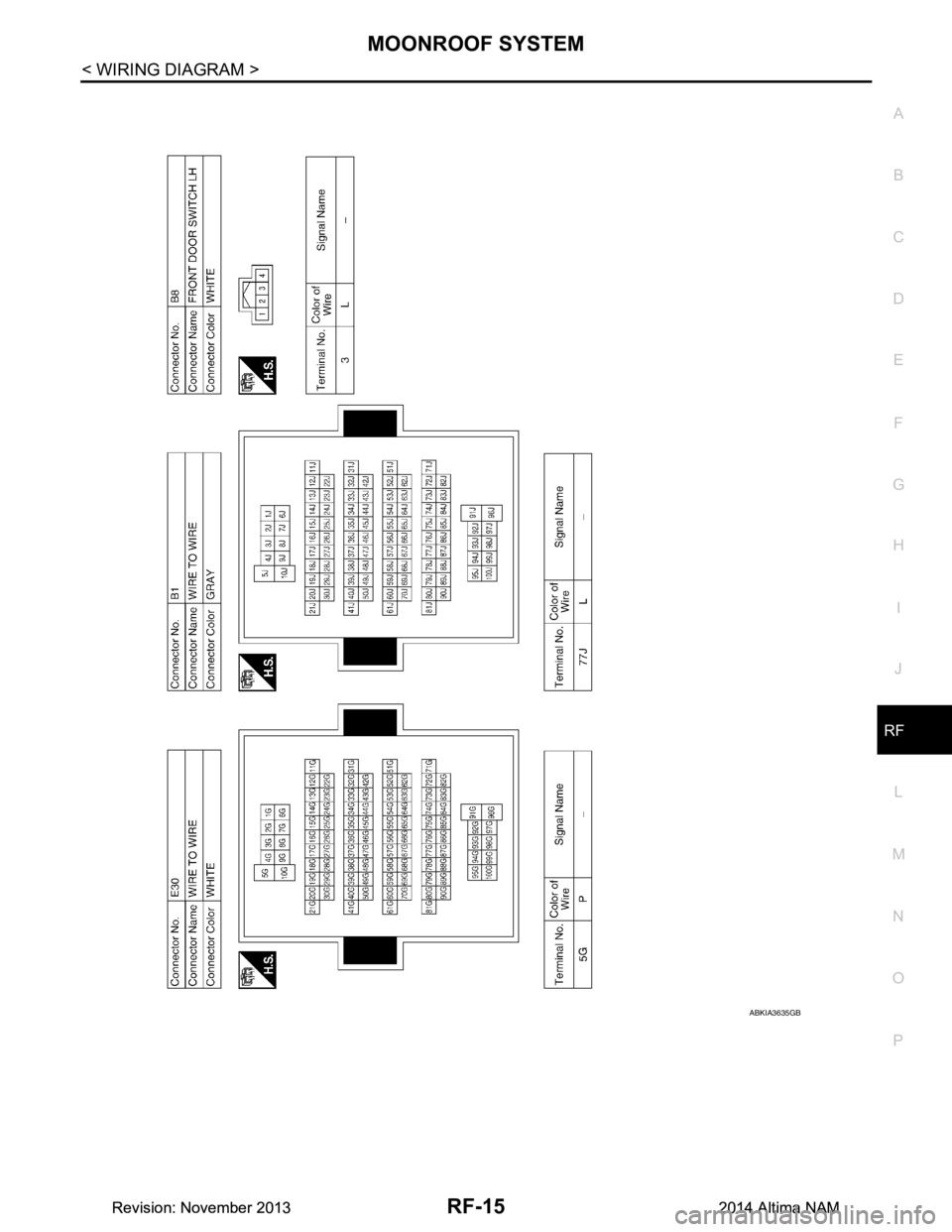

ABKIA3635GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
