Page 4489 of 4801

NISSAN TEANA 2014 Service Manual
TM-274
< WIRING DIAGRAM >[CVT: RE0F10E]
CVT CONTROL SYSTEM
ABDIA1163GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4490 of 4801

NISSAN TEANA 2014 Service Manual
CVT SHIFT LOCK SYSTEMTM-275
< WIRING DIAGRAM > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT SHIFT LOCK SYSTEM
Wiring DiagramINFOID:0000000009953777

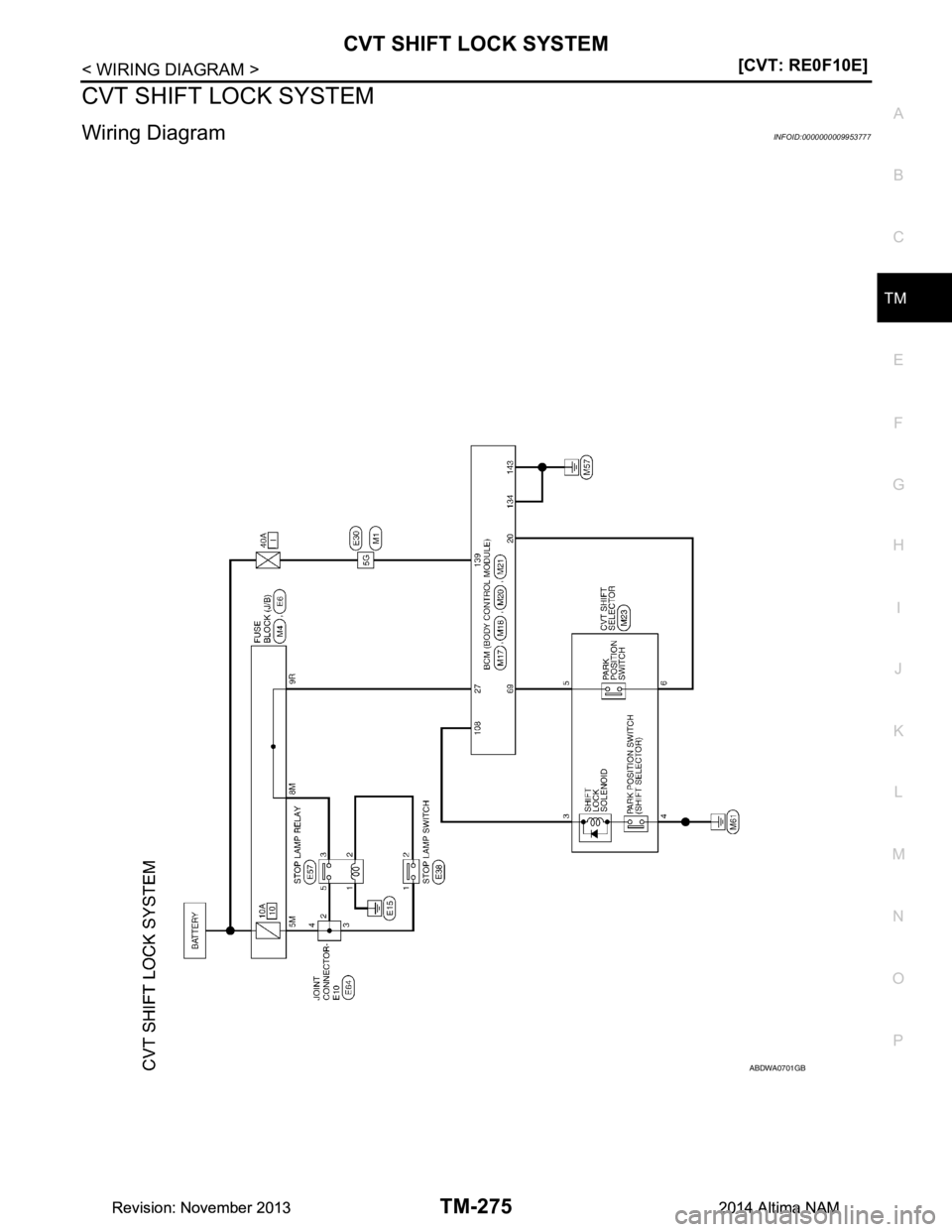

ABDWA0701GB
Revision: November 20132014 Alti

Page 4491 of 4801

NISSAN TEANA 2014 Service Manual
TM-276
< WIRING DIAGRAM >[CVT: RE0F10E]

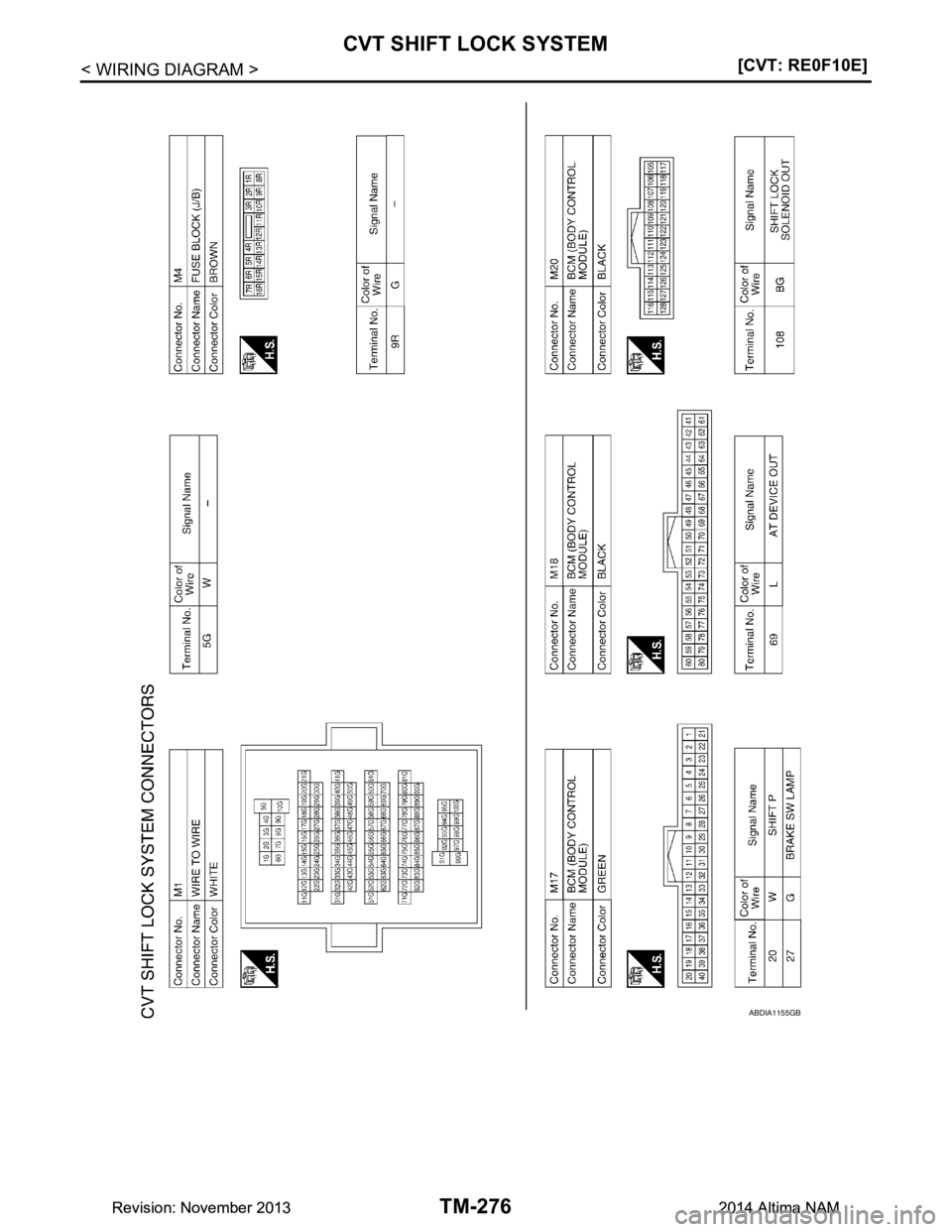

CVT SHIFT LOCK SYSTEM
ABDIA1155GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4492 of 4801

NISSAN TEANA 2014 Service Manual
CVT SHIFT LOCK SYSTEMTM-277
< WIRING DIAGRAM > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

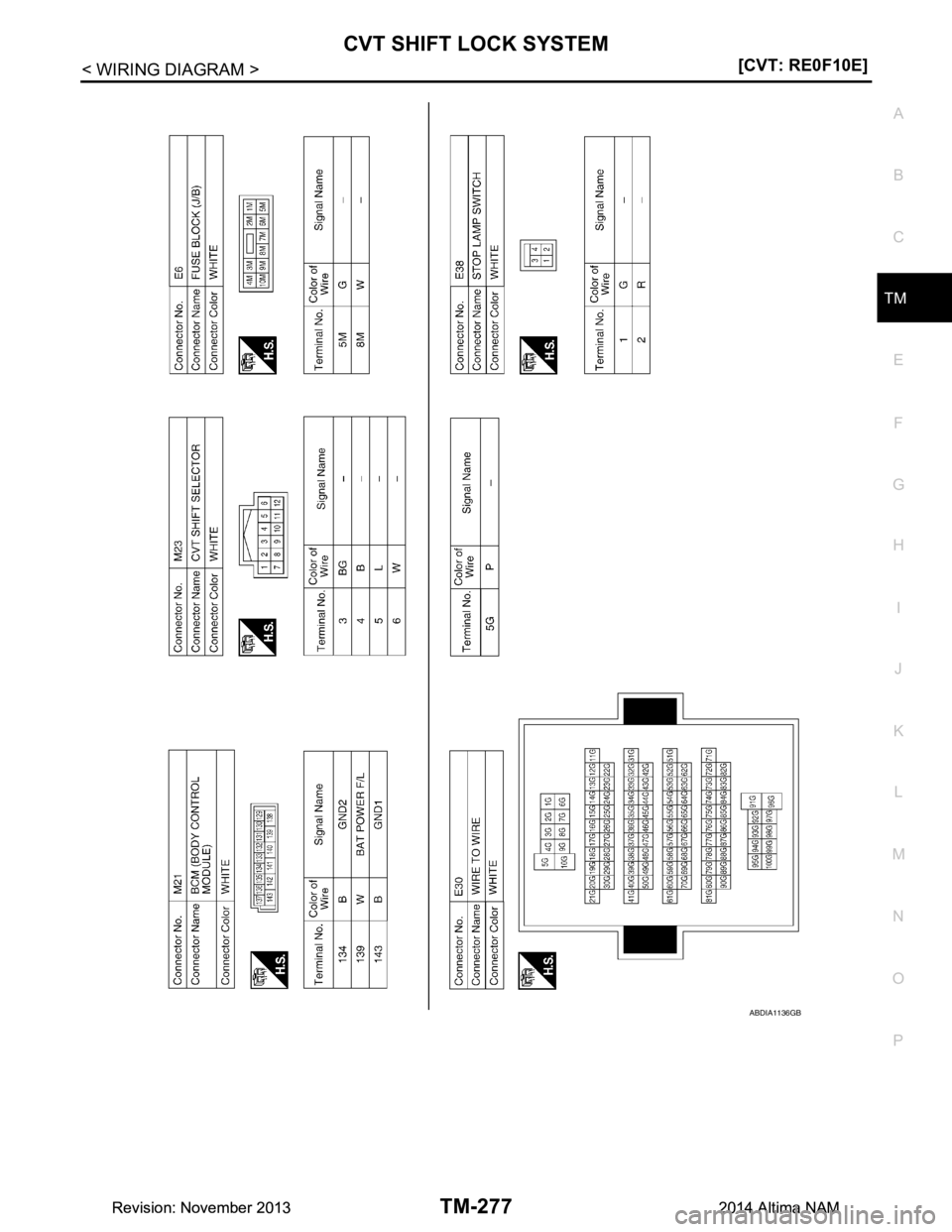

ABDIA1136GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4493 of 4801

NISSAN TEANA 2014 Service Manual
TM-278
< WIRING DIAGRAM >[CVT: RE0F10E]

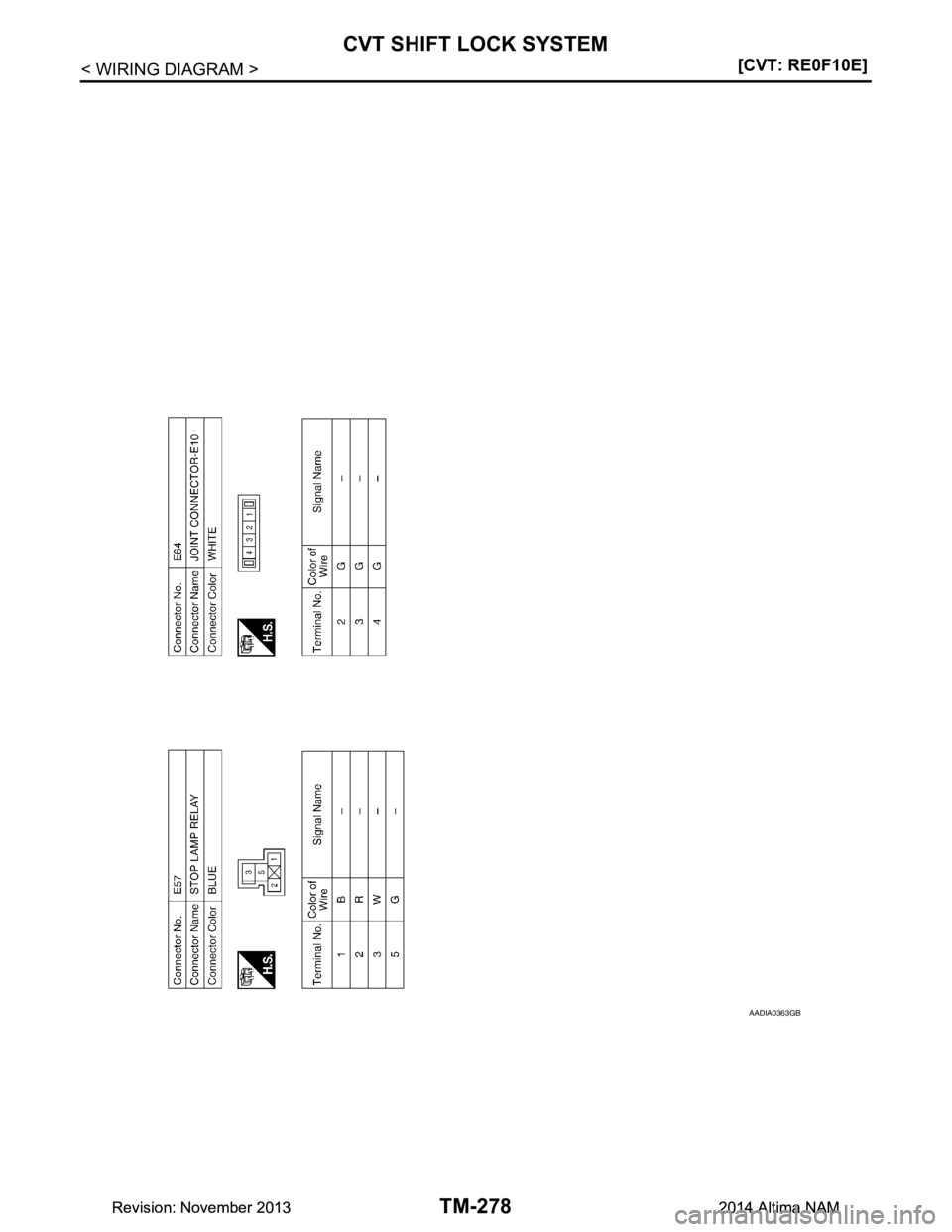

CVT SHIFT LOCK SYSTEM
AADIA0363GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4494 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS AND REPAIR WORK FLOWTM-279
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000009464225
NOTE:
“DT

DIAGNOSIS AND REPAIR WORK FLOWTM-279
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000009464225
NOTE:
“DTC” includes DTC at the 1st trip.
1.OBTAIN INFORMATION ABOUT SYMPTOM
Refer to TM-280, "Diagnostic Work Sheet"
and interview the customer to obtain the malfunction information
(conditions and environment when the malfunction occurred) as much as possible when the customer brings
in the vehicle.
>> GO TO 2.
2.CHECK DTC
1. Before checking the malfunction, check whether any DTC exists.
2. If DTC exists, perform the following operations.
- Records the DTCs. (Print out using CONS ULT and affix to the Work Order Sheet.)
- Erase DTCs.
- Check the relation between the cause found by DT C and the malfunction information from customer. TM-
373, "Symptom Table" can be used effectively.
3. Check the relevant information including STI, etc.
Do malfunction information and DTC exists?
Malfunction information and DTC exists.>>GO TO 3.
Malfunction information exists but no DTC.>>GO TO 4.
No malfunction information, but DTC exists.>>GO TO 5.
3.REPRODUCE MALFUCTION SYSTEM
Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to TM-258, "Fail-safe"
.
Interview sheet can be used effectively when reproduce malfunction conditions. Refer to TM-280, "Diagnostic
Work Sheet".
Verify the relationship between the symptom and the condi tions in which the malfunction described by the cus-
tomer occurs.
>> GO TO 5.
4.REPRODUCE MALFUNCTION SYMPTOM
Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to TM-258, "Fail-safe"
.
Interview sheet can be used effectively when reproduce malfunction conditions. Refer to TM-280, "Diagnostic
Work Sheet".
Verify the relationship between the symptom and the condi tions in which the malfunction described by the cus-
tomer occurs.
>> GO TO 6.
5.PERFORM “DTC CONFIRMATION PROCEDURE”
Perform “DTC CONFIRMATION PROCEDURE” of the appr opriate DTC to check if DTC is detected again.
Refer to TM-262, "DTC Inspection Priority Chart"
when multiple DTCs are detected, and then determine the
order for performing the diagnosis.
Is any DTC detected?
YES >> GO TO 7.
NO >> Follow GI-43, "Intermittent Incident"
to check.
6.IDENTIFY MALFUNCTIONING SYSTEM WI TH “DIAGNOSIS CHART BY SYMPTOM”
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4495 of 4801

NISSAN TEANA 2014 Service Manual
TM-280
< BASIC INSPECTION >[CVT: RE0F10E]
DIAGNOSIS AND REPAIR WORK FLOW
Use
TM-373, "Symptom Table" from the symptom inspection result in step 4. Then identify where to start per-
forming the diag

TM-280
< BASIC INSPECTION >[CVT: RE0F10E]
DIAGNOSIS AND REPAIR WORK FLOW
Use
TM-373, "Symptom Table" from the symptom inspection result in step 4. Then identify where to start per-
forming the diagnosis based on possible causes and symptoms.
>> GO TO 8.
7.REPAIR OR REPLACE THE MALFUNCTIONING PARTS
Repair or replace the detected malfunctioning parts.
Reconnect parts or connector after repairing or replacing, and then erase DTC if necessary.
>> GO TO 8.
8.FINAL CHECK
Perform “DTC CONFIRMATION PROCEDURE” again to make sure that the repair is correctly performed.
Check that malfunctions are not reproduced when obtaini ng the malfunction information from the customer,
referring to the symptom inspection result in step 3 or 4.
Is DTC or malfunction symptom reproduced?
YES-1 (DTC is reproduced.)>>GO TO 5.
YES-2 (Malfunction is reproduced.)>>GO TO 6.
NO >> Before delivering the vehicle to the customer, make sure that DTC is erased.
Diagnostic Work SheetINFOID:0000000009464226
DESCRIPTION
There are many operating conditions that may cause a malfunction
of the transmission parts. By understanding those conditions prop-
erly, a quick and exact diagnosis can be achieved.
In general, perception of a problem varies depending on individuals.
Ask the customer about his/her concer ns carefully. It is important to
understand the phenomenon or status. To systemize all the informa-
tion for the diagnosis, prepare the question sheet referring to the
question points.
In some cases, multiple conditions that appear simultaneously may
cause a DTC to be detected.
Worksheet Sample
SEF907L
Question sheet
Customer's
name MR/MSRegistration
number Initial year
registration Ye a r M o n t h
day
Vehicle type Chassis No.
Storage date Year Month
dayEngine Mileage km/mile
Symptom † Vehicle does not start. ( † R position † D position † DS position † M position)
† Upshifting does not occur. † Downshifting does not occur.
† Lock-up malfunction
† Shift point is too high. † Shift point is too low.
† Shift shock ( † N ⇒D † Lock-up † R, D, DS and M position)
† Slip ( † N ⇒D † Lock-up † R, D, DS and M position)
† Noise † Vibration
When selector lever position is shifted, shift pattern does not change.
† Other
( )
First occurrence † Recently (as from month of year )
Frequency of occurrence † Always † Under certain conditions † Sometimes ( time(s)/day)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4496 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS AND REPAIR WORK FLOWTM-281
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Climate con-
ditions Irrelevant
Weather �† Clear �† Cloud �† Rain �† Snow �† Other
