Page 2825 of 4801
INL-4
< PREPARATION >
PREPARATION
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009463860
The actual shapes of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name Description
—
(J-46534)
Trim Tool Set Removing trim components
AWJIA0483ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2826 of 4801

COMPONENT PARTSINL-5
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000009463861
Component DescriptionINFOID:0000000009463862
1. BCM (view with combination meter re- moved) 2. Front door switch LH
(RH similar) 3. Rear door switch LH
(RH similar)
4. Main power window and door lock/un- lock switch 5. Power window and door lock/unlock
switch RH 6. Trunk lamp switch and trunk release
solenoid
(Trunk lamp switch)
7. Front door lock assembly LH (key cylinder switch) 8. Combination switch
(lighting and turn signal switch) 9. Push-button ignition switch
10. IPDM E/R (tail lamp relay) 11. Meter control switch
(illumination control switch)
Part name Description
BCM The BCM monitors the combination switch (lighting and turn signal
switch) position. The BCM requests via CAN communication that
the IPDM E/R activate the tail lamp relay.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2827 of 4801

INL-6
< SYSTEM DESCRIPTION >
COMPONENT PARTS
IPDM E/RThe IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication.
Push button ignition switch Provides ignition switch status to the BCM.
Door switches Provides door OPEN/CLOSED status to the BCM.
Combination switch
(lighting and turn signal switch) The combination switch (lighting and turn signal switch) provides
input to the BCM. The BCM then sends a tail lamp relay request
signal to the IPDM E/R via CAN communication to operate the il-
lumination system.
Trunk lamp switch and release solenoid
(trunk lamp switch) Provides trunk lamp switch OP
EN/CLOSED status to the BCM.
Power window and door lock/unlock switch RH Provides door lock/unlock position switch RH status to the BCM.
Main power window and door lock/unlock switch Provides door lock/unlock position switch LH status to the BCM.
Meter control switch
(illumination control switch) • Adjusts the illumination system and combination meter illumina-
tion brightness (with multiple illumination control).
• Only adjusts the combination meter illumination brightness
(with meter illumination control only).
Front door lock assembly LH (key cylinder switch) Provides front door lock assembly LH (key cylinder switch) door
lock/unlock switch position status to the BCM.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2828 of 4801

INTERIOR ROOM LAMP CONTROL SYSTEMINL-7
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
INTERIOR ROOM LAMP CONTROL SYSTEM

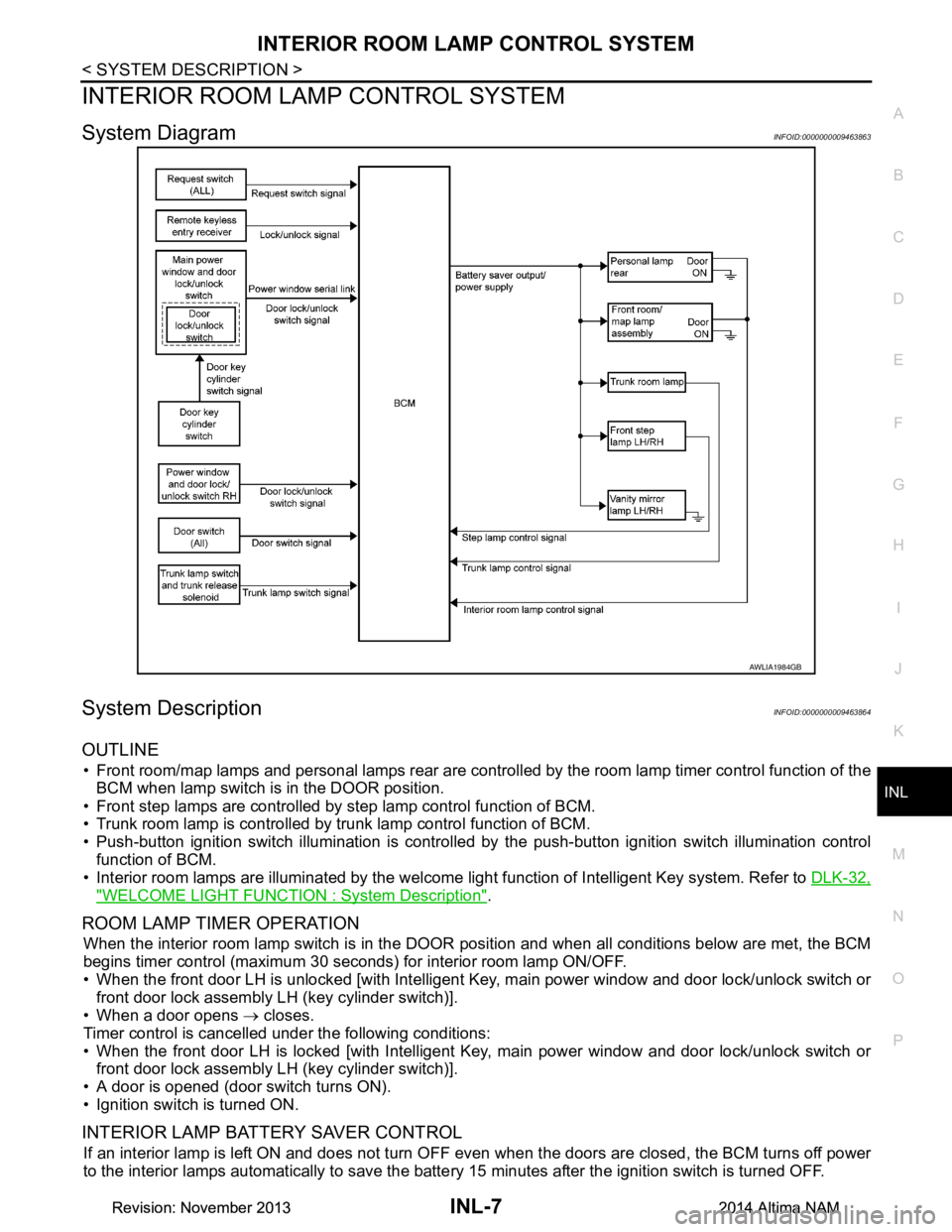

System DiagramINFOID:0000000009463863
System DescriptionINFOID:0000000009463864
OUTLINE
• Front room/map lamps and personal lamps rear are controll ed by the room lamp timer control function of the
BCM when lamp switch is in the DOOR position.
• Front step lamps are controlled by step lamp control function of BCM.
• Trunk room lamp is controlled by trunk lamp control function of BCM.
• Push-button ignition switch illumination is controlled by the push-button ignition switch illumination control
function of BCM.
• Interior room lamps are illuminated by the welcome light function of Intelligent Key system. Refer to DLK-32,
"WELCOME LIGHT FUNCTION : System Description".
ROOM LAMP TIMER OPERATION
When the interior room lamp switch is in the DOOR position and when all conditions below are met, the BCM
begins timer control (maximum 30 seconds ) for interior room lamp ON/OFF.
• When the front door LH is unlocked [with Intelligent Key, main power window and door lock/unlock switch or
front door lock assembly LH (key cylinder switch)].
• When a door opens → closes.
Timer control is cancelled under the following conditions:
• When the front door LH is locked [with Intelligent Key, main power window and door lock/unlock switch or front door lock assembly LH (key cylinder switch)].
• A door is opened (door switch turns ON).
• Ignition switch is turned ON.
INTERIOR LAMP BATTERY SAVER CONTROL
If an interior lamp is left ON and does not turn OF F even when the doors are closed, the BCM turns off power
to the interior lamps automatically to save the batte ry 15 minutes after the ignition switch is turned OFF.
AWLIA1984GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2829 of 4801
INL-8
< SYSTEM DESCRIPTION >
INTERIOR ROOM LAMP CONTROL SYSTEM
The BCM controls the following interior lamps:
• Front step lamp LH/RH
• Front room/map lamp LH/RH
• Personal lamp rear LH/RH
• Vanity mirror lamp LH/RH (if equipped)
• Trunk room lamp
After the battery saver system turns the la mps OFF, the lamps will illuminate again when:
• A signal is received from an Intelligent Key or main power window and door lock/unlock switch or when the front door lock assembly LH (key cylinder switch) is locked or unlocked.
• A door is opened or closed.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2830 of 4801

ILLUMINATION CONTROL SYSTEMINL-9
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
ILLUMINATION CONTROL SYSTEM

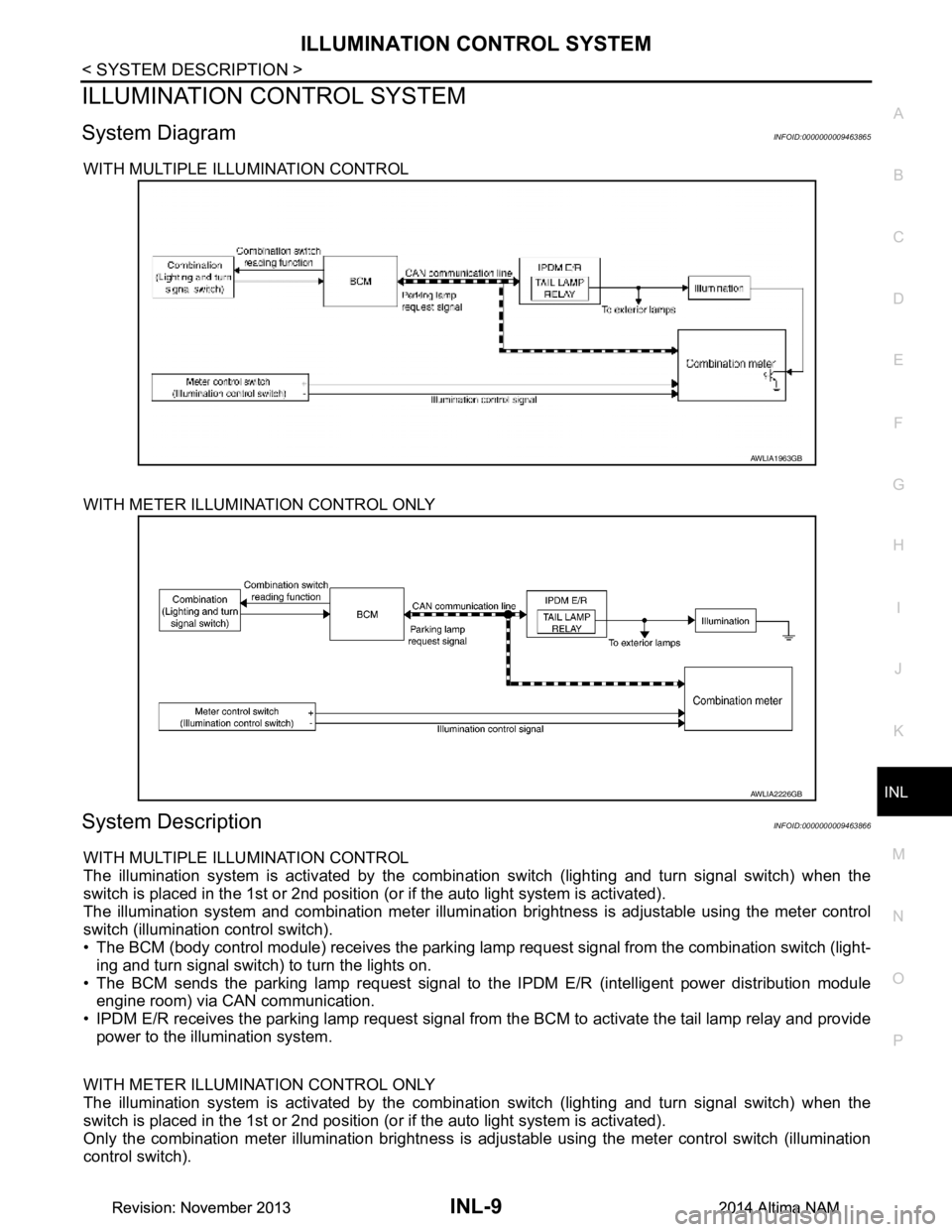

System DiagramINFOID:0000000009463865
WITH MULTIPLE ILLUMINATION CONTROL
WITH METER ILLUMINATION CONTROL ONLY
System DescriptionINFOID:0000000009463866
WITH MULTIPLE ILLUMINATION CONTROL
The illumination system is activated by the combinat ion switch (lighting and turn signal switch) when the
switch is placed in the 1st or 2nd position (or if the auto light system is activated).
The illumination system and combination meter illuminati on brightness is adjustable using the meter control
switch (illumination control switch).
• The BCM (body control module) receives the parking lamp request signal from the combination switch (light-
ing and turn signal switch) to turn the lights on.
• The BCM sends the parking lamp request signal to t he IPDM E/R (intelligent power distribution module
engine room) via CAN communication.
• IPDM E/R receives the parking lamp request signal from the BCM to activate the tail lamp relay and provide
power to the illumination system.
WITH METER ILLUMINATION CONTROL ONLY
The illumination system is activated by the combinat ion switch (lighting and turn signal switch) when the
switch is placed in the 1st or 2nd position (or if the auto light system is activated).
Only the combination meter illumination brightness is adjustable using the meter control switch (illumination
control switch).
AWLIA1963GB
AWLIA2226GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2831 of 4801

INL-10
< SYSTEM DESCRIPTION >
ILLUMINATION CONTROL SYSTEM
• The BCM (body control module) receives the parking lamp request signal from the combination switch (light-
ing and turn signal switch) to turn the lights on.
• The BCM sends the parking lamp request signal to t he IPDM E/R (intelligent power distribution module
engine room) via CAN communication.
• IPDM E/R receives the parking lamp request signal from the BCM to activate the tail lamp relay and provide power to the illumination system.
BATTERY SAVER CONTROL
When the combination switch (lighting and turn signal switch) is in the 1st or 2nd position and the ignition
switch is set from ON or ACC to OFF, the battery save r control feature is activated. Under this condition, the
illumination system remains on for 15 minutes unless the combination switch (lighting and turn signal switch)
position is changed. If the combination switch (light ing and turn signal switch) position is changed, then the
illumination system is turned off after a 30 second delay . When the combination switch (lighting and turn signal
switch) is turned from OFF to 1st or 2nd position (or if auto light system is activated) after illumination system
has been turned off by the battery saver control, the illumination lights illuminate again.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2832 of 4801

DIAGNOSIS SYSTEM (BCM)INL-11
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000009956797
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentiall y causing a discharged battery and a no-start condition.
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode Description
Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
Ecu Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN Diag Su pport Mntr
Door lock DOOR LOCK ××××
Rear window defogger REAR DEFOGGER ×××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ×××
Exterior lamp HEADLAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM × × ×××
Immobilizer IMMU ×××
Interior room lamp battery saver BATTERY SAVER ××
Trunk open TRUNK ×
Vehicle security system THEFT ALM ×××
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
