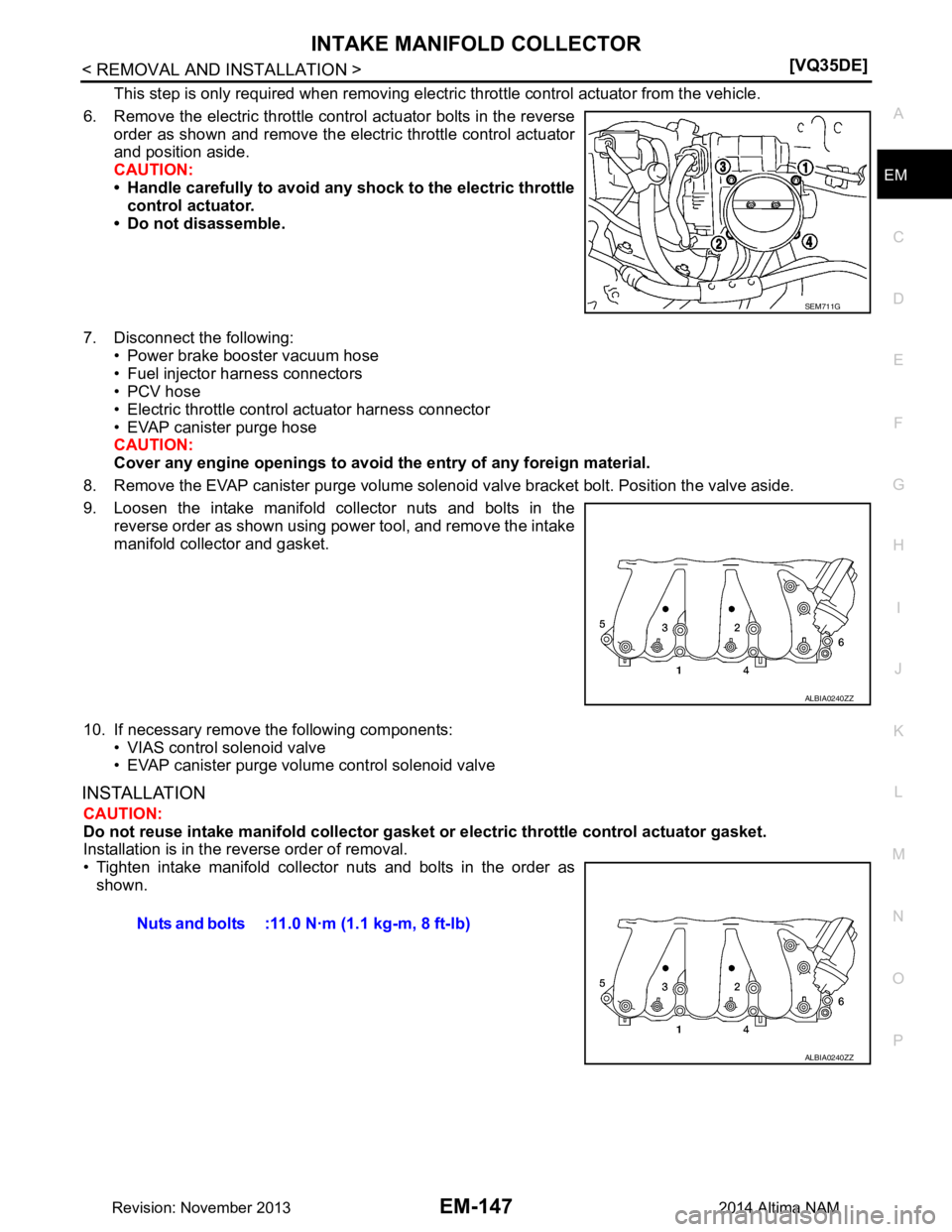

INTAKE MANIFOLD COLLECTOREM-147
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
This step is only required when removing electric
throttle control actuator from the vehicle.
6. Remove the electric throttle control actuator bolts in the reverse order as shown and remove the electric throttle control actuator
and position aside.
CAUTION:
• Handle carefully to avoid any shock to the electric throttle
control actuator.
• Do not disassemble.
7. Disconnect the following: • Power brake booster vacuum hose
• Fuel injector harness connectors
• PCV hose
• Electric throttle control actuator harness connector
• EVAP canister purge hose
CAUTION:
Cover any engine openings to avoid the entry of any foreign material.
8. Remove the EVAP canister purge volume solenoi d valve bracket bolt. Position the valve aside.
9. Loosen the intake manifold collector nuts and bolts in the reverse order as shown using power tool, and remove the intake
manifold collector and gasket.
10. If necessary remove the following components: • VIAS control solenoid valve
• EVAP canister purge volume control solenoid valve
INSTALLATION
CAUTION:
Do not reuse intake manifold collector gasket or electric throttle control actuator gasket.
Installation is in the reverse order of removal.
• Tighten intake manifold collector nuts and bolts in the order as shown.
SEM711G
ALBIA0240ZZ
Nuts and bolts :11.0 N·m (1.1 kg-m, 8 ft-lb)
ALBIA0240ZZ
Revision: November 20132014 Altima NAM
Page 2146 of 4801

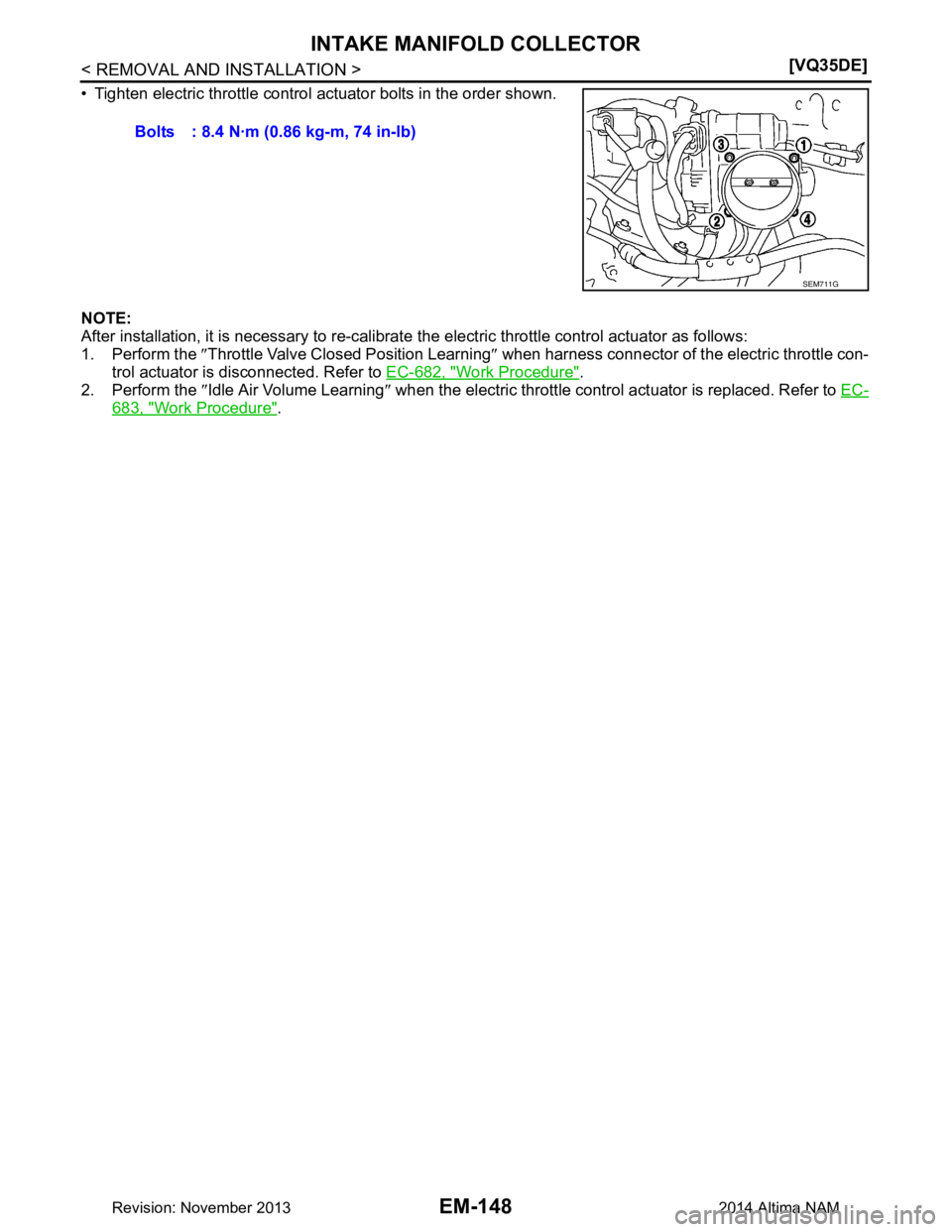

EM-148
< REMOVAL AND INSTALLATION >[VQ35DE]
INTAKE MANIFOLD COLLECTOR
• Tighten electric throttle control actuator bolts in the order shown.
NOTE:
After installation, it is necessary to re-calibrate the electric throttle control actuator as follows:
1. Perform the ″Throttle Valve Closed Position Learning ″ when harness connector of the electric throttle con-
trol actuator is disconnected. Refer to EC-682, "Work Procedure"
.
2. Perform the ″Idle Air Volume Learning ″ when the electric throttle contro l actuator is replaced. Refer to EC-
683, "Work Procedure".
Bolts : 8.4 N·m (0.86 kg-m, 74 in-lb)
SEM711G
Revision: November 20132014 Altima NAM
Page 2147 of 4801
INTAKE MANIFOLDEM-149
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

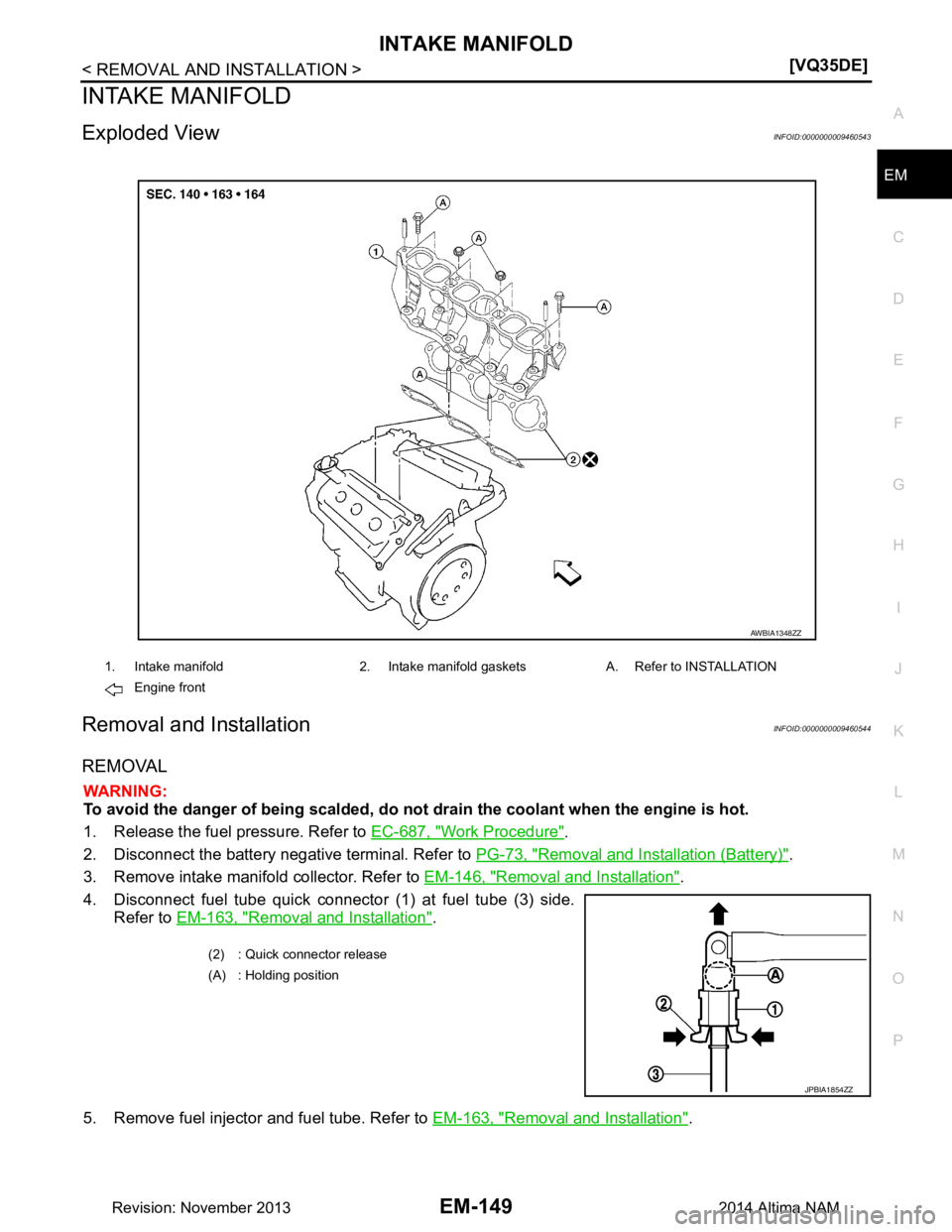

INTAKE MANIFOLD
Exploded ViewINFOID:0000000009460543
Removal and InstallationINFOID:0000000009460544
REMOVAL
WARNING:
To avoid the danger of being scalded, do no t drain the coolant when the engine is hot.
1. Release the fuel pressure. Refer to EC-687, "Work Procedure"
.
2. Disconnect the battery negative terminal. Refer to PG-73, "Removal and Installation (Battery)"
.
3. Remove intake manifold collector. Refer to EM-146, "Removal and Installation"
.
4. Disconnect fuel tube quick connector (1) at fuel tube (3) side. Refer to EM-163, "Removal and Installation"
.
5. Remove fuel injector and fuel tube. Refer to EM-163, "Removal and Installation"
.
1. Intake manifold 2. Intake manifold gaskets A. Refer to INSTALLATION
Engine front
AWBIA1348ZZ
(2) : Quick connector release
(A) : Holding position
JPBIA1854ZZ
Revision: November 20132014 Altima NAM
Page 2148 of 4801
![NISSAN TEANA 2014 Service Manual

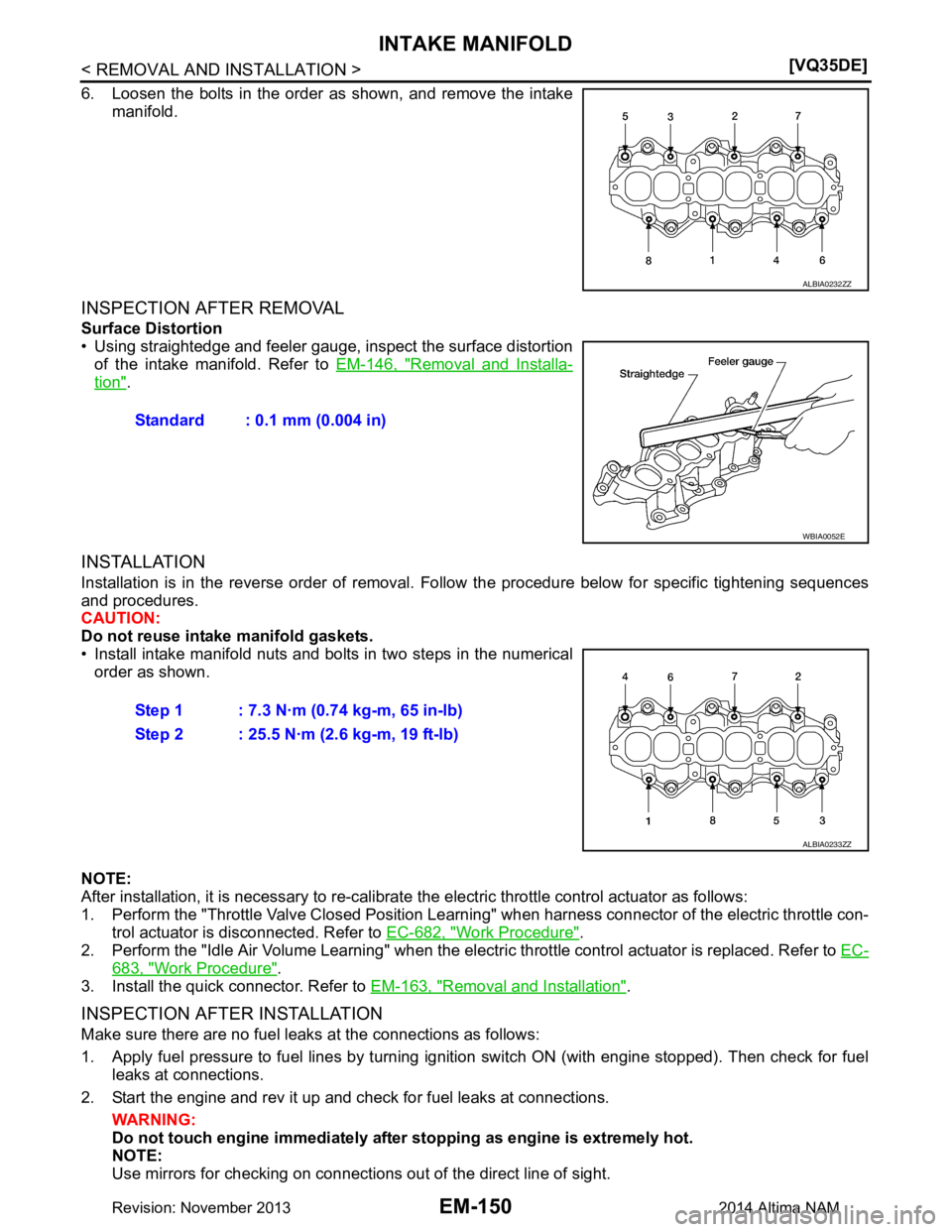

EM-150
< REMOVAL AND INSTALLATION >[VQ35DE]
INTAKE MANIFOLD
6. Loosen the bolts in the order as shown, and remove the intake
manifold.
INSPECTION AFTER REMOVAL
Surface Distortion
• Using straighte NISSAN TEANA 2014 Service Manual
EM-150
< REMOVAL AND INSTALLATION >[VQ35DE]
INTAKE MANIFOLD
6. Loosen the bolts in the order as shown, and remove the intake
manifold.
INSPECTION AFTER REMOVAL
Surface Distortion
• Using straighte](/manual-img/5/57390/w960_57390-2147.png)
EM-150
< REMOVAL AND INSTALLATION >[VQ35DE]
INTAKE MANIFOLD
6. Loosen the bolts in the order as shown, and remove the intake
manifold.
INSPECTION AFTER REMOVAL
Surface Distortion
• Using straightedge and feeler gauge, inspect the surface distortion of the intake manifold. Refer to EM-146, "Removal and Installa-
tion".
INSTALLATION
Installation is in the reverse order of removal. Fo llow the procedure below for specific tightening sequences
and procedures.
CAUTION:
Do not reuse intake manifold gaskets.
• Install intake manifold nuts and bolts in two steps in the numerical order as shown.
NOTE:
After installation, it is necessary to re-calibrate the electric throttle control actuator as follows:
1. Perform the "Throttle Valve Closed Position Learning" when harness connector of the electric throttle con-
trol actuator is disconnected. Refer to EC-682, "Work Procedure"
.
2. Perform the "Idle Air Volume Learning" when the electric throttle control actuator is replaced. Refer to EC-
683, "Work Procedure".
3. Install the quick connector. Refer to EM-163, "Removal and Installation"
.
INSPECTION AFTER INSTALLATION
Make sure there are no fuel leaks at the connections as follows:
1. Apply fuel pressure to fuel lines by turning ignition switch ON (with engine stopped). Then check for fuel leaks at connections.
2. Start the engine and rev it up and check for fuel leaks at connections. WARNING:
Do not touch engine immediately after stopping as engine is extremely hot.
NOTE:
Use mirrors for checking on connections out of the direct line of sight.
ALBIA0232ZZ
Standard : 0.1 mm (0.004 in)
WBIA0052E
Step 1 : 7.3 N·m (0.74 kg-m, 65 in-lb)
Step 2 : 25.5 N·m (2.6 kg-m, 19 ft-lb)
ALBIA0233ZZ
Revision: November 20132014 Altima NAM
Page 2149 of 4801
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-151
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

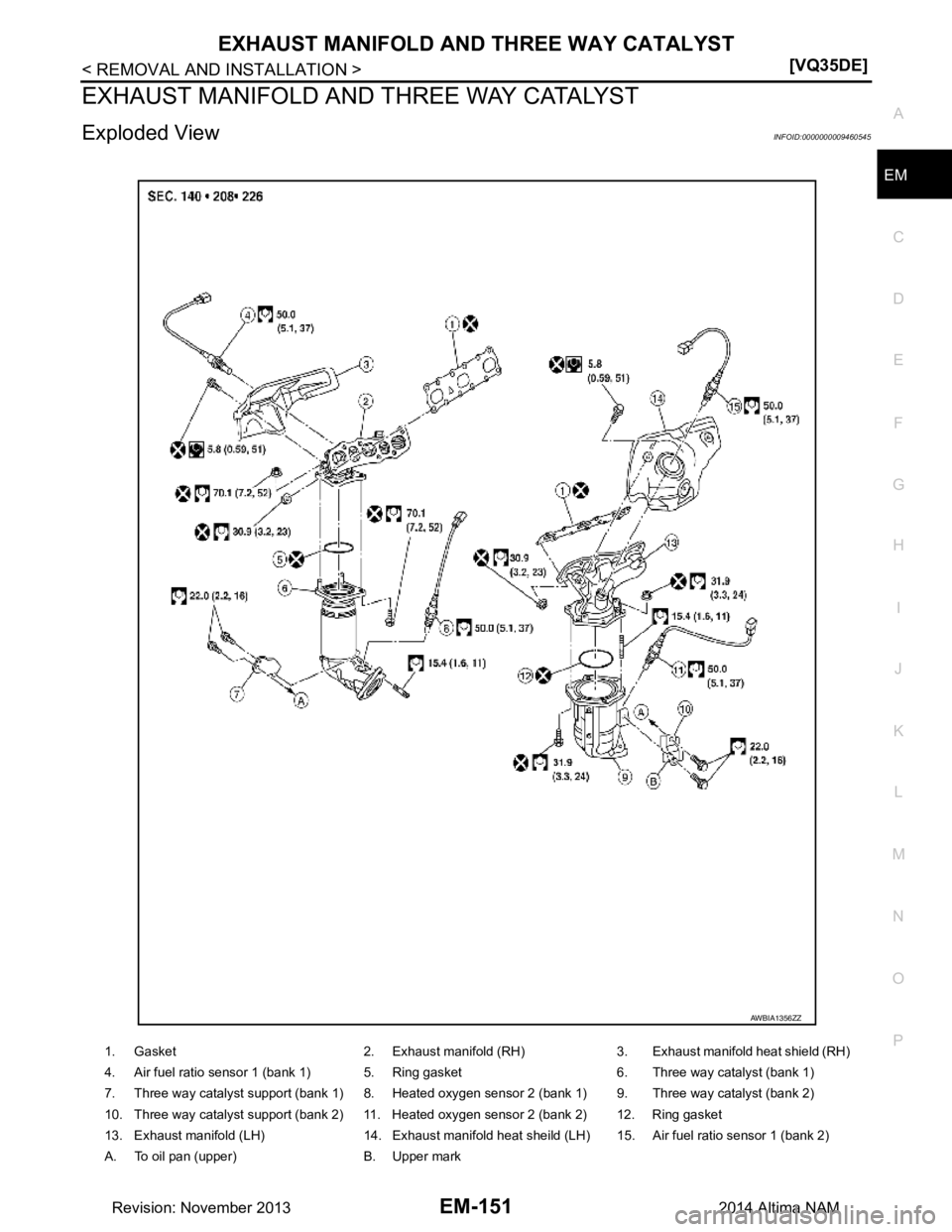

EXHAUST MANIFOLD AND THREE WAY CATALYST
Exploded ViewINFOID:0000000009460545
1. Gasket 2. Exhaust manifold (RH) 3. Exhaust manifold heat shield (RH)
4. Air fuel ratio sensor 1 (bank 1) 5. Ring gasket 6. Three way catalyst (bank 1)
7. Three way catalyst support (bank 1) 8. Heated oxygen sensor 2 (bank 1) 9. Three way catalyst (bank 2)
10. Three way catalyst support (bank 2) 11. Heated oxygen sensor 2 (bank 2) 12. Ring gasket
13. Exhaust manifold (LH) 14. Exhaust manifold heat sheild (LH) 15. Air fuel ratio sensor 1 (bank 2)
A. To oil pan (upper) B. Upper mark
AWBIA1356ZZ
Revision: November 20132014 Altima NAM
Page 2150 of 4801
![NISSAN TEANA 2014 Service Manual

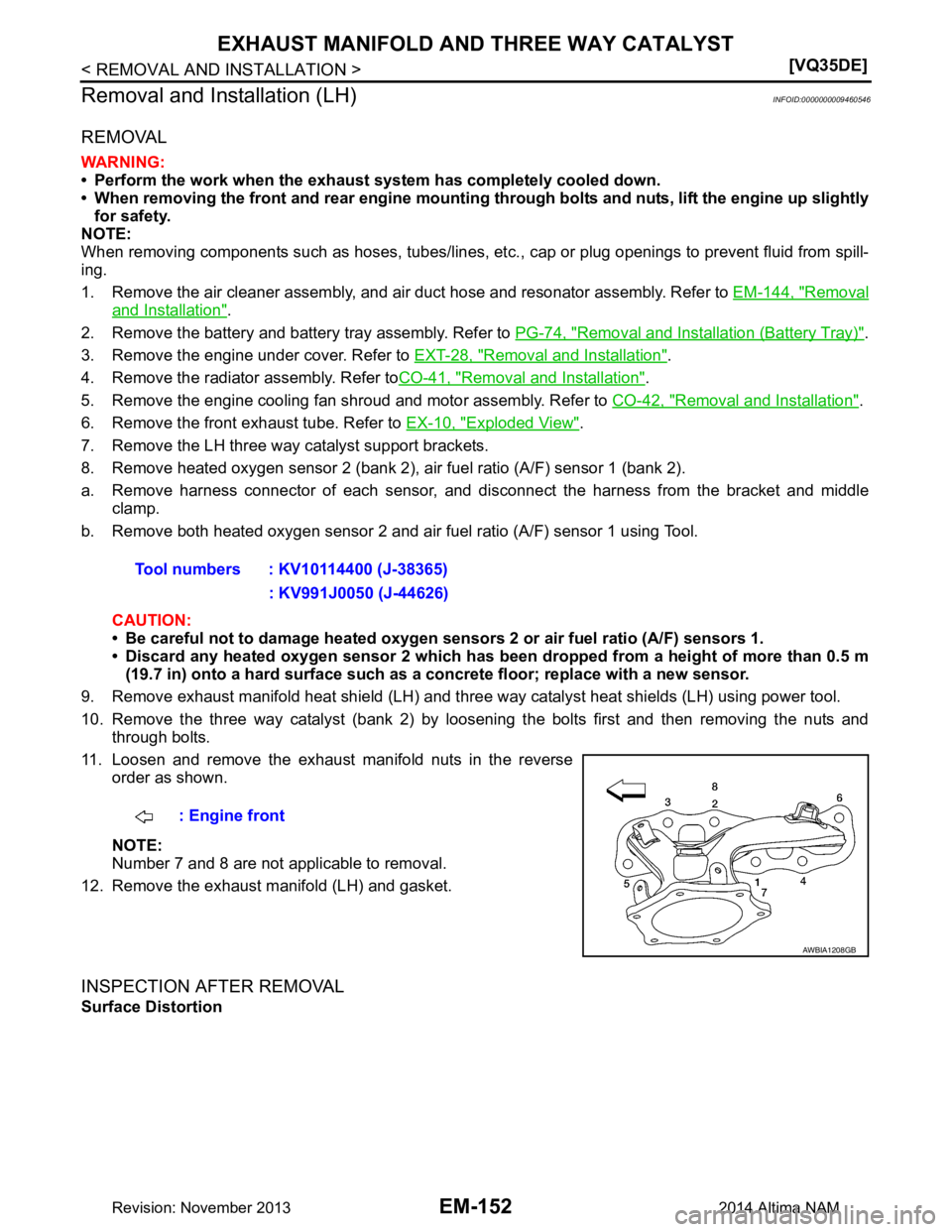

EM-152
< REMOVAL AND INSTALLATION >[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Removal and Installation (LH)
INFOID:0000000009460546
REMOVAL
WARNING:
• Perform the work when the exhaust syst NISSAN TEANA 2014 Service Manual
EM-152
< REMOVAL AND INSTALLATION >[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Removal and Installation (LH)
INFOID:0000000009460546
REMOVAL
WARNING:
• Perform the work when the exhaust syst](/manual-img/5/57390/w960_57390-2149.png)
EM-152
< REMOVAL AND INSTALLATION >[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Removal and Installation (LH)
INFOID:0000000009460546
REMOVAL
WARNING:
• Perform the work when the exhaust system has completely cooled down.
• When removing the front and rear engine mounting th rough bolts and nuts, lift the engine up slightly
for safety.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove the air cleaner assembly, and air duct hose and resonator assembly. Refer to EM-144, "Removal
and Installation".
2. Remove the battery and battery tray assembly. Refer to PG-74, "Removal and Installation (Battery Tray)"
.
3. Remove the engine under cover. Refer to EXT-28, "Removal and Installation"
.
4. Remove the radiator assembly. Refer to CO-41, "Removal and Installation"
.
5. Remove the engine cooling fan shroud and motor assembly. Refer to CO-42, "Removal and Installation"
.
6. Remove the front exhaust tube. Refer to EX-10, "Exploded View"
.
7. Remove the LH three way catalyst support brackets.
8. Remove heated oxygen sensor 2 (bank 2), air fuel ratio (A/F) sensor 1 (bank 2).
a. Remove harness connector of each sensor, and di sconnect the harness from the bracket and middle
clamp.
b. Remove both heated oxygen sensor 2 and air fuel ratio (A/F) sensor 1 using Tool.
CAUTION:
• Be careful not to damage heated oxygen sen sors 2 or air fuel ratio (A/F) sensors 1.
• Discard any heated oxygen sensor 2 which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a co ncrete floor; replace with a new sensor.
9. Remove exhaust manifold heat shield (LH) and three way catalyst heat shields (LH) using power tool.
10. Remove the three way catalyst (bank 2) by loosening the bolts first and then removing the nuts and through bolts.
11. Loosen and remove the exhaust manifold nuts in the reverse order as shown.
NOTE:
Number 7 and 8 are not applicable to removal.
12. Remove the exhaust manifold (LH) and gasket.
INSPECTION AFTER REMOVAL
Surface Distortion Tool numbers : KV10114400 (J-38365)
: KV991J0050 (J-44626)
: Engine front
AWBIA1208GB
Revision: November 20132014 Altima NAM
Page 2151 of 4801
![NISSAN TEANA 2014 Service Manual

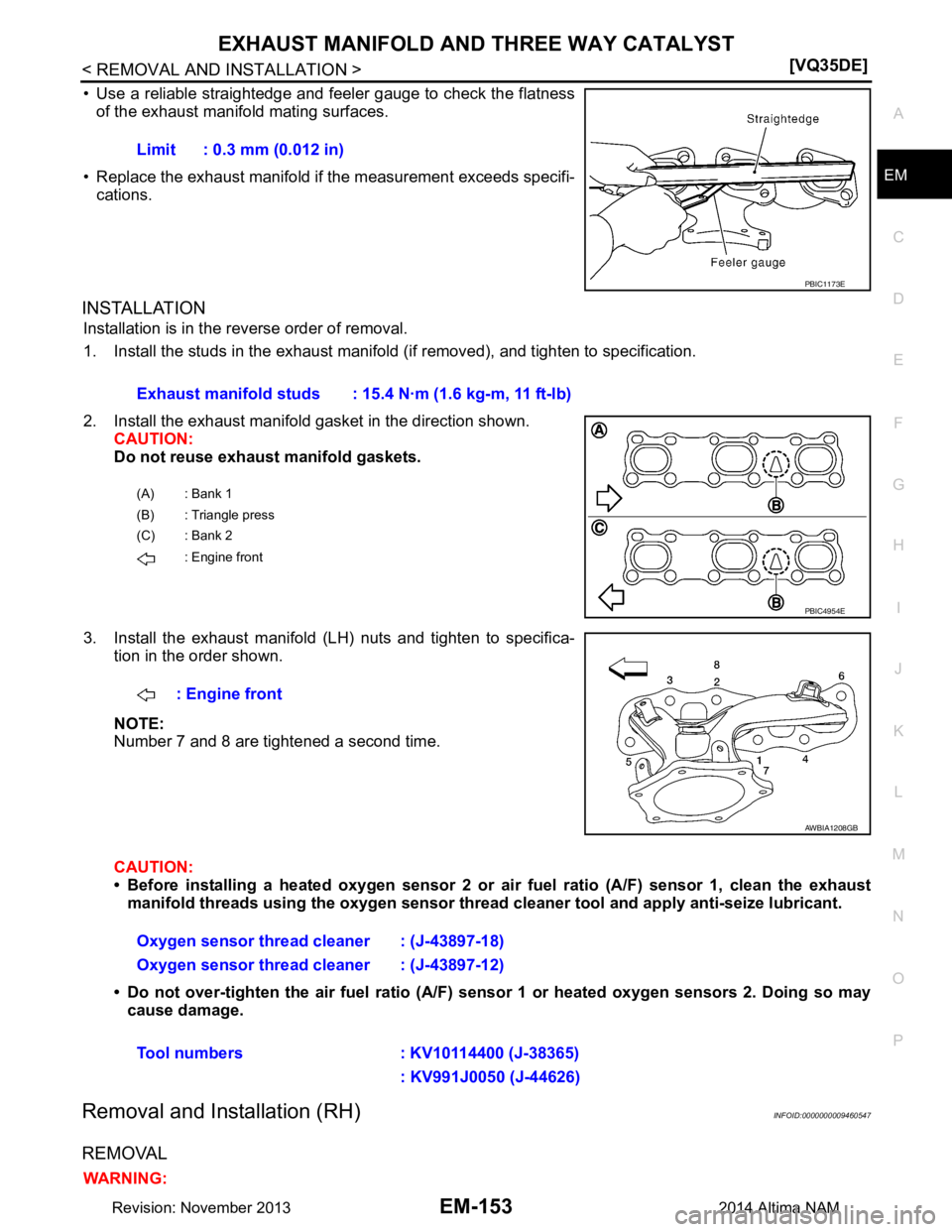

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-153
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Use a reliable straightedge and f
eeler gauge to check the flatness
of the ex NISSAN TEANA 2014 Service Manual
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-153
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Use a reliable straightedge and f
eeler gauge to check the flatness
of the ex](/manual-img/5/57390/w960_57390-2150.png)
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-153
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Use a reliable straightedge and f
eeler gauge to check the flatness
of the exhaust manifold mating surfaces.
• Replace the exhaust manifold if the measurement exceeds specifi- cations.
INSTALLATION
Installation is in the reverse order of removal.
1. Install the studs in the exhaust manifold (if removed), and tighten to specification.
2. Install the exhaust manifold gasket in the direction shown. CAUTION:
Do not reuse exhaust manifold gaskets.
3. Install the exhaust manifold (LH) nuts and tighten to specifica- tion in the order shown.
NOTE:
Number 7 and 8 are tightened a second time.
CAUTION:
• Before installing a heated oxyg en sensor 2 or air fuel ratio (A/F) sensor 1, clean the exhaust
manifold threads using the oxyg en sensor thread cleaner tool and apply anti-seize lubricant.
• Do not over-tighten the air fuel ratio (A/F) senso r 1 or heated oxygen sensors 2. Doing so may
cause damage.
Removal and Installation (RH)INFOID:0000000009460547
REMOVAL
WARNING: Limit : 0.3 mm (0.012 in)
PBIC1173E
Exhaust manifold studs : 15.4 N·m (1.6 kg-m, 11 ft-lb)
(A) : Bank 1
(B) : Triangle press
(C) : Bank 2
: Engine front
PBIC4954E
: Engine front
AWBIA1208GB
Oxygen sensor thread cleaner : (J-43897-18)
Oxygen sensor thread cleaner : (J-43897-12)
Tool numbers : KV10114400 (J-38365) : KV991J0050 (J-44626)
Revision: November 20132014 Altima NAM
Page 2152 of 4801
![NISSAN TEANA 2014 Service Manual

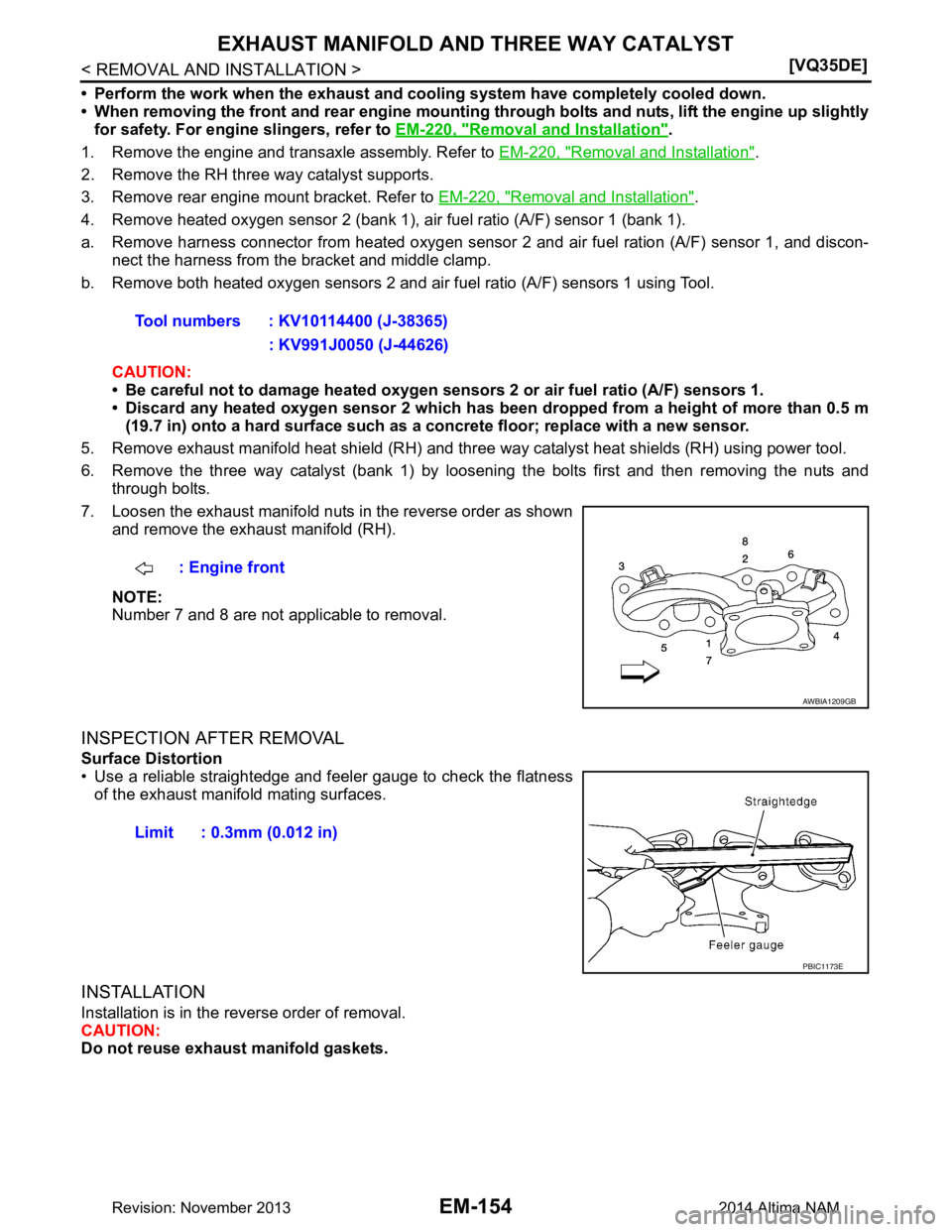

EM-154
< REMOVAL AND INSTALLATION >[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
• Perform the work when the exhaust and co
oling system have completely cooled down.
• When removing the front NISSAN TEANA 2014 Service Manual
EM-154
< REMOVAL AND INSTALLATION >[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
• Perform the work when the exhaust and co
oling system have completely cooled down.
• When removing the front](/manual-img/5/57390/w960_57390-2151.png)
EM-154
< REMOVAL AND INSTALLATION >[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
• Perform the work when the exhaust and co
oling system have completely cooled down.
• When removing the front and rear engine mounting th rough bolts and nuts, lift the engine up slightly
for safety. For engine slingers, refer to EM-220, "Removal and Installation"
.
1. Remove the engine and transaxle assembly. Refer to EM-220, "Removal and Installation"
.
2. Remove the RH three way catalyst supports.
3. Remove rear engine mount bracket. Refer to EM-220, "Removal and Installation"
.
4. Remove heated oxygen sensor 2 (bank 1), air fuel ratio (A/F) sensor 1 (bank 1).
a. Remove harness connector from heated oxygen sensor 2 and air fuel ration (A/F) sensor 1, and discon-
nect the harness from the bracket and middle clamp.
b. Remove both heated oxygen sensors 2 and air fuel ratio (A/F) sensors 1 using Tool.
CAUTION:
• Be careful not to damage heated oxygen sen sors 2 or air fuel ratio (A/F) sensors 1.
• Discard any heated oxygen sensor 2 which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a co ncrete floor; replace with a new sensor.
5. Remove exhaust manifold heat shield (RH) and three way catalyst heat shields (RH) using power tool.
6. Remove the three way catalyst (bank 1) by loosening the bolts first and then removing the nuts and through bolts.
7. Loosen the exhaust manifold nuts in the reverse order as shown and remove the exhaust manifold (RH).
NOTE:
Number 7 and 8 are not applicable to removal.
INSPECTION AFTER REMOVAL
Surface Distortion
• Use a reliable straightedge and feeler gauge to check the flatness of the exhaust manifold mating surfaces.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse exhaust manifold gaskets. Tool numbers : KV10114400 (J-38365)
: KV991J0050 (J-44626)
: Engine front
AWBIA1209GB
Limit : 0.3mm (0.012 in)
PBIC1173E
Revision: November 20132014 Altima NAM
