Page 681 of 4801

NISSAN TEANA 2014 Service Manual
DAS-248
< WIRING DIAGRAM >[MOD]
DRIVER ASSISTANCE SYSTEMS
ABOIA0120GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 682 of 4801

NISSAN TEANA 2014 Service Manual
DAS
DRIVER ASSISTANCE SYSTEMSDAS-249
< WIRING DIAGRAM > [MOD]
C
D E
F
G H
I
J
K L
M B
N P
A
ABOIA0121GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 683 of 4801

NISSAN TEANA 2014 Service Manual
DAS-250
< BASIC INSPECTION >[MOD]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000009464899

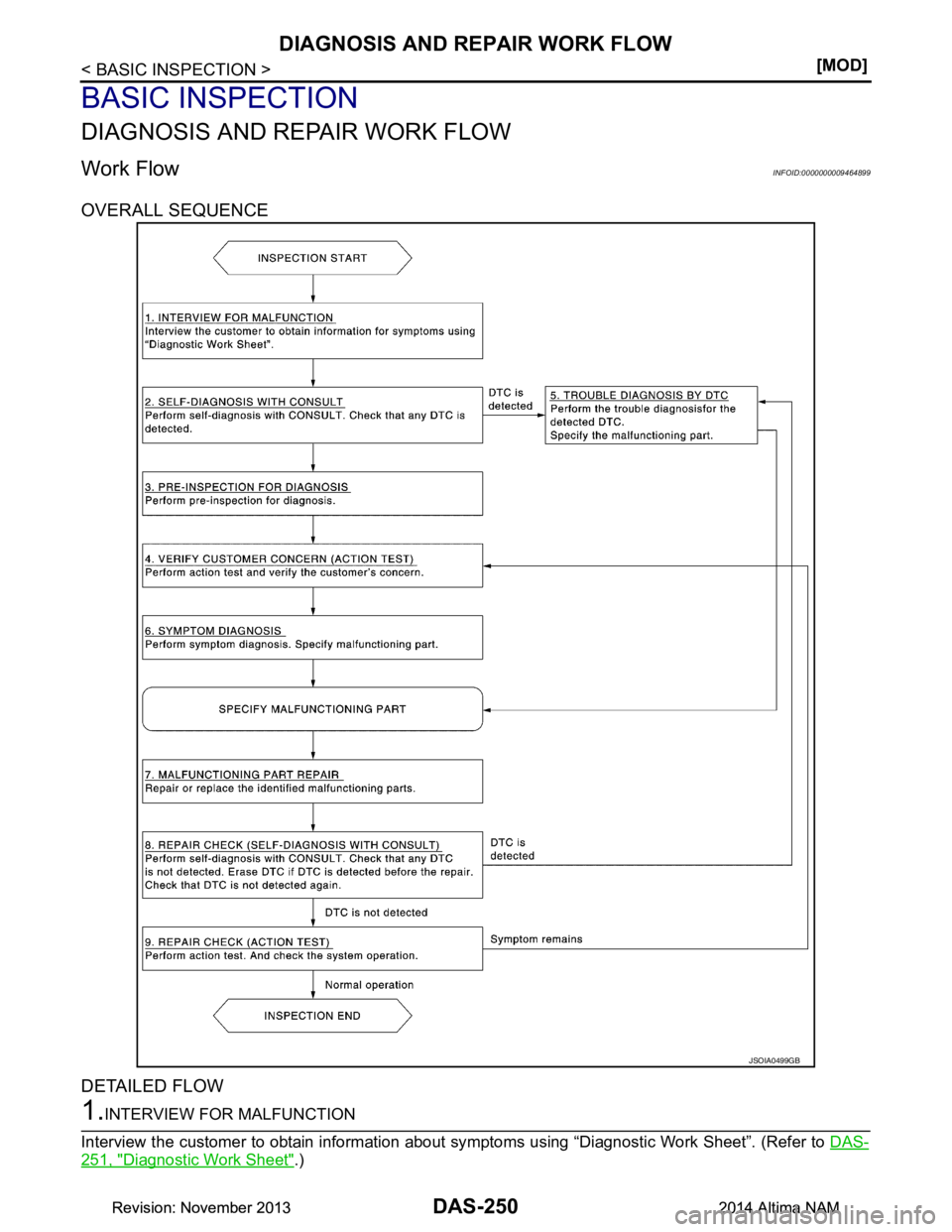

OVERALL SEQUENCE
DETAILED FLOW
1.INTERVIEW FOR MALFU

Page 684 of 4801

NISSAN TEANA 2014 Service Manual
DAS
DIAGNOSIS AND REPAIR WORK FLOWDAS-251
< BASIC INSPECTION > [MOD]
C
D E
F
G H
I
J
K L
M B
N P
A
>> GO TO 2.
2.SELF-DIAGNOSIS WITH CONSULT
1. Perform “All DTC Reading” with CONSULT.
2. Check

Page 685 of 4801

NISSAN TEANA 2014 Service Manual
DAS-252
< BASIC INSPECTION >[MOD]
DIAGNOSIS AND REPAIR WORK FLOW
Utilize a work sheet sample to organize all of the information for troubleshooting.
KEY POINTS• WHAT..... System and functions
•

Page 686 of 4801

NISSAN TEANA 2014 Service Manual
DAS
PRE-INSPECTION FOR DIAGNOSISDAS-253
< BASIC INSPECTION > [MOD]
C
D E
F
G H
I
J
K L
M B
N P
A
PRE-INSPECTION FOR DIAGNOSIS
Inspection ProcedureINFOID:0000000009464901
1.CHECK CAMERA LENS
Is came

Page 687 of 4801

NISSAN TEANA 2014 Service Manual
DAS-254
< BASIC INSPECTION >[MOD]
ACTION TEST
ACTION TEST
DescriptionINFOID:0000000009464902
• Perform action test to verify the customers concern.
• Perform action test and check the syst em o

DAS-254
< BASIC INSPECTION >[MOD]
ACTION TEST
ACTION TEST
DescriptionINFOID:0000000009464902
• Perform action test to verify the customer's concern.
• Perform action test and check the syst em operation after system diagnosis.
WARNING:
Be careful of traffic conditions and safety ar ound the vehicle when performing road test.
CAUTION:
• Fully understand the following it ems well before the road test;
- Precautions: Refer to DAS-73, "Precaution for LDW System Service"
.
- System description for LDW: Refer to DAS-77, "System Description"
.
- System description for BSW: Refer to DAS-152, "System Description"
.
- System description for MOD: Refer to DAS-228, "System Description"
.
- Handling precaution: Refer to DAS-82, "Precautions for Lane Departure Warning"
.
Inspection ProcedureINFOID:0000000009464903
WARNING:
Be careful of traffic conditions and safety ar ound the vehicle when performing road test.
CAUTION:
• Fully understand the following it ems well before the road test;
- Precautions: Refer to DAS-73, "Precaution for LDW System Service"
.
- System description for LDW: Refer to DAS-77, "System Description"
.
- System description for BSW: Refer to DAS-152, "System Description"
.
- System description for MOD: Refer to DAS-228, "System Description"
.
- Handling precaution: Refer to DAS-232, "Precautions for Moving Objects Detection"
.
1.CHECK MOD SYSTEM SETTING
1. Start the engine.
2. Check that the MOD system setting can be enabl ed/disabled on the vehicle information display.
3. Turn OFF the ignition switch and wait for 30 seconds or more.
4. Check that the previous setting is saved when the engine starts again.
>> GO TO 2.
2.ACTION TEST FOR MOD
1. Enable the setting of the MOD system on the vehicle information display.
2. Turn warning systems switch ON (w arning systems ON indicator is ON).
3. Check the MOD operation according to the following table.
NOTE:
After the operating conditions of warning are satisfi ed, the warning continues until the vehicle reaches a
higher speed. Refer to DAS-228, "System Description"
.
>> Inspection End.
Vehicle condition/ Driver's operation Vehicle response
Moving Object De-
tection ON indicator Vehicle speed
(Approx.)
[km/h (MPH)] Status of vehicle detection
within detection area Indication on the Moving Object Detection
indicator Buzzer
OFF — — OFF OFF
Blue Less than approx.
8 km/h (5 MPH) Vehicle is detected ON ON
Approx. 8 km/h (5
MPH) or more Vehicle is absent ON OFF
Vehicle is detected ON OFF
Vehicle is not detected ON OFF
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 688 of 4801

NISSAN TEANA 2014 Service Manual
DAS
ADDITIONAL SERVICE WHEN REPLACING REAR VIEW CAMERA
DAS-255
< BASIC INSPECTION > [MOD]
C
D E
F
G H
I
J
K L
M B
N P
A
ADDITIONAL SERVICE WHEN RE PLACING REAR VIEW CAMERA
DescriptionINFOID:0000000
