Page 4449 of 4801

NISSAN TEANA 2014 Service Manual
TM-234
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
DTC Vehicle behavior Conditions of vehicle
P062F • Not changed from normal driving —
P0705 • Shift position indicator on combination meter is

TM-234
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
DTC Vehicle behavior Conditions of vehicle
P062F • Not changed from normal driving —
P0705 • Shift position indicator on combination meter is not dis-
played
• Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0706 • Shift position indicator on combination meter is not dis-
played
• Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0711 •Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
Te m p . ≥ 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
− 35 °C ( −31 °F) ≤ Temp. < 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine star:
Te m p . < −35 °C ( −31 °F)
P0712 •Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
Te m p . ≥ 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
− 35 °C ( −31 °F) ≤ Temp. < 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine star:
Te m p . < −35 °C ( −31 °F)
P0713 •Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
Te m p . ≥ 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
− 35 °C ( −31 °F) ≤ Temp. < 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine star:
Te m p . < −35 °C ( −31 °F)
P0715 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0717 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0740 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0743 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0744 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0746 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4450 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMTM-235
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
P0776 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
• Veh

SYSTEMTM-235
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
P0776 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
• Vehicle speed is not increased When a malfunction occurs on the low oil pressure side
• Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed When a malfunction occurs on the high oil pressure side
P0778 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0779 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
P0841 • Not changed from normal driving
P0847 • Not changed from normal driving —
P0848 • Not changed from normal driving —
P084C • Not changed from normal driving
P084D • Not changed from normal driving
P0863 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0890 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
• Vehicle speed is not increased
P0962 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0963 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0965 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed When a malfunction occurs on the low oil pressure side
• Selector shock is large
• Lock-up is not performed When a malfunction occurs on the high oil pressure side
P0966 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0967 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P2765 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
DTC Vehicle behavior Conditions of vehicle
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4451 of 4801

NISSAN TEANA 2014 Service Manual
TM-236
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
CVT CONTROL SYSTEM : Protection Control
INFOID:0000000009464206
The TCM becomes the protection control status temporar ily to protect the safety w

TM-236
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
CVT CONTROL SYSTEM : Protection Control
INFOID:0000000009464206
The TCM becomes the protection control status temporar ily to protect the safety when the safety of TCM and
transmission is lost. It automatically returns to the normal status if the safety is secured.
The TCM has the following protection control.
CONTROL FOR WHEEL SPIN
TORQUE IS REDUCED WHEN DRIVING WITH THE REVERSE GEAR
CONTROL WHEN FLUID TEMPERATURE IS HIGH
P2813 • Selector shock is large
•Start is slow
• Acceleration is slow
• Vehicle speed is not increased When a malfunction occurs on the low oil pressure side
• Selector shock is large When a malfunction occurs on the high oil pressure side
P2814 • Selector shock is large —
P2815 • Selector shock is large —
U0073 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0100 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0140 • Not changed from normal driving —
U0141 • Not changed from normal driving —
U0155 • Not changed from normal driving —
U0300 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U1000 • Not changed from normal driving — U1117 • Not changed from normal driving — DTC Vehicle behavior Conditions of vehicle
Control
When a wheel spin is detected, the engine output and gear ratio are limited and the line pressure is increased.
Limits engine output when a wheel spin occurs in any of right and left drive wheels.
Vehicle behavior in
control If the accelerator is kept depressing during wheel spin, the engine revolution and vehicle speed are limited to
a certain degree.
Normal retu rn condi-
tion Wheel spin convergence returns the control to the normal control.
Control Engine output is controlled according to a vehicle speed while reversing the vehicle.
Vehicle behavior in
control Power performance may be lowered while reversing the vehicle.
Normal retu rn condi-
tion Torque returns to normal by positioning the selector lever in a range other than “R” position.
Control
When the CVT fluid temperature is high, the gear shift permission maximum revolution and the maximum
torque are reduced than usual to prevent increase of the oil temperature.
Vehicle behavior in
control Power performance may be lowered, compared to normal control.
Normal retu rn condi-
tion The control returns to the normal control when CVT fluid temperature is lowered.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4452 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMTM-237
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

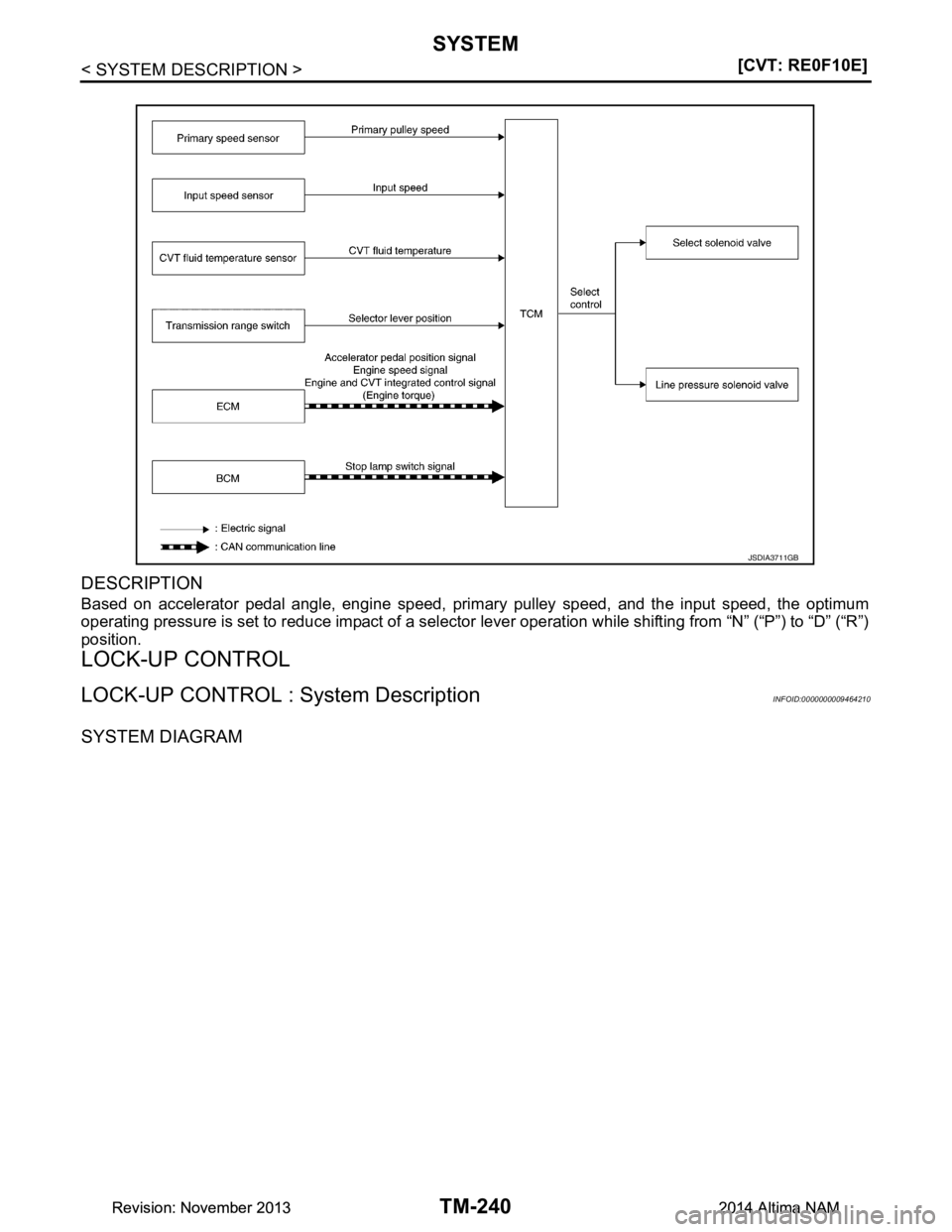

REVERSE PROHIBIT CONTROL
LINE PRESSURE CONTROL
LINE PRESSURE CONTROL : System DescriptionINFOID:0000000009464207
S

Page 4453 of 4801

NISSAN TEANA 2014 Service Manual
TM-238
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM

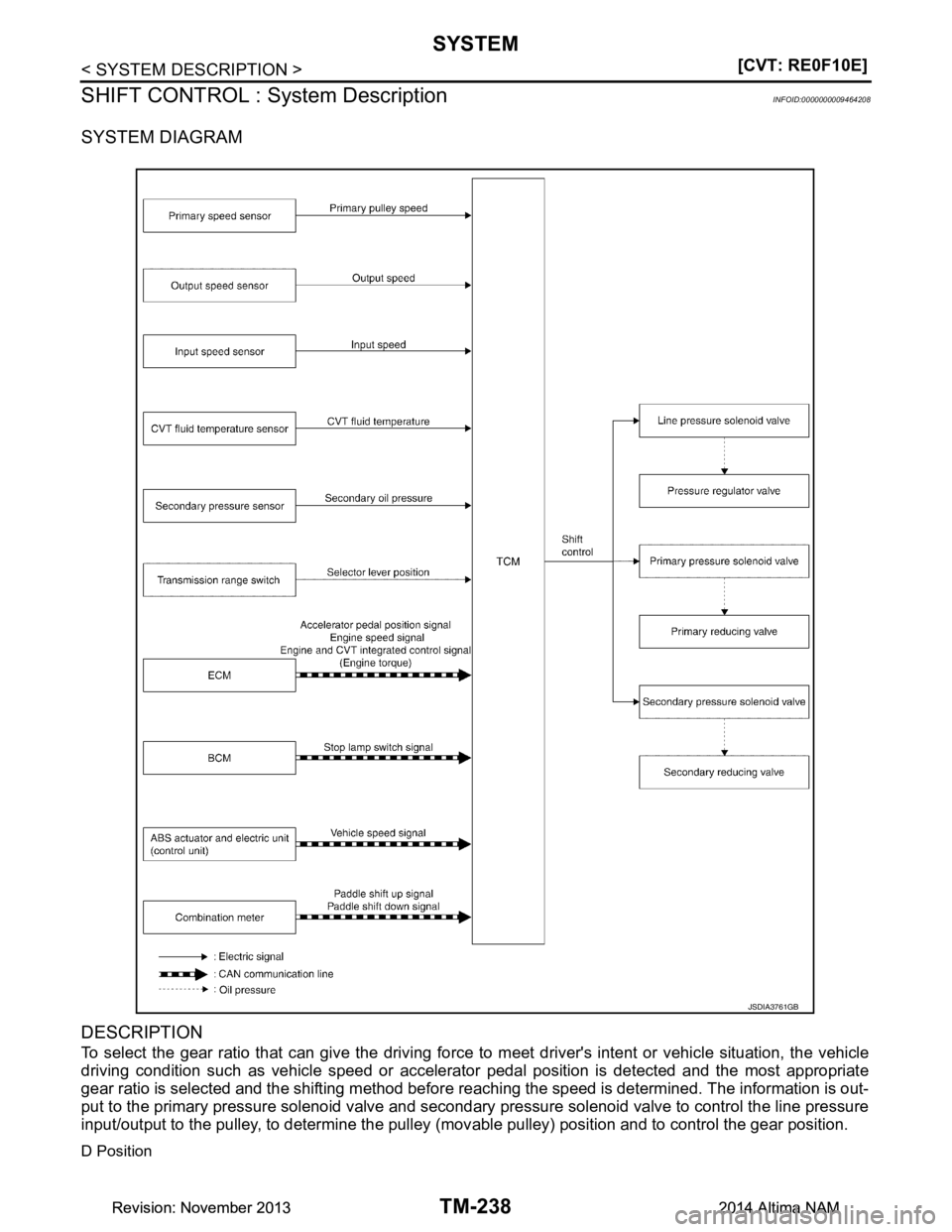

SHIFT CONTROL : System Description
INFOID:0000000009464208
SYSTEM DIAGRAM
DESCRIPTION
To select the gear ratio that can give the driving force to

Page 4454 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMTM-239
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Gear shifting is performed in all shifting ranges from the lowest to the
highest gear ratio.
DS Position
Pressing

Page 4455 of 4801

NISSAN TEANA 2014 Service Manual
TM-240
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
DESCRIPTION
Based on accelerator pedal angle, engine speed, prim
ary pulley speed, and the input speed, the optimum
operating pressure is set to red

Page 4456 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMTM-241
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

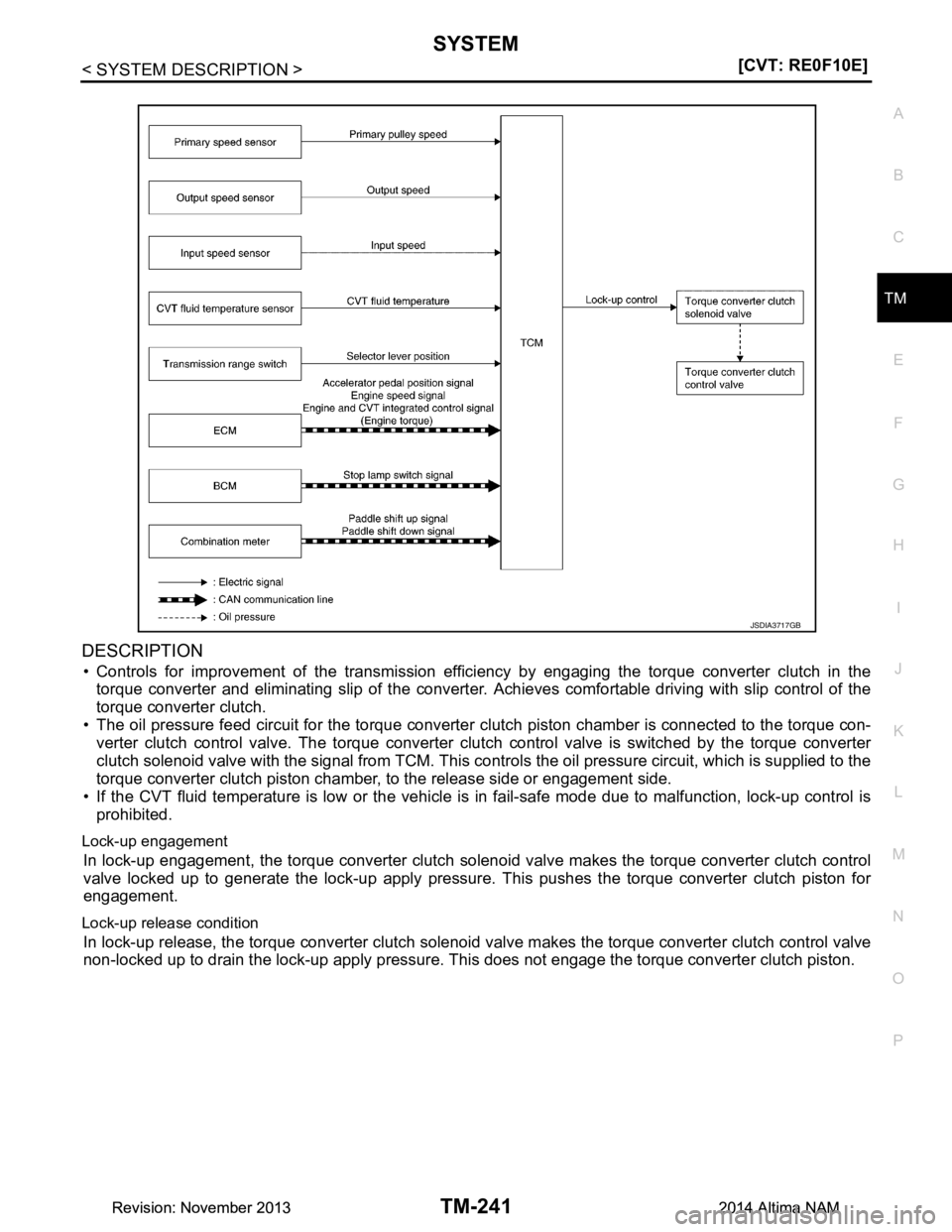

DESCRIPTION
• Controls for improvement of the transmission effici ency by engaging the torque converter clutch in
