Page 2097 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-99
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

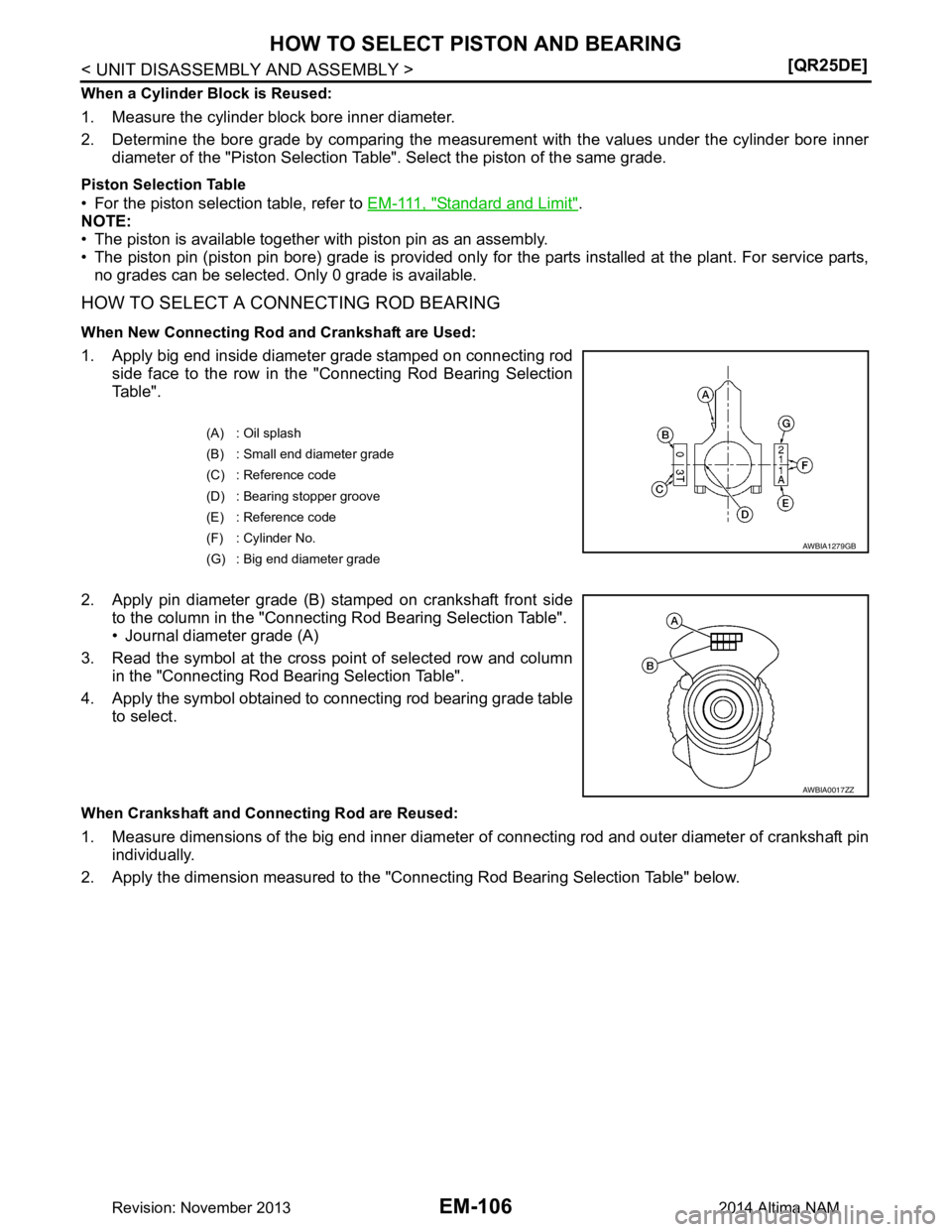

• Check with connecting rod aligner. Refer to
EM-111, "Standard and
Limit".
• If it exceeds the li

Page 2098 of 4801

NISSAN TEANA 2014 Service Manual
EM-100
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
• Measure outer diameter of piston pin using suitable tool (A). Refer
to EM-111, "Standard and Limit"
.
Piston Pin to Connecting Rod

Page 2099 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-101
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Measure the distortion on the block upper face at some different
points in 6 directions using a su

Page 2100 of 4801

NISSAN TEANA 2014 Service Manual
EM-102
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
• Calculate by outer diameter of piston skirt and i
nner diameter of cylinder (direction X, position B).
(Clearance) = (Inner diamete

EM-102
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
• Calculate by outer diameter of piston skirt and i
nner diameter of cylinder (direction X, position B).
(Clearance) = (Inner diameter of cylinde r) – (Outer diameter of piston skirt).
• If it exceeds the limit, replace piston/piston pin assembly.
Reboring Cylinder Bore
1. Cylinder bore size is determined by adding pi ston-to-bore clearance to piston diameter (A).
2. Install lower cylinder block, and tighten to the specif ied torque. Otherwise, cylinder bores may be distorted
in final assembly.
3. Cut cylinder bores.
• When any cylinder needs boring, all ot her cylinders must also be bored.
• Do not cut too much out of cylinder bore at a time . Cut only 0.05 mm (0.0020 in) or so in diameter at
a time.
4. Hone cylinders to obtain specified piston-to-bore clearance.
5. Measure finished cylinder bore for out-of-round and taper.
• Measurement should be done af ter cylinder bore cools down.
OUTER DIAMETER OF CRANKSHAFT JOURNAL
• Measure outer diameter of crankshaft journals using suitable tool
(A).
OUTER DIAMETER OF CRANKSHAFT PIN
• Measure outer diameter of crankshaft pin using a suitable tool.
OUT-OF-ROUND AND TAPER OF CRANKSHAFT
• Measure the dimensions at four different points as shown on eachjournal and pin using a micrometer.
• Out-of-round is indicated by the difference in dimensions between
(X) and (Y) at (A) and (B).
• Taper is indicated by the difference in dimension between (A) and (B) at (X) and (Y). Standard : 0.010 - 0.030 mm (0.0004 - 0.0012 in)
Limit : 0.08 mm (0.0031 in)
Rebored size calculation: D = A + B - C
(D): Bored diameter
(A): Piston diameter as measured
(B): Piston-to-bore clearance (standard value)
(C): Honing allowance 0.02 mm (0.0008 in)
Standard : 54.955 - 54.979 mm (2.1636 - 2.1645 in)
AWBIA1331GB
Standard : 44.956 - 44.974 mm (1.7699 - 1.7706 in)
Standard
Out-of-round (X - Y) : 0.005 mm (0.0002 in)
Taper (A - B) : 0.005 mm (0.0002 in)
AWBIA1368ZZ
Revision: November 20132014 Altima NAM

Page 2101 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-103
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CRANKSHAFT RUNOUT
• Place a V-block on a precise flat table to support the journals on
both ends of

CYLINDER BLOCKEM-103
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CRANKSHAFT RUNOUT
• Place a V-block on a precise flat table to support the journals on
both ends of the crankshaft.
• Place a dial gauge (A) straight up on the No. 3 journal.
• While rotating the crankshaft, read the movement of the pointer on the dial gauge (A), the total indicator runout reading.
OIL CLEARANCE OF CONNECTING ROD BEARING
Method of Measurement
• Install the connecting rod bearings (2) to the connecting rod (3)
and the cap (1), and tighten the c onnecting rod bolts to the speci-
fied torque. Using a inside micrometer measure the inner diameter
of connecting rod bearing (B).
(Oil clearance) = (Inner diameter of connecting rod bearing) –
(Outer diameter of crankshaft pin)
• If clearance cannot be adjusted within the standard, grind crankshaft pin and use undersized bearing. Refer
to EM-105, "How to Select Piston and Bearing"
.
Method of Using Plastigage
• Remove oil and dust on the crankshaft pin and the surfaces of
each bearing completely.
• Cut the Plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil holes.
• Install the connecting rod bearings to the connecting rod cap, and tighten the connecting rod bolts to the specified torque.
CAUTION:
Do not rotate the crankshaft.
• Remove the connecting rod cap and bearings, and using the scale on the Plastigage bag, measure the Plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the method by calculation.
OIL CLEARANCE OF MAIN BEARING
Method of Measurement
• Install the main bearings to the cylinder block and bearing cap. Measure the main bearing inner diameter with the bearing cap bolt tightened to the specified torque.
(Oil clearance) = (Inner diameter of main beari ng) – (Outer diameter of crankshaft journal)
• If the measured value exceeds the limit, select main bearings referring to the main bearing inner diameter
and crankshaft journal outer diameter, so that t he oil clearance satisfies the standard. Refer to EM-105,
"How to Select Piston and Bearing".
Limit : Less than 0.05 mm (0.002 in)
AWBIA1367ZZ
(A) Example
Standard : 0.035 - 0.045 mm (0.0014 - 0.0018 in)
Limit : 0.10 mm (0.0039 in)
AWBIA1369ZZ
EM142
Standard:
No. 1, 3, and 5 journals : 0.012 - 0.022 mm (0.0005 - 0.0009 in)
No. 2 and 4 journals : 0.018 - 0.028 mm (0.0007 - 0.0011 in)
Limit : 0.1 mm (0.004 in)
Revision: November 20132014 Altima NAM

Page 2102 of 4801

NISSAN TEANA 2014 Service Manual
EM-104
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
Method of Using Plastigage
• Remove oil and dust on the crankshaft journal and the surfaces of
each bearing completely.
• Cut the

Page 2103 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO SELECT PISTON AND BEARINGEM-105
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
HOW TO SELECT PISTON AND BEARING
How to Select Piston and BearingINFOID:000000000946

HOW TO SELECT PISTON AND BEARINGEM-105
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
HOW TO SELECT PISTON AND BEARING
How to Select Piston and BearingINFOID:0000000009460512
DESCRIPTION
*For the service parts, the grade for fitting c
annot be selected between a piston pin and a connecting rod.
(Only 0 grade is available.) The information at the sh ipment from the plant is described as a reference.
• The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
• For reused or repaired parts, measure the dimens ion accurately. Determine the grade by comparing the
measurement with the values of each selection table.
• For details of the measurement method of each part , the reuse standards, and the selection method of the
selective fitting parts, follow the applicable procedures.
HOW TO SELECT A PISTON
When New Cylinder Block is Used:
• Check the cylinder bore grade on rear left side of cylinder block, and select a piston of the same grade.
• If there is a corrected stamp mark on the cylinder block, use it as a correct reference.
Selection points Selection parts Selection items Selection methods
Between cylinder block to
crankshaft Main bearing
Main bearing grade (bearing
thickness) Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft to connect-
ing rod Connecting rod bearing
Connecting rod bearing grade
(bearing thickness) Combining service grades for
connecting rod big end inner di-
ameter and crankshaft pin outer
diameter determine connecting
rod bearing selection
Between cylinder block to pis-
ton Piston and piston pin assembly
(The piston is available together
with piston pin as an assembly) Piston grade (piston outer diam-
eter) Piston grade = cylinder bore
grade (inner diameter of bore)
*Between piston to connecting
rod ———
(A) : Front mark
(B) : Piston pin bore grade
(C) : Piston grade I.D. stamp
(D) : Piston crown I.D. code stamp
(E) : ID marks
AWBIA1373ZZ
SBIA0283E
Revision: November 20132014 Altima NAM

Page 2104 of 4801

NISSAN TEANA 2014 Service Manual
EM-106
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
HOW TO SELECT PISTON AND BEARING
When a Cylinder Block is Reused:
1. Measure the cylinder block bore inner diameter.
2. Determine the bore grade by c
