Page 2905 of 4801

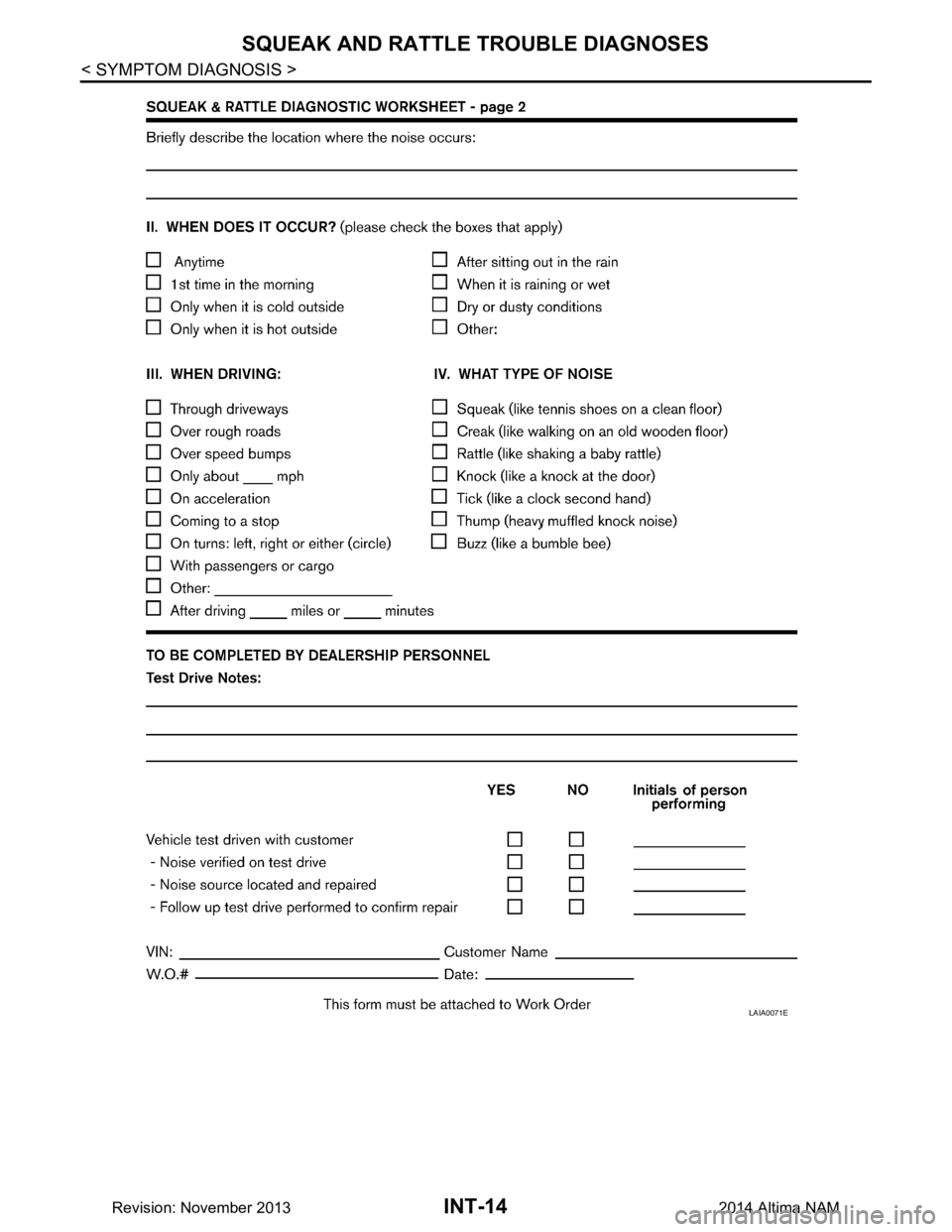

NISSAN TEANA 2014 Service Manual INT-14 < SYMPTOM DIAGNOSIS > SQUEAK AND RATTLE TROUBLE DIAGNOSES LAIA0071E Revision: November 20132014 Altima NAM

Page 2906 of 4801

NISSAN TEANA 2014 Service Manual FRONT DOOR FINISHERINT-15 < REMOVAL AND INSTALLATION > C D E F G H I K L M A B INT N O P REMOVAL AND INSTALLATION FRONT DOOR FINISHER Exploded ViewINFOID:0000000009461342 NOTE: LH side shown; RH s

Page 2907 of 4801

NISSAN TEANA 2014 Service Manual INT-16 < REMOVAL AND INSTALLATION > FRONT DOOR FINISHER b. Remove the inside door handle escutcheon by sliding theremaining pawls forward out of the inside door handle cap inser- tion point (A). : P

Page 2908 of 4801

NISSAN TEANA 2014 Service Manual FRONT DOOR FINISHERINT-17 < REMOVAL AND INSTALLATION > C D E F G H I K L M A B INT N O P 7. Release the front door finisher clips and pawls using a suitable tool. : Clip : Pawl 8. Disconnect the d

Page 2909 of 4801

NISSAN TEANA 2014 Service Manual INT-18 < REMOVAL AND INSTALLATION > REAR DOOR FINISHER REAR DOOR FINISHER Exploded ViewINFOID:0000000009461344 Removal and InstallationINFOID:0000000009461345 REMOVAL 1. Remove the inside door handle

Page 2910 of 4801

NISSAN TEANA 2014 Service Manual REAR DOOR FINISHERINT-19 < REMOVAL AND INSTALLATION > C D E F G H I K L M A B INT N O P 2. Remove the inside door handle bolt (A). 3. Remove the rear door tray escutcheon using a suitable tool. 4

Page 2911 of 4801

NISSAN TEANA 2014 Service Manual INT-20 < REMOVAL AND INSTALLATION > BODY SIDE TRIM BODY SIDE TRIM Exploded ViewINFOID:0000000009461346 DASH SIDE FINISHER DASH SIDE FINISHER : Removal and InstallationINFOID:0000000009461347 REMOVAL

Page 2912 of 4801

NISSAN TEANA 2014 Service Manual BODY SIDE TRIMINT-21 < REMOVAL AND INSTALLATION > C D E F G H I K L M A B INT N O P FRONT PILLAR FINISHER : Removal and InstallationINFOID:0000000009461348 REMOVAL 1. Partially remove the front bo
