Page 2809 of 4801
HAC-160
< SYMPTOM DIAGNOSIS >[MANUAL AIR CONDITIONER]
COMPRESSOR DOES NOT OPERATE
1. Start engine.
2. Check “AC COMP REQ” in “DATA MONITO R” mode of “IPDM E/R” using CONSULT.
Is the inspection result normal?
YES >> Inspection End.
NO >> Check CAN communication system. Refer to LAN-18, "Trouble Diagnosis Flow Chart"
.
Monitor item Condition Status
AC COMP REQ A/C switch ON On
OFF Off
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2810 of 4801
FRONT AIR CONTROLHAC-161
< REMOVAL AND INSTALLATION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
REMOVAL AND INSTALLATION
FRONT AIR CONTROL
Removal and InstallationINFOID:0000000009463227
REMOVAL
1. Remove the center stack side finishers. Refer to IP-14, "Exploded View".
2. Remove the front air control screws (A).
3. Disconnect the harness connector from the front air control and remove.
INSTALLATION
Installation is in the reverse order of removal.
ALIIA0635ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2811 of 4801
HAC-162
< REMOVAL AND INSTALLATION >[MANUAL AIR CONDITIONER]
IN-VEHICLE SENSOR
IN-VEHICLE SENSOR
Removal and InstallationINFOID:0000000009463228
REMOVAL
1. Remove the instrument lower panel LH. Refer to
IP-21, "Removal and Installation".
2. Disconnect the harness connector from the in-vehicle sensor.
3. Disconnect the aspirator hose (2) from the in-vehicle sensor.
4. Remove the in-vehicle sensor screw (A) and the in-vehicle sen- sor (1).
INSTALLATION
Installation is in the reverse order of removal.
ALIIA0593ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2812 of 4801
REFRIGERANT PRESSURE SENSORHAC-163
< REMOVAL AND INSTALLATION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
REFRIGERANT PRESSURE SENSOR
Removal and InstallationINFOID:0000000009463229
REMOVAL
1. Discharge the refrigerant. Refer to HA-23, "Recycle Refrigerant".
2. Remove the front bumper fascia. Refer to EXT-17, "Removal and Installation"
.
3. Disconnect the harness connector from the refrigerant pressure sensor.
4. Remove the refrigerant pressure sensor. CAUTION:
Cap or wrap the opening of the refrigerant pressu re sensor with suitable material such as vinyl
tape to avoid the entry of air.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply A/C oil to the O-ri ng of the refrigerant pressu re sensor for installation.
• After charging refrigerant, check for leaks. Refer to HA-21, "Leak Test"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2813 of 4801
HAC-164
< REMOVAL AND INSTALLATION >[MANUAL AIR CONDITIONER]
DOOR MOTOR

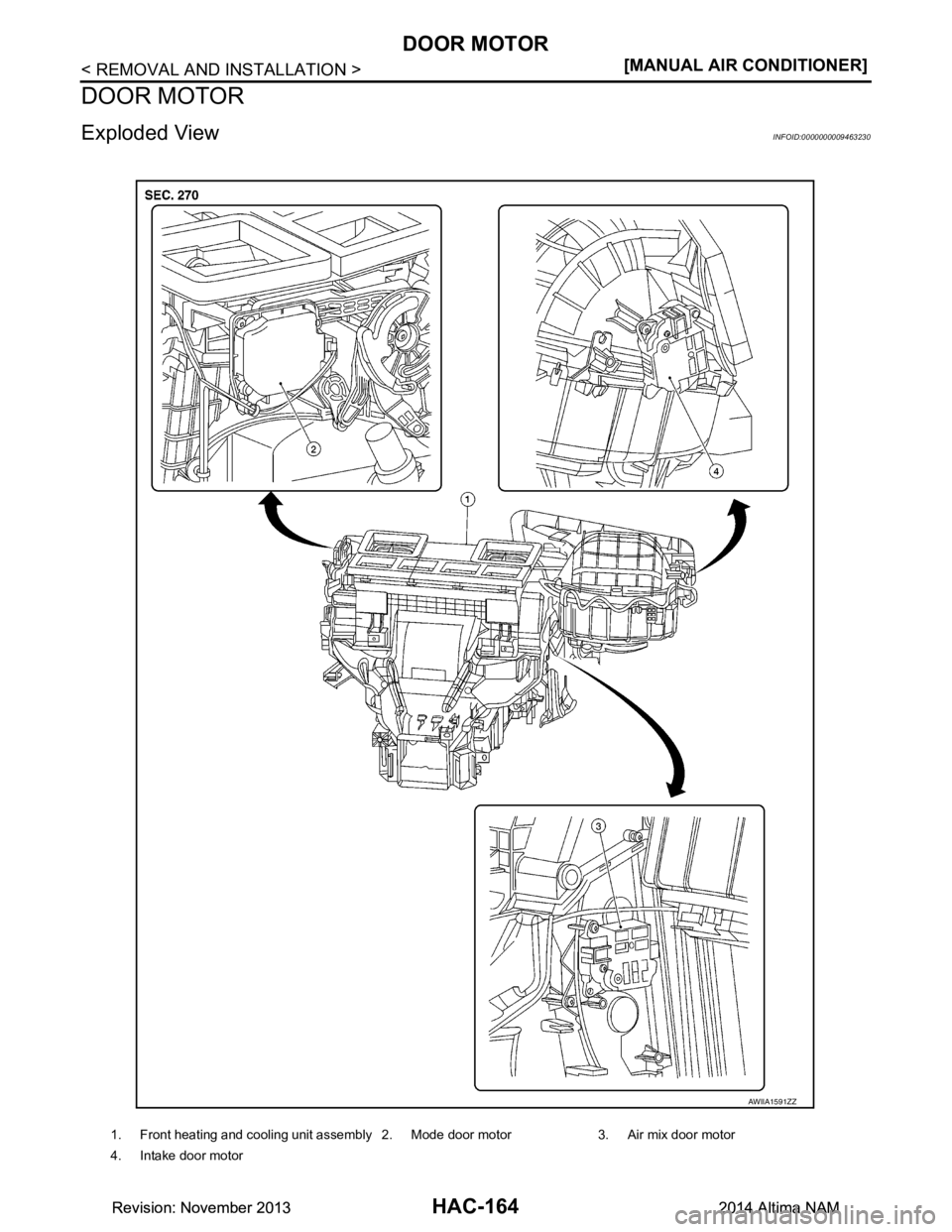

DOOR MOTOR
Exploded ViewINFOID:0000000009463230
1. Front heating and cooling unit assembly 2. Mode door motor 3. Air mix door motor
4. Intake door motor
AWIIA1591ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2814 of 4801
![NISSAN TEANA 2014 Service Manual
DOOR MOTORHAC-165
< REMOVAL AND INSTALLATION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Re moval and InstallationINFOID:0000000009463231
REMO NISSAN TEANA 2014 Service Manual
DOOR MOTORHAC-165
< REMOVAL AND INSTALLATION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Re moval and InstallationINFOID:0000000009463231
REMO](/manual-img/5/57390/w960_57390-2813.png)
DOOR MOTORHAC-165
< REMOVAL AND INSTALLATION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Re moval and InstallationINFOID:0000000009463231
REMOVAL
1. Remove the glove box assembly. Refer to IP-22, "Removal and Installation".
2. Disconnect the harness connector from the intake door motor.
3. Remove the intake door motor screws and the intake door motor.
INSTALLATION
Installation is in the reverse order of removal.
MODE DOOR MOTOR
MODE DOOR MOTOR : Re moval and InstallationINFOID:0000000009463232
REMOVAL
1. Remove the instrument lower panel LH. Refer to IP-21, "Removal and Installation".
2. Disconnect the harness connector from the mode door motor.
3. Remove the mode door motor screws and the mode door motor.
INSTALLATION
Installation is in the reverse order of removal.
AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR : Re moval and InstallationINFOID:0000000009463233
REMOVAL
1. Remove the glove box assembly. Refer to IP-22, "Removal and Installation".
2. Remove the upper floor connecting duct (RH). Refer to HA-40, "Exploded View"
.
3. Disconnect the harness connector from the air mix door motor.
4. Remove the air mix door motor screws and the air mix door motor.
INSTALLATION
Installation is in the reverse order of removal.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2815 of 4801
HRN-1
DRIVER CONTROLS
C
D E
F
G H
I
J
K
M
SECTION HRN
A
B
HRN
N
O P
CONTENTS
HORN
PRECAUTION ................ ...............................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
WIRING DIAGRAM .......................................3
HORN .................................................................3
Wiring Diagram .................................................... .....3
REMOVAL AND INSTALLATION ................7
HORN .................................................................7
Removal and Installation ..................................... .....7
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2816 of 4801

HRN-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951592
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
