Page 2769 of 4801
HAC-120
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
SYSTEM
*1: Inlet status is displayed by indicator when activating Max A/C or D/F modes.

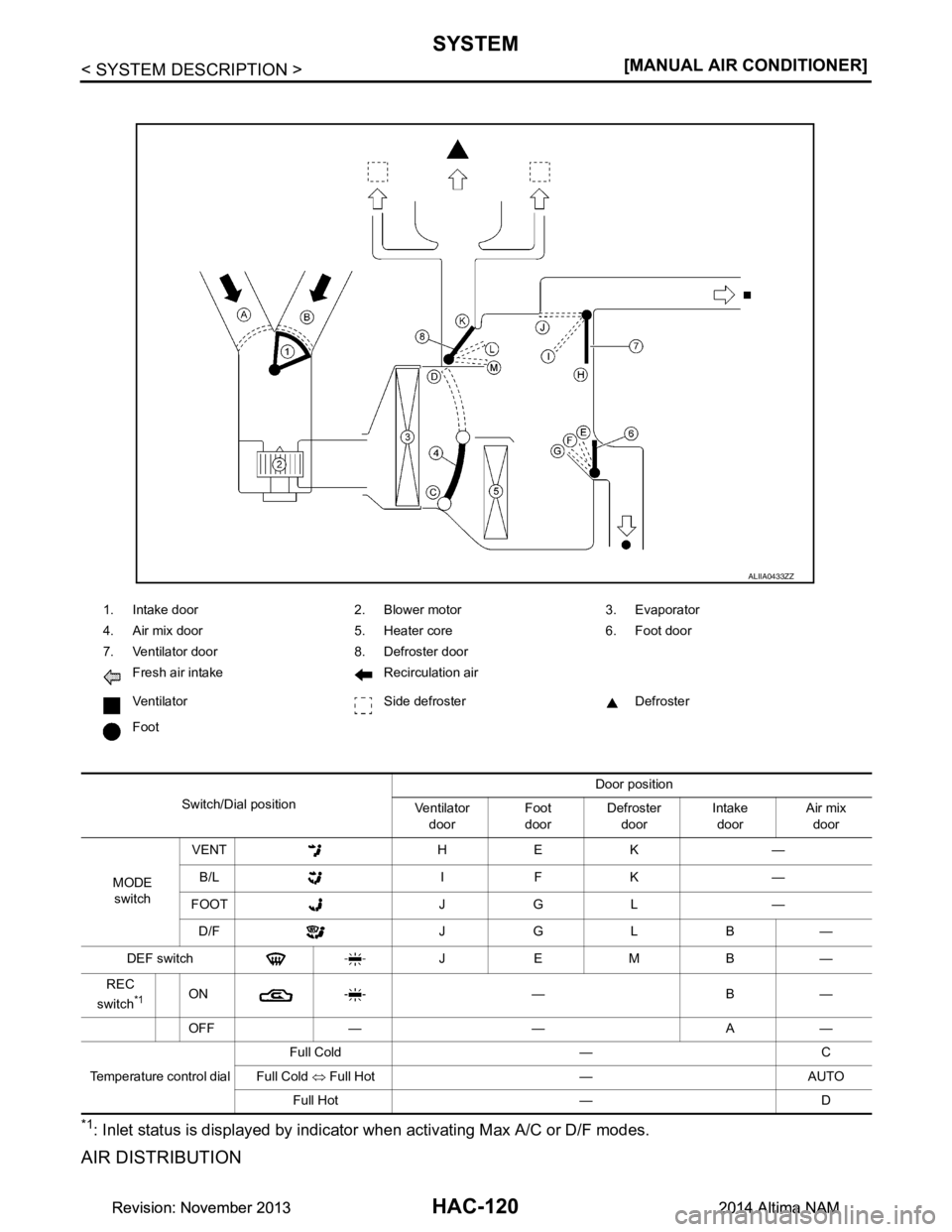

AIR DISTRIBUTION
1. Intake door 2. Blower motor 3. Evaporator
4. Air mix door 5. Heater core 6. Foot door
7. Ventilator door 8. Defroster door Fresh air intake Recirculation air
Ventilator Side defroster Defroster
Foot
ALIIA0433ZZ
Switch/Dial position Door position
Ventilator door Foot
door Defroster
door Intake
door Air mix
door
MODE switch VENT H E K —
B/L I F K —
FOOT J G L — D/F J G L B —
DEF switch J E M B —
REC
switch
*1ON — B —
OFF — — A —
Temperature control dial Full Cold — C
Full Cold ⇔ Full Hot — AUTO
Full Hot — D
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2770 of 4801
![NISSAN TEANA 2014 Service Manual
SYSTEM
HAC-121
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
Temperature ControlINFOID:0000000009463201
• When the ignition switch is in the ON position, the c NISSAN TEANA 2014 Service Manual
SYSTEM
HAC-121
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
Temperature ControlINFOID:0000000009463201
• When the ignition switch is in the ON position, the c](/manual-img/5/57390/w960_57390-2769.png)
SYSTEM
HAC-121
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
Temperature ControlINFOID:0000000009463201
• When the ignition switch is in the ON position, the cu stomer uses the front air control temperature control
dial to set the desired temperature.
• The front air control calculates the target front air mix door opening angle depending on the selected temper-
ature, intake temperature sensor, engine coolant temperature and rpm, and ambient temperature.
• Front air mix door is controlled depending on the comparison of current front air mix door opening angle and target front air mix door opening angle.
• Regardless of ambient temperature, the front air mix door is fixed at the fully cold position when the temper-
ature control dial is set at the full cold position and fi xed at the fully hot position when the temperature control
dial is set at the full hot position.
VENT MODE ( )
OUTLET VENT
ASST CTR
DR RR
ASST DR
AIR FLOW DISTRIBUTION RATIO (%) 22 22 22 22 12
B/L MODE ( )
OUTLET VENT FOOT
ASST CTR
DR RR Fr ASST Fr DR Rr ASST Rr DR
ASST DR
AIR FLOW DISTRIBUTION RATIO (%) 11 11 11 11 1 7 1 4 . 5 1 4 . 5 5 5
D/F1 MODE ( )
OUTLET VENT FOOT DEF
ASST CTR
DR RR Fr
ASST Fr DR
Rr
ASST Rr DR Fr Side
ASST DR
AIR FLOW DISTRIBUTION RATIO(%) 5 0 0 5 17 18 18 7 7 18 5
D/F2 MODE ( )
OUTLET VENT FOOT DEF
ASST CTR
DR RR Fr
ASST Fr DR
Rr
ASST Rr DR Fr Side
ASST DR
AIR FLOW DISTRIBUTION RATIO(%) 5 0 0 5 17 14 14 6.5 6.5 25 7
DEF MODE ( )
OUTLET VENT FOOT DEF
ASST CTR
DR RR Fr
ASST Fr DR
Rr
ASST Rr DR Fr Side
ASST DR
AIR FLOW DISTRIBUTION RATIO(%) 5 0 0 5 14 0 0 0 0 60 16
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2771 of 4801
![NISSAN TEANA 2014 Service Manual
HAC-122
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
OPERATION
OPERATION
Switch Name and FunctionINFOID:0000000009463202
Front Air Control
Switch Operation
1. A/C switch 2. Blower control dial (wi NISSAN TEANA 2014 Service Manual
HAC-122
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
OPERATION
OPERATION
Switch Name and FunctionINFOID:0000000009463202
Front Air Control
Switch Operation
1. A/C switch 2. Blower control dial (wi](/manual-img/5/57390/w960_57390-2770.png)
HAC-122
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
OPERATION
OPERATION
Switch Name and FunctionINFOID:0000000009463202
Front Air Control
Switch Operation
1. A/C switch 2. Blower control dial (with OFF switch) 3. DEF switch
4. Rear DEF switch 5. REC switch 6. Temperature control dial
7. MAX A/C switch 8. D/F switch 9. FOOT switch
10. B/L switch 11. VENT switch
ALIIA0604ZZ
A/C switch Switches the compressor control switch indicator between ON
⇔ OFF with each press while front
blower fan is activated. The circuit used by the BCM to detect an A/C ON request is grounded.
NOTE:
When front blower fan is OFF, the compressor control cannot be activated.
Blower control dial (with
OFF switch) • Blower fan speed is manually controlled with the dial for varying blower speed. When ON, the circuit
used by the BCM to detect a fan ON request signal is grounded.
• Turns air conditioning system OFF.
NOTE:
When blower control dial is turned to any ON position the air conditioning system is activated. (Com-
pressor control state returns to the previous state before air conditioning system was turned OFF.)
DEF switch Switches DEF mode (switch indicator) between ON
⇔ OFF with each press.
• When DEF mode is turned ON, the air conditioning system changes to the following state.
- Air inlet: Fresh air intake
- Air outlet: DEF
- Blower fan: Manual setting.
- Compressor: ON
• When DEF mode is turned OFF, the air conditioning system state returns to the previous state be-
fore DEF mode was selected, but the following state is continued:
- Air inlet: Fresh air intake
- Compressor: ON
NOTE:
When front blower fan is OFF, DEF cannot be activated.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2772 of 4801
![NISSAN TEANA 2014 Service Manual
OPERATIONHAC-123
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
MAX A/C switch Switches the MAX A/C and compressor control switch indicators between ON
⇔ OFF w NISSAN TEANA 2014 Service Manual
OPERATIONHAC-123
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
MAX A/C switch Switches the MAX A/C and compressor control switch indicators between ON
⇔ OFF w](/manual-img/5/57390/w960_57390-2771.png)
OPERATIONHAC-123
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
MAX A/C switch Switches the MAX A/C and compressor control switch indicators between ON
⇔ OFF with each press
while front blower fan is activated.
• When MAX A/C mode is turned ON, the air conditioning system changes to the following state.
- Air inlet: Recirculation air intake
- Air outlet: Manual setting
- Blower fan: Manual setting.
- Compressor: ON
• When MAX A/C mode is turned OFF, the air conditioning system state returns to the previous state
before MAX A/C mode is selected. But, the following state is changed:
- Air inlet: Fresh air intake
- Compressor: ON
NOTE:
When front blower fan is OFF, the compressor control cannot be activated.
MODE switches Selects air outlet from VENT, B/L, FOOT, and D/F.
NOTE:
When the air conditioning system is OFF, the air outlet can still be selected.
REC switch • Air inlet is selected to fresh air intake (REC) by pressing this switch.
- REC indicator: ON
NOTE:
• When the air conditioning system is OFF, the air inlet can still be selected.
• When D/F mode or DEF is selected, the REC button is disabled.
Temperature control dial • Selects desired temperature between full cold and full hot.
- Clockwise rotation: Temperature increases.
- Counterclockwise rotation: Temperature decreases.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2773 of 4801
![NISSAN TEANA 2014 Service Manual
HAC-124
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
CONSULT Function (BCM - COMMON ITEM)INFOID:0000000009958322
CAUTION:
After disconnecting the CONS NISSAN TEANA 2014 Service Manual
HAC-124
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
CONSULT Function (BCM - COMMON ITEM)INFOID:0000000009958322
CAUTION:
After disconnecting the CONS](/manual-img/5/57390/w960_57390-2772.png)
HAC-124
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
CONSULT Function (BCM - COMMON ITEM)INFOID:0000000009958322
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentially causing a di scharged battery and a no-start condition.
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode Description
Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
Ecu Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN Diag Support Mntr
Door lock DOOR LOCK ××××
Rear window defogger REAR DEFOGGER ×××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ×××
Exterior lamp HEADLAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM × × ×××
Immobilizer IMMU ×××
Interior room lamp battery saver BATTERY SAVER ××
Trunk open TRUNK ×
Vehicle security system THEFT ALM ×××
RAP system RETAINED PWR ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2774 of 4801
DIAGNOSIS SYSTEM (BCM)HAC-125
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
CONSULT Function (BCM - AIR CONDITIONER)INFOID:0000000009958323
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentiall y causing a discharged battery and a no-start condition.
DATA MONITOR
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
System Sub System
Direct Diagnostic Mode
Ecu Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN Diag Support Mntr
Monitor Item [Unit] Description
FAN ON SIG [On/Off] Indicates condition of fan switch.
AIR COND SW [On/Off] Indicates condition of A/C switch.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2775 of 4801
![NISSAN TEANA 2014 Service Manual
HAC-126
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
DIAGNOSIS SYSTEM (IPDM E/R)
DIAGNOSIS SYSTEM (IPDM E/R)
CONSULT Function (IPDM E/R)INFOID:0000000009958324
CAUTION:
After disconnecting the CON NISSAN TEANA 2014 Service Manual
HAC-126
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
DIAGNOSIS SYSTEM (IPDM E/R)
DIAGNOSIS SYSTEM (IPDM E/R)
CONSULT Function (IPDM E/R)INFOID:0000000009958324
CAUTION:
After disconnecting the CON](/manual-img/5/57390/w960_57390-2774.png)
HAC-126
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONER]
DIAGNOSIS SYSTEM (IPDM E/R)
DIAGNOSIS SYSTEM (IPDM E/R)
CONSULT Function (IPDM E/R)INFOID:0000000009958324
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentially causing a di scharged battery and a no-start condition.
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with IPDM E/R.
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to PCS-20, "DTC Index".
DATA MONITOR
Direct Diagnostic Mode Description
Ecu Identification The IPDM E/R part number is displayed.
Self Diagnostic Result The IPDM E/R self diagnostic results are displayed.
Data Monitor The IPDM E/R input/output data is displayed in real time.
Active Test The IPDM E/R activates outputs to test components.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.
Monitor Item [Unit] Main
Signals Description
MOTOR FAN REQ [%] ×Indicates cooling fan speed signal received from ECM on CAN communication
line
AC COMP REQ [On/Off] ×Indicates A/C compressor request signal received from ECM on CAN commu-
nication line
TAIL&CLR REQ [On/Off] ×Indicates position light request signal received from BCM on CAN communica-
tion line
HL LO REQ [On/Off] ×Indicates low beam request signal received from BCM on CAN communication
line
HL HI REQ [On/Off] ×Indicates high beam request signal received from BCM on CAN communication
line
FR FOG REQ [On/Off] ×Indicates front fog light request signal received from BCM on CAN communica-
tion line
FR WIP REQ [Stop/1LOW/Low/Hi] ×Indicates front wiper request signal received from BCM on CAN communication
line
WIP AUTO STOP [STOP P/ACT P] ×Indicates condition of front wiper auto stop signal
WIP PROT [Off/BLOCK] ×Indicates condition of front wiper fail-safe operation
IGN RLY1 -REQ [On/Off] Indicates ignition switch ON signal received from BCM on CAN communication
line
IGN RLY [On/Off] ×Indicates condition of ignition relay
PUSH SW [On/Off] Indicates condition of push-button ignition switch
INTER/NP SW [On/Off] Indicates condition of CVT shift position
ST RLY CONT [On/Off] Indicates starter relay status signal received from BCM on CAN communication
line
IHBT RLY -REQ [On/Off] Indicates starter control relay signal received from BCM on CAN communication
line
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2776 of 4801
![NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (IPDM E/R)HAC-127
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
ACTIVE TEST
CAN DIAG SUPPORT MNTR
Refer to LAN-15, "CAN Diagnostic Support Mon NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (IPDM E/R)HAC-127
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
ACTIVE TEST
CAN DIAG SUPPORT MNTR
Refer to LAN-15, "CAN Diagnostic Support Mon](/manual-img/5/57390/w960_57390-2775.png)
DIAGNOSIS SYSTEM (IPDM E/R)HAC-127
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
ACTIVE TEST
CAN DIAG SUPPORT MNTR
Refer to LAN-15, "CAN Diagnostic Support Monitor".
ST/INHI RLY [Off/ ST /INHI] Indicates condition of starter relay and starter control relay
DETENT SW [On/Off] Indicates condition of CVT shift selector (park position switch)
DTRL REQ [Off] Indicates daytime light request signal received from BCM on CAN communica-
tion line
HOOD SW [On/Off] Indicates condition of hood switch
THFT HRN REQ [On/Off] Indicates theft warning horn request signal received from BCM on CAN commu-
nication line
HORN CHIRP [On/Off] Indicates horn reminder signal received from BCM on CAN communication line
HOOD SW 2 [On/Off] Indicates condition of hood switch 2 Monitor Item [Unit]
Main
Signals Description
Test item Description
HORN This test is able to check horn operation [On].
FRONT WIPER This test is able to check wiper motor operation [Hi/Lo/Off].
MOTOR FAN This test is able to check cooling fan operation [4/3/2/1].
EXTERNAL LAMPS This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
