NISSAN TEANA 2014 Service Manual
SERVICE DATA AND SPECIFICATIONS (SDS)EM-115
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
Unit: mm (in)
Valve Seat
Unit: mm (in)
Description Standard Service
Val

Page 2114 of 4801

NISSAN TEANA 2014 Service Manual
EM-116
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
*1 Machining data
CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
*: Total indicator reading

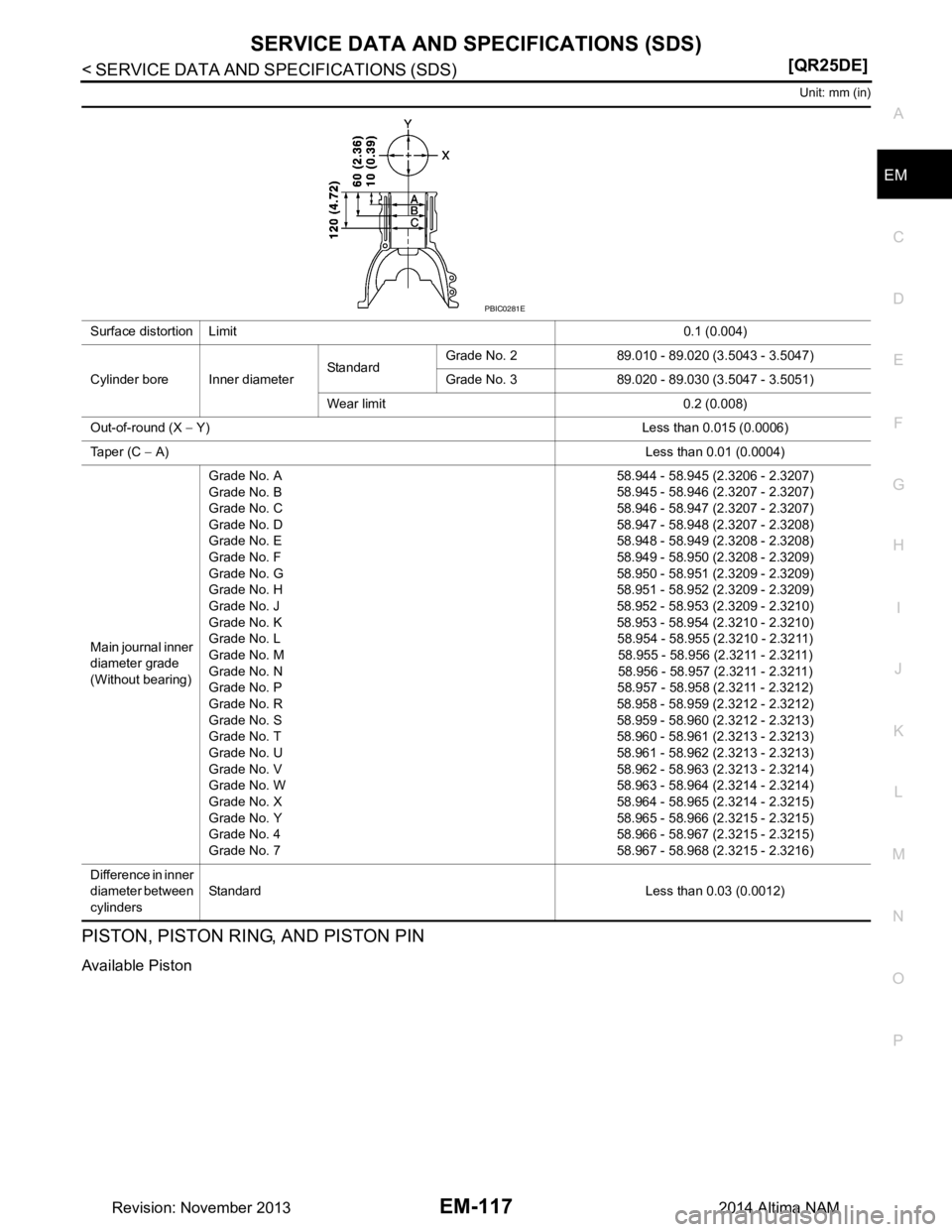

CYLINDER BLOCK
A

Page 2115 of 4801

NISSAN TEANA 2014 Service Manual
SERVICE DATA AND SPECIFICATIONS (SDS)EM-117
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
Unit: mm (in)
PISTON, PISTON RING, AND PISTON PIN
Available Piston
Surfa

Page 2116 of 4801

NISSAN TEANA 2014 Service Manual
EM-118
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Piston Ring
Uni

Page 2117 of 4801

NISSAN TEANA 2014 Service Manual
SERVICE DATA AND SPECIFICATIONS (SDS)EM-119
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
1: After installing in connecting rod.
2: Always check with the Parts De

Page 2118 of 4801

NISSAN TEANA 2014 Service Manual
EM-120
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
*: Total indicator reading
MAIN BEARING
Unit: mm (in)
Main journal dia. (Dm) grade Grade No. A
Grade No.

EM-120
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
*: Total indicator reading

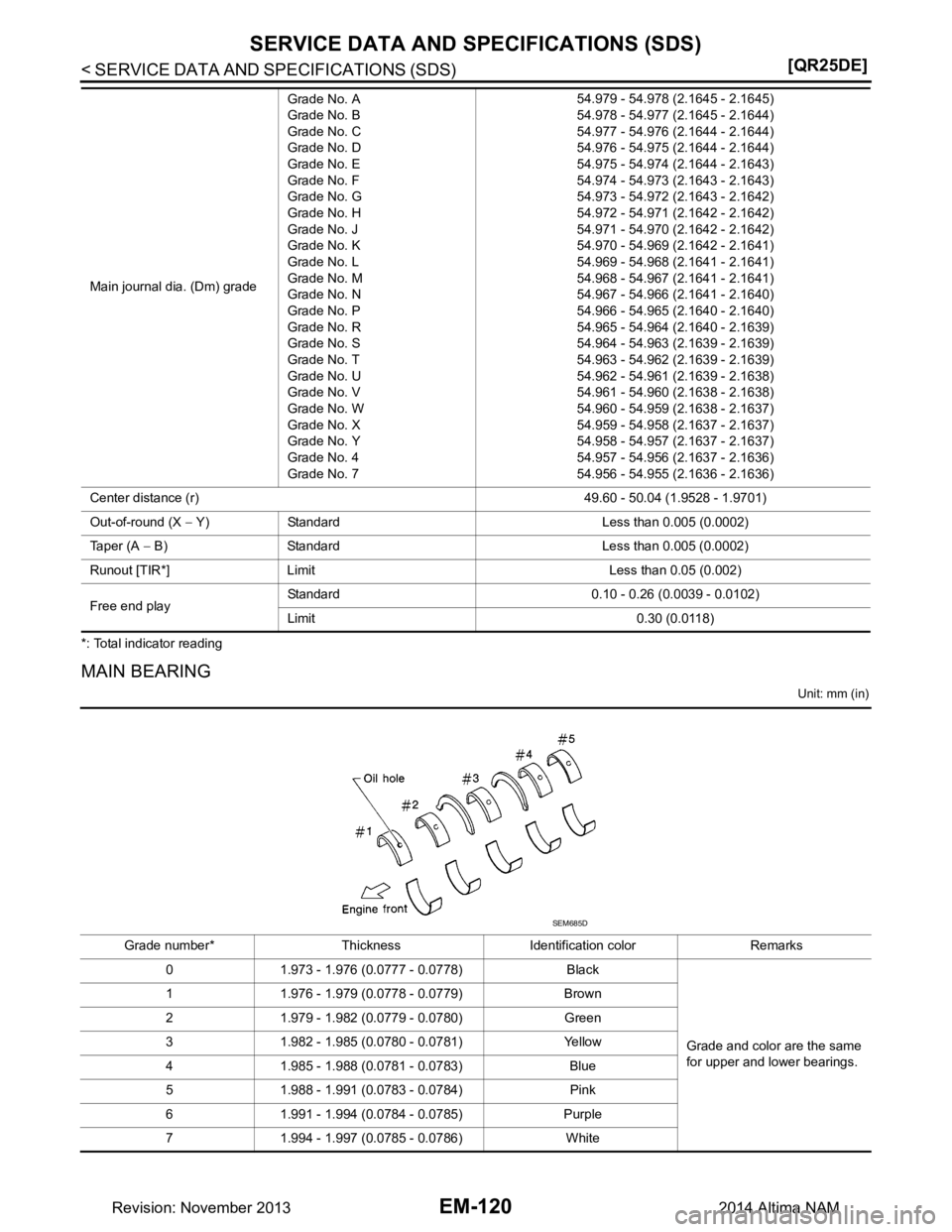

MAIN BEARING
Unit: mm (in)
Main journal dia. (Dm) grade Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 7 54.979 - 54.978 (2.1645 - 2.1645)
54.978 - 54.977 (2.1645 - 2.1644)
54.977 - 54.976 (2.1644 - 2.1644)
54.976 - 54.975 (2.1644 - 2.1644)
54.975 - 54.974 (2.1644 - 2.1643)
54.974 - 54.973 (2.1643 - 2.1643)
54.973 - 54.972 (2.1643 - 2.1642)
54.972 - 54.971 (2.1642 - 2.1642)
54.971 - 54.970 (2.1642 - 2.1642)
54.970 - 54.969 (2.1642 - 2.1641)
54.969 - 54.968 (2.1641 - 2.1641)
54.968 - 54.967 (2.1641 - 2.1641)
54.967 - 54.966 (2.1641 - 2.1640)
54.966 - 54.965 (2.1640 - 2.1640)
54.965 - 54.964 (2.1640 - 2.1639)
54.964 - 54.963 (2.1639 - 2.1639)
54.963 - 54.962 (2.1639 - 2.1639)
54.962 - 54.961 (2.1639 - 2.1638)
54.961 - 54.960 (2.1638 - 2.1638)
54.960 - 54.959 (2.1638 - 2.1637)
54.959 - 54.958 (2.1637 - 2.1637)
54.958 - 54.957 (2.1637 - 2.1637)
54.957 - 54.956 (2.1637 - 2.1636)
54.956 - 54.955 (2.1636 - 2.1636)
Center distance (r) 49.60 - 50.04 (1.9528 - 1.9701)
Out-of-round (X − Y) Standard Less than 0.005 (0.0002)
Taper (A − B) Standard Less than 0.005 (0.0002)
Runout [TIR*] Limit Less than 0.05 (0.002)
Free end play Standard 0.10 - 0.26 (0.0039 - 0.0102)
Limit 0.30 (0.0118)
Grade number* Thickness Identification color Remarks 0 1.973 - 1.976 (0.0777 - 0.0778) Black
Grade and color are the same
for upper and lower bearings.
1 1.976 - 1.979 (0.0778 - 0.0779) Brown
2 1.979 - 1.982 (0.0779 - 0.0780) Green
3 1.982 - 1.985 (0.0780 - 0.0781) Yellow
4 1.985 - 1.988 (0.0781 - 0.0783) Blue
5 1.988 - 1.991 (0.0783 - 0.0784) Pink
6 1.991 - 1.994 (0.0784 - 0.0785) Purple
7 1.994 - 1.997 (0.0785 - 0.0786) White
SEM685D
Revision: November 20132014 Altima NAM

Page 2119 of 4801

NISSAN TEANA 2014 Service Manual
SERVICE DATA AND SPECIFICATIONS (SDS)EM-121
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
*: Always check with the Parts Department for the latest parts informati

SERVICE DATA AND SPECIFICATIONS (SDS)EM-121
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
*: Always check with the Parts Department for the latest parts information.
Undersize
Unit: mm (in)
Bearing Clearance
Unit: mm (in)
CONNECTING ROD BEARING
01
UPR 1.973 - 1.976 (0.0777 - 0.0778) Black
Grade and color are different
for upper and lower bearings.
LWR 1.976 - 1.979 (0.0778 - 0.0779) Brown
12 UPR 1.976 - 1.979 (0.0778 - 0.0779) Brown
LWR 1.979 - 1.982 (0.0779 - 0.0780) Green
23 UPR 1.979 - 1.982 (0.0779 - 0.0780) Green
LWR 1.982 - 1.985 (0.0780 - 0.0781) Yellow
34 UPR 1.982 - 1.985 (0.0780 - 0.0781) Yellow
LWR 1.985 - 1.988 (0.0781 - 0.0783) Blue
45 UPR 1.985 - 1.988 (0.0781 - 0.0783) Blue
LWR 1.988 - 1.991 (0.0783 - 0.0784) Pink
56 UPR 1.988 - 1.991 (0.0783 - 0.0784) Pink
LWR 1.991 - 1.994 (0.0784 - 0.0785) Purple
67 UPR 1.991 - 1.994 (0.0784 - 0.0785) Purple
LWR 1.994 - 1.997 (0.0785 - 0.0786) White
Size U.S. Thickness Main journal diameter
0.25 (0.0098) 2.106 - 2.114 (0.0829 - 0.0832) Grind so that bearing clearance is the spec-
ified value.
Main bearing oil clearance StandardNo.1, 3, and 5 0.012 - 0.022 (0.0005 - 0.0009)
No.2 and 4 0.018 - 0.028 (0.0007 - 0.0011)
Limit 0.1 (0.004)
Grade number* Thickness mm (in) Identification color (mark) 0 (upper) 1.496 - 1.493 (0.0589 - 0.0588) Black-Black0 (lower) 1.496 - 1.493 (0.0589 - 0.0588) Black-Black
01 (upper) 1.496 - 1.493 (0.0589 - 0.0588) Black-Black 01 (lower) 1.499 - 1.496 (0.0590 - 0.0589) Brown-Brown 1 (upper) 1.499 - 1.496 (0 .0590 - 0.0589) Brown-Brown
1 (lower) 1.499 - 1.496 (0 .0590 - 0.0589) Brown-Brown
12 (upper) 1.499 - 1.496 (0.0590 - 0.0589) Brown-Brown 12 (lower) 1.502 - 1.499 (0.0591 - 0.0590) Green-Green 2 (upper) 1.502 - 1.499 (0.0591 - 0.0590) Green-Green2 (lower) 1.502 - 1.499 (0.0591 - 0.0590) Green-Green
23 (upper) 1.502 - 1.499 (0.0591 - 0.0590) Green-Green 23 (lower) 1.505 - 1.502 (0.0593 - 0.0591) Yellow-Yellow 3 (upper) 1.505 - 1.502 (0.0593 - 0.0591) Yellow-Yellow3 (lower) 1.505 - 1.502 (0.0593 - 0.0591) Yellow-Yellow
34 (upper) 1.505 - 1.502 (0.0593 - 0.0591) Yellow-Yellow 34 (lower) 1.508 - 1.505 (0.0594 - 0.0593) Blue-Blue 4 (upper) 1.508 - 1.505 (0.0594 - 0.0593) Blue-Blue4 (lower) 1.508 - 1.505 (0.0594 - 0.0593) Blue-Blue
Revision: November 20132014 Altima NAM

Page 2120 of 4801

NISSAN TEANA 2014 Service Manual
EM-122
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
*: Always check with the Parts Department for the latest parts information.
Undersize
Unit: mm (in)
Beari
