Page 2889 of 4801

NISSAN TEANA 2014 Service Manual
INL-68
< REMOVAL AND INSTALLATION >
TRUNK ROOM LAMP
TRUNK ROOM LAMP
Removal and InstallationINFOID:0000000009463904
WARNING:
Do not touch bulb while it is lit or right after being turned OFF. Burnin

Page 2890 of 4801

NISSAN TEANA 2014 Service Manual
ILLUMINATION CONTROL SWITCHINL-69
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
ILLUMINATION CONTROL SWITCH
Removal and InstallationINFOID:0000000009463906
REMOVAL
1. Remove the in

Page 2891 of 4801

NISSAN TEANA 2014 Service Manual
INL-70
< SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Bulb SpecificationsINFOID:00000000094

Page 2892 of 4801

NISSAN TEANA 2014 Service Manual
INT-1
BODY INTERIOR
C
D E
F
G H
I
K L
M
SECTION INT
A
B
INT
N
O P
CONTENTS
INTERIOR
PRECAUTION ................ ...............................3
PRECAUTIONS ........................................

INT-1
BODY INTERIOR
C
D E
F
G H
I
K L
M
SECTION INT
A
B
INT
N
O P
CONTENTS
INTERIOR
PRECAUTION ................ ...............................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution for Work ..................................................3
PREPARATION ............................................4
PREPARATION .............................................. .....4
Special Service Tools .......................................... ......4
Commercial Service Tools ........................................4
CLIP LIST ............................................................5
Descriptions for Clips .......................................... ......5
SYMPTOM DIAGNOSIS ...............................9
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ........................................................... .....
9
Work Flow ........................................................... ......9
Generic Squeak and Rattle Troubleshooting ..........10
Diagnostic Worksheet .............................................13
REMOVAL AND INSTALLATION ...............15
FRONT DOOR FINISHER .............................. ....15
Exploded View .................................................... ....15
Removal and Installation .........................................15
REAR DOOR FINISHER ................................ ....18
Exploded View .................................................... ....18
Removal and Installation .........................................18
BODY SIDE TRIM .......................................... ....20
Exploded View .................................................... ....20
DASH SIDE FINISHER .......................................... ....20
DASH SIDE FINISHER : Removal and Installation
....
20
FRONT PILLAR FINISHER ................................... ....20
FRONT PILLAR FINISHER : Removal and Instal-
lation .................................................................... ....
21
FRONT KICKING PLATE ...................................... ....21
FRONT KICKING PLATE : Removal and Installa-
tion - Inner ........................................................... ....
21
FRONT KICKING PLATE : Removal and Installa-
tion - Outer ........................................................... ....
22
REAR KICKING PLATE ........................................ ....22
REAR KICKING PLATE : Removal and Installa-
tion - Inner ........................................................... ....
22
REAR KICKING PLATE : Removal and Installa-
tion - Outer ........................................................... ....
22
BODY SIDE WELT ................................................. ....23
BODY SIDE WELT : Removal and Installation -
Front Body Side Welt ........................................... ....
23
BODY SIDE WELT : Removal and Installation -
Rear Body Side Welt ........................................... ....
23
CENTER PILLAR LOWER FINISHER ................... ....23
CENTER PILLAR LOWER FINISHER : Removal
and Installation .................................................... ....
23
CENTER PILLAR UPPER FINISHER ........................24
CENTER PILLAR UPPER FINISHER : Removal
and Installation .................................................... ....
24
REAR PILLAR FINISHER ...................................... ....25
REAR PILLAR FINISHER : Removal and Installa-
tion ....................................................................... ....
25
REAR PARCEL SHELF FINISHER ..................26
Exploded View .........................................................26
Removal and Installation .........................................26
FLOOR TRIM ....................................................27
Exploded View .........................................................27
Removal and Installation .........................................27
HEADLINING ....................................................29
Exploded View .........................................................29
Revision: November 20132014 Altima NAM

Page 2893 of 4801

NISSAN TEANA 2014 Service Manual
INT-2
Removal and Installation ........................................30
TRUNK ROOM TRIM & TRUNK LID FINISH-
ER ................................................................... ...
33
Exploded

Page 2894 of 4801

NISSAN TEANA 2014 Service Manual
PRECAUTIONSINT-3
< PRECAUTION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:00000000

PRECAUTIONSINT-3
< PRECAUTION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951557
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for WorkINFOID:0000000009461335
• When removing or disassembling each component, be ca reful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusabl e part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
-Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: November 20132014 Altima NAM

Page 2895 of 4801

NISSAN TEANA 2014 Service Manual
INT-4
< PREPARATION >
PREPARATION
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000009461336
The actual shapes of the tools may differ from those illustrated here.
Commercial Service ToolsI

Page 2896 of 4801

NISSAN TEANA 2014 Service Manual
CLIP LISTINT-5
< PREPARATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P

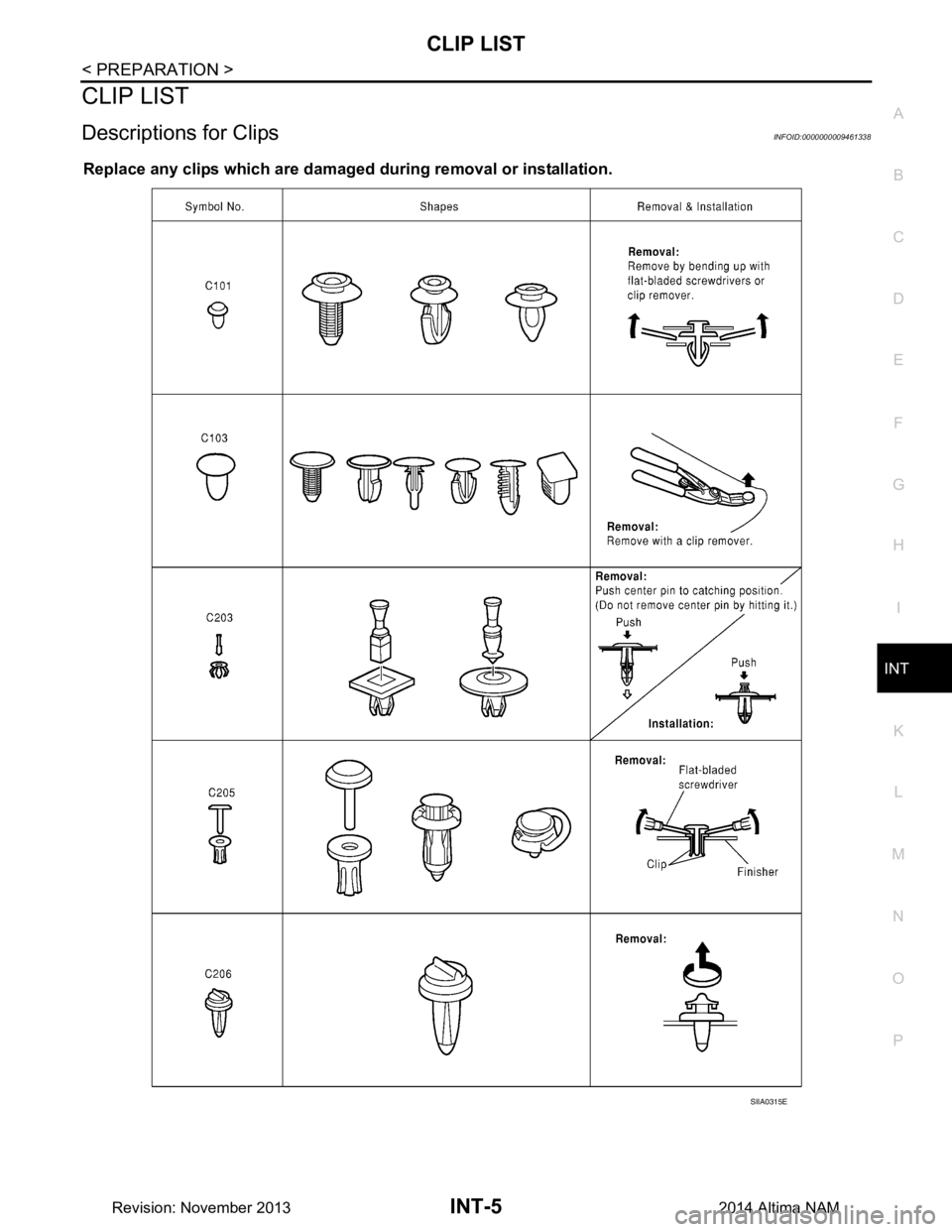

CLIP LIST
Descriptions for ClipsINFOID:0000000009461338
Replace any clips which are damaged during removal or installation.
SIIA031
