Page 3809 of 4801

NISSAN TEANA 2014 Service Manual
SE-60
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT

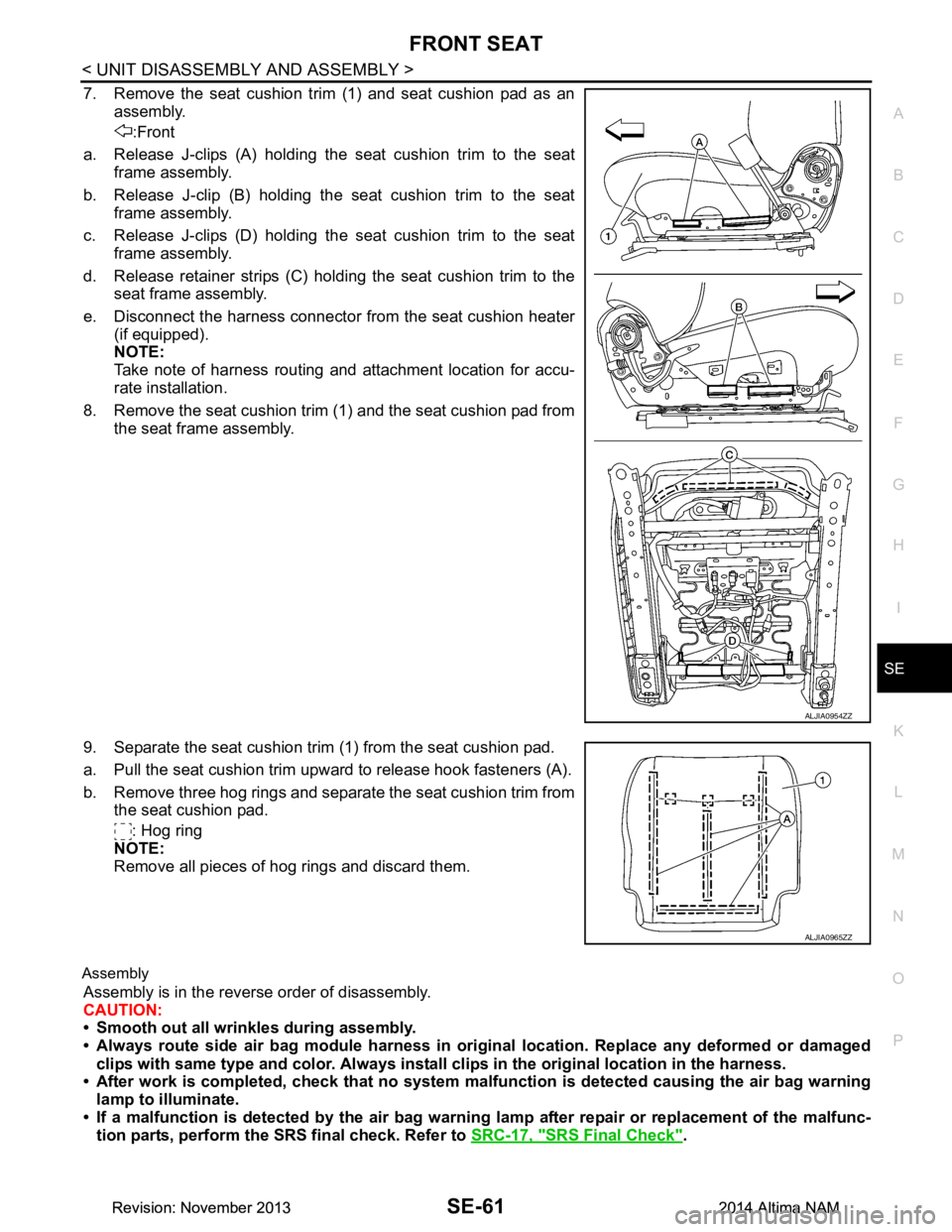

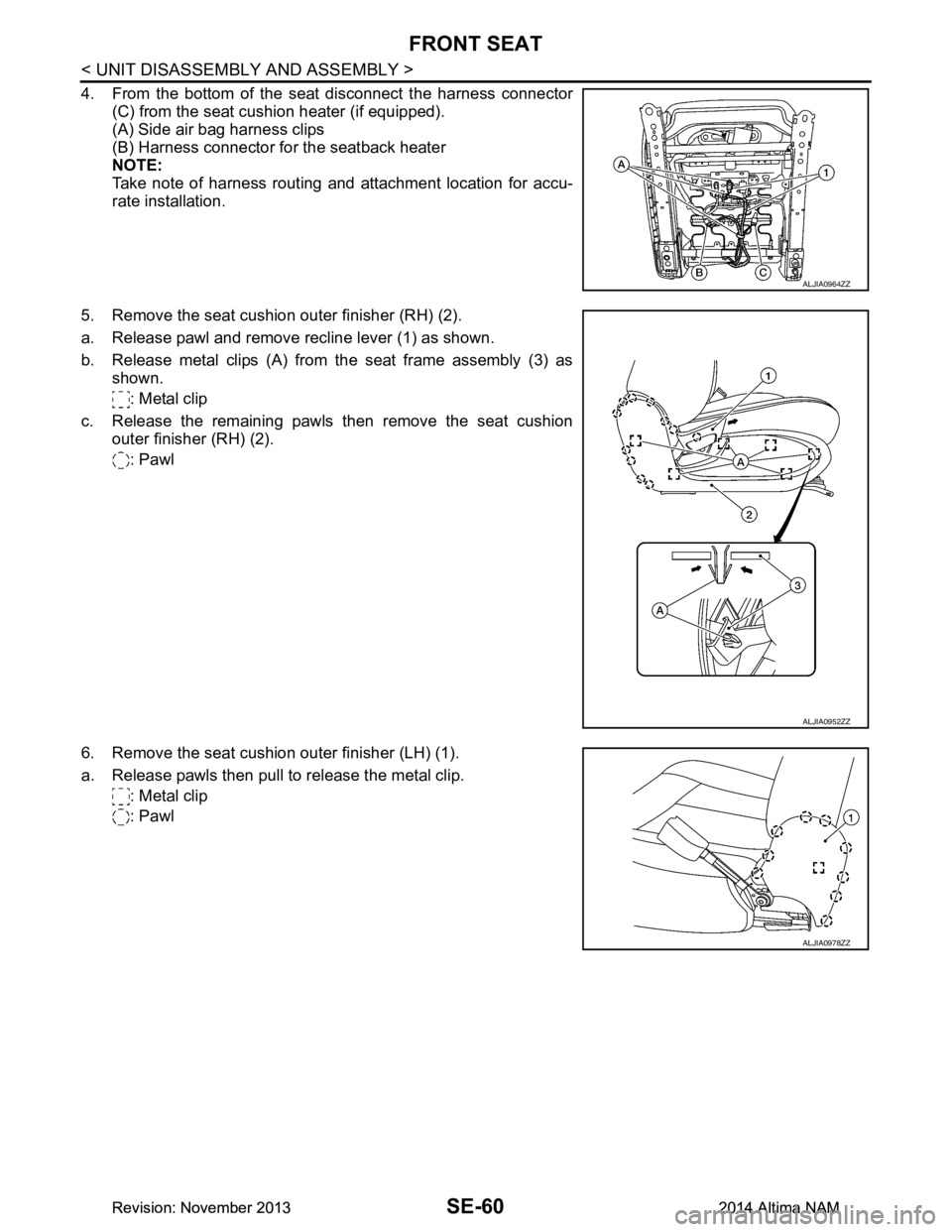

4. From the bottom of the seat disconnect the harness connector(C) from the seat cushion heater (if equipped).
(A) Side air bag harness clips
(B)

Page 3810 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-61
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P

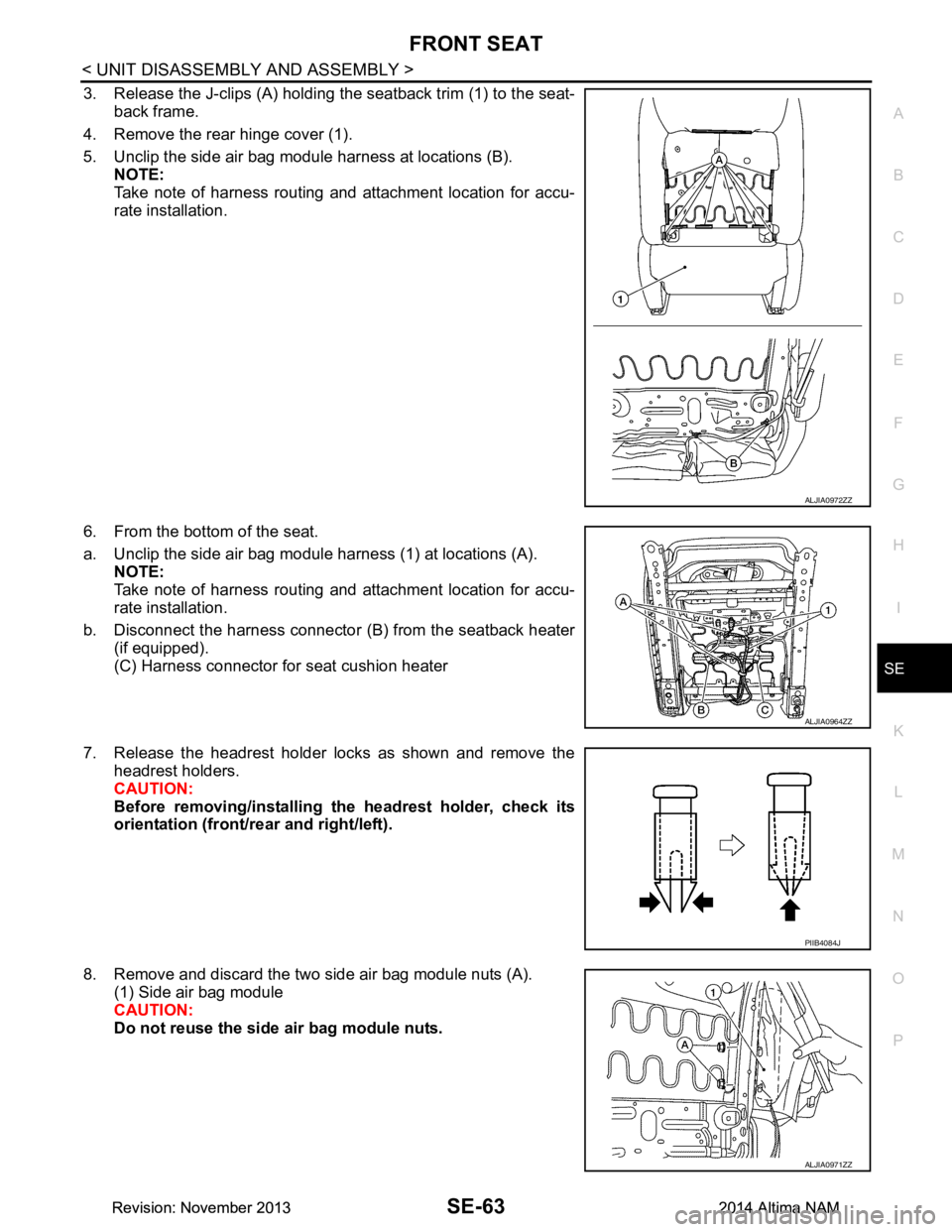

7. Remove the seat cushion trim (1) and seat cushion pad as an assembly.
:Front
a. Release J-clips (A) holding the

Page 3811 of 4801

NISSAN TEANA 2014 Service Manual
SE-62
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT
• When installing the seat cushion trim, firmly push down while slid-ing your hand along the seams as shown ( ) to ensure the hook
fasteners belo

SE-62
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT
• When installing the seat cushion trim, firmly push down while slid-ing your hand along the seams as shown ( ) to ensure the hook
fasteners below the seat cushion trim are fastened properly.
• Install new hog rings on the seat cushion trim in original positions. Use only one hog ring in each designated location.
Ensure hog rings are correctly fastened around both the seat cush-
ion trim and seat cushion pad wires.
Use NISSAN standard hog rings and tools to assemble.
PASSENGER SIDE : Side air bag moduleINFOID:0000000009462953
WARNING:
Do not leave any objects (screwdrivers, tools, etc. ) on the seat during seatback repair. It can lead to
personal injury if the side ai r bag should accidentally deploy.
CAUTION:
• Before servicing, turn ignition sw itch OFF, disconnect both battery terminals and wait at least three
minutes.
• Handle the side air bag module carefully. During disassembly, alw ays hold the side air bag module,
do not let it hang by the wire harness.
• Always work from the side or back of the seat back assembly, do not work in front of seat.
• Do not use air tools or electric tools for servicing the seat assembly.
• Replace the side air bag module if it h as been dropped or sustained an impact.
• Do not insert any objects into the side air bag module.
• Do not attempt to disassemble the side air bag module.
• Do not expose the side air bag module to temperatures exceeding 93 °C (200 °F).
• Do not expose the side air bag module to any oil, grease, detergent or water.
• During disassembly, do not damage the seatback board, chutes, connectors, retainers, clips, module
harness or the side air bag module.
NOTE:
• If the vehicle has been involved in a collision and the side air bag has deployed, the front seatback assembly
must be replaced.
• For side air bag module removal and installation, seatback trim and seatback pad must be removed.
REMOVAL
1. Remove the front seat assembly. Refer to SE-30, "PASSENGER SIDE : Removal and Installation - Seat
Assembly".
2. Remove the seatback board. Refer to SE-31, "PASSENGER SIDE : Removal and Installation - Seatback
Board".
ALJIA0656ZZ
PIIB3356J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3812 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-63
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P

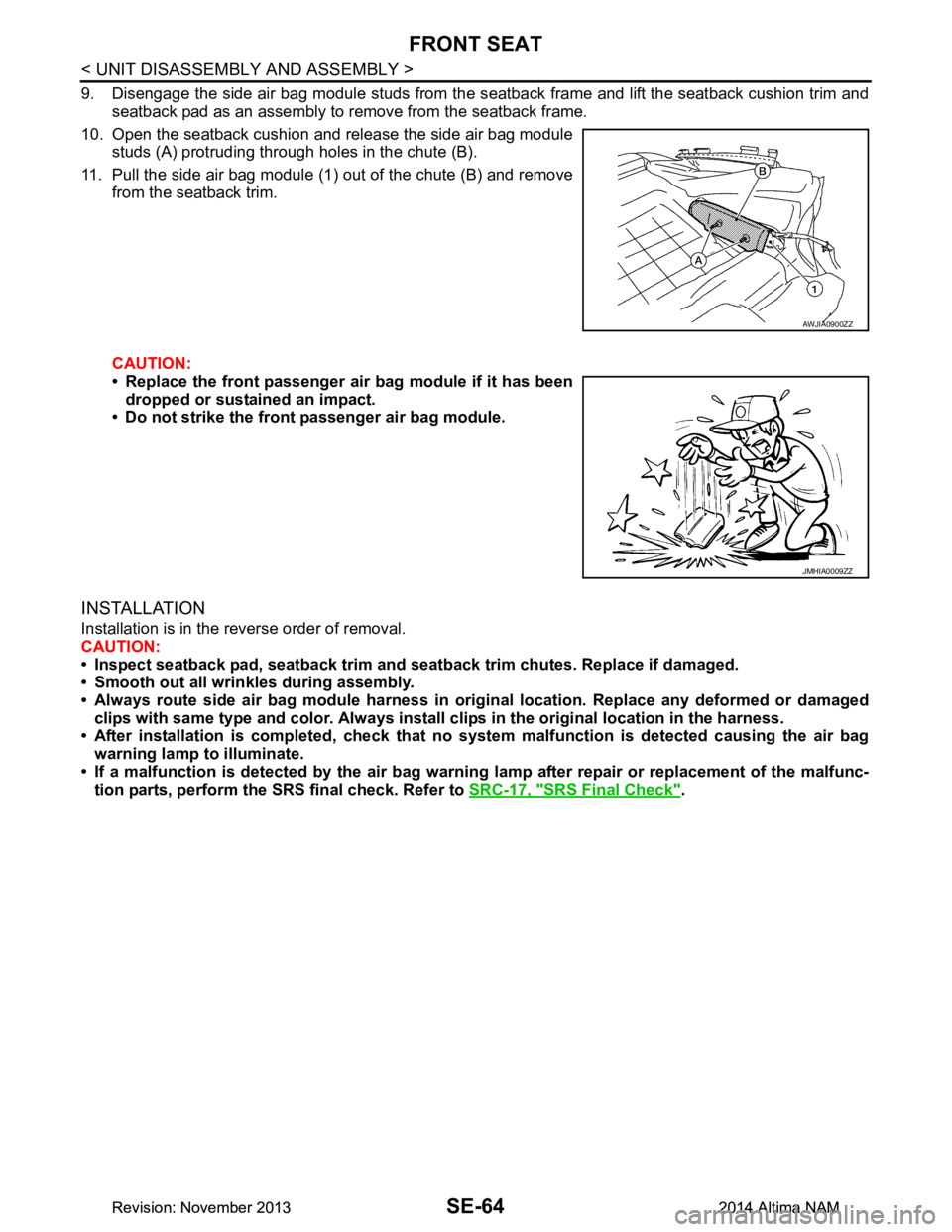

3. Release the J-clips (A) holding the seatback trim (1) to the seat- back frame.
4. Remove the rear hinge cover (

Page 3813 of 4801

NISSAN TEANA 2014 Service Manual
SE-64
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT
9. Disengage the side air bag module studs from the seatback frame and lift the seatback cushion trim and
seatback pad as an assembly to remove from

Page 3814 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-65
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P

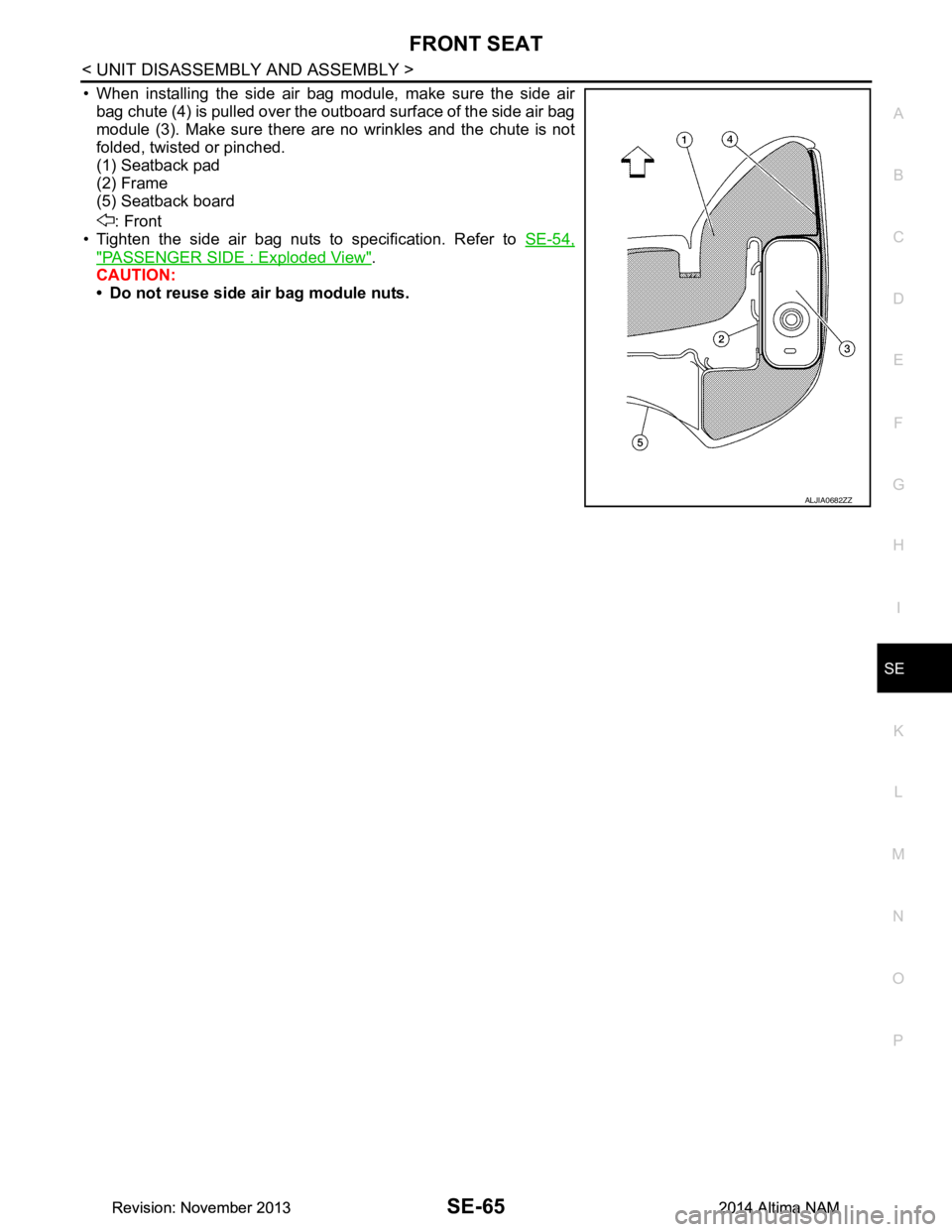

• When installing the side air bag module, make sure the side air bag chute (4) is pulled over the outboard surf

Page 3815 of 4801

NISSAN TEANA 2014 Service Manual
SE-66
< UNIT DISASSEMBLY AND ASSEMBLY >
REAR SEAT
REAR SEAT
Exploded ViewINFOID:0000000009462954
REAR SEAT WITHOUT REMOVABLE HEADREST

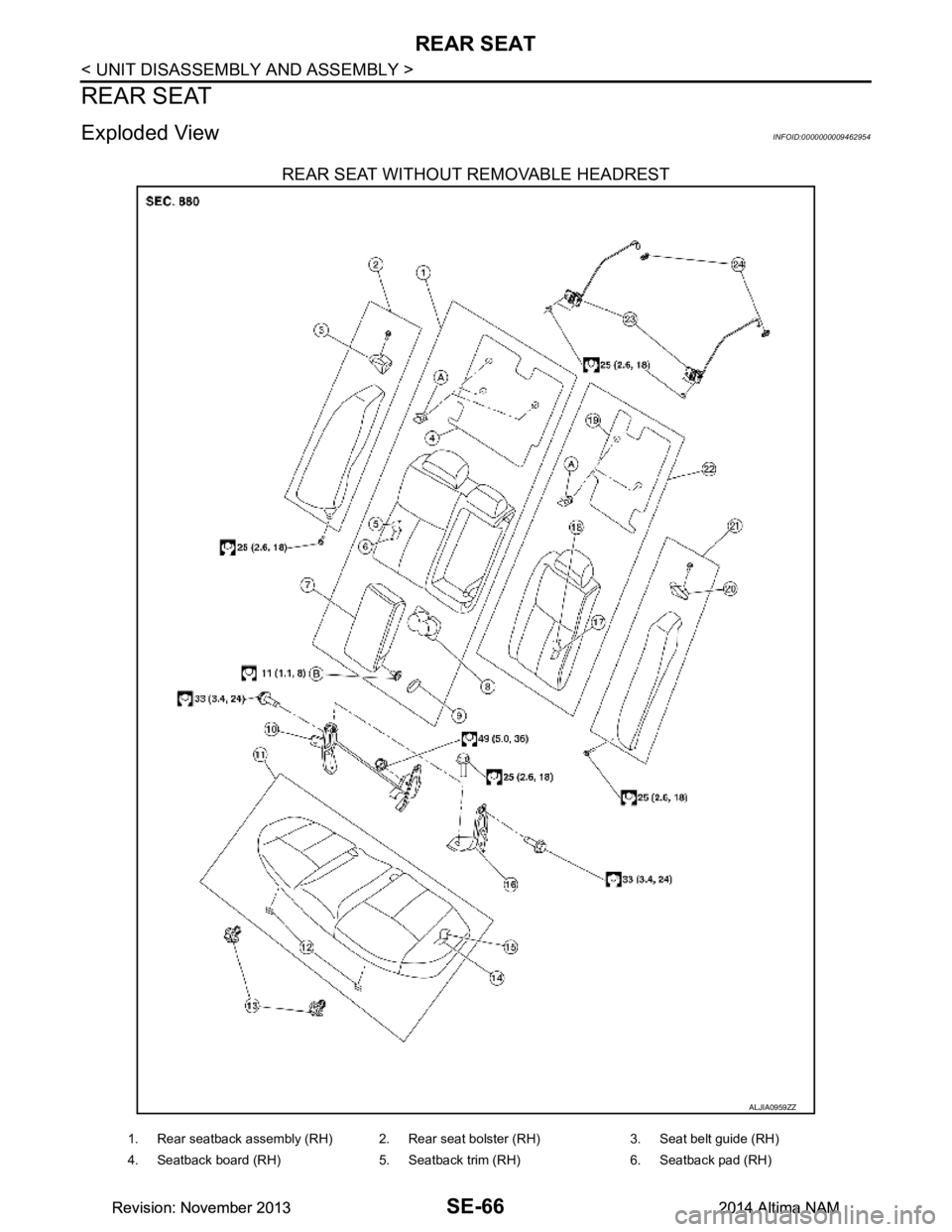

ALJIA0959ZZ
1. Rear seatback assembly (RH) 2. Rear seat bolster (

Page 3816 of 4801

NISSAN TEANA 2014 Service Manual
REAR SEATSE-67
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
7. Armrest 8. Cup holder 9. Armrest hinge finisher
10. Seatback hinge assembly (RH) 11. Seat cushion assembly 12.
